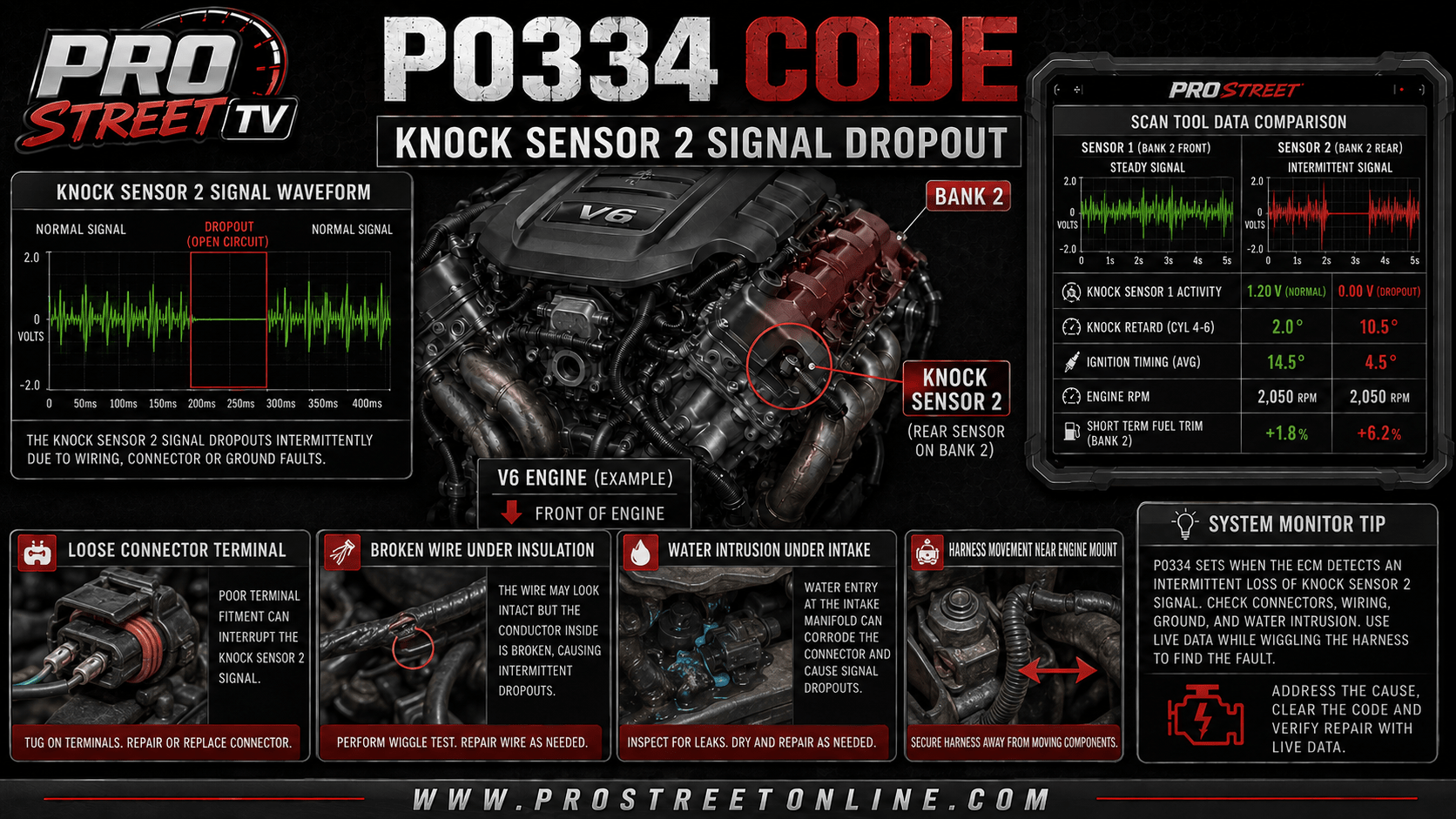

The P0334 OBD-II trouble code means the Powertrain Control Module has detected an intermittent electrical signal from Knock Sensor 2.
The generic definition for P0334 is:
Knock Sensor 2 Circuit Intermittent — Bank 2
Depending on the vehicle, Knock Sensor 2 may monitor Bank 2, the rear portion of an inline engine or another manufacturer-designated cylinder group.
Unlike P0332 or P0333, the signal is not consistently low or high. With P0334, the sensor circuit may operate normally before suddenly dropping out, spiking or returning.
Common causes include include:
- Loose connector terminals
- Broken wiring
- Heat-sensitive sensor failure
- Water, coolant or oil contamination
- Damaged signal shielding
- Harness movement
- Poor electrical grounds
- PCM connector problems
A failed knock sensor can cause P0334, but intermittent wiring and terminal faults are equally capable. Replacing the sensor without capturing the failure may result in a new sensor connected to the same old problem—which is technically progress if the goal was spending money.
P0334 Quick Facts
| Item | Information |
|---|---|
| Trouble code | P0334 |
| Generic definition | Knock Sensor 2 Circuit Intermittent |
| Sensor location | Bank 2 or manufacturer-designated Sensor 2 |
| System | Knock detection and ignition timing |
| Fault type | Intermittent signal dropout or spike |
| Severity | Moderate |
| Safe to drive? | Usually short-term if no knocking or overheating is present |
| Common symptoms | Check Engine Light, inconsistent power and hesitation |
| Common causes | Loose terminals, damaged wiring, contamination or sensor failure |
| Related codes | P0330, P0331, P0332 and P0333 |
What Does the P0334 Code Mean?
P0334 means the PCM detected a Knock Sensor 2 signal that became unstable or temporarily disappeared.
The interruption may last only a fraction of a second. That can still prevent the PCM from reliably monitoring detonation on the affected bank or cylinder group.
When the signal becomes unreliable, the PCM may:
- Retard ignition timing
- Reduce engine power
- Limit turbocharger boost
- Reduce throttle response
- Enter a protective operating mode
- Store P0334
- Illuminate the Check Engine Light
The vehicle may run normally most of the time because the fault is not continuously present.
What Does “Circuit Intermittent” Mean?
An intermittent circuit works correctly under some conditions and fails under others.
The Knock Sensor 2 signal may change when:
- The engine warms up
- The vehicle hits a bump
- The engine moves on its mounts
- The wiring harness vibrates
- Moisture enters the connector
- A damaged terminal expands with heat
- Electrical load increases
- A broken conductor separates internally
The signal may:
- Drop to zero
- Spike unexpectedly
- Become noisy
- Disappear briefly
- Return after cooling
- Change when the harness moves
A normal test result while the vehicle is parked does not eliminate an intermittent fault.
What Is Knock Sensor 2?
Knock Sensor 2 monitors engine-block vibration for frequencies associated with combustion knock.
On many V-type engines, it is assigned to Bank 2. Bank 2 is the cylinder bank that does not contain cylinder number one.
On inline engines, Sensor 2 may identify:
- The rear knock sensor
- A secondary knock sensor
- Circuit B
- A sensor assigned to a second cylinder group
Confirm the sensor location using manufacturer service information. Sensor 2 is not universally installed on the same side or in the same position.
How a Knock Sensor Works
Most knock sensors contain a piezoelectric element. Engine vibration causes this element to generate a small electrical signal.
The PCM compares that signal with:
- Engine RPM
- Engine load
- Ignition timing
- Cylinder firing order
- Coolant temperature
- Intake-air temperature
- Throttle position
- Knock Sensor 1 activity
When the PCM identifies detonation, it can temporarily retard ignition timing.
If the Knock Sensor 2 signal intermittently disappears, the PCM may not be able to protect the monitored cylinder group consistently.
How the PCM Detects P0334
Detection strategies vary by manufacturer, but the PCM may store P0334 when:
- Knock Sensor 2 voltage suddenly disappears.
- The signal changes abruptly without a corresponding engine event.
- The circuit repeatedly transitions between normal and failed states.
- Sensor 2 briefly stops responding while Sensor 1 remains active.
- Electrical spikes exceed the expected waveform.
- Harness movement interrupts the signal.
- The circuit fails only at a certain temperature.
- Signal quality changes enough to prevent reliable knock monitoring.
The code may require more than one failed drive cycle before illuminating the Check Engine Light.
P0334 Versus Related Knock-Sensor Codes
| Code | Definition | Diagnostic distinction |
| P0330 | Knock Sensor 2 Circuit Malfunction | General Sensor 2 circuit fault |
| P0331 | Knock Sensor 2 Range/Performance | Signal exists but behaves implausibly |
| P0332 | Knock Sensor 2 Circuit Low Input | Signal remains consistently too low |
| P0333 | Knock Sensor 2 Circuit High Input | Signal remains consistently too high |
| P0334 | Knock Sensor 2 Circuit Intermittent | Signal drops out, spikes or returns |
The existing P0330 2JZ knock-sensor guide covers vehicle-specific Sensor 2 replacement. P0334 should remain focused on locating a signal failure caused by heat, vibration, contamination or poor electrical contact.
How Serious Is the P0334 Code?
P0334 is generally considered a moderate fault, but it should be diagnosed promptly.
When the sensor signal disappears, the PCM may not accurately detect detonation on the monitored bank. It may compensate with conservative ignition timing, reducing performance and fuel economy.
The larger risk is genuine knock occurring during the signal dropout.
Stop driving if the vehicle develops:
- Loud metallic pinging
- Heavy mechanical knocking
- Severe rattling during acceleration
- Engine overheating
- Low oil pressure
- A flashing Check Engine Light
- Major power loss
For an audible knock that is not specific to this electrical code, see Engine Knocking Noise: What It Means.
Common Symptoms of P0334
Possible symptoms include:
- Check Engine Light
- Intermittent reduced power
- Inconsistent acceleration
- Hesitation
- Poor throttle response
- Reduced turbocharger boost
- Lower fuel economy
- Retarded ignition timing
- Random knock-retard spikes
- Limp mode
- Engine pinging
- Failed emissions inspection
- No noticeable symptoms
Symptoms may appear only when the engine is hot, under load or moving on its mounts.
Common Causes of the P0334 Code
Common P0334 causes include:
- Loose Knock Sensor 2 connector
- Spread connector terminals
- Backed-out connector pin
- Broken connector lock
- Corroded terminals
- Fretting corrosion
- Broken wire beneath intact insulation
- Intermittent open signal circuit
- Intermittent short to ground
- Intermittent short to voltage
- Harness damage caused by vibration
- Wiring stretched by engine movement
- Harness melted near the exhaust
- Wiring rubbing against a bracket
- Water intrusion
- Oil contamination
- Coolant contamination
- Damaged signal shielding
- Electrical interference
- Poor engine ground
- Poor PCM ground
- Heat-sensitive Knock Sensor 2
- Cracked sensor housing
- Loose knock sensor
- Incorrect sensor torque
- Incorrect replacement sensor
- Failed engine or transmission mount
- PCM connector problem
- PCM software problem
- Internal PCM failure
Why Heat Can Trigger P0334
Heat causes electrical components, terminals and conductors to expand.
A circuit may work when cold but fail after:
- The engine reaches operating temperature.
- The intake manifold becomes heat-soaked.
- The sensor housing expands.
- A cracked conductor separates.
- Terminal tension decreases.
- Internal sensor electronics fail.
The vehicle may operate normally again after cooling down.
A repeatable hot-failure and cold-recovery pattern strongly supports a temperature-sensitive electrical problem, but it does not identify the component by itself.
Why Vibration Can Trigger P0334
Engine and road vibration can interrupt a marginal connection.
Common vibration-related causes include:
- Broken conductor strands
- Loose connector terminals
- Unsupported wiring
- Failed engine mounts
- Harness contact with brackets
- Poor previous repairs
- Cracked solder joints inside a controller
The code may appear during:
- Acceleration
- Gear changes
- Rough-road driving
- High engine RPM
- Engine braking
- Startup or shutdown
Documenting when the fault occurs can narrow the inspection area considerably.
Water, Coolant and Oil Intrusion
Some engines mount knock sensors beneath the intake manifold or inside the engine valley.
These locations may collect:
- Rainwater
- Wash water
- Condensation
- Engine coolant
- Engine oil
- Dirt and debris
Contamination can cause:
- Terminal corrosion
- Increased resistance
- Intermittent electrical contact
- Damaged insulation
- Sensor deterioration
GM LS engines are particularly well known for water accumulating around knock sensors installed beneath the intake manifold. Other engine families may experience similar contamination from coolant or oil leaks.
Repair the source of the contamination before replacing the sensor or connector.
Common P0334 Scan-Tool Patterns
Sensor 2 Data Suddenly Drops Out
A graph may show normal Sensor 2 activity followed by a brief flat line.
Possible causes include:
- Open signal circuit
- Loose terminal
- Failed sensor
- Broken conductor
- PCM connector fault
Compare Sensor 2 with Sensor 1 during the same event.
Sensor 2 Spikes Without an Engine Event
A sudden signal spike that does not correspond with load, RPM or actual engine noise may indicate:
- Intermittent short to voltage
- Electrical interference
- Connector movement
- Damaged shielding
- Loose ground
Signal Fails Only When Hot
Normal cold operation followed by signal loss after warmup may indicate:
- Heat-sensitive sensor
- Terminal expansion
- Damaged wiring
- PCM connector problem
Monitor the signal during warmup and through a hot restart.
Signal Changes During Acceleration
Acceleration causes the engine to move on its mounts.
If the signal changes with drivetrain movement, inspect:
- Harness routing
- Connector retention
- Engine mounts
- Wiring tension
- Brackets contacting the harness
Data Changes During a Wiggle Test
If Sensor 2 activity changes when one section of the harness is gently moved, inspect that location for:
- Broken conductors
- Weak terminal tension
- Corrosion
- Poor splices
- Connector damage
Move one harness section at a time. Shaking the complete engine bay identifies the problem only as “somewhere under the hood,” which is rarely the precision anyone hoped for.
How to Diagnose the P0334 Code
Step 1: Scan All Modules
Record:
- Stored codes
- Pending codes
- History codes
- Freeze-frame data
- Knock Sensor 1 data
- Knock Sensor 2 data
- Knock retard
- Ignition timing
- Engine RPM
- Calculated engine load
- Coolant temperature
- Intake-air temperature
- Battery voltage
Check for related codes involving:
- Knock Sensor 1
- Knock Sensor 2
- Engine temperature
- Lean operation
- Misfires
- System voltage
- PCM communication
Do not clear the code before saving its freeze-frame information.
Step 2: Study the Freeze-Frame Data
Determine whether P0334 occurred:
- During cold startup
- After the engine warmed up
- At idle
- During acceleration
- Under heavy load
- On rough pavement
- During deceleration
- At low system voltage
If the code repeatedly appears at a similar coolant temperature, engine load or RPM, reproduce those conditions during testing.
Step 3: Identify Sensor 2 Correctly
Use manufacturer service information to confirm:
- Cylinder number one
- Bank 1 and Bank 2
- Sensor 1 and Sensor 2
- Connector pinout
- Wiring route
- PCM terminal
- Sensor torque
- Whether the circuit uses shielding
Inline engines may use Sensor 2 without having a second cylinder bank. Follow the manufacturer’s designations.
Step 4: Inspect for Abnormal Engine Noise
Listen for:
- Combustion pinging
- Timing-chain rattle
- Valvetrain noise
- Piston slap
- Bearing knock
- Exhaust contact
- Loose heat shields
- Accessory-drive noise
P0334 is an intermittent electrical code, but mechanical noise can complicate the knock-sensor data.
Shut the engine off if it develops heavy knocking or low oil pressure.
Step 5: Inspect the Sensor Area
Inspect Sensor 2 and the surrounding area for:
- Standing water
- Coolant
- Engine oil
- Corrosion
- Debris
- Cracked wiring
- Loose connector locks
- Damaged seals
- Harness tension
- Previous repairs
If contamination is found beneath the intake manifold, locate and repair its source.
Step 6: Inspect the Wiring Harness
Trace the circuit between Knock Sensor 2 and the PCM.
Look for:
- Melted insulation
- Pinched wiring
- Harness abrasion
- Tight bends
- Unsupported wiring
- Contact with the exhaust
- Contact with pulleys
- Wiring stretched by engine movement
- Poor aftermarket splices
- Rodent damage
- Damaged signal shielding
Inspect areas near engine mounts and intake-manifold brackets carefully.
Step 7: Check Connector-Terminal Tension
A connector can be fully seated while one terminal makes poor contact.
Check for:
- Spread female terminals
- Bent pins
- Backed-out terminals
- Broken locking tangs
- Fretting corrosion
- Loose connector fit
Use an approved terminal test tool. Forcing an oversized probe into the connector may spread the terminal and create a brand-new P0334 fault at no additional charge.
Step 8: Perform a Controlled Wiggle Test
Monitor Sensor 2 data while gently moving:
- The sensor connector
- Individual harness sections
- Intermediate connectors
- PCM connectors when permitted
Watch for:
- Signal dropout
- Voltage spikes
- Knock-retard changes
- Code-status changes
Move one section at a time so the result can be traced to a specific location.
Step 9: Test Circuit Continuity
Disconnect the appropriate modules and test:
- Signal-wire continuity
- Resistance to ground
- Resistance to voltage
- Ground integrity
- Shield continuity when specified
Repeat the test while:
- Bending the harness
- Moving connectors
- Applying gentle tension
- Changing the harness temperature safely
A stationary continuity check may miss a conductor that separates only when the harness moves.
Step 10: Compare Sensor 1 and Sensor 2
Graph both sensors simultaneously during:
- Cold startup
- Warmup
- Idle
- Gradual acceleration
- Steady cruise
- Moderate engine load
- Hot restart
A failure isolated to Sensor 2 helps narrow the fault to its sensor, circuit or monitored area.
Step 11: Inspect the Waveform
An oscilloscope is the best tool for capturing a brief signal interruption.
Monitor for:
- Signal dropout
- Sudden voltage spikes
- Electrical noise
- Signal clipping
- Changes caused by heat
- Changes caused by harness movement
- Ignition or alternator interference
Compare the waveform at:
- Knock Sensor 2
- Intermediate connectors
- The PCM input
If the signal remains correct at the sensor but fails at the PCM, suspect wiring, terminal or shielding problems.
Step 12: Perform a Heat-Soak Test
Monitor the signal:
- During cold startup
- As the engine warms
- At operating temperature
- After shutdown
- During a hot restart
Underhood temperatures may continue rising after the engine is shut off. This can reveal a marginal sensor or terminal that fails only during heat soak.
Controlled heating and cooling methods should be used carefully to avoid damaging the sensor or wiring.
Step 13: Check Grounds and Charging Voltage
Inspect:
- Battery terminals
- Engine grounds
- Body grounds
- PCM grounds
- Charging voltage
- Alternator ripple
Poor grounds and excessive alternator ripple can introduce noise into low-level sensor circuits.
Perform voltage-drop testing while the circuits are operating.
Step 14: Verify Sensor Installation
Confirm:
- Correct sensor part number
- Proper mounting orientation
- Clean mounting surface
- Correct torque
- Correct connector
- No prohibited thread sealant
Incorrect installation may create inconsistent sensor contact or response.
Step 15: Check Technical Service Bulletins
Manufacturer bulletins may identify:
- Known harness failures
- Water-intrusion problems
- Revised connectors
- Updated sensor part numbers
- Wiring rerouting procedures
- PCM calibration updates
Follow the manufacturer’s repair procedure when a bulletin applies.
Step 16: Evaluate the PCM Last
Only consider PCM failure after confirming:
- Sensor operation
- Correct sensor installation
- Wiring integrity
- Terminal tension
- Ground condition
- Signal shielding
- Waveform quality
- Current PCM software
If a stable waveform reaches the PCM but scan data still shows intermittent loss, the PCM connector, software or internal circuitry may be responsible.
Common P0334 Diagnostic Mistakes
Avoid these mistakes:
- Replacing Sensor 2 without reproducing the fault
- Clearing freeze-frame data before recording it
- Testing the vehicle only while cold
- Inspecting connectors without checking terminal tension
- Performing only a stationary continuity test
- Ignoring water beneath the intake manifold
- Ignoring damaged signal shielding
- Confusing intermittent electrical loss with false knock
- Testing only at the sensor
- Replacing the PCM before verifying its input waveform
Intermittent faults require evidence gathered during the failure. Otherwise, diagnosis becomes a shopping list wearing safety glasses.
How to Fix the P0334 Code
Possible repairs include:
- Cleaning corroded connector terminals
- Replacing damaged terminals
- Repairing an intermittent open circuit
- Repairing a signal wire shorted to ground
- Repairing a signal wire shorted to voltage
- Repairing damaged shielded wiring
- Rerouting the harness
- Repairing engine or PCM grounds
- Replacing a damaged connector seal
- Repairing water, coolant or oil intrusion
- Replacing a heat-sensitive Knock Sensor 2
- Installing the correct sensor
- Correcting sensor mounting torque
- Repairing a PCM connector
- Updating PCM software
- Replacing and programming a proven defective PCM
After completing repairs:
- Clear all stored codes.
- Start the engine and graph both knock-sensor channels.
- Allow the engine to reach operating temperature.
- Complete a heat-soak and hot-restart test.
- Repeat the freeze-frame conditions.
- Complete the manufacturer’s drive cycle.
- Rescan for pending and stored codes.
One successful cold start does not verify an intermittent repair.
Estimated P0334 Repair Costs
| Repair | Typical estimated cost |
| Professional electrical diagnosis | $100–300 |
| Connector or terminal repair | $75–300 |
| Wiring or shielding repair | $100–600 |
| Knock Sensor 2 replacement | $150–900 |
| Intake-manifold removal for access | $400–1,200+ |
| Water- or coolant-intrusion repair | $100–1,000+ |
| PCM software update | $100–300 |
| PCM replacement and programming | $800–2,500+ |
Sensor access can have a greater effect on total cost than the price of the sensor.
Can You Drive With a P0334 Code?
Limited driving may be possible if:
- The engine runs normally.
- No knocking is audible.
- Engine temperature remains normal.
- Oil pressure remains normal.
- The Check Engine Light remains steady.
Avoid driving if the engine develops:
- Loud detonation
- Heavy mechanical knocking
- Overheating
- Low oil pressure
- Severe power loss
- A flashing Check Engine Light
The PCM may use conservative timing, but knock protection for the monitored cylinders may be unreliable while the signal is missing.
Can Heat Cause P0334?
Yes.
A sensor, terminal or broken conductor may work while cold and fail after expanding with heat.
A code that appears after warmup and disappears after cooling should be tested through a complete heat cycle.
Can Water Under the Intake Manifold Cause P0334?
Yes.
Water, coolant or oil can corrode the sensor connector and create intermittent contact.
Remove the contamination, repair the leak and replace damaged components. Installing another sensor without stopping the water entry merely gives the corrosion a fresh target.
Can Bad Wiring Cause P0334?
Yes. Wiring and connector problems are among the most likely causes.
A conductor may be:
- Partially broken
- Corroded
- Loose inside a terminal
- Shorting during engine movement
- Damaged beneath intact insulation
Test the circuit while moving the harness and changing its temperature.
Does P0334 Mean Knock Sensor 2 Is Bad?
No.
A failed sensor is one possibility, but P0334 may also result from:
- Loose terminals
- Damaged wiring
- Contamination
- Electrical interference
- Poor grounds
- PCM connector problems
Determine where the signal disappears before replacing the sensor.
Can Mechanical Noise Cause P0334?
Mechanical noise may create erratic knock-sensor activity, but P0334 specifically identifies an intermittent circuit signal.
Inspect mechanical noise and the electrical circuit instead of assuming one automatically explains the other.
Related Pro Street Diagnostic Guides
Continue the diagnosis with these resources:
- Complete P-series OBD-II code list
- P0324 knock-control system error
- P0329 Knock Sensor 1 circuit intermittent
- P0330 2JZ Knock Sensor 2 replacement
- P0331 Knock Sensor 2 range/performance
- P0332 Knock Sensor 2 circuit low input
- P0333 Knock Sensor 2 circuit high input
- Engine knocking noise: causes and diagnosis
- LS1 sensor guide
Final Thoughts
The P0334 code means the PCM has detected an intermittent electrical signal from Knock Sensor 2.
The sensor may work normally until heat, vibration, moisture or harness movement causes its signal to drop out or spike.
Begin with freeze-frame data and identify Sensor 2 correctly. Inspect the connector for contamination and weak terminal contact, graph both knock sensors and test the circuit throughout a complete heat cycle.
An oscilloscope can determine whether the failure begins at the sensor or develops between the sensor and PCM.
Do not replace Sensor 2 simply because its name appears in the code. Intermittent electrical faults specialize in passing tests and returning later, usually after the intake manifold has been reinstalled.
