P0331 Code: Knock Sensor 2 Circuit Range/Performance

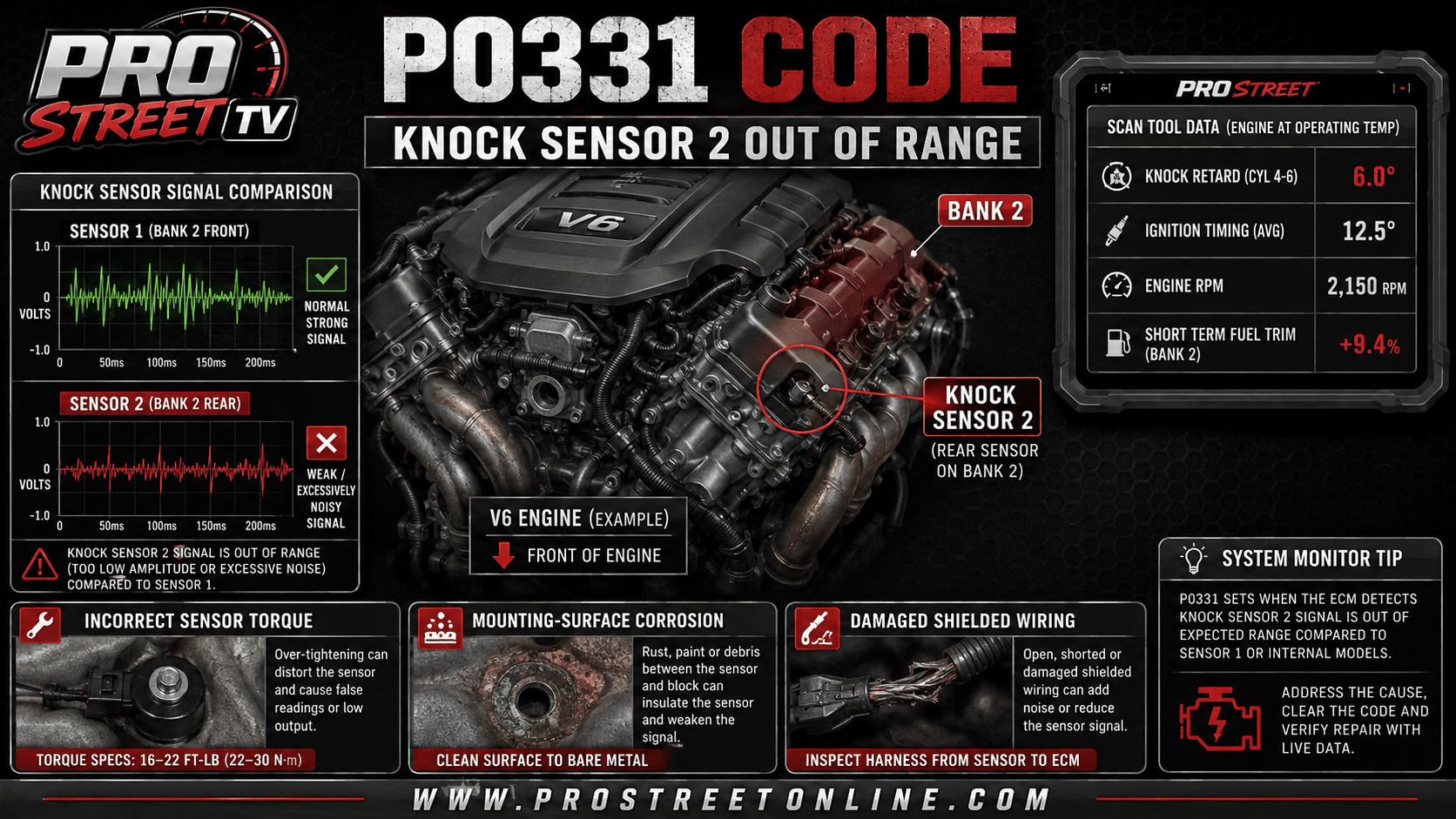

P0331 Knock Sensor 2 circuit range-performance diagnostic illustration

The P0331 OBD-II trouble code means the Powertrain Control Module has detected a Knock Sensor 2 signal that is present but does not perform within its expected range.

The generic definition for P0331 is:

Knock Sensor 2 Circuit Range/Performance — Bank 2

Unlike P0330, which indicates a general Knock Sensor 2 circuit malfunction, P0331 usually means the PCM can detect a signal but considers its strength, frequency or response implausible.

Possible causes include:

P0331 does not automatically mean Knock Sensor 2 has failed. The sensor may be reporting exactly what it hears while a loose heat shield, timing-chain rattle or poor engine mount performs an unsolicited percussion solo nearby.

P0331 Quick Facts

ItemInformation
Trouble codeP0331
Generic definitionKnock Sensor 2 Circuit Range/Performance
Sensor locationBank 2 or manufacturer-designated Sensor 2
SystemKnock detection and ignition timing
Fault typeSignal performance or plausibility fault
SeverityModerate
Safe to drive?Usually short-term if no severe knocking or overheating is present
Common symptomsCheck Engine Light, reduced power and sluggish acceleration
Common causesSensor installation, wiring, false knock or sensor failure
Related codesP0329, P0330, P0332, P0333 and P0334

What Does the P0331 Code Mean?

P0331 means Knock Sensor 2 is producing a signal, but that signal does not match the PCM’s expected pattern.

The PCM may compare the sensor response with:

If the signal appears too weak, excessively active or inconsistent with operating conditions, the PCM may store P0331.

The circuit does not necessarily have a permanent open or short. This is a performance and plausibility fault rather than a simple missing-signal code.

What Does “Range/Performance” Mean?

“Range/performance” means the signal exists but does not behave correctly.

Possible examples include:

This differs from a consistently low or high electrical input:

What Is Knock Sensor 2?

Knock Sensor 2 is the secondary sensor used to monitor engine-block vibration.

On many V-type engines, it monitors Bank 2. Bank 2 is the cylinder bank that does not contain cylinder number one.

Depending on the manufacturer, Sensor 2 may instead identify:

Do not identify Bank 2 by assuming it is always the driver or passenger side. Cylinder numbering and sensor assignments vary.

Use the vehicle’s wiring diagram and service information before testing or replacing either sensor.

How a Knock Sensor Works

Most knock sensors contain a piezoelectric element that generates voltage when exposed to vibration.

The sensor behaves like a specialized microphone attached to the engine block. It detects a broad range of vibration, while the PCM filters the signal to identify frequencies associated with detonation.

The PCM evaluates the signal alongside:

When genuine knock is detected, the PCM can temporarily retard ignition timing. Once the knock stops, timing may gradually return.

This allows the engine to operate efficiently while maintaining protection against destructive combustion.

How the PCM Detects P0331

The exact monitoring strategy varies by manufacturer.

The PCM may store P0331 when:

Some vehicles require the fault to occur during multiple drive cycles before illuminating the Check Engine Light.

P0331 Versus Related Knock-Sensor Codes

CodeDefinitionDiagnostic distinction
P0329Knock Sensor 1 Circuit IntermittentSensor 1 signal drops out or returns
P0330Knock Sensor 2 Circuit MalfunctionGeneral Sensor 2 circuit problem
P0331Knock Sensor 2 Range/PerformanceSignal exists but behaves implausibly
P0332Knock Sensor 2 Circuit Low InputSignal remains below its threshold
P0333Knock Sensor 2 Circuit High InputSignal remains above its threshold
P0334Knock Sensor 2 Circuit IntermittentSensor 2 signal drops out or spikes

The existing 2JZ P0330 knock-sensor guide covers vehicle-specific replacement. P0331 should remain focused on determining why Sensor 2’s signal does not make sense.

How Serious Is the P0331 Code?

P0331 is generally considered a moderate fault, but ignoring it can reduce engine protection.

If the PCM cannot trust Knock Sensor 2, it may:

The larger risk is genuine detonation occurring while knock detection is unreliable.

Stop driving if you notice:

For a noise-first diagnosis, see Engine Knocking Noise: What It Means.

Common Symptoms of P0331

Possible symptoms include:

Some vehicles may appear to run normally because the PCM substitutes conservative ignition timing.

Common Causes of the P0331 Code

Common P0331 causes include:

  1. Failed Knock Sensor 2
  2. Incorrect replacement sensor
  3. Low-quality aftermarket sensor
  4. Incorrect sensor mounting torque
  5. Loose knock sensor
  6. Over-tightened knock sensor
  7. Corrosion beneath the sensor
  8. Dirty mounting surface
  9. Cracked sensor housing
  10. Damaged sensor connector
  11. Excessive circuit resistance
  12. Open signal circuit
  13. Signal wire shorted to ground
  14. Signal wire shorted to voltage
  15. Loose connector terminals
  16. Damaged signal shielding
  17. Electrical interference
  18. Poor engine ground
  19. Poor PCM ground
  20. Genuine combustion knock
  21. Low-octane fuel
  22. Contaminated fuel
  23. Lean air-fuel mixture
  24. Excessive ignition advance
  25. Engine overheating
  26. High intake-air temperature
  27. Excessive turbocharger boost
  28. Incorrect spark plugs
  29. Carbon deposits
  30. Mechanical false knock
  31. Timing-chain noise
  32. Valvetrain noise
  33. Loose exhaust components
  34. Failed engine or transmission mount
  35. PCM software or calibration problem
  36. Internal PCM failure

Actual Detonation Versus False Knock

P0331 may result from a genuine combustion problem or vibration that merely resembles one.

Common Causes of Actual Detonation

Common Causes of False Knock

The PCM responds to vibration. It does not know that a loose exhaust bracket costs $18 while an engine rebuild costs considerably more.

Why Comparing Sensor 1 and Sensor 2 Matters

On engines using two comparable knock sensors, the PCM may evaluate both signals under similar operating conditions.

If Knock Sensor 1 responds normally while Sensor 2 is:

the difference can help isolate the affected bank, sensor or circuit.

The two signals may not be perfectly identical because:

Use the comparison as diagnostic evidence, not as a universal pass/fail rule.

Common P0331 Scan-Tool Patterns

Bank 2 Knock Retard Remains at Zero

A lack of Bank 2 response may indicate:

Zero knock retard is not automatically abnormal. A healthy engine may not produce knock under normal operation.

Bank 2 Knock Retard Is Excessive

High knock retard during light-load operation may point toward:

Compare the data with engine load, RPM, throttle position and ignition timing.

Bank 2 Data Spikes Randomly

Random activity may be caused by:

Graph both sensor channels alongside engine speed and vehicle speed.

Sensor 2 Does Not Respond With Engine Speed

A signal that remains unchanged as RPM and load increase may indicate:

Use manufacturer specifications or known-good waveform data.

Sensor 2 Differs Greatly From Sensor 1

If only Sensor 2 produces abnormal data, inspect:

Do not replace both sensors merely because they arrived in the same box.

How to Diagnose the P0331 Code

Step 1: Scan All Modules

Record:

Check for related codes involving:

Freeze-frame data may show whether the code occurred under high load, excessive temperature or a specific RPM range.

Step 2: Confirm Bank 2 and Sensor 2

Use manufacturer information to identify:

Inline engines may use two knock sensors without two cylinder banks. Follow the manufacturer’s sensor numbering rather than applying a V-engine layout.

Step 3: Listen for Abnormal Engine Noise

Inspect the engine for:

Do not continue running an engine with heavy knocking or low oil pressure.

For a broader noise diagnosis, use the engine-knocking-noise cornerstone.

Step 4: Verify Fuel Quality

Confirm that the engine contains the manufacturer’s required fuel grade.

Investigate:

Low-quality fuel can cause genuine detonation, but it does not automatically explain a Bank 2-specific performance code.

Step 5: Check Fuel Trims

Monitor short- and long-term fuel trims for both banks.

If Bank 2 shows significantly more positive correction, inspect for:

A lean Bank 2 condition may cause actual knock and abnormal Sensor 2 activity.

Step 6: Check Engine and Intake Temperatures

Excessive temperature increases detonation risk.

Check:

Repair overheating before continuing knock-sensor diagnosis.

Step 7: Inspect Knock Sensor 2

Inspect the sensor and surrounding area for:

If the sensor is mounted beneath the intake manifold, inspect the complete sensor cavity or engine valley.

Step 8: Verify the Sensor Part Number

Knock sensors are calibrated to recognize specific frequency ranges.

An incorrect sensor may physically fit but produce:

Verify the original-equipment or approved replacement part number.

This is one area where “universal” often means “universally capable of wasting your Saturday.”

Step 9: Verify Mounting Torque

Correct sensor torque is critical because the sensor relies on physical contact with the engine block.

Check:

An under-tightened sensor may respond weakly. An over-tightened sensor may become overly sensitive or suffer damage.

Never use a universal torque specification.

Step 10: Inspect the Wiring and Shielding

Inspect the circuit between Sensor 2 and the PCM.

Look for:

Shielded sensor wiring should be repaired according to the manufacturer’s procedure.

Step 11: Test the Circuit

With the correct modules disconnected, test:

A continuity beep alone does not prove signal quality. High resistance or electrical interference can distort a low-level knock-sensor signal while the circuit still shows continuity.

Step 12: Compare Both Sensors on Live Data

Graph Sensor 1 and Sensor 2 simultaneously.

Compare their response during:

Do not deliberately create severe detonation.

Look for a repeatable difference that follows Sensor 2 rather than a general engine condition.

Step 13: Compare Oscilloscope Waveforms

An oscilloscope provides the best comparison of signal quality.

Inspect Sensor 2 for:

Compare the waveform at:

If the signal is correct at the sensor but distorted at the PCM, suspect the harness, terminals or shielding.

Step 14: Inspect for Mechanical False Knock

Check the Bank 2 or Sensor 2 area for:

Repair the mechanical noise and reevaluate the knock data.

Step 15: Review Tuning and PCM Calibration

Check for:

Modified calibration can create genuine knock or cause sensor behavior outside the factory monitor’s expected range.

Step 16: Evaluate the PCM Last

Consider PCM failure only after confirming:

If a valid Sensor 2 signal reaches the PCM but the controller interprets it incorrectly, software or internal hardware may be responsible.

Common P0331 Diagnostic Mistakes

Avoid these mistakes:

P0331 describes poor signal performance. It does not provide a prepaid authorization to replace every knock sensor beneath the intake manifold.

How to Fix the P0331 Code

Possible repairs include:

After repairs:

  1. Clear the stored codes.
  2. Start the engine and monitor both knock-sensor channels.
  3. Allow the engine to reach operating temperature.
  4. Check fuel trims and ignition timing.
  5. Reproduce the freeze-frame conditions.
  6. Complete the appropriate drive cycle.
  7. Rescan for pending and stored codes.

Estimated P0331 Repair Costs

RepairTypical estimated cost
Professional diagnosis$100–300
Connector or minor wiring repair$75–400
Knock Sensor 2 replacement$150–900
Intake-manifold removal for access$400–1,200+
Lean-condition repair$100–1,500+
Cooling-system repair$100–1,500+
Mechanical false-knock repair$100–3,000+
PCM software update$100–300
PCM replacement and programming$800–2,500+

Sensor location can greatly affect labor cost. A small sensor beneath the intake manifold may require several hours of disassembly.

Can You Drive With a P0331 Code?

Short-term driving may be possible when:

Do not continue driving if the vehicle has:

If the PCM cannot trust Knock Sensor 2, engine protection on the monitored bank or cylinder group may be reduced.

Can Low-Octane Fuel Cause P0331?

Low-octane fuel may cause genuine detonation, particularly in engines requiring premium fuel.

However, a Sensor 2-specific range/performance code should also prompt comparison between both sensor circuits and cylinder banks.

Use the required fuel grade, then diagnose the code if it returns.

Can Incorrect Sensor Torque Cause P0331?

Yes.

Knock Sensor 2 must be properly coupled to the engine block.

Incorrect torque can cause:

Use the manufacturer’s exact specification.

Can a Wrong Knock Sensor Cause P0331?

Yes.

An incorrect sensor may fit the connector and bolt to the engine while producing the wrong frequency response or signal amplitude.

Verify the part number before testing more complicated causes.

Can a Lean Bank 2 Condition Trigger P0331?

A lean condition can cause genuine combustion knock on Bank 2.

Check Bank 2 fuel trims, intake leaks, injector operation and fuel delivery. Repair the lean condition before condemning the sensor.

Does P0331 Mean Knock Sensor 2 Is Bad?

No.

A defective sensor is one possibility, but P0331 may also result from:

Test the sensor response and compare it with Sensor 1 before replacing components.

Related Pro Street Diagnostic Guides

Continue the diagnosis with these resources:

Final Thoughts

The P0331 code means the PCM can detect a Knock Sensor 2 signal, but that signal does not behave within the expected range.

The sensor may respond too weakly, too aggressively or inconsistently with engine speed, load and the signal from Knock Sensor 1.

Begin by identifying Sensor 2 correctly. Verify its part number, mounting torque and mounting surface. Inspect the wiring and shielding, compare both sensor channels and evaluate Bank 2 fuel trims before replacing anything.

P0331 is not saying that Knock Sensor 2 is silent. It is saying the sensor’s story does not match the evidence—which is precisely when diagnosis should begin, not when the parts cannon should be loaded.

Exit mobile version
