P0324 Code: Knock Control System Error

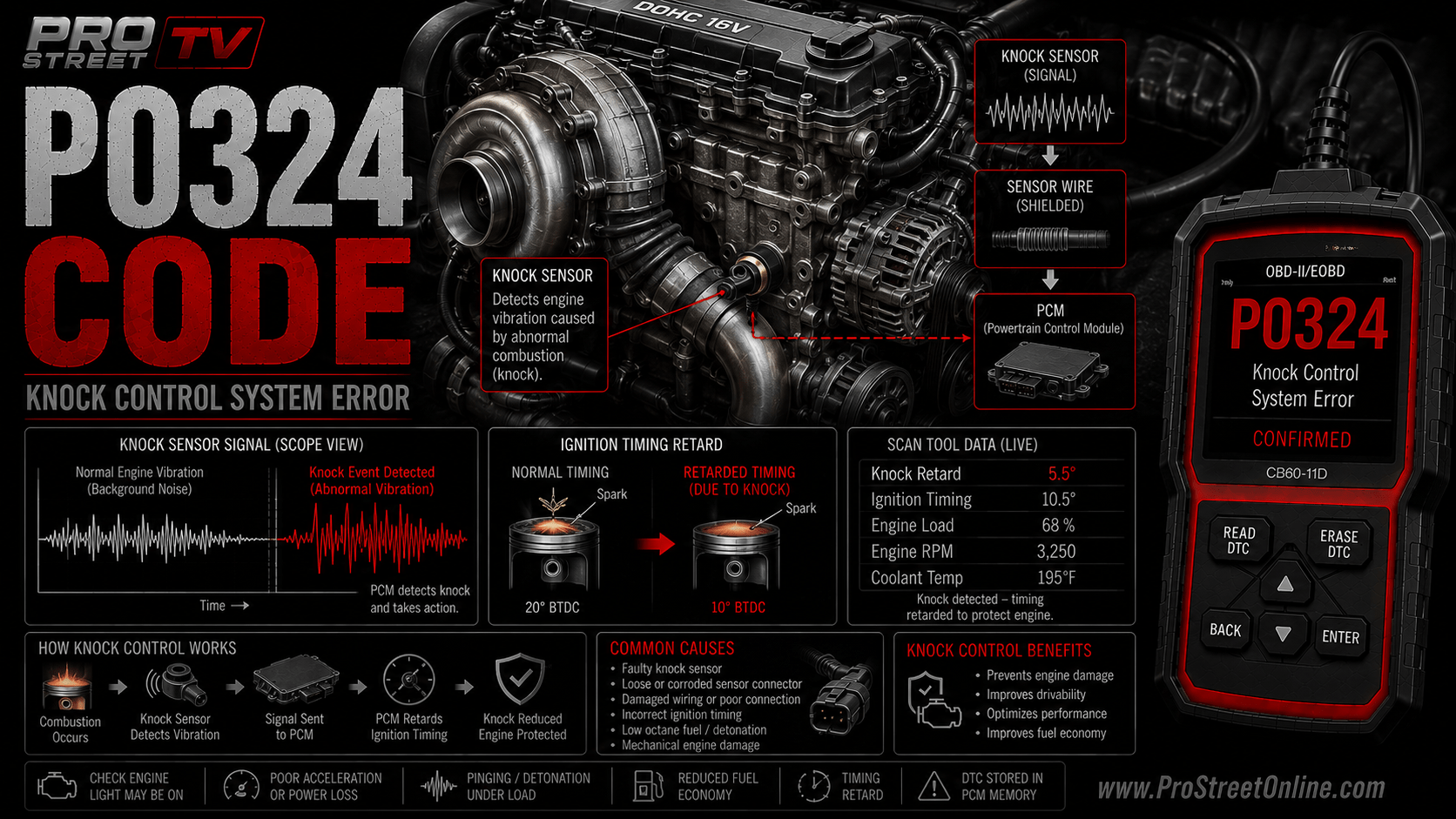

P0324 code knock-control system error diagnostic illustration

The P0324 OBD-II trouble code means the Powertrain Control Module has detected a problem with the engine’s knock-control system.

The generic definition for P0324 is:

Knock Control System Error

The knock-control system uses one or more knock sensors to detect abnormal combustion. The PCM analyzes those signals and can temporarily retard ignition timing to protect the engine from detonation.

P0324 may be stored when the PCM cannot properly monitor, evaluate or respond to the knock-sensor signal. Possible causes include sensor installation problems, damaged wiring, electrical interference, genuine engine knock, PCM software issues or an internal controller fault.

This is different from P0325, which identifies a malfunction in a specific knock-sensor circuit. P0324 covers the operation of the broader knock-control system.

That distinction matters because replacing the knock sensor may not fix P0324. It does, however, remain an excellent way to make an expensive guess look productive.

P0324 Quick Facts

ItemInformation
Trouble codeP0324
Generic definitionKnock Control System Error
SystemIgnition timing and knock control
SeverityModerate to severe
Safe to drive?Usually only for a short distance if no knocking is present
Common symptomsCheck Engine Light, reduced power, poor acceleration
Common causesSensor installation, wiring, actual knock, signal-processing or PCM fault
Primary diagnostic toolsScan tool, multimeter and oscilloscope
Related codesP0325, P0326, P0327, P0328 and P0330

What Does the P0324 Code Mean?

P0324 means the PCM has determined that the knock-control system is not operating as expected.

The problem may involve:

The code does not automatically mean the engine is physically knocking. It also does not prove that the knock sensor has failed.

The PCM may set P0324 when it cannot reliably interpret the signal, when the expected knock-control response does not occur or when the system behaves outside the manufacturer’s programmed limits.

Exact detection strategies vary by manufacturer. Always consult the correct service information before condemning a component.

What Is the Knock-Control System?

The knock-control system protects the engine from abnormal combustion.

Under normal conditions, the spark plug ignites the air-fuel mixture at a carefully calculated point before the piston reaches top dead center. The flame front should travel smoothly across the combustion chamber.

Detonation occurs when part of the remaining mixture ignites uncontrollably. This creates rapid pressure waves inside the cylinder.

Excessive or prolonged detonation can damage:

The knock-control system listens for vibration frequencies associated with detonation. When knock is detected, the PCM may reduce ignition advance until the condition stops.

How a Knock Sensor Works

Most knock sensors contain a piezoelectric element. When engine vibration reaches the sensor, the element produces a small electrical signal.

The PCM evaluates:

The PCM must separate actual combustion knock from ordinary mechanical noise.

Normal engine vibrations may come from:

Modern knock-control software filters these background vibrations and concentrates on expected knock-frequency ranges.

P0324 may appear when the PCM cannot reliably perform that task.

What Does “Knock Control System Error” Actually Mean?

P0324 is broader than a simple sensor-circuit code.

Depending on the vehicle, the PCM may store it when:

This is why diagnosis must include both the electrical circuit and actual engine operation.

P0324 Versus P0325, P0326, P0327 and P0328

These codes belong to the same diagnostic family but describe different failures.

CodeMeaningPrimary distinction
P0324Knock Control System ErrorBroader system-operation or processing fault
P0325Knock Sensor 1 Circuit MalfunctionGeneral Sensor 1 circuit fault
P0326Knock Sensor 1 Circuit Range/PerformanceSignal exists but behaves outside expectations
P0327Knock Sensor 1 Circuit Low InputSignal voltage remains too low
P0328Knock Sensor 1 Circuit High InputSignal voltage remains too high
P0330Knock Sensor 2 Circuit MalfunctionGeneral Sensor 2 circuit fault

P0324 should remain focused on whether the complete knock-control strategy works correctly.

Vehicle-specific knock-sensor replacement belongs with guides such as:

How Serious Is the P0324 Code?

P0324 should be diagnosed promptly because the PCM may no longer be able to protect the engine from detonation.

When knock control is unavailable, the PCM may:

If genuine detonation is occurring and the system cannot respond, continued driving may damage the engine.

Stop driving and shut the engine off if you hear:

Not every knocking sound is combustion knock. Our engine-knocking-noise guide explains how to separate detonation from mechanical engine noise.

Common Symptoms of P0324

P0324 symptoms may include:

Some vehicles may appear to run normally because the PCM substitutes conservative ignition timing.

A lack of symptoms does not prove the knock-control system is functioning. It may simply mean the PCM has removed enough timing to keep the engine safe—and roughly as entertaining as a rental crossover.

Common Causes of the P0324 Code

Possible P0324 causes include:

  1. Improperly installed knock sensor
  2. Incorrect knock-sensor torque
  3. Loose knock sensor
  4. Corrosion beneath the sensor
  5. Dirty sensor mounting surface
  6. Incorrect replacement sensor
  7. Failed knock sensor
  8. Damaged knock-sensor wiring
  9. Open signal circuit
  10. Signal circuit shorted to ground
  11. Signal circuit shorted to voltage
  12. Loose electrical connector
  13. Corroded terminals
  14. Weak terminal tension
  15. Damaged signal shielding
  16. Electrical interference
  17. Poor engine ground
  18. Poor PCM ground
  19. Genuine combustion knock
  20. Low-octane or contaminated fuel
  21. Excessive engine temperature
  22. Lean air-fuel mixture
  23. Excessive ignition advance
  24. Carbon deposits inside the combustion chambers
  25. Incorrect spark plugs
  26. Mechanical engine noise
  27. Timing-chain or valvetrain noise
  28. Incorrect engine calibration
  29. PCM software problem
  30. Internal PCM failure

The correct diagnosis may require proving that the sensor, wiring and engine are all behaving normally before considering a PCM problem.

Common Vehicles Affected by P0324

P0324 is a generic powertrain code that can appear on many OBD-II-equipped vehicles.

Potentially affected manufacturers include:

Manufacturer definitions and test procedures may differ.

Some applications treat P0324 primarily as a control-module performance code. Others may direct diagnosis toward knock-sensor installation, wiring or actual detonation.

Use vehicle-specific service information rather than applying one universal test procedure to every engine.

Common P0324 Scan-Tool Patterns

A capable scan tool can reveal whether the PCM is detecting knock and responding with ignition-timing changes.

Knock Retard Remains at Zero

During a controlled test, the scan tool may show no knock retard under conditions where the PCM should respond.

Possible causes include:

Zero knock retard does not prove the system has failed. A healthy engine operating on good fuel may not generate measurable knock.

Do not deliberately create severe detonation to test the sensor.

Knock Retard Is Constantly High

The PCM may display significant knock retard even during light-load operation.

Possible causes include:

False knock can reduce power because the PCM removes ignition timing in response to noise that is not detonation.

Knock Retard Spikes Randomly

Brief, unexplained knock-retard spikes may indicate:

Graph knock retard alongside:

This helps determine whether the response follows actual operating conditions or random noise.

Ignition Timing Remains Retarded

If ignition timing stays lower than expected, the PCM may be operating in a protective strategy.

Possible causes include:

Compare commanded timing with manufacturer specifications and known-good data.

Actual Knock Versus False Knock

Before diagnosing the electronics, determine whether the engine is experiencing genuine detonation.

Possible Causes of Actual Detonation

Possible Causes of False Knock

The PCM hears vibration, not intent. It cannot always distinguish combustion knock from a loose bracket enthusiastically attacking the engine block.

How to Diagnose the P0324 Code

Diagnosing P0324 requires evaluating the complete knock-control system rather than replacing the sensor immediately.

Step 1: Scan All Modules

Connect a capable OBD-II scanner and record:

Look for related codes involving:

Do not erase the information before recording it. Freeze-frame data may reveal that the code occurred under high load, excessive temperature or low system voltage.

Step 2: Check for Abnormal Engine Noise

Start the engine and listen for:

Do not assume every metallic sound is detonation.

A deep knock that increases with engine load or a knock accompanied by low oil pressure requires immediate mechanical diagnosis. Do not continue running the engine merely to collect more scan data.

Step 3: Verify Fuel Quality

Confirm that the vehicle contains the correct fuel grade.

Consider:

If the code appeared immediately after refueling, fuel quality deserves attention.

However, do not use premium fuel as a permanent repair for an engine calibrated to run on regular gasoline. Higher octane may hide detonation without correcting the mechanical, fuel-delivery or calibration problem that caused it.

Step 4: Check Engine Temperature

Excessive combustion-chamber temperature increases the risk of detonation.

Inspect:

Repair overheating before continuing knock-control diagnosis.

An overheating engine and a knock-control fault are not a charming coincidence. They are a warning to stop running the engine.

Step 5: Inspect the Knock Sensor

Locate the knock sensor using the manufacturer’s service information.

Inspect for:

Some knock sensors are mounted beneath the intake manifold, where coolant leaks, oil contamination and trapped water may damage the connectors.

Step 6: Verify Sensor Installation and Torque

Knock-sensor torque is critical.

An under-tightened sensor may not transfer engine vibration correctly. An over-tightened sensor may become overly sensitive, distort its output or suffer physical damage.

Check:

Do not apply thread sealant unless the manufacturer specifically requires it. Sealant can change the sensor’s grounding or vibration-transfer characteristics.

Always use the vehicle-specific torque specification. There is no responsible universal knock-sensor torque value.

Step 7: Inspect the Wiring and Shielding

Knock-sensor circuits carry low-level signals and may be vulnerable to electrical interference.

Inspect for:

Do not replace shielded wiring with ordinary unshielded wire unless the service procedure allows it.

Electrical noise entering the knock-sensor circuit can resemble engine vibration and cause false knock detection.

Step 8: Test Circuit Continuity

With the appropriate modules disconnected, test:

Compare every result with manufacturer specifications.

A simple continuity test may miss:

Use voltage-drop or waveform testing when appropriate.

Step 9: Evaluate the Knock-Sensor Signal

An oscilloscope provides the clearest view of knock-sensor activity.

The waveform should respond to engine vibration without displaying:

Testing methods vary by vehicle.

Some service procedures allow a controlled tap near the sensor while monitoring the waveform or knock-retard data. Never strike the sensor directly or hammer the engine block hard enough to damage it.

A precision sensor is not improved by percussive maintenance.

Step 10: Evaluate Fuel Trims and Mixture

A lean air-fuel mixture can promote detonation.

Check:

Large positive fuel trims may indicate the PCM is adding fuel to compensate for a lean condition.

Repair the mixture problem before blaming the knock-control electronics.

Step 11: Verify Ignition Timing and Calibration

Review:

Aggressive ignition timing can create genuine detonation. Poorly configured aftermarket tuning may also alter the knock-control strategy or disable protection.

Return modified vehicles to a verified calibration before replacing components.

Step 12: Inspect for Mechanical Noise

False knock can come from components that transmit abnormal vibration through the engine block.

Inspect:

Correct mechanical noise before evaluating the knock-control system again.

Step 13: Check for PCM Updates

Search manufacturer service information for:

A software update may correct overly sensitive or inaccurate knock-control monitoring.

Software should only be updated using approved equipment and a stable battery-support unit.

Step 14: Test the PCM Last

PCM failure should be considered only after verifying:

If the knock-sensor signal reaches the correct PCM terminal but the controller cannot process it correctly, internal PCM failure may be possible.

Replacing the PCM may require:

Common P0324 Diagnostic Mistakes

Avoid these common mistakes:

P0324 is a system code. Treating it as a simple sensor replacement wastes the most useful word in its definition.

How to Fix the P0324 Code

The correct repair depends on the diagnostic results.

Possible repairs include:

After repairing the problem:

  1. Clear the stored codes.
  2. Start the engine and monitor live data.
  3. Allow the engine to reach operating temperature.
  4. Verify fuel trims and ignition timing.
  5. Confirm knock-retard activity is reasonable.
  6. Road-test the vehicle under the original failure conditions.
  7. Rescan for stored and pending codes.

Do not deliberately force the engine into heavy detonation to prove the repair. Controlled diagnosis is useful; attempted piston demolition is not.

Estimated P0324 Repair Costs

Costs depend on the vehicle, sensor location and root cause.

RepairTypical estimated cost
Professional diagnosis$100–250
Connector or wiring repair$75–500
Knock-sensor replacement$150–900
Intake-manifold removal for sensor access$400–1,200+
Cooling-system repair$100–1,500+
Lean-condition repair$100–1,500+
Mechanical false-knock repair$100–3,000+
PCM software update$100–300
PCM replacement and programming$800–2,500+

Knock sensors mounted beneath an intake manifold may be inexpensive parts surrounded by several hours of labor—because engineers also enjoy sarcasm, apparently.

Can You Drive With a P0324 Code?

A short drive may be possible if:

Driving is not recommended if the vehicle has:

If the knock-control system is disabled, the PCM may not be able to protect the engine from detonation.

Can Low-Octane Fuel Cause P0324?

Low-octane fuel can cause genuine detonation, particularly in:

Whether it directly triggers P0324 depends on the manufacturer’s monitoring strategy.

Fill the vehicle with the fuel grade required by the manufacturer. If the problem continues, diagnose the system instead of repeatedly purchasing higher-octane fuel and hoping the Check Engine Light develops manners.

Can a Bad Knock Sensor Cause P0324?

Yes, a failed knock sensor can contribute to P0324.

However, the code can also result from:

Test the complete system before replacing the sensor.

Will P0324 Reduce Engine Power?

It can.

If the PCM cannot trust the knock-control system, it may use conservative ignition timing or enter a protective operating mode.

Drivers may notice:

These strategies are designed to protect the engine until the fault is repaired.

Does P0324 Mean the Engine Is Knocking?

Not necessarily.

P0324 means the PCM has detected an error in the knock-control system. The engine may be experiencing genuine detonation, false knock or an electrical and software-related fault.

If you hear an actual knocking sound, use the engine-knocking-noise guide to separate combustion knock from mechanical engine damage.

Related Pro Street Diagnostic Guides

Continue the diagnosis with these related resources:

Final Thoughts

The P0324 code means the PCM has detected an error in the engine’s knock-control system.

The problem may involve the knock sensor, its mounting, signal wiring, electrical interference, actual detonation, mechanical false knock, PCM calibration or the controller itself.

Begin by checking all stored codes, engine temperature, fuel trims, ignition timing and knock-retard data. Inspect the sensor installation and wiring before evaluating signal quality with an oscilloscope.

Most importantly, determine whether the system is detecting real combustion knock, reacting to unrelated engine noise or failing electronically.

P0324 is not simply a request for a new knock sensor. It is the PCM admitting that it no longer trusts the complete knock-control process—which, for once, is a surprisingly honest error message.

Exit mobile version
