P0329 Code: Knock Sensor 1 Circuit Intermittent

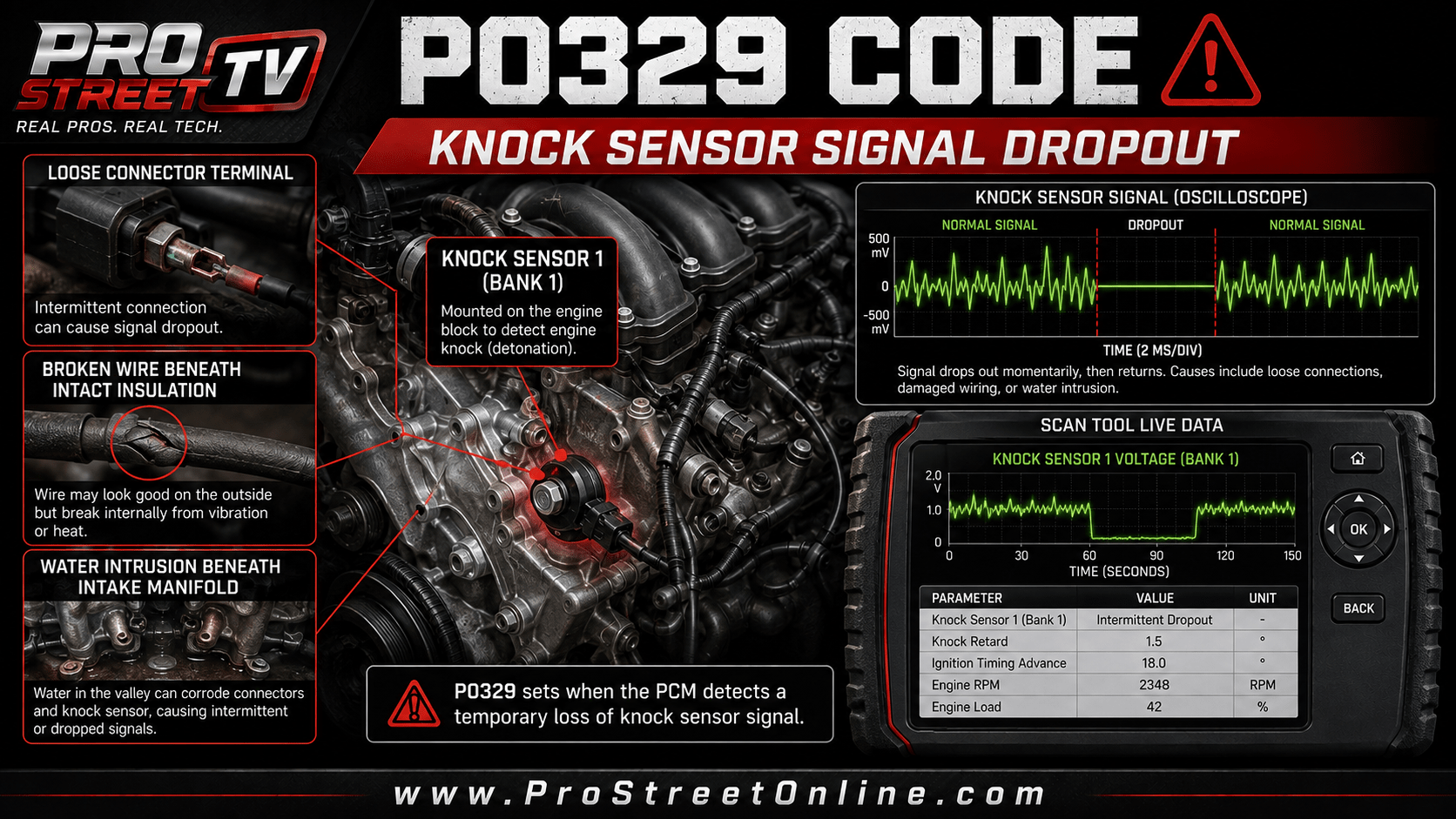

P0329 Knock Sensor 1 intermittent circuit diagnostic illustration

The P0329 OBD-II trouble code means the Powertrain Control Module has detected an intermittent electrical signal from Knock Sensor 1 on Bank 1 or the vehicle’s single knock sensor.

The generic definition for P0329 is:

Knock Sensor 1 Circuit Intermittent — Bank 1 or Single Sensor

Unlike P0327 or P0328, the sensor signal is not necessarily stuck consistently low or high. With P0329, the signal may appear normal before suddenly dropping out, spiking or returning.

Common causes include:

A failed knock sensor can trigger P0329, but intermittent circuit faults are frequently responsible. Replacing the sensor without inspecting the wiring may provide a brief sense of accomplishment, followed by the exact same Check Engine Light.

P0329 Quick Facts

ItemInformation
Trouble codeP0329
Generic definitionKnock Sensor 1 Circuit Intermittent
Sensor locationBank 1 or single-sensor engine
SystemKnock detection and ignition timing
Fault typeIntermittent electrical signal
SeverityModerate
Safe to drive?Usually short-term if no knocking or overheating is present
Common symptomsCheck Engine Light, reduced power, intermittent hesitation
Common causesLoose terminals, wiring damage, contamination or sensor failure
Related codesP0324, P0325, P0326, P0327 and P0328

What Does the P0329 Code Mean?

P0329 means the PCM detected a Knock Sensor 1 signal that intermittently disappeared or behaved erratically.

The signal may fail for only a fraction of a second. That brief interruption can still prevent the PCM from accurately monitoring combustion knock.

When the PCM cannot trust the signal, it may:

The vehicle may run normally most of the time because the fault is not always present.

That makes P0329 more difficult to diagnose than a permanent open or short circuit.

What Is Knock Sensor 1?

Knock Sensor 1 monitors vibration from the engine block.

Depending on the vehicle, it may be:

Bank 1 is the side of the engine containing cylinder number one.

On an inline engine, there is only one cylinder bank. The code may still identify the single sensor as Knock Sensor 1.

Always use the manufacturer’s cylinder numbering and sensor-location information. Bank 1 is not universally the driver or passenger side, because automotive engineers apparently rejected that dangerously convenient idea.

How a Knock Sensor Works

Most knock sensors contain a piezoelectric element that produces a small voltage when exposed to vibration.

The PCM analyzes that signal using:

When the PCM detects combustion knock, it may temporarily reduce ignition timing.

Once the knock stops, the PCM can gradually restore timing.

This strategy helps protect the engine from detonation without permanently reducing performance.

What Does “Circuit Intermittent” Mean?

An intermittent circuit works correctly sometimes and fails under particular conditions.

The Knock Sensor 1 signal may fail when:

The circuit may test normally while the vehicle is parked.

That does not mean the problem has repaired itself. Intermittent electrical faults are simply good at behaving whenever test equipment appears.

P0329 Versus Related Knock-Sensor Codes

CodeDefinitionDiagnostic distinction
P0324Knock Control System ErrorOverall system-operation or processing fault
P0325Knock Sensor 1 Circuit MalfunctionGeneral Sensor 1 circuit fault
P0326Knock Sensor 1 Range/PerformanceSignal exists but behaves implausibly
P0327Knock Sensor 1 Circuit Low InputSignal remains below its expected threshold
P0328Knock Sensor 1 Circuit High InputSignal remains above its expected threshold
P0329Knock Sensor 1 Circuit IntermittentSignal drops out, spikes or returns
P0330Knock Sensor 2 Circuit MalfunctionGeneral Sensor 2 circuit fault

P0329 should focus specifically on finding a signal failure caused by heat, vibration, contamination or poor electrical contact.

For low- and high-voltage knock-sensor problems, see the existing P0327 and P0328 knock-sensor guide.

How Serious Is the P0329 Code?

P0329 is generally considered a moderate fault, but it should not be ignored.

When the knock-sensor signal disappears, the PCM may not accurately detect detonation. It may compensate by using conservative ignition timing, which can reduce performance and fuel economy.

More importantly, genuine detonation may go undetected during the signal dropout.

Stop driving if the vehicle develops:

For an audible engine knock that is not specific to this trouble code, use our engine-knocking-noise guide.

Common Symptoms of P0329

P0329 symptoms may include:

The symptoms may disappear after restarting the vehicle or allowing the engine to cool.

Common Causes of the P0329 Code

Common P0329 causes include:

  1. Loose knock-sensor connector
  2. Spread connector terminals
  3. Backed-out connector pin
  4. Corroded terminals
  5. Broken wire inside the insulation
  6. Harness damage caused by vibration
  7. Wiring melted near the exhaust
  8. Harness rubbing against the engine
  9. Intermittent open signal circuit
  10. Intermittent short to ground
  11. Intermittent short to voltage
  12. Water intrusion
  13. Oil contamination
  14. Coolant contamination
  15. Damaged signal shielding
  16. Electrical interference
  17. Poor engine ground
  18. Poor PCM ground
  19. Loose knock sensor
  20. Incorrect sensor torque
  21. Heat-sensitive knock sensor
  22. Cracked sensor housing
  23. Incorrect replacement sensor
  24. Loose engine or transmission mount
  25. Mechanical false knock
  26. PCM connector problem
  27. PCM software problem
  28. Internal PCM failure

Actual detonation does not normally create an intermittent electrical circuit by itself. However, excessive engine vibration or abnormal mechanical noise may complicate signal interpretation and should still be investigated.

Why Heat Can Trigger P0329

Heat expands electrical components and increases resistance.

A circuit that works correctly when cold may fail after:

The engine may run normally again after cooling.

This hot-failure and cold-recovery pattern frequently points toward:

A heat-related pattern is valuable evidence, but the failed component still needs to be identified through testing.

Why Vibration Can Trigger P0329

Engine movement can interrupt a weak electrical connection.

Common vibration-related problems include:

The signal may fail during:

Recording when the fault occurs helps narrow the inspection area.

Water and Oil Intrusion

Some engines mount their knock sensors beneath the intake manifold or inside an engine valley.

These areas may collect:

Contamination can corrode the sensor terminals and wiring.

LS-based GM engines are particularly well known for water collecting around the knock sensors beneath the intake manifold. That does not mean every P0329 is an LS knock-sensor problem, but it makes valley inspection important on applicable engines.

Inspect for:

Repair the source of the contamination before replacing the affected components.

Common P0329 Scan-Tool Patterns

Graphing live data makes brief signal interruptions easier to detect.

Knock Retard Suddenly Drops to Zero

If knock-retard activity disappears unexpectedly, possible causes include:

Zero knock retard can be normal during ordinary driving. The important clue is an abrupt and unexplained change during a known operating condition.

Knock Retard Spikes Randomly

Random knock-retard spikes may indicate:

Compare knock retard with:

If the spike occurs whenever the vehicle hits a bump, inspect wiring and connectors before blaming combustion.

Signal Fails Only When Hot

A graph may show normal sensor activity when cold followed by a flat or erratic signal after warmup.

Possible causes include:

Capture sensor data before, during and after the failure.

Signal Changes During a Wiggle Test

If knock-sensor data changes when the harness is gently moved, inspect that specific section for:

Move one harness section at a time. Shaking the entire engine bay proves only that something somewhere dislikes being shaken.

How to Diagnose the P0329 Code

Intermittent faults require collecting evidence while the problem is active.

Step 1: Scan All Modules

Connect a capable scan tool and record:

Look for related codes involving:

Do not erase the code before saving the freeze-frame information.

Step 2: Study the Freeze-Frame Data

Freeze-frame data may show whether the fault occurred:

If the code repeatedly appears near the same engine temperature or RPM, use those conditions to reproduce the fault.

Step 3: Identify Knock Sensor 1

Use the correct service information to confirm:

Do not begin intake-manifold removal until the correct sensor has been identified.

Step 4: Inspect for Abnormal Engine Noise

Listen for:

Mechanical false knock may affect sensor data, but P0329 specifically describes an intermittent circuit condition. Electrical inspection remains essential.

Step 5: Inspect the Sensor Area

Check the sensor and surrounding area for:

If contamination is found beneath the intake manifold, repair the leak or entry point before installing replacement parts.

Step 6: Inspect the Wiring Harness

Follow the harness from the sensor toward the PCM.

Look for:

Pay particular attention to locations where the harness crosses the engine or passes beneath the intake manifold.

Step 7: Check Connector-Terminal Tension

A terminal can look clean while making weak electrical contact.

Inspect for:

Use the manufacturer-approved terminal testing tool.

Do not force an oversized meter probe into the connector. Spreading a terminal during diagnosis is an efficient way to turn an intermittent fault into a permanent one.

Step 8: Perform a Controlled Wiggle Test

Monitor knock-sensor data while gently moving:

Watch for:

Only move one area at a time so the result can be traced to a specific component or harness section.

Step 9: Test Circuit Continuity

Disconnect the appropriate modules and test:

Perform the test while:

A stationary continuity test may miss a conductor that separates only when the harness bends.

Step 10: Inspect the Signal With an Oscilloscope

An oscilloscope is the best tool for capturing an intermittent knock-sensor fault.

Monitor for:

Compare the waveform at:

If the waveform remains correct at the sensor but fails at the PCM, suspect the wiring, connector or shielding.

If the signal fails directly at the sensor while the circuit remains powered and connected, the sensor may be defective.

Step 11: Perform a Heat-Soak Test

If P0329 appears only after the engine warms up, monitor the signal through a complete heat cycle.

Observe the sensor:

  1. During cold startup
  2. As coolant temperature rises
  3. At normal operating temperature
  4. After the engine is shut off
  5. During a hot restart

Underhood temperature often continues rising after shutdown. This may reveal a sensor or connector that fails only during heat soak.

Controlled heat or cooling spray may be used by an experienced technician, but excessive temperature can damage the sensor and wiring.

Step 12: Check Grounds and System Voltage

Inspect:

A poor ground or excessive alternator ripple may introduce electrical noise into the knock-sensor signal.

Perform voltage-drop tests while the circuit is operating.

Step 13: Verify Sensor Installation

Confirm:

Incorrect mounting may change sensor response and contribute to intermittent or implausible data.

Step 14: Check for Technical Service Bulletins

Manufacturer bulletins may identify:

Follow the manufacturer’s repair procedure when a bulletin matches the vehicle and symptoms.

Step 15: Evaluate the PCM Last

Consider PCM failure only after verifying:

If a stable waveform reaches the correct PCM terminal but scan data still shows intermittent loss, a PCM connection, software or internal processing problem may be responsible.

Common P0329 Diagnostic Mistakes

Avoid these common mistakes:

Intermittent faults require patience and evidence. Guessing is certainly faster, but so is setting money on fire.

How to Fix the P0329 Code

Possible P0329 repairs include:

After completing repairs:

  1. Clear the codes.
  2. Start the engine and graph knock data.
  3. Allow the engine to reach operating temperature.
  4. Perform a heat-soak and hot-restart test.
  5. Repeat the original driving conditions.
  6. Complete the appropriate drive cycle.
  7. Rescan for pending and stored codes.

Because the fault is intermittent, one successful cold start does not verify the repair.

Estimated P0329 Repair Costs

RepairTypical estimated cost
Professional electrical diagnosis$100–300
Connector-terminal repair$75–300
Wiring-harness repair$100–600
Knock-sensor replacement$150–900
Intake-manifold removal for access$400–1,200+
Leak or water-intrusion repair$100–1,000+
PCM software update$100–300
PCM replacement and programming$800–2,500+

The total depends heavily on sensor location. A buried sensor can turn a small electrical component into a full afternoon of intake-manifold archaeology.

Can You Drive With a P0329 Code?

Limited driving may be possible if:

Driving is not recommended if the engine has:

The PCM may reduce ignition timing when it cannot trust the sensor. If the signal disappears completely, knock protection may be limited.

Can Heat Cause a P0329 Code?

Yes.

A knock sensor, connector or damaged wire may work when cold and fail after expanding with heat.

Common heat-related patterns include:

Graph the signal through a complete heat cycle to locate the failure.

Can Water Under the Intake Manifold Cause P0329?

Yes.

Water, coolant or oil can corrode the knock sensor and connector, especially when the sensor is mounted in the engine valley.

Remove the contamination and repair its source. Replacing the sensor without stopping the leak merely schedules the next failure.

Can Bad Wiring Cause P0329?

Yes. Wiring and connector faults are among the most important causes of P0329.

A conductor may be:

Test the circuit while moving the harness and changing its temperature.

Does P0329 Mean the Knock Sensor Is Bad?

No.

The sensor may be defective, but the code can also result from:

Confirm where the signal disappears before replacing the sensor.

Can Mechanical Noise Cause P0329?

Mechanical noise may create confusing knock-sensor activity or false knock.

However, P0329 specifically indicates an intermittent circuit signal. Mechanical noise should be evaluated alongside the electrical circuit rather than assumed to be the entire cause.

Related Pro Street Diagnostic Guides

Continue the diagnosis with these related resources:

Final Thoughts

The P0329 code means the PCM has detected an intermittent signal from Knock Sensor 1 on Bank 1 or the engine’s single knock sensor.

The most important diagnostic clue is that the circuit works sometimes. Heat, vibration, terminal tension, contamination and damaged wiring should receive more attention than they would with a permanent fault.

Begin with freeze-frame data, inspect the sensor area for water or oil and graph knock-related data through a complete heat cycle. Perform a controlled wiggle test and use an oscilloscope to determine where the signal disappears.

Do not replace the sensor simply because the code contains the words “knock sensor.” Find the intermittent break first. Electricity may be invisible, but it remains remarkably consistent about punishing guesses.

Exit mobile version
