P0134 Code Explained: O2 Sensor Circuit No Activity Detected (Bank 1 Sensor 1) Causes, Symptoms & Fixes

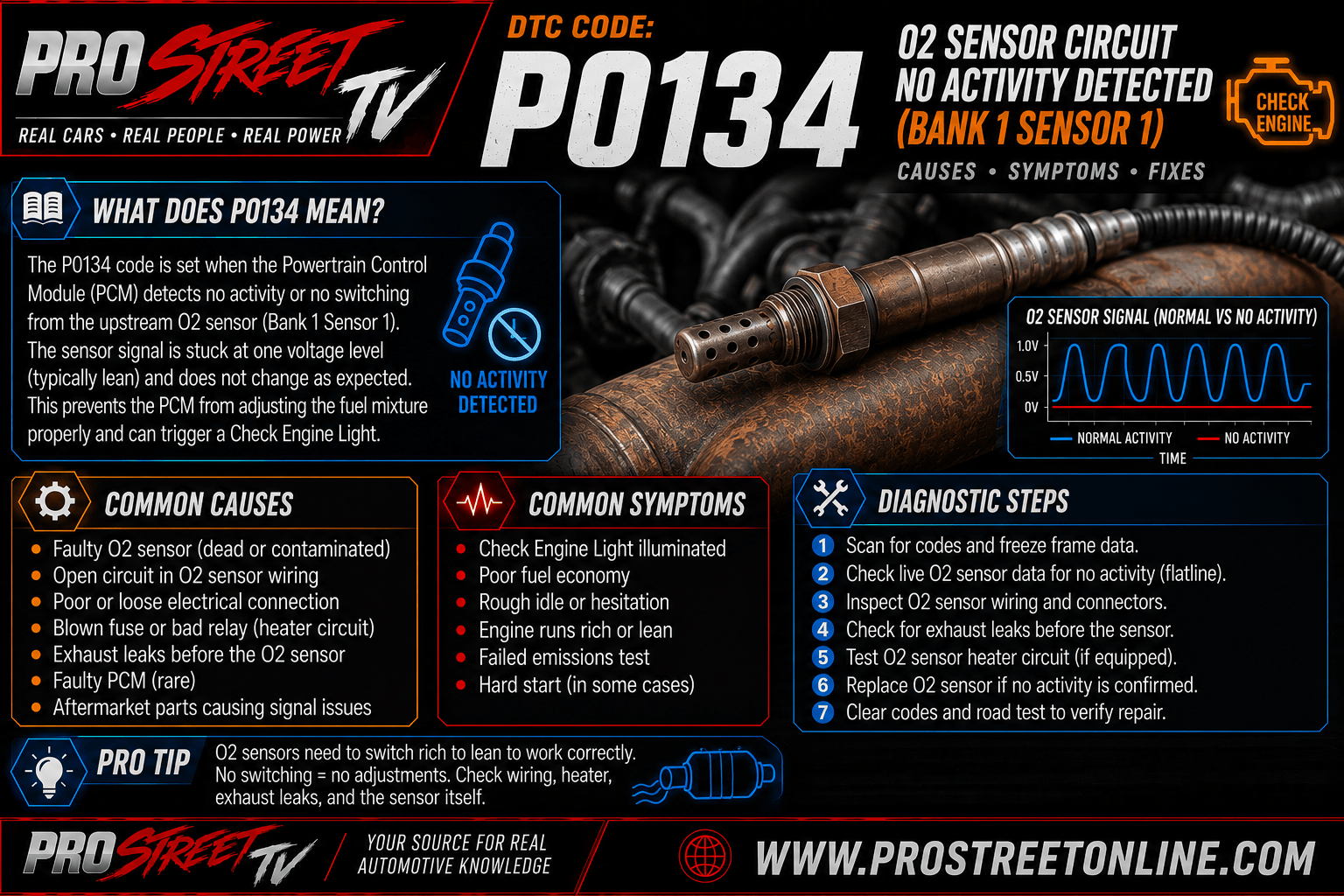

P0134 code illustration showing an inactive upstream oxygen sensor on Bank 1 Sensor 1 with a flat voltage signal, Check Engine Light, Pro Street TV logo, and www.ProStreetOnline.com.

If your OBD-II scanner displays P0134, your vehicle’s Engine Control Module (ECM) or Powertrain Control Module (PCM) has detected little or no activity from the Bank 1 Sensor 1 oxygen (O2) sensor.

The generic OBD-II definition for P0134 is:

O2 Sensor Circuit No Activity Detected (Bank 1 Sensor 1)

Unlike P0130 (general circuit malfunction), P0131 (low voltage), P0132 (high voltage), or P0133 (slow response), P0134 means the PCM is no longer receiving a usable signal from the upstream oxygen sensor.

In many cases, the sensor appears “dead,” producing little or no voltage change even after the engine has reached operating temperature.

Bank 1 Sensor 1 is the upstream oxygen sensor, located before the catalytic converter on the engine bank containing cylinder number one.

This sensor is one of the PCM’s primary inputs for controlling:

When the oxygen sensor stops responding, the PCM can no longer accurately adjust fuel delivery.

Instead, it relies on programmed backup fuel strategies, which often reduce fuel economy, increase emissions, and affect engine performance.

Although a failed oxygen sensor is a common cause, damaged wiring, poor electrical connections, heater circuit failures, exhaust leaks, and PCM faults can all trigger P0134.

Fortunately, systematic testing usually identifies the actual failure before unnecessary parts are replaced.

What Does the P0134 Code Mean?

The PCM continuously monitors the voltage produced by the upstream oxygen sensor.

A properly operating zirconia oxygen sensor should constantly switch between:

These voltage changes occur several times each second during normal closed-loop operation.

With P0134, the PCM detects little or no signal activity.

Instead of switching between rich and lean, the sensor voltage may remain:

Without this information, the PCM cannot accurately determine the air-fuel mixture.

Where Is Bank 1 Sensor 1 Located?

Bank 1 Sensor 1 is always the first oxygen sensor installed upstream of the catalytic converter.

Depending on engine design, it may be mounted in the:

Because it is positioned before the catalytic converter, it directly monitors combustion efficiency rather than catalyst performance.

Do not confuse:

Bank 1 Sensor 1

with

Bank 1 Sensor 2, which monitors catalytic converter efficiency downstream.

How an Oxygen Sensor Works

Most gasoline engines use a zirconia oxygen sensor.

The sensing element compares:

This difference creates a voltage signal.

Typical operating range:

The PCM uses these rapid voltage changes to continuously adjust injector pulse width and maintain the ideal gasoline air-fuel ratio of approximately:

14.7:1

When the sensor stops producing meaningful voltage changes, the PCM loses one of its most important control inputs.

What Does “No Activity Detected” Mean?

“No activity” does not necessarily mean the sensor has physically failed.

Instead, it means the PCM is not detecting the normal voltage changes it expects.

Possible reasons include:

In other words, the PCM is waiting for oxygen sensor feedback—but nothing useful arrives.

Why the Upstream Oxygen Sensor Is Important

The upstream oxygen sensor is one of the most frequently used sensors on the engine.

It directly influences:

Without accurate oxygen sensor feedback, the PCM must estimate fuel delivery using pre-programmed values.

How the PCM Detects P0134

Each manufacturer uses different monitoring strategies.

The PCM may monitor:

If the PCM detects no meaningful oxygen sensor activity for longer than the calibrated limit, it stores P0134.

Some manufacturers require multiple failed drive cycles before illuminating the Check Engine Light.

Open Loop vs Closed Loop Operation

Understanding fuel-control modes is essential for diagnosing P0134.

Open Loop

Immediately after startup:

The PCM ignores oxygen sensor feedback.

Fuel delivery is based on:

Closed Loop

After the oxygen sensor reaches operating temperature:

The PCM begins adjusting fuel delivery using live oxygen sensor feedback.

This improves:

P0134 almost always occurs after the PCM attempts to enter closed-loop operation but receives no usable oxygen sensor signal.

Why Oxygen Sensor Activity Is Critical

A healthy upstream oxygen sensor constantly switches between rich and lean conditions.

The PCM expects continuous voltage movement.

Without switching activity:

Loss of oxygen sensor activity forces the PCM to operate with significantly less precision.

P0134 Quick Facts

ItemInformation
DTCP0134
Generic DefinitionO2 Sensor Circuit No Activity Detected (Bank 1 Sensor 1)
SystemFuel & Emissions
SeverityModerate
Safe to Drive?Usually Yes (Short Term)
Common SymptomsCheck Engine Light, poor fuel economy, rough idle, increased emissions
Common CausesFailed oxygen sensor, open wiring, heater failure, connector damage, blown fuse
Typical Repair Cost$100–900+
Related CodesP0130, P0131, P0132, P0133, P0135

Common Vehicles That Experience P0134

Because P0134 is a generic OBD-II diagnostic trouble code, it can occur on nearly every gasoline-powered OBD-II vehicle.

Common manufacturers include:

Turbocharged engines should also be inspected for exhaust leaks, damaged wiring, and excessive heat exposure around the upstream oxygen sensor.

What Does “No Activity Detected” Really Mean?

The wording of P0134 often causes confusion.

The code does not automatically mean:

Instead, it means the PCM has determined that Bank 1 Sensor 1 is no longer providing usable oxygen sensor feedback.

The root cause may be:

Think of P0134 as your PCM saying:

“I’ve asked the oxygen sensor for information… but it isn’t answering.”

Common P0134 Scan Tool Patterns

Monitoring live scan-tool data is one of the quickest ways to diagnose P0134.

Unlike P0131 (low voltage), P0132 (high voltage), or P0133 (slow response), P0134 indicates that the upstream oxygen sensor has stopped providing usable activity altogether.

The sensor may appear completely inactive, produce a constant voltage, or fail to switch after the engine reaches operating temperature.

Analyzing oxygen sensor voltage, fuel trims, closed-loop status, and heater operation often identifies the root cause before unnecessary parts are replaced.

Pattern 1: Oxygen Sensor Voltage Never Changes

The most common scan-tool pattern is:

Possible causes include:

This is the classic scan pattern associated with P0134.

Pattern 2: Sensor Remains Near Bias Voltage

Many manufacturers apply a small reference voltage to the oxygen sensor circuit.

The scan tool may show:

Possible causes include:

The bias voltage itself is normal—the lack of switching is not.

Pattern 3: No Switching After Closed Loop Begins

After the engine reaches operating temperature:

The PCM commands closed-loop fuel control.

A healthy sensor immediately begins switching.

With P0134:

This commonly indicates complete oxygen sensor failure or an electrical problem.

Pattern 4: Sensor Does Not Respond to Throttle Input

Quickly snap the throttle.

A healthy oxygen sensor should:

If no voltage change occurs:

Inspect:

No response strongly suggests an electrical fault.

Pattern 5: Fuel Trims Stop Updating

Without oxygen sensor feedback:

The PCM often freezes fuel corrections.

Possible scan-tool observations:

This occurs because the PCM has lost its primary exhaust feedback sensor.

Pattern 6: Heater Appears Functional but Sensor Remains Dead

Some vehicles display:

Possible causes include:

The heater and sensing circuits are separate systems.

Common Symptoms of P0134

Symptoms vary depending on how the PCM compensates for the loss of oxygen sensor feedback.

Common symptoms include:

Some vehicles exhibit only the Check Engine Light with few noticeable drivability concerns.

Check Engine Light

The Check Engine Light is almost always the first symptom.

Most manufacturers require:

before illuminating the malfunction indicator lamp (MIL).

Poor Fuel Economy

Without accurate oxygen sensor feedback:

The PCM relies on default fuel calculations.

Drivers may notice:

Fuel economy often improves after proper repairs restore closed-loop operation.

Rough Idle

Improper fuel calculations may cause:

Idle quality often deteriorates because fuel trims are no longer being updated accurately.

Hesitation During Acceleration

Delayed fuel corrections may produce:

Symptoms vary depending on the manufacturer’s backup fuel strategy.

Increased Emissions

Without oxygen sensor feedback, emissions often increase significantly.

Possible increases include:

Many vehicles will fail emissions testing until the fault is repaired.

Reduced Catalytic Converter Protection

The upstream oxygen sensor helps prevent excessive catalyst temperatures.

Loss of sensor feedback may result in:

Ignoring P0134 for extended periods can contribute to expensive catalyst damage.

Is P0134 Serious?

P0134 is generally considered a moderate severity diagnostic trouble code.

Most vehicles remain drivable.

However, continued operation may lead to:

Repairs should be completed as soon as practical.

Can You Drive With P0134?

Usually yes—but prolonged driving is not recommended.

Driving is generally safe if:

Avoid extended driving if:

P0134 vs Related Trouble Codes

Understanding related oxygen sensor codes helps narrow the diagnosis.

P0130

O2 Sensor Circuit Malfunction (Bank 1 Sensor 1)

General signal circuit fault.

P0131

O2 Sensor Circuit Low Voltage (Bank 1 Sensor 1)

Sensor voltage remains too low.

P0132

O2 Sensor Circuit High Voltage (Bank 1 Sensor 1)

Sensor voltage remains too high.

P0133

O2 Sensor Circuit Slow Response (Bank 1 Sensor 1)

Sensor responds too slowly.

P0134

O2 Sensor Circuit No Activity Detected (Bank 1 Sensor 1)

The PCM receives virtually no usable oxygen sensor signal.

P0135

O2 Sensor Heater Circuit Malfunction (Bank 1 Sensor 1)

The oxygen sensor heater circuit has failed.

30 Common Causes of P0134

The most common causes include:

  1. Failed upstream oxygen sensor
  2. Open oxygen sensor signal wire
  3. Broken wiring harness
  4. Corroded connector
  5. Loose connector terminals
  6. Failed oxygen sensor heater
  7. Blown heater fuse
  8. Damaged heater relay
  9. Poor sensor ground
  10. Open ground circuit
  11. Exhaust leak ahead of the sensor
  12. Vacuum leak
  13. Contaminated oxygen sensor
  14. Oil contamination
  15. Coolant contamination
  16. Silicone contamination
  17. Water intrusion into connectors
  18. Damaged PCM connector
  19. Previous wiring repairs
  20. High wiring resistance
  21. Engine Coolant Temperature sensor fault
  22. Mass Air Flow (MAF) sensor problems
  23. Fuel delivery issues
  24. Engine misfire
  25. Weak ignition coils
  26. Worn spark plugs
  27. Restricted catalytic converter
  28. PCM calibration issue
  29. Aftermarket electrical modifications
  30. PCM failure (rare)

Final Thoughts

The P0134 O2 Sensor Circuit No Activity Detected (Bank 1 Sensor 1) code indicates the PCM has stopped receiving usable feedback from the upstream oxygen sensor.

Although complete oxygen sensor failure is common, wiring damage, connector problems, heater circuit failures, blown fuses, contamination, exhaust leaks, and engine performance issues can all produce the same code.

Proper diagnosis should always determine why the oxygen sensor has stopped communicating before replacing components.

The next section of this guide covers:

Following a systematic diagnostic process restores closed-loop fuel control, improves engine performance, reduces emissions, protects the catalytic converter, and prevents unnecessary parts replacement.

Related Pro Street Diagnostic Guides

How to Diagnose the P0134 Code

Diagnosing P0134 requires determining why the Bank 1 Sensor 1 oxygen sensor has stopped producing a usable signal.

Unlike P0133, where the sensor responds too slowly, P0134 indicates little or no detectable oxygen sensor activity.

Although a failed oxygen sensor is one of the most common causes, many other problems can interrupt the signal, including:

Proper diagnosis should always identify why the PCM is no longer receiving oxygen sensor feedback before replacing components.

Safety Precautions

Before beginning diagnosis:

The upstream oxygen sensor operates in an extremely hot environment and may exceed 900°F (480°C) during normal operation.

Tools Required

Professional diagnosis may require:

A graphing scan tool or oscilloscope is particularly useful for confirming that the oxygen sensor has completely stopped switching.

Step 1 – Verify the Code

Connect the scan tool.

Record:

Monitor:

Do not erase diagnostic codes until freeze-frame information has been recorded.

Step 2 – Check for Related Trouble Codes

P0134 frequently appears with:

Multiple codes often point toward the underlying fault.

Code CombinationLikely Diagnosis
P0134 onlyOxygen sensor or signal circuit failure
P0134 + P0135Heater circuit problem
P0134 + P0171Lean condition or vacuum leak
P0134 + P0172Rich fuel condition
P0134 + P0300Ignition misfire affecting oxygen sensor operation

Step 3 – Verify Closed-Loop Operation

Allow the engine to reach normal operating temperature.

Monitor:

The PCM should transition from:

Open Loop

to

Closed Loop

If the PCM never enters closed loop, inspect:

P0134 testing should always be performed after closed-loop operation begins.

Step 4 – Monitor Oxygen Sensor Voltage

Observe live data for Bank 1 Sensor 1.

A healthy sensor should rapidly switch between:

Watch for:

No switching activity is the defining characteristic of P0134.

Step 5 – Snap the Throttle

Quickly increase engine RPM.

A healthy oxygen sensor should:

If no voltage movement occurs:

Inspect:

This simple test often confirms complete sensor inactivity.

Step 6 – Analyze Fuel Trim Data

Monitor:

Without oxygen sensor feedback:

Fuel trims may:

Fuel trim behavior helps determine how the PCM is compensating for the loss of sensor input.

Step 7 – Inspect the Oxygen Sensor

Inspect Bank 1 Sensor 1 for:

A severely contaminated sensor may stop producing usable voltage altogether.

Step 8 – Inspect the Electrical Connector

Disconnect the connector.

Inspect for:

Connector failures are among the most common causes of P0134.

Step 9 – Test the Signal Circuit

Using a digital multimeter:

Back-probe the signal wire.

Inspect for:

An open signal wire prevents the PCM from receiving oxygen sensor activity.

Step 10 – Verify Sensor Ground

Perform voltage-drop testing.

Inspect:

Poor grounds can completely eliminate oxygen sensor output.

Step 11 – Test the Heater Circuit

Most oxygen sensors rely on an internal heater to reach operating temperature quickly.

Inspect:

A failed heater circuit may prevent the oxygen sensor from becoming active.

Step 12 – Inspect for Exhaust Leaks

Inspect all exhaust components before Bank 1 Sensor 1.

Check:

Although exhaust leaks more commonly cause slow-response or lean codes, severe leaks may contribute to sensor inactivity.

Step 13 – Inspect for Vacuum Leaks

Use a smoke machine whenever possible.

Inspect:

Large vacuum leaks may interfere with normal closed-loop operation.

Step 14 – Verify Fuel Pressure

Connect a fuel pressure gauge.

Compare readings with manufacturer specifications.

Inspect for:

Abnormal fuel delivery may affect oxygen sensor operation.

Step 15 – Inspect the Mass Air Flow (MAF) Sensor

Monitor:

Inspect for:

Incorrect airflow calculations may contribute to improper fuel control.

Step 16 – Inspect Ignition Components

Inspect:

Persistent misfires can interfere with normal oxygen sensor operation and should always be corrected first.

Step 17 – Inspect the Wiring Harness

Inspect the oxygen sensor harness between:

Look for:

Heat damage is extremely common near exhaust manifolds.

Step 18 – Review Technical Service Bulletins

Before replacing expensive components:

Review manufacturer Technical Service Bulletins.

Look for updates involving:

Factory updates may eliminate recurring diagnostic issues.

Step 19 – Compare Bank 1 and Bank 2 Sensor Activity (If Equipped)

On V-engine applications:

Compare:

If Bank 2 switches normally while Bank 1 remains inactive, the problem is usually isolated to Bank 1 rather than affecting the entire engine.

Step 20 – Review Freeze-Frame Data

Compare current live data with stored freeze-frame information.

Review:

Freeze-frame data often identifies the operating conditions that caused the oxygen sensor to stop responding.

Next Section

Part 2B covers:

Step 21 – Replace the Oxygen Sensor (If Required)

Replace Bank 1 Sensor 1 only after confirming that the oxygen sensor is no longer producing a usable signal.

General replacement procedure:

  1. Allow the exhaust system to cool completely.
  2. Disconnect the negative battery cable (if recommended by the manufacturer).
  3. Disconnect the oxygen sensor electrical connector.
  4. Remove the sensor using an oxygen sensor socket.
  5. Inspect the sensor threads and mounting bung.
  6. Install a quality OEM or OEM-equivalent replacement sensor.
  7. Tighten to the manufacturer’s torque specification.
  8. Reconnect the electrical connector.
  9. Clear all diagnostic trouble codes.
  10. Verify proper sensor operation using live scan data.

OEM sensors generally provide the most accurate response characteristics and longest service life.

Step 22 – Repair the Heater Circuit

Many P0134 faults occur because the oxygen sensor never reaches operating temperature.

Inspect and repair:

Measure heater resistance according to factory specifications.

If the heater circuit is defective, replace the sensor or repair the wiring as necessary.

Step 23 – Repair Wiring Problems

Inspect the complete oxygen sensor circuit for electrical faults.

Repair:

Always use:

Proper harness routing prevents future heat damage.

Step 24 – Repair Connector Damage

The oxygen sensor connector operates in an extremely harsh environment.

Inspect for:

A damaged connector can completely interrupt sensor communication with the PCM.

Replace damaged connectors whenever reliable electrical contact cannot be restored.

Step 25 – Repair Exhaust Leaks

Inspect the exhaust system ahead of Bank 1 Sensor 1.

Repair:

Although exhaust leaks more commonly trigger lean or slow-response codes, severe leaks can contribute to sensor inactivity.

Step 26 – Repair Vacuum Leaks

Large vacuum leaks may prevent stable closed-loop fuel control.

Inspect:

Use a smoke machine whenever possible to locate even minor leaks.

Step 27 – Repair Fuel and Ignition Problems

Engine performance problems can interfere with oxygen sensor operation.

Inspect:

Correct engine performance problems before condemning the oxygen sensor.

Step 28 – Clean or Replace the MAF Sensor

A contaminated Mass Air Flow (MAF) sensor may cause improper fuel calculations that affect closed-loop operation.

Inspect for:

If cleaning is approved:

Replace the sensor if readings remain inaccurate.

Step 29 – Update PCM Software

Before replacing expensive components, review manufacturer Technical Service Bulletins (TSBs).

Some manufacturers have released PCM software updates addressing:

Always verify the PCM has the latest available calibration.

Step 30 – Consider PCM Failure

PCM failure is extremely rare.

Only suspect the PCM after confirming:

PCM replacement should always be the final diagnostic step.

How to Fix P0134

The proper repair depends on the results of your diagnosis.

Common repairs include:

Verifying the Repair

After repairs:

  1. Clear all diagnostic trouble codes.
  2. Start the engine.
  3. Allow the engine to reach operating temperature.
  4. Verify closed-loop operation.
  5. Monitor Bank 1 Sensor 1 voltage.
  6. Confirm rapid switching between approximately 0.1 and 0.9 volts.
  7. Observe STFT and LTFT values.
  8. Perform a complete road test.
  9. Recheck pending and permanent DTCs.
  10. Confirm the Check Engine Light remains off.

A successful repair restores normal oxygen sensor activity and allows the PCM to maintain accurate fuel control.

Typical Repair Costs

RepairTypical Cost
Professional diagnosis$100–250
Bank 1 Sensor 1 oxygen sensor replacement$175–450
Heater circuit repair$150–500
Wiring repair$150–500
Connector replacement$100–350
Exhaust leak repair$150–800
Vacuum leak repair$150–600
MAF sensor replacement$150–450
PCM software update$100–300
PCM replacement$1,000–3,000+

Actual repair costs vary based on the vehicle, labor rates, and parts availability.

Common Diagnostic Mistakes

Avoid these common mistakes:

Many P0134 repairs involve restoring communication between the oxygen sensor and PCM—not simply installing a new sensor.

Manufacturer-Specific Notes

General Motors

Inspect:

Heat-damaged wiring near the exhaust manifold is common on high-mileage GM vehicles.

Ford

Verify:

EcoBoost engines should also be inspected for turbocharger-related wiring damage.

Toyota / Lexus

Inspect:

Many Toyota applications use wideband A/F sensors that require manufacturer-specific diagnostic procedures.

Honda / Acura

Inspect:

OEM oxygen sensors are strongly recommended for reliable operation.

Nissan / Infiniti

Compare:

Corroded connectors and contaminated MAF sensors are common contributors to P0134.

Hyundai / Kia

Inspect:

Water intrusion into connectors is occasionally responsible for intermittent sensor inactivity.

Volkswagen / Audi

Verify:

Many turbocharged engines require factory-level scan tools for complete diagnosis.

BMW / MINI

Use factory diagnostic equipment to monitor:

Wideband sensors should be tested according to BMW service procedures.

Chrysler / Dodge / Jeep / Ram

Inspect:

Exhaust manifold heat often damages oxygen sensor wiring on high-mileage applications.

Frequently Asked Questions

What usually fixes P0134?

The most common repairs include replacing a failed upstream oxygen sensor, repairing open wiring, restoring heater circuit operation, replacing damaged connectors, repairing exhaust leaks, or replacing a blown heater fuse.

Can I drive with P0134?

Usually yes. However, prolonged driving may reduce fuel economy, increase emissions, and accelerate catalytic converter wear because the PCM cannot accurately control the air-fuel ratio.

Does P0134 always mean the oxygen sensor is bad?

No. Open wiring, connector corrosion, heater circuit failures, blown fuses, and PCM input problems can all prevent the sensor from communicating even if the sensing element itself is still functional.

Can a blown fuse cause P0134?

Yes. If the heater circuit fuse fails, the oxygen sensor may never reach operating temperature, causing the PCM to detect no activity.

Can damaged wiring cause P0134?

Absolutely. Open circuits, broken wires, poor grounds, and corroded connectors are among the most common causes of P0134.

Can a bad heater circuit trigger P0134?

Yes. A failed heater prevents the oxygen sensor from warming up quickly enough to produce normal voltage changes during closed-loop operation.

Final Thoughts

The P0134 O2 Sensor Circuit No Activity Detected (Bank 1 Sensor 1) code indicates the PCM is no longer receiving usable information from the upstream oxygen sensor. While a failed oxygen sensor is a common cause, heater circuit failures, damaged wiring, blown fuses, connector corrosion, exhaust leaks, and electrical faults are frequently responsible.

A complete diagnosis should always verify:

Following a systematic diagnostic process restores closed-loop fuel control, improves engine performance, reduces emissions, protects the catalytic converter, and prevents unnecessary parts replacement.

Exit mobile version
