P0130 Code Explained: O2 Sensor Circuit Malfunction (Bank 1 Sensor 1) Causes, Symptoms & Fixes

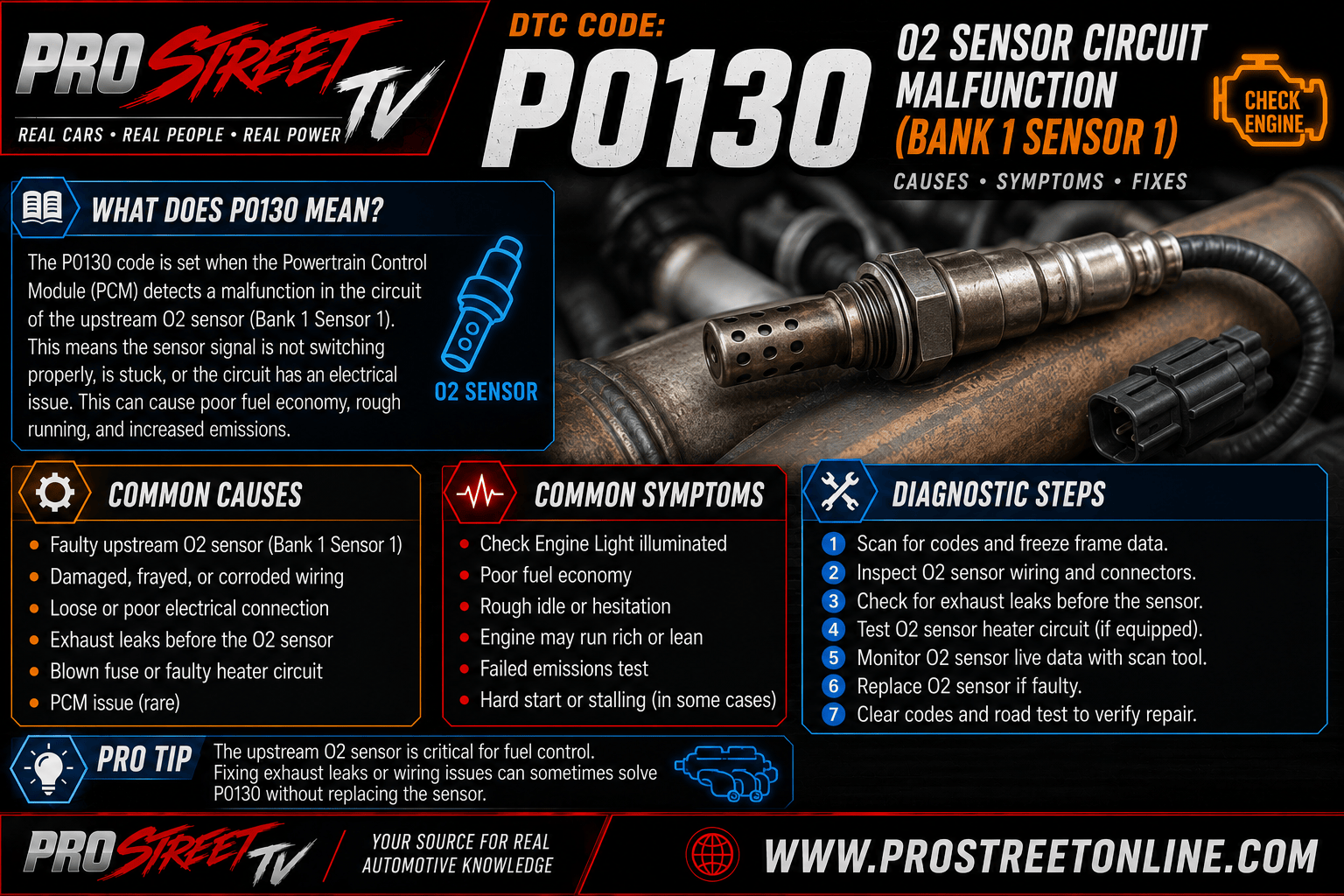

P0130 code illustration showing the upstream oxygen sensor (Bank 1 Sensor 1) mounted in the exhaust manifold with voltage signal graphics, Check Engine Light, Pro Street TV logo, and www.ProStreetOnline.com.

If your OBD-II scanner displays P0130, your vehicle’s Engine Control Module (ECM) or Powertrain Control Module (PCM) has detected a malfunction in the oxygen (O2) sensor circuit for Bank 1 Sensor 1.

The generic OBD-II definition for P0130 is:

O2 Sensor Circuit Malfunction (Bank 1 Sensor 1)

Unlike oxygen sensor heater codes such as P0030–P0064, which focus on the sensor’s internal heater circuit, P0130 monitors the primary signal circuit used by the PCM to measure oxygen content in the exhaust.

Bank 1 Sensor 1 is the upstream oxygen sensor, positioned before the catalytic converter on the engine bank containing cylinder number one.

This sensor is one of the most important inputs used by the PCM to control:

When the PCM detects that the oxygen sensor signal is missing, erratic, or outside its expected operating range, it stores P0130 and may illuminate the Check Engine Light.

Although many people immediately replace the oxygen sensor, wiring problems, exhaust leaks, fuel system issues, vacuum leaks, and PCM faults can produce the same code.

Fortunately, proper diagnosis usually identifies the root cause before unnecessary parts are replaced.

What Does the P0130 Code Mean?

The PCM continuously monitors the voltage produced by the upstream oxygen sensor.

The oxygen sensor measures the amount of oxygen remaining in the exhaust gases after combustion.

Using this information, the PCM constantly adjusts:

A properly operating upstream oxygen sensor rapidly switches between:

The PCM expects these voltage changes to occur continuously while the engine is operating in closed-loop mode.

If the signal becomes:

the PCM stores P0130.

Where Is Bank 1 Sensor 1 Located?

Bank 1 Sensor 1 is the first oxygen sensor located upstream of the catalytic converter.

It is threaded directly into:

It always sits ahead of the catalytic converter because its job is to monitor combustion before exhaust gases enter the catalyst.

Do not confuse:

Bank 1 Sensor 1

with

Bank 1 Sensor 2

which is located after the catalytic converter and primarily monitors catalyst efficiency.

How an Oxygen Sensor Works

Most modern vehicles use a zirconia oxygen sensor.

The sensing element compares:

This comparison creates a small voltage.

Typical sensor output ranges from approximately:

The PCM expects the voltage to constantly switch between rich and lean several times each second once the engine reaches operating temperature.

These rapid voltage changes allow the PCM to maintain the ideal air-fuel ratio of approximately:

14.7:1

for gasoline engines during normal driving.

Why the Upstream Oxygen Sensor Is Important

The upstream oxygen sensor is one of the most heavily used sensors on the engine.

Without accurate oxygen sensor feedback, the PCM cannot precisely control fuel delivery.

The sensor directly influences:

An inaccurate signal forces the PCM to estimate fuel delivery, reducing efficiency and increasing emissions.

How the PCM Detects P0130

Each manufacturer uses different monitoring strategies.

The PCM may evaluate:

If the oxygen sensor circuit does not behave as expected, the PCM stores P0130.

Some vehicles require multiple failed drive cycles before illuminating the Check Engine Light.

Open Loop vs Closed Loop Operation

Understanding this difference is essential.

Open Loop

During startup:

The PCM ignores oxygen sensor feedback.

Instead, fuel delivery is based on:

Closed Loop

Once the oxygen sensor reaches operating temperature:

The PCM begins adjusting fuel delivery using live oxygen sensor data.

This continuous adjustment improves:

P0130 generally affects closed-loop operation, where oxygen sensor feedback becomes critical.

Why Oxygen Sensor Signals Matter

A healthy upstream oxygen sensor switches rapidly between:

Rich:

Approximately 0.8–0.9 volts

Lean:

Approximately 0.1–0.2 volts

This constant switching tells the PCM whether additional fuel should be added or removed.

If the voltage remains fixed or changes too slowly, the PCM loses one of its most important control inputs.

P0130 Quick Facts

ItemInformation
DTCP0130
Generic DefinitionO2 Sensor Circuit Malfunction (Bank 1 Sensor 1)
SystemFuel & Emissions
SeverityModerate
Safe to Drive?Usually Yes
Common SymptomsCheck Engine Light, poor fuel economy, rough idle, hesitation
Common CausesFaulty O2 sensor, wiring damage, exhaust leaks, vacuum leaks, fuel system issues
Typical Repair Cost$100–800+
Related CodesP0131, P0132, P0133, P0134, P0135

Common Vehicles That Experience P0130

Because P0130 is a generic OBD-II diagnostic trouble code, it can occur on nearly every modern gasoline-powered vehicle equipped with upstream oxygen sensors.

Common manufacturers include:

Turbocharged engines often require additional inspection because exhaust leaks ahead of the sensor can affect oxygen sensor readings.

What Does “O2 Sensor Circuit Malfunction” Really Mean?

The wording of P0130 often causes confusion.

It does not automatically mean:

Instead, it means the PCM has determined the electrical signal coming from Bank 1 Sensor 1 is not behaving as expected.

The problem may be caused by:

Think of P0130 as your PCM saying:

“I’m trying to read the oxygen sensor… but the information I’m getting doesn’t make sense.”

Common P0130 Scan Tool Patterns

Monitoring live scan-tool data is one of the fastest ways to diagnose P0130.

Unlike heater circuit faults, P0130 focuses on the signal produced by the upstream oxygen sensor (Bank 1 Sensor 1).

Watching oxygen sensor voltage, fuel trims, engine load, and closed-loop operation often identifies the root cause without replacing unnecessary parts.

Pattern 1: Oxygen Sensor Voltage Is Stuck Low

A healthy upstream oxygen sensor constantly switches between rich and lean voltage.

If the scan tool consistently displays:

Possible causes include:

The PCM may compensate by adding fuel, causing Long-Term Fuel Trim (LTFT) to increase.

Pattern 2: Oxygen Sensor Voltage Is Stuck High

The scan tool may display:

Possible causes include:

Fuel trims often become highly negative as the PCM removes fuel.

Pattern 3: Oxygen Sensor Switches Too Slowly

A properly operating sensor switches several times per second once the engine reaches operating temperature.

If switching becomes sluggish, suspect:

Slow switching reduces fuel control accuracy and often leads to additional oxygen sensor codes.

Pattern 4: Sensor Voltage Is Fixed

If voltage remains fixed regardless of throttle input:

Possible causes include:

Momentarily snapping the throttle should produce noticeable sensor movement.

Pattern 5: Fuel Trims Become Excessive

Monitor:

Abnormal fuel trims often accompany P0130.

Examples include:

Positive fuel trims:

Negative fuel trims:

Fuel trim analysis frequently reveals whether the oxygen sensor is reporting accurately.

Pattern 6: Sensor Stops Switching During Closed Loop

Once the engine enters closed-loop operation, oxygen sensor activity should remain continuous.

If switching suddenly stops:

Inspect:

Intermittent signal loss commonly triggers P0130.

Common Symptoms of P0130

Symptoms depend on:

Common symptoms include:

Some vehicles display only the Check Engine Light with little noticeable change in drivability.

Check Engine Light

The Check Engine Light is usually the first symptom.

Depending on the manufacturer, the PCM may require:

before illuminating the malfunction indicator lamp (MIL).

Poor Fuel Economy

Without accurate oxygen sensor feedback, the PCM often defaults to a richer fuel strategy.

Drivers may notice:

Fuel economy often improves immediately after correcting the fault.

Rough Idle

Improper fuel corrections may produce:

Idle quality is often one of the first drivability concerns reported by drivers.

Hesitation During Acceleration

Incorrect air-fuel ratio adjustments may result in:

These symptoms are often intermittent.

Rich Exhaust Odor

A malfunctioning oxygen sensor may cause excessive fueling.

Possible symptoms include:

Prolonged rich operation may damage the catalytic converter.

Increased Emissions

Because the upstream oxygen sensor controls closed-loop fuel delivery, P0130 commonly results in:

Many vehicles will fail an emissions inspection until repairs are completed.

Is P0130 Serious?

P0130 is generally considered a moderate severity diagnostic trouble code.

The vehicle will usually remain drivable, but prolonged operation can lead to:

Prompt diagnosis helps prevent more expensive repairs later.

Can You Drive With P0130?

Usually yes—but repairs should not be postponed.

Driving is generally safe if:

Avoid extended driving if:

P0130 vs Related Trouble Codes

Understanding similar oxygen sensor codes makes diagnosis much easier.

P0131

O2 Sensor Circuit Low Voltage (Bank 1 Sensor 1)

The sensor signal remains too low.

P0132

O2 Sensor Circuit High Voltage (Bank 1 Sensor 1)

The sensor signal remains too high.

P0133

O2 Sensor Circuit Slow Response (Bank 1 Sensor 1)

The sensor switches slower than expected.

P0134

O2 Sensor Circuit No Activity Detected (Bank 1 Sensor 1)

No usable oxygen sensor signal is detected.

P0135

O2 Sensor Heater Circuit Malfunction (Bank 1 Sensor 1)

The heater circuit—not the signal circuit—is malfunctioning.

P0130

O2 Sensor Circuit Malfunction (Bank 1 Sensor 1)

The PCM detects an abnormal or unreliable oxygen sensor signal.

30 Common Causes of P0130

The most common causes include:

  1. Failed upstream oxygen sensor
  2. Damaged oxygen sensor wiring
  3. Corroded electrical connector
  4. Open signal circuit
  5. Shorted signal wire
  6. Poor sensor ground
  7. Exhaust leak ahead of the sensor
  8. Vacuum leak
  9. Intake manifold leak
  10. Dirty Mass Air Flow (MAF) sensor
  11. Low fuel pressure
  12. Excessive fuel pressure
  13. Leaking fuel injector
  14. Fuel contamination
  15. Engine misfire
  16. Spark plug problems
  17. Ignition coil failure
  18. Dirty throttle body
  19. Engine coolant temperature sensor fault
  20. Intake Air Temperature sensor fault
  21. MAP or MAF sensor problems
  22. Catalytic converter restriction
  23. Engine mechanical problems
  24. Aftermarket exhaust modifications
  25. Damaged oxygen sensor harness from road debris
  26. Water intrusion into connectors
  27. Poor engine grounds
  28. PCM calibration issue
  29. Previous wiring repairs
  30. PCM failure (rare)

Final Thoughts

The P0130 O2 Sensor Circuit Malfunction (Bank 1 Sensor 1) code indicates the PCM has detected an abnormal signal from the upstream oxygen sensor responsible for controlling the engine’s air-fuel ratio.

While the oxygen sensor itself is a common cause, wiring faults, exhaust leaks, vacuum leaks, fuel system problems, ignition issues, and engine performance concerns can all trigger the same code.

Accurate diagnosis should always determine why the oxygen sensor signal is abnormal before replacing components.

The next section of this guide covers:

Following a structured diagnostic process helps restore proper fuel control, improve engine performance, protect the catalytic converter, reduce emissions, and prevent unnecessary parts replacement.

How to Diagnose the P0130 Code

Diagnosing P0130 requires determining why the Bank 1 Sensor 1 oxygen sensor signal is no longer operating within the PCM’s expected parameters.

Although replacing the oxygen sensor is a common repair, it is far from the only possible cause.

A complete diagnosis should determine whether the fault originates from:

Never replace the oxygen sensor until the entire system has been properly tested.

Safety Precautions

Before beginning diagnosis:

Oxygen sensors are mounted directly in the exhaust system and may exceed 900°F (480°C) during normal operation.

Tools Required

A complete diagnosis may require:

Professional live-data analysis often identifies the problem before any components are removed.

Step 1 – Verify the Code

Connect the scan tool.

Record:

Pay particular attention to:

Do not erase the codes until all freeze-frame information has been saved.

Step 2 – Check for Related Trouble Codes

P0130 commonly appears with:

Multiple fuel or ignition codes often indicate the oxygen sensor is reporting another engine problem rather than causing it.

Code CombinationLikely Diagnosis
P0130 onlyOxygen sensor circuit problem
P0130 + P0171Lean condition or vacuum leak
P0130 + P0172Rich condition or injector problem
P0130 + P0300Misfire affecting O2 readings
P0130 + P0135Heater and signal circuit issue

Step 3 – Verify Closed-Loop Operation

Allow the engine to reach operating temperature.

Monitor:

The PCM should transition from:

Open Loop

to

Closed Loop

If the engine never enters closed loop, investigate:

P0130 diagnostics should always be performed after closed-loop operation begins.

Step 4 – Monitor Oxygen Sensor Voltage

Observe Bank 1 Sensor 1 live data.

A healthy oxygen sensor should continuously switch between approximately:

Watch for:

A properly functioning upstream sensor should switch several times per second at warm idle.

Step 5 – Analyze Fuel Trim Data

Observe:

Examples include:

Large positive fuel trims:

Possible causes:

Large negative fuel trims:

Possible causes:

Fuel trims often explain why the oxygen sensor voltage appears abnormal.

Step 6 – Snap the Throttle

Quickly increase engine RPM.

Watch oxygen sensor response.

A healthy sensor should:

Little or no voltage change suggests:

Step 7 – Inspect the Oxygen Sensor

Inspect Bank 1 Sensor 1.

Look for:

Contaminated sensors often produce slow or inaccurate signals.

Step 8 – Inspect the Electrical Connector

Disconnect the connector.

Inspect for:

Poor terminal contact frequently causes intermittent P0130 complaints.

Step 9 – Verify the Five-Volt or Reference Circuit (If Applicable)

Some oxygen sensor designs use reference circuits.

Verify:

Consult manufacturer wiring diagrams before testing.

Step 10 – Verify Sensor Ground

Using a multimeter:

Perform voltage-drop testing.

Inspect:

High resistance may distort oxygen sensor signals.

Avoid relying solely on continuity testing.

Step 11 – Inspect the Signal Circuit

Back-probe the signal wire.

Observe voltage changes while:

Signal voltage should change smoothly.

Erratic readings often indicate wiring or sensor problems.

Step 12 – Check for Exhaust Leaks

Inspect exhaust components ahead of Bank 1 Sensor 1.

Inspect:

Fresh air entering the exhaust before the sensor creates false lean readings.

Step 13 – Inspect for Vacuum Leaks

Perform a smoke test.

Inspect:

Vacuum leaks frequently cause lean conditions that trigger oxygen sensor codes.

Step 14 – Verify Fuel Pressure

Connect a fuel pressure gauge.

Compare readings to manufacturer specifications.

Low fuel pressure may produce:

High fuel pressure may produce:

Step 15 – Inspect Fuel Injectors

Inspect for:

Injector problems directly affect oxygen sensor readings.

Step 16 – Inspect the Mass Air Flow (MAF) Sensor

Monitor:

Inspect for:

A contaminated MAF sensor frequently creates false oxygen sensor complaints.

Step 17 – Inspect Ignition Components

Inspect:

Engine misfires leave oxygen in the exhaust, causing the oxygen sensor to report a false lean condition.

Misfires often trigger both P0130 and P0300 simultaneously.

Step 18 – Inspect the Wiring Harness

Inspect the oxygen sensor harness between:

Look for:

Heat damage is especially common near exhaust manifolds.

Step 19 – Review Technical Service Bulletins

Before replacing expensive components:

Check manufacturer Technical Service Bulletins.

Look for updates involving:

Factory bulletins often identify known causes of recurring P0130 complaints.

Step 20 – Review Freeze-Frame Data

Compare your diagnostic findings with the stored freeze-frame information.

Ask:

Freeze-frame data often explains exactly when the oxygen sensor circuit malfunction occurred.

Next Section

Part 2B covers:

Step 21 – Replace the Oxygen Sensor (If Required)

Only replace Bank 1 Sensor 1 after confirming the oxygen sensor itself has failed.

General replacement procedure:

  1. Allow the exhaust system to cool.
  2. Disconnect the negative battery cable (if recommended).
  3. Disconnect the oxygen sensor electrical connector.
  4. Remove the sensor using an oxygen sensor socket.
  5. Inspect the sensor threads and mounting bung.
  6. Install the replacement OEM-quality sensor.
  7. Tighten to manufacturer specifications.
  8. Reconnect the electrical connector.
  9. Clear all diagnostic trouble codes.
  10. Verify proper oxygen sensor operation using live scan data.

Many aftermarket oxygen sensors work well, but OEM sensors generally provide the fastest switching speed and most accurate long-term performance.

Step 22 – Repair Exhaust Leaks

Even small exhaust leaks ahead of Bank 1 Sensor 1 can introduce outside air and produce false lean readings.

Inspect and repair:

After repairs:

Step 23 – Repair Vacuum Leaks

Vacuum leaks commonly cause lean fuel mixtures that trigger oxygen sensor codes.

Inspect:

Use a smoke machine whenever possible to locate small leaks.

Step 24 – Repair Wiring Damage

Inspect the entire oxygen sensor harness.

Repair:

Proper wiring repairs should include:

Keep repairs away from exhaust heat.

Step 25 – Repair Fuel System Problems

Incorrect fueling frequently causes oxygen sensor complaints.

Inspect and repair:

Verify fuel pressure meets manufacturer specifications before replacing oxygen sensors.

Step 26 – Repair Ignition Problems

Misfires place excessive oxygen into the exhaust stream.

Inspect:

Correct ignition faults before condemning the oxygen sensor.

Step 27 – Clean or Replace the MAF Sensor

A contaminated Mass Air Flow sensor may alter fuel calculations.

Inspect for:

If cleaning is approved:

If readings remain inaccurate, replace the sensor.

Step 28 – Update PCM Software

Before replacing expensive components, check for Technical Service Bulletins (TSBs).

Manufacturers occasionally release PCM updates that improve:

Always verify the PCM has the latest calibration.

Step 29 – Verify Closed-Loop Fuel Control

After repairs:

Monitor:

Verify:

Proper closed-loop operation confirms successful repairs.

Step 30 – Consider PCM Failure

PCM failure is extremely uncommon.

Only suspect the PCM after verifying:

Replacing the PCM should always be the final diagnostic step.

How to Fix P0130

The proper repair depends entirely on diagnostic results.

Common repairs include:

Verifying the Repair

After completing repairs:

  1. Clear all diagnostic trouble codes.
  2. Start the engine.
  3. Allow the engine to reach operating temperature.
  4. Verify closed-loop operation.
  5. Monitor oxygen sensor voltage.
  6. Confirm rapid rich/lean switching.
  7. Observe Short-Term and Long-Term Fuel Trims.
  8. Perform a complete road test.
  9. Recheck pending and permanent DTCs.
  10. Confirm the Check Engine Light remains off.

A successful repair restores normal oxygen sensor activity and stable fuel trim corrections.

Typical Repair Costs

RepairTypical Cost
Professional diagnosis$100–250
Bank 1 Sensor 1 oxygen sensor replacement$175–450
Exhaust leak repair$150–800
Vacuum leak repair$150–600
Wiring repair$150–500
Fuel injector replacement$200–900
Fuel pressure regulator replacement$200–600
MAF sensor replacement$150–450
PCM software update$100–300
PCM replacement$1,000–3,000+

Actual repair costs vary depending on vehicle make, engine design, labor rates, and component accessibility.

Common Diagnostic Mistakes

Avoid these common mistakes:

Many P0130 repairs are solved by correcting the condition affecting the sensor—not by replacing the sensor itself.

Manufacturer-Specific Notes

General Motors

Inspect:

GM engines commonly set P0130 because of exhaust leaks near the manifold.

Ford

Verify:

EcoBoost engines should also be inspected for turbocharger exhaust leaks.

Toyota / Lexus

Inspect:

Many Toyota applications use air-fuel ratio sensors rather than traditional narrowband oxygen sensors.

Honda / Acura

Inspect:

OEM sensors generally provide the best long-term performance.

Nissan / Infiniti

Compare:

Contaminated MAF sensors frequently contribute to P0130.

Hyundai / Kia

Inspect:

Connector corrosion is a relatively common issue.

Volkswagen / Audi

Verify:

Turbocharged direct-injection engines require careful live-data analysis.

BMW / MINI

Use factory diagnostic equipment to monitor:

Many BMW engines use wideband sensors requiring manufacturer-specific diagnostic procedures.

Chrysler / Dodge / Jeep / Ram

Inspect:

Exhaust manifold cracking is a common cause of upstream oxygen sensor faults on some HEMI engines.

Frequently Asked Questions

What usually fixes P0130?

The most common repairs include replacing a faulty upstream oxygen sensor, repairing damaged wiring, fixing exhaust leaks, correcting vacuum leaks, repairing fuel system issues, or resolving ignition misfires.

Can I drive with P0130?

Usually yes. Most vehicles remain drivable, but fuel economy, emissions, and engine performance may suffer. Prolonged driving with a rich mixture may damage the catalytic converter.

Does P0130 always mean the oxygen sensor is bad?

No. Exhaust leaks, vacuum leaks, wiring faults, ignition problems, fuel system issues, and contaminated MAF sensors can all trigger P0130 while the oxygen sensor is functioning normally.

Can an exhaust leak cause P0130?

Yes. An exhaust leak ahead of Bank 1 Sensor 1 allows outside air into the exhaust stream, creating false lean readings and triggering the code.

Can a vacuum leak cause P0130?

Absolutely. Vacuum leaks create lean air-fuel mixtures that force the oxygen sensor to report abnormal readings.

Can a bad MAF sensor cause P0130?

Yes. Incorrect airflow measurements from a contaminated or failing MAF sensor can alter fuel delivery enough to trigger oxygen sensor circuit faults.

Final Thoughts

The P0130 O2 Sensor Circuit Malfunction (Bank 1 Sensor 1) code indicates the PCM has detected an abnormal signal from the upstream oxygen sensor responsible for controlling the engine’s air-fuel ratio.

While replacing the oxygen sensor is a common repair, many P0130 cases are actually caused by vacuum leaks, exhaust leaks, wiring damage, fuel delivery problems, ignition faults, or airflow measurement errors.

A complete diagnosis should always verify:

Following a systematic diagnostic process prevents unnecessary parts replacement while restoring fuel economy, engine performance, emissions compliance, and catalytic converter longevity.

Exit mobile version
