P0132 Code Explained: O2 Sensor Circuit High Voltage (Bank 1 Sensor 1) Causes, Symptoms & Fixes

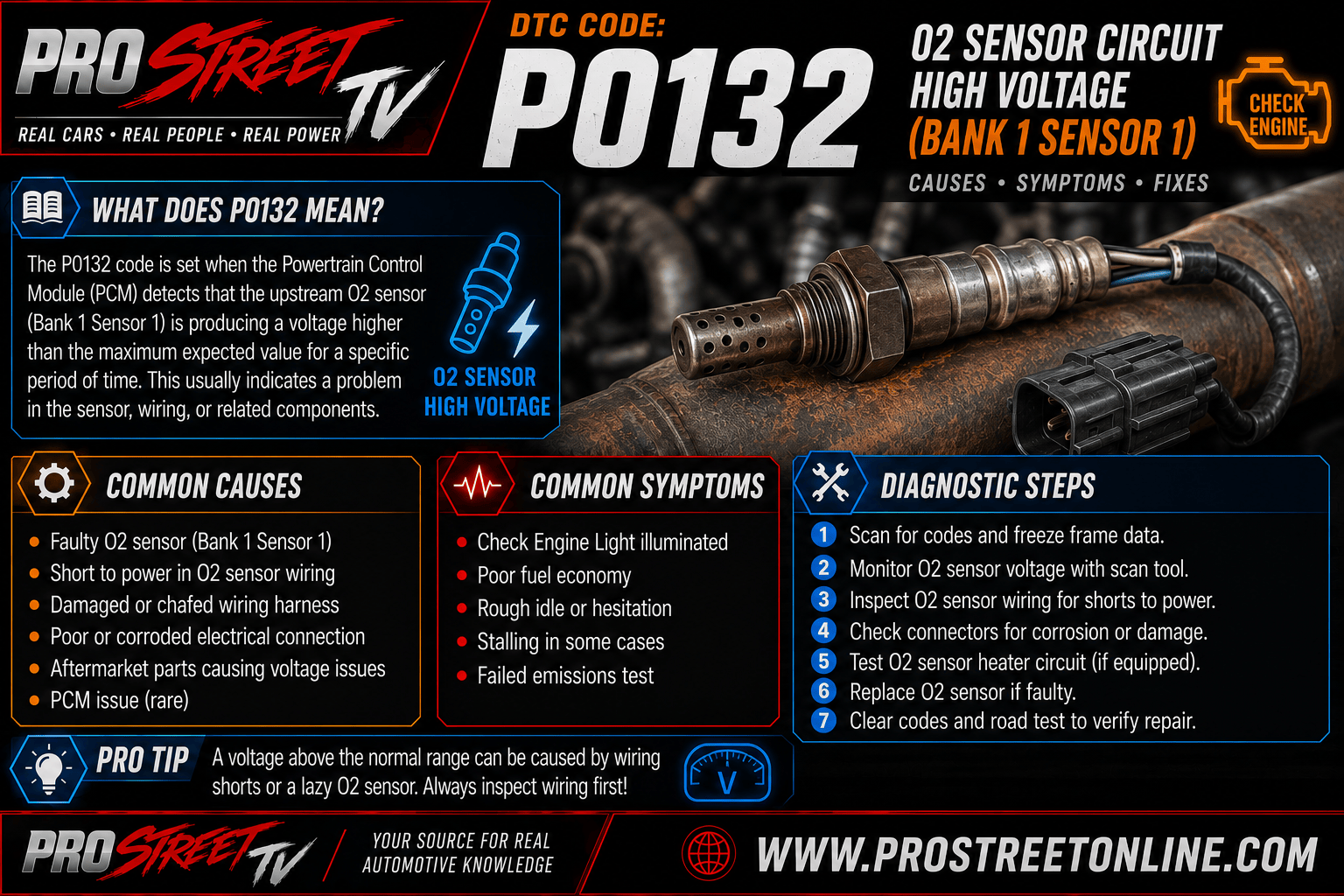

P0132 code illustration showing the upstream oxygen sensor on Bank 1 Sensor 1 producing a high-voltage rich signal with fuel injector graphics, Check Engine Light, Pro Street TV logo, and www.ProStreetOnline.com.

If your OBD-II scanner displays P0132, your vehicle’s Engine Control Module (ECM) or Powertrain Control Module (PCM) has detected that the Bank 1 Sensor 1 oxygen (O2) sensor is reporting a voltage higher than the normal operating range for longer than expected.

The generic OBD-II definition for P0132 is:

O2 Sensor Circuit High Voltage (Bank 1 Sensor 1)

Unlike P0130, which indicates a general oxygen sensor circuit malfunction, P0132 specifically identifies a high-voltage condition coming from the upstream oxygen sensor.

Bank 1 Sensor 1 is the oxygen sensor located before the catalytic converter on the engine bank containing cylinder number one.

This sensor constantly monitors oxygen remaining in the exhaust stream so the PCM can accurately control:

When the oxygen sensor remains at an unusually high voltage instead of switching normally between rich and lean, the PCM stores P0132 and illuminates the Check Engine Light.

Although many drivers assume the oxygen sensor has failed, the high-voltage signal is often caused by an engine running excessively rich, damaged wiring, fuel delivery problems, or exhaust system faults.

Fortunately, careful diagnosis can usually identify the root cause before unnecessary parts are replaced.

What Does the P0132 Code Mean?

The PCM constantly monitors the voltage generated by the upstream oxygen sensor.

A properly functioning zirconia oxygen sensor typically produces:

During normal closed-loop operation, the sensor voltage should rapidly switch between these values several times each second.

With P0132, the PCM detects that the sensor voltage remains abnormally high, usually indicating either:

Because the PCM depends on this signal for fuel control, an incorrect high-voltage reading affects engine performance and emissions.

Where Is Bank 1 Sensor 1 Located?

Bank 1 Sensor 1 is always the upstream oxygen sensor.

Depending on engine design, it is installed in the:

It is always located before the catalytic converter.

Its primary responsibility is monitoring combustion efficiency before exhaust gases enter the catalyst.

Do not confuse:

Bank 1 Sensor 1

with

Bank 1 Sensor 2, which monitors catalytic converter performance downstream.

How an Oxygen Sensor Works

Most gasoline engines use a zirconia oxygen sensor.

The sensing element compares:

This difference generates a voltage signal.

Typical operating range:

The PCM constantly adjusts injector pulse width based on these voltage changes to maintain the ideal gasoline air-fuel ratio of approximately:

14.7:1

The faster the sensor switches, the more accurately the PCM can control combustion.

What Does High Oxygen Sensor Voltage Mean?

High oxygen sensor voltage generally indicates the exhaust contains very little oxygen.

This usually occurs when the engine is operating with a rich air-fuel mixture.

Possible causes include:

Occasionally, the sensor itself falsely reports a rich condition because of internal failure.

Why the Upstream Oxygen Sensor Is Important

The upstream oxygen sensor is one of the PCM’s primary fuel-management inputs.

It directly influences:

Without accurate oxygen sensor feedback, the PCM cannot properly regulate combustion.

How the PCM Detects P0132

Each manufacturer uses slightly different monitoring strategies.

The PCM may monitor:

If the oxygen sensor voltage remains above the allowable threshold longer than the manufacturer permits, the PCM stores P0132.

Some vehicles require multiple drive cycles before illuminating the Check Engine Light.

Open Loop vs Closed Loop Operation

Understanding fuel-control modes makes diagnosing P0132 much easier.

Open Loop

Immediately after startup:

The PCM ignores oxygen sensor feedback.

Fuel delivery is based on:

Closed Loop

Once the oxygen sensor reaches operating temperature:

The PCM begins using live oxygen sensor feedback to control fuel delivery.

This allows:

P0132 almost always develops during closed-loop operation.

Why Oxygen Sensor Switching Is Critical

A healthy upstream oxygen sensor should switch rapidly between rich and lean conditions.

The PCM expects constant voltage movement.

When the voltage remains fixed at the rich end of the scale, the PCM can no longer determine whether the engine actually requires additional fuel corrections.

This limits fuel-control accuracy and may force the PCM into protective operating strategies.

P0132 Quick Facts

ItemInformation
DTCP0132
Generic DefinitionO2 Sensor Circuit High Voltage (Bank 1 Sensor 1)
SystemFuel & Emissions
SeverityModerate
Safe to Drive?Usually Yes
Common SymptomsCheck Engine Light, rich running condition, poor fuel economy, rough idle
Common CausesFaulty oxygen sensor, rich fuel mixture, wiring short, leaking injector, high fuel pressure
Typical Repair Cost$100–900+
Related CodesP0130, P0131, P0133, P0134, P0135

Common Vehicles That Experience P0132

P0132 is a generic OBD-II diagnostic trouble code and may occur on nearly every modern gasoline-powered vehicle equipped with oxygen sensors.

Common manufacturers include:

Turbocharged engines may require additional inspection because boost-related fuel enrichment and exhaust temperatures can influence oxygen sensor behavior.

What Does “O2 Sensor Circuit High Voltage” Really Mean?

The wording of P0132 often leads people to replace the oxygen sensor immediately.

However, the code does not automatically mean:

Instead, it means the PCM has detected that Bank 1 Sensor 1 is reporting an unusually high voltage signal for longer than expected.

The cause may be:

Think of P0132 as your PCM saying:

“The oxygen sensor insists the engine is running rich… now we need to determine whether it’s telling the truth.”

Common P0132 Scan Tool Patterns

Monitoring live scan-tool data is one of the fastest ways to diagnose P0132.

Unlike a general oxygen sensor circuit fault, P0132 indicates that Bank 1 Sensor 1 is reporting a voltage that remains excessively high instead of switching normally between rich and lean conditions.

Watching oxygen sensor voltage, fuel trims, injector operation, and engine load often reveals whether the sensor is accurately reporting a rich condition or if an electrical fault exists.

Pattern 1: Oxygen Sensor Voltage Stuck High

The most common scan-tool pattern is:

Possible causes include:

This is the classic scan pattern associated with P0132.

Pattern 2: Fuel Trims Become Highly Negative

When the oxygen sensor continuously reports a rich mixture, the PCM attempts to reduce fuel delivery.

The scan tool may display:

Possible causes include:

Negative fuel trims often confirm the PCM is actively removing fuel.

Pattern 3: Oxygen Sensor Never Switches

A healthy upstream oxygen sensor should switch rapidly several times each second.

If the sensor remains fixed near:

0.9 volts

without responding to throttle changes, inspect:

Lack of switching usually indicates either an electrical problem or a severely rich engine.

Pattern 4: Voltage Drops Normally During Deceleration

During closed-throttle deceleration:

If voltage remains high during deceleration, suspect:

This test quickly separates mechanical fuel problems from electrical faults.

Pattern 5: Rich Condition Appears Immediately After Startup

Some vehicles begin showing high oxygen sensor voltage almost immediately after entering closed loop.

Possible causes include:

Watching fuel trims during warm-up often reveals the cause.

Pattern 6: Fuel Trims Normal but Sensor Voltage High

Occasionally the scan tool shows:

Possible causes include:

This usually indicates an electrical issue rather than an actual rich-running engine.

Common Symptoms of P0132

Symptoms vary depending on whether the engine is truly running rich or the oxygen sensor is reporting incorrect information.

Common symptoms include:

Some vehicles exhibit only the Check Engine Light with no noticeable drivability concerns.

Check Engine Light

The Check Engine Light is usually the first symptom.

Depending on manufacturer strategy, the PCM may require:

before illuminating the malfunction indicator lamp.

Poor Fuel Economy

When the PCM believes the engine is running rich, it continually adjusts fuel delivery.

Drivers may notice:

If the underlying rich condition remains, fuel economy can decline significantly.

Rough Idle

An excessively rich mixture often produces:

Rich idle conditions are especially noticeable after warm-up.

Rich Exhaust Odor

One of the most recognizable symptoms is the smell of raw fuel from the exhaust.

Drivers may notice:

These symptoms suggest incomplete combustion.

Sluggish Engine Performance

Although rich mixtures help cool combustion under heavy load, excessive richness reduces efficiency.

Possible symptoms include:

The PCM may intentionally reduce engine performance to protect the catalytic converter.

Catalytic Converter Damage

Long-term rich operation may overheat the catalytic converter.

Possible consequences include:

Ignoring P0132 for extended periods can lead to repairs far more expensive than replacing the original fault.

Is P0132 Serious?

P0132 is generally considered a moderate severity diagnostic trouble code.

The vehicle will usually remain drivable.

However, prolonged operation may result in:

Prompt diagnosis helps prevent expensive secondary damage.

Can You Drive With P0132?

Usually yes—but repairs should not be delayed.

Driving is generally safe if:

Avoid prolonged driving if:

P0132 vs Related Trouble Codes

Understanding related oxygen sensor codes simplifies diagnosis.

P0130

O2 Sensor Circuit Malfunction (Bank 1 Sensor 1)

General circuit fault.

P0131

O2 Sensor Circuit Low Voltage (Bank 1 Sensor 1)

Sensor voltage remains too low.

P0132

O2 Sensor Circuit High Voltage (Bank 1 Sensor 1)

Sensor voltage remains excessively high.

P0133

O2 Sensor Circuit Slow Response (Bank 1 Sensor 1)

Sensor switches slower than expected.

P0134

O2 Sensor Circuit No Activity Detected (Bank 1 Sensor 1)

No usable oxygen sensor signal is detected.

P0135

O2 Sensor Heater Circuit Malfunction (Bank 1 Sensor 1)

The heater circuit—not the signal circuit—is malfunctioning.

30 Common Causes of P0132

The most common causes include:

  1. Failed upstream oxygen sensor
  2. Oxygen sensor signal wire shorted to voltage
  3. Damaged oxygen sensor wiring
  4. Corroded electrical connector
  5. Leaking fuel injector
  6. Excessive fuel pressure
  7. Faulty fuel pressure regulator
  8. EVAP purge valve stuck open
  9. Faulty Mass Air Flow (MAF) sensor
  10. Faulty Engine Coolant Temperature sensor
  11. Restricted air filter
  12. Dirty throttle body
  13. Vacuum leak repaired incorrectly
  14. Rich aftermarket tuning
  15. Ignition misfire causing incomplete combustion
  16. Fouled spark plugs
  17. Weak ignition coil
  18. Exhaust restriction
  19. Catalytic converter beginning to fail
  20. Fuel contamination
  21. Poor engine grounds
  22. Water intrusion into connectors
  23. Previous wiring repairs
  24. PCM calibration issue
  25. Damaged PCM connector
  26. Oil contamination on the oxygen sensor
  27. Silicone contamination from gasket sealants
  28. Engine mechanical problems
  29. Incorrect replacement oxygen sensor
  30. PCM failure (rare)

Final Thoughts

The P0132 O2 Sensor Circuit High Voltage (Bank 1 Sensor 1) code indicates the PCM has detected an oxygen sensor signal that remains excessively rich for longer than expected.

Although the oxygen sensor itself is a common cause, wiring faults, fuel system problems, leaking injectors, high fuel pressure, ignition issues, contaminated sensors, and engine management faults can all produce the same code.

Proper diagnosis should always determine whether the engine is actually running rich or whether the oxygen sensor is reporting incorrect information before replacing components.

The next section of this guide covers:

Following a systematic diagnostic process restores proper fuel control, improves fuel economy, reduces emissions, protects the catalytic converter, and prevents unnecessary parts replacement.

Related Pro Street Diagnostic Guides

How to Diagnose the P0132 Code

Diagnosing P0132 requires determining whether the engine is actually running rich or whether the Bank 1 Sensor 1 oxygen sensor circuit is falsely reporting a high-voltage condition.

Although replacing the oxygen sensor is a common repair, many P0132 cases are actually caused by:

Proper diagnosis should always determine why the oxygen sensor voltage remains high before replacing any components.

Safety Precautions

Before beginning diagnosis:

Oxygen sensors are mounted directly in the exhaust and may exceed 900°F (480°C) during normal engine operation.

Tools Required

A complete diagnosis may require:

Live-data analysis is usually the fastest way to determine whether the engine is truly running rich.

Step 1 – Verify the Code

Connect the scan tool.

Record:

Pay close attention to:

Do not erase the codes until all freeze-frame information has been recorded.

Step 2 – Check for Related Trouble Codes

P0132 frequently appears with:

Related codes often identify the underlying cause more quickly.

Code CombinationLikely Diagnosis
P0132 onlyOxygen sensor or signal circuit issue
P0132 + P0172Rich fuel condition
P0132 + P0300Ignition misfire affecting combustion
P0132 + P0135Heater and signal circuit problem
Multiple rich-condition codesFuel delivery problem

Step 3 – Verify Closed-Loop Operation

Allow the engine to reach operating temperature.

Monitor:

The PCM should transition from:

Open Loop

to

Closed Loop

If closed-loop operation never begins, inspect:

P0132 diagnosis should always be performed during closed-loop operation.

Step 4 – Monitor Oxygen Sensor Voltage

Observe live data for Bank 1 Sensor 1.

A healthy sensor should rapidly switch between:

Watch for:

If voltage remains above approximately 0.8 volts continuously, further diagnosis is required.

Step 5 – Analyze Fuel Trim Data

Observe:

Interpretation:

Large negative fuel trims usually indicate:

Fuel trims close to zero while sensor voltage remains high often suggest:

Fuel trim analysis is one of the most valuable diagnostic tools.

Step 6 – Snap the Throttle

Quickly increase engine RPM.

Watch oxygen sensor response.

A healthy sensor should:

If the voltage never changes, suspect:

Step 7 – Inspect the Oxygen Sensor

Locate Bank 1 Sensor 1.

Inspect for:

Contaminated oxygen sensors often become slow or inaccurate.

Step 8 – Inspect the Electrical Connector

Disconnect the connector.

Inspect for:

Connector damage is a common source of intermittent high-voltage signals.

Step 9 – Test the Signal Circuit

Using a multimeter:

Back-probe the oxygen sensor signal wire.

Inspect for:

A signal wire shorted to voltage can falsely produce a constant rich reading.

Step 10 – Verify Sensor Ground

Perform voltage-drop testing.

Inspect:

Poor grounds can distort oxygen sensor voltage.

Do not rely solely on continuity testing.

Step 11 – Inspect Fuel Pressure

Connect a fuel pressure gauge.

Compare readings with manufacturer specifications.

High fuel pressure may be caused by:

Excessive fuel pressure commonly causes genuine rich operation.

Step 12 – Inspect Fuel Injectors

Inspect for:

One leaking injector can keep the oxygen sensor voltage high continuously.

Step 13 – Inspect the Mass Air Flow (MAF) Sensor

Monitor:

Inspect for:

Incorrect airflow calculations frequently result in rich fuel mixtures.

Step 14 – Check the Engine Coolant Temperature Sensor

A faulty Engine Coolant Temperature (ECT) sensor may falsely report a cold engine.

The PCM responds by adding excessive fuel.

Verify:

Large differences indicate ECT sensor problems.

Step 15 – Inspect the Air Intake System

Inspect:

Look for:

Reduced airflow can contribute to rich operation.

Step 16 – Check for Exhaust Restrictions

Inspect for:

Restricted exhaust flow may affect combustion efficiency and oxygen sensor readings.

Step 17 – Inspect Ignition Components

Inspect:

Weak ignition may leave partially burned fuel in the exhaust.

This often creates false oxygen sensor readings.

Step 18 – Inspect the Wiring Harness

Inspect the harness between:

Look for:

Heat damage near the exhaust manifold is especially common.

Step 19 – Review Technical Service Bulletins

Before replacing expensive components:

Review manufacturer Technical Service Bulletins.

Some manufacturers have released updates addressing:

Step 20 – Review Freeze-Frame Data

Compare your diagnostic findings with freeze-frame information.

Determine:

Freeze-frame data often identifies the operating conditions present when the fault occurred.

Next Section

Part 2B covers:

Step 21 – Replace the Oxygen Sensor (If Required)

Replace Bank 1 Sensor 1 only after confirming that the oxygen sensor itself has failed.

General replacement procedure:

  1. Allow the exhaust system to cool completely.
  2. Disconnect the negative battery cable (if required by the manufacturer).
  3. Disconnect the oxygen sensor electrical connector.
  4. Remove the sensor using the proper oxygen sensor socket.
  5. Inspect the threads and sensor bung for damage.
  6. Install a high-quality OEM or equivalent replacement sensor.
  7. Tighten the sensor to the manufacturer’s torque specification.
  8. Reconnect the electrical connector.
  9. Clear all diagnostic trouble codes.
  10. Verify proper sensor operation with a scan tool.

OEM sensors generally provide the most accurate switching characteristics and long-term reliability.

Step 22 – Repair Wiring Faults

A short-to-voltage in the oxygen sensor signal circuit is one of the most common electrical causes of P0132.

Inspect and repair:

Proper repairs should include:

Never leave repaired wiring near hot exhaust components.

Step 23 – Repair Fuel System Problems

Many P0132 cases are caused by excessive fuel delivery rather than a failed sensor.

Inspect:

Verify fuel pressure meets factory specifications before replacing the oxygen sensor.

Step 24 – Replace Leaking Fuel Injectors

A leaking injector continuously introduces fuel into the combustion chamber.

Inspect for:

One leaking injector can keep the upstream oxygen sensor reporting a constant rich condition.

Step 25 – Repair Air Intake Restrictions

Restricted airflow may create an excessively rich mixture.

Inspect:

Replace:

Proper airflow is essential for accurate fuel control.

Step 26 – Repair MAF Sensor Problems

An inaccurate Mass Air Flow sensor may command excessive fuel delivery.

Inspect for:

If cleaning is permitted:

Replace the sensor if readings remain inaccurate.

Step 27 – Repair Ignition Problems

Incomplete combustion leaves unburned fuel in the exhaust.

Inspect:

Correct ignition faults before replacing oxygen sensors.

Step 28 – Update PCM Software

Before replacing expensive components, review manufacturer Technical Service Bulletins (TSBs).

Some manufacturers have released software updates that improve:

Always verify the PCM has the latest calibration.

Step 29 – Verify Closed-Loop Fuel Control

After completing repairs:

Monitor:

Verify:

Stable fuel trims confirm the repair was successful.

Step 30 – Consider PCM Failure

PCM failure is extremely uncommon.

Only suspect the PCM after verifying:

PCM replacement should always be the final diagnostic step.

How to Fix P0132

The proper repair depends entirely on the diagnostic results.

Common repairs include:

Verifying the Repair

After repairs:

  1. Clear all diagnostic trouble codes.
  2. Start the engine.
  3. Allow the engine to reach operating temperature.
  4. Verify closed-loop operation.
  5. Monitor Bank 1 Sensor 1 voltage.
  6. Confirm rapid switching between rich and lean.
  7. Observe STFT and LTFT values.
  8. Perform a complete road test.
  9. Recheck pending and permanent DTCs.
  10. Confirm the Check Engine Light remains off.

Proper repairs should restore normal oxygen sensor switching and stable fuel trim corrections.

Typical Repair Costs

RepairTypical Cost
Professional diagnosis$100–250
Bank 1 Sensor 1 oxygen sensor replacement$175–450
Wiring repair$150–500
Fuel injector replacement$200–900
Fuel pressure regulator replacement$200–600
Fuel pump replacement$400–1,200
MAF sensor replacement$150–450
Air filter replacement$30–100
PCM software update$100–300
PCM replacement$1,000–3,000+

Actual repair costs vary depending on vehicle design, labor rates, and parts availability.

Common Diagnostic Mistakes

Avoid these common mistakes:

Many P0132 repairs involve correcting an engine rich condition—not replacing the oxygen sensor.

Manufacturer-Specific Notes

General Motors

Inspect:

Leaking fuel injectors are a relatively common cause of P0132 on GM applications.

Ford

Verify:

EcoBoost engines should also be inspected for fuel delivery issues during boost.

Toyota / Lexus

Inspect:

Many Toyota engines use wideband air-fuel ratio sensors instead of traditional narrowband oxygen sensors.

Honda / Acura

Inspect:

OEM oxygen sensors generally provide the most reliable operation.

Nissan / Infiniti

Compare:

Contaminated MAF sensors frequently contribute to rich running conditions.

Hyundai / Kia

Inspect:

Sensor connector corrosion is occasionally responsible for intermittent signal faults.

Volkswagen / Audi

Verify:

Turbocharged direct-injection engines require careful live-data analysis.

BMW / MINI

Use factory diagnostic equipment to monitor:

High-pressure fuel system faults commonly contribute to rich operation.

Chrysler / Dodge / Jeep / Ram

Inspect:

HEMI engines occasionally develop rich conditions from leaking injectors and faulty fuel pressure regulators.

Frequently Asked Questions

What usually fixes P0132?

The most common repairs include replacing a faulty upstream oxygen sensor, repairing wiring shorts, replacing leaking fuel injectors, correcting excessive fuel pressure, cleaning or replacing the MAF sensor, or repairing ignition problems.

Can I drive with P0132?

Usually yes. However, prolonged rich operation can reduce fuel economy, foul spark plugs, overheat the catalytic converter, and increase emissions.

Does P0132 always mean the oxygen sensor is bad?

No. Many P0132 cases are caused by an engine running excessively rich because of fuel system problems, injector leaks, wiring faults, or incorrect airflow measurements.

Can high fuel pressure cause P0132?

Yes. Excessive fuel pressure delivers too much fuel into the engine, producing a rich exhaust condition that causes the upstream oxygen sensor to report consistently high voltage.

Can a leaking fuel injector cause P0132?

Absolutely. A leaking injector is one of the most common causes of continuous rich oxygen sensor readings.

Can a bad MAF sensor cause P0132?

Yes. Incorrect airflow calculations from a contaminated or failing MAF sensor can cause excessive fuel delivery, triggering P0132.

Final Thoughts

The P0132 O2 Sensor Circuit High Voltage (Bank 1 Sensor 1) code indicates the PCM has detected that the upstream oxygen sensor is reporting a consistently high-voltage signal. While the sensor itself may be faulty, many P0132 cases are actually caused by rich fuel mixtures, excessive fuel pressure, leaking injectors, wiring faults, or inaccurate airflow calculations.

A complete diagnosis should always verify:

Following a structured diagnostic process prevents unnecessary parts replacement while restoring proper fuel control, improving fuel economy, reducing emissions, and protecting the catalytic converter from costly damage.

Continue Your Pro Street Oxygen Sensor Series

Related guides include:

Exit mobile version
