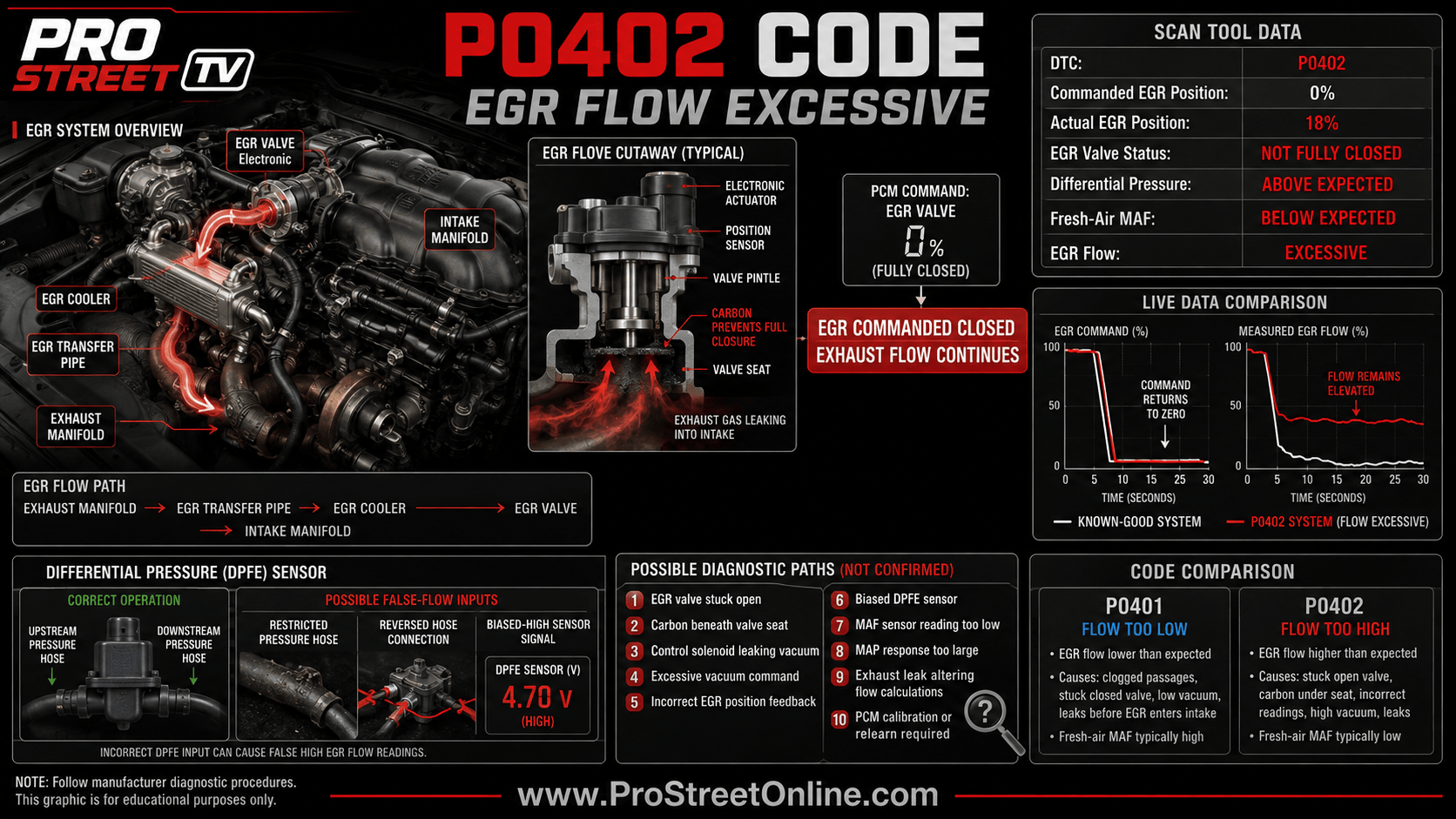

The P0402 OBD-II code means the powertrain control module determined that the exhaust gas recirculation system delivered more flow than expected during a monitored operating condition.
The EGR valve may be stuck open, but P0402 does not automatically prove the valve has failed. A biased differential-pressure sensor, incorrect MAF or MAP data, damaged pressure hoses, excessive control vacuum, an exhaust leak or inaccurate EGR-position feedback can make the PCM calculate excessive flow even when the actual amount is normal.
The essential distinction is simple:
Before replacing the valve, determine whether the engine is genuinely receiving too much exhaust gas or the monitoring system is reporting the wrong result.
P0402 Quick Reference
| Item | Information |
|---|---|
| Code | P0402 |
| Definition | Exhaust Gas Recirculation Flow Excessive Detected |
| System | Exhaust gas recirculation |
| Code type | Generic powertrain emissions code |
| Primary fault | PCM detects more EGR flow than expected |
| Common physical cause | EGR valve stuck partly or fully open |
| Common measurement cause | Biased flow, pressure, airflow or position data |
| Typical symptoms | Rough idle, stalling, hesitation, reduced power or no obvious symptoms |
| Can it cause a misfire? | Yes |
| Can it fail emissions testing? | Yes |
| Recommended response | Diagnose promptly |
| Typical repair difficulty | Moderate |
What Does the P0402 Code Mean?
P0402 sets when the PCM concludes that exhaust-gas recirculation exceeds its calibrated limit.
The PCM may compare:
- Commanded EGR position
- Actual EGR position
- Mass airflow
- Intake-manifold pressure
- EGR differential pressure
- EGR temperature
- Engine speed
- Engine load
- Throttle position
- Boost pressure
- Exhaust pressure
- Oxygen-sensor response
- Calculated fresh-air charge
If the system reports more flow than the PCM commanded or expected, it can store P0402 and illuminate the Check Engine light.
The exact monitoring strategy depends on the manufacturer. Some systems directly monitor pressure across a restriction. Others infer EGR flow from changes in fresh airflow or intake-manifold pressure. Diesel engines may combine EGR-position, MAF, boost and intake-throttle data.
This is why P0402 diagnosis begins with the manufacturer’s monitoring strategy—not with buying the nearest EGR valve and hoping confidence counts as test equipment.
What Does the EGR System Do?
The exhaust gas recirculation system routes a controlled amount of exhaust into the intake stream.
Recirculated exhaust contains less oxygen than fresh air. Mixing it with the incoming charge helps reduce peak combustion temperature and nitrogen-oxide emissions.
The amount must be carefully controlled.
Too little EGR flow may increase combustion temperature and NOx emissions. Too much flow can displace enough oxygen to destabilize combustion.
Excessive EGR flow may cause:
- Rough idle
- Stalling
- Hesitation
- Reduced power
- Surging
- Misfires
- Smoke on some diesel engines
- Poor throttle response
- Increased soot production
The EGR system is normally reduced or disabled during conditions where recirculated exhaust would interfere with engine stability, such as cold starting, unstable idle or heavy acceleration. Strategies vary by engine.
How the PCM Detects Excessive EGR Flow
EGR Position Monitoring
Electronic EGR valves often contain a position sensor.
The PCM commands a specific opening and compares it with actual valve position. P0402 may set if the valve:
- Remains open when commanded closed
- Opens farther than commanded
- Returns slowly toward its seat
- Reports an incorrectly high position
- Cannot establish its learned closed position
Position does not always prove actual flow. A faulty sensor can report that the valve is open even when it is physically closed.
Differential-Pressure Monitoring
Some systems measure the pressure difference across a calibrated restriction in the EGR tube.
These systems may use:
- Two pressure hoses
- A DPFE or differential-pressure sensor
- A metering orifice
- EGR transfer tube
- Electronic or vacuum-operated valve
More EGR flow creates a larger pressure difference. If the sensor reports too much differential pressure for the commanded operating state, the PCM may set P0402.
A biased sensor, damaged hose or reversed hose connection can produce a false excessive-flow calculation.
Pro Street’s Ford Escort DPFE sensor-testing guide provides a vehicle-specific example of testing an EGR pressure-feedback system.
MAF-Based Monitoring
Many diesel engines calculate EGR flow by observing fresh air entering through the MAF sensor.
As EGR flow increases, the amount of fresh intake air should decrease. If measured fresh airflow falls farther than expected, the PCM may conclude that too much exhaust is entering the intake.
Possible causes include:
- EGR valve opening too far
- Intake throttle closing excessively
- Biased MAF sensor
- Intake restriction
- Charge-air leak
- Incorrect boost-pressure data
- Exhaust leak affecting flow calculations
A low MAF reading does not automatically prove excessive EGR flow. It proves that the sensor reports less fresh air than expected.
MAP-Based Monitoring
Some vehicles verify EGR operation by watching intake-manifold pressure.
Opening the EGR valve should create a predictable MAP change. If the response is larger than expected—or occurs when the valve should be closed—the PCM may detect excessive EGR flow.
An inaccurate MAP sensor or restricted sensor port can distort the result.
EGR Temperature Monitoring
Hot exhaust entering the intake raises EGR-passage temperature.
If an EGR temperature sensor reports an excessive increase or remains hot when the system should be inactive, the PCM may interpret this as unwanted flow.
Before replacing the valve, verify that the temperature sensor is accurate and its circuit is functioning correctly.
P0402 vs. Related EGR Codes
| Code | Definition | Primary diagnostic direction |
|---|---|---|
| P0400 | Exhaust Gas Recirculation Flow Malfunction | Overall EGR-flow verification failure |
| P0401 | Exhaust Gas Recirculation Flow Insufficient Detected | EGR flow below expectation |
| P0402 | Exhaust Gas Recirculation Flow Excessive Detected | EGR flow above expectation |
| P0403 | Exhaust Gas Recirculation Control Circuit | Electrical control-circuit malfunction |
| P0404 | Exhaust Gas Recirculation Control Range/Performance | Position or control response outside range |
| P0405 | EGR Sensor A Circuit Low | Sensor voltage electrically low |
| P0406 | EGR Sensor A Circuit High | Sensor voltage electrically high |
| P0407 | EGR Sensor B Circuit Low | Secondary sensor voltage low |
| P0408 | EGR Sensor B Circuit High | Secondary sensor voltage high |
| P0409 | EGR Sensor A Circuit | General sensor-circuit malfunction |
P0402 should remain focused on an excessive-flow result. Electrical circuit codes and position-performance codes need their own diagnostic paths.
P0402 vs. P0400
P0400 means the PCM could not verify correct overall EGR operation.
P0402 is directional. It means the PCM determined that flow exceeded expectation.
A vehicle may set P0400 when EGR response is generally invalid or cannot be classified. P0402 indicates that the detected or calculated result crossed the excessive-flow threshold.
P0402 vs. P0401
P0401 and P0402 describe opposite flow conditions.
P0401: Insufficient EGR Flow
Possible causes include:
- Blocked passage
- Valve stuck closed
- Missing vacuum
- Failed control solenoid
- Restricted cooler
- Incorrect low-flow feedback
Pro Street already has dedicated vehicle-specific procedures for Ford F-150 P0401 EGR testing and Honda Accord P0401 EGR cleaning.
P0402: Excessive EGR Flow
Possible causes include:
- Valve stuck open
- Excessive control vacuum
- Solenoid stuck active
- Biased-high differential-pressure sensor
- Incorrect airflow calculation
- Exhaust leak
- Position sensor reporting excessive opening
Cleaning blocked passages is central to many P0401 repairs. P0402 requires proving why the system flows—or appears to flow—too much.
How Serious Is P0402?
P0402 is normally moderate in severity, but symptoms determine whether the vehicle should continue operating.
A small feedback error may only illuminate the Check Engine light. A valve stuck open can cause:
- Unstable idle
- Repeated stalling
- Poor acceleration
- Misfires
- Reduced power
- Excessive diesel smoke
- Increased soot production
- Diesel particulate-filter loading
- Limp-home mode
- Difficult starting
Stop driving if the vehicle develops:
- Repeated stalling in traffic
- Severe vibration
- Flashing Check Engine light
- Heavy smoke
- Major power loss
- Overheating
- Coolant loss
- Abnormal mechanical noise
- Unsafe throttle response
A flashing Check Engine light may indicate an active misfire capable of overheating the catalytic converter.
Common Symptoms of P0402
Possible symptoms include:
- Check Engine light
- Failed emissions inspection
- Rough idle
- Idle that improves when engine speed increases
- Engine stalling at stops
- Difficult starting
- Hesitation
- Reduced power
- Poor throttle response
- Surging at light throttle
- Random or multiple-cylinder misfires
- Reduced fuel economy
- Black or gray diesel exhaust
- Increased soot loading
- Diesel regeneration problems
- Limp-home mode
- No noticeable drivability symptoms
P0402 should not be optimized as a general surging or rough-idle article. Those symptoms have many possible causes.
For broader symptom diagnosis, use Pro Street’s dedicated guides for a car that surges while driving and engine misfire symptoms.
Common Causes of P0402
EGR Valve Stuck Open
A valve that cannot fully close is the most direct cause of excessive EGR flow.
Possible reasons include:
- Carbon trapped beneath the pintle
- Corroded valve mechanism
- Damaged return spring
- Failed actuator
- Worn valve seat
- Distorted housing
- Foreign material
- Internal gear damage
- Coolant or soot contamination
A stuck-open valve often causes its worst symptoms at idle, when the engine normally tolerates very little EGR flow.
Carbon Preventing the Valve From Seating
Carbon buildup does not only block EGR passages. Deposits can also prevent the valve from closing.
Possible evidence includes:
- Commanded position returns to zero
- Actual position remains above zero
- Engine idles poorly
- Engine operation improves when the EGR passage is temporarily isolated using an approved diagnostic method
- Visible deposits on the valve seat
- Valve fails a closed-position test
Do not gouge the valve seat or force an electronic actuator while cleaning it.
Failed EGR Control Solenoid
A vacuum-operated valve may receive vacuum through an electrically controlled solenoid.
If the solenoid sticks open, leaks internally or remains energized, vacuum may reach the valve when the PCM expects it to remain closed.
Check:
- Solenoid power
- Control signal
- Vacuum supply
- Vacuum output
- Internal leakage
- Correct hose routing
- Connector condition
- PCM driver operation
P0403 may accompany an electrical solenoid problem, but a mechanically stuck solenoid may produce P0402 without a separate circuit code.
Excessive Vacuum at the EGR Valve
A vacuum-operated valve may open too far if the control system applies excessive vacuum.
Possible causes include:
- Vacuum hoses connected incorrectly
- Failed vacuum regulator
- Defective backpressure transducer
- Control solenoid leaking vacuum
- Incorrect replacement component
- Restricted vent
- Vacuum reservoir or check-valve problem
Compare vacuum at the valve with the manufacturer’s specification under the conditions that stored the code.
Biased Differential-Pressure Sensor
A DPFE or differential-pressure sensor can falsely report excessive flow.
Inspect for:
- Biased signal voltage
- Incorrect zero-flow reading
- Internal sensor failure
- Melted pressure ports
- Condensation
- Electrical-reference problem
- Poor sensor ground
- Corroded connector
- Sensor response that does not match applied pressure
Do not judge the sensor from one idle reading. Compare zero-flow behavior and response under controlled pressure.
Reversed Pressure Hoses
Differential-pressure sensors depend on correct upstream and downstream hose routing.
If the hoses are reversed, the sensor may report:
- Incorrect pressure direction
- Exaggerated flow
- Implausible response
- P0401 or P0402
- Manufacturer-specific EGR codes
Mark hose positions before removal and compare them with the factory routing diagram.
Damaged or Restricted Pressure Hoses
Pressure hoses operate near hot exhaust components and can become:
- Cracked
- Melted
- Restricted by carbon
- Softened
- Collapsed
- Disconnected
- Filled with moisture
A sensor cannot calculate flow correctly when one pressure port is lying and the other is packed with soot.
Incorrect EGR Position Feedback
An electronic valve may physically close while its position sensor reports that it remains open.
Possible causes include:
- Sensor calibration drift
- Worn internal potentiometer
- Damaged feedback wiring
- Poor low-reference circuit
- Incorrect 5-volt reference
- Connector corrosion
- Missing learned closed position
- Internal actuator failure
Compare commanded and actual position. If the engine runs normally and independent airflow evidence does not support excessive flow, investigate the feedback system.
Contaminated or Biased MAF Sensor
On MAF-based systems, a low fresh-air reading may resemble excessive EGR flow.
Inspect:
- MAF contamination
- Intake restriction
- Incorrect air filter
- Air-filter installation
- Sensor wiring
- Intake-air temperature
- Learned airflow values
- Unmetered intake or charge-air leaks
Only use a cleaner approved for the sensor design. Do not touch the sensing element or attack it with shop air.
MAP Sensor Error
A biased or slow MAP sensor can report an incorrect manifold-pressure response.
Verify:
- Key-on engine-off reading
- Comparison with barometric pressure
- Idle response
- Throttle response
- Sensor reference voltage
- Low reference
- Signal voltage
- Restricted pressure port
MAP data should agree with other engine-load indicators.
Intake-Throttle Problem on a Diesel
Many diesel engines use an intake throttle to create the pressure difference needed for EGR flow.
If the throttle closes farther than commanded, fresh airflow may drop and EGR flow may increase or appear excessive.
Compare:
- Commanded throttle position
- Actual throttle position
- MAF reading
- Boost pressure
- EGR command
- EGR position
Do not replace the EGR valve before verifying the devices the PCM uses to create and measure flow.
Exhaust Leak
An exhaust leak can disturb the pressure relationships used to calculate EGR flow.
A GM service bulletin lists P0402 among several codes that may be caused by exhaust leakage and instructs technicians to locate leaks through pressure or smoke testing. GM P0402 exhaust-leak bulletin.
Inspect:
- Exhaust manifold
- EGR pickup
- Transfer tube
- Cooler connections
- Exhaust-pressure sensor tubes
- Turbocharger connections
- Gaskets
- Bellows sections
- Clamps
Soot tracks often reveal the leak location.
Wiring or Connector Damage
Electrical problems can distort EGR control or feedback.
Inspect for:
- Chafed wiring
- Melted insulation
- Loose terminals
- Water intrusion
- Oil contamination
- Corrosion
- Broken conductors
- Poor engine ground
- Shared reference-voltage fault
- Previous repair damage
If P0402 appears with several unrelated sensor codes, diagnose shared power, reference and ground circuits first.
Incorrect PCM Calibration or Learned Values
Software and adaptation data can affect EGR monitoring.
Manufacturer procedures may require:
- PCM update
- EGR-valve relearn
- Closed-position learning
- MAF initialization
- Intake-throttle relearn
- Learned airflow reset
A Ram ProMaster technical bulletin includes P0402 among codes addressed through updated engine-control software on specific 3.0-liter diesel applications. Ram P0402 software bulletin.
Volvo and Mack have also documented software changes intended to reduce false P0402 occurrences on specific diesel engines. Volvo/Mack EGR software information.
These bulletins apply only to the listed vehicles. A software bulletin is evidence to check calibration—not a universal invitation to update every PCM with a P0402 code.
Why P0402 Does Not Automatically Mean the EGR Valve Is Bad
The PCM does not directly watch exhaust molecules march into the intake.
It interprets information from sensors.
P0402 may represent:
- Genuine excessive exhaust flow
- A valve-position error
- Incorrect pressure feedback
- Incorrect MAF or MAP data
- A leak altering system pressure
- Software using the data incorrectly
Before replacing the valve, answer two separate questions:
- Is the valve actually open farther than commanded?
- Does independent airflow or pressure evidence confirm excessive flow?
If both answers are yes, valve or control-system failure becomes more likely.
If position data says the valve is open but engine airflow does not support that conclusion, investigate feedback accuracy.
Can a Stuck-Open EGR Valve Cause P0402?
Yes.
A valve stuck open allows exhaust into the intake when the PCM expects little or no flow. This can produce rough idle, stalling, hesitation and misfires.
Confirm the valve is actually open before replacing it. Position feedback can be inaccurate, and a vacuum-control problem can hold an otherwise functional valve open.
Can Carbon Buildup Cause P0402?
Yes.
Carbon can become trapped between the valve and its seat, preventing complete closure.
Carbon can also restrict sensor hoses and distort differential-pressure measurements. Therefore, deposits can create either a genuine excessive-flow condition or a false calculated result.
Can a DPFE Sensor Cause P0402?
Yes.
A biased DPFE sensor may report a larger pressure difference than actually exists. Reversed or restricted pressure hoses can create similar results.
Check sensor response, zero-flow reading, hose routing and electrical circuits before replacing the sensor.
Can a MAF Sensor Cause P0402?
Yes.
A MAF sensor that reports too little fresh airflow can make a MAF-based EGR system calculate excessive recirculated exhaust.
Compare the MAF reading with:
- Engine speed
- Engine load
- Boost pressure
- Throttle position
- EGR command
- Known-good data
Inspect the intake system before replacing the sensor.
Can an Exhaust Leak Cause P0402?
Yes.
Leaks can alter exhaust pressure, airflow relationships or sensor readings used by the PCM. Certain manufacturer bulletins specifically identify exhaust leakage as a possible cause of P0402.
Look for soot tracks and perform the manufacturer-approved leak test.
Can P0402 Cause a Misfire?
Yes.
Excessive exhaust gas displaces oxygen and can destabilize combustion. This may create random or multiple-cylinder misfires, especially at idle.
P0402 identifies the EGR-flow condition. P0300-series codes identify detected combustion failures.
For a broader diagnostic path, use Pro Street’s engine misfire guide.
Can P0402 Cause Black or Gray Smoke?
It can contribute to smoke on some diesel engines.
Excessive EGR flow reduces available oxygen and may increase soot formation. However, black or gray exhaust can also result from injector faults, turbocharger problems, intake restrictions, low compression or incorrect boost.
Use Pro Street’s gray exhaust smoke diagnostic guide when smoke—not the code—is the primary search intent.
Diagnostic Tools You May Need
P0402 diagnosis may require:
- Manufacturer-capable scan tool
- Digital multimeter
- Hand vacuum pump
- Vacuum gauge
- Differential-pressure gauge
- Smoke machine
- Low-pressure exhaust test equipment
- Oscilloscope
- Back-probing leads
- Wiring diagrams
- Vacuum-routing diagrams
- Manufacturer service information
- Battery maintainer for programming
A basic code reader can retrieve P0402 but may not display EGR command, position, differential pressure or bidirectional controls.
How to Diagnose P0402
1. Confirm the Code Definition
Verify that P0402 means excessive EGR flow for the exact vehicle.
Manufacturer terminology and monitoring strategies may differ.
2. Perform a Complete Vehicle Scan
Record:
- Stored codes
- Pending codes
- Permanent codes
- Freeze-frame data
- EGR command
- Actual EGR position
- MAF
- MAP
- Differential EGR pressure
- EGR temperature
- Intake-throttle position
- Boost pressure
- Exhaust pressure
- Engine speed
- Engine load
- Coolant temperature
Do not clear the code before saving this information.
3. Review Freeze-Frame Conditions
Determine when P0402 set:
- Cold start
- Warm idle
- Deceleration
- Light cruise
- Acceleration
- High load
- Regeneration
- Specific engine speed
- Specific coolant temperature
A valve stuck open at idle requires a different investigation from a calculated excessive-flow result under diesel cruise conditions.
4. Diagnose Related Circuit Codes First
Resolve codes involving:
- EGR control circuit
- EGR position sensor
- MAF sensor
- MAP sensor
- Intake throttle
- Boost pressure
- Exhaust pressure
- Reference voltage
- Sensor ground
P0402 calculations cannot be trusted when a required input has already reported an electrical failure.
5. Inspect the EGR System
Inspect:
- EGR valve
- Connector
- Vacuum hoses
- Control solenoid
- Pressure hoses
- EGR tube
- Cooler
- Intake throttle
- MAF connector
- MAP port
- Exhaust connections
- Wiring harness
Look for carbon, soot tracks, melted hoses and incorrect previous repairs.
6. Compare Commanded and Actual EGR Position
With the engine operating under an approved condition, compare:
- Commanded EGR
- Actual EGR
- Learned closed position
- Position when commanded closed
- Position response during an active test
If actual position remains above command, determine whether the valve is physically stuck or its sensor is biased.
7. Command the Valve Closed
Use a bidirectional scan tool where supported.
Observe:
- Engine idle quality
- EGR position
- MAF
- MAP
- Differential pressure
- EGR temperature
If the valve is commanded closed but airflow evidence still indicates EGR flow, inspect for mechanical sticking, unwanted vacuum or incorrect sensor data.
8. Test Vacuum Control
On vacuum-operated systems, check:
- Source vacuum
- Solenoid control
- Solenoid leakage
- Vacuum at the EGR valve when commanded off
- Hose routing
- Valve diaphragm
- Vent operation
Vacuum should not reach the valve when the manufacturer’s strategy commands it closed.
9. Validate Differential-Pressure Data
With no EGR flow, pressure feedback should agree with the manufacturer’s zero-flow specification.
Then observe response during a controlled EGR command.
If the reading is excessive:
- Inspect both hoses
- Confirm correct routing
- Check for restrictions
- Check for moisture
- Test sensor power and ground
- Apply known pressure if permitted
Do not apply excessive pressure to the sensor.
10. Validate MAF and MAP Data
For the MAF sensor:
- Check plausibility at idle
- Compare with engine speed and load
- Inspect the intake
- Check for restrictions and leaks
- Review learned values
For the MAP sensor:
- Compare key-on engine-off pressure with barometric pressure
- Check idle response
- Inspect the sensor port
- Verify reference, ground and signal
The sensors should agree with the engine’s actual operating state.
11. Inspect the EGR Valve Mechanically
If testing points toward genuine unwanted flow, remove the valve according to the manufacturer procedure.
Inspect for:
- Carbon beneath the valve
- Damaged seat
- Binding pintle
- Corrosion
- Failed return mechanism
- Actuator damage
- Incorrect gasket
- Foreign material
Clean the valve only when the manufacturer permits it and the assembly is serviceable.
12. Check for Exhaust Leaks
Inspect visually and perform the approved pressure or smoke test.
Keep test pressure within the manufacturer’s limit. Exhaust and aftertreatment components can be damaged by excessive pressure.
13. Check Technical Bulletins and Calibration
Search by year, make, model, engine, calibration and code.
If a bulletin applies, follow its diagnostic prerequisites before programming the module.
14. Complete Required Relearns
After component replacement or cleaning, perform applicable:
- EGR closed-position relearn
- EGR adaptation
- MAF initialization
- Intake-throttle relearn
- Airflow learned-value reset
- PCM programming
Skipping a required relearn may allow incorrect data to remain after a mechanically correct repair.
Common Diagnostic Results
| Test result | Likely direction |
|---|---|
| Actual EGR remains open when commanded closed | Stuck valve, unwanted vacuum or actuator fault |
| Commanded and actual position match, but flow reads high | Pressure, MAF, MAP or calculation problem |
| DPFE reading is high with no flow | Biased sensor or pressure-hose fault |
| Engine idle improves when EGR closes | Genuine unwanted EGR flow |
| No vacuum command but vacuum reaches valve | Leaking solenoid or incorrect hose routing |
| MAF reports abnormally low fresh airflow | Excessive flow, intake restriction, throttle problem or biased MAF |
| MAP response is implausible | MAP sensor, port or calculation problem |
| Soot tracks appear near EGR or exhaust connection | Exhaust leak |
| Mechanical system tests normally | Check learned values, software and intermittent faults |
| P0403 accompanies P0402 | Diagnose the electrical control circuit first |
| P0404 accompanies P0402 | Verify valve movement and position feedback |
Common Repairs for P0402
Repairs may include:
- Cleaning carbon from the EGR valve seat
- Replacing a mechanically stuck EGR valve
- Replacing a failed EGR actuator
- Repairing vacuum-hose routing
- Replacing a leaking EGR control solenoid
- Repairing a vacuum regulator or transducer
- Cleaning differential-pressure hoses
- Replacing damaged pressure hoses
- Replacing a biased DPFE sensor
- Repairing MAF or MAP wiring
- Cleaning an approved MAF sensor
- Replacing an inaccurate airflow or pressure sensor
- Repairing an intake-throttle fault
- Repairing an exhaust leak
- Repairing wiring or connector terminals
- Reprogramming the PCM
- Performing EGR or airflow relearns
Select the repair only after confirming the failure.
What Not to Replace First
P0402 does not automatically justify replacing:
- EGR valve
- DPFE sensor
- MAF sensor
- MAP sensor
- EGR cooler
- Intake throttle
- Turbocharger
- Diesel particulate filter
- PCM
- Intake manifold
Any of those components may be involved. None should be convicted because its name appeared closest to the code definition.
Estimated P0402 Repair Costs
| Service or repair | Estimated cost |
|---|---|
| Diagnostic testing | $120–$300 |
| Vacuum-hose repair | $50–$250 |
| EGR valve cleaning | $150–$450 |
| EGR control-solenoid replacement | $150–$500 |
| EGR valve replacement | $250–$1,200+ |
| DPFE or differential-pressure sensor | $180–$550 |
| MAF or MAP sensor replacement | $150–$650 |
| Pressure-hose replacement | $100–$400 |
| Exhaust-leak repair | $150–$1,500+ |
| Intake-throttle repair | $300–$1,500+ |
| EGR cooler service | $500–$3,000+ |
| Wiring repair | $150–$800+ |
| PCM update or relearn | $150–$400 |
Costs vary by vehicle, engine, accessibility and confirmed cause.
Can You Drive With P0402?
Limited driving may be possible if the engine runs normally and no other warnings are present.
Do not continue driving if the vehicle:
- Stalls repeatedly
- Runs severely rough
- Has a flashing Check Engine light
- Produces heavy smoke
- Loses substantial power
- Overheats
- Loses coolant
- Enters an unsafe reduced-power condition
A persistent excessive-flow condition can affect combustion, emissions and diesel aftertreatment performance.
Common P0402 Diagnostic Mistakes
Replacing the EGR Valve Without Proving Flow
The valve may close correctly while a biased sensor reports excessive flow.
Compare position, airflow and pressure evidence.
Treating P0402 Like P0401
P0401 usually sends diagnosis toward insufficient flow and restrictions. P0402 requires investigating unwanted flow or falsely high feedback.
Cleaning Every EGR Passage
Blocked passages usually reduce flow. Carbon only supports P0402 when it prevents closure or disrupts feedback sensing.
Ignoring Pressure Hoses
Reversed, cracked or restricted DPFE hoses can invalidate the entire flow calculation.
Ignoring Exhaust Leaks
Manufacturer information confirms that leaks can contribute to P0402 on certain applications.
Trusting One Sensor
Compare EGR position with MAF, MAP, pressure and engine response.
Clearing Freeze-Frame Data Too Early
The original operating conditions may be essential for reproducing the monitor.
Skipping Relearn Procedures
A replacement valve or cleaned throttle may require adaptation before the PCM can evaluate it correctly.
How to Confirm the Repair
After completing the repair:
- Reconnect every electrical and vacuum connection.
- Verify pressure-hose routing.
- Confirm the EGR valve reaches its closed position.
- Complete required relearns.
- Clear stored and pending codes.
- Start the engine and monitor idle quality.
- Compare commanded and actual EGR position.
- Verify zero-flow pressure data.
- Confirm plausible MAF and MAP readings.
- Perform the approved active EGR test.
- Warm the engine fully.
- Reproduce the freeze-frame operating conditions.
- Complete the EGR monitor.
- Rescan for pending codes.
- Confirm P0402 does not return.
The repair is confirmed when EGR flow responds correctly to command—not simply when the warning light takes a temporary vacation.
Frequently Asked Questions
What does the P0402 code mean?
P0402 means the PCM detected more exhaust-gas recirculation flow than expected during a monitored operating condition.
Is P0402 the same as P0401?
No. P0401 means EGR flow is insufficient. P0402 means EGR flow is excessive.
Does P0402 mean the EGR valve is stuck open?
A stuck-open valve is a common cause, but sensor, hose, airflow, vacuum, exhaust-leak and software problems can produce the same code.
Can carbon buildup cause P0402?
Yes. Carbon can prevent the EGR valve from seating or interfere with pressure-sensing hoses.
Can a bad DPFE sensor cause P0402?
Yes. A biased sensor can report excessive differential pressure and make the PCM calculate too much EGR flow.
Can reversed DPFE hoses cause P0402?
Yes. Incorrect hose routing can create invalid pressure readings and trigger EGR-flow codes.
Can a bad MAF sensor cause P0402?
Yes. A MAF sensor reporting too little fresh air can make a MAF-based system calculate excessive EGR flow.
Can an exhaust leak cause P0402?
Yes. An exhaust leak can alter the pressure and airflow relationships used to evaluate EGR flow.
Can P0402 cause a rough idle?
Yes. Excessive exhaust entering at idle can dilute the intake charge and destabilize combustion.
Can P0402 cause a misfire?
Yes. Excessive EGR flow can cause random or multiple-cylinder misfires, particularly at idle.
Can I drive with P0402?
Limited driving may be possible if the engine operates normally. Stop if it stalls, runs severely rough, produces heavy smoke or displays a flashing Check Engine light.
How do you diagnose P0402?
Compare commanded and actual EGR position, verify pressure and airflow sensors, test vacuum control, inspect the valve for incomplete closure and check for exhaust leaks or applicable software updates.
Final Thoughts
P0402 means the PCM detected excessive EGR flow. It does not automatically identify why.
The EGR valve may be physically stuck open, but the same result can come from excessive control vacuum, a biased differential-pressure sensor, reversed hoses, incorrect MAF or MAP data, an exhaust leak or inaccurate position feedback.
Begin with freeze-frame data and related codes. Determine how the vehicle measures EGR flow, compare commanded operation with actual valve position, and verify the conclusion using independent airflow or pressure data.
A code tells you which system failed its test.
It does not tell you which part deserves your credit-card number.
For more diagnostic information, visit the complete P-code OBD-II library or explore Pro Street’s DTC Doctor.
