P0401 Code Explained: Exhaust Gas Recirculation (EGR) Flow Insufficient Detected Causes, Symptoms & Fixes

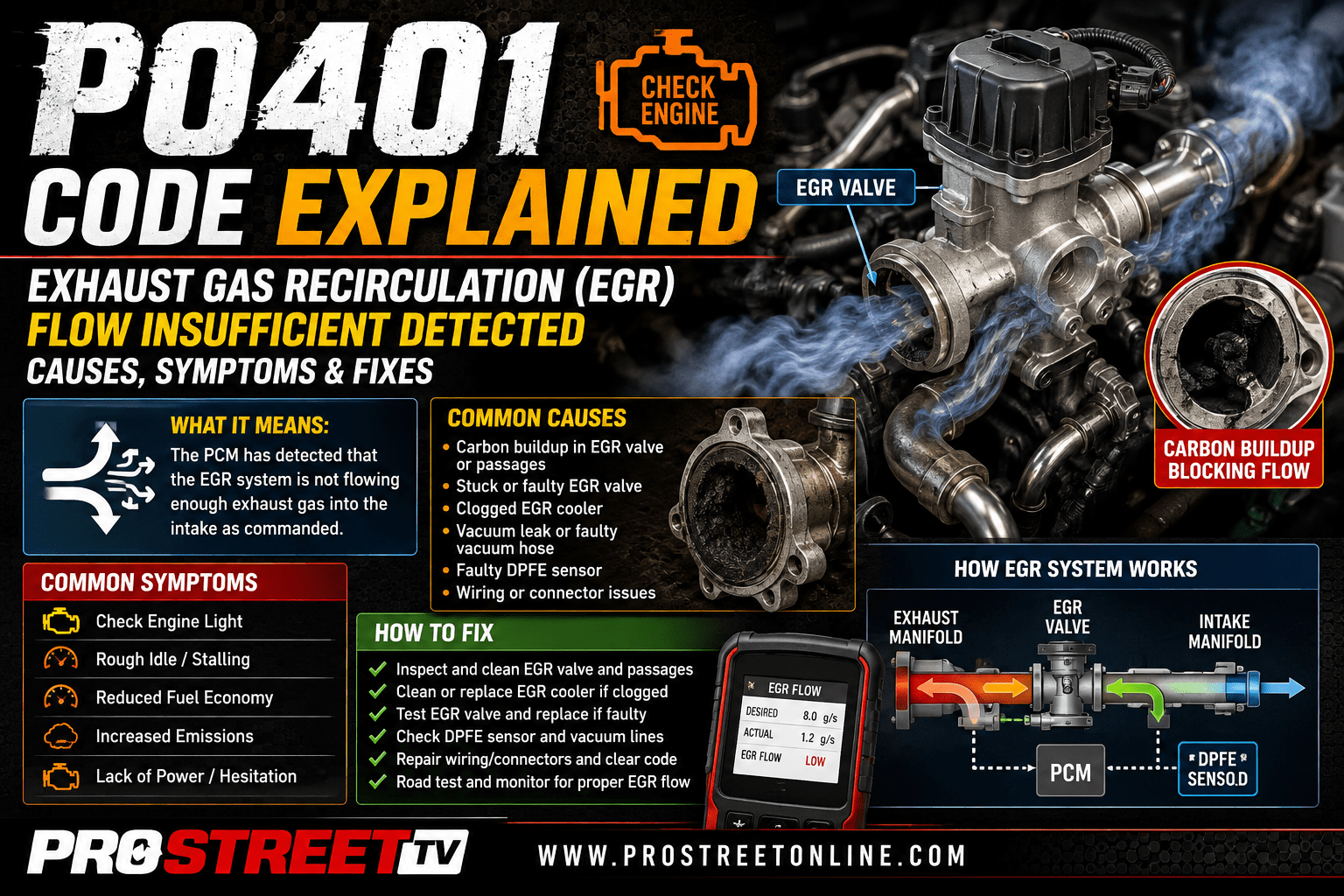

P0401 code illustration showing an EGR valve, carbon-clogged EGR passages, intake manifold, Check Engine Light, Pro Street TV logo, and www.ProStreetOnline.com.

If your OBD-II scanner displays P0401, your vehicle’s Engine Control Module (ECM) or Powertrain Control Module (PCM) has detected insufficient exhaust gas flow through the Exhaust Gas Recirculation (EGR) system.

The generic OBD-II definition for P0401 is:

Exhaust Gas Recirculation (EGR) Flow Insufficient Detected

Unlike EGR circuit fault codes that indicate an electrical problem, P0401 means the PCM commanded the EGR system to operate but did not detect the expected amount of exhaust gas entering the intake manifold.

This is one of the most common emissions-related diagnostic trouble codes found on gasoline and light-duty diesel engines.

Modern engine management systems continuously monitor:

If the PCM determines the EGR system is flowing less exhaust gas than expected, it stores P0401 and illuminates the Check Engine Light.

Common causes include:

Although many people immediately replace the EGR valve, carbon buildup inside the intake manifold or EGR passages is often the true cause.

What Does the P0401 Code Mean?

The EGR system reduces combustion temperatures by allowing a controlled amount of exhaust gas to re-enter the intake manifold.

This lowers:

When the PCM commands the EGR valve to open, it expects airflow sensors to detect a corresponding change in engine operation.

If that change is too small, or absent altogether, the PCM stores P0401.

What Is the EGR System?

The Exhaust Gas Recirculation (EGR) system routes a small amount of exhaust gas back into the intake manifold during certain operating conditions.

Major components include:

The system is normally inactive during:

It primarily operates during light-to-moderate engine loads.

Why Proper EGR Flow Matters

The EGR system helps reduce:

Proper EGR operation also improves:

When EGR flow becomes restricted, combustion temperatures rise and emissions increase.

How the PCM Detects P0401

Modern PCMs use several sensors to verify EGR operation.

Depending on the manufacturer, the PCM may monitor:

If the measured exhaust gas flow is below the expected value after the EGR valve opens, P0401 is stored.

Most vehicles require the condition to occur multiple times before the code becomes permanent.

What Does “EGR Flow Insufficient” Mean?

P0401 does not necessarily mean the EGR valve itself has failed.

Instead, it means the engine is not receiving enough recirculated exhaust gas.

Possible causes include:

Proper diagnosis is necessary before replacing components.

Can Carbon Buildup Cause P0401?

Absolutely.

Carbon accumulation is the single most common cause of P0401.

Carbon deposits frequently block:

Even if the EGR valve opens correctly, blocked passages prevent exhaust gases from reaching the intake manifold.

Can a Bad EGR Valve Cause P0401?

Yes.

Common EGR valve failures include:

However, replacing the valve without inspecting the passages often fails to solve the problem.

Can Vacuum Leaks Cause P0401?

Yes—on vacuum-operated EGR systems.

Inspect:

Loss of vacuum may prevent the EGR valve from opening properly.

Electronic EGR systems typically do not use external vacuum hoses.

Can a Dirty Intake Manifold Cause P0401?

Definitely.

Many modern direct-injection engines develop heavy carbon deposits inside the intake manifold.

Blocked passages reduce or completely stop EGR flow.

This is especially common on:

Cleaning the intake passages often restores proper EGR operation.

P0401 Quick Facts

ItemInformation
DTCP0401
Generic DefinitionExhaust Gas Recirculation Flow Insufficient Detected
SystemEmissions / EGR System
SeverityModerate
Safe to Drive?Usually yes (short term)
Common SymptomsCheck Engine Light, pinging, rough idle, failed emissions test
Common CausesCarbon buildup, clogged EGR passages, faulty EGR valve, vacuum leaks, sensor faults
Typical Repair Cost$100–1,200+
Related CodesP0400, P0402, P0403, P0404, P0405, P0406, P0171, P0420

Common Vehicles That Experience P0401

P0401 commonly appears on:

It is especially common on:

What Does P0401 Really Mean?

Many drivers assume P0401 automatically means the EGR valve needs replacement.

In reality, the code simply indicates insufficient EGR flow.

The underlying problem may involve:

Think of P0401 as the PCM saying:

“I commanded exhaust gas recirculation, but I didn’t detect enough exhaust gas flowing into the intake manifold. Find out what’s restricting the flow before replacing parts.”

Common P0401 Scan Tool Patterns

Using a professional scan tool is one of the fastest ways to diagnose P0401.

Unlike electrical EGR circuit codes such as P0403, P0401 indicates the EGR system is not flowing enough exhaust gas, even though the PCM has commanded it to operate.

Modern scan tools may display:

Reviewing these values often helps determine whether the problem is caused by carbon buildup, a failed EGR valve, faulty sensors, or restricted passages.

Pattern 1: Commanded EGR Opens, But Flow Never Changes

One of the most common scan-tool patterns is:

Possible causes include:

This is the classic symptom of restricted EGR flow.

Pattern 2: High Combustion Temperatures

Some vehicles may display:

Possible causes include:

Without exhaust gas recirculation, combustion temperatures rise significantly.

Pattern 3: No Change in MAP Sensor Readings

The PCM expects manifold pressure to change when EGR opens.

If live data shows:

Possible causes include:

MAP sensor behavior is a major diagnostic clue.

Pattern 4: Abnormal MAF Sensor Readings

Vehicles that monitor EGR using the MAF sensor may show:

Possible causes include:

Cleaning the MAF sensor may be part of the diagnostic process.

Pattern 5: Freeze-Frame Data Shows Highway Cruising

Freeze-frame data often reveals:

The EGR system is most active during steady cruising, making this the most common operating condition for P0401.

Pattern 6: Failed Emissions Test

Many drivers first discover P0401 after:

Insufficient EGR flow significantly increases nitrogen oxide (NOx) emissions.

Pattern 7: Ford DPFE Sensor Abnormalities

Ford vehicles frequently display:

Possible causes include:

DPFE sensor failures are particularly common on older Ford engines.

Common Symptoms of P0401

Symptoms vary depending on how restricted the EGR system has become.

Common symptoms include:

Some vehicles may show almost no noticeable drivability symptoms.

Check Engine Light

The Check Engine Light is usually the first symptom.

Many drivers experience no obvious performance issues until the code is retrieved with a scan tool.

Engine Pinging or Detonation

Without proper EGR flow:

Pinging is especially noticeable during:

Reduced Fuel Economy

Insufficient EGR flow may reduce fuel economy because:

While fuel economy losses are often small, they become more noticeable over time.

Failed Emissions Inspection

P0401 is one of the most common reasons vehicles fail emissions testing.

Reduced EGR flow causes:

Many states will automatically fail a vehicle with an active Check Engine Light.

Is P0401 Serious?

P0401 is generally considered a moderate-severity diagnostic trouble code.

While it usually will not leave you stranded, ignoring it can eventually result in:

Prompt repairs help prevent additional engine and emissions system problems.

Can You Drive With P0401?

Yes, in most cases, short-term driving is safe.

Driving may be acceptable if:

Repairs should not be delayed if you notice:

Ignoring persistent detonation can eventually damage pistons and valves.

P0401 vs Related Trouble Codes

Understanding related EGR codes simplifies diagnosis.

P0401

Exhaust Gas Recirculation Flow Insufficient Detected

The PCM detects less EGR flow than expected.

P0400

Exhaust Gas Recirculation Flow Malfunction

General EGR system malfunction without identifying whether flow is too high or too low.

P0402

Exhaust Gas Recirculation Flow Excessive Detected

Too much exhaust gas is entering the intake manifold.

P0403

Exhaust Gas Recirculation Control Circuit Malfunction

Electrical problem affecting EGR valve control.

P0404

Exhaust Gas Recirculation Range/Performance

The EGR valve position does not match PCM expectations.

30 Common Causes of P0401

The most common causes include:

  1. Carbon-clogged EGR passages
  2. Stuck closed EGR valve
  3. Failed EGR valve
  4. Carbon-blocked intake manifold
  5. Restricted EGR tube
  6. Dirty intake ports
  7. Failed DPFE sensor
  8. Faulty MAP sensor
  9. Dirty MAF sensor
  10. Vacuum hose leaks
  11. Cracked vacuum hoses
  12. Failed EGR vacuum solenoid
  13. Faulty EGR position sensor
  14. Damaged EGR wiring
  15. Loose electrical connectors
  16. Intake manifold carbon buildup
  17. Throttle body carbon buildup
  18. Exhaust manifold restriction
  19. Exhaust leaks
  20. Incorrect aftermarket EGR valve
  21. Poor engine maintenance
  22. Excessive soot buildup
  23. Faulty PCM calibration
  24. Failed PCM driver (rare)
  25. Cooling system issues affecting EGR operation
  26. Low engine vacuum
  27. Engine mechanical problems
  28. Previous improper repairs
  29. Restricted catalytic converter (less common)
  30. Failed PCM (rare)

Final Thoughts

The P0401 Exhaust Gas Recirculation Flow Insufficient Detected code indicates the PCM has detected less EGR flow than expected, not necessarily a failed EGR valve.

In fact, carbon-clogged EGR passages remain the single most common cause of this code across nearly every manufacturer.

Proper diagnosis should determine whether the restriction originates in:

The next section of this guide covers:

Following a systematic diagnostic process prevents unnecessary EGR valve replacement while restoring proper emissions performance, reducing combustion temperatures, improving engine efficiency, and ensuring long-term reliability.

Related Pro Street Diagnostic Guides

How to Diagnose the P0401 Code

Diagnosing P0401 requires determining why the Powertrain Control Module (PCM) has detected insufficient Exhaust Gas Recirculation (EGR) flow.

Unlike electrical EGR fault codes, P0401 indicates the PCM commanded the EGR system to operate but did not detect the expected amount of exhaust gas entering the intake manifold.

The underlying problem may involve:

Since excessive carbon buildup is responsible for a large percentage of P0401 cases, diagnosis should begin with a thorough visual inspection before replacing expensive components.

Safety Precautions

Before beginning diagnosis:

EGR valves and exhaust crossover tubes can become extremely hot during normal engine operation.

Tools Required

Professional diagnosis may require:

A scan tool capable of commanding the EGR valve open greatly simplifies diagnosis.

Step 1 – Verify the Code

Connect a professional scan tool.

Record:

Monitor:

Never erase codes before recording freeze-frame information.

Step 2 – Check for Related Trouble Codes

P0401 commonly appears with:

Related codes often help narrow the source of the problem.

Code CombinationLikely Diagnosis
P0401 onlyRestricted EGR flow or carbon buildup
P0401 + P0403EGR electrical fault
P0401 + P0171Vacuum leak or intake restriction
P0401 + P0420Long-term emissions system problems
P0401 + P0404EGR valve position issue

Step 3 – Review Freeze-Frame Data

Study:

Freeze-frame data often reveals whether the fault occurred:

These are the operating conditions when the EGR system is most active.

Step 4 – Perform a Visual Inspection

Inspect the entire EGR system for:

Many P0401 problems can be identified during a careful visual inspection.

Step 5 – Inspect the EGR Valve

Remove or inspect the EGR valve.

Check for:

The valve should move freely without binding.

Step 6 – Inspect EGR Passages

Inspect the EGR passages inside:

Look for:

Carbon-clogged passages remain the most common cause of P0401.

Step 7 – Test Vacuum Supply (Vacuum-Operated Systems)

If equipped with a vacuum-operated EGR valve:

Inspect:

Using a hand vacuum pump:

A leaking diaphragm requires EGR valve replacement.

Step 8 – Command the EGR Valve with a Scan Tool

Using a bidirectional scan tool:

Command the EGR valve open.

Monitor:

A properly functioning EGR valve should cause:

Little or no change usually indicates restricted EGR flow.

Step 9 – Test the MAP Sensor

Many manufacturers use the MAP sensor to verify EGR operation.

Inspect:

A faulty MAP sensor may incorrectly report EGR flow.

Step 10 – Inspect the MAF Sensor

Vehicles using the MAF sensor for EGR monitoring should be checked for:

Clean the MAF sensor using approved MAF cleaner only.

Step 11 – Test the DPFE Sensor (Ford)

Many Ford vehicles use a Differential Pressure Feedback EGR (DPFE) sensor.

Inspect:

Failed DPFE sensors are a well-known cause of P0401 on many Ford applications.

Step 12 – Verify Electrical Circuits

Inspect:

Check for:

Electrical problems may prevent proper EGR operation.

Step 13 – Inspect the Intake Manifold

Many direct-injection engines develop heavy carbon deposits.

Inspect:

Restricted airflow commonly reduces EGR effectiveness.

Step 14 – Review Technical Service Bulletins

Before replacing major components:

Review manufacturer Technical Service Bulletins (TSBs).

Some manufacturers have released updates addressing:

Step 15 – Perform a Road Test

Drive the vehicle while monitoring:

Attempt to duplicate the operating conditions recorded in freeze-frame data.

Step 16 – Inspect the Exhaust System

Inspect:

Exhaust restrictions or leaks may reduce available EGR flow.

Step 17 – Verify Engine Operating Temperature

Monitor engine coolant temperature.

A thermostat stuck open may prevent proper EGR operation on some vehicles.

Verify the engine reaches normal operating temperature before continuing diagnosis.

Step 18 – Confirm Proper EGR Flow

After cleaning or repairing components:

Command the EGR valve open again.

Verify:

The engine should clearly respond when EGR flow is restored.

Step 19 – Clear Codes and Complete a Drive Cycle

After repairs:

Step 20 – Confirm the Diagnosis

Before replacing expensive components, verify:

Completing these diagnostic procedures prevents unnecessary EGR valve replacement while accurately identifying the root cause of P0401.

Step 21 – Clean Carbon-Clogged EGR Passages

Carbon buildup is the leading cause of P0401.

Even if the EGR valve functions correctly, blocked passages can prevent exhaust gases from reaching the intake manifold.

Inspect and clean:

Use:

Avoid allowing carbon debris to fall into the intake runners whenever possible.

After cleaning, verify unrestricted airflow through every passage before reassembly.

Step 22 – Replace the EGR Valve

If testing confirms the EGR valve has failed mechanically or electrically, replacement is necessary.

General replacement procedure:

  1. Disconnect the negative battery cable.
  2. Disconnect the electrical connector or vacuum hose.
  3. Remove the mounting bolts.
  4. Remove the old EGR valve.
  5. Clean the mounting surface.
  6. Install a new gasket if required.
  7. Install the replacement EGR valve.
  8. Torque mounting bolts to specification.
  9. Reconnect electrical connectors or vacuum lines.
  10. Clear all diagnostic codes.
  11. Verify proper EGR operation using a scan tool.

Always use an OEM-quality replacement valve to ensure proper flow characteristics.

Step 23 – Repair Vacuum System Problems

Vacuum-operated EGR systems rely on adequate engine vacuum.

Inspect:

Replace:

Vacuum leaks frequently prevent the EGR valve from opening fully.

Step 24 – Replace the DPFE Sensor (Ford Vehicles)

On many Ford applications, the Differential Pressure Feedback EGR (DPFE) sensor is a common failure point.

Inspect for:

If faulty:

Many Ford P0401 repairs involve replacing the DPFE sensor rather than the EGR valve itself.

Step 25 – Repair MAP or MAF Sensor Problems

Some manufacturers calculate EGR flow using the MAP or MAF sensor.

Inspect for:

If contaminated:

Verify sensor performance with live scan tool data after repairs.

Step 26 – Repair Electrical Problems

Inspect all EGR-related electrical circuits.

Repair:

Use:

Proper electrical repairs improve long-term reliability.

Step 27 – Update PCM Software

Before replacing expensive components:

Review manufacturer Technical Service Bulletins (TSBs).

Manufacturers occasionally release PCM software updates addressing:

Always verify the PCM has the latest available software before replacing the control module.

Step 28 – Verify Proper EGR Operation

After repairs:

Command the EGR valve open using a professional scan tool.

Monitor:

The engine should respond immediately when exhaust gas begins flowing into the intake.

Step 29 – Complete an OBD-II Drive Cycle

After repairs:

Monitor for any returning pending codes.

Step 30 – Verify the Repair

After completing repairs:

  1. Clear all stored codes.
  2. Start the engine.
  3. Verify smooth idle.
  4. Confirm proper EGR operation using live data.
  5. Perform a complete road test.
  6. Complete an OBD-II drive cycle.
  7. Verify no pending or permanent DTCs return.
  8. Confirm normal fuel trims and emissions monitor status.

A successful repair restores proper exhaust gas recirculation, reduces combustion temperatures, lowers NOx emissions, and prevents future Check Engine Light illumination.

How to Fix P0401

The correct repair depends on the diagnostic results.

Common repairs include:

Typical Repair Costs

RepairTypical Cost
Professional diagnosis$100–250
EGR passage cleaning$150–500
EGR valve replacement$250–700
Vacuum hose replacement$25–150
DPFE sensor replacement$100–300
MAP sensor replacement$150–350
MAF sensor replacement$150–500
Intake manifold cleaning$300–900
PCM software update$100–250
PCM replacement (rare)$900–2,500+

Repair costs vary depending on engine design, carbon buildup severity, and labor rates.

Common Diagnostic Mistakes

Avoid these common mistakes:

Most P0401 repairs involve cleaning restricted passages rather than replacing expensive components.

Manufacturer-Specific Notes

Ford/Lincoln

Inspect:

Older Ford engines frequently develop P0401 due to failed DPFE sensors and blocked EGR passages.

General Motors (Chevrolet, GMC, Cadillac, Buick)

Inspect:

GM engines commonly experience carbon buildup around the EGR ports.

Chrysler, Dodge, Jeep, Ram

Verify:

Carbon accumulation inside the intake manifold is a frequent cause.

Toyota/Lexus

Inspect:

Toyota engines with direct injection commonly experience heavy carbon buildup that restricts EGR flow.

Nissan/Infiniti

Inspect:

Restricted EGR passages are more common than valve failure.

Hyundai/Kia

Inspect:

Direct-injection engines are susceptible to intake carbon buildup over time.

Frequently Asked Questions

What usually fixes P0401?

The most common repair is cleaning carbon-clogged EGR passages or replacing a restricted EGR valve. Depending on the vehicle, repairs may also include replacing vacuum hoses, a DPFE sensor, MAP sensor, or cleaning the intake manifold.

Can I drive with P0401?

Yes, in most cases the vehicle remains drivable. However, delaying repairs can increase NOx emissions, reduce fuel economy, cause engine pinging, and eventually contribute to catalytic converter damage.

Does P0401 always mean the EGR valve is bad?

No. The majority of P0401 cases are caused by carbon-blocked EGR passages rather than a failed valve. Proper inspection should always be performed before replacing the EGR valve.

Can carbon buildup cause P0401?

Absolutely. Carbon buildup inside the EGR passages, intake manifold, or EGR tube is the most common cause of insufficient EGR flow across many gasoline and diesel engines.

Is P0401 a serious code?

P0401 is generally considered a moderate-severity diagnostic trouble code. While it rarely causes an immediate breakdown, ignoring the problem can lead to higher combustion temperatures, increased NOx emissions, failed emissions inspections, engine knock, and long-term engine or catalytic converter damage.

Final Thoughts

The P0401 Exhaust Gas Recirculation Flow Insufficient Detected code indicates the PCM has detected less EGR flow than expected, usually because exhaust gases cannot properly pass through the EGR system.

Although many owners replace the EGR valve first, the true root cause is often carbon-clogged EGR passages, intake manifold restrictions, or sensor-related issues.

A complete diagnosis should always verify:

Following a structured diagnostic process prevents unnecessary parts replacement while restoring proper emissions performance, lowering combustion temperatures, improving fuel economy, and ensuring long-term engine reliability.

Continue Your Pro Street EGR Series

Related guides include:

Exit mobile version
