P0344 Code: Camshaft Position Sensor “A” Circuit Intermittent

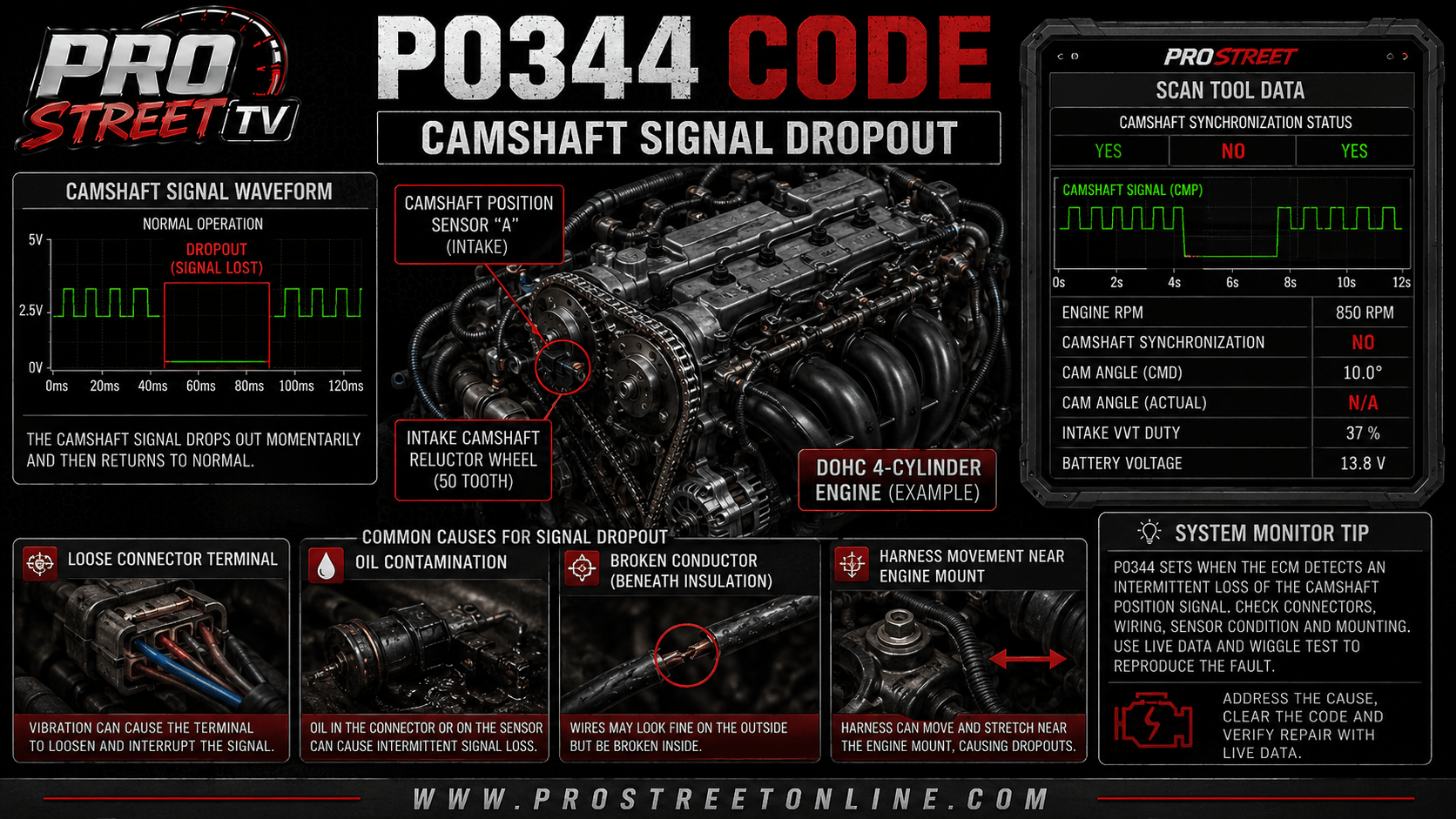

P0344 camshaft position sensor A intermittent-circuit diagnostic illustration

The P0344 OBD-II trouble code means the Powertrain Control Module has detected an intermittent signal from Camshaft Position Sensor “A” on Bank 1 or the engine’s single cylinder bank.

The generic definition for P0344 is:

Camshaft Position Sensor “A” Circuit Intermittent — Bank 1 or Single Sensor

Unlike P0342 or P0343, the sensor signal is not consistently low or high. With P0344, the signal may operate normally before suddenly dropping out, spiking or returning.

Common causes include:

A failed camshaft sensor can cause P0344, but the code may also result from a connection that opens only when the engine becomes hot or moves on its mounts.

Naturally, the circuit will often behave perfectly once the hood is open and several diagnostic tools are watching. Automotive wiring has always understood plausible deniability.

P0344 Quick Facts

ItemInformation
Trouble codeP0344
Generic definitionCamshaft Position Sensor “A” Circuit Intermittent
Sensor locationBank 1 or single-sensor engine
SystemEngine position, ignition and fuel-injection timing
Fault typeIntermittent signal dropout or spike
SeverityModerate to high
Safe to drive?Not recommended if the engine stalls or becomes difficult to restart
Common symptomsStalling, hard starting, hesitation and inconsistent power
Common causesLoose terminals, wiring damage, contamination or sensor failure
Related codesP0340, P0341, P0342 and P0343

What Does the P0344 Code Mean?

P0344 means the PCM detected a Camshaft Position Sensor “A” signal that became unstable or temporarily disappeared.

The signal may fail for only a fraction of a second. That can still interrupt:

The PCM may compensate by relying more heavily on the crankshaft-position signal or using a substitute fuel-injection strategy.

The vehicle may run normally between failures, making P0344 more difficult to diagnose than a permanent open or short circuit.

What Does “Circuit Intermittent” Mean?

An intermittent circuit works correctly under some conditions and fails under others.

The sensor signal may change when:

The signal may:

A normal result during a stationary test does not eliminate an intermittent fault.

What Is Camshaft Position Sensor “A”?

Camshaft Position Sensor “A” commonly monitors the Bank 1 intake camshaft.

Depending on the vehicle, Sensor “A” may identify:

Bank 1 is the cylinder bank containing cylinder number one.

Inline engines have only one cylinder bank, so the code may be described as Bank 1 or Single Sensor.

Always verify the sensor using manufacturer service information. Multiple camshaft sensors can look remarkably similar while performing different jobs—because convenient labeling would apparently spoil the challenge.

How a Camshaft Position Sensor Works

The sensor monitors a reluctor, trigger wheel or target attached to the camshaft or camshaft phaser.

The PCM uses the signal to determine:

Two common sensor designs are used.

Hall-Effect Sensor

A Hall-effect sensor usually has:

As the camshaft target passes, the output switches between high and low voltage.

P0344 may be stored when one of these circuits intermittently opens or shorts.

Magnetic Sensor

A magnetic sensor usually has two wires and generates an alternating-current waveform.

Signal amplitude increases with engine speed.

Intermittent failures may result from:

How the PCM Detects P0344

Detection strategies vary by manufacturer, but the PCM may store P0344 when:

Some vehicles may require the failure to occur several times before illuminating the Check Engine Light.

P0344 Versus Related Camshaft-Sensor Codes

CodeDefinitionDiagnostic distinction
P0340Camshaft Position Sensor “A” Circuit MalfunctionGeneral Sensor A circuit fault
P0341Camshaft Position Sensor “A” Range/PerformanceSignal exists but behaves implausibly
P0342Camshaft Position Sensor “A” Circuit Low InputSignal remains consistently too low
P0343Camshaft Position Sensor “A” Circuit High InputSignal remains consistently too high
P0344Camshaft Position Sensor “A” Circuit IntermittentSignal drops out, spikes or returns
P0345Camshaft Position Sensor “A” Circuit Bank 2General Sensor A fault on Bank 2

The existing P0345 VQ35 camshaft-sensor guide covers a Nissan and Infiniti Bank 2 application. P0344 should remain focused on intermittent Bank 1 or single-sensor circuit diagnosis.

How Serious Is the P0344 Code?

P0344 can cause the engine to stall or become difficult to restart.

Possible consequences include:

A vehicle that stalls while moving may lose power-assisted steering and experience reduced brake assistance.

Do not continue driving if the engine shuts off unexpectedly or cannot restart reliably.

Common Symptoms of P0344

Possible symptoms include:

Symptoms may disappear after the engine cools or the vehicle is restarted.

Common Causes of the P0344 Code

Common P0344 causes include:

  1. Heat-sensitive Camshaft Position Sensor “A”
  2. Internal sensor connection opening
  3. Loose sensor connector
  4. Broken connector lock
  5. Spread connector terminals
  6. Backed-out terminal
  7. Fretting corrosion
  8. Oil contamination
  9. Water intrusion
  10. Coolant contamination
  11. Broken wire beneath intact insulation
  12. Intermittent open signal circuit
  13. Intermittent short to ground
  14. Intermittent short to voltage
  15. Intermittent sensor power supply
  16. Intermittent sensor ground
  17. Harness damage caused by engine movement
  18. Wiring melted near the exhaust
  19. Harness rubbing against a bracket
  20. Poor aftermarket splice
  21. Weak battery
  22. Intermittent low cranking voltage
  23. Poor engine ground
  24. Poor PCM ground
  25. Excessive sensor-to-reluctor air gap
  26. Loose sensor mounting
  27. Damaged camshaft reluctor
  28. Loose or shifted reluctor
  29. Excessive camshaft endplay
  30. Timing-chain movement
  31. Worn camshaft phaser
  32. PCM connector problem
  33. PCM software problem
  34. Internal PCM input failure

Why Heat Can Trigger P0344

Heat causes sensors, terminals and wiring to expand.

A circuit that works when cold may fail after:

The signal may return after the engine cools.

A repeatable hot-failure and cold-recovery pattern strongly supports a temperature-sensitive electrical problem, but testing is still required to identify the exact component.

Why Vibration Can Trigger P0344

Engine movement and road vibration can interrupt a weak electrical connection.

Common vibration-related causes include:

The code may appear during:

Recording when the fault occurs helps identify where the harness is being stressed.

Why Oil Inside the Connector Matters

Camshaft sensors are commonly mounted in the cylinder head or timing cover.

A failed sensor seal may allow engine oil to enter the connector.

Oil contamination can cause:

Clean or replace damaged components and correct the source of the leak.

Simply spraying the connector and reconnecting it may provide a temporary repair until oil returns—as fluids often do when the leak remains completely unbothered.

Common P0344 Scan-Tool Patterns

Camshaft Synchronization Changes From Yes to No

A graph or status parameter may show synchronization being lost and restored.

Possible causes include:

Signal Fails Only When Hot

Normal operation when cold followed by dropout after warmup may indicate:

Monitor the signal throughout a complete heat cycle.

Signal Changes During Acceleration

Acceleration causes the engine to move on its mounts.

If the signal drops out under load, inspect:

P0344 Appears During Starting

A starting-related intermittent fault may involve:

Signal Changes During a Wiggle Test

If the signal changes when one harness section is moved, inspect that area for:

Move one section at a time. Shaking the entire harness may reproduce the fault without revealing anything more useful than “yes, it is still broken.”

How to Diagnose the P0344 Code

Step 1: Scan All Modules

Record:

Look for related codes involving:

Do not clear the information before recording it.

Step 2: Study the Freeze-Frame Data

Determine whether P0344 occurred:

If the code repeatedly appears at the same coolant temperature or engine load, use those conditions to reproduce the failure.

Step 3: Confirm Sensor “A” and Bank 1

Use manufacturer service information to identify:

Do not confuse Sensor “A” with another intake, exhaust or Bank 2 camshaft sensor.

Step 4: Check Battery and Cranking Voltage

Test:

An intermittent voltage drop during cranking can disrupt the sensor and PCM.

Correct battery or starter problems before diagnosing the signal further.

Step 5: Inspect the Sensor and Connector

Inspect for:

Check terminal tension rather than relying only on appearance.

Step 6: Inspect the Wiring Harness

Trace the circuit between the sensor and PCM.

Look for:

Pay particular attention to areas near engine mounts, brackets and timing covers.

Step 7: Perform a Controlled Wiggle Test

Monitor:

Gently move:

Move one area at a time so the result can be traced to a specific location.

Step 8: Check Terminal Tension

Use the manufacturer-approved terminal test tool.

Inspect for:

Do not force an oversized multimeter probe into the connector. Spreading the terminal during diagnosis creates a very convincing intermittent fault.

Step 9: Test Sensor Power and Ground

For a Hall-effect sensor, monitor supply voltage and ground while:

A momentary interruption may be too brief for a basic multimeter to capture. Use a graphing meter or oscilloscope when possible.

Step 10: Test Circuit Continuity

Disconnect the appropriate modules and test:

Repeat testing while:

A stationary continuity test may pass while a conductor opens whenever the engine moves.

Step 11: Inspect the Signal Waveform

An oscilloscope is the best tool for capturing brief dropout.

Monitor for:

Compare the waveform at:

If the waveform is correct at the sensor but fails at the PCM, suspect wiring, terminals or connectors.

Step 12: Compare Camshaft and Crankshaft Signals

Monitor both signals simultaneously.

If the crankshaft waveform continues normally while the camshaft waveform disappears, focus on the camshaft sensor and its circuit.

If both signals fail together, investigate:

Step 13: Perform a Heat-Soak Test

Monitor the signal:

  1. During cold startup
  2. Through engine warmup
  3. At normal operating temperature
  4. After engine shutdown
  5. During a hot restart

Underhood temperature may continue rising after shutdown and expose a marginal sensor or connector.

Controlled heating or cooling may help reproduce the fault, but excessive temperature can damage wiring and plastic connectors.

Step 14: Inspect Sensor Air Gap and Reluctor

Check:

A damaged or moving reluctor can create irregular or missing pulses that resemble an intermittent electrical fault.

Step 15: Check for Technical Service Bulletins

Review manufacturer information for:

Follow the manufacturer procedure when a bulletin applies.

Step 16: Evaluate the PCM Last

Only consider PCM failure after verifying:

If a stable signal reaches the correct PCM terminal while scan data shows intermittent loss, the PCM connector, software or internal input circuit may be responsible.

Common P0344 Diagnostic Mistakes

Avoid these common mistakes:

Intermittent faults require evidence gathered during failure. Otherwise, diagnosis becomes parts replacement with a lab coat.

How to Fix the P0344 Code

Possible repairs include:

After completing repairs:

  1. Clear all stored codes.
  2. Start the engine from cold.
  3. Monitor camshaft synchronization.
  4. Allow the engine to reach operating temperature.
  5. Perform a heat-soak and hot-restart test.
  6. Repeat the freeze-frame conditions.
  7. Complete the manufacturer’s drive cycle.
  8. Rescan for pending and stored codes.

One successful cold start does not verify an intermittent repair.

Estimated P0344 Repair Costs

RepairTypical estimated cost
Professional electrical diagnosis$100–300
Connector or terminal repair$75–300
Wiring repair$100–600
Camshaft position sensor$100–450
Battery or ground repair$100–500
Reluctor repair$500–2,500+
PCM software update$100–300
PCM replacement and programming$800–2,500+

Intermittent diagnosis may require additional labor because the fault must often be reproduced before it can be isolated.

Can You Drive With a P0344 Code?

Driving is not recommended if the vehicle:

Limited driving may be possible if the Check Engine Light is the only symptom, but the code should still be diagnosed promptly.

Can Heat Cause P0344?

Yes.

A sensor, terminal or damaged conductor may operate normally when cold and fail as it expands with heat.

A fault that appears after warmup and disappears after cooling should be monitored through a complete heat cycle.

Can Oil in the Connector Cause P0344?

Yes.

Oil contamination may increase resistance or create intermittent terminal contact.

Repair the leak, clean or replace the connector and inspect whether oil has migrated into the harness.

Can Bad Wiring Cause P0344?

Yes. Wiring and connector problems are among the most important causes.

A conductor may be:

Test the circuit while moving the harness and changing its temperature.

Does P0344 Mean the Camshaft Sensor Is Bad?

No.

The sensor may have failed, but P0344 may also result from:

Determine where the signal disappears before replacing the sensor.

Can P0344 Cause an Engine to Stall?

Yes.

If the PCM loses camshaft synchronization, the engine may hesitate, stall or become difficult to restart.

For a broader symptom diagnosis, use the Pro Street Car Symptoms Encyclopedia.

Can P0344 Cause a Crank-No-Start Condition?

Yes.

Some engines may start after extended cranking using crankshaft data alone. Others require a valid camshaft signal.

See Engine Cranks but Won’t Start for the complete symptom-based diagnosis.

Related Pro Street Diagnostic Guides

Continue the diagnosis with these resources:

Final Thoughts

The P0344 code means the PCM has detected an intermittent signal from Camshaft Position Sensor “A” on Bank 1 or the engine’s single cylinder bank.

Heat, vibration, loose terminals, oil contamination and broken wiring deserve particular attention because the circuit may test normally between failures.

Begin with freeze-frame data and identify Sensor “A” correctly. Inspect the connector, check terminal tension and graph the camshaft signal through warmup and a hot restart.

Use an oscilloscope to determine whether the signal disappears at the sensor or somewhere between the sensor and PCM.

Do not replace the sensor simply because it is named in the code. Intermittent electrical faults can make a perfectly good sensor look guilty—and then behave flawlessly while the replacement receipt is still warm.

Exit mobile version
