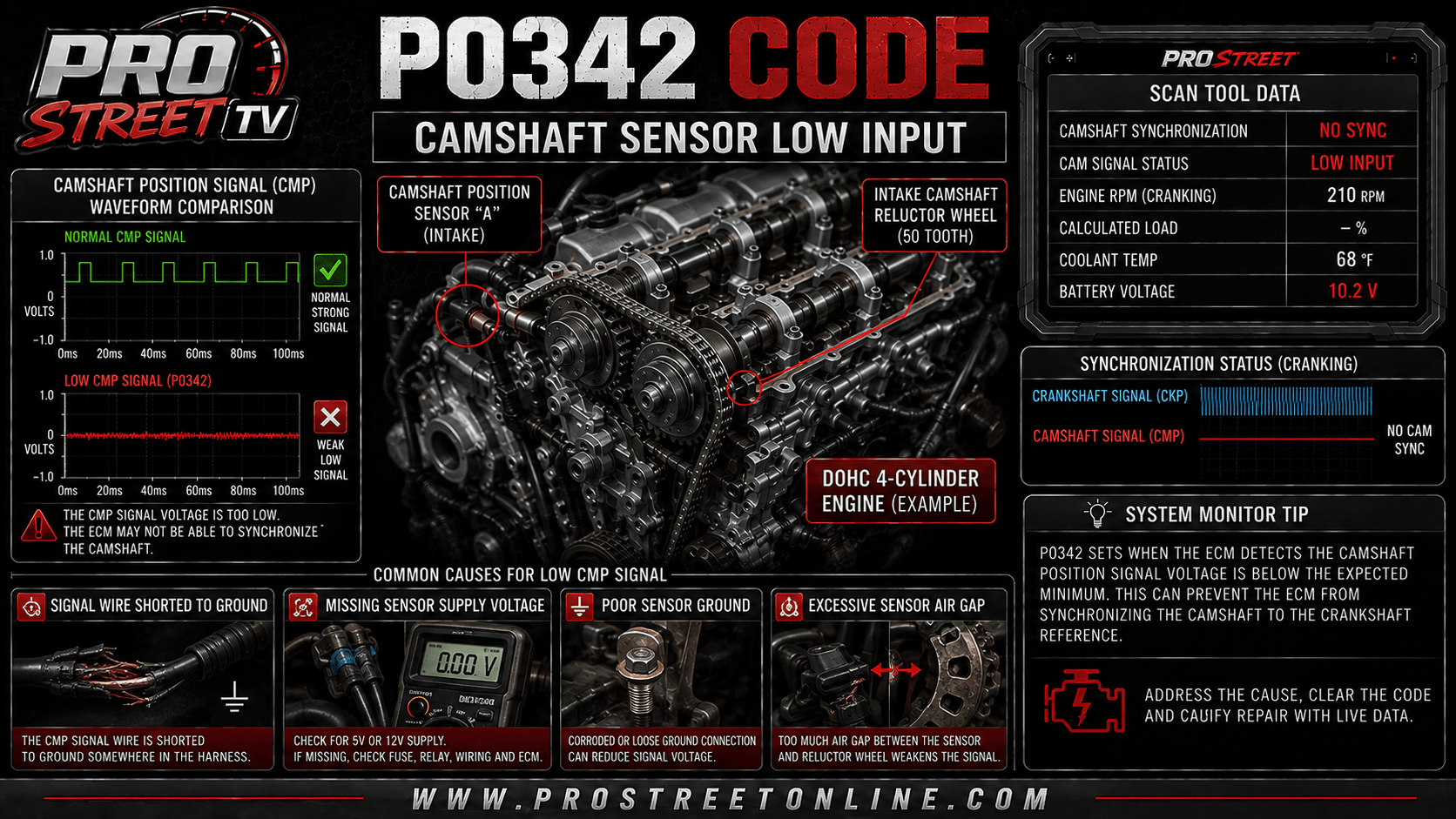

The P0342 OBD-II trouble code means the Powertrain Control Module has detected a Camshaft Position Sensor “A” signal that remains below its calibrated voltage or signal-strength threshold.
The generic definition for P0342 is:
Camshaft Position Sensor “A” Circuit Low Input — Bank 1 or Single Sensor
P0342 is an electrical low-input code. It does not automatically mean the sensor has failed or that the camshaft is mechanically out of time.
Common causes include:
- Signal circuit shorted to ground
- Missing sensor supply voltage
- Poor sensor ground
- Excessive circuit resistance
- Weak battery or slow cranking speed
- Failed camshaft position sensor
- Excessive sensor-to-reluctor air gap
- Damaged connector terminals
The PCM is receiving either a weak signal or no usable voltage transition from the sensor. Replacing the sensor may fix the code, but only if the sensor is where the signal becomes weak. Electricity rarely respects the convenience of the easiest component to replace.
P0342 Quick Facts
| Item | Information |
|---|---|
| Trouble code | P0342 |
| Generic definition | Camshaft Position Sensor “A” Circuit Low Input |
| Sensor location | Bank 1 or single-sensor engine |
| System | Engine position, ignition and fuel-injection timing |
| Fault type | Signal voltage below threshold |
| Severity | Moderate to high |
| Safe to drive? | Limited driving only if the engine runs normally |
| Common symptoms | Hard starting, stalling, rough running and reduced power |
| Common causes | Short to ground, missing supply voltage, poor ground or failed sensor |
| Related codes | P0340, P0341, P0343 and P0344 |
What Does the P0342 Code Mean?
P0342 means the PCM has detected an abnormally low electrical input from Camshaft Position Sensor “A.”
Depending on the sensor design, the PCM may expect:
- A digital signal switching between low and high voltage
- An alternating-current waveform
- A minimum signal amplitude during cranking
- A particular signal frequency at a given engine speed
If the signal remains too close to ground, fails to switch high or produces insufficient amplitude, the PCM may store P0342.
The fault may involve:
- Sensor power supply
- Sensor ground
- Signal wiring
- Sensor output
- Connector terminals
- Sensor mounting
- Reluctor clearance
- PCM input circuit
What Does “Circuit Low Input” Mean?
“Circuit low input” means the PCM sees less voltage than expected.
This may occur when:
- The signal wire is shorted to ground.
- The sensor is internally shorted.
- The sensor has no power supply.
- The ground circuit has excessive resistance.
- The connector makes poor contact.
- A magnetic sensor produces insufficient AC voltage.
- The engine cranks too slowly.
- The sensor-to-reluctor air gap is excessive.
- The PCM input circuit pulls the signal low.
P0342 is different from P0341. P0341 means the signal exists but behaves implausibly. P0342 means the electrical input itself remains too low.
What Is Camshaft Position Sensor “A”?
Camshaft Position Sensor “A” usually monitors the Bank 1 intake camshaft.
Depending on the manufacturer, Sensor “A” may identify:
- Intake camshaft sensor
- Primary camshaft sensor
- Bank 1 camshaft sensor
- The engine’s only camshaft sensor
- A manufacturer-designated reference sensor
Bank 1 is the cylinder bank containing cylinder number one.
Inline engines have only one bank, so P0342 may be described as Bank 1 or Single Sensor.
Always use vehicle-specific service information to identify the correct sensor. Sensor “A” is not universally determined by whichever connector is easiest to reach.
How a Camshaft Position Sensor Works
The camshaft position sensor monitors a reluctor, trigger wheel or target attached to the camshaft or camshaft phaser.
The signal allows the PCM to determine:
- Camshaft position
- Which cylinder is on its compression stroke
- Sequential fuel-injection timing
- Ignition timing
- Variable valve timing position
- Engine synchronization
- Misfire identification
Two common sensor types are used.
Hall-Effect Sensor
A Hall-effect sensor commonly uses three wires:
- Supply voltage
- Ground
- Signal output
As the camshaft target passes the sensor, the signal switches between high and low voltage.
P0342 may be stored when the signal never switches high enough.
Magnetic Sensor
A magnetic sensor commonly uses two wires and generates its own alternating-current signal.
Signal amplitude increases with engine speed.
P0342 may occur when the generated voltage remains too weak during cranking or engine operation.
How the PCM Detects P0342
Detection strategies vary, but the PCM may store P0342 when:
- Sensor voltage remains below its calibrated threshold.
- A digital signal remains stuck low.
- Signal amplitude is insufficient during cranking.
- Expected waveform transitions do not occur.
- Sensor “A” remains inactive while the crankshaft signal is present.
- The circuit is electrically pulled toward ground.
- Signal frequency or amplitude is too weak to interpret.
Some vehicles require multiple failed drive cycles before illuminating the Check Engine Light.
P0342 Versus Related Camshaft-Sensor Codes
| Code | Definition | Diagnostic distinction |
| P0340 | Camshaft Position Sensor “A” Circuit Malfunction | General Sensor A circuit fault |
| P0341 | Camshaft Position Sensor “A” Range/Performance | Signal exists but behaves implausibly |
| P0342 | Camshaft Position Sensor “A” Circuit Low Input | Signal remains below its threshold |
| P0343 | Camshaft Position Sensor “A” Circuit High Input | Signal remains above its threshold |
| P0344 | Camshaft Position Sensor “A” Circuit Intermittent | Signal drops out or returns |
The existing P0340 Scion xB camshaft-sensor guide covers vehicle-specific sensor service. P0342 should remain focused on locating a weak or low-voltage signal.
How Serious Is the P0342 Code?
P0342 can prevent the PCM from identifying camshaft position correctly.
Possible consequences include:
- Hard starting
- Extended cranking
- Engine stalling
- Crank-no-start condition
- Rough running
- Misfires
- Reduced engine power
- Incorrect fuel-injection timing
- Poor fuel economy
- Increased emissions
Some vehicles can operate using only the crankshaft-position signal, but they may use batch fuel injection or a reduced-performance strategy.
Avoid driving if the engine stalls, misfires heavily or has difficulty restarting.
Common Symptoms of P0342
Possible symptoms include:
- Check Engine Light
- Hard starting
- Extended cranking
- Crank-no-start condition
- Engine stalls
- Rough idle
- Hesitation
- Reduced engine power
- Poor acceleration
- Engine misfires
- Poor fuel economy
- Limp mode
- Increased emissions
- Tachometer irregularities on some vehicles
- No noticeable symptoms
The severity depends on how heavily the engine-management system relies on the affected camshaft signal.
Common Causes of the P0342 Code
Common P0342 causes include:
- Failed Camshaft Position Sensor “A”
- Internally shorted sensor
- Signal wire shorted to ground
- Missing sensor supply voltage
- Low sensor supply voltage
- Open power-supply circuit
- High-resistance power circuit
- Poor sensor ground
- High-resistance ground circuit
- Loose sensor connector
- Corroded connector terminals
- Spread connector terminals
- Backed-out terminal pin
- Water intrusion
- Oil contamination
- Damaged wiring insulation
- Pinched wiring harness
- Harness melted near the exhaust
- Poor previous wiring repair
- Weak battery
- Low cranking voltage
- Slow starter operation
- Excessive sensor-to-reluctor air gap
- Incorrect sensor installation
- Wrong replacement sensor
- Metal debris on a magnetic sensor
- Damaged reluctor
- Loose reluctor
- Excessive camshaft endplay
- Poor engine ground
- Poor PCM ground
- PCM software problem
- Internal PCM input failure
Why Battery Voltage Matters
The camshaft signal must remain usable while the starter is drawing substantial current.
A weak battery or excessive voltage drop can cause:
- Low sensor supply voltage
- Slow cranking speed
- Weak magnetic-sensor output
- Unstable PCM operation
- Reduced signal amplitude
P0342 becomes more likely when the code appears only during starting or in cold weather.
Check:
- Battery state of charge
- Battery load-test results
- Cranking voltage
- Starter current draw
- Battery-terminal condition
- Engine-ground voltage drop
Approximately 9.6 volts is a common minimum cranking reference, but always follow the vehicle manufacturer’s specification.
Why Sensor Air Gap Matters
The distance between the sensor and reluctor affects signal strength.
An excessive air gap may be caused by:
- Incorrect sensor
- Sensor not fully seated
- Debris beneath the sensor
- Damaged mounting surface
- Loose reluctor
- Excessive camshaft movement
- Incorrect installation
A Hall-effect sensor may fail to switch reliably when the target is too far away. A magnetic sensor may produce an abnormally weak waveform.
Never force the sensor closer to the reluctor or modify its mounting surface without manufacturer guidance. Contact between the sensor and rotating target tends to resolve the air-gap question rather destructively.
Common P0342 Scan-Tool Patterns
Camshaft Synchronization Displays “No”
If the scan tool reports no camshaft synchronization while cranking, possible causes include:
- Low Sensor “A” signal
- Missing sensor power
- Poor sensor ground
- Failed sensor
- Wiring short to ground
- Excessive air gap
Camshaft Signal Remains Inactive
The signal parameter may remain fixed even though engine RPM is visible.
This suggests that the crankshaft-position sensor is working while the camshaft signal is missing or too weak.
P0342 Appears Only During Starting
A starting-only fault may indicate:
- Weak battery
- Slow starter
- Low cranking voltage
- Weak magnetic sensor
- Excessive sensor air gap
- Starter-related electrical interference
Signal Returns at Higher RPM
A magnetic sensor may produce insufficient voltage while cranking but begin working once the engine runs faster.
This pattern points toward:
- Weak sensor
- Excessive air gap
- Slow starter
- Low battery voltage
- Damaged reluctor
Signal Stays Low With the Sensor Disconnected
Depending on the PCM’s circuit design, a low reading with the sensor disconnected may point toward:
- Signal wire shorted to ground
- PCM input fault
- Wiring contamination
Use the manufacturer’s expected bias-voltage information before drawing conclusions.
How to Diagnose the P0342 Code
Step 1: Scan All Modules
Record:
- Stored codes
- Pending codes
- Freeze-frame data
- Engine RPM
- Camshaft synchronization
- Camshaft Sensor “A” status
- Battery voltage
- Cranking voltage
- Commanded and actual camshaft position
- VVT data when available
Look for related codes involving:
- Crankshaft position
- Camshaft position
- Cam/crank correlation
- System voltage
- Misfires
- Variable valve timing
- Module communication
Do not clear the code until all available information has been saved.
Step 2: Confirm Sensor “A” and Bank 1
Use manufacturer service information to identify:
- Cylinder number one
- Bank 1
- Sensor “A”
- Sensor type
- Connector pinout
- Supply-voltage specification
- Ground circuit
- Signal circuit
- PCM terminal
- Sensor air-gap specification
Do not assume every camshaft sensor uses a five-volt supply. Designs vary.
Step 3: Check the Battery
Test:
- Battery voltage
- Battery capacity
- Cranking voltage
- Terminal condition
- Starter current draw
- Engine grounds
Charge or replace a weak battery before continuing sensor diagnosis.
Low system voltage can create several misleading sensor and communication codes simultaneously.
Step 4: Inspect the Sensor and Connector
Inspect Camshaft Position Sensor “A” for:
- Cracked housing
- Loose mounting
- Damaged connector lock
- Corroded terminals
- Bent pins
- Backed-out terminals
- Water intrusion
- Engine-oil contamination
- Harness tension
- Previous repairs
Oil inside the connector may enter through a failed sensor seal or travel through the wiring harness.
Step 5: Inspect the Wiring Harness
Follow the circuit toward the PCM.
Look for:
- Pinched wiring
- Melted insulation
- Harness abrasion
- Contact with the exhaust
- Contact with ignition components
- Tight bends
- Unsupported wiring
- Rodent damage
- Poor aftermarket splices
- Damage from previous engine repairs
Repair visible faults before replacing the sensor.
Step 6: Verify Sensor Supply Voltage
For a powered Hall-effect sensor, turn the ignition on and test its supply circuit.
Possible results include:
- Correct supply voltage: Continue with ground and signal testing.
- No supply voltage: Check the fuse, wiring, shared reference circuit and PCM output.
- Low supply voltage: Check for excessive resistance or another sensor pulling the shared circuit down.
If multiple sensors share the same supply, disconnect them individually according to the service procedure.
Step 7: Test the Ground Circuit
Use a voltage-drop test to evaluate sensor ground.
A circuit may show continuity while still having enough resistance to prevent proper sensor operation.
Inspect:
- Sensor ground terminal
- Engine ground
- PCM ground
- Connector corrosion
- Ground splices
Do not use a high-current test light on a sensitive PCM ground unless the manufacturer permits it.
Step 8: Test the Signal Circuit for a Short to Ground
Disconnect the appropriate components and test the signal wire.
Check for:
- Continuity to ground
- Pinched wiring
- Melted insulation
- Connector contamination
- Incorrect previous repairs
Compare readings with manufacturer specifications.
Step 9: Measure the Sensor Signal
Back-probe the signal circuit using the correct procedure.
For a Hall-effect sensor, verify that the signal switches between its expected low and high levels.
For a magnetic sensor, measure AC signal amplitude while cranking.
Do not rely on universal voltage values. Sensor designs and PCM bias circuits differ substantially.
Step 10: Inspect the Waveform
An oscilloscope provides the clearest evaluation.
Look for:
- Signal stuck low
- Weak amplitude
- Slow rise time
- Missing transitions
- Electrical noise
- Irregular pulse spacing
- Signal appearing only at higher RPM
Compare the waveform at:
- Sensor output
- Intermediate connectors
- PCM input
If the signal is correct at the sensor but low at the PCM, suspect the wiring or connector.
Step 11: Inspect the Sensor Air Gap
Check:
- Sensor seating
- Mounting hardware
- Debris beneath the sensor
- Reluctor clearance
- Camshaft endplay
- Sensor part number
Use the manufacturer’s exact air-gap specification.
Step 12: Inspect the Reluctor
Inspect the camshaft trigger for:
- Missing teeth
- Bent tabs
- Cracks
- Loose mounting
- Excessive runout
- Physical damage
- Metal debris
A damaged target may reduce signal amplitude or prevent reliable switching.
Step 13: Compare Camshaft and Crankshaft Signals
If P0342 remains after circuit testing, compare both waveforms.
This can reveal:
- Weak camshaft signal
- Incorrect mechanical timing
- Shifted reluctor
- Timing-chain stretch
- Sensor synchronization problems
P0342 is primarily an electrical low-input code, but a mechanical target problem may still weaken the waveform.
Step 14: Check for Technical Service Bulletins
Review manufacturer information for:
- Known harness failures
- Revised sensors
- Connector updates
- Ground improvements
- PCM software updates
- Starting-voltage concerns
Follow the manufacturer’s repair procedure when an applicable bulletin exists.
Step 15: Evaluate the PCM Last
Consider PCM failure only after verifying:
- Battery condition
- Sensor supply voltage
- Sensor ground
- Signal wiring
- Connector integrity
- Sensor waveform
- Sensor air gap
- Reluctor condition
If a correct signal reaches the PCM terminal but scan data still reports low input, the PCM connector, software or input circuit may be responsible.
Common P0342 Diagnostic Mistakes
Avoid these mistakes:
- Replacing the sensor before checking supply voltage
- Ignoring a weak battery
- Confusing P0342 with P0341
- Assuming Sensor “A” is always in the same location
- Testing continuity without voltage-drop testing
- Ignoring oil inside the connector
- Overlooking excessive sensor air gap
- Testing only at the sensor and not the PCM
- Using universal resistance or voltage specifications
- Replacing the PCM before checking the waveform
P0342 tells you the signal is low. It does not tell you which part of the circuit lowered it.
How to Fix the P0342 Code
Possible repairs include:
- Replacing a failed Camshaft Position Sensor “A”
- Installing the correct sensor
- Repairing a short-to-ground condition
- Repairing the sensor supply circuit
- Repairing the sensor ground
- Replacing corroded connector terminals
- Repairing or replacing the connector
- Repairing damaged signal wiring
- Cleaning oil or water contamination
- Charging or replacing a weak battery
- Repairing excessive starter current draw
- Repairing engine or PCM grounds
- Correcting the sensor air gap
- Removing metal debris
- Repairing or replacing a damaged reluctor
- Updating PCM software
- Replacing and programming a proven defective PCM
After completing repairs:
- Clear the stored codes.
- Start the engine from cold.
- Monitor cranking voltage.
- Verify camshaft synchronization.
- Inspect the signal waveform.
- Reproduce the freeze-frame conditions.
- Complete the required drive cycle.
- Rescan for pending and stored codes.
Estimated P0342 Repair Costs
| Repair | Typical estimated cost |
| Professional diagnosis | $100–300 |
| Connector or terminal repair | $75–300 |
| Wiring repair | $100–600 |
| Camshaft position sensor | $100–450 |
| Battery replacement | $150–450 |
| Starter replacement | $300–900 |
| Reluctor repair | $500–2,500+ |
| PCM software update | $100–300 |
| PCM replacement and programming | $800–2,500+ |
Repair cost depends on whether the problem is a simple connector fault or a buried sensor or reluctor.
Can You Drive With a P0342 Code?
Limited driving may be possible if:
- The engine starts normally.
- It runs smoothly.
- It does not stall.
- The Check Engine Light remains steady.
- No timing or correlation codes are present.
Avoid driving if the vehicle:
- Stalls
- Misfires heavily
- Has difficulty restarting
- Loses substantial power
- Displays a flashing Check Engine Light
- Stores camshaft/crankshaft correlation codes
An unreliable camshaft signal can disrupt fuel-injection and ignition timing.
Can a Weak Battery Cause P0342?
Yes.
A weak battery can lower sensor supply voltage and reduce cranking speed. A magnetic camshaft sensor may then produce insufficient signal amplitude.
Check the battery and starter circuit when P0342 appears primarily during starting.
Can a Short to Ground Cause P0342?
Yes.
A damaged signal wire contacting ground can prevent the voltage from reaching its expected high level.
Inspect pinched wiring, melted insulation and contaminated connectors.
Can Incorrect Sensor Air Gap Cause P0342?
Yes.
Excessive distance between the sensor and camshaft reluctor can weaken the signal.
Confirm that the sensor is fully seated and matches the application.
Does P0342 Mean the Camshaft Sensor Is Bad?
No.
A failed sensor is one possible cause, but P0342 may also result from:
- Missing supply voltage
- Poor ground
- Signal wire shorted to ground
- Weak battery
- Slow starter
- Excessive sensor air gap
- Damaged reluctor
- PCM input fault
Test the complete circuit before replacing the sensor.
Can P0342 Cause a No-Start Condition?
Yes.
Some engines require a valid camshaft signal for rapid synchronization and sequential fuel injection.
For a broader symptom-based diagnosis, see Engine Cranks but Won’t Start.
Related Pro Street Diagnostic Guides
Continue the diagnosis with these resources:
- Complete P-series OBD-II code list
- P0315 crankshaft-position variation not learned
- P0335 crankshaft position sensor “A” circuit
- P0340 Scion xB camshaft-sensor service
- P0341 camshaft-position sensor range/performance
- How to test a Nissan Frontier cam sensor
- LS1 sensor guide
- Engine cranks but will not start
- Engine misfire symptoms, causes and diagnosis
Final Thoughts
The P0342 code means the PCM is receiving a Camshaft Position Sensor “A” signal that remains below its expected threshold.
The sensor may have failed, but missing supply voltage, poor ground, a signal wire shorted to ground, low cranking voltage and excessive sensor air gap can create the same code.
Begin by checking the battery and cranking voltage. Identify Sensor “A” correctly, inspect the connector and verify its power, ground and signal circuits.
Use an oscilloscope to determine whether the weak signal begins at the sensor or becomes low between the sensor and PCM.
P0342 is a low-input code, not an automatic sensor replacement order. Find where the voltage disappears before sending another perfectly innocent component into early retirement.
