The P0319 OBD-II trouble code means the powertrain control module has detected a problem with its designated Rough Road Sensor “B” signal.
The generic definition is:

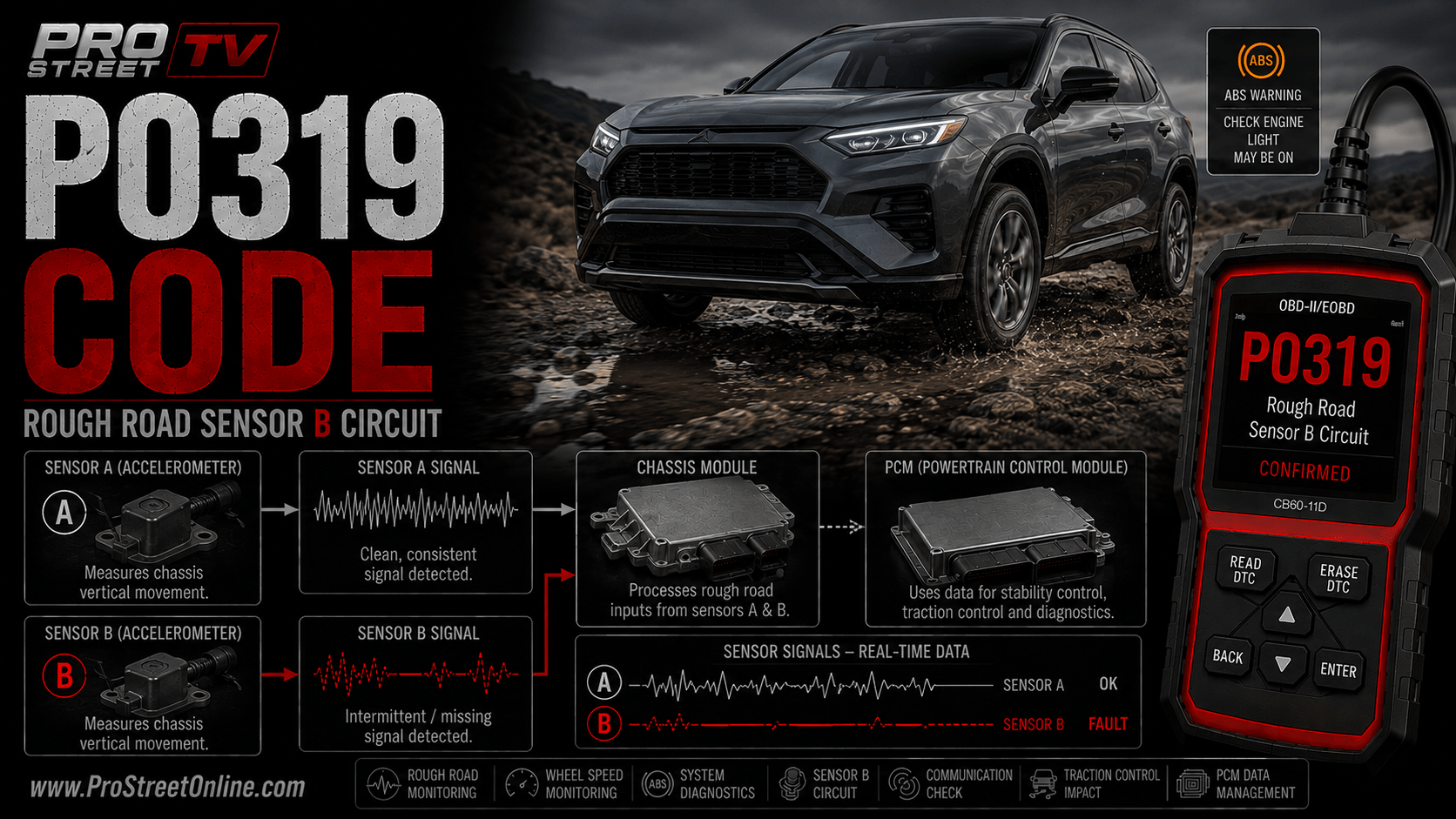

P0319 — Rough Road Sensor “B” Signal Circuit
Sensor B is a manufacturer-defined input. Depending on the vehicle, it may represent:
- A second chassis accelerometer
- A vertical acceleration sensor
- One channel of a multi-axis sensor
- Data calculated by the ABS module
- Wheel-speed information assigned to a secondary channel
- A network message from a chassis-control module
P0319 does not automatically identify the right-side wheel-speed sensor. It also does not prove that the engine has an actual combustion misfire.
The code means the PCM considers the Sensor B signal missing, implausible, intermittent or outside its expected range.
P0319 belongs to the powertrain-code family covered in the complete Pro Street P-code OBD-II guide.
P0319 Quick Answer
| Item | Information |
|---|---|
| Trouble code | P0319 |
| Definition | Rough Road Sensor “B” Signal Circuit |
| System | Rough-road detection and misfire validation |
| Severity | Moderate |
| Safe to drive? | Usually briefly, unless braking, stability-control or severe engine problems are present |
| Common causes | Sensor B fault, circuit damage, ABS data loss, communication or configuration problem |
| First diagnostic step | Identify Sensor B using factory service information |
| Related codes | P0317, P0318, ABS wheel-speed codes and communication U-codes |
| Typical repair range | Approximately $100 to $1,500+, depending on the cause |
What Does P0319 Mean?
The PCM detects many combustion misfires by monitoring small changes in crankshaft speed.
A healthy cylinder accelerates the crankshaft during its power stroke. A weak or missing combustion event causes a measurable decrease in crankshaft acceleration.
Driving over potholes, gravel, railroad crossings or another uneven surface can also disturb crankshaft speed through the wheels, transmission and drivetrain.
Rough-road information helps the PCM determine whether a crankshaft-speed change came from:
- Actual combustion failure
- Wheel hop
- Wheel slip
- Chassis movement
- Uneven pavement
- ABS intervention
- Stability-control operation
When the PCM detects a fault involving its designated Sensor B input, it may store P0319.
Possible fault conditions include:
- Missing Sensor B signal
- Signal stuck high
- Signal stuck low
- Implausible sensor response
- Intermittent signal dropout
- Signal that disagrees with Sensor A
- Open circuit
- Short to ground
- Short to voltage
- Missing network message
- Incorrect module configuration
The exact code-setting criteria vary by manufacturer.
What Is Rough Road Sensor B?
“Sensor B” is a diagnostic designation rather than a universal component location.
It does not necessarily mean:
- Right-front wheel-speed sensor
- Right-rear wheel-speed sensor
- Passenger-side accelerometer
- Second physical sensor
- Sensor mounted on Bank 2
Depending on the application, Sensor B may be:
A Second Physical Accelerometer
Some systems use more than one chassis or suspension acceleration sensor. Sensor B may monitor movement at a different vehicle location.
A Second Axis of One Sensor
A multi-axis sensor may measure movement in several directions. The PCM or chassis module may designate one calculated channel as Sensor A and another as Sensor B.
An ABS-Calculated Value
The ABS module may combine several wheel-speed signals and transmit more than one rough-road status or calculation.
A Network Message
Sensor B may exist only as data sent from:
- ABS module
- Electronic Brake Control Module
- Stability-control module
- Chassis-control module
- Suspension-control module
This is why P0319 diagnosis must begin with manufacturer-specific service information.
Looking for a physical component labeled “B” is not a diagnostic strategy. It is how perfectly innocent sensors end up being unplugged for questioning.
Why Does the PCM Need Sensor B?
The PCM must avoid confusing road-induced drivetrain movement with engine misfires.
Sensor B may provide:
- Redundant rough-road information
- Movement data from another part of the chassis
- A second acceleration axis
- Another wheel-speed comparison
- Plausibility confirmation for Sensor A
- Backup data when one source becomes unreliable
The PCM or chassis module may compare Sensor A and Sensor B to determine whether:
- Both sensors agree that the road is uneven
- Only one sensor shows movement
- One signal is physically implausible
- A sensor is stuck
- A circuit has become intermittent
- A module is transmitting incorrect information
A Sensor B fault can reduce the system’s ability to validate crankshaft variation and misfire data accurately.
P0319 Versus P0318
P0318 and P0319 describe separate rough-road signal assignments.
| Code | Meaning |
| P0318 | Rough Road Sensor A Signal Circuit |
| P0319 | Rough Road Sensor B Signal Circuit |
The diagnostic distinction is important.
If only P0319 is stored:
- Sensor B itself may have failed.
- Its dedicated signal circuit may be open or shorted.
- Sensor B may be mounted incorrectly.
- Its network message may be missing.
- Sensor B calibration may be incomplete.
If P0318 and P0319 appear together:
- Shared power may be missing.
- Shared ground may have excessive resistance.
- A supplying module may be offline.
- The communication network may have failed.
- Module configuration may be incorrect.
- Both sensors may require initialization.
Two codes appearing together should shift attention from isolated Sensor B replacement toward shared circuits and modules.
P0319 Versus P0317
P0317 indicates that the expected rough-road hardware or information is unavailable.
P0319 identifies a more specific problem with Sensor B’s signal.
| Code | Diagnostic focus |
| P0317 | Rough-road hardware, configuration or data source unavailable |
| P0319 | Sensor B signal invalid, missing or implausible |
If both codes are stored, inspect:
- Sensor B availability
- Supplying module
- Controller configuration
- Sensor initialization
- Network communication
- Shared power and grounds
Do not assume Sensor B is defective until the PCM has been confirmed to expect that signal on the vehicle.
P0319 Versus an ABS Wheel-Speed Code
P0319 does not necessarily identify a failed wheel-speed sensor.
| Code group | General intent |
| P0319 | Rough Road Sensor B signal used by the PCM |
| C0035–C0051 | Individual wheel-speed sensor or circuit fault |
| U-codes | Lost or invalid module communication |
A wheel-speed sensor may contribute to Sensor B data, but the connection must be confirmed through:
- Factory wiring diagrams
- ABS live data
- Manufacturer signal descriptions
- Module communication information
- Related chassis codes
For individual chassis and wheel-speed faults, visit the complete C-code OBD-II library.
Common Conditions Associated With P0319
A vehicle with P0319 may experience:
- Check Engine Light
- ABS warning light
- Traction-control warning
- Stability-control warning
- Failed emissions inspection
- Disabled or limited misfire validation
- False or inconsistent misfire codes
- Intermittent warnings over rough roads
- Cruise-control problems on some applications
- Suspension-control warning on applicable vehicles
- No noticeable drivability problem
P0319 itself usually does not cause a rough idle or loss of engine power.
If the engine runs poorly, diagnose the combustion problem separately.
How Serious Is P0319?
P0319 is generally moderate in severity.
The engine may continue running normally because the fault usually affects rough-road and misfire validation rather than direct fuel or ignition control.
However, P0319 should be diagnosed because the underlying problem may involve:
- ABS wheel-speed information
- Stability-control data
- Chassis accelerometer operation
- Module communication
- Incorrect controller programming
- Wiring damage
- Inaccurate misfire detection
Stop Driving or Seek Immediate Service If:
- The red brake warning and ABS light appear together
- Braking behavior changes
- Stability-control operation becomes unpredictable
- Multiple wheel-speed signals disappear
- Suspension-control faults affect vehicle handling
- The Check Engine Light flashes
- Severe engine shaking or power loss occurs
- Several control modules stop communicating
P0319 alone does not prove that ABS or stability control is disabled. Check those modules for their own stored codes and status.
Most Common Causes of P0319
| Possible cause | Relative likelihood |
| Damaged Sensor B wiring or connector | High |
| Faulty dedicated Sensor B | High where equipped |
| Missing ABS-derived Sensor B data | High on calculated systems |
| Sensor B mounted incorrectly | Medium after repair |
| Sensor A/B calibration incomplete | Application dependent |
| Shared power or ground fault | High when P0318 is also stored |
| CAN communication problem | Medium |
| Incorrect PCM or chassis-module configuration | Medium after module replacement |
| Damaged wheel-speed tone ring or encoder | Medium on ABS-derived systems |
| Low battery voltage or poor ground | Medium |
| ABS or chassis-control module fault | Lower |
| PCM failure | Rare |
The correct diagnostic path depends on the vehicle’s definition of Sensor B.
How to Diagnose P0319
Step 1: Scan Every Control Module
Use a professional scan tool capable of accessing:
- PCM or ECM
- ABS module
- Electronic Brake Control Module
- Stability-control module
- Chassis-control module
- Suspension-control module
- Body Control Module where applicable
Record:
- Stored codes
- Pending codes
- Permanent codes
- Freeze-frame data
- Manufacturer-specific codes
- Module communication status
- Sensor A and Sensor B live data
Do not clear the codes yet.
A basic engine-code reader may retrieve P0319 but miss the chassis code that identifies the failed signal source.
Step 2: Determine Whether P0319 Is Isolated
Check whether the vehicle also stores:
- P0317
- P0318
- Wheel-speed sensor codes
- Accelerometer codes
- Lost-communication codes
- Low-voltage codes
- Module-configuration faults
- Misfire codes
The code pattern provides important direction.
| Code pattern | Likely diagnostic direction |
| P0319 only | Concentrate on Sensor B and its dedicated signal path |
| P0318 plus P0319 | Inspect shared power, ground, module and communication |
| P0317 plus P0319 | Verify that Sensor B hardware is installed and configured |
| P0319 plus wheel-speed code | Diagnose the corresponding ABS signal first |
| P0319 plus lost-module code | Test communication, power and grounds |
| P0319 after module replacement | Verify programming and configuration |
| P0319 plus low-voltage codes | Test battery, alternator, power and grounds |
Step 3: Review Freeze-Frame Data
Record the conditions under which P0319 was stored:
- Vehicle speed
- Engine RPM
- Engine load
- Battery voltage
- Individual wheel speeds
- Brake-switch status
- ABS activity
- Stability-control activity
- Sensor A value
- Sensor B value
- Road-surface status where available
Determine whether the code occurred:
- During startup
- At highway speed
- During braking
- During a turn
- Over an uneven surface
- Immediately after repair
- During a low-voltage event
Step 4: Identify Sensor B
Use the correct service information to determine:
- Whether Sensor B is physical or calculated
- Sensor location
- Sensor orientation
- Supplying module
- Connector pinout
- Wiring route
- Expected signal type
- Relationship with Sensor A
- Initialization requirements
Possible signal types include:
- Analog voltage
- Frequency
- Pulse-width signal
- Digital output
- CAN network message
- Calculated rough-road status
Do not assume that P0319 uses the same diagnostic procedure on every vehicle.
Comparing Sensor A and Sensor B
Step 5: Monitor Both Sensors Simultaneously
If scan data is available, graph Sensor A and Sensor B together.
Compare their behavior while the vehicle is:
- Stationary
- Idling
- Driving smoothly
- Accelerating gently
- Braking
- Turning
- Crossing a controlled uneven surface where safe
Depending on design, healthy signals may:
- Rise and fall together
- Respond in opposite directions
- Operate within a calibrated offset
- Show different amplitudes
- Activate only during certain conditions
Use manufacturer specifications to judge correlation.
Watch for Sensor B:
- Remaining fixed
- Dropping to zero
- Jumping to maximum
- Responding in the wrong direction
- Producing excessive noise
- Lagging significantly
- Disagreeing with Sensor A
Step 6: Determine Whether the Fault Is Shared or Isolated
An isolated Sensor B fault is more likely when:
- P0319 is the only rough-road code.
- Sensor A behaves normally.
- Sensor B power and signal differ.
- A dedicated Sensor B circuit is damaged.
- Moving Sensor B’s harness reproduces the failure.
A shared-system fault is more likely when:
- P0318 and P0319 appear together.
- Both sensor values disappear.
- Both sensors share power or ground.
- The supplying module stops communicating.
- Several chassis sensors report faults.
- Low-voltage codes are present.
This distinction prevents the replacement of Sensor B when the actual problem is a shared five-volt supply or module ground.
Diagnosing a Physical Sensor B
Step 7: Inspect Sensor B Mounting
If Sensor B is a dedicated accelerometer or chassis sensor, inspect:
- Correct mounting position
- Correct orientation
- Tight fasteners
- Correct bracket
- Physical damage
- Connector engagement
- Water intrusion
- Corrosion
- Collision damage
- Non-factory insulation or mounting material
Acceleration sensors depend on rigid, correctly oriented mounting.
A sensor attached loosely or installed backward may be electrically functional while reporting physically incorrect movement.
Step 8: Check Sensor B Power and Ground
Using the wiring diagram, verify:
- Supply or reference voltage
- Ground integrity
- Signal circuit
- Shielding where equipped
Use voltage-drop testing for grounds whenever possible.
If Sensor A and Sensor B share power or ground, compare both circuits at the same time.
Normal Sensor A power with abnormal Sensor B power points toward an isolated branch-circuit fault.
Step 9: Test the Sensor B Signal
Follow the manufacturer’s test procedure for the sensor type.
Testing may include:
- Measuring resting voltage
- Monitoring response to controlled movement
- Checking frequency
- Checking pulse width
- Viewing an oscilloscope waveform
- Comparing scan data with physical movement
Watch for:
- Signal fixed near zero
- Signal fixed near supply voltage
- Intermittent dropout
- Excessive electrical noise
- No response to movement
- Output inconsistent with Sensor A
Do not strike, shake or rotate the sensor unless the service procedure specifically permits it.
Diagnosing ABS-Derived Sensor B Data
Step 10: Verify ABS Module Communication
Attempt direct scan-tool communication with the ABS or Electronic Brake Control Module.
If communication fails, inspect:
- ABS fuses
- Module power supplies
- Module grounds
- CAN high circuit
- CAN low circuit
- Connectors
- Water intrusion
- Module condition
Do not replace the ABS module before confirming power, ground and network integrity.
Step 11: Compare Individual Wheel Speeds
Monitor all wheel-speed values while driving slowly and safely.
Look for:
- One wheel remaining at zero
- Intermittent dropouts
- Implausible spikes
- Speed disagreement
- Signal loss while turning
- Signal changes over bumps
- One wheel responding later than the others
If Sensor B is calculated from a particular group of wheel-speed inputs, a failure in one of those signals may trigger P0319.
Step 12: Inspect the Suspect Wheel-Speed Circuit
Inspect:
- Sensor mounting
- Sensor air gap
- Connector
- Harness routing
- Chafed insulation
- Corrosion
- Water intrusion
- Physical damage
- Supply voltage
- Ground
- Signal waveform
Use the correct procedure for active or passive sensor designs.
Step 13: Inspect the Tone Ring or Magnetic Encoder
Check for:
- Cracked tone ring
- Missing teeth
- Rust expansion
- Metal debris
- Damaged magnetic encoder
- Excessive bearing play
- Incorrect replacement bearing
- Bearing installed backward
- Sensor contact with the encoder
A wheel bearing can rotate perfectly while supplying a completely useless wheel-speed signal. Mechanical happiness and electronic happiness are not always on speaking terms.
Diagnosing Wiring, Communication and Configuration
Step 14: Inspect the Sensor B Circuit
Check for:
- Open circuit
- Short to ground
- Short to voltage
- High resistance
- Loose terminal tension
- Corroded connector pins
- Water intrusion
- Heat damage
- Collision damage
- Poor previous repairs
Move the harness while monitoring Sensor B data or waveform output.
An intermittent fault that appears during bumps may be caused by wiring movement rather than the road sensor itself.
Step 15: Inspect Shared Circuits
If P0318 and P0319 appear together, identify shared:
- Power supply
- Reference voltage
- Ground
- Connector
- Harness section
- Supplying module
- Network circuit
A shared circuit fault should be repaired before either sensor is condemned.
Step 16: Test Network Communication
If Sensor B information is transmitted through CAN, inspect:
- U-codes
- Missing modules
- CAN high and low voltage
- Network resistance where appropriate
- Shorted communication circuits
- Connector intermittency
- Water-damaged modules
- Aftermarket wiring attached to the network
An oscilloscope may be required to identify intermittent communication distortion.
Never apply battery voltage or an incandescent test light to a CAN signal circuit.
Step 17: Verify Module Programming
After PCM, ABS, suspension or chassis-module replacement, confirm:
- Correct part number
- Correct VIN
- Correct software calibration
- Correct drivetrain configuration
- Correct ABS and stability-control options
- Correct suspension options
- Correct tire-size settings
- Correct Sensor A/B assignment
- Required programming completed
A used control module may contain configuration data from another vehicle.
It may communicate normally while waiting for a Sensor B that your vehicle has never owned.
Step 18: Complete Required Calibration
Depending on the system, repairs may require:
- Sensor B initialization
- Sensor A/B correlation calibration
- Accelerometer calibration
- Yaw-rate sensor calibration
- Steering-angle calibration
- Suspension-height calibration
- ABS module setup
- Tire-size programming
- PCM setup
Follow the manufacturer’s procedure exactly.
Calibration should occur only after electrical, sensor and communication faults have been repaired.
Step 19: Verify Crankshaft Monitoring
Because Sensor B supports misfire validation, inspect the crankshaft system if related codes are present.
Check:
- Crankshaft position sensor
- Sensor wiring
- Signal waveform
- Reluctor wheel
- Crankshaft variation status
Related resources include:
Do not replace the crankshaft sensor solely because P0319 is stored.
Step 20: Determine Whether an Actual Misfire Exists
If P0319 appears with P0300 or a cylinder-specific code, review:
- Individual-cylinder misfire counters
- Mode $06 data
- Fuel trims
- Ignition operation
- Injector operation
- Compression
- Engine idle quality
A genuine misfire that occurs consistently on smooth roads requires normal combustion diagnosis.
Misfire counts appearing only during rough-road events may indicate invalid Sensor B information.
Step 21: Clear P0319 and Verify the Repair
After correcting the confirmed fault:
- Clear PCM and chassis-module codes.
- Complete required programming or calibration.
- Verify communication with all modules.
- Graph Sensor A and Sensor B data.
- Confirm valid wheel-speed signals.
- Drive on a smooth road.
- Cross a controlled uneven surface when safe.
- Monitor misfire counters.
- Complete the required drive cycle.
- Rescan every module.
The repair is confirmed when Sensor B responds correctly and P0319 does not return.
Common P0319 Repairs and Costs
| Repair | Approximate installed cost |
| Repair Sensor B connector or wiring | $100–$600 |
| Replace dedicated Sensor B | $200–$900 |
| Replace wheel-speed sensor | $150–$500 |
| Replace wheel bearing or encoder hub | $300–$900 |
| Complete Sensor A/B calibration | $100–$500 |
| Repair shared power or ground | $150–$800 |
| Repair CAN communication wiring | $200–$1,500+ |
| Program PCM or chassis module | $150–$700 |
| Replace ABS or chassis-control module | $800–$2,500+ |
Actual costs depend on the vehicle, system design, component access and labor rate.
P0319 may require only a wiring repair, configuration correction or calibration rather than a replacement sensor.
Common P0319 Diagnostic Mistakes
Assuming Sensor B Is on the Right Side
Sensor B is a manufacturer-assigned signal, not a universal physical location.
Copying the P0318 Diagnostic Procedure Blindly
Sensor A and Sensor B may use different circuits, locations or data sources.
Ignoring Sensor A/B Correlation
Comparing both signals can quickly separate an isolated Sensor B fault from a shared-system failure.
Replacing Sensor B When Both Codes Are Present
P0318 and P0319 together often point toward shared power, ground, communication or module problems.
Ignoring Sensor Orientation
An incorrectly mounted accelerometer can produce plausible-looking but incorrect data.
Replacing a Wheel-Speed Sensor Without Checking ABS Data
Confirm the missing or erratic wheel-speed signal before replacing parts.
Ignoring Module Programming
Replacement controllers may require correct option configuration and Sensor B assignment.
Treating P0319 as an Engine Misfire
P0319 concerns rough-road information used during misfire validation. It does not prove combustion failure.
Clearing Only the PCM
Related codes may remain stored in ABS, stability, suspension or chassis modules.
P0319 Frequently Asked Questions
What does P0319 mean?
P0319 means the PCM detected a fault involving its designated Rough Road Sensor B signal.
What is Rough Road Sensor B?
It is a manufacturer-defined rough-road data source. It may be a dedicated sensor, second acceleration channel, ABS calculation or network message.
Is Sensor B the right-side wheel-speed sensor?
Not necessarily. Use manufacturer service information to identify Sensor B.
What is the difference between P0318 and P0319?
P0318 applies to Sensor A. P0319 applies to Sensor B.
What does it mean if P0318 and P0319 appear together?
A shared power, ground, module, network, configuration or calibration problem becomes more likely.
Can an ABS sensor cause P0319?
Yes, if the vehicle uses wheel-speed data to calculate the Sensor B rough-road signal.
Can a wheel bearing cause P0319?
Yes. A damaged or incorrectly installed encoder can disrupt wheel-speed information.
Does P0319 mean the engine is misfiring?
No. It means the Sensor B information used to validate misfire data is faulty.
Can PCM programming cause P0319?
Yes. Incorrect configuration can make the PCM expect the wrong Sensor B input.
Can suspension work cause P0319?
Yes. Suspension or collision repairs may disturb sensor mounting, orientation, wiring or calibration.
Can I drive with P0319?
Usually for a short distance if braking, ABS, stability control and engine operation remain normal. Drive cautiously and diagnose the fault promptly.
Will P0319 clear itself?
An intermittent fault may become historical if the signal returns, but the code may remain stored until cleared or enough successful drive cycles occur.
Related OBD-II Codes
- P0317 — Rough Road Hardware Not Present
- P0318 — Rough Road Sensor A Signal Circuit
- P0319 — Rough Road Sensor B Signal Circuit
- P0315 — Crankshaft Position Variation Not Learned
- P0335 — Crankshaft Position Sensor A Circuit
- P0300 — Random or Multiple-Cylinder Misfire
- C0035–C0051 — Wheel-Speed Sensor Codes
- U-codes — Module Communication Faults
Explore the Pro Street OBD-II Code Libraries
Use the Pro Street cornerstone pages to find additional diagnostic trouble codes:
- All P OBD-II Codes Explained — Powertrain Codes
- All B OBD-II Codes Explained — Body and SRS Codes
- All C OBD-II Codes Explained — Chassis Codes
- OBD-II DTC Doctor
P0319 means the PCM detected an invalid, missing or implausible Rough Road Sensor B signal.
Begin by identifying what Sensor B represents on the vehicle. Compare Sensor A and Sensor B data, inspect dedicated circuits and shared supplies, verify ABS-derived wheel-speed information, and check network communication.
If the code appeared after module, suspension or collision repair, verify configuration, sensor orientation and calibration before replacing components.
Sensor B is not automatically on the right, Sensor A is not automatically on the left, and neither one cares what the alphabet usually implies. Factory diagrams remain annoyingly useful.
