The P0318 OBD-II trouble code means the powertrain control module has detected a problem with the signal it uses from Rough Road Sensor “A.”
The generic definition is:

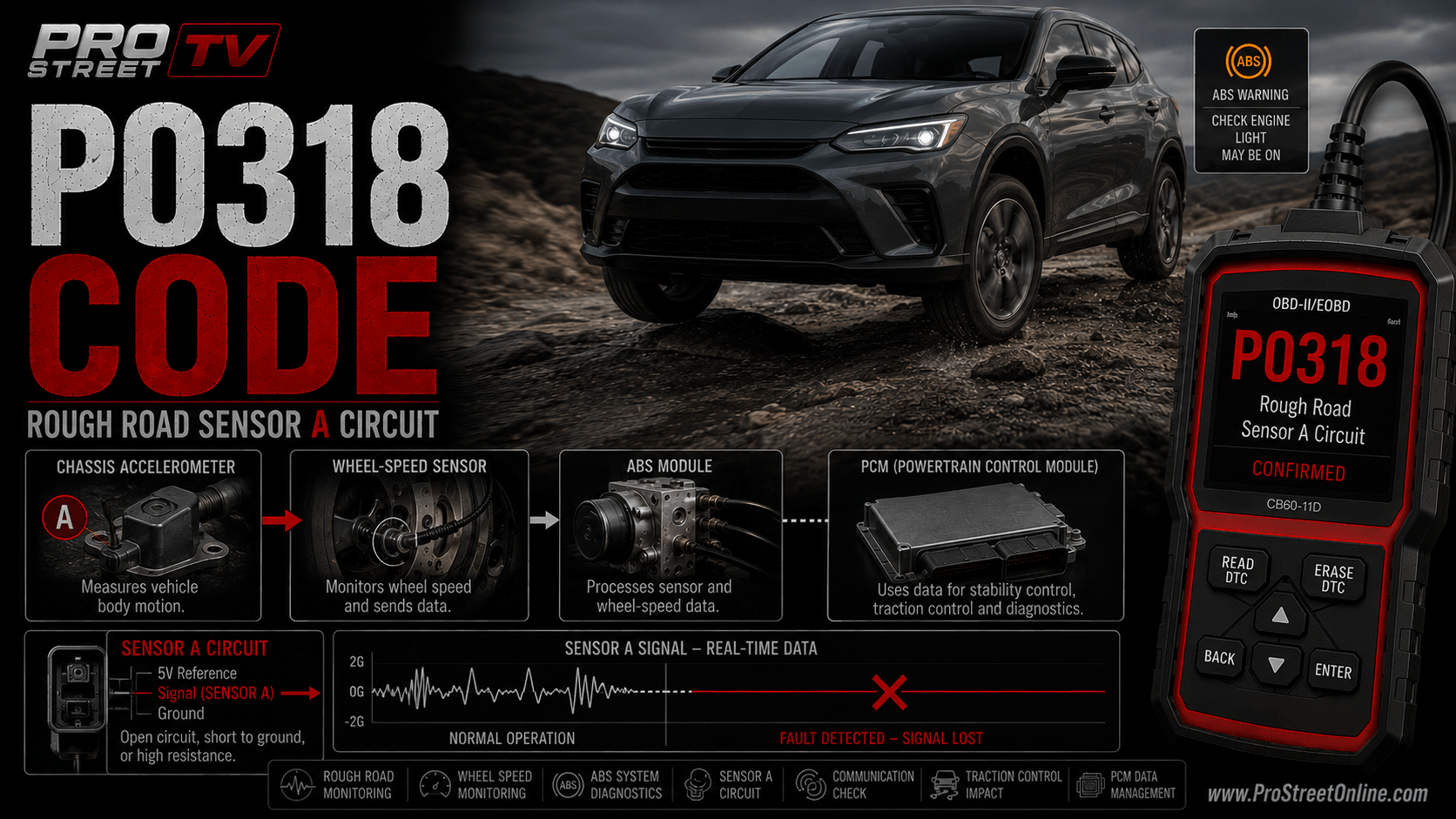

P0318 — Rough Road Sensor “A” Signal Circuit
Depending on the vehicle, Sensor A may be:
- A dedicated rough-road accelerometer
- A chassis acceleration sensor
- A signal calculated by the ABS module
- Data derived from wheel-speed sensors
- A message transmitted through the CAN network
P0318 does not automatically mean one ABS wheel-speed sensor has failed. It also does not prove the engine is misfiring.
The code means the expected Sensor A rough-road signal is missing, implausible, interrupted or outside the manufacturer’s acceptable range.
The PCM uses that information to distinguish genuine combustion failures from crankshaft-speed disturbances caused by potholes, gravel and other uneven surfaces. Apparently, even the computer occasionally needs help deciding whether the engine stumbled or California finally stopped repairing the road.
P0318 belongs to the powertrain-code family covered in the complete Pro Street P-code OBD-II guide.
P0318 Quick Answer
| Item | Information |
|---|---|
| Trouble code | P0318 |
| Definition | Rough Road Sensor “A” Signal Circuit |
| System | Rough-road detection and misfire validation |
| Severity | Moderate |
| Safe to drive? | Usually briefly, unless ABS, stability-control or severe engine problems are present |
| Common causes | Sensor fault, wiring, wheel-speed data, module communication or incorrect configuration |
| First diagnostic step | Scan the PCM and all ABS/stability-control modules |
| Related codes | P0317, P0319, ABS wheel-speed codes and network U-codes |
| Typical repair range | Approximately $100 to $1,500+, depending on the cause |
What Does P0318 Mean?
Modern engine computers detect combustion misfires partly by monitoring changes in crankshaft speed.
Each healthy combustion event accelerates the crankshaft. A weak or missing combustion event causes a measurable reduction in crankshaft acceleration.
Unfortunately, driving over an uneven road can also disturb the drivetrain and create sudden changes in crankshaft speed.
Rough-road detection helps the PCM determine whether those changes are caused by:
- Actual engine misfire
- Potholes
- Gravel
- Railroad crossings
- Wheel hop
- Wheel slip
- Chassis movement
- ABS or stability-control intervention
When the PCM detects a problem with its designated Rough Road Sensor A signal, it may store P0318.
The exact code-setting conditions vary by manufacturer.
The fault may involve:
- Missing signal
- Signal stuck high or low
- Implausible sensor output
- Intermittent signal
- Open circuit
- Short to voltage
- Short to ground
- Missing ABS data
- Network communication failure
- Incorrect module programming
What Is Rough Road Sensor A?
“Sensor A” is a system designation, not a universal physical location.
It does not necessarily mean:
- Left-front wheel-speed sensor
- First sensor in the engine bay
- Sensor mounted on Bank 1
- A component labeled Sensor A
The manufacturer decides which signal is designated Rough Road Sensor A.
Possible implementations include:
Dedicated Rough-Road Sensor
Some vehicles use an accelerometer or dedicated sensor mounted to the body or chassis.
It may measure:
- Vertical movement
- Chassis acceleration
- Vibration
- Road-surface disturbance
ABS-Based Rough-Road Calculation
Many vehicles use individual wheel-speed sensors and the ABS module.
The ABS module compares wheel-speed changes and calculates whether the vehicle is traveling over an uneven surface. It then sends rough-road information to the PCM.
Network-Based Signal
The PCM may receive a rough-road status message from:
- ABS module
- Electronic Brake Control Module
- Stability-control module
- Chassis-control module
- Body Control Module
In these systems, P0318 may be caused by a communication or configuration problem rather than a conventional sensor circuit.
Factory service information is required to determine what Sensor A means on the specific vehicle.
Why Does the PCM Monitor Rough-Road Conditions?
The PCM uses crankshaft acceleration to identify combustion failures.
A pothole or uneven road may temporarily change:
- Wheel speed
- Drivetrain load
- Engine speed
- Crankshaft acceleration
- Transmission output speed
Without rough-road information, the PCM might mistake those disturbances for an engine misfire.
The Sensor A signal allows the PCM to:
- Modify misfire-monitor sensitivity
- Temporarily suspend misfire counting
- Prevent false P0300 codes
- Avoid assigning the wrong cylinder-specific code
- Improve emissions-monitor accuracy
P0318 therefore affects the system used to validate misfire data. It does not automatically indicate a genuine combustion problem.
P0318 Versus P0317
P0317 and P0318 are closely related but identify different faults.
| Code | Meaning |
| P0317 | Expected rough-road hardware or information is unavailable |
| P0318 | Rough Road Sensor A’s signal or circuit is faulty |
P0317 may result from:
- Missing module
- Incorrect module configuration
- Hardware not recognized
- Communication failure
- Incompatible replacement controller
P0318 focuses more specifically on the Sensor A signal path.
Possible P0318 causes include:
- Failed sensor
- Damaged circuit
- Implausible signal
- Intermittent dropout
- Incorrect sensor mounting
- Missing wheel-speed data
- Network message fault
When both codes appear, verify vehicle configuration and Sensor A operation before replacing components.
P0318 Versus P0319
P0318 and P0319 identify separate rough-road signal assignments.
| Code | Meaning |
| P0318 | Rough Road Sensor A Signal Circuit |
| P0319 | Rough Road Sensor B Signal Circuit |
A vehicle may use:
- Two dedicated acceleration sensors
- Multiple chassis sensors
- Separate calculated data channels
- Different ABS-derived signals
- Manufacturer-specific A and B assignments
Do not assume Sensor A and Sensor B correspond to left and right sides.
Use factory wiring diagrams and module data definitions to determine what each designation represents.
P0318 Versus an ABS Wheel-Speed Code
P0318 is not the same as a code identifying one failed wheel-speed sensor.
| Code group | General intent |
| P0318 | Rough Road Sensor A signal used by the PCM |
| C0035–C0051 | Individual wheel-speed sensor or circuit faults |
| U-codes | Communication failure between modules |
A failed wheel-speed sensor may indirectly cause P0318 if the ABS module can no longer calculate rough-road conditions.
However, the wheel-speed fault should normally be confirmed through:
- ABS codes
- Live wheel-speed data
- Sensor waveform
- Circuit testing
- Tone-ring inspection
For related chassis faults, visit the complete C-code OBD-II library.
Common Conditions Associated With P0318
A vehicle with P0318 may experience:
- Check Engine Light
- ABS warning light
- Traction-control warning
- Stability-control warning
- Failed emissions inspection
- Disabled or limited misfire monitoring
- False or inconsistent misfire codes
- Intermittent warnings over rough roads
- Cruise-control problems on some applications
- No noticeable drivability problem
P0318 itself usually does not cause rough idle, hesitation or engine shaking.
If the engine runs poorly, diagnose the combustion problem separately.
How Serious Is P0318?
P0318 is generally moderate in severity.
The engine may continue running normally because the fault commonly affects misfire validation rather than direct fuel or ignition control.
However, the code should be diagnosed because it may indicate:
- Loss of rough-road information
- ABS wheel-speed fault
- Disabled stability-control function
- Module communication failure
- Incorrect controller programming
- Inaccurate misfire monitoring
- Wiring or connector damage
Stop Driving or Seek Immediate Service If:
- ABS and brake warning lights appear together
- Braking behavior changes
- Several wheel-speed signals disappear
- Stability-control operation becomes erratic
- The engine develops a flashing Check Engine Light
- Severe shaking or power loss occurs
- Multiple modules stop communicating
P0318 alone does not prove that the ABS system has stopped working. Scan the ABS module and evaluate its warning indicators.
Most Common Causes of P0318
| Possible cause | Relative likelihood |
| Damaged Sensor A wiring or connector | High |
| Faulty dedicated rough-road sensor | High where equipped |
| Missing or erratic ABS wheel-speed data | High on ABS-based systems |
| Damaged tone ring or magnetic encoder | Medium |
| CAN communication problem | Medium |
| Incorrect PCM or ABS module configuration | Medium after module work |
| Sensor mounted incorrectly | Medium after repair |
| Initialization or calibration not completed | Application dependent |
| Low system voltage or poor ground | Medium |
| ABS or chassis-control module fault | Lower |
| Crankshaft signal fault | Lower |
| PCM failure | Rare |
The correct diagnostic path depends on how the vehicle generates Sensor A data.
How to Diagnose P0318
Step 1: Confirm P0318
Connect a professional scan tool capable of communicating with:
- PCM or ECM
- ABS module
- Electronic Brake Control Module
- Stability-control module
- Chassis-control module
- Body Control Module where applicable
Record:
- Stored codes
- Pending codes
- Permanent codes
- Freeze-frame data
- Manufacturer-specific codes
- Module communication status
- Sensor A live data where available
Do not clear the codes yet.
A basic code reader may retrieve P0318 while missing the ABS or network code that reveals the actual failure.
Step 2: Scan Every Module
Check all available modules for:
- Wheel-speed sensor codes
- Accelerometer codes
- Lost-communication codes
- Low-voltage codes
- Module-configuration faults
- Sensor initialization faults
- P0317
- P0319
- Misfire codes
- Crankshaft position codes
Code combinations provide direction.
| Code combination | Likely diagnostic direction |
| P0318 only | Identify and test the Sensor A data source |
| P0318 plus wheel-speed code | Diagnose that wheel-speed signal first |
| P0318 plus lost ABS communication | Test ABS power, ground and CAN circuits |
| P0318 plus P0317 | Verify hardware configuration and Sensor A availability |
| P0318 plus P0319 | Look for shared power, ground, module or network faults |
| P0318 after module replacement | Verify programming, configuration and initialization |
| P0318 plus low-voltage codes | Test battery, charging system, power and grounds |
Step 3: Review Freeze-Frame Data
Record the conditions present when P0318 was stored:
- Vehicle speed
- Engine speed
- Engine load
- Battery voltage
- Wheel-speed values
- Brake-switch status
- ABS activity
- Stability-control activity
- Road-surface status if available
Determine whether the code occurred:
- During startup
- At highway speed
- Over an uneven road
- During braking
- During a turn
- Immediately after a repair
- During a low-voltage event
Step 4: Review Recent Repair History
Ask whether P0318 appeared after:
- PCM replacement
- PCM programming
- ABS module replacement
- Wheel-speed sensor replacement
- Wheel bearing or hub replacement
- Suspension repair
- Collision repair
- Brake repair
- Battery failure or jump-start
- Wiring repair
- Tire or wheel changes
A code appearing immediately after repair should direct attention toward installation, configuration and disturbed wiring.
Step 5: Identify Sensor A
Use the correct factory service information to determine:
- Whether Sensor A is physical or calculated
- Sensor location
- Supplying module
- Wiring route
- Connector pinout
- Expected signal type
- Calibration requirements
- Communication path
Possible signal types include:
- Analog voltage
- Frequency
- Pulse-width signal
- Digital sensor output
- CAN message
- Calculated ABS status
Do not apply resistance or voltage tests until the sensor design is known. Sending test voltage into a communication circuit is a creative way to turn one code into several.
Diagnosing a Dedicated Rough-Road Sensor
Step 6: Inspect Sensor A Physically
If the vehicle uses a dedicated accelerometer or rough-road sensor, inspect:
- Correct mounting location
- Correct orientation
- Tight fasteners
- Physical damage
- Connector engagement
- Water intrusion
- Corrosion
- Harness condition
- Signs of collision damage
Sensor orientation matters. An accelerometer mounted backward, upside down or on an incorrect bracket may report an implausible signal.
Step 7: Check Sensor Power and Ground
Using the wiring diagram, verify:
- Reference or supply voltage
- Ground quality
- Signal circuit
- Shielding where used
Test grounds using voltage drop whenever possible.
A ground circuit may show continuity while developing excessive resistance under load.
Step 8: Test the Sensor A Signal
The correct test depends on sensor type.
Possible procedures include:
- Measuring resting signal voltage
- Monitoring voltage during controlled movement
- Checking frequency
- Checking pulse width
- Viewing an oscilloscope waveform
- Comparing scan-tool data with physical movement
A healthy signal should respond consistently according to manufacturer specifications.
Watch for:
- Signal fixed at zero
- Signal fixed near supply voltage
- Intermittent dropouts
- Excessive electrical noise
- No response to movement
- Implausible response direction
Do not strike or shake the sensor unless the service procedure specifically allows it.
Diagnosing ABS-Derived Sensor A Data
Step 9: Verify ABS Module Communication
Attempt direct communication with the ABS or Electronic Brake Control Module.
If communication fails, inspect:
- ABS fuses
- Module power supply
- Module grounds
- CAN high circuit
- CAN low circuit
- Connectors
- Water intrusion
- Module condition
Do not replace the ABS module before confirming its power, ground and communication circuits.
Step 10: Monitor All Wheel Speeds
View individual wheel-speed data while:
- Driving slowly
- Driving straight
- Turning
- Accelerating gently
- Decelerating
- Crossing a controlled uneven surface where safe
All wheel speeds should respond smoothly and remain reasonably consistent during straight-line driving.
Look for:
- One wheel remaining at zero
- Sudden dropouts
- Implausible spikes
- One wheel reading differently
- Signal loss during turns
- Signal interruption over bumps
An erratic wheel-speed signal may prevent the ABS module from generating valid rough-road information.
Step 11: Inspect the Wheel-Speed Sensor
Inspect the affected sensor for:
- Physical damage
- Loose mounting
- Excessive air gap
- Metal debris
- Corrosion
- Connector damage
- Chafed wiring
- Water intrusion
- Incorrect installation
Testing may include:
- Supply voltage
- Ground
- Signal voltage
- Frequency
- Resistance on applicable passive sensors
- Digital waveform
Sensor design matters. A passive variable-reluctance sensor and an active Hall-effect sensor do not use the same test procedure.
Step 12: Inspect the Tone Ring or Encoder
Wheel-speed sensors commonly read a toothed ring or magnetic encoder.
Inspect for:
- Cracked tone ring
- Missing teeth
- Rust expansion
- Debris
- Damaged magnetic encoder
- Excessive wheel-bearing play
- Incorrect bearing
- Bearing installed backward
- Sensor contact with the encoder
A wheel bearing with a one-sided magnetic encoder must be installed in the correct direction. Putting the encoder on the wrong side is an impressively efficient way to install a new part that cannot be read.
Diagnosing the Sensor A Circuit and Network
Step 13: Inspect Wiring and Connectors
Check for:
- Open circuit
- Short to ground
- Short to voltage
- High resistance
- Loose terminal tension
- Corroded pins
- Water intrusion
- Chafed insulation
- Heat damage
- Collision damage
- Poor previous repairs
Move the harness while monitoring live data or waveform output to locate intermittent faults.
Always use appropriate terminal tools when checking connector tension. Forcing an oversized test probe into a terminal can create the loose connection being diagnosed.
Step 14: Test CAN Communication
If Sensor A information is transmitted between modules, inspect the controller network.
Check for:
- U-codes
- Missing modules
- Incorrect CAN high or CAN low voltage
- Network resistance where appropriate
- Shorted communication circuits
- Intermittent connectors
- Water-damaged modules
- Aftermarket equipment attached to network wiring
An oscilloscope may be required to identify intermittent waveform distortion.
Do not splice test lights or powered probes into a CAN circuit.
Step 15: Verify Module Configuration
After PCM, ABS or chassis-module replacement, confirm:
- Correct module part number
- Correct VIN
- Correct software calibration
- Correct ABS options
- Correct stability-control options
- Correct drivetrain configuration
- Correct tire-size configuration
- Correct rough-road sensor assignment
- Required programming completed
An incorrectly configured PCM may expect a Sensor A signal from hardware the vehicle does not use.
A used module may contain option data from a completely different vehicle. It bolts in nicely, communicates politely and remains profoundly confused.
Step 16: Complete Required Calibration
Depending on the application, repairs may require:
- Rough-road sensor initialization
- Accelerometer calibration
- Steering-angle calibration
- Yaw-rate calibration
- ABS module setup
- Wheel-speed sensor relearn
- Tire-size programming
- PCM setup
Follow the exact manufacturer procedure.
Calibration should occur only after the sensor, wiring, communication and module configuration have been verified.
Step 17: Check Crankshaft Monitoring if Necessary
Because rough-road information supports misfire monitoring, check the crankshaft system when related codes or abnormal data are present.
Inspect:
- Crankshaft position sensor
- Sensor wiring
- Signal waveform
- Reluctor wheel
- Variation calibration
Relevant guides include:
Do not replace the crankshaft sensor solely because P0318 is stored.
Step 18: Determine Whether an Actual Misfire Exists
If P0318 appears with a misfire code, monitor:
- Individual-cylinder misfire counters
- Mode $06 data
- Fuel trims
- Ignition operation
- Injector operation
- Engine compression
- Exhaust rhythm
A combustion misfire that occurs consistently on smooth roads requires normal engine diagnosis.
A misfire count that appears only during rough-road events may indicate invalid or missing Sensor A information.
Step 19: Clear P0318 and Verify the Repair
After correcting the confirmed fault:
- Clear PCM and chassis-module codes.
- Complete required programming or calibration.
- Verify communication with all modules.
- Monitor Sensor A live data.
- Confirm smooth wheel-speed signals.
- Drive on a smooth road.
- Cross a controlled uneven surface when safe.
- Monitor misfire counters.
- Complete the required drive cycle.
- Rescan every module.
The repair is confirmed when Sensor A data remains valid and P0318 does not return.
Common P0318 Repairs and Costs
| Repair | Approximate installed cost |
| Repair connector or minor wiring | $100–$500 |
| Replace wheel-speed sensor | $150–$500 |
| Replace wheel bearing or encoder hub | $300–$900 |
| Replace dedicated rough-road sensor | $200–$800 |
| Complete sensor calibration | $100–$400 |
| Repair CAN wiring | $200–$1,500+ |
| Program or configure PCM | $150–$500 |
| Program or configure ABS module | $200–$700 |
| Replace ABS control module | $800–$2,500+ |
| Replace crankshaft position sensor | $150–$600 |
P0318 may require only a wiring repair, module setup or sensor calibration rather than component replacement.
Common P0318 Diagnostic Mistakes
Assuming Sensor A Is a Wheel-Speed Sensor
Sensor A may be a dedicated accelerometer, calculated ABS value or network message.
Replacing Sensor A Without Testing Its Circuit
Verify power, ground, signal, mounting and communication before replacement.
Ignoring ABS Module Codes
The PCM may store P0318 because another module stopped supplying valid data.
Using the Wrong Electrical Test
Active, passive, analog, digital and network-based sensors require different testing methods.
Ignoring Sensor Orientation
An accelerometer mounted incorrectly may produce an implausible signal despite being electrically functional.
Replacing the PCM First
PCM failure is rare compared with wiring, sensor, communication and configuration problems.
Ignoring Programming After Module Replacement
A replacement PCM or ABS module may require programming, option configuration and calibration.
Treating P0318 as an Engine Misfire
P0318 affects rough-road data used during misfire validation. It does not prove combustion is failing.
Clearing Only the PCM
Related codes may remain stored in the ABS or chassis-control modules.
P0318 Frequently Asked Questions
What does P0318 mean?
P0318 means the PCM detected a problem with the Rough Road Sensor A signal or circuit.
What is Rough Road Sensor A?
It is the manufacturer-designated source of rough-road data. It may be a dedicated sensor, ABS-calculated value or network message.
Is Sensor A the left-front wheel-speed sensor?
Not necessarily. The A designation is manufacturer-specific.
Can a bad ABS sensor cause P0318?
Yes. If the vehicle calculates rough-road conditions using wheel-speed data, an ABS sensor fault may cause P0318.
Can a wheel bearing cause P0318?
Yes. A damaged or incorrectly installed magnetic encoder can disrupt wheel-speed information.
Does P0318 mean the engine is misfiring?
No. It means the rough-road signal used to validate misfire data is faulty.
Can P0318 turn on the ABS light?
It may appear with an ABS warning when the underlying fault affects the ABS system.
Can PCM programming cause P0318?
Yes. Incorrect configuration may cause the PCM to expect a signal from the wrong sensor or module.
Can an ABS module replacement cause P0318?
Yes. The replacement module may require programming, configuration and calibration.
Can different tire sizes cause P0318?
Large rolling-diameter differences or incorrect tire-size programming can affect wheel-speed calculations on some vehicles.
Can I drive with P0318?
Usually for a short distance if braking, ABS, stability control and engine operation remain normal. Drive cautiously and diagnose the fault promptly.
Will P0318 clear itself?
An intermittent code may become historical if the signal returns, but it can remain stored until cleared or enough successful drive cycles occur.
Related OBD-II Codes
- P0317 — Rough Road Hardware Not Present
- P0318 — Rough Road Sensor A Signal Circuit
- P0319 — Rough Road Sensor B Signal Circuit
- P0315 — Crankshaft Position Variation Not Learned
- P0335 — Crankshaft Position Sensor A Circuit
- P0300 — Random or Multiple-Cylinder Misfire
- C0035–C0051 — Wheel-Speed Sensor Codes
- U-codes — Module Communication Faults
Explore the Pro Street OBD-II Code Libraries
Use the Pro Street cornerstone pages to find additional diagnostic trouble codes:
- All P OBD-II Codes Explained — Powertrain Codes
- All B OBD-II Codes Explained — Body and SRS Codes
- All C OBD-II Codes Explained — Chassis Codes
- OBD-II DTC Doctor
P0318 means the PCM detected an invalid, missing or implausible Rough Road Sensor A signal.
Begin by scanning every control module and identifying what Sensor A represents on the specific vehicle. Test the physical sensor or ABS-derived data, inspect wiring and communication, and verify module configuration and calibration.
Do not replace a wheel-speed sensor merely because the code contains the words “rough road.” The vehicle may be waiting for an accelerometer, an ABS calculation or a network message—which is the automotive equivalent of three departments insisting someone else owns the ticket.
