P0126 Code Explained: Insufficient Coolant Temperature for Stable Operation Causes, Symptoms & Fixes

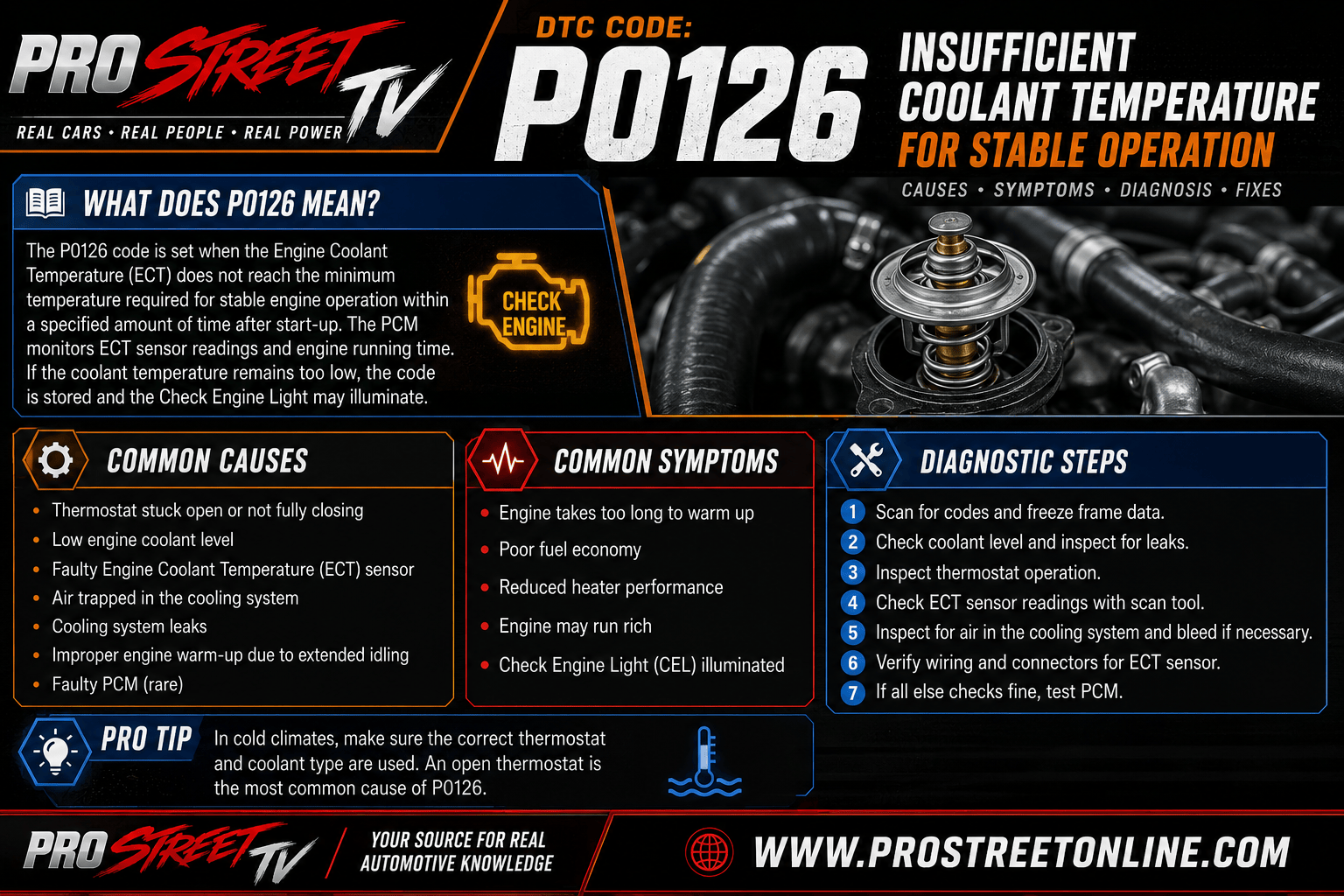

P0126 code illustration showing an engine thermostat, Engine Coolant Temperature sensor, coolant flow through the radiator, Check Engine Light, Pro Street TV logo, and www.ProStreetOnline.com.

If your OBD-II scanner displays P0126, your vehicle’s Engine Control Module (ECM) or Powertrain Control Module (PCM) has determined that the engine failed to reach the coolant temperature required for normal engine operation within the expected amount of time.

The generic OBD-II definition for P0126 is:

Insufficient Coolant Temperature for Stable Operation

Unlike P0115 through P0119, which identify electrical faults affecting the Engine Coolant Temperature (ECT) sensor circuit, P0126 is a cooling system performance code. It indicates that the engine itself is not warming up as expected rather than reporting a direct sensor circuit failure.

Although the Check Engine Light may be the only obvious symptom, P0126 can lead to poor fuel economy, reduced heater performance, increased emissions, and long-term engine wear if ignored.

The most common repair is replacing a thermostat that is stuck partially or fully open, but cooling system problems, inaccurate sensor readings, and PCM calibration issues may also contribute.

Fortunately, diagnosing P0126 is usually much less complicated than rebuilding an engine—and significantly cheaper.

What Does the P0126 Code Mean?

Modern engines are designed to operate within a narrow temperature range.

Immediately after startup, the PCM places the engine into open-loop operation, where fuel delivery is based primarily on programmed calibration tables rather than oxygen sensor feedback.

As coolant temperature increases, the PCM monitors:

Once the engine reaches its expected operating temperature, the PCM transitions into closed-loop operation, allowing the oxygen sensors to continuously adjust fuel delivery for maximum efficiency.

When coolant temperature fails to increase quickly enough—or never reaches the calibrated operating threshold—the PCM stores P0126.

Unlike overheating codes, P0126 indicates the engine is running too cool, not too hot.

What Does “Stable Operation” Mean?

Stable operation refers to the point where the engine has reached its intended operating temperature and all major engine-management systems can function normally.

Once stable operating temperature is achieved, the PCM can accurately control:

If coolant temperature remains too low, several of these systems remain in their warm-up strategy longer than intended.

Open Loop vs. Closed Loop Fuel Control

Understanding these operating modes helps explain why P0126 occurs.

Open Loop

Immediately after startup:

This is completely normal during warm-up.

Closed Loop

Once the engine reaches operating temperature:

P0126 indicates the PCM is delaying or preventing this transition because coolant temperature remains below specification.

P0126 Quick Facts

ItemInformation
DTCP0126
Generic DefinitionInsufficient Coolant Temperature for Stable Operation
SystemEngine Cooling / Engine Management
SeverityLow to Moderate
Safe to Drive?Usually Yes (Short Term)
Common SymptomsCheck Engine Light, poor fuel economy, slow warm-up, weak cabin heat
Common CausesThermostat stuck open, low coolant, faulty ECT sensor, cooling fan issues
Typical Repair Cost$100–900+
Related CodesP0115, P0116, P0117, P0118, P0119, P0125, P0128

How the Cooling System Works

The cooling system regulates engine temperature by circulating coolant through the engine and radiator.

Major components include:

When the engine is cold, the thermostat remains closed, allowing coolant to circulate only through the engine.

This allows the engine to warm quickly.

Once coolant reaches the thermostat’s opening temperature, coolant begins circulating through the radiator to remove excess heat.

The PCM continuously monitors coolant temperature throughout this process.

The Role of the Thermostat

The thermostat is the single most common component associated with P0126.

Its primary job is to regulate coolant flow.

During warm-up:

If the thermostat sticks open:

For many vehicles, replacing the thermostat resolves P0126.

How the Engine Coolant Temperature Sensor Works

The Engine Coolant Temperature (ECT) sensor measures coolant temperature and reports it to the PCM.

The sensor typically consists of:

As coolant temperature changes, sensor resistance changes.

The PCM converts this into a temperature value used to control:

If the ECT sensor reports inaccurate temperatures, the PCM may incorrectly determine that the engine has failed to warm up.

How the PCM Detects P0126

Each manufacturer uses different calibration values, but most PCM strategies monitor:

If coolant temperature remains below the expected operating threshold longer than allowed, the PCM stores P0126.

The fault may result from:

Why Operating Temperature Matters

An engine operating below its intended temperature experiences several disadvantages.

Possible effects include:

Although the vehicle may still be drivable, prolonged operation below operating temperature reduces overall efficiency and long-term reliability.

Common Vehicles Affected by P0126

P0126 is a generic OBD-II diagnostic trouble code and may appear on many gasoline-powered vehicles built since 1996.

Manufacturers commonly reporting P0126 include:

Some manufacturers prefer storing P0128 instead of P0126 for thermostat-related faults, while others distinguish between stable-operation and thermostat-performance strategies.

What Does “Insufficient Coolant Temperature” Really Mean?

The wording of P0126 often causes unnecessary concern.

It does not necessarily mean:

Instead, it means the PCM determined that the engine failed to reach its expected operating temperature quickly enough for stable engine management.

In simple terms:

The engine isn’t running too hot.

It’s running too cold for too long.

That might sound harmless, but your fuel economy, emissions system, heater, and catalytic converter would all politely disagree.

Common P0126 Scan Tool Patterns

Monitoring live data is one of the quickest ways to diagnose P0126.

Unlike electrical fault codes, P0126 is typically triggered because the engine takes too long to reach normal operating temperature rather than because of a failed sensor circuit.

Watching Engine Coolant Temperature (ECT) data alongside related engine parameters often points directly to the root cause.

Pattern 1: Coolant Temperature Rises Slowly

The scan tool shows:

Possible causes include:

Pattern 2: Engine Never Reaches Normal Temperature

The engine warms up but levels off below specification.

The scan tool may show:

Possible causes include:

Pattern 3: Coolant Temperature Drops While Cruising

The engine warms during idle but cools once highway speeds are reached.

Possible causes include:

Pattern 4: Unrealistic Engine Coolant Temperature Reading

The scan tool reports coolant temperatures much lower than actual engine temperature.

Possible causes include:

Always compare scan-tool readings with an infrared thermometer.

Pattern 5: ECT and IAT Never Separate

During a cold start:

should initially match ambient temperature.

After startup, coolant temperature should steadily rise while IAT changes very little.

If both remain nearly identical after several minutes, further diagnosis is required.

Pattern 6: Cooling Fan Runs Immediately

Cooling fans should normally remain off until coolant reaches operating temperature.

Fans running continuously may indicate:

Constant airflow through the radiator can significantly delay engine warm-up.

Common Symptoms of P0126

Symptoms vary depending on the severity of the cooling-system problem and outside temperatures.

Common symptoms include:

Some drivers may never notice drivability problems, while others immediately notice poor heater performance.

Check Engine Light

The Check Engine Light is often the only warning.

Unlike overheating conditions, the vehicle usually continues operating normally.

Because P0126 develops gradually, many drivers don’t realize fuel economy has decreased until they compare several tanks of fuel.

Poor Fuel Economy

When the engine remains below operating temperature, the PCM continues using richer fuel mixtures.

Consequences include:

Fuel economy often improves immediately after correcting the underlying cooling-system fault.

Weak Heater Performance

One of the easiest symptoms to recognize is poor cabin heat.

Common complaints include:

A weak heater is often the driver’s first clue that the engine is not reaching operating temperature.

Slow Engine Warm-Up

The temperature gauge may remain near cold for much longer than normal.

Drivers often notice:

This symptom strongly suggests thermostat-related problems.

Rich Air-Fuel Mixture

An engine operating below its intended temperature receives additional fuel.

Long-term effects include:

Rough Idle

Because enrichment continues longer than necessary, some engines develop:

These symptoms usually disappear once normal operating temperature is finally reached.

Is P0126 Serious?

Generally, P0126 is considered a low-to-moderate severity diagnostic trouble code.

It rarely causes immediate engine damage.

However, prolonged operation below operating temperature may lead to:

Repairing P0126 promptly helps prevent these secondary problems.

Can You Drive With P0126?

Usually yes—but repairs should not be postponed.

Driving is generally safe if:

Do not continue driving if:

P0126 describes an engine that stays too cool, not one that’s overheating.

P0126 vs Related Trouble Codes

Understanding similar codes simplifies diagnosis.

P0115

Engine Coolant Temperature Sensor Circuit Malfunction.

Electrical fault.

P0116

Engine Coolant Temperature Sensor Range/Performance.

Sensor performance issue.

P0117

Engine Coolant Temperature Sensor Circuit Low Input.

Low-voltage condition.

P0118

Engine Coolant Temperature Sensor Circuit High Input.

High-voltage condition.

P0119

Engine Coolant Temperature Sensor Circuit Intermittent.

Intermittent electrical fault.

P0125

Insufficient Coolant Temperature for Closed Loop Fuel Control.

Focuses on delayed closed-loop operation.

P0126

Insufficient Coolant Temperature for Stable Operation.

Focuses on delayed engine warm-up affecting overall engine operation.

P0128

Coolant Thermostat Below Regulating Temperature.

Most commonly indicates a thermostat stuck open.

Manufacturers may use P0125, P0126, or P0128 depending on calibration strategy.

30 Common Causes of P0126

The most common causes include:

  1. Thermostat stuck open
  2. Incorrect thermostat installed
  3. Low coolant level
  4. Faulty Engine Coolant Temperature sensor
  5. Damaged ECT wiring
  6. Corroded ECT connector
  7. Air trapped in the cooling system
  8. Cooling fan stuck on
  9. Cooling fan relay failure
  10. Water pump problems
  11. Internal coolant leak
  12. External coolant leak
  13. Radiator cap failure
  14. Incorrect coolant mixture
  15. Thermostat housing failure
  16. Heater core restrictions
  17. Heater control valve problems
  18. Cooling system recently serviced without proper bleeding
  19. Aftermarket thermostat with incorrect temperature rating
  20. Intake Air Temperature sensor inaccuracies
  21. Ambient temperature sensor faults
  22. Poor engine grounds
  23. PCM connector corrosion
  24. PCM calibration issue
  25. Repeated short-trip driving
  26. Extremely cold operating conditions
  27. Radiator airflow obstruction removed or modified
  28. Previous cooling-system repair errors
  29. Internal engine mechanical issues (rare)
  30. PCM failure (very rare)

Final Thoughts

The P0126 Insufficient Coolant Temperature for Stable Operation code indicates the PCM has determined the engine is not warming up quickly enough to achieve normal operating conditions.

While a stuck-open thermostat remains the most common cause, low coolant, cooling-system leaks, Engine Coolant Temperature sensor inaccuracies, cooling fan faults, and wiring problems can all contribute.

Diagnosing P0126 properly means confirming actual engine temperature before replacing any parts.

The next section of this guide covers:

Following a structured diagnostic process helps restore proper engine operating temperature, improve fuel economy, reduce emissions, and return the engine to efficient closed-loop operation.

Related Pro Street Diagnostic Guides

How to Diagnose the P0126 Code

Diagnosing P0126 involves determining why the engine is failing to reach its normal operating temperature within the expected amount of time.

Unlike electrical diagnostic trouble codes, P0126 is most commonly caused by a cooling system performance issue rather than a failed sensor circuit.

The diagnosis should determine whether:

Never replace the thermostat—or any other component—without confirming the root cause through testing.

Safety Precautions

Cooling systems operate under pressure and at extremely high temperatures.

Before beginning diagnosis:

Hot coolant can exceed 220°F (104°C) and cause severe burns.

Tools Required

A complete diagnosis may require:

Professional scan-tool data often identifies the problem long before any parts are removed.

Step 1 – Verify the Code

Connect a professional scan tool.

Record:

Pay close attention to:

Do not erase the codes until all information has been saved.

Freeze-frame data often reveals the exact operating conditions that caused P0126.

Step 2 – Check for Related Trouble Codes

P0126 commonly appears with:

Additional fuel-system or oxygen-sensor codes may also appear if the engine remains in open-loop operation for an extended period.

Code CombinationLikely Diagnosis
P0126 onlyThermostat or slow warm-up
P0126 + P0128Thermostat stuck open
P0126 + P0116Possible ECT sensor issue
P0126 + P0117/P0118ECT circuit fault
Multiple cooling-system codesComplete cooling-system diagnosis required

Step 3 – Verify Coolant Level

Before diagnosing sensors or replacing components:

Inspect:

Low coolant may prevent the ECT sensor from accurately measuring engine temperature.

Inspect for:

Always verify coolant level before condemning the thermostat.

Step 4 – Inspect Coolant Condition

Coolant should appear:

Contaminated coolant reduces heat transfer and may contribute to inaccurate temperature control.

If coolant appears muddy or contaminated, additional cooling-system service may be required.

Step 5 – Compare Cold Engine Temperatures

Allow the vehicle to sit overnight whenever possible.

Before starting the engine compare:

All three readings should be within a few degrees of each other.

If ECT begins significantly higher or lower than ambient temperature, inspect:

Incorrect cold-start data often points toward a sensor problem rather than a thermostat.

Step 6 – Monitor Engine Warm-Up

Start the engine while observing live scan data.

Watch:

The coolant temperature should rise steadily.

Watch for:

If coolant warms very slowly, suspect:

Step 7 – Compare the Dashboard Gauge to Live Data

Monitor:

Both should generally indicate similar engine temperatures.

If live data reads:

Approximately 195°F

while the dashboard gauge remains cold,

inspect:

If the opposite occurs, investigate the ECT sensor circuit.

Step 8 – Evaluate Heater Performance

Set the HVAC system to maximum heat.

Observe:

Poor heater output commonly indicates:

Strong heater performance generally confirms adequate coolant circulation through the heater core.

Step 9 – Inspect the Upper Radiator Hose

During initial warm-up:

The upper radiator hose should remain relatively cool until the thermostat opens.

If the hose becomes warm almost immediately after startup, suspect:

This simple inspection often provides one of the strongest clues during diagnosis.

Step 10 – Verify Closed-Loop Fuel Operation

Using live data, monitor:

Fuel System Status

The PCM should eventually transition from:

Open Loop

to

Closed Loop

If closed-loop operation never occurs—even after sufficient driving time—the PCM may continue to set P0126.

Step 11 – Verify Cooling Fan Operation

Cooling fans normally remain off during initial warm-up.

Inspect for:

Possible causes include:

Constant airflow through the radiator significantly delays engine warm-up.

Step 12 – Compare Scan Data With an Infrared Thermometer

Use an infrared thermometer to measure:

Compare these temperatures with scan-tool ECT readings.

If scan-tool data differs significantly from measured temperatures, suspect:

Step 13 – Test the Engine Coolant Temperature Sensor

Using a digital multimeter:

Verify:

As coolant temperature rises:

Sudden resistance changes or erratic readings indicate sensor failure.

Step 14 – Inspect the ECT Sensor Connector

Disconnect the connector.

Inspect for:

Poor terminal contact can create inaccurate coolant temperature readings.

Step 15 – Verify the Five-Volt Reference

Measure reference voltage.

Expected reading:

Approximately 5 volts

Possible results:

Normal

Continue diagnosis.

Missing

Inspect:

Low Voltage

Possible causes include:

Step 16 – Test Sensor Ground

Perform voltage-drop testing on the sensor ground.

Inspect:

High resistance may create inaccurate ECT readings even if continuity tests appear normal.

Never rely solely on continuity.

Step 17 – Inspect the Thermostat

If electrical testing passes, evaluate thermostat operation.

Common failures include:

The thermostat remains the most common repair associated with P0126.

Step 18 – Pressure Test the Cooling System

Install a cooling-system pressure tester.

Inspect for leaks around:

Small coolant leaks can affect warm-up and eventually expose the ECT sensor to air.

Step 19 – Inspect for Air in the Cooling System

Air pockets prevent coolant from circulating correctly.

Common symptoms include:

Bleed the cooling system according to manufacturer procedures before replacing additional components.

Step 20 – Review Freeze-Frame Data

Compare your diagnostic findings with the original freeze-frame.

Ask:

Freeze-frame data frequently explains whether the PCM observed an actual cooling-system problem or an incorrect temperature reading.

Next Section

Part 2B covers:

Step 21 – Test Thermostat Operation

Once coolant level, Engine Coolant Temperature (ECT) sensor readings, and wiring have been verified, evaluate thermostat operation.

A properly functioning thermostat should:

Signs of proper operation include:

Signs of thermostat failure include:

A thermostat stuck open remains the leading cause of P0126.

Step 22 – Verify Cooling Fan Operation

Cooling fans should normally remain OFF while the engine is warming up.

Inspect for:

Possible causes include:

A cooling fan that runs continuously can prevent the engine from reaching stable operating temperature.

Step 23 – Inspect the Water Pump

Although less common than thermostat failures, poor coolant circulation can delay engine warm-up.

Inspect the water pump for:

On some modern engines, plastic impellers can crack or separate from the shaft, reducing coolant flow.

Step 24 – Inspect the Radiator Cap

The radiator cap maintains cooling-system pressure.

A weak or leaking cap can cause:

Pressure-test the radiator cap whenever cooling-system problems are suspected.

Step 25 – Inspect the Heater Core

The heater core provides an excellent indication of coolant circulation.

Inspect for:

Poor heater performance often accompanies thermostat or coolant-flow problems.

Step 26 – Inspect for Coolant Leaks

Inspect the entire cooling system for leaks.

Common leak locations include:

Even a slow coolant leak can eventually expose the ECT sensor to air and affect temperature readings.

Step 27 – Verify Coolant Mixture

Improper coolant concentration affects engine warm-up and cooling efficiency.

Most manufacturers recommend:

50% coolant / 50% distilled water

Inspect for:

Improper coolant mixtures reduce both corrosion protection and heat transfer.

Step 28 – Review Recent Cooling-System Repairs

Ask whether the vehicle recently received:

Common installation mistakes include:

Many P0126 complaints begin immediately after cooling-system service.

Step 29 – Check for Technical Service Bulletins

Before replacing expensive components, check for manufacturer Technical Service Bulletins (TSBs).

Look for updates involving:

Factory service bulletins can significantly reduce diagnostic time.

Step 30 – Consider PCM Failure

PCM failure is extremely uncommon.

Only suspect the PCM after verifying:

Replacing the PCM should always be the final step—not the starting point.

How to Fix P0126

The proper repair depends entirely on diagnostic results.

Common repairs include:

Replacing the Thermostat

General replacement procedure:

  1. Allow the engine to cool completely.
  2. Drain coolant below the thermostat housing.
  3. Remove the thermostat housing.
  4. Remove the old thermostat.
  5. Clean gasket surfaces thoroughly.
  6. Install the new thermostat in the correct orientation.
  7. Install a new gasket or seal.
  8. Reinstall the housing.
  9. Refill the cooling system.
  10. Bleed all trapped air.
  11. Verify operating temperature using live scan data.

Always install the manufacturer-specified thermostat temperature rating.

Replacing the Engine Coolant Temperature Sensor

Typical replacement procedure:

  1. Allow the engine to cool.
  2. Disconnect the electrical connector.
  3. Remove the ECT sensor.
  4. Install the replacement sensor.
  5. Tighten to specification.
  6. Reconnect the wiring.
  7. Refill coolant if necessary.
  8. Clear diagnostic codes.
  9. Verify accurate scan-tool readings.

Repairing Wiring

If damaged wiring is found:

Avoid temporary repairs using household connectors or electrical tape alone.

Bleeding the Cooling System

Air trapped inside the cooling system is a common cause of repeat P0126 repairs.

Follow manufacturer bleeding procedures, which may include:

Improper bleeding can produce false coolant-temperature readings.

Verifying Closed-Loop Operation

After repairs:

Monitor:

Confirm:

Verifying the Repair

After completing repairs:

  1. Clear all diagnostic trouble codes.
  2. Start the engine from a cold soak.
  3. Monitor coolant temperature using live data.
  4. Confirm smooth warm-up.
  5. Verify thermostat opening temperature.
  6. Confirm closed-loop fuel control.
  7. Verify heater performance.
  8. Perform a complete road test.
  9. Recheck pending and permanent DTCs.
  10. Confirm the Check Engine Light remains off.

Typical Repair Costs

RepairTypical Cost
Professional diagnosis$100–250
Thermostat replacement$200–600
Engine Coolant Temperature sensor$100–300
Cooling-system bleed$100–200
Wiring repair$150–500
Cooling fan relay$100–250
Cooling fan replacement$300–900
Water pump replacement$500–1,500+
PCM software update$100–300
PCM replacement$1,000–3,000+

Actual repair costs vary by manufacturer, engine design, and labor rates.

Common Diagnostic Mistakes

Avoid these common mistakes:

Diagnosing P0126 should be based on evidence—not guesswork.

Manufacturer-Specific Notes

General Motors

Inspect:

Ford

Verify:

Toyota / Lexus

Common repairs include:

Always confirm coolant has been properly bled after repairs.

Honda / Acura

Inspect:

OEM thermostats generally provide the most reliable results.

Nissan / Infiniti

Compare:

Air trapped after cooling-system service frequently causes repeat complaints.

Hyundai / Kia

Inspect:

Volkswagen / Audi

Verify:

Some engines use electronically controlled thermostats requiring manufacturer-level diagnostics.

BMW / MINI

Monitor using factory diagnostic equipment:

Chrysler / Dodge / Jeep / Ram

Inspect:

Frequently Asked Questions

What usually fixes P0126?

The most common repair is replacing a thermostat that is stuck open. Other possible repairs include correcting low coolant, replacing a faulty Engine Coolant Temperature sensor, repairing wiring, fixing cooling fan problems, or bleeding trapped air from the cooling system.

Can I drive with P0126?

Usually yes, provided the engine is not overheating. However, prolonged operation below normal operating temperature reduces fuel economy, increases emissions, and accelerates carbon buildup.

Does P0126 always mean the thermostat is bad?

No. While the thermostat is the most common cause, low coolant, faulty ECT sensors, wiring faults, cooling fan issues, or trapped air can also trigger P0126.

Can low coolant cause P0126?

Yes. Low coolant may expose the Engine Coolant Temperature sensor to air, causing inaccurate temperature readings that delay closed-loop operation.

Can cold weather cause P0126?

Extremely cold weather can lengthen engine warm-up time, but a properly functioning cooling system should still reach normal operating temperature. Cold weather alone rarely causes P0126.

Can a bad Engine Coolant Temperature sensor cause P0126?

Yes. If the ECT sensor reports temperatures lower than actual coolant temperature, the PCM may incorrectly determine the engine has not warmed up sufficiently.

Final Thoughts

The P0126 Insufficient Coolant Temperature for Stable Operation code indicates that the PCM believes the engine is not reaching normal operating temperature quickly enough for efficient operation.

Most repairs involve replacing a stuck-open thermostat, but coolant level, ECT sensor accuracy, cooling fan operation, trapped air, wiring integrity, and cooling-system condition must all be verified before replacing parts.

A systematic diagnostic approach ensures the engine reaches proper operating temperature, improves fuel economy, restores heater performance, reduces emissions, and prevents unnecessary component replacement.

Continue Your Pro Street Cooling System Series

Related guides include:

These guides provide in-depth coverage of engine temperature management, cooling-system diagnostics, and thermostat-related OBD-II trouble codes.

Exit mobile version
