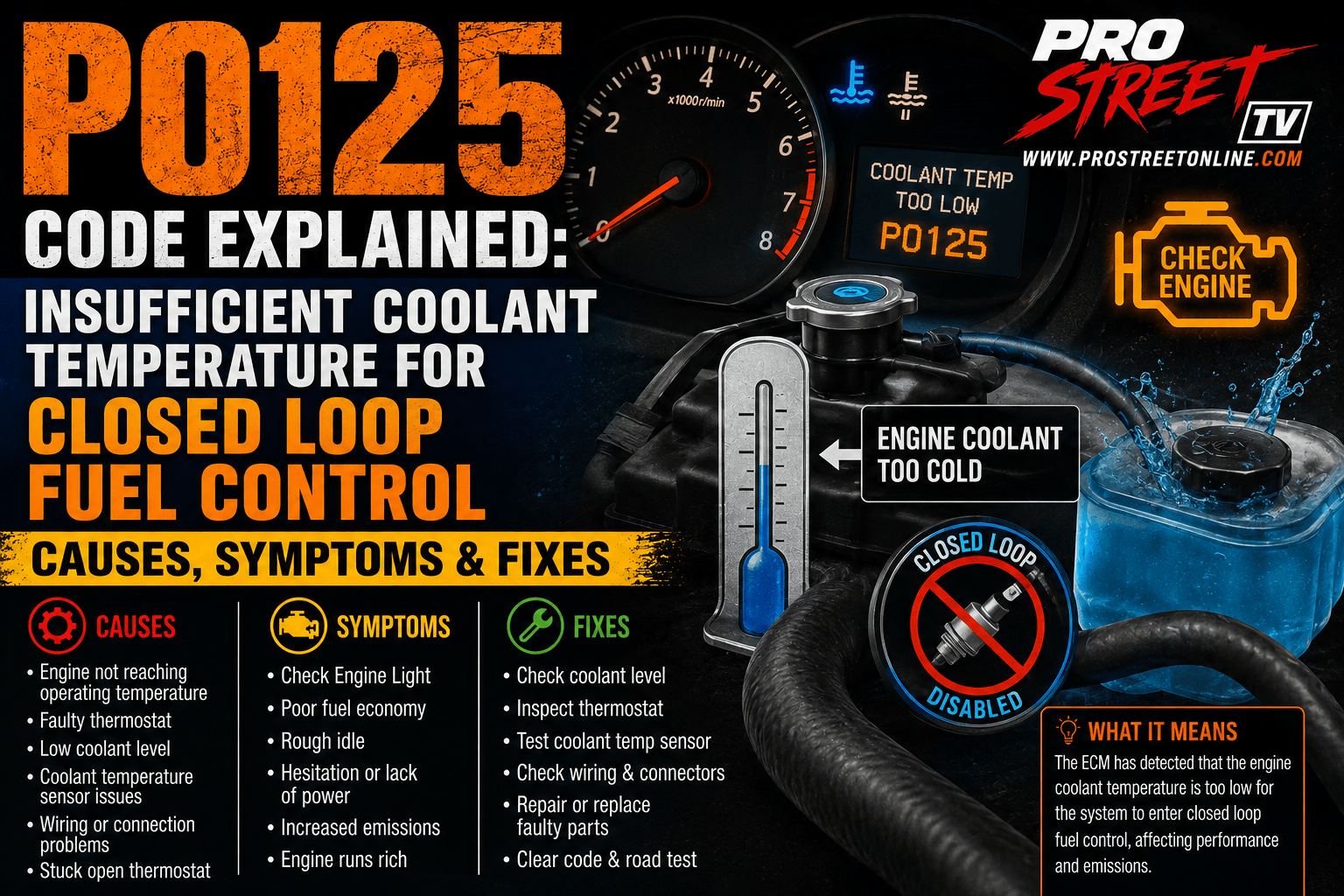

P0125 Code Explained: Insufficient Coolant Temperature for Closed Loop Fuel Control Causes, Symptoms & Fixes

If your OBD-II scanner displays P0125, your vehicle’s Engine Control Module (ECM) or Powertrain Control Module (PCM) has determined that the engine failed to reach the minimum coolant temperature required to enter closed-loop fuel control within the expected amount of time.

The generic OBD-II definition for P0125 is:

Insufficient Coolant Temperature for Closed Loop Fuel Control

Unlike P0115, P0116, or P0119, which indicate electrical or performance problems with the Engine Coolant Temperature (ECT) sensor circuit, P0125 is primarily a system performance code.

The PCM is not necessarily reporting that the coolant temperature sensor has failed.

Instead, it has determined that the engine is taking too long to warm up, preventing normal fuel-control operation.

In many cases, the actual culprit is a thermostat stuck open rather than a faulty temperature sensor.

However, several cooling-system and engine-management problems can trigger P0125, making proper diagnosis essential.

Fortunately, diagnosing P0125 is usually far less expensive than replacing random cooling-system components in hopes of getting lucky.

What Does the P0125 Code Mean?

Modern engines operate most efficiently within a specific temperature range.

After a cold start, the PCM initially operates in open-loop mode.

During open-loop operation, the PCM ignores oxygen sensor feedback and relies on preprogrammed fuel maps because:

As the engine warms, coolant temperature rises.

Once the PCM determines that:

it transitions into closed-loop fuel control.

In closed loop, the PCM continuously adjusts fuel delivery using feedback from the oxygen sensors to maximize:

When the engine never reaches the required coolant temperature within the expected time, the PCM stores P0125.

What Is Closed-Loop Fuel Control?

Closed-loop operation is the normal operating mode for a fully warmed engine.

During closed loop, the PCM constantly monitors:

Using this information, the PCM continuously adjusts injector pulse width to maintain the proper air-fuel ratio.

If the engine remains too cold, accurate fuel trimming becomes impossible.

To protect drivability and emissions, the PCM may remain in open loop longer than intended.

Open Loop vs. Closed Loop

Understanding these operating modes helps explain why P0125 occurs.

Open Loop

During open-loop operation:

Open loop is normal immediately after startup.

Closed Loop

During closed-loop operation:

P0125 indicates the PCM could not safely transition into this mode.

P0125 Quick Facts

ItemInformation
DTCP0125
Generic DefinitionInsufficient Coolant Temperature for Closed Loop Fuel Control
SystemEngine Cooling / Fuel Management
SeverityLow to Moderate
Safe to Drive?Usually Yes (Short Term)
Common SymptomsCheck Engine Light, poor fuel economy, long warm-up time, weak cabin heat
Common CausesStuck-open thermostat, low coolant, faulty ECT sensor, cooling fan problems
Typical Repair Cost$100–$900+
Related CodesP0115, P0116, P0117, P0118, P0119, P0128

How the Engine Cooling System Works

The cooling system keeps the engine within its designed operating temperature.

Major components include:

After startup, the thermostat remains closed.

This allows coolant to circulate only within the engine so it warms quickly.

Once coolant reaches approximately the thermostat’s opening temperature, coolant begins flowing through the radiator where excess heat is removed.

The PCM continuously monitors coolant temperature throughout this process.

The Role of the Thermostat

The thermostat is often the primary component responsible for P0125.

When functioning correctly:

If the thermostat sticks open:

For many vehicles, replacing a failed thermostat resolves the problem.

How the Engine Coolant Temperature Sensor Works

The Engine Coolant Temperature (ECT) sensor measures coolant temperature and reports it to the PCM.

The sensor typically receives:

As coolant temperature changes, sensor resistance changes.

The PCM converts this into a temperature reading.

The ECT sensor influences:

An inaccurate temperature reading can delay closed-loop operation even if the engine itself has warmed normally.

How the PCM Detects P0125

Every manufacturer uses slightly different criteria.

Generally, the PCM monitors:

If coolant temperature fails to reach the required threshold within the calibrated time, the PCM stores P0125.

The fault may occur because:

Why Engine Temperature Matters

An engine that never reaches operating temperature experiences several disadvantages.

Possible effects include:

Although many drivers ignore a slow warm-up, the PCM does not.

Common Vehicles That Experience P0125

Because P0125 is a generic OBD-II code, it may appear on virtually any 1996-and-newer gasoline-powered vehicle.

It is commonly seen on:

Some manufacturers are more likely to set P0128 for thermostat-related problems, while others may store P0125 depending on PCM calibration.

What Does “Insufficient Coolant Temperature” Actually Mean?

The wording of P0125 often causes confusion.

It does not necessarily mean:

Instead, it means the PCM determined that engine coolant temperature remained lower than expected for too long, preventing normal closed-loop fuel operation.

Think of it this way:

The engine isn’t getting too hot.

It’s not getting warm enough quickly enough.

That may sound less dramatic, but your fuel economy—and your heater on a cold morning—will definitely notice.

Common P0125 Scan Tool Patterns

One of the fastest ways to diagnose P0125 is by monitoring live scan-tool data.

Unlike electrical fault codes, P0125 usually develops because the engine never reaches its expected operating temperature rather than because a sensor circuit has completely failed.

Monitoring Engine Coolant Temperature (ECT) alongside related parameters often identifies the problem before any parts are removed.

Pattern 1: Coolant Temperature Rises Very Slowly

One of the most common scan-tool observations is an engine that warms much slower than expected.

Typical symptoms include:

Possible causes include:

Pattern 2: Coolant Temperature Never Reaches Operating Temperature

The scan tool may show:

This strongly suggests:

Pattern 3: Coolant Temperature Drops While Driving

Some vehicles warm normally while idling but cool excessively at highway speeds.

Possible causes include:

Pattern 4: ECT Reading Is Unrealistically Low

If the scan tool reports extremely low coolant temperatures despite a warm engine, suspect:

The engine may actually be fully warmed even though the PCM believes it is still cold.

Pattern 5: Intake Air Temperature and Coolant Temperature Never Separate

After an overnight cold soak:

should all read nearly the same.

Once the engine starts, coolant temperature should rise steadily.

If it does not, further diagnosis is required.

Pattern 6: Cooling Fan Runs Constantly

Some vehicles may have cooling fans operating immediately after startup.

Possible causes include:

Constant fan operation can dramatically increase engine warm-up time.

Common Symptoms of P0125

Symptoms vary depending on the severity of the problem and outside temperature.

Common symptoms include:

Many drivers notice the heater performance before they notice the Check Engine Light.

Check Engine Light

For many vehicles, the only obvious symptom is the illuminated Check Engine Light.

Unlike more severe cooling-system faults, the vehicle often continues driving normally.

Poor Fuel Economy

One of the most noticeable effects of P0125 is reduced fuel economy.

While operating in open loop, the PCM intentionally enriches the air-fuel mixture.

This richer mixture:

Drivers may notice:

Weak Cabin Heat

A thermostat stuck open prevents coolant from warming properly.

Common heater complaints include:

This symptom becomes especially noticeable during winter.

Long Warm-Up Time

The engine should normally reach operating temperature within several minutes under moderate driving conditions.

With P0125, the engine may require significantly longer.

Drivers often notice:

Rich Fuel Mixture

When the PCM believes the engine is still cold, it commands additional fuel.

Over time this may contribute to:

Rough Cold Idle

Because fuel delivery remains enriched longer than necessary, some vehicles develop:

These symptoms usually improve once the engine eventually reaches operating temperature.

Is P0125 Serious?

Generally, P0125 is considered a low-to-moderate severity diagnostic trouble code.

Unlike overheating conditions, P0125 rarely causes immediate engine damage.

However, prolonged operation with a cold-running engine may result in:

Ignoring the problem for months can become far more expensive than replacing a thermostat.

Can You Drive With P0125?

Usually, yes—but repairs should not be delayed.

Driving short distances while monitoring coolant temperature is generally safe provided:

Avoid driving if:

P0125 is a cold-engine problem.

An overheating condition requires immediate attention.

P0125 vs Related Trouble Codes

Understanding related cooling-system codes helps narrow the diagnosis.

P0115

Engine Coolant Temperature Sensor Circuit Malfunction.

Electrical fault.

P0116

Engine Coolant Temperature Sensor Range/Performance.

Sensor performance issue.

P0117

Engine Coolant Temperature Sensor Circuit Low Input.

Low voltage.

P0118

Engine Coolant Temperature Sensor Circuit High Input.

High voltage.

P0119

Engine Coolant Temperature Sensor Circuit Intermittent.

Intermittent signal.

P0125

Engine failed to reach sufficient temperature for closed-loop fuel control.

Usually a thermostat or cooling-system performance issue.

P0128

Coolant Thermostat Below Regulating Temperature.

Often caused by a thermostat stuck open.

Many manufacturers may store either P0125 or P0128 depending on PCM calibration.

30 Common Causes of P0125

The most common causes include:

  1. Thermostat stuck open
  2. Incorrect thermostat installed
  3. Low coolant level
  4. Faulty Engine Coolant Temperature sensor
  5. Damaged ECT wiring
  6. Corroded ECT connector
  7. Air trapped in the cooling system
  8. Cooling fan stuck on
  9. Cooling fan relay failure
  10. PCM software calibration
  11. Water pump problems
  12. Internal coolant leak
  13. External coolant leak
  14. Radiator cap failure
  15. Cooling system recently serviced
  16. Incorrect coolant mixture
  17. Blocked heater core bypass
  18. Heater control valve issues
  19. Aftermarket thermostat with incorrect temperature rating
  20. Faulty thermostat housing
  21. Engine never reaches operating load
  22. Repeated short-trip driving
  23. Extremely cold ambient temperatures
  24. Faulty intake air temperature sensor
  25. Faulty ambient temperature sensor
  26. PCM connector corrosion
  27. Poor engine grounds
  28. Faulty PCM (rare)
  29. Previous cooling-system repairs performed incorrectly
  30. Internal engine problems affecting warm-up (rare)

Final Thoughts

The P0125 Insufficient Coolant Temperature for Closed Loop Fuel Control code indicates that the PCM believes the engine is taking too long to warm up before entering closed-loop operation.

In most cases, the culprit is a thermostat stuck open, but low coolant, cooling-system faults, sensor problems, or wiring issues can produce the same result.

The good news is that P0125 is usually straightforward to diagnose when live scan-tool data is combined with a proper cooling-system inspection.

The next section of this guide covers:

Following a systematic diagnostic process helps restore proper engine temperature, improve fuel economy, and return the vehicle to normal closed-loop operation.

Related Pro Street Diagnostic Guides

How to Diagnose the P0125 Code

Diagnosing P0125 requires determining why the engine is taking too long to reach normal operating temperature.

Unlike many OBD-II trouble codes, P0125 is usually not caused by an electrical failure. Instead, it commonly indicates a cooling system performance problem preventing the engine from entering closed-loop fuel control.

The most common causes include:

A complete diagnosis should always verify whether the engine is actually cold—or whether the PCM only believes it is.

Safety Precautions

Always observe proper cooling-system safety.

Before beginning diagnosis:

Hot coolant can exceed 220°F (104°C) and is capable of causing severe burns.

Tools Required

Proper diagnosis may require:

A scan tool is far more useful than replacing a thermostat simply because “that’s what everyone on the internet said.”

Step 1 – Verify the Code

Connect the scan tool.

Record:

Pay attention to:

Do not erase the codes yet.

Freeze-frame information often explains exactly when the fault occurred.

Step 2 – Check for Related Trouble Codes

P0125 commonly appears alongside:

Additional fuel-system or oxygen-sensor codes may also appear if the engine remains in open loop for an extended period.

Code CombinationLikely Direction
P0125 onlyThermostat or slow warm-up
P0125 + P0128Thermostat stuck open
P0125 + P0116Possible ECT sensor issue
P0125 + P0117/P0118ECT circuit fault
Multiple cooling codesCooling-system diagnosis required

Step 3 – Verify Coolant Level

Before performing any electronic diagnosis:

Inspect:

Low coolant may prevent the ECT sensor from accurately measuring engine temperature.

Inspect for:

Never assume the thermostat is bad until coolant level is confirmed.

Step 4 – Inspect Coolant Condition

Examine coolant color.

Healthy coolant should appear:

Look for:

Contaminated coolant can reduce heat transfer throughout the cooling system.

Step 5 – Monitor Live Engine Coolant Temperature

Start the engine cold.

Observe:

A cold engine should initially show:

ECT ≈ Ambient temperature

IAT ≈ Ambient temperature

If one sensor begins with an unrealistic reading, investigate that sensor before replacing cooling-system components.

Step 6 – Watch the Warm-Up Process

Monitor coolant temperature from startup.

A healthy engine should warm steadily without sudden fluctuations.

Observe:

If temperature rises extremely slowly, suspect:

Step 7 – Compare Temperature Gauge to Scan Tool

The dashboard gauge should generally agree with scan-tool data.

If the scan tool reports:

190°F

but the dashboard gauge remains cold,

inspect:

If the gauge indicates normal temperature but scan data remains low, suspect the ECT sensor or its circuit.

Step 8 – Check Heater Performance

Turn the HVAC system to maximum heat.

Observe:

Weak cabin heat frequently accompanies a thermostat stuck open.

A strong heater usually indicates coolant is reaching operating temperature.

Step 9 – Inspect the Upper Radiator Hose

During warm-up:

The upper radiator hose should remain relatively cool until the thermostat opens.

If the hose warms immediately after startup:

Possible causes include:

This simple inspection often confirms the diagnosis within minutes.

Step 10 – Verify Closed-Loop Operation

Monitor scan-tool status.

Watch for:

Fuel System Status

The PCM should eventually switch from:

Open Loop

to

Closed Loop

Failure to enter closed loop strongly supports a P0125 diagnosis.

Step 11 – Verify Cooling Fan Operation

Cooling fans normally remain off during initial warm-up.

Inspect whether the fans operate:

Possible causes include:

Continuous fan operation dramatically increases warm-up time.

Step 12 – Compare ECT With an Infrared Thermometer

Aim an infrared thermometer at:

Compare actual temperatures with scan-tool readings.

If scan data differs significantly:

Possible causes include:

Step 13 – Test the Engine Coolant Temperature Sensor

Using a multimeter:

Verify:

Compare resistance values against manufacturer specifications.

As coolant temperature rises:

Sensor resistance should decrease smoothly.

Sudden changes indicate sensor failure.

Step 14 – Inspect the ECT Connector

Disconnect the connector.

Inspect for:

A poor connector may cause inaccurate temperature readings.

Step 15 – Test the Five-Volt Reference

Measure voltage at the ECT connector.

Expected reading:

Approximately 5 volts

Possible results:

Normal

Proceed with diagnosis.

Missing

Inspect:

Low Voltage

Possible causes:

Step 16 – Verify Sensor Ground

Perform voltage-drop testing.

Inspect:

High resistance in the ground circuit may produce incorrect temperature readings.

Never rely solely on continuity testing.

Step 17 – Inspect the Thermostat

If all electrical testing passes, evaluate thermostat operation.

Common thermostat failures include:

The thermostat remains the single most common repair for P0125.

Step 18 – Pressure Test the Cooling System

Install a cooling-system pressure tester.

Inspect for leaks at:

Even small coolant leaks can affect sensor accuracy over time.

Step 19 – Inspect for Air in the Cooling System

Air pockets may prevent coolant from contacting the ECT sensor.

Symptoms include:

Bleed the cooling system according to manufacturer procedures.

Step 20 – Evaluate Freeze-Frame Data

Review the original operating conditions.

Ask:

Freeze-frame information often identifies whether the engine truly failed to warm up or whether the sensor simply reported inaccurate information.

Next Section

Part 2B covers:

Step 21 – Test Thermostat Operation

After verifying that the coolant level and Engine Coolant Temperature (ECT) sensor are functioning correctly, evaluate thermostat performance.

The thermostat should remain closed during initial warm-up, allowing the engine to quickly reach operating temperature.

Signs of a properly functioning thermostat include:

Signs of a failed thermostat include:

A thermostat stuck open remains the most common cause of P0125.

Step 22 – Verify Cooling Fan Operation

Cooling fans should normally remain off until coolant reaches operating temperature.

Inspect for:

Possible causes include:

A continuously operating fan can prevent the engine from reaching normal operating temperature.

Step 23 – Inspect the Water Pump

Although uncommon, poor coolant circulation can affect engine warm-up.

Inspect for:

Some modern water pumps use plastic impellers that may crack or separate from the shaft.

Step 24 – Inspect the Radiator Cap

The radiator cap maintains proper system pressure.

A weak cap may cause:

Pressure-test the cap whenever cooling-system problems are suspected.

Step 25 – Inspect the Heater Core

Poor heater performance may indicate:

A properly functioning heater often confirms that hot coolant is circulating through the engine.

Step 26 – Inspect for Coolant Leaks

Inspect the entire cooling system for evidence of leaks.

Common leak locations include:

Even a slow leak may eventually lower coolant below the ECT sensor.

Step 27 – Verify Correct Coolant Mixture

Improper coolant concentration affects engine warm-up.

Most manufacturers recommend approximately:

50% coolant / 50% distilled water

Excessive water reduces corrosion protection.

Excessive coolant reduces heat transfer efficiency.

Always verify manufacturer specifications.

Step 28 – Inspect Previous Repairs

Ask whether the vehicle recently received:

Common mistakes include:

Step 29 – Check for PCM Software Updates

Some manufacturers have released PCM calibrations addressing:

Always check Technical Service Bulletins (TSBs) before replacing expensive components.

Step 30 – Consider PCM Failure

PCM failure is extremely uncommon.

Only consider PCM replacement after confirming:

The PCM should always be the final suspect—not the first replacement.

How to Fix P0125

The correct repair depends on the diagnostic results.

Common repairs include:

Replacing the Thermostat

General replacement procedure:

  1. Allow the engine to cool completely.
  2. Drain coolant below the thermostat housing.
  3. Remove the thermostat housing.
  4. Remove the old thermostat.
  5. Clean gasket surfaces.
  6. Install the new thermostat in the correct orientation.
  7. Install a new gasket or seal.
  8. Reinstall the housing.
  9. Refill coolant.
  10. Bleed air from the cooling system.
  11. Verify proper operating temperature.

Always install the correct OEM-specified thermostat temperature.

Replacing the Engine Coolant Temperature Sensor

General procedure:

  1. Allow the engine to cool.
  2. Disconnect the electrical connector.
  3. Remove the sensor.
  4. Install the replacement sensor.
  5. Torque to specification.
  6. Reconnect the connector.
  7. Refill coolant if necessary.
  8. Clear diagnostic codes.
  9. Verify scan-tool readings.

Repairing Wiring

If wiring damage is found:

Avoid temporary repairs using household connectors or electrical tape alone.

Cooling System Bleeding

Air trapped inside the cooling system can trigger false temperature readings.

Follow the manufacturer’s bleeding procedure.

Depending on the vehicle, this may include:

Improper bleeding can cause repeated P0125 complaints.

Verifying Closed-Loop Operation

After repairs:

Monitor the scan tool for:

Verify that:

Verifying the Repair

After completing repairs:

  1. Clear all DTCs.
  2. Perform a complete warm-up cycle.
  3. Monitor live coolant temperature.
  4. Verify thermostat operation.
  5. Confirm closed-loop fuel control.
  6. Check heater performance.
  7. Road test the vehicle.
  8. Recheck for pending codes.
  9. Confirm the Check Engine Light remains off.

Typical Repair Costs

RepairTypical Cost
Diagnostic testing$100–250
Thermostat replacement$200–600
Engine Coolant Temperature sensor$100–300
Cooling system bleed$100–200
Wiring repair$150–500
Cooling fan relay$100–250
Cooling fan replacement$300–900
Water pump replacement$500–1,500+
PCM software update$100–300
PCM replacement$1,000–3,000+

Actual repair costs vary by vehicle, labor rates, and component accessibility.

Common Diagnostic Mistakes

Avoid these common mistakes:

Replacing the thermostat is common.

Replacing it without testing is simply educated gambling.

Manufacturer-Specific Notes

General Motors

Inspect:

Ford

Verify:

Toyota / Lexus

Common causes include:

Always verify proper coolant bleeding.

Honda / Acura

Inspect:

OEM thermostats are strongly recommended.

Nissan / Infiniti

Compare:

Air trapped in the cooling system is a frequent cause after repairs.

Hyundai / Kia

Inspect:

Volkswagen / Audi

Verify:

Some engines use electronically controlled thermostats.

BMW / MINI

Use factory diagnostics to monitor:

Electric water pumps should also be evaluated where applicable.

Chrysler / Dodge / Jeep / Ram

Inspect:

Frequently Asked Questions

What usually fixes P0125?

The most common repair is replacing a thermostat that is stuck open. Other possible repairs include correcting low coolant, replacing a faulty Engine Coolant Temperature sensor, repairing wiring, or fixing cooling fan problems.

Can I drive with P0125?

Usually yes, provided the engine is not overheating. However, prolonged operation with a cold-running engine reduces fuel economy, increases emissions, and may lead to carbon buildup.

Does P0125 always mean the thermostat is bad?

No. While a stuck-open thermostat is the most common cause, low coolant, an inaccurate ECT sensor, cooling fan issues, wiring faults, or air trapped in the cooling system can also trigger the code.

Can low coolant cause P0125?

Yes. If the coolant level drops below the Engine Coolant Temperature sensor, the PCM may receive inaccurate temperature readings and delay closed-loop operation.

Can cold weather cause P0125?

Extremely cold ambient temperatures can increase warm-up time, but a properly functioning cooling system should still reach normal operating temperature. Cold weather alone rarely causes P0125.

Can a bad ECT sensor cause P0125?

Yes. If the Engine Coolant Temperature sensor reports a temperature lower than the actual coolant temperature, the PCM may incorrectly believe the engine never warmed up.

Final Thoughts

The P0125 Insufficient Coolant Temperature for Closed Loop Fuel Control code indicates that the PCM has determined the engine failed to warm up quickly enough to enter normal closed-loop fuel control.

In most cases, the repair is straightforward, with a stuck-open thermostat being the leading cause. However, coolant level issues, ECT sensor faults, cooling fan problems, trapped air, or wiring faults can produce similar symptoms.

A proper diagnosis should always verify:

Following a systematic diagnostic process prevents unnecessary parts replacement and restores normal engine temperature, fuel economy, emissions performance, and heater operation.

Continue Your Pro Street Cooling System Series

Related guides include:

These guides expand on coolant-temperature diagnostics, thermostat operation, and cooling-system troubleshooting to help accurately diagnose related OBD-II trouble codes.

Exit mobile version
