P0072 Code Explained: Ambient Air Temperature Sensor Circuit Low Causes, Symptoms & Fixes

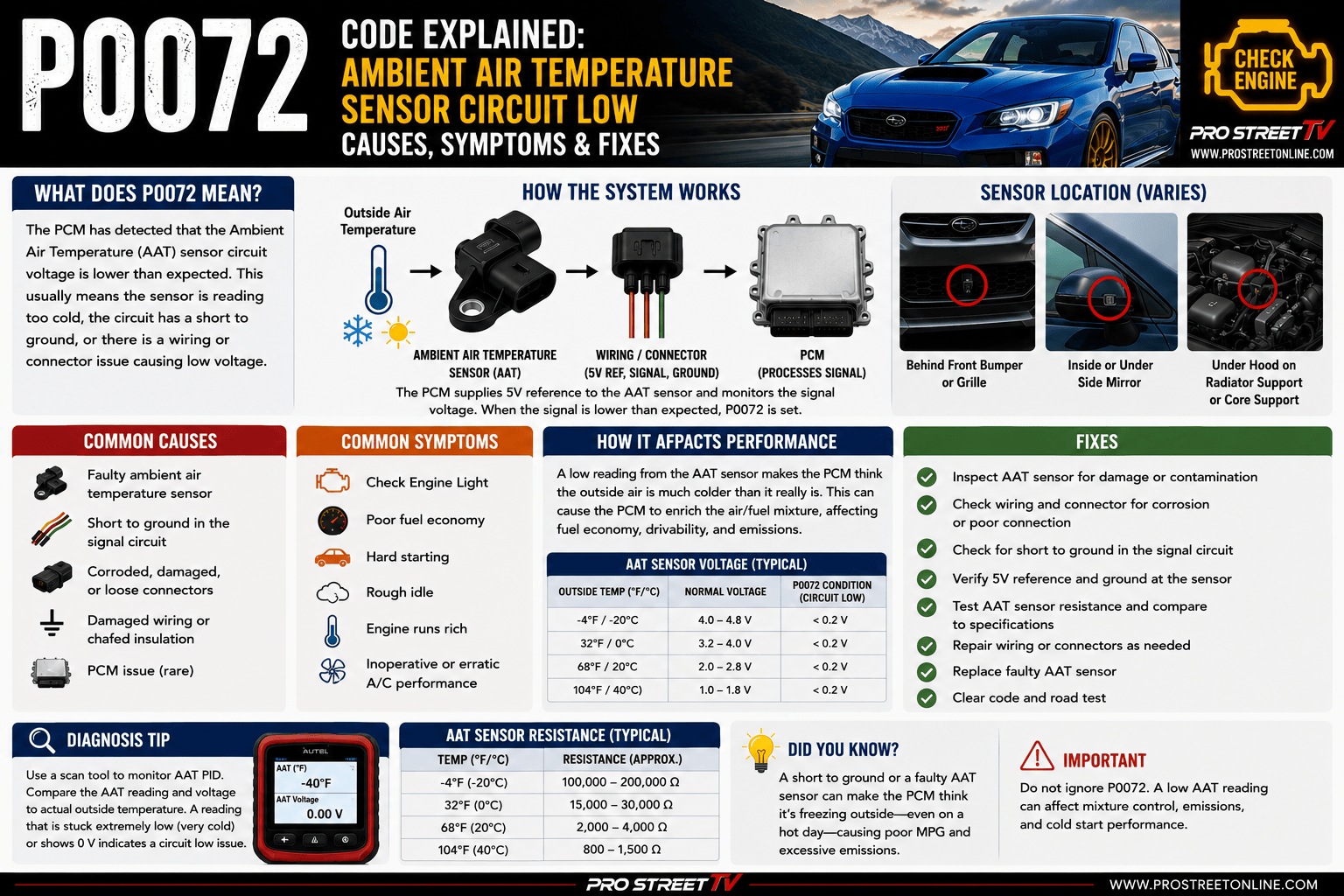

P0072 code displayed on an OBD-II scanner with the ambient air temperature sensor, low-voltage circuit, grounded signal wire, and front bumper sensor location highlighted.

If your OBD-II scanner displays P0072, your vehicle’s Engine Control Module (ECM), Powertrain Control Module (PCM), or another control module has detected lower-than-expected voltage in the ambient air temperature sensor circuit.

The generic OBD-II definition for P0072 is:

Ambient Air Temperature Sensor Circuit Low

Depending on the vehicle manufacturer or scan tool, the description may appear as:

Ford’s official OBD documentation identifies P0072 as an ambient air temperature sensor circuit-low fault. Volkswagen diagnostic information describes the equivalent condition as an ambient-temperature sensor circuit shorted to ground, potentially producing an implausibly hot temperature reading.

The ambient air temperature sensor measures the temperature outside the vehicle. Depending on the model, its signal may be used by the:

P0072 is commonly caused by a short to ground, internally shorted sensor, damaged bumper wiring, water intrusion, corroded terminals, or an incorrectly installed replacement sensor.

Possible symptoms include:

For additional diagnostic information, visit:

P0072 Quick Facts

ItemInformation
OBD-II CodeP0072
DescriptionAmbient Air Temperature Sensor Circuit Low
CategoryPowertrain
SystemFuel and Air Metering
Main ComponentAmbient Air Temperature Sensor
Fault TypeLow Circuit Voltage
Common Electrical CauseShort to Ground
SeverityLow to Moderate
Safe to Drive?Usually
Typical Repair Cost$50–500

What Does P0072 Mean?

P0072 means the control module has detected that the ambient air temperature sensor circuit voltage is below its expected operating range.

The ambient air temperature sensor is usually a thermistor. Its electrical resistance changes as temperature changes.

In a common negative temperature coefficient circuit:

The module may interpret this low voltage as an extremely high outside temperature.

For example, the dashboard may display:

The exact displayed value depends on manufacturer programming.

Volkswagen service information associates P0072 with a circuit-to-ground condition and an ambient temperature reading above approximately 87°C on certain applications. That threshold is application-specific rather than a universal value for every vehicle.

What Is the Ambient Air Temperature Sensor?

The ambient air temperature sensor measures the temperature of the air outside the vehicle.

Its reading may be used for:

The sensor is usually installed where it can receive outside airflow without being heavily influenced by engine heat.

Common locations include:

Some commercial trucks use a driver-side mirror-mounted ambient temperature sensor that may connect directly to the BCM or communicate through a door module.

How the Ambient Air Temperature Sensor Works

Most ambient air temperature sensors use a negative temperature coefficient thermistor, or NTC thermistor.

The sensor normally has two circuits:

  1. A signal or bias-voltage circuit
  2. A sensor-return or ground circuit

The module supplies voltage through an internal resistor and monitors the voltage after it passes through the sensor circuit.

As temperature rises:

As temperature falls:

This relationship allows the module to calculate outside temperature.

The exact voltage and resistance values vary by manufacturer.

What Does “Circuit Low” Mean?

“Circuit low” means the module sees less voltage than expected on the monitored sensor circuit.

It does not necessarily mean:

It refers specifically to the electrical signal in the ambient air temperature sensor circuit.

Common reasons include:

Because low voltage often corresponds to low resistance in an NTC circuit, the module may calculate an unrealistically high temperature.

P0070 vs P0071 vs P0072 vs P0073

CodeDescriptionTypical Meaning
P0070Ambient Air Temperature Sensor CircuitGeneral circuit malfunction
P0071Ambient Air Temperature Sensor Range/PerformanceImplausible or slow sensor response
P0072Ambient Air Temperature Sensor Circuit LowSignal voltage below expected range
P0073Ambient Air Temperature Sensor Circuit HighSignal voltage above expected range
P0074Ambient Air Temperature Sensor Circuit IntermittentSignal drops out or changes unpredictably

Generally:

Manufacturer circuit design and wording can vary, so the correct wiring diagram should always be consulted.

How the PCM Detects P0072

The monitoring module continuously or periodically checks the ambient-temperature signal voltage.

Depending on the vehicle, P0072 may be stored when:

Ford OBD system summaries identify the P0072 ambient-temperature circuit-low monitor as a continuous circuit check on certain applications.

Some vehicles may illuminate the Check Engine Light immediately. Others may require the failure to occur during multiple drive cycles.

Why P0072 May Display an Extremely Hot Temperature

Most ambient sensors decrease resistance as temperature rises.

When the signal circuit is shorted to ground:

The displayed temperature may therefore rise to the module’s maximum programmed value.

This is the opposite of many P0073 failures.

With an open circuit:

That is why:

Again, verify the exact vehicle because not every circuit is wired identically.

Symptoms of P0072

Possible P0072 symptoms include:

On many vehicles, the engine will continue to run normally.

The most obvious symptom may be the dashboard confidently reporting Death Valley temperatures during a January snowstorm.

Can P0072 Affect Air Conditioning?

Yes.

Automatic climate-control systems may use ambient temperature to decide:

An unrealistically high outside-temperature reading may cause the system to request excessive cooling.

Depending on the vehicle, the HVAC module may also substitute a default value or disable automatic operation.

Can P0072 Affect Engine Performance?

P0072 usually has little effect on basic engine operation.

However, some vehicles use ambient-temperature data for:

Possible secondary symptoms include:

A Stellantis technical bulletin has documented P0072 and P0073 among several codes that may appear with reduced-power operation because of PCM software on certain vehicles, demonstrating that software can occasionally contribute to the fault rather than a failed sensor alone.

Common Causes of P0072

1. Ambient Air Temperature Sensor Shorted Internally

The sensor may fail internally and develop excessively low resistance.

Possible causes include:

An internally shorted sensor can pull the signal voltage below specification and set P0072.

2. Signal Wire Shorted to Ground

The sensor signal wire may contact:

This is one of the most common electrical causes of P0072.

Inspect areas where the harness:

3. Crushed Bumper Harness

The ambient sensor harness may be pinched between:

A crushed wire can force the signal conductor against ground.

This is especially common after:

4. Corroded Electrical Connector

Corrosion can bridge the signal and ground terminals.

Inspect for:

Because the sensor is usually mounted low and forward, its connector receives nearly every environmental insult available to a vehicle.

5. Water Intrusion

Water inside the connector may temporarily create a low-resistance path between terminals.

The code may appear:

If the fault is weather-dependent, inspect connector seals and wiring splices carefully.

6. Front-End Collision Damage

Even a low-speed collision may damage:

The bumper cover may look repaired while the harness behind it remains crushed against metal.

7. Incorrect Previous Wiring Repair

Poor repairs may include:

Engine-compartment and bumper wiring repairs must withstand:

Household wire nuts remain surprisingly ineffective at all five.

8. Incorrectly Pinned Connector

A replacement connector may be installed with:

Always compare the replacement connector pinout with the wiring diagram rather than matching wire colors by optimism.

9. Damaged Mirror-Mounted Sensor

On vehicles with a mirror-mounted ambient sensor, possible causes include:

Mirror-mounted ambient sensors are documented on certain truck applications, and the sensor may be separately replaceable depending on the design.

10. Incorrect Replacement Sensor

An incorrect sensor may have:

A sensor can fit physically while causing P0072 immediately.

Use the exact part number for the vehicle, market, and mirror or bumper configuration.

11. Shared Sensor Ground Problem

A wiring error in a shared low-reference circuit may affect several sensors.

Look for related codes involving:

A shorted sensor elsewhere may pull a shared circuit low.

12. Aftermarket Lighting Installation

Fog lights, LED light bars, grille lights, or front cameras may be installed near the ambient sensor wiring.

Possible problems include:

The ambient-temperature sensor circuit is not an approved source of accessory power, regardless of how conveniently located its wires may appear.

13. Damaged Active Grille Shutter Harness

Some vehicles route the ambient sensor wiring near active grille shutters.

Possible issues include:

Inspect the complete front-end harness rather than only the final few inches near the sensor.

14. Failed BCM, Door Module, or Instrument Cluster

Depending on the vehicle, the sensor may connect to:

The reading may then be transmitted to the PCM through the CAN network.

An internal module input fault may pull the signal low or incorrectly report a circuit-low condition.

Module failure is much less common than sensor or wiring damage.

15. PCM or BCM Software Issue

Software may incorrectly identify the sensor signal as low.

Possible factory corrections include:

Ford issued 2026 technical service bulletins for certain 2023–2025 Super Duty vehicles and other covered models involving replacement of the ambient sensor and associated components when P0071, P0072, or P0073 is present.

Always check current service information using the VIN.

16. Failed Control Module

PCM, BCM, or door-module failure is possible but uncommon.

Only suspect a module after confirming:

Replacing a module before unplugging the sensor is how a minor bumper-wire repair becomes an invoice with commas.

Is P0072 Serious?

P0072 is generally considered a low- to moderate-severity code.

The vehicle will usually continue to:

However, the code may affect:

P0072 becomes more important when:

Can You Drive With P0072?

You can usually drive with P0072 for a limited period.

The code normally does not indicate an immediate risk of internal engine damage.

Use caution if:

A false outside-temperature reading is inconvenient.

A damaged harness wrapped around a cooling fan is an entirely different category of inconvenience.

How to Diagnose P0072

Step 1: Scan All Modules

Scan more than the engine computer.

Check the:

Look for:

Record freeze-frame data before clearing anything.

Step 2: Check the Displayed Ambient Temperature

Compare:

An extremely high temperature strongly supports a low-resistance or short-to-ground condition on many NTC-based systems.

A normal display does not completely eliminate the fault because:

Step 3: Determine Which Module Reads the Sensor

Use the wiring diagram to determine whether the sensor connects to:

Do not assume the sensor connects directly to the PCM merely because P0072 is a powertrain code.

Some mirror-mounted systems route the sensor through the BCM or door electronics.

Step 4: Locate the Sensor

Common locations include:

Confirm the exact location before removing components.

Step 5: Inspect Recent Repair Areas

Ask whether the vehicle recently received:

P0072 appearing immediately after one of these repairs is a valuable diagnostic clue.

Step 6: Inspect the Sensor

Look for:

Replace a physically damaged sensor.

Step 7: Inspect the Connector

Disconnect the sensor and inspect for:

Dry and clean the connector using an approved electrical-contact cleaner.

Severely corroded terminals should be replaced rather than merely polished until they appear emotionally ready for work.

Step 8: Observe What Happens When the Sensor Is Disconnected

With the ignition on, monitor scan data while disconnecting the sensor when manufacturer procedures permit.

A typical NTC circuit may change from:

If the reading changes dramatically after disconnection, the sensor may be internally shorted.

If the reading remains extremely hot after the sensor is disconnected, suspect:

Do not rely on this test without consulting the wiring diagram.

Step 9: Measure Sensor Resistance

Measure resistance across the disconnected sensor terminals.

Compare the result with:

Possible findings include:

Step 10: Heat and Cool the Sensor

Apply controlled temperature changes.

The resistance should change:

With a typical NTC sensor:

A sensor that remains near zero resistance is likely shorted.

Step 11: Check Signal-Circuit Voltage

With the sensor disconnected and ignition on, measure the signal circuit according to the service procedure.

A correctly operating module may produce a pull-up or bias voltage.

If signal voltage remains near zero with the sensor unplugged, suspect:

Exact expected voltage varies by vehicle.

Step 12: Test for a Short to Ground

Disconnect the sensor and relevant control module.

Measure resistance between the signal circuit and ground.

Unexpected continuity may indicate:

Inspect the harness physically rather than merely replacing a visible section.

Step 13: Inspect the Harness Behind the Bumper

Follow the wiring through areas near:

Look for:

Step 14: Perform a Wiggle Test

Monitor ambient-temperature data while gently moving:

A sudden shift from extreme heat to a normal reading can reveal an intermittent short.

Step 15: Test the Ground or Return Circuit

Verify that the sensor-return circuit matches the wiring diagram.

Depending on the circuit, the second wire may be:

A wiring error can force the signal low.

Step 16: Check for Terminal Bridging

Inspect whether corrosion, moisture, or bent terminals are connecting:

Terminal bridging can set P0072 without visible harness damage.

Step 17: Substitute a Known Resistance

When approved by the manufacturer, install a resistor that represents a known ambient temperature.

Observe the scan-tool reading.

If the reading becomes correct:

If the reading remains excessively hot:

Never install a direct jumper unless the service procedure specifically instructs it.

A jumper across an NTC circuit represents maximum heat and may simply confirm the fault you already have.

Step 18: Compare Data Across Modules

Compare ambient-temperature data reported by:

Possible results include:

Step 19: Check Network Communication

If the temperature signal is transmitted over CAN, inspect for:

The physical sensor may be operating normally while the receiving module reports a circuit fault.

Step 20: Inspect Aftermarket Accessories

Check whether accessory installers worked near the sensor harness.

Inspect:

Disconnect suspect accessories when appropriate and retest the circuit.

Step 21: Check Technical Service Bulletins

Search manufacturer information using:

Factory bulletins document sensor replacement, wiring-pigtail replacement, mirror-mounted sensor faults, and software corrections on certain applications.

Step 22: Repair the Confirmed Fault

Possible repairs include:

Use weather-sealed automotive wiring repair methods.

Step 23: Verify the Repair

After completing repairs:

  1. Clear all diagnostic trouble codes.
  2. Switch the ignition off.
  3. Allow the modules to power down.
  4. Restart the vehicle.
  5. Compare ambient data with actual temperature.
  6. Confirm the outside display updates.
  7. Check HVAC operation.
  8. Road-test the vehicle.
  9. Complete the required drive cycle.
  10. Confirm P0072 does not return.

Some displays update slowly and may require vehicle movement before accepting the repaired reading.

Common Repairs and Costs

RepairEstimated Cost
Reconnect or reposition sensor$0–100
Clean and dry connector$50–150
Replace ambient temperature sensor$75–250
Repair shorted wiring$100–450
Replace sensor connector$75–275
Repair bumper harness$150–600
Replace mirror-mounted sensor$150–600
Replace complete side mirror$300–1,500
Diagnose network communication$150–500
Update PCM or BCM software$100–300
Replace BCM or door module$500–1,500+
Replace PCM$1,000–2,500+

Costs vary according to:

A sensor clipped behind an open grille may require minutes to replace.

The same sensor buried inside a power-folding, heated, camera-equipped tow mirror may arrive with the pricing structure of consumer electronics.

Common Diagnostic Mistakes

Avoid these common P0072 diagnostic mistakes:

P0072 is normally an electrical low-signal problem.

The outside air may be freezing, but that is not what the word “low” is complaining about.

Vehicles Commonly Affected

P0072 is a generic OBD-II code and may appear on many vehicles, including certain:

Documented application-specific issues include:

Always diagnose the exact vehicle rather than assuming every P0072 failure has the same sensor location or wiring arrangement.

P0072 After Front Bumper Repairs

When P0072 appears after bumper or grille work, inspect for:

The timing of the fault matters.

A code that appears immediately after body work is rarely requesting that diagnosis begin at the PCM beneath the dashboard.

P0072 on Mirror-Mounted Sensors

Mirror-mounted systems require inspection of:

Some trucks have documented ambient-temperature sensor faults associated with mirror assemblies, including P0072 and P0073.

P0072 in Wet Weather

A P0072 code that appears mainly after rain or washing often points toward:

Inspect the connector before the moisture evaporates.

Intermittent electrical faults are far less cooperative after the vehicle arrives dry and warm inside the shop.

How to Prevent P0072

Reduce the likelihood of P0072 by:

Frequently Asked Questions

What does P0072 mean?

P0072 means the control module has detected voltage below the expected range in the ambient air temperature sensor circuit.

What causes P0072 most often?

Common causes include:

Is P0072 serious?

P0072 is usually low to moderate in severity.

The vehicle normally remains drivable, but climate-control, defrost, display, and temperature-dependent functions may be affected.

Can I drive with P0072?

Usually, yes.

Use caution if defrosting, cooling fans, or other temperature-dependent systems are not functioning correctly.

Does circuit low mean the outside temperature is low?

No.

“Circuit low” means the electrical signal voltage is below the expected range.

On many vehicles, this causes the module to display an extremely high temperature.

Why does P0072 show a very hot outside temperature?

A short to ground or low-resistance sensor can pull signal voltage downward.

The module may interpret that low voltage as extremely high temperature.

Can a bad ambient air temperature sensor cause P0072?

Yes.

An internally shorted sensor is a common cause.

Can damaged wiring cause P0072?

Yes.

A signal wire touching chassis ground can set P0072.

Can bumper repairs cause P0072?

Yes.

The sensor harness may be crushed, pinched, misrouted, incorrectly repaired, or left exposed to water.

Can a mirror replacement cause P0072?

Yes, on vehicles with a mirror-mounted ambient sensor.

The replacement mirror may have the wrong sensor, damaged wiring, or an incompatible connector.

Can water in the connector cause P0072?

Yes.

Water and corrosion can create a conductive path between signal and ground terminals.

What is the difference between P0072 and P0073?

P0072 indicates low circuit voltage, commonly caused by a short to ground.

P0073 indicates high circuit voltage, commonly caused by an open circuit or disconnected sensor.

Can P0072 affect air conditioning?

Yes.

Automatic climate-control operation may become inaccurate or limited when the reported outside temperature is implausible.

Can P0072 cause limp mode?

Usually not, but certain applications may enter reduced-power mode when P0072 appears with other faults or software-related issues.

Does the sensor need programming?

The sensor itself usually does not require programming.

The vehicle may require:

Replacement control modules may require programming.

How much does P0072 cost to repair?

A typical sensor replacement may cost $75–250.

Wiring, mirror, module, or communication repairs can cost several hundred dollars or more.

Final Thoughts

The P0072 code means the vehicle has detected low voltage in the ambient air temperature sensor circuit.

The most common causes include:

Start diagnosis by checking the outside-temperature reading.

If the display shows an impossibly high temperature:

  1. Locate the ambient sensor.
  2. Inspect the connector and bumper harness.
  3. Disconnect the sensor and watch the scan data.
  4. Measure sensor resistance.
  5. Test the signal wire for a short to ground.
  6. Compare ambient data across the PCM, BCM, and HVAC module.
  7. Check manufacturer service bulletins.

Do not confuse “circuit low” with “temperature low.” P0072 usually means the signal voltage is low, and on many thermistor circuits that convinces the vehicle it is parked on the surface of the sun.

Fortunately, the repair is often less dramatic: a failed sensor, two corroded terminals, or a bumper harness that lost an argument with a metal bracket.

Related Articles

Ambient Air Temperature Sensor Codes

Previous P-Code Articles

Browse the complete Pro Street diagnostic libraries:

Exit mobile version
