P0070 Code Explained: Ambient Air Temperature Sensor Circuit Causes, Symptoms & Fixes

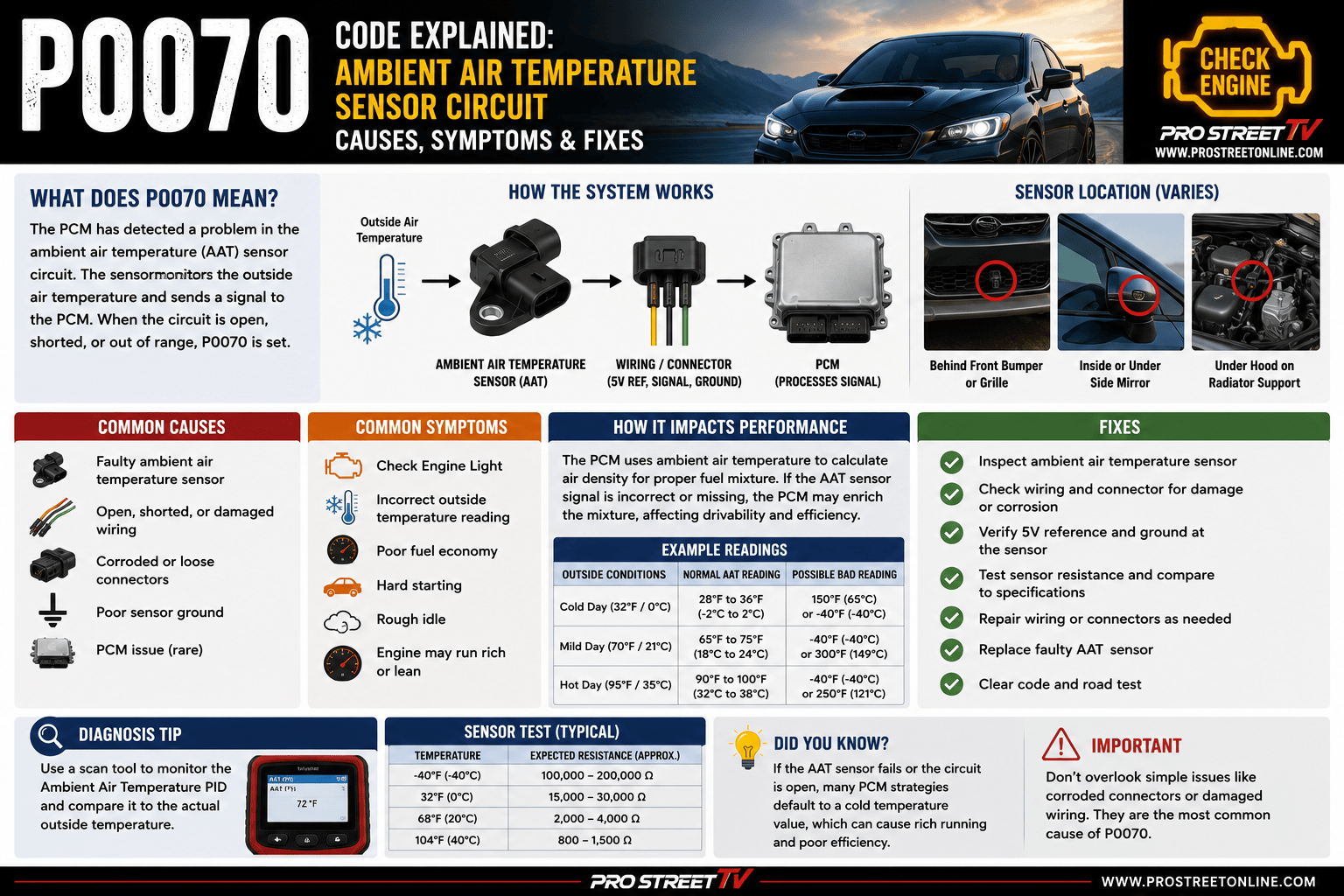

P0070 code displayed on an OBD-II scanner with the ambient air temperature sensor, front grille location, connector, and damaged sensor wiring highlighted.

If your OBD-II scanner displays P0070, your vehicle’s Engine Control Module (ECM) or Powertrain Control Module (PCM) has detected a malfunction in the ambient air temperature sensor circuit.

The generic OBD-II definition for P0070 is:

Ambient Air Temperature Sensor Circuit

Depending on the vehicle manufacturer or scan tool, the description may appear as:

The ambient air temperature sensor measures the temperature of the air outside the vehicle. The PCM, Body Control Module (BCM), instrument cluster, or climate-control module may use this information to manage engine calculations, automatic climate control, exterior-temperature displays, cooling-fan strategy, emissions monitoring, and cold-weather features.

P0070 is a general circuit-malfunction code. It may be stored when the control module detects an open circuit, short circuit, implausible voltage, failed sensor, damaged connector, or loss of communication with the module supplying the temperature information.

Manufacturer diagnostic logic varies. Ford documentation describes P0070 as an ambient-air-temperature circuit monitor, while Volkswagen and Audi references associate the code with an open circuit, short to battery voltage, or an implausibly cold sensor reading.

Common causes include:

P0070 may cause an incorrect outside-temperature display, poor automatic climate-control operation, disabled air conditioning, inaccurate cold-start calculations, or a Check Engine Light. In many vehicles, however, there may be no noticeable drivability symptoms.

For additional diagnostic information, visit:

P0070 Quick Facts

ItemInformation
OBD-II CodeP0070
DescriptionAmbient Air Temperature Sensor Circuit
CategoryPowertrain
SystemFuel and Air Metering
Main ComponentAmbient Air Temperature Sensor
Fault TypeGeneral Electrical Circuit Malfunction
SeverityLow to Moderate
Safe to Drive?Usually
Typical Repair Cost$50–500

What Does P0070 Mean?

P0070 means the control module has detected an electrical problem in the circuit used to monitor outside-air temperature.

The affected circuit may include:

The sensor itself is usually a temperature-sensitive resistor called a thermistor.

As outside temperature changes, the sensor’s resistance changes. The control module converts that resistance into a temperature value.

If the signal voltage is outside the expected range—or if the module cannot receive a valid temperature signal—it may store P0070.

Unlike P0071, which generally indicates a range or performance problem, P0070 is usually treated as a more general electrical circuit malfunction.

What Is an Ambient Air Temperature Sensor?

The ambient air temperature sensor measures the temperature of the air surrounding the vehicle.

It is commonly used for:

The exact functions vary by vehicle.

Some vehicles use the sensor mainly for the dashboard temperature display.

Others share the signal with:

This means a seemingly harmless outside-temperature sensor can affect more systems than expected.

How the Ambient Air Temperature Sensor Works

Most ambient air temperature sensors use a negative temperature coefficient thermistor, commonly shortened to NTC thermistor.

With an NTC sensor:

A typical circuit includes:

  1. A reference or pull-up voltage supplied by a control module
  2. The temperature-sensitive sensor
  3. A sensor-return or ground circuit
  4. A signal monitored by the module

As sensor resistance changes, the module sees a corresponding voltage change.

The module then converts that signal into a temperature reading.

For example:

The exact direction depends on circuit design, but implausible extremes are useful diagnostic clues.

Where Is the Ambient Air Temperature Sensor Located?

The ambient air temperature sensor is usually mounted where it can sample outside air while avoiding excessive engine heat.

Common locations include:

On some commercial vehicles and trucks, the sensor may be located in the driver-side mirror. Manufacturer service information confirms that sensor location can vary by model and may include a mirror-mounted design.

Because the sensor is often mounted at the front of the vehicle, it is vulnerable to:

Why Is the Sensor Mounted Away From the Engine?

The sensor must measure outside-air temperature rather than engine-compartment temperature.

Mounting it too close to the:

could cause heat-soak errors.

Even with correct placement, the displayed temperature may rise temporarily when:

Many control modules filter or delay temperature changes to prevent the display from reacting instantly to temporary heat sources.

How the PCM Detects P0070

The control module monitors the ambient temperature circuit for voltage, resistance, plausibility, or communication faults.

P0070 may be stored when:

Ford diagnostic documentation shows that some applications run a physical-range check continuously and may set P0070 when the reported ambient temperature exceeds a calibrated threshold. Other manufacturers use P0070 for an open or short-to-voltage fault.

P0070 vs P0071 vs P0072 vs P0073

CodeDescription
P0070Ambient Air Temperature Sensor Circuit
P0071Ambient Air Temperature Sensor Range/Performance
P0072Ambient Air Temperature Sensor Circuit Low
P0073Ambient Air Temperature Sensor Circuit High

Generally:

Exact definitions and fault thresholds vary by manufacturer.

Symptoms of P0070

Possible symptoms include:

Some vehicles substitute a default ambient-temperature value when the circuit fails.

The dashboard may display values such as:

The exact fallback value depends on the vehicle.

A suspiciously Arctic dashboard reading during a July traffic jam is usually less of a weather event and more of an open circuit.

Can P0070 Affect Engine Performance?

On many vehicles, P0070 has little or no noticeable effect on engine performance.

However, ambient-temperature information may be used for:

Possible performance symptoms may include:

Severe drivability problems are uncommon unless related sensor circuits or shared wiring are also affected.

Common Causes of P0070

1. Failed Ambient Air Temperature Sensor

The sensor may fail internally because of:

A failed sensor may report:

2. Disconnected Sensor Connector

The sensor may have been disconnected during:

A disconnected sensor often causes an extremely cold displayed temperature because many modules interpret an open circuit as maximum resistance.

Always inspect recent repair areas before ordering parts.

3. Broken Sensor Wiring

Wiring may break because of:

A broken wire may remain hidden inside insulation that looks undamaged.

4. Corroded Electrical Connector

The sensor’s location exposes the connector to:

Inspect for:

5. Sensor Circuit Shorted to Voltage

The signal circuit may contact a powered wire because of:

A short to voltage may cause:

The result depends on circuit design.

6. Sensor Circuit Shorted to Ground

A signal wire touching ground may cause:

Inspect the harness where it contacts:

7. Front-End Collision Damage

The ambient sensor is commonly located in the same area that absorbs minor parking-lot impacts.

Damage may include:

Even a vehicle with a perfectly repaired bumper cover may still have a sensor harness quietly folded into the wrong place behind it.

8. Sensor Missing After Repairs

The sensor may be:

This is common after collision repairs or aftermarket front-end modifications.

9. Incorrect Sensor Placement

The sensor may operate electrically but report inaccurately if mounted:

Incorrect placement is more likely to trigger P0071, but extreme heat exposure can contribute to P0070 depending on manufacturer logic.

10. Damaged Mirror-Mounted Sensor

On vehicles with the sensor in a side mirror, possible causes include:

Some service information notes that mirror-mounted ambient sensors may communicate through the BCM or a door module rather than wiring directly to the PCM.

11. Shared Sensor Ground Fault

The ambient sensor may share a ground or low-reference circuit with other sensors.

A poor shared ground may cause:

Inspect all related codes before replacing the ambient sensor.

12. Shared Reference or Pull-Up Circuit Problem

Depending on the system, the sensor may rely on a module-provided pull-up voltage.

A circuit failure may be caused by:

Consult the correct wiring diagram before applying voltage or ground.

13. Body Control Module Communication Fault

The BCM may read the ambient sensor and send the temperature to the PCM through the Controller Area Network.

P0070 may therefore result from:

The sensor circuit may be working correctly while the PCM is not receiving the data.

14. Incorrect Replacement Sensor

An aftermarket sensor with the wrong resistance curve may produce an inaccurate or implausible reading.

Possible issues include:

A sensor can fit physically while speaking an entirely different electrical language.

15. Faulty Instrument Cluster or HVAC Module

Some vehicles route ambient-temperature information through:

A failure in one of these modules may prevent the correct value from reaching the PCM.

16. PCM or BCM Software Issue

Software or configuration faults may cause:

Check for:

17. Failed PCM or BCM

An internal control-module fault is possible but uncommon.

Only suspect a module after confirming:

Replacing a module before checking a two-wire sensor behind the bumper is a remarkably expensive way to discover corrosion.

Is P0070 Serious?

P0070 is generally considered a low- to moderate-severity code.

The vehicle will usually continue to:

However, the code can affect:

P0070 should be diagnosed promptly if:

Can You Drive With P0070?

You can usually drive with P0070.

The code typically does not indicate an immediate engine-damage risk.

However, use caution if:

In most cases, the greatest immediate threat is the dashboard insisting it is minus 40 degrees outside while everyone is wearing shorts.

How to Diagnose P0070

Step 1: Scan for Additional Codes

Check for related codes involving:

Record freeze-frame data before clearing codes.

Important values include:

Step 2: Compare the Displayed Temperature With Actual Conditions

Compare the scan-tool ambient temperature with:

After the vehicle has been parked for several hours, ambient air, intake air, and coolant temperature should usually be reasonably similar.

A large difference may indicate:

Step 3: Inspect the Outside-Temperature Display

Look for:

An extreme negative reading often suggests:

An extreme high reading often suggests:

Manufacturer logic varies, so verify the specific vehicle’s data.

Step 4: Locate the Sensor

Consult service information to identify the sensor location.

Common locations include:

Do not assume every small sensor behind the bumper is the ambient sensor.

Parking sensors, airbag impact sensors, active-grille components, and radar hardware may share the same general area and are far less enthusiastic about experimental testing.

Step 5: Inspect for Recent Repair Damage

Ask whether the vehicle recently received:

Inspect all areas disturbed during the repair.

Step 6: Inspect the Sensor and Bracket

Check for:

Reposition or replace damaged parts as required.

Step 7: Inspect the Connector

Disconnect the sensor and inspect for:

Repair connector damage before replacing the sensor.

Step 8: Inspect the Wiring Harness

Follow the harness as far as possible.

Look for:

Pay special attention to the transition between the bumper harness and main body harness.

Step 9: Measure Sensor Resistance

Disconnect the sensor and measure resistance across its terminals.

Compare the result with:

An NTC sensor should generally show:

Apply gentle temperature changes and watch for smooth resistance movement.

Do not heat the sensor with an open flame.

The goal is diagnosis, not forging a tiny automotive marshmallow.

Step 10: Check the Sensor With a Temperature Change

Place the sensor in controlled conditions such as:

Monitor resistance or scan data.

The reading should change:

An intermittent sensor may fail only at a particular temperature.

Step 11: Check Circuit Voltage

With the sensor disconnected and ignition on, measure the circuit according to the wiring diagram.

Depending on design, one wire may carry:

The other may be:

Do not assume the circuit uses a standard five-volt reference.

Step 12: Check the Ground or Return Circuit

Measure voltage drop between the sensor-return circuit and battery negative.

Excessive voltage drop may indicate:

A basic continuity test may pass even when the circuit cannot operate correctly under load.

Step 13: Test for an Open Circuit

Disconnect the relevant control module and sensor according to the manufacturer procedure.

Measure continuity through each wire.

Check for:

Move the harness gently while monitoring the meter.

Step 14: Test for a Short to Ground

With both ends disconnected, test each signal circuit for unintended continuity to ground.

A short may be caused by:

Step 15: Test for a Short to Voltage

Check whether the signal circuit is contacting:

This is especially important after aftermarket lighting installation or front-end repairs.

Step 16: Use a Sensor Simulator When Approved

Some diagnostic procedures use a resistor or sensor simulator to substitute a known temperature value.

If the scan-tool reading becomes correct with the simulator installed:

Only use the resistance specified by the manufacturer.

Never jumper the circuit blindly.

Step 17: Compare Data Across Modules

Use a capable scan tool to compare ambient-temperature values reported by:

Possible findings include:

Step 18: Check CAN Communication

If the sensor connects to another module rather than directly to the PCM, inspect for:

A sensor can operate correctly while the module responsible for sharing its data remains silent.

Step 19: Check Technical Service Bulletins

Search manufacturer service information using:

Factory information may identify:

Step 20: Replace the Confirmed Failed Component

Possible repairs include:

Avoid replacing the PCM unless every external part of the circuit has been verified.

Step 21: Verify the Repair

After completing repairs:

  1. Clear all diagnostic trouble codes.
  2. Switch the ignition off.
  3. Allow the modules to power down.
  4. Restart the vehicle.
  5. Compare ambient temperature with actual conditions.
  6. Monitor the sensor while driving.
  7. Test automatic climate-control operation.
  8. Complete the required drive cycle.
  9. Confirm P0070 does not return.

Some temperature displays update slowly by design.

The reading may require:

Do not condemn a successful repair because the dashboard needs a few minutes to emotionally accept the weather.

Common Repairs and Costs

RepairEstimated Cost
Reconnect sensor or harness$0–100
Clean electrical connector$50–150
Replace ambient temperature sensor$75–250
Repair wiring$100–450
Replace sensor connector$75–275
Replace mounting bracket$50–200
Replace mirror-mounted sensor$150–600
Replace complete side mirror assembly$300–1,500
Diagnose network communication fault$150–500
Update BCM or PCM software$100–300
Replace BCM or related module$500–1,500+
Replace PCM$1,000–2,500+

Costs vary depending on:

A $30 sensor behind the grille may be easy to replace.

A $30 sensor permanently integrated into an expensive heated, folding, camera-equipped mirror may arrive with considerably more financial baggage.

Common Diagnostic Mistakes

Avoid these common P0070 diagnostic mistakes:

The ambient air temperature sensor measures the air outside the vehicle.

The intake air temperature sensor measures air entering the engine.

They may report similar temperatures after a cold soak, but they are not automatically the same sensor.

Vehicles Commonly Affected

P0070 is a generic OBD-II code and may appear on many vehicle brands.

Applications may include certain:

Failure patterns vary by model.

Examples include:

Always identify the exact circuit architecture before ordering parts.

P0070 After Front-End Repairs

P0070 commonly appears after work involving the:

Common repair-related problems include:

When P0070 appears immediately after body repairs, begin diagnosis with the area that was disturbed.

The vehicle is often kind enough to provide a clue. Technicians occasionally repay this generosity by replacing an unrelated engine sensor anyway.

P0070 on Vehicles With Mirror-Mounted Sensors

Some trucks and commercial vehicles mount the ambient temperature sensor in a side mirror.

Possible causes include:

Service information should be used to determine whether the sensor:

How to Prevent P0070

Reduce the likelihood of P0070 by:

Frequently Asked Questions

What does P0070 mean?

P0070 means the PCM or another control module has detected a malfunction in the ambient air temperature sensor circuit.

What does the ambient air temperature sensor do?

It measures the temperature outside the vehicle for the dashboard display, automatic climate control, engine calculations, and other vehicle systems.

Is P0070 serious?

P0070 is usually a low- to moderate-severity code.

The vehicle will normally remain drivable, but climate-control and temperature-dependent functions may be affected.

Can I drive with P0070?

Usually, yes.

Use caution if defrost operation, cooling fans, or other temperature-dependent systems are affected.

What commonly causes P0070?

Common causes include:

Where is the ambient air temperature sensor located?

It is commonly located:

Consult service information for the exact vehicle.

Can a bumper repair cause P0070?

Yes.

The sensor may be disconnected, damaged, omitted, incorrectly mounted, or have its wiring pinched during bumper repairs.

Why does the outside-temperature display show minus 40?

An extremely low reading often indicates an open circuit, disconnected sensor, or broken wire.

The exact fallback value varies by vehicle.

Why does the outside-temperature display show an extremely high value?

A very high reading may indicate a short to ground, internally shorted sensor, or signal-circuit fault.

Can P0070 affect the air conditioning?

Yes.

Some automatic climate-control systems may limit or disable air-conditioning operation when outside-temperature data is unavailable or implausible.

Can P0070 affect engine performance?

Usually only slightly, if at all.

Some vehicles use ambient temperature for cold-start, emissions, turbocharger, cooling-fan, or idle calculations.

Is the ambient air temperature sensor the same as the intake air temperature sensor?

Not usually.

The ambient sensor measures outside air, while the intake air temperature sensor measures air entering the engine.

Can corrosion cause P0070?

Yes.

The sensor is exposed to water, salt, dirt, and road debris, making connector corrosion a common cause.

Can a faulty BCM cause P0070?

Yes, particularly when the BCM reads the sensor and sends the temperature value to the PCM over the vehicle network.

However, sensor and wiring faults are more common.

Does the new sensor need programming?

Usually not.

Some vehicles may require:

A replacement BCM or other module may require programming.

How much does P0070 cost to repair?

A basic sensor replacement may cost $75–250.

Wiring, mirror, communication, or control-module repairs may cost considerably more.

Final Thoughts

The P0070 code means the control module has detected a malfunction in the ambient air temperature sensor circuit.

The most common causes include:

Start diagnosis by comparing the scan-tool ambient-temperature reading with actual outdoor conditions.

Then:

Do not replace the PCM because the dashboard believes the vehicle is parked at the North Pole. Most P0070 problems are caused by a small sensor or damaged wiring in one of the harshest locations on the vehicle.

The sensor may be inexpensive. Accessing the two corroded wires hidden behind an elaborately designed bumper is where the vehicle may begin charging admission.

Related Articles

Previous P-Code Articles

Browse the complete Pro Street diagnostic libraries:

Exit mobile version
