P0061 Code Explained: HO2S Heater Resistance Bank 2 Sensor 3 Causes, Symptoms & Fixes

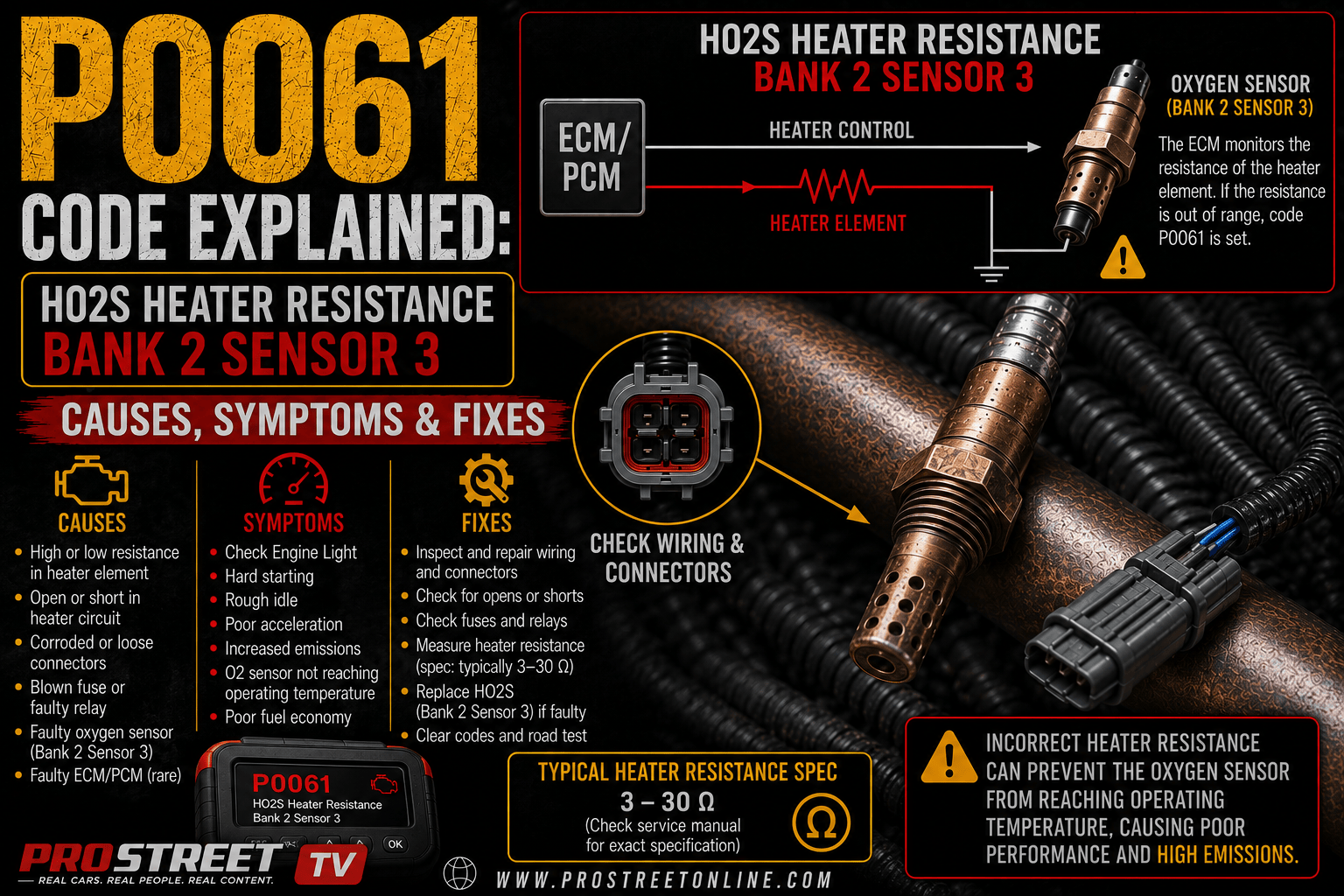

P0061 code displayed on an OBD-II scanner with the Bank 2 Sensor 3 oxygen sensor highlighted behind the secondary catalytic converter for heater resistance testing.

If your OBD-II scanner displays P0061, your vehicle’s Engine Control Module (ECM) or Powertrain Control Module (PCM) has detected that the heater resistance of the Heated Oxygen Sensor (HO2S) on Bank 2 Sensor 3 is outside the manufacturer’s expected operating range.

The generic SAE definition for P0061 is:

HO2S Heater Resistance Bank 2 Sensor 3

Unlike heater control circuit codes that monitor voltage or current, P0061 specifically indicates that the resistance of the heater element inside the oxygen sensor has drifted outside the calibrated specification.

Bank 2 Sensor 3 is found on vehicles equipped with three oxygen sensors on Bank 2, typically located after the secondary catalytic converter on vehicles with dual-catalyst exhaust systems. Not every vehicle uses a Sensor 3, so P0061 is only supported on certain makes and models.

Depending on the manufacturer, this sensor may also be called:

Common causes of P0061 include:

Although P0061 usually won’t affect engine performance, it can prevent catalyst monitoring from completing, increase emissions, and cause your vehicle to fail an emissions inspection.

For additional diagnostic information, visit:

P0061 Quick Facts

ItemInformation
OBD-II CodeP0061
DescriptionHO2S Heater Resistance Bank 2 Sensor 3
CategoryPowertrain
SystemEmissions
SensorBank 2 Sensor 3
Sensor LocationAfter Secondary Catalytic Converter
SeverityLow
Safe to Drive?Yes
Typical Repair Cost$100–650

What Does P0061 Mean?

P0061 indicates the ECM has detected that the electrical resistance of the heater inside Bank 2 Sensor 3 is outside the manufacturer’s acceptable operating range.

Every heated oxygen sensor contains an electric heating element that rapidly warms the sensing element after startup.

The ECM continuously evaluates:

If the heater’s resistance becomes too high, too low, or completely open, the ECM stores P0061.

Unlike heater control circuit codes, P0061 evaluates the health of the heater element itself, not simply whether electricity is reaching it.

What Is Bank 2 Sensor 3?

Bank 2 refers to the side of the engine that does not contain cylinder number one.

Sensor 3 is located after the secondary catalytic converter on vehicles equipped with multiple catalyst systems.

Its primary responsibilities include:

Many vehicles do not have a Sensor 3, which is why P0061 is relatively uncommon compared to other oxygen sensor codes.

Why Does Sensor 3 Have a Heater?

Even though Sensor 3 does not directly affect fuel delivery, it must still reach operating temperature quickly.

The heater allows the ECM to:

Without the heater, the ECM must wait until hot exhaust gases naturally warm the sensor.

What Is Heater Resistance?

Inside every heated oxygen sensor is a ceramic heating element.

As the heater ages:

The ECM monitors resistance because it provides an early warning that the heater is beginning to fail—even before it stops working entirely.

How the ECM Monitors Heater Resistance

The ECM performs self-tests during cold starts and under specific operating conditions.

It monitors:

If measured heater resistance falls outside factory specifications, P0061 is stored.

Unlike circuit faults, resistance faults often occur even when wiring, connectors, and fuses are functioning normally.

P0061 vs Related Codes

CodeDescription
P0059Heater Resistance Bank 2 Sensor 1
P0060Heater Resistance Bank 2 Sensor 2
P0061Heater Resistance Bank 2 Sensor 3
P0056Heater Control Circuit Bank 2 Sensor 2

Generally:

Symptoms of P0061

Common symptoms include:

Most drivers notice no change in vehicle performance.

Common Causes of P0061

1. Aging Heater Element

Repeated heating and cooling cycles gradually change heater resistance.

This is the most common cause.

2. Failed Oxygen Sensor

The heater element deteriorates until resistance falls outside specification.

3. Open Heater Element

The heater burns open internally and stops functioning.

4. Corroded Connector

Inspect for:

5. Damaged Wiring

Inspect for:

6. High Circuit Resistance

Loose connectors and poor wiring repairs can increase total heater resistance.

7. Incorrect Replacement Sensor

Universal oxygen sensors often use heater elements that differ from OEM specifications.

Direct-fit sensors are recommended.

8. Weak Charging System

Low charging voltage may interfere with heater diagnostics.

Inspect:

9. Failed Heater Relay

Some manufacturers use one relay to supply power to several heater circuits.

10. ECM Driver Failure

Rare.

Only suspect the ECM after verifying:

Is P0061 Serious?

P0061 is considered a low-severity diagnostic trouble code.

The vehicle usually remains safe to drive.

However, delaying repairs can result in:

Can You Drive With P0061?

Yes.

Since Sensor 3 primarily monitors catalyst efficiency rather than fuel control, most drivers notice no drivability changes.

The engine may never complain—but your state’s emissions inspector probably will.

How to Diagnose P0061

Step 1: Scan for Additional Codes

Look for:

Record freeze-frame data before clearing codes.

Step 2: Locate Bank 2 Sensor 3

Verify:

Some vehicles do not have a Sensor 3.

Always verify the service information before replacing parts.

Step 3: Inspect Wiring

Look for:

Step 4: Inspect Connector

Inspect for:

Step 5: Measure Heater Resistance

Disconnect the oxygen sensor.

Measure resistance across the heater terminals.

Possible readings include:

Always compare readings with manufacturer specifications.

Step 6: Verify Power Supply

Inspect:

Step 7: Perform Voltage Drop Testing

Measure voltage drop across:

High-resistance circuits often appear normal during continuity testing.

Step 8: Replace the Sensor if Necessary

If heater resistance falls outside specification, replace Bank 2 Sensor 3 using an OEM-quality direct-fit oxygen sensor.

Step 9: Verify Repairs

After repairs:

  1. Clear all DTCs.
  2. Perform a cold start.
  3. Monitor heater operation.
  4. Complete an OBD-II drive cycle.
  5. Verify readiness monitors complete.
  6. Confirm P0061 does not return.

Common Repairs and Costs

RepairEstimated Cost
Oxygen sensor replacement$175–600
Wiring repair$100–400
Connector replacement$75–250
Heater relay replacement$50–200
Fuse replacement$10–50
Charging system repair$150–400
ECM replacement$1,000–2,500+

Common Diagnostic Mistakes

Avoid these mistakes:

Vehicles Commonly Affected

P0061 is less common than most oxygen sensor codes but may appear on:

Only vehicles equipped with Bank 2 Sensor 3 can set this code.

How to Prevent P0061

Reduce the likelihood of P0061 by:

Frequently Asked Questions

What does P0061 mean?

P0061 indicates the heater resistance of the Bank 2 Sensor 3 oxygen sensor is outside manufacturer specifications.

Is P0061 serious?

Usually not.

Most vehicles remain safe to drive.

Can I drive with P0061?

Yes.

Most vehicles continue operating normally.

What causes P0061?

Common causes include:

Will replacing the oxygen sensor fix P0061?

In most cases, yes.

However, wiring and connectors should always be inspected before replacing components.

Is P0061 the same as P0060?

No.

P0060 monitors Bank 2 Sensor 2, while P0061 monitors Bank 2 Sensor 3.

Does P0061 affect fuel economy?

Very little.

Sensor 3 primarily monitors catalyst efficiency.

Can P0061 cause a failed emissions inspection?

Yes.

Incomplete catalyst monitoring and readiness monitors commonly prevent the vehicle from passing emissions testing.

Final Thoughts

The P0061 code indicates the ECM has detected abnormal heater resistance in the Bank 2 Sensor 3 oxygen sensor. Rather than identifying a wiring failure, this code specifically points to deterioration or failure of the heater element inside the sensor.

Because Sensor 3 is primarily used for emissions monitoring, most drivers won’t notice a change in engine performance. However, repairing the problem promptly helps restore catalyst monitoring, complete emissions readiness tests, and prevent future oxygen sensor or catalyst-related trouble codes.
