P0053 Code Explained: HO2S Heater Resistance Bank 1 Sensor 1 Causes, Symptoms & Fixes

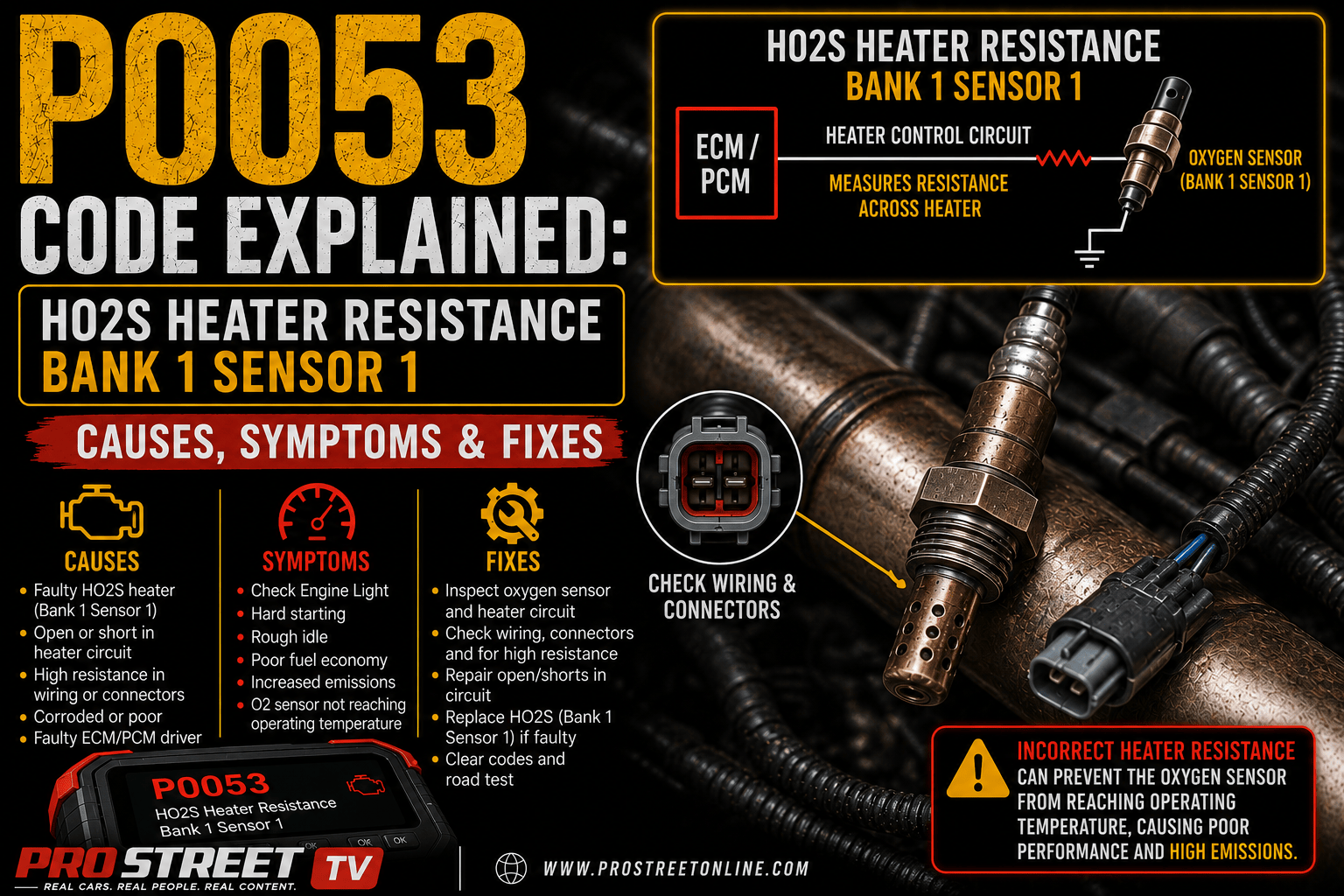

P0053 code displayed on an OBD-II scanner beside the Bank 1 Sensor 1 upstream oxygen sensor with the heater element highlighted for resistance testing.

If your OBD-II scanner displays P0053, your vehicle’s Engine Control Module (ECM) or Powertrain Control Module (PCM) has detected that the heater resistance of the heated oxygen sensor (HO2S) on Bank 1 Sensor 1 is outside the manufacturer’s specified operating range.

The generic SAE definition for P0053 is:

HO2S Heater Resistance Bank 1 Sensor 1

Unlike P0030, P0031, and P0032, which monitor the electrical control circuit, P0053 specifically monitors the resistance of the heater element itself. Modern ECMs use resistance measurements to determine whether the heater is capable of warming the oxygen sensor efficiently during cold starts.

Depending on the manufacturer, Bank 1 Sensor 1 may also be referred to as the:

Common causes of P0053 include:

Although P0053 usually won’t cause an immediate drivability problem, it can increase emissions, reduce fuel economy, delay closed-loop operation, and eventually lead to additional oxygen sensor or catalyst efficiency codes.

For additional diagnostic information, visit:

P0053 Quick Facts

ItemInformation
OBD-II CodeP0053
DescriptionHO2S Heater Resistance Bank 1 Sensor 1
CategoryPowertrain
SystemFuel Control / Emissions
SensorBank 1 Sensor 1
SeverityLow to Moderate
Safe to Drive?Usually
Typical Repair Cost$100–600

What Does P0053 Mean?

P0053 indicates the ECM has determined that the electrical resistance of the heater inside Bank 1 Sensor 1 is outside the expected specification.

Unlike simple circuit monitoring, resistance monitoring helps determine the actual health of the heater element.

The ECM expects the heater to have a specific resistance value.

If resistance becomes:

the ECM stores P0053.

What Is Bank 1 Sensor 1?

Bank 1 is the side of the engine containing cylinder number one.

Sensor 1 is the upstream oxygen sensor, located before the catalytic converter.

It is responsible for:

This sensor has the greatest influence on engine fueling.

What Is Heater Resistance?

Every oxygen sensor heater contains a resistance element similar to the heating element inside an electric appliance.

The heater converts electrical energy into heat.

As the heater ages:

The ECM monitors these changes to determine whether the sensor can still operate correctly.

Think of it like a light bulb filament. It may not burn out completely, but as it deteriorates, its electrical characteristics change enough for the ECM to recognize a problem long before total failure.

Why Does the Heater Matter?

Modern emissions systems require the oxygen sensor to become operational within seconds after startup.

The heater allows the ECM to:

Without a functioning heater, the ECM must wait for exhaust heat to warm the sensor.

How the ECM Monitors Heater Resistance

During self-tests, the ECM measures:

If heater resistance falls outside calibrated specifications, P0053 is stored.

Unlike P0030-series codes, this diagnostic focuses on the health of the heater element, not simply whether the circuit is electrically open or shorted.

P0053 vs Related Oxygen Sensor Heater Codes

CodeDescription
P0030Heater Control Circuit Bank 1 Sensor 1
P0031Heater Circuit Low Bank 1 Sensor 1
P0032Heater Circuit High Bank 1 Sensor 1
P0053Heater Resistance Bank 1 Sensor 1
P0059Heater Resistance Bank 2 Sensor 1

P0053 often appears before complete heater failure.

Symptoms of P0053

Common symptoms include:

Many drivers notice no symptoms during normal driving.

Common Causes of P0053

1. Aging Heater Element

The most common cause.

After years of heat cycles, heater resistance slowly drifts outside specification.

2. Failed Oxygen Sensor

Internal heater damage commonly causes:

Eventually the heater stops functioning altogether.

3. Incorrect Replacement Sensor

Universal sensors frequently have different heater resistance values than the OEM sensor.

Always use a quality direct-fit replacement.

4. Corroded Connector

Corrosion increases resistance.

Inspect for:

5. Damaged Wiring

Common problems include:

High-resistance wiring can mimic a failing heater.

6. Poor Ground

A poor ground increases circuit resistance and interferes with heater operation.

7. Low Battery Voltage

Low system voltage may affect heater diagnostics.

Inspect:

8. Failed Relay

Some vehicles power multiple oxygen sensor heaters through one relay.

A weak relay may increase resistance under load.

9. Failed ECM Driver

Rare.

Only suspect the ECM after confirming:

Is P0053 Serious?

P0053 is considered low to moderate severity.

The vehicle generally remains drivable.

However, prolonged operation may result in:

Can You Drive With P0053?

Usually yes.

Repair should not be delayed because heater efficiency continues to deteriorate over time.

Think of it as your oxygen sensor slowly deciding retirement sounds more appealing than continued employment.

How to Diagnose P0053

Step 1: Scan for Additional Codes

Look for:

Step 2: Verify Bank 1 Sensor 1

Confirm:

Step 3: Inspect Wiring

Check for:

Step 4: Inspect Connector

Inspect:

Step 5: Measure Heater Resistance

Disconnect the sensor.

Measure resistance across heater terminals.

Compare readings with manufacturer specifications.

Possible results:

Step 6: Check Power Supply

Verify:

Step 7: Perform Voltage Drop Test

Voltage-drop testing identifies:

Step 8: Compare With Bank 2

If the vehicle uses identical sensors, compare:

Differences often reveal a failing heater.

Step 9: Replace Sensor if Necessary

If heater resistance falls outside specification, replace Bank 1 Sensor 1.

Use an OEM-quality direct-fit sensor.

Step 10: Verify Repairs

After repairs:

  1. Clear codes.
  2. Cold-start engine.
  3. Monitor heater operation.
  4. Verify closed-loop operation.
  5. Confirm P0053 does not return.

Common Repairs and Costs

RepairEstimated Cost
Oxygen sensor replacement$150–500
Wiring repair$100–400
Connector repair$75–250
Relay replacement$50–200
Heater fuse$10–50
Battery repair$150–350
ECM replacement$1,000–2,500+

Common Diagnostic Mistakes

Avoid these mistakes:

Vehicles Commonly Affected

P0053 commonly appears on:

How to Prevent P0053

Reduce the likelihood of P0053 by:

Frequently Asked Questions

What does P0053 mean?

P0053 indicates the heater resistance for Bank 1 Sensor 1 falls outside manufacturer specifications.

Is P0053 serious?

Usually not, but repairs should be completed promptly.

Can I drive with P0053?

Yes.

Most vehicles remain drivable.

What causes P0053?

Most commonly:

Will replacing the oxygen sensor fix P0053?

In most cases, yes.

Is P0053 the same as P0030?

No.

P0030 monitors the heater control circuit.

P0053 monitors heater resistance.

Can a weak battery cause P0053?

In some cases, low system voltage can interfere with heater diagnostics.

Does P0053 affect fuel economy?

Yes.

Delayed closed-loop operation can increase fuel consumption during warm-up.

Final Thoughts

The P0053 code indicates the ECM has detected abnormal heater resistance in the Bank 1 Sensor 1 oxygen sensor. Unlike traditional heater circuit faults, this code specifically evaluates the condition of the heater element itself rather than simply checking for an open or short circuit.

In most cases, the fix involves replacing an aging upstream oxygen sensor, but damaged wiring, corroded connectors, poor grounds, and incorrect aftermarket sensors should always be ruled out first. Performing a complete resistance and voltage-drop test before replacing components will help ensure an accurate repair and restore proper fuel control, emissions performance, and cold-start operation.
