B0090 Code Explained: Right Side Airbag Deployment Loop Resistance Low (Subfault)

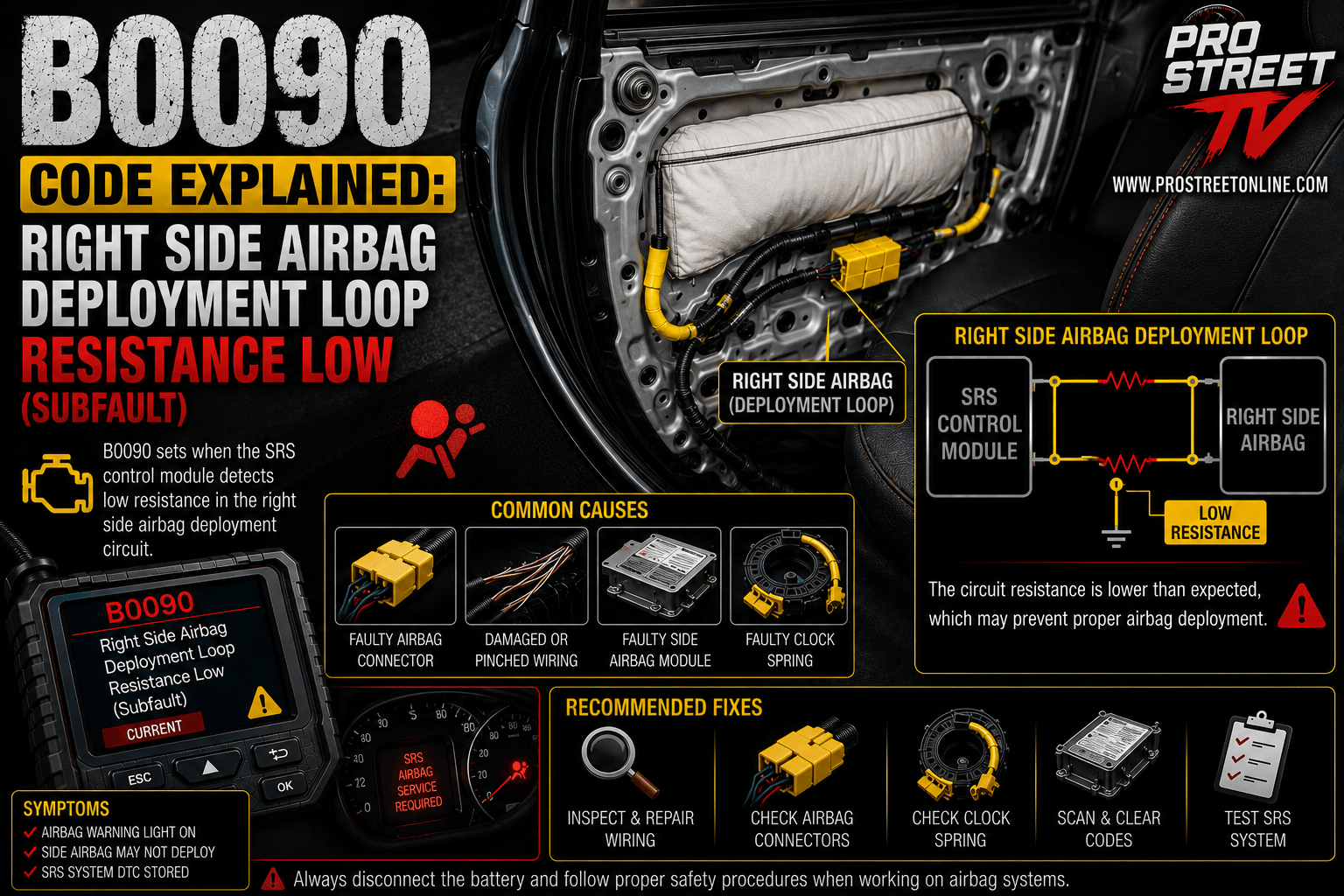

OBD-II scanner displaying B0090 beside a passenger seat with the side airbag highlighted and damaged wiring beneath the seat illustrating a low-resistance deployment circuit fault.

If your scan tool displays B0090, your vehicle has detected lower-than-normal electrical resistance in the Right Side Airbag deployment circuit. This Body (B) diagnostic trouble code (DTC) indicates a fault within the Supplemental Restraint System (SRS) that could prevent the passenger-side side-impact airbag (or right curtain airbag on some vehicles) from deploying properly during a side-impact collision.

The Airbag Control Module (ACM) continuously monitors every airbag deployment loop for proper electrical resistance. If it detects resistance below the manufacturer’s specified range in the Right Side Airbag deployment circuit, it stores B0090 and illuminates the Airbag Warning Light.

A low-resistance fault usually indicates a partial short in the wiring, a damaged connector, moisture contamination, or an internally faulty side airbag module. Because this code affects a critical occupant protection system, it should be diagnosed and repaired immediately.

If you’re researching additional SRS or Body diagnostic trouble codes, visit our Complete OBD-II Trouble Code Guide:

https://my.prostreetonline.com/dtc-obdii

Quick Facts

ItemInformation
OBD-II CodeB0090
DescriptionRight Side Airbag Deployment Loop Resistance Low (Subfault)
CategoryBody (B) Codes
SystemSupplemental Restraint System (SRS)
Severity★★★★★ Critical
Safe to Drive?Mechanically yes, safety-wise no
Common CausesShorted wiring, damaged connectors, faulty side airbag module, moisture intrusion
Typical Repair Cost$150–1,800

What Does B0090 Mean?

The B0090 code indicates the Airbag Control Module (ACM) has detected electrical resistance below the acceptable operating range within the Right Side Airbag deployment circuit.

Depending on the manufacturer, this deployment loop may include:

Each time the ignition is switched on, the ACM performs a self-test by measuring the resistance of every deployment loop. If the resistance is lower than expected, the ACM interprets the condition as a potential electrical short that could prevent proper airbag deployment.

If you’re troubleshooting related SRS codes, you may also find these guides helpful:

Symptoms of B0090

Common symptoms include:

Although the vehicle typically drives normally, the right-side airbag may not deploy correctly during a side-impact collision.

Common Causes

Shorted Wiring

Damaged insulation may allow wiring to contact:

creating a low-resistance condition.

Damaged SRS Connectors

Connector problems may include:

Faulty Side Airbag Module

An internal electrical fault within the passenger-side airbag inflator can reduce deployment circuit resistance.

Passenger Seat Wiring Damage

Because many right-side airbags are integrated into the passenger seat, wiring can become damaged by:

Water Intrusion

Moisture entering connectors or wiring harnesses can change circuit resistance enough to trigger B0090.

Airbag Control Module Failure

Although rare, an internal ACM fault can incorrectly identify a low-resistance condition.

How Serious Is B0090?

Extremely serious.

If the Right Side Airbag deployment circuit is disabled:

Repairs should be completed immediately.

Can You Drive With B0090?

Mechanically, yes.

From a safety standpoint, no.

Although the vehicle will generally continue operating normally, the passenger-side airbag may not deploy properly during a collision.

How to Diagnose B0090

1. Scan the SRS Module

Use a professional scan tool capable of reading manufacturer-specific Body (B) codes.

Most basic OBD-II scanners cannot access the Airbag Control Module.

2. Inspect Passenger Seat Wiring

Inspect wiring beneath the passenger seat for:

3. Inspect SRS Connectors

Inspect connectors for:

4. Verify Circuit Resistance

Following the manufacturer’s approved service information, verify deployment loop resistance using approved SRS diagnostic procedures.

Never apply battery voltage, use a powered test light, or directly probe an airbag inflator. Airbag systems contain pyrotechnic devices and improper testing methods may cause accidental deployment.

5. Inspect the Passenger Side Airbag Module

If wiring and connectors are within specification, inspect the airbag module for:

Common Repairs

RepairEstimated Cost
Repair passenger seat wiring$150–400
Replace SRS connector$100–250
Replace side airbag module$500–1,000
Replace seat wiring harness$250–600
Replace Airbag Control Module$900–1,800

Common Diagnostic Mistakes

A frequent mistake is replacing the passenger-side airbag module before inspecting the wiring beneath the passenger seat.

Many B0090 repairs are ultimately caused by:

Always inspect the complete deployment circuit before replacing expensive SRS components.

Vehicles Commonly Affected

B0090 may appear on vehicles from many manufacturers, including:

Manufacturer-specific wiring diagrams and diagnostic procedures vary by make and model.

How to Prevent B0090

Although not every failure can be prevented, you can reduce the likelihood of B0090 by:

Frequently Asked Questions

What causes B0090?

Common causes include shorted wiring, damaged passenger seat wiring, loose or contaminated SRS connectors, a faulty side airbag module, moisture intrusion, or a defective Airbag Control Module.

Is B0090 dangerous?

Yes.

The code can disable the right-side airbag deployment circuit, reducing passenger protection during a side-impact collision.

Can moving the passenger seat cause B0090?

Yes.

Repeated seat movement can stretch, pinch, or damage wiring beneath the passenger seat, resulting in a low-resistance fault.

Can I clear B0090 myself?

Yes.

However, unless the underlying electrical problem has been repaired, the code will generally return during the next SRS self-test.

Will B0090 affect vehicle performance?

No.

The code only affects the Supplemental Restraint System and has no impact on engine, transmission, steering, or braking performance.

Final Thoughts

The B0090 code indicates that the Right Side Airbag deployment circuit has lower-than-normal electrical resistance, most commonly caused by damaged passenger seat wiring, shorted circuits, faulty connectors, moisture intrusion, or an internally defective side airbag module.

Although the vehicle will usually continue driving normally, the passenger-side airbag may not deploy properly during a side-impact collision. Prompt diagnosis using manufacturer-approved SRS procedures is essential to restore the full protection offered by the Supplemental Restraint System.

For additional airbag diagnostics and Body code repair guides, browse our complete Body (B) OBD-II Code Library:

https://my.prostreetonline.com/category/how-to/dtc-obdii
