If you’ve ever rebuilt an LS engine, installed a camshaft, upgraded a harmonic balancer, or simply replaced a front crank seal, you’ve encountered one of the most critical fasteners in the entire engine: the LS damper bolt.
Despite its simple appearance, the crankshaft damper bolt is responsible for securing the harmonic balancer to the crankshaft snout. If it loosens, stretches improperly, or is reused when it shouldn’t be, the results can range from annoying belt issues to catastrophic engine damage.
Here’s everything you need to know about LS damper bolt torque specs, installation procedures, and why many builders upgrade to aftermarket hardware.
What Does the LS Damper Bolt Do?
The harmonic balancer, also known as the crankshaft damper, helps absorb torsional vibrations created by the crankshaft during engine operation.
The damper bolt provides the clamping force necessary to keep the balancer securely mounted to the crankshaft.
Without adequate clamping force, the balancer can:
- Shift on the crankshaft
- Damage the crank snout
- Cause timing inaccuracies
- Create accessory drive issues
- Lead to catastrophic crankshaft failure
That’s why proper torque procedures matter.
Factory LS Damper Bolt Torque Specs
Most Gen III and Gen IV LS engines use a torque-to-yield (TTY) crankshaft bolt.
GM’s installation procedure requires:
| Step | Torque Specification |
|---|---|
| Initial Torque | 110 lb-ft |
| Loosen Bolt | One Full Turn |
| Re-Torque | 37 lb-ft |
| Final Tightening | Additional 140 Degrees |
Many builders simplify this process using updated GM specifications based on the exact engine family, but the concept remains the same: the bolt is intentionally stretched during installation.
According to LS engine builder Mike Mavrigian, the OEM installation process is considerably more involved than using an aftermarket fastener.
Why LS Damper Bolts Are Torque-To-Yield
A torque-to-yield fastener is designed to stretch beyond its elastic range.
Advantages include:
- Consistent clamping force
- Better vibration resistance
- Improved reliability
- Reduced chance of bolt loosening
The downside?
They’re generally considered one-time-use fasteners.
Reusing a stretched crank bolt is gambling with the health of your engine.
And let’s be honest: rebuilding an LS because you wanted to save twelve bucks on a bolt is peak automotive optimism.
Can You Reuse an LS Crankshaft Bolt?
The short answer is no.
GM recommends replacing the crankshaft bolt whenever it is removed.
Reusing a torque-to-yield bolt can result in:
- Improper clamping force
- Balancer movement
- Bolt failure
- Crankshaft damage
When replacing a front cover, timing chain, oil pump, or balancer, always budget for a new crank bolt.

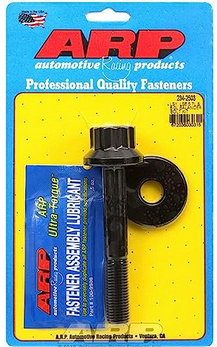

Why Many Builders Upgrade to ARP Damper Bolts
Performance builders often replace the factory bolt with an aftermarket ARP crankshaft bolt.
Benefits include:
Higher Tensile Strength
ARP hardware is significantly stronger than factory hardware.
Reusable Design
Unlike factory torque-to-yield bolts, ARP fasteners can generally be reused when installed according to manufacturer guidelines.
Easier Installation
Instead of GM’s multi-step procedure, many ARP bolts utilize a straightforward torque specification.
The LS engine book specifically highlights the simplicity and strength advantages of the ARP alternative.
Installing an LS Harmonic Balancer Correctly
One of the most common mistakes is attempting to hammer or force a balancer onto the crankshaft.
Proper installation requires:
- Clean crankshaft snout
- Light lubricant on the mating surfaces
- Dedicated balancer installation tool
- Correct torque procedure
- Verification of full seating
Many aftermarket dampers maintain an interference fit and require careful installation techniques.
When Should You Upgrade Your Harmonic Balancer?
A factory damper works well for most stock applications.
However, performance builds often benefit from aftermarket solutions.
Consider upgrading if you’re running:
- Turbochargers
- Superchargers
- Nitrous oxide
- High-RPM racing applications
- Stroker crankshafts
- 600+ horsepower combinations
Performance dampers help reduce crankshaft harmonics and improve durability under heavy loads.
Signs of a Failing Harmonic Balancer
Watch for:
- Belt wobble
- Engine vibration
- Timing inconsistencies
- Visible rubber separation
- Chirping noises from accessories
- Crank pulley runout
Ignoring these symptoms can lead to much larger engine problems.
Frequently Asked Questions
What size socket fits an LS crank bolt?
Most LS crank bolts require a 24mm socket, though you should verify based on engine generation and aftermarket hardware.
Can I install an LS balancer without a tool?
No. Attempting to hammer the balancer into place can damage the crankshaft, balancer, or thrust bearing.
Is an ARP crank bolt worth it?
For performance applications, absolutely. The additional strength and simplified installation procedure make it one of the most common LS upgrades.
Do turbo LS engines need an upgraded balancer?
While not mandatory, upgraded dampers become increasingly important as horsepower and cylinder pressure rise.
Final Verdict
The LS damper bolt may be one of the smallest components on the engine, but it’s responsible for securing one of the most important rotating assemblies in the drivetrain.
Following the correct torque procedure, replacing torque-to-yield hardware when necessary, and considering an ARP upgrade are inexpensive steps that can prevent major engine damage later.
When you’re investing thousands into an LS build, the last thing you want is a harmonic balancer deciding it no longer wishes to participate in the program.
