P0740 Code Explained: Torque Converter Clutch (TCC) Circuit Malfunction Causes, Symptoms & Fixes

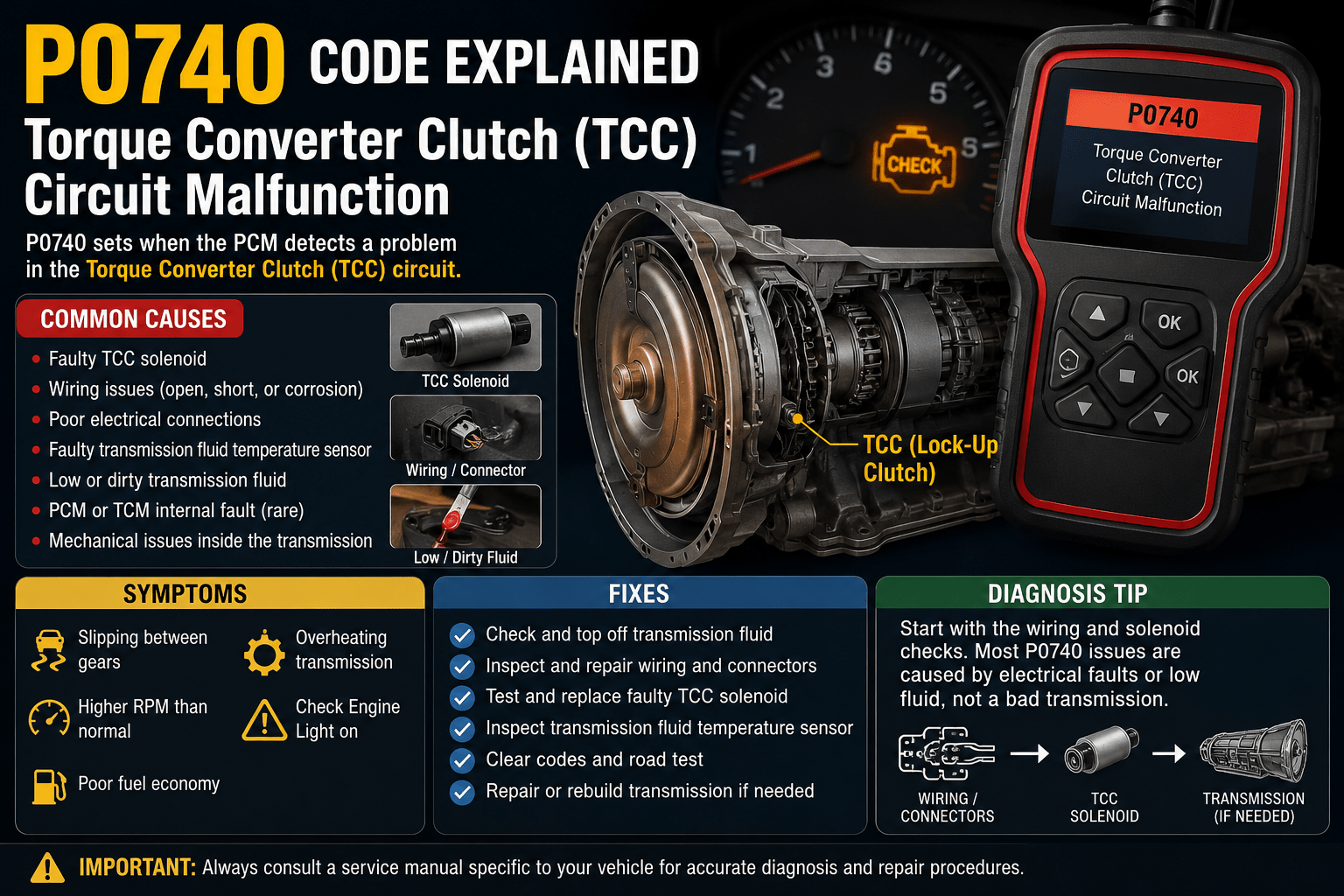

P0740 code illustration showing a torque converter, Torque Converter Clutch (TCC) solenoid, automatic transmission, Check Engine Light, Pro Street TV logo, and www.ProStreetOnline.com.

If your OBD-II scanner displays P0740, your vehicle’s Powertrain Control Module (PCM) or Transmission Control Module (TCM) has detected a malfunction in the Torque Converter Clutch (TCC) circuit.

The generic OBD-II definition for P0740 is:

Torque Converter Clutch (TCC) Circuit Malfunction

The Torque Converter Clutch (TCC) is designed to eliminate the normal hydraulic slip inside the torque converter once the vehicle reaches cruising speed. By mechanically locking the engine to the transmission, the TCC improves fuel economy, lowers transmission temperatures, and reduces engine RPM during highway driving.

The PCM or TCM controls the TCC using an electronically operated solenoid. When the module commands the clutch to engage but detects that it failed to respond correctly—or if it detects an electrical problem within the circuit—it stores P0740 and illuminates the Check Engine Light.

The TCC system helps control:

Common causes include:

Because the torque converter directly affects transmission performance, P0740 should be diagnosed promptly to prevent additional transmission wear.

What Does the P0740 Code Mean?

The torque converter normally allows a small amount of hydraulic slip between the engine and transmission.

At cruising speeds, the PCM commands the Torque Converter Clutch to engage.

Once engaged, the TCC:

If the PCM commands lockup but does not see the expected response—or detects an electrical fault in the TCC circuit—it stores P0740.

What Is the Torque Converter Clutch?

The Torque Converter Clutch (TCC) is an internal clutch located inside the torque converter.

Unlike older automatic transmissions that always allowed hydraulic slip, modern transmissions lock the converter during steady-speed driving to improve efficiency.

The TCC consists of:

When operating correctly, the driver may never notice the clutch engaging.

Why the Torque Converter Clutch Is Important

The TCC plays a major role in transmission performance.

It helps improve:

Without proper lockup, excessive converter slip creates unnecessary heat that shortens transmission life.

How the PCM Detects P0740

The PCM or TCM continuously monitors:

If the commanded lockup does not match actual transmission behavior—or an electrical fault is detected—the module stores P0740.

Many manufacturers require the fault to occur during multiple drive cycles before illuminating the Check Engine Light.

What Does “Torque Converter Clutch Circuit Malfunction” Mean?

P0740 does not automatically mean the torque converter itself has failed.

Instead, it indicates the control module has detected a malfunction somewhere within the TCC control circuit or hydraulic system.

Possible causes include:

Proper diagnosis is essential before replacing expensive transmission components.

Can a Bad Torque Converter Cause P0740?

Yes.

A worn or damaged torque converter can prevent proper clutch engagement.

Common failures include:

In these cases, replacing only the solenoid will not correct the problem.

Can a Bad TCC Solenoid Cause P0740?

Absolutely.

The Torque Converter Clutch Solenoid is one of the most common causes of P0740.

Common failures include:

A failed solenoid prevents the PCM from properly controlling converter lockup.

Can Low Transmission Fluid Cause P0740?

Yes.

Low or contaminated transmission fluid can reduce hydraulic pressure needed to apply the torque converter clutch.

This may result in:

Always verify transmission fluid condition before replacing components.

Can Wiring Problems Cause P0740?

Definitely.

Inspect for:

Transmission wiring is frequently exposed to harsh operating conditions.

P0740 Quick Facts

ItemInformation
DTCP0740
Generic DefinitionTorque Converter Clutch Circuit Malfunction
SystemAutomatic Transmission
SeverityHigh
Safe to Drive?Limited driving only
Common SymptomsCheck Engine Light, high RPM, poor fuel economy, harsh shifting, transmission overheating
Common CausesFailed TCC solenoid, faulty torque converter, low fluid, wiring faults
Typical Repair Cost$150–4,500+
Related CodesP0741, P0742, P0743, P0744, P2761

Common Vehicles That Experience P0740

P0740 commonly appears on:

It is especially common on:

What Does P0740 Really Mean?

Many drivers immediately assume P0740 means the transmission has failed.

Fortunately, that is not always true.

The control module is actually reporting:

“The Torque Converter Clutch system is not operating as expected. Inspect the electrical circuit, hydraulic controls, and torque converter before replacing major transmission components.”

The underlying problem may involve:

Many P0740 repairs involve electrical or hydraulic faults rather than complete transmission replacement.

Common P0740 Scan Tool Patterns

Using a professional scan tool is one of the best ways to diagnose P0740.

Because the Torque Converter Clutch (TCC) is electronically controlled, live transmission data can quickly determine whether the problem is electrical, hydraulic, or mechanical.

Modern scan tools may display:

Monitoring these values often reveals whether the torque converter is locking properly.

Pattern 1: TCC Commanded ON but Never Locks

One of the most common scan-tool patterns is:

Possible causes include:

The PCM commands lockup, but the converter never fully engages.

Pattern 2: High TCC Slip RPM

Live data may show:

Possible causes include:

Excessive slip generates heat that shortens transmission life.

Pattern 3: Transmission Overheating

Scan data may show:

Possible causes include:

Transmission overheating commonly accompanies TCC failures.

Pattern 4: Harsh Lockup or Converter Shudder

Some vehicles exhibit:

Possible causes include:

Converter shudder often occurs between 35 and 60 MPH during steady cruising.

Pattern 5: Electrical Circuit Failure

Scan tool data may show:

Possible causes include:

Electrical faults are among the most common causes of P0740.

Pattern 6: Freeze-Frame During Highway Driving

Freeze-frame data frequently shows:

These are the operating conditions where torque converter lockup normally occurs.

Pattern 7: Additional Transmission Codes Present

P0740 often appears with:

Multiple transmission codes usually point toward a broader electrical or hydraulic problem.

Common Symptoms of P0740

Symptoms vary depending on the severity of the converter clutch malfunction.

Common symptoms include:

Some vehicles may exhibit only slightly higher highway RPM before additional symptoms develop.

Check Engine Light

The Check Engine Light is usually the first symptom.

Many vehicles also store additional transmission codes that help identify the underlying fault.

High Engine RPM

Because the converter never fully locks:

Drivers often notice:

This is one of the easiest symptoms to recognize.

Poor Fuel Economy

Without converter lockup:

Many drivers first notice P0740 after a sudden drop in fuel economy.

Torque Converter Shudder

Some vehicles develop:

This symptom often indicates a worn converter clutch or contaminated transmission fluid.

Transmission Overheating

Excessive converter slip generates heat.

Drivers may notice:

Ignoring overheating can result in severe internal transmission damage.

Is P0740 Serious?

Yes. P0740 is considered a high-severity diagnostic trouble code.

Although many vehicles remain drivable initially, prolonged converter slip may cause:

Prompt diagnosis is strongly recommended.

Can You Drive With P0740?

Limited driving may be possible, but repairs should not be delayed.

Avoid driving if you notice:

Long-distance highway driving with P0740 can significantly shorten transmission life.

P0740 vs Related Trouble Codes

Understanding related transmission codes simplifies diagnosis.

P0740

Torque Converter Clutch Circuit Malfunction

General malfunction affecting the TCC electrical or hydraulic control system.

P0741

Torque Converter Clutch Performance or Stuck Off

The converter clutch fails to engage properly despite being commanded on.

P0742

Torque Converter Clutch Stuck On

The converter clutch remains engaged when it should release.

P0743

Torque Converter Clutch Electrical Malfunction

The PCM detects an electrical fault in the TCC solenoid circuit.

P0744

Torque Converter Clutch Circuit Intermittent

The converter clutch signal becomes intermittent during operation.

P2761

Torque Converter Clutch Pressure Control Solenoid Control Circuit

A fault exists within the pressure control solenoid responsible for TCC operation.

30 Common Causes of P0740

The most common causes include:

  1. Failed TCC solenoid
  2. Worn torque converter clutch
  3. Internal torque converter failure
  4. Low transmission fluid
  5. Contaminated transmission fluid
  6. Burnt transmission fluid
  7. Valve body failure
  8. Hydraulic pressure loss
  9. Worn transmission pump
  10. Internal clutch wear
  11. Damaged wiring harness
  12. Corroded electrical connectors
  13. Open TCC circuit
  14. Shorted wiring
  15. Water intrusion
  16. Poor ground connection
  17. Input speed sensor failure
  18. Output speed sensor failure
  19. Transmission overheating
  20. Clogged transmission filter
  21. Internal hydraulic leaks
  22. Torque converter seal failure
  23. CAN Bus communication issue
  24. TCM software issue
  25. PCM calibration issue
  26. Weak battery voltage
  27. Charging system problems
  28. Internal valve body wear
  29. Failed TCM driver
  30. Failed PCM or TCM (rare)

Final Thoughts

The P0740 Torque Converter Clutch Circuit Malfunction code indicates the PCM or TCM has detected a problem preventing proper torque converter clutch operation.

Fortunately, failed TCC solenoids, contaminated transmission fluid, wiring faults, valve body problems, and worn torque converters account for the vast majority of P0740 repairs.

Proper diagnosis should determine whether the fault originates in:

The next section of this guide covers:

Following a systematic diagnostic process prevents unnecessary transmission replacement while restoring proper converter lockup, improving fuel economy, lowering transmission temperatures, and extending transmission life.

Related Pro Street Diagnostic Guides

How to Diagnose the P0740 Code

Diagnosing P0740 requires determining why the Powertrain Control Module (PCM) or Transmission Control Module (TCM) has detected a malfunction in the Torque Converter Clutch (TCC) circuit.

Unlike P0741, P0742, P0743, or P0744, which identify more specific torque converter clutch faults, P0740 is a general TCC circuit malfunction that requires systematic testing of both the electrical and hydraulic systems.

The underlying problem may involve:

Because continued torque converter slip creates excessive transmission heat, P0740 should be diagnosed promptly to prevent expensive transmission damage.

Safety Precautions

Before beginning diagnosis:

Automatic transmission fluid can become extremely hot during normal operation.

Tools Required

Professional diagnosis may require:

A professional scan tool capable of monitoring TCC operation is strongly recommended.

Step 1 – Verify the Code

Connect a professional scan tool.

Record:

Monitor:

Never erase diagnostic codes before recording freeze-frame information.

Step 2 – Check for Related Trouble Codes

P0740 frequently appears with:

Related codes often identify whether the problem is electrical, hydraulic, or mechanical.

Code CombinationLikely Diagnosis
P0740 onlyGeneral TCC circuit fault
P0740 + P0743Electrical circuit problem
P0740 + P0741Torque converter clutch performance issue
P0740 + P0700Additional TCM transmission fault
P0740 + P2761Pressure control solenoid problem

Step 3 – Review Freeze-Frame Data

Review:

Determine whether the fault occurred:

Most TCC faults occur during steady-speed highway driving.

Step 4 – Check Transmission Fluid

Inspect:

Healthy automatic transmission fluid should:

Low or contaminated fluid commonly contributes to converter clutch problems.

Step 5 – Perform a Visual Inspection

Inspect:

Look for:

Electrical faults are often discovered during a careful visual inspection.

Step 6 – Inspect Electrical Connectors

Disconnect transmission electrical connectors.

Inspect for:

Repair connector damage before replacing expensive transmission components.

Step 7 – Verify Battery and Charging System Voltage

Low voltage can interfere with transmission electronics.

Normal voltage:

Correct charging system faults before continuing diagnosis.

Step 8 – Monitor Live Transmission Data

Using the scan tool, monitor:

The TCC should engage during steady highway driving, reducing engine RPM and converter slip.

Step 9 – Test the TCC Solenoid

Disconnect the transmission connector.

Using manufacturer specifications:

Verify:

Replace the solenoid only after confirming an electrical failure.

Step 10 – Verify Wiring Continuity

Using a multimeter:

Inspect:

Repair damaged wiring before replacing the torque converter.

Step 11 – Verify Hydraulic Line Pressure

If slipping or delayed lockup is present:

Install a transmission hydraulic pressure gauge.

Compare pressure readings to manufacturer specifications.

Low pressure may indicate:

Step 12 – Inspect the Valve Body

If electrical testing passes:

Inspect the valve body for:

Valve body wear commonly causes improper TCC operation.

Step 13 – Evaluate Torque Converter Operation

If scan data indicates excessive converter slip:

Inspect for:

A failed torque converter often requires transmission removal.

Step 14 – Review Technical Service Bulletins

Before replacing expensive components:

Review manufacturer Technical Service Bulletins (TSBs).

Manufacturers occasionally release updates addressing:

Step 15 – Inspect Transmission Cooling System

Inspect:

Restricted cooling may contribute to overheating and repeated TCC failures.

Step 16 – Perform a Road Test

Monitor live scan tool data while driving.

Observe:

Attempt to duplicate the operating conditions recorded in freeze-frame data.

Step 17 – Verify Operation at Normal Temperature

Many converter clutch problems occur only after warming up.

Drive until:

Continue monitoring:

Step 18 – Perform Adaptive Relearn (If Required)

Some manufacturers require adaptive relearning after:

Follow the factory relearn procedure whenever applicable.

Step 19 – Complete an OBD-II Drive Cycle

After repairs:

Verify P0740 does not return.

Step 20 – Confirm the Diagnosis

Before replacing expensive transmission components, verify:

Completing these diagnostic procedures prevents unnecessary transmission replacement while accurately identifying the root cause of P0740.

Step 21 – Replace the Torque Converter Clutch (TCC) Solenoid

If testing confirms the Torque Converter Clutch (TCC) solenoid has failed, replacement is the proper repair.

Common signs of TCC solenoid failure include:

General replacement procedure:

  1. Disconnect the negative battery cable.
  2. Safely raise and support the vehicle.
  3. Drain the transmission fluid if required.
  4. Remove the transmission oil pan.
  5. Remove the transmission filter.
  6. Disconnect the TCC solenoid.
  7. Install the new OEM-quality solenoid.
  8. Replace the transmission filter and pan gasket.
  9. Refill the transmission with the correct fluid.
  10. Clear diagnostic trouble codes.

Many modern transmissions require a TCM adaptive relearn following solenoid replacement.

Step 22 – Repair Wiring Problems

Inspect the complete TCC wiring harness.

Look for:

Repair wiring using:

Many intermittent P0740 faults are caused by damaged wiring rather than internal transmission failure.

Step 23 – Repair or Replace Electrical Connectors

Inspect transmission electrical connectors for:

Replace damaged connectors using OEM repair kits whenever possible.

Poor electrical contact frequently causes intermittent TCC operation.

Step 24 – Service the Transmission Fluid

If transmission fluid is:

Perform the appropriate transmission service.

Depending on manufacturer recommendations:

Fresh fluid often restores proper hydraulic operation if contamination is the primary issue.

Step 25 – Repair or Replace the Valve Body

If diagnosis identifies valve body problems:

Inspect for:

Repair or replace the valve body according to factory procedures.

Valve body failures commonly prevent proper TCC hydraulic application.

Step 26 – Replace the Torque Converter

If testing confirms internal converter failure:

Replace:

Always inspect the transmission pump while the converter is removed.

A worn converter clutch cannot be repaired separately—the entire torque converter must be replaced.

Step 27 – Repair Internal Transmission Damage

If inspection reveals internal wear:

Repairs may include:

Major internal repairs should only be performed after electrical and hydraulic faults have been eliminated.

Step 28 – Update PCM or TCM Software

Before replacing expensive components:

Review manufacturer Technical Service Bulletins (TSBs).

Manufacturers occasionally release software updates addressing:

Install the latest available calibration whenever applicable.

Step 29 – Perform a Transmission Adaptive Relearn

After repairs involving:

Perform the manufacturer’s adaptive relearn procedure.

This allows the TCM to relearn:

Failure to perform relearning may result in harsh shifts or improper converter operation.

Step 30 – Verify the Repair

After completing repairs:

  1. Clear all diagnostic trouble codes.
  2. Verify proper transmission fluid level.
  3. Start the engine.
  4. Allow the transmission to reach operating temperature.
  5. Road test the vehicle.
  6. Monitor live TCC data.
  7. Verify converter lockup occurs at highway speeds.
  8. Confirm engine RPM drops appropriately during lockup.
  9. Verify no pending or permanent DTCs return.

A successful repair restores proper torque converter lockup, improves fuel economy, reduces transmission temperatures, and ensures smooth highway operation.

How to Fix P0740

The correct repair depends on the diagnostic results.

Common repairs include:

Never replace the torque converter or transmission until electrical testing and hydraulic diagnostics have been completed.

Typical Repair Costs

RepairTypical Cost
Professional diagnosis$100–250
Transmission fluid & filter service$175–400
TCC solenoid replacement$300–900
Wiring repair$100–350
Connector replacement$75–250
Valve body repair/replacement$700–2,000
Torque converter replacement$900–2,500
Transmission pump repair$800–2,000
PCM/TCM software update$100–250
Transmission rebuild$2,500–6,500+
Replacement transmission$3,500–8,000+

Repair costs vary depending on transmission type, vehicle design, and labor rates.

Common Diagnostic Mistakes

Avoid these common mistakes:

Many P0740 repairs involve electrical or hydraulic faults—not catastrophic transmission failure.

Manufacturer-Specific Notes

General Motors (Chevrolet, GMC, Cadillac, Buick)

Inspect:

Valve body wear is a common cause of persistent TCC problems on higher-mileage GM transmissions.

Ford/Lincoln

Inspect:

Several Ford transmissions benefit from updated valve body components and software calibrations.

Chrysler, Dodge, Jeep, Ram

Inspect:

Low line pressure commonly contributes to TCC performance issues.

Toyota/Lexus

Inspect:

Toyota transmissions are particularly sensitive to overdue transmission fluid maintenance.

Nissan/Infiniti

Inspect:

Always verify software updates before replacing expensive transmission components.

Honda/Acura

Inspect:

Honda transmissions often experience lockup issues when incorrect fluid has been used.

Frequently Asked Questions

What usually fixes P0740?

The most common repairs include replacing the TCC solenoid, servicing contaminated transmission fluid, repairing damaged wiring, repairing the valve body, or replacing a worn torque converter.

Can I drive with P0740?

Limited driving may be possible, but repairs should be completed quickly. Driving long distances with excessive converter slip can overheat the transmission and accelerate internal wear.

Does P0740 mean I need a new transmission?

No. P0740 often results from a faulty TCC solenoid, contaminated transmission fluid, wiring faults, or valve body problems. Many vehicles can be repaired without replacing the entire transmission.

Can dirty transmission fluid cause P0740?

Yes. Dirty or degraded transmission fluid can reduce hydraulic pressure, contaminate the TCC solenoid, restrict valve body operation, and prevent proper torque converter clutch engagement.

Is P0740 a serious code?

Yes. P0740 is considered a high-severity diagnostic trouble code. Ignoring the problem can lead to transmission overheating, poor fuel economy, excessive clutch wear, and eventually major transmission damage if converter slip continues.

Final Thoughts

The P0740 Torque Converter Clutch Circuit Malfunction code indicates the PCM or TCM has detected a problem affecting proper torque converter lockup. While the code is serious, it does not automatically mean the transmission requires replacement.

Fortunately, failed TCC solenoids, contaminated transmission fluid, damaged wiring, valve body wear, and worn torque converters account for the majority of P0740 repairs.

A complete diagnosis should always verify:

Following a systematic diagnostic process prevents unnecessary transmission replacement while restoring proper converter lockup, improving fuel economy, lowering transmission temperatures, and extending transmission life.

Continue Your Pro Street Transmission Diagnostics Series

Related guides include:

Exit mobile version
