P0440 Code Explained: Evaporative Emission Control System (EVAP) Malfunction Causes, Symptoms & Fixes

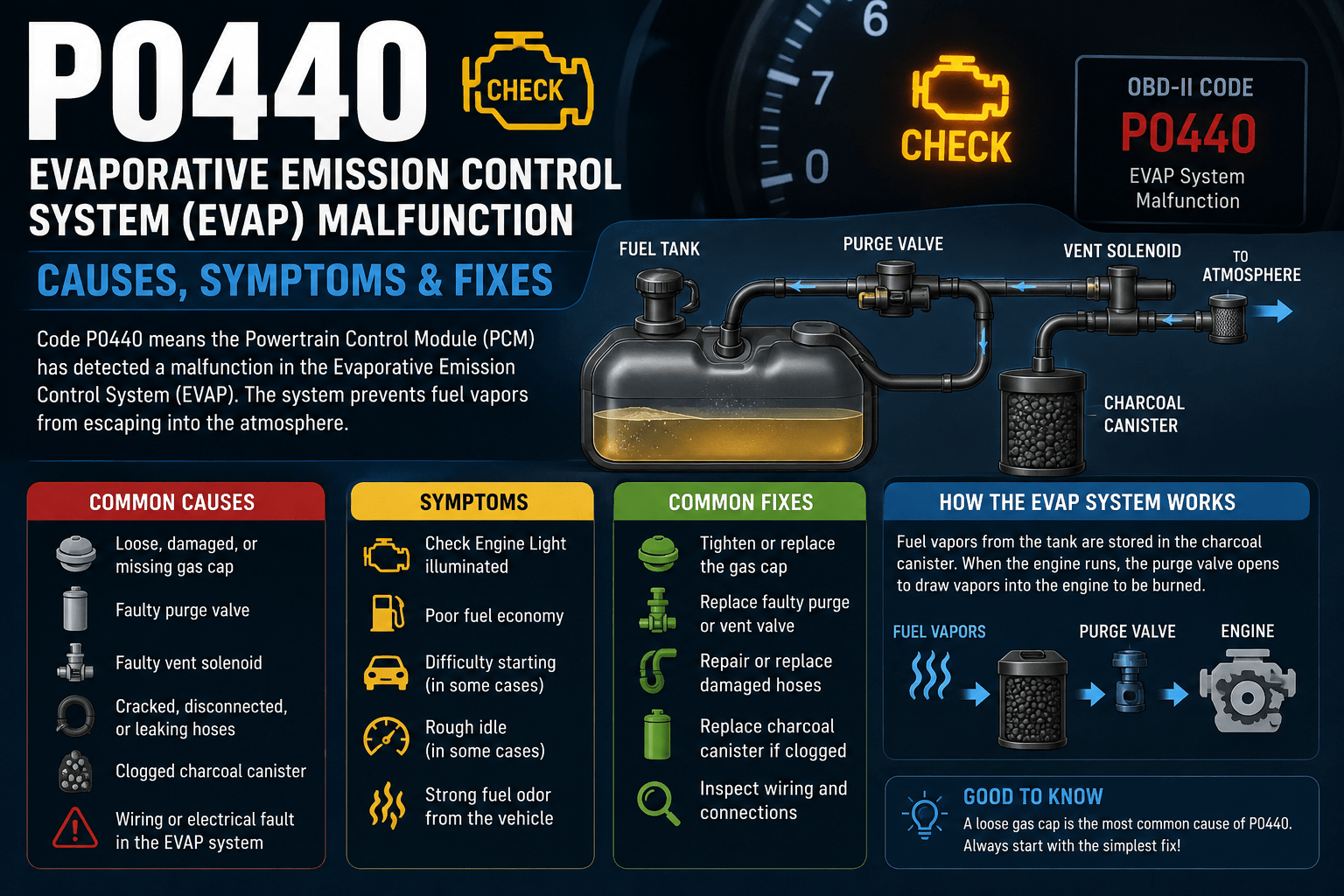

P0440 code illustration showing an EVAP system with a fuel tank, charcoal canister, purge valve, vent valve, fuel cap, Check Engine Light, Pro Street TV logo, and www.ProStreetOnline.com.

If your OBD-II scanner displays P0440, your vehicle’s Engine Control Module (ECM) or Powertrain Control Module (PCM) has detected a malfunction within the Evaporative Emission Control (EVAP) system.

The generic OBD-II definition for P0440 is:

Evaporative Emission Control System Malfunction

Unlike P0442 (Small EVAP Leak) or P0455 (Large EVAP Leak), which identify specific leak sizes, P0440 indicates the PCM has detected a general fault somewhere within the EVAP system but cannot determine the exact failure.

The EVAP system prevents gasoline vapors from escaping into the atmosphere by storing fuel vapors inside a charcoal canister until they can be safely burned by the engine.

Modern EVAP systems continuously monitor:

If the PCM determines the EVAP system cannot properly maintain or monitor fuel vapor containment, it stores P0440 and illuminates the Check Engine Light.

Common causes include:

Fortunately, P0440 usually does not affect engine drivability, but it will prevent many vehicles from passing an emissions inspection until repaired.

What Does the P0440 Code Mean?

The EVAP system captures fuel vapors produced inside the fuel tank.

Instead of allowing gasoline vapors to escape into the atmosphere, the system stores them in a charcoal canister.

When engine operating conditions are correct, the PCM opens the purge valve and allows those vapors to enter the intake manifold, where they are burned during normal combustion.

If the PCM cannot properly control or monitor this sealed system, it stores P0440.

Unlike leak-specific EVAP codes, P0440 simply means the EVAP system is not operating as expected.

What Is the EVAP System?

The Evaporative Emission Control System (EVAP) is designed to reduce hydrocarbon emissions by preventing gasoline vapors from escaping.

Major EVAP components include:

Together, these components create a sealed system that captures and recycles fuel vapors.

Why Proper EVAP Operation Matters

The EVAP system helps:

Although a failed EVAP system rarely causes engine damage, it often results in emissions failures and persistent Check Engine Lights.

How the PCM Detects P0440

The PCM periodically performs self-tests on the EVAP system.

Depending on the manufacturer, it monitors:

If the EVAP system fails one or more of these tests without identifying a specific leak size, the PCM stores P0440.

Most manufacturers require the fault to occur on multiple drive cycles before the Check Engine Light is illuminated.

What Does “EVAP System Malfunction” Mean?

P0440 does not identify one specific failed component.

Instead, it means the PCM has detected a general malfunction somewhere within the EVAP system.

Possible causes include:

Further testing is required to pinpoint the exact fault.

Can a Loose Gas Cap Cause P0440?

Absolutely.

One of the most common causes of P0440 is:

Always inspect the fuel cap before replacing expensive EVAP components.

A simple gas cap replacement often resolves the problem.

Can a Bad Purge Valve Cause P0440?

Yes.

The EVAP purge valve controls when stored fuel vapors enter the engine.

Common purge valve failures include:

A faulty purge valve is one of the most common causes of EVAP system faults.

Can Damaged EVAP Hoses Cause P0440?

Definitely.

Inspect all vapor lines for:

Small hose leaks may trigger P0440 even though no fuel smell is noticeable.

Can the Charcoal Canister Fail?

Yes.

The charcoal canister stores gasoline vapors until they are purged into the engine.

Common failures include:

Overfilling the fuel tank repeatedly is a common cause of charcoal canister damage.

P0440 Quick Facts

ItemInformation
DTCP0440
Generic DefinitionEvaporative Emission Control System Malfunction
SystemEVAP / Emissions
SeverityLow to Moderate
Safe to Drive?Yes
Common SymptomsCheck Engine Light, failed emissions test, fuel odor (sometimes)
Common CausesLoose gas cap, purge valve, vent valve, EVAP hoses, charcoal canister
Typical Repair Cost$25–900+
Related CodesP0441, P0442, P0446, P0455, P0456, P0457

Common Vehicles That Experience P0440

P0440 is commonly found on:

It is especially common on:

What Does P0440 Really Mean?

Many vehicle owners immediately assume P0440 means there is a major fuel system failure.

In reality, the code simply means the PCM has detected a malfunction somewhere within the EVAP system.

The underlying problem may involve:

Think of P0440 as the PCM saying:

“I know the EVAP system isn’t operating correctly, but additional testing is needed to determine exactly which component has failed.”

Common P0440 Scan Tool Patterns

Using a professional scan tool is one of the most effective ways to diagnose P0440.

Unlike P0442 (Small EVAP Leak) or P0455 (Large EVAP Leak), P0440 indicates a general EVAP system malfunction without identifying the exact component that has failed.

Modern scan tools may display:

Monitoring these values can quickly identify whether the problem involves the purge valve, vent valve, pressure sensor, or a leak within the EVAP system.

Pattern 1: EVAP Monitor Will Not Complete

One of the most common scan-tool patterns is:

Possible causes include:

An incomplete EVAP monitor usually indicates the PCM cannot successfully complete its self-test.

Pattern 2: Fuel Tank Pressure Never Changes

During an EVAP self-test, the PCM expects fuel tank pressure to change.

If scan data shows:

Possible causes include:

The PCM interprets this as an EVAP system malfunction.

Pattern 3: Purge Valve Commanded On With No Response

Using a bidirectional scan tool:

Possible causes include:

A functioning purge valve should produce measurable changes in EVAP system pressure.

Pattern 4: Vent Valve Does Not Seal

During EVAP testing, the PCM closes the vent valve.

If live data shows:

Possible causes include:

This commonly triggers P0440.

Pattern 5: Freeze-Frame Data After Refueling

Many P0440 codes appear shortly after refueling.

Possible causes include:

Always inspect the fuel cap before replacing EVAP components.

Pattern 6: No Drivability Symptoms

Many vehicles with P0440 show:

The only noticeable symptom may be the Check Engine Light.

This is perfectly normal because the EVAP system primarily controls emissions rather than engine performance.

Pattern 7: Fuel Odor Near the Vehicle

Some drivers notice:

Possible causes include:

Fuel odor should always be investigated immediately.

Common Symptoms of P0440

Symptoms vary depending on the exact EVAP system failure.

Common symptoms include:

Most vehicles continue driving normally.

Check Engine Light

The Check Engine Light is almost always the first symptom.

Many drivers discover P0440 during routine maintenance or emissions testing.

Failed Emissions Inspection

P0440 is one of the most common reasons vehicles fail emissions testing.

Reasons include:

Many states automatically reject vehicles with active EVAP system faults.

Fuel Odor

A noticeable gasoline smell may indicate:

Fuel odors should never be ignored.

Hard Starting After Refueling

Although uncommon, some vehicles may experience:

A purge valve stuck open is often responsible.

Is P0440 Serious?

P0440 is generally considered a low-to-moderate severity diagnostic trouble code.

While it rarely affects engine performance, ignoring it may result in:

Repairs should be completed before emissions testing.

Can You Drive With P0440?

Yes.

In nearly all cases, driving remains safe because the EVAP system does not directly control engine operation.

However, repairs should not be delayed if you notice:

Any evidence of liquid fuel leakage should be addressed immediately.

P0440 vs Related Trouble Codes

Understanding related EVAP codes helps simplify diagnosis.

P0440

Evaporative Emission Control System Malfunction

General EVAP system failure without identifying a specific leak size.

P0441

Incorrect Purge Flow

The purge valve is not allowing the expected vapor flow.

P0442

Small EVAP Leak Detected

The PCM has identified a small leak in the EVAP system.

P0446

EVAP Vent Control Circuit Malfunction

Electrical or mechanical fault affecting the vent valve.

P0455

Gross EVAP Leak Detected

A major leak exists somewhere within the EVAP system.

P0456

Very Small EVAP Leak Detected

The PCM has detected an extremely small vapor leak.

30 Common Causes of P0440

The most common causes include:

  1. Loose fuel cap
  2. Missing fuel cap
  3. Damaged fuel cap seal
  4. Incorrect aftermarket fuel cap
  5. Failed purge valve
  6. Stuck purge valve
  7. Failed vent valve
  8. Stuck vent valve
  9. Cracked EVAP hose
  10. Split vapor line
  11. Damaged charcoal canister
  12. Fuel-saturated charcoal canister
  13. Faulty fuel tank pressure sensor
  14. Leak Detection Pump failure
  15. Faulty purge solenoid
  16. Faulty vent solenoid
  17. Wiring damage
  18. Corroded electrical connectors
  19. Damaged fuel filler neck
  20. Cracked fuel tank
  21. Restricted vapor lines
  22. Blocked canister vent filter
  23. Poor electrical grounds
  24. Damaged EVAP service port
  25. Rodent damage
  26. Previous improper repairs
  27. Vacuum leaks within the EVAP system
  28. PCM calibration issue
  29. Failed PCM driver (rare)
  30. Failed PCM (extremely rare)

Final Thoughts

The P0440 Evaporative Emission Control System Malfunction code indicates the PCM has detected a fault somewhere within the EVAP system but cannot identify a specific component without additional testing.

Fortunately, loose fuel caps, faulty purge valves, damaged vent valves, and cracked vapor hoses account for the majority of P0440 repairs.

Proper diagnosis should determine whether the problem originates in:

The next section of this guide covers:

Following a structured diagnostic process prevents unnecessary parts replacement while restoring proper EVAP system operation, reducing hydrocarbon emissions, and eliminating recurring Check Engine Lights.

Related Pro Street Diagnostic Guides

How to Diagnose the P0440 Code

Diagnosing P0440 requires determining why the Powertrain Control Module (PCM) has detected a malfunction within the Evaporative Emission Control (EVAP) system.

Unlike P0442 or P0455, which identify leak size, P0440 indicates a general EVAP system malfunction without identifying the exact component responsible.

The underlying problem may involve:

Because many EVAP faults involve inexpensive components, diagnosis should always begin with the simplest inspections before replacing costly parts.

Safety Precautions

Before beginning diagnosis:

Gasoline vapors are extremely flammable.

Tools Required

Professional diagnosis may require:

An EVAP smoke machine is often the fastest method for locating vapor leaks.

Step 1 – Verify the Code

Connect a professional scan tool.

Record:

Monitor:

Never erase diagnostic codes before recording freeze-frame information.

Step 2 – Check for Related Trouble Codes

P0440 frequently appears with:

Related codes often narrow the diagnosis considerably.

Code CombinationLikely Diagnosis
P0440 onlyGeneral EVAP malfunction
P0440 + P0441Purge valve problem
P0440 + P0446Vent valve malfunction
P0440 + P0455Large EVAP leak
P0440 + P0456Small EVAP leak

Step 3 – Review Freeze-Frame Data

Study:

This information helps determine when the EVAP self-test failed.

Step 4 – Inspect the Fuel Cap

Inspect the fuel cap carefully.

Check for:

A damaged fuel cap is one of the simplest and most common causes of P0440.

Step 5 – Inspect EVAP Hoses

Inspect every accessible EVAP hose.

Look for:

Even a small vapor leak can trigger EVAP codes.

Step 6 – Inspect the Charcoal Canister

Inspect the charcoal canister for:

Fuel-saturated canisters often result from repeatedly overfilling the fuel tank after the pump shuts off.

Step 7 – Inspect the Purge Valve

Using a scan tool or hand vacuum pump:

Verify:

A purge valve stuck open or closed commonly causes EVAP system faults.

Step 8 – Inspect the Vent Valve

Inspect the EVAP vent valve.

Verify:

A vent valve that cannot fully seal prevents the EVAP monitor from completing successfully.

Step 9 – Test the Fuel Tank Pressure Sensor

Monitor live Fuel Tank Pressure (FTP) data.

Verify:

Incorrect pressure readings may cause false EVAP failures.

Step 10 – Perform an EVAP Smoke Test

An EVAP smoke machine is the preferred diagnostic tool.

Introduce smoke into the EVAP system.

Inspect for smoke escaping from:

Smoke testing quickly identifies leaks that are difficult to detect visually.

Step 11 – Test the Purge Valve Electrically

Using a multimeter:

Check:

Compare readings with manufacturer specifications.

Step 12 – Test the Vent Valve Electrically

Inspect:

Faulty vent valves commonly trigger P0440 and P0446.

Step 13 – Inspect Wiring and Connectors

Inspect the entire EVAP wiring harness.

Look for:

Electrical faults are less common than leaks but should not be overlooked.

Step 14 – Review Technical Service Bulletins

Before replacing expensive components:

Review manufacturer Technical Service Bulletins (TSBs).

Manufacturers occasionally release updates addressing:

Step 15 – Verify Fuel Level

Many EVAP self-tests only run when the fuel tank is approximately:

A nearly empty or completely full tank may prevent the EVAP monitor from running.

Step 16 – Inspect the Fuel Filler Neck

Inspect for:

A damaged filler neck may create vapor leaks.

Step 17 – Verify Purge Flow

Using a bidirectional scan tool:

Command the purge valve open.

Monitor:

Proper purge flow should produce measurable changes.

Step 18 – Perform a Complete EVAP Monitor Test

After repairs:

Run the manufacturer’s EVAP monitor using a scan tool or perform the required drive cycle.

Verify:

Step 19 – Complete an OBD-II Drive Cycle

Drive the vehicle under normal operating conditions.

Allow:

Verify the EVAP monitor completes successfully.

Step 20 – Confirm the Diagnosis

Before replacing expensive components, verify:

Completing these diagnostic procedures prevents unnecessary parts replacement while accurately identifying the root cause of P0440.

Step 21 – Replace the Fuel Cap

A loose or damaged fuel cap is the single most common fix for P0440.

Inspect the fuel cap for:

Replacement procedure:

  1. Remove the old fuel cap.
  2. Inspect the filler neck for dirt or damage.
  3. Install an OEM-quality replacement fuel cap.
  4. Tighten the cap until several clicks are heard.
  5. Clear the diagnostic codes.
  6. Complete an EVAP drive cycle.

Many vehicles will require several drive cycles before the Check Engine Light turns off permanently.

Step 22 – Replace the EVAP Purge Valve

If testing confirms the purge valve is faulty, replacement is recommended.

General replacement procedure:

  1. Disconnect the negative battery cable.
  2. Locate the EVAP purge valve.
  3. Disconnect the electrical connector.
  4. Remove the vapor hoses.
  5. Remove the purge valve.
  6. Install the replacement valve.
  7. Reconnect hoses and wiring.
  8. Clear the diagnostic codes.
  9. Verify purge operation using a scan tool.

Always inspect nearby vapor hoses while servicing the purge valve.

Step 23 – Replace the EVAP Vent Valve

A faulty vent valve may prevent the EVAP system from sealing properly.

Inspect for:

If replacement is required:

Many trucks and SUVs experience vent valve failures after prolonged exposure to dust or mud.

Step 24 – Repair or Replace EVAP Hoses

Inspect every vapor hose carefully.

Repair or replace hoses showing:

When replacing hoses:

Improper hose routing may result in recurring EVAP faults.

Step 25 – Replace the Charcoal Canister

If the charcoal canister is damaged or fuel saturated, replacement is necessary.

Signs of failure include:

General replacement:

  1. Disconnect vapor lines.
  2. Disconnect electrical connectors (if equipped).
  3. Remove mounting hardware.
  4. Install the replacement canister.
  5. Reconnect all vapor lines.
  6. Verify no leaks are present.

Never attempt to clean a fuel-saturated charcoal canister.

Step 26 – Replace the Fuel Tank Pressure Sensor

A faulty Fuel Tank Pressure (FTP) sensor may incorrectly report EVAP system pressure.

Inspect for:

If replacement is required:

Step 27 – Repair Wiring Problems

Inspect the EVAP wiring harness for:

Repair using:

Electrical faults may prevent purge and vent valves from operating correctly.

Step 28 – Verify Proper EVAP Operation

After repairs:

Use a professional scan tool to command:

Monitor:

Verify the system now seals correctly and responds to PCM commands.

Step 29 – Complete the EVAP Drive Cycle

After repairs:

Verify the EVAP readiness monitor completes successfully.

Step 30 – Verify the Repair

After completing repairs:

  1. Clear all stored codes.
  2. Start the engine.
  3. Verify no fuel odor is present.
  4. Confirm proper EVAP system operation with live scan data.
  5. Perform a complete road test.
  6. Complete an OBD-II drive cycle.
  7. Verify the EVAP monitor passes.
  8. Confirm no pending or permanent DTCs return.

A successful repair restores proper fuel vapor containment, reduces hydrocarbon emissions, and eliminates recurring Check Engine Lights.

How to Fix P0440

The correct repair depends on the diagnostic results.

Common repairs include:

Typical Repair Costs

RepairTypical Cost
Professional diagnosis$100–250
Fuel cap replacement$20–60
Purge valve replacement$100–350
Vent valve replacement$100–350
EVAP hose repair$50–250
Charcoal canister replacement$250–800
Fuel Tank Pressure sensor replacement$150–400
Leak Detection Pump replacement$200–600
Smoke test$75–200
PCM replacement (rare)$900–2,500+

Repair costs vary depending on vehicle design, labor rates, and component accessibility.

Common Diagnostic Mistakes

Avoid these common mistakes:

Most P0440 repairs involve inexpensive components rather than major repairs.

Manufacturer-Specific Notes

Ford/Lincoln

Inspect:

Ford trucks frequently develop cracked EVAP hoses and purge valve failures.

General Motors (Chevrolet, GMC, Cadillac, Buick)

Inspect:

GM trucks commonly experience clogged vent valves caused by dust and debris.

Chrysler, Dodge, Jeep, Ram

Inspect:

Leak Detection Pump failures are common on many Chrysler applications.

Toyota/Lexus

Inspect:

Toyota vehicles frequently develop charcoal canister and vent valve issues after high mileage.

Nissan/Infiniti

Inspect:

Nissan vehicles commonly trigger P0440 because of sticking vent control valves.

Hyundai/Kia

Inspect:

Faulty purge control solenoids are a frequent cause of EVAP faults.

Frequently Asked Questions

What usually fixes P0440?

The most common repairs include replacing a loose or damaged fuel cap, replacing a faulty purge valve or vent valve, repairing cracked EVAP hoses, replacing the charcoal canister, or repairing leaks identified during a smoke test.

Can I drive with P0440?

Yes. In most cases, P0440 does not affect engine performance, and the vehicle remains safe to drive. However, repairs should be completed to restore proper emissions control and eliminate the Check Engine Light.

Does P0440 always mean I need a new charcoal canister?

No. Most P0440 codes are caused by a loose fuel cap, damaged vapor hose, purge valve failure, or vent valve malfunction. A charcoal canister should only be replaced after proper testing confirms it has failed.

Can a loose gas cap cause P0440?

Absolutely. A loose, damaged, or incorrect fuel cap is one of the most common causes of P0440 and should always be inspected before replacing other EVAP components.

Is P0440 a serious code?

P0440 is generally considered a low-to-moderate severity diagnostic trouble code. While it usually does not affect drivability, it increases hydrocarbon emissions, causes failed emissions inspections, and keeps the Check Engine Light illuminated until repaired.

Final Thoughts

The P0440 Evaporative Emission Control System Malfunction code indicates the PCM has detected a fault somewhere within the EVAP system but cannot immediately determine the exact cause.

Fortunately, the majority of repairs involve simple problems such as loose fuel caps, faulty purge valves, damaged vent valves, cracked vapor hoses, or worn EVAP components rather than major engine repairs.

A complete diagnosis should always verify:

Following a systematic diagnostic process prevents unnecessary parts replacement while restoring proper emissions performance, reducing fuel vapor emissions, and ensuring reliable EVAP system operation.

Continue Your Pro Street EVAP Series

Related guides include:

Exit mobile version
