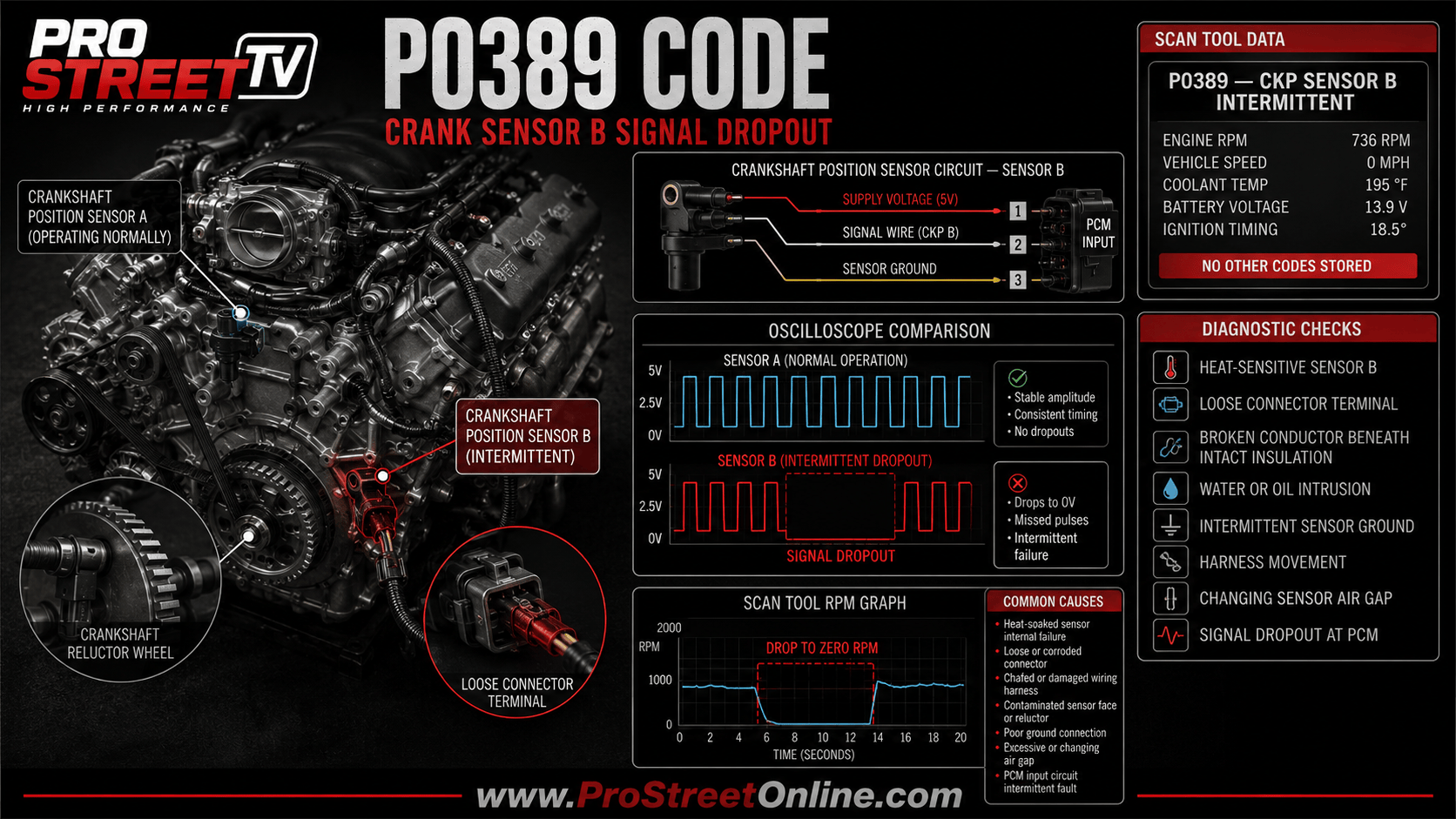

The P0389 OBD-II trouble code means the powertrain control module has detected an intermittent loss or interruption in the Crankshaft Position Sensor “B” circuit.
Unlike a circuit that remains consistently low or high, the P0389 fault comes and goes. Sensor B may produce a normal signal for several minutes and then drop out because of heat, vibration, moisture, loose connector terminals or a broken wire hidden beneath intact insulation.
A failing sensor is possible, but P0389 should never be diagnosed by replacing the sensor and hoping the intermittent problem becomes someone else’s problem. Intermittent faults require reproducing the failure while monitoring the circuit.
Crankshaft Position Sensor B also does not automatically mean Bank 2. It identifies the manufacturer-designated secondary crankshaft-position input.
P0389 Quick Reference
| Item | Details |
|---|---|
| Trouble code | P0389 |
| Code definition | Crankshaft Position Sensor “B” Circuit Intermittent |
| System affected | Engine-position, ignition and fuel-injection control |
| Fault type | Temporary Sensor B signal dropout or circuit interruption |
| Common causes | Heat-sensitive sensor, loose terminal, broken wire, moisture, poor ground or damaged reluctor |
| Common symptoms | Intermittent stalling, hard starting, no-start after warm-up, hesitation or tachometer dropout |
| Typical severity | Moderate to severe |
| Safe to drive? | Not recommended if the engine stalls unpredictably |
| Repair difficulty | Advanced intermittent electrical diagnosis |
What Does the P0389 Code Mean?
P0389 indicates that the PCM temporarily lost the Crankshaft Position Sensor B signal or detected a signal that became electrically unstable.
The signal may:
- Drop completely to zero
- Become stuck high temporarily
- Become stuck low temporarily
- Lose several pulses
- Develop irregular pulse spacing
- Disappear as the engine warms
- Return when the wiring harness moves
- Become unstable during vibration
- Fail only during cranking
- Recover after the engine cools
The PCM depends on crankshaft-position information to determine:
- Engine RPM
- Crankshaft angle
- Piston position
- Ignition timing
- Fuel-injection timing
- Engine synchronization
- Misfire activity
- Camshaft-to-crankshaft relationship
If Sensor B disappears unexpectedly, the PCM may temporarily lose the information required to control spark and injector operation accurately.
What Is Crankshaft Position Sensor B?
Crankshaft Position Sensor B is a secondary crankshaft-position input used on certain engines.
Manufacturers may use a second CKP sensor for:
- Signal redundancy
- Improved position resolution
- Faster startup synchronization
- More accurate misfire monitoring
- Separate low-speed and high-speed sensing
- Comparison with Sensor A
- Fail-safe engine operation
Sensor B may be installed near the:
- Crankshaft pulley
- Timing cover
- Engine block
- Flywheel
- Flexplate
- Transmission bellhousing
- Rear main-seal area
- Internal reluctor wheel
Sensor B does not universally indicate Bank 2, the rear sensor or one particular side of the engine. Confirm its location using the manufacturer’s wiring diagram and component-location information.
How the Crankshaft-Position Signal Works
A crankshaft-position sensor monitors a toothed, slotted or magnetized trigger wheel connected to the crankshaft, flywheel or flexplate.
As the crankshaft rotates, the sensor generates a series of electrical pulses. The PCM counts these pulses and uses a missing tooth, reference gap or special magnetic segment to calculate exact crankshaft position.
Two common sensor types are used.
Hall-Effect Sensor
A Hall-effect sensor usually has three circuits:
- Power or reference voltage
- Sensor ground
- Digital signal output
The signal switches between defined high and low voltage states as the trigger wheel passes the sensor.
An intermittent Hall-effect signal can result from:
- Unstable reference voltage
- Loose ground
- Failed internal electronics
- Poor connector contact
- Signal wire opening temporarily
- Signal wire contacting voltage or ground
- A trigger wheel moving outside the sensing range
Magnetic or Variable-Reluctance Sensor
A magnetic sensor normally uses two wires and generates an alternating-current waveform.
Its output is affected by:
- Crankshaft speed
- Sensor air gap
- Reluctor condition
- Sensor magnet strength
- Circuit resistance
- Temperature
- Metal debris
A cracked internal winding may open when hot and reconnect after cooling. The sensor can test perfectly in the driveway and fail fifteen minutes later—which is the automotive version of plausible deniability.
Symptoms of a P0389 Code
Possible symptoms include:
- Illuminated Check Engine Light
- Intermittent engine stalling
- Engine stalls when warm
- Extended cranking
- Occasional no-start condition
- Engine starts after cooling down
- Engine cuts out over bumps
- Hesitation during acceleration
- Rough idle
- Sudden loss of power
- Misfire-like operation
- Tachometer needle dropping toward zero
- Unstable scan-tool RPM
- Limp-home mode
- Engine restarts immediately after stalling
- No noticeable symptoms between failures
Symptoms depend on whether the PCM can continue operating using Crankshaft Position Sensor A or another engine-position input.
If the starter turns the engine but it will not run, use the engine cranks but won’t start diagnostic guide to check spark, fuel delivery, injector command and engine-position data.
If the engine shuts off primarily after reaching operating temperature, review why an engine stalls when warm.
Common Causes of P0389
Potential causes include:
- Heat-Sensitive Crankshaft Position Sensor BInternal sensor electronics or windings may fail as temperature rises and recover after cooling.
- Loose Connector TerminalA spread, bent or pushed-back terminal may lose contact during vibration.
- Broken Wire Beneath Intact InsulationA conductor may be fractured internally while its outer insulation still appears normal.
- Harness Damage Near the Engine or TransmissionHeat, movement and prior repair work can stretch or damage Sensor B wiring.
- Oil or Water IntrusionFluid inside the connector can temporarily interrupt or distort the signal.
- Corroded Connector TerminalsCorrosion may create unstable resistance that changes with heat and vibration.
- Intermittent Sensor GroundA weak ground splice or loose terminal can interrupt a Hall-effect sensor.
- Intermittent Reference VoltageA shared sensor-supply circuit may drop out when another sensor or wire temporarily shorts.
- Signal Wire Intermittently Shorting to GroundHarness movement may allow damaged insulation to contact the engine or chassis.
- Signal Wire Intermittently Shorting to VoltageThe signal conductor may contact a powered wire only when the harness shifts.
- Incorrect Sensor Air GapExcessive or changing clearance can cause temporary signal loss.
- Bent Flywheel or FlexplateRunout may move the reluctor outside the sensor’s effective range during part of each revolution.
- Loose or Shifted Reluctor WheelA reluctor that moves relative to the crankshaft can produce irregular signal timing.
- Metal Debris on a Magnetic SensorDebris can weaken or distort the generated waveform.
- Excessive Crankshaft End PlayCrankshaft movement can change the sensor air gap under different loads.
- Poor Battery or Engine GroundVoltage instability during cranking may temporarily interrupt PCM or sensor operation.
- Electromagnetic InterferenceDamaged shielding or incorrect harness routing can introduce ignition, starter or alternator noise.
- PCM Connector ProblemLoose or corroded PCM terminals may intermittently interrupt the Sensor B input.
- PCM Input-Circuit FailureAn internal PCM fault is possible but should only be considered after proving the external circuit is good.
How Serious Is P0389?
P0389 is a moderate-to-severe trouble code because the engine may stall without warning.
The vehicle might operate normally between failures, but an intermittent crankshaft-position signal can cause:
- Sudden engine shutdown
- No-start after warm-up
- Loss of ignition timing
- Loss of injector synchronization
- Reduced-power operation
- Unreliable misfire detection
A vehicle that stalls in traffic should not be driven until the fault is diagnosed.
Intermittent does not mean unimportant. It usually means the failure is waiting for the exact moment when roadside assistance will be most inconvenient.
P0385 Through P0389 Compared
These codes cover different Sensor B circuit conditions.
| Code | Definition | Primary diagnostic focus |
| P0385 | Sensor B Circuit Malfunction | General circuit failure or missing signal |
| P0386 | Sensor B Circuit Range/Performance | Implausible amplitude, timing, frequency or pulse pattern |
| P0387 | Sensor B Circuit Low Input | Signal consistently below the expected range |
| P0388 | Sensor B Circuit High Input | Signal consistently above the expected range |
| P0389 | Sensor B Circuit Intermittent | Temporary dropouts or unstable circuit operation |
P0389 should remain focused on a signal that comes and goes rather than one that stays continuously low or high.
P0389 vs. P0339
P0339 is the corresponding intermittent code for Crankshaft Position Sensor A.
| Code | Sensor | Fault |
| P0339 | Crankshaft Position Sensor A | Circuit intermittent |
| P0389 | Crankshaft Position Sensor B | Circuit intermittent |
Do not assume the two sensors share the same location, part number or circuit design.
P0389 vs. P0323
P0323 applies to an intermittent ignition/distributor engine-speed input circuit.
P0389 specifically identifies Crankshaft Position Sensor B. Keeping these pages separated preserves their individual code and circuit intent.
How to Diagnose the P0389 Code
Intermittent faults require capturing the circuit while it fails. A static resistance test performed while the engine is running normally may show nothing wrong.
A scan tool with graphing capability and a multi-channel oscilloscope are the most useful tools.
1. Confirm the Stored Code
Connect a capable scan tool and record:
- P0389
- Current, pending and history codes
- Freeze-frame information
- Engine RPM
- Battery voltage
- Coolant temperature
- Vehicle speed
- Engine load
- Crankshaft synchronization
- Camshaft synchronization
- Sensor A and Sensor B data, when supported
Determine whether the code was stored:
- During cold cranking
- After warm-up
- At idle
- Under acceleration
- During deceleration
- At highway speed
- While driving over a rough surface
Do not clear the codes until this information has been recorded.
2. Check for Related Codes
Look for codes involving:
- Crankshaft Position Sensor A
- Crankshaft Position Sensor B
- Camshaft-position sensors
- Sensor reference voltage
- Engine-speed input
- Crankshaft-to-camshaft correlation
- PCM communication
- System voltage
- Misfires
If several sensors lose their signals simultaneously, investigate shared power, ground or PCM circuits.
3. Review the Failure Pattern
Ask when the problem occurs:
- Only when the engine is hot
- Only during cold starts
- After driving for a specific amount of time
- Over bumps
- During hard acceleration
- During deceleration
- In wet weather
- After engine or transmission repairs
- When accessories are switched on
A repeatable operating condition provides the best chance of capturing the fault.
4. Identify Sensor B Correctly
Use factory service information to identify:
- Sensor B location
- Sensor type
- Connector pinout
- Power circuit
- Ground circuit
- Signal circuit
- Expected waveform
- Specified air gap
- PCM connector terminals
Do not assume Sensor B is located on Bank 2. It identifies a secondary crankshaft-position input, not a cylinder bank.
5. Inspect the Sensor Connector
Disconnect Sensor B and inspect:
- Terminal corrosion
- Oil contamination
- Water intrusion
- Loose terminal tension
- Bent terminals
- Pushed-back terminals
- Broken connector locks
- Cracked connector housing
- Damaged seals
Gently pull each wire from behind the connector. A broken conductor may stretch while the insulation remains attached.
Use the correct terminal-drag tool to evaluate terminal tension. Do not force an oversized meter probe into the connector and create the intermittent connection you were trying to find.
6. Inspect the Wiring Harness
Follow the Sensor B wiring as far as possible.
Pay particular attention to:
- Harness bends
- Transmission bellhousing
- Starter wiring
- Exhaust components
- Engine mounts
- Metal brackets
- Battery cables
- Alternator wiring
- Prior repair areas
- Harness sections under tension
Look for insulation that is:
- Rubbed through
- Melted
- Pinched
- Oil-soaked
- Brittle
- Stretched
- Improperly spliced
Move the harness while monitoring circuit resistance or waveform activity.
7. Check Battery, Grounds and Charging Voltage
Test:
- Battery state of charge
- Minimum cranking voltage
- Battery-terminal voltage drop
- Engine ground voltage drop
- PCM ground voltage drop
- Charging voltage
- Charging-system ripple
A loose ground or unstable alternator output can interrupt sensor and PCM operation.
If multiple electrical symptoms occur simultaneously, repair the main power or ground problem before replacing Sensor B.
8. Monitor Scan-Tool RPM
Graph engine RPM while reproducing the failure.
Watch for:
- RPM suddenly dropping to zero
- RPM momentarily spiking
- Crankshaft synchronization changing from yes to no
- Sensor B status changing unexpectedly
- Engine stall occurring at the same moment as signal loss
A sudden RPM dropout helps confirm that the failure affects the engine-position input rather than fuel pressure or ignition output alone.
9. Capture the Sensor B Waveform
Connect an oscilloscope and record the waveform during:
- Cold cranking
- Warm cranking
- Idle
- Acceleration
- Deceleration
- Full operating temperature
- Harness movement
- The condition recorded in freeze-frame data
For a Hall-effect sensor, watch for:
- Missing high or low transitions
- Signal dropping flat
- Signal becoming stuck high
- Signal becoming stuck low
- Changing pulse width
- Electrical noise
- Reference voltage dropout
For a magnetic sensor, watch for:
- Complete waveform loss
- Sudden amplitude reduction
- Missing pulses
- Irregular spacing
- Distortion
- Noise
- Heat-related signal collapse
Use the oscilloscope’s recording or glitch-capture feature when available. An intermittent dropout may last only milliseconds.
10. Compare Sensor A and Sensor B
Display Sensor A and Sensor B simultaneously.
If Sensor A remains stable while Sensor B drops out, concentrate on:
- Sensor B
- Sensor B connector
- Sensor B wiring
- Sensor B reluctor relationship
- Sensor B PCM input
If both signals disappear together, investigate shared:
- Power
- Ground
- PCM operation
- Crankshaft movement
- System-voltage problems
11. Compare the Signal at the Sensor and PCM
Monitor Sensor B at its connector and then at the PCM.
Possible findings include:
- Signal disappears at both locations: sensor, power, ground or reluctor problem
- Signal remains good at the sensor but disappears at the PCM: wiring or connector fault
- Signal reaches the PCM but scan data drops out: PCM input, ground or software problem
- Signal changes when the PCM connector moves: terminal or connector damage
A dual-channel test at both ends of the same circuit can identify exactly where the signal is lost.
12. Perform a Harness Wiggle Test
While monitoring the waveform, move sections of the harness carefully.
Pay attention to changes when moving wiring near:
- The sensor connector
- Harness retainers
- The bellhousing
- The starter
- The PCM connector
- Prior splice repairs
Do not pull aggressively on a running engine’s wiring near belts, fans or exhaust components.
If waveform loss consistently follows movement in one area, inspect that section closely for broken conductors or terminal problems.
13. Test for Heat-Related Failure
If the engine stalls when warm:
- Monitor the Sensor B waveform from cold start.
- Record sensor temperature or engine coolant temperature.
- Observe the signal as the engine heats.
- Apply controlled heat only according to approved procedures.
- Cool the sensor and repeat the test.
A sensor that fails at a repeatable temperature and recovers when cooled is a strong candidate for replacement.
Do not use an open flame. The goal is to find a heat-sensitive circuit, not create a new one with melted insulation.
14. Test Hall-Effect Power and Ground During the Failure
For a three-wire Hall-effect sensor, monitor:
- Supply voltage
- Ground voltage drop
- Signal voltage
Use multiple oscilloscope channels when possible.
If the signal disappears while power and ground remain stable, the sensor or trigger relationship is suspect.
If supply voltage drops simultaneously, inspect the shared reference circuit.
If ground voltage rises, repair the ground circuit.
15. Test a Magnetic Sensor
For a two-wire magnetic sensor:
- Measure resistance cold and hot when specifications are available
- Check for winding continuity
- Measure AC output during cranking
- Compare amplitude cold and hot
- Inspect for metal debris
- Check the sensor air gap
- Compare its waveform with Sensor A
A cracked winding may open as it expands with heat and reconnect as it cools.
16. Check for Intermittent Shorts
With the sensor and PCM disconnected according to service information, test the signal circuit for intermittent continuity to:
- Ground
- Reference voltage
- Battery voltage
- Adjacent sensor circuits
- Shielding
Move the harness throughout the test.
A meter with minimum/maximum capture can record a brief short or open that disappears before the display is noticed.
17. Inspect the Reluctor Wheel and Air Gap
If the electrical circuit remains stable, inspect:
- Sensor mounting
- Sensor air gap
- Reluctor teeth
- Trigger-wheel runout
- Reluctor movement
- Bent flywheel or flexplate
- Crankshaft end play
- Debris on the sensor tip
A bent flexplate can change the sensor clearance as it rotates. Excessive end play may move the crankshaft and reluctor away from the sensor under certain loads.
18. Check for Electrical Interference
Inspect the Sensor B circuit for interference from:
- Ignition coils
- Spark-plug wires
- Starter cables
- Alternator wiring
- Fuel-injector wiring
- Aftermarket equipment
- Poor engine grounds
Damaged shielding or incorrect harness routing can introduce false pulses or signal dropouts.
Compare the waveform with major electrical loads switched on and off.
19. Consider the PCM Last
PCM failure should only be considered after confirming:
- Correct Sensor B identification
- Stable sensor power
- Stable sensor ground
- Good waveform at the PCM
- Proper connector-terminal tension
- No intermittent harness fault
- Correct air gap
- Good reluctor condition
- No applicable software update or technical service bulletin
PCM replacement may require programming, security initialization and crankshaft-position variation relearn.
Common P0389 Diagnostic Mistakes
Avoid these common mistakes:
- Replacing Sensor B without reproducing the dropout
- Assuming Sensor B means Bank 2
- Clearing freeze-frame information before recording it
- Testing only when the engine is cold
- Ignoring loose connector terminals
- Trusting a visual wiring inspection alone
- Testing resistance without moving the harness
- Ignoring a signal that fails only when hot
- Missing a shared reference-voltage dropout
- Replacing the sensor when its power or ground is intermittent
- Ignoring reluctor runout or crankshaft end play
- Using a basic multimeter when glitch capture is required
- Replacing the PCM before monitoring the signal at its connector
Repairs That May Fix P0389
Possible repairs include:
- Replacing a heat-sensitive Crankshaft Position Sensor B
- Repairing a broken signal wire
- Repairing intermittent reference voltage
- Repairing an unstable sensor ground
- Tightening or replacing loose connector terminals
- Replacing a damaged sensor connector
- Cleaning oil, water or corrosion from the connector
- Repairing a signal wire intermittently shorting to ground
- Repairing a signal wire intermittently shorting to voltage
- Restoring damaged signal shielding
- Correcting harness routing
- Securing a loose wiring harness
- Correcting sensor air gap
- Removing metal debris from the sensor
- Replacing a damaged or shifted reluctor wheel
- Replacing a bent flexplate
- Correcting excessive crankshaft end play
- Repairing battery or engine grounds
- Updating PCM software
- Replacing and programming the PCM after confirmed failure
Estimated P0389 Repair Costs
Actual costs depend on the vehicle, sensor location and time required to reproduce the intermittent fault.
| Repair | Estimated cost |
| Diagnostic inspection | $120–$300 |
| Connector or terminal repair | $100–$400 |
| Crankshaft Position Sensor B replacement | $180–$650 |
| Minor harness repair | $150–$500 |
| Major harness repair | $400–$1,200 |
| Battery cable or ground repair | $150–$600 |
| Reluctor-wheel or flexplate repair | $700–$2,500 |
| PCM software update | $100–$300 |
| PCM replacement and programming | $800–$2,500 |
Intermittent electrical diagnosis may require more labor than replacing the eventual failed component. Finding a broken wire that fails for half a second every twenty minutes tends to consume more time than the repair itself. Electricity remains committed to the bit.
Can You Drive With P0389?
Driving with P0389 is not recommended if the engine stalls unpredictably.
The vehicle may run normally between failures, but the Sensor B signal can disappear again without warning.
Stop driving if:
- The engine stalls in traffic
- Starting becomes unreliable
- The tachometer drops suddenly
- The engine loses power
- The Check Engine Light flashes
- The vehicle enters reduced-power mode
- Multiple timing or misfire codes appear
Review what the Check Engine Light means for additional warning-light guidance.
How to Verify the Repair
After completing the repair:
- Reconnect every sensor and module.
- Confirm proper terminal engagement.
- Secure the harness away from heat and moving parts.
- Clear current and pending codes.
- Monitor Sensor B during cold cranking.
- Warm the engine fully.
- Compare Sensor A and Sensor B waveforms.
- Repeat the harness wiggle test.
- Recreate the original freeze-frame conditions.
- Operate the vehicle over the type of surface that previously triggered the failure.
- Complete the required drive cycle.
- Perform a crankshaft-position relearn if specified.
- Recheck for pending codes.
The repair is confirmed when the Sensor B waveform remains stable through temperature, vibration and engine-speed changes and P0389 does not return.
Frequently Asked Questions
What does the P0389 code mean?
P0389 means the PCM detected an intermittent interruption or temporary loss of the Crankshaft Position Sensor B signal.
Does P0389 mean Crankshaft Position Sensor B is bad?
Not necessarily. The sensor may fail when hot, but loose terminals, broken wires, unstable power, poor ground and reluctor problems can cause the same code.
Is Crankshaft Position Sensor B located on Bank 2?
Not necessarily. Sensor B identifies a manufacturer-designated secondary crankshaft-position input and does not universally correspond to Bank 2.
What is the difference between P0385 and P0389?
P0385 identifies a general Sensor B circuit malfunction. P0389 specifically indicates that the Sensor B signal fails intermittently.
What is the difference between P0388 and P0389?
P0388 means the signal remains consistently too high. P0389 means the signal temporarily drops out or becomes unstable.
Can P0389 cause the engine to stall?
Yes. Temporary loss of crankshaft-position information can interrupt ignition and fuel-injection control.
Why does the engine restart after cooling?
An internally damaged sensor or connector may fail as it heats and recover as it cools.
Can a broken wire look normal?
Yes. The copper conductor can break beneath intact insulation, causing a connection that fails only when the harness moves.
How do you diagnose P0389?
Monitor Sensor B with an oscilloscope while reproducing the failure. Perform heat, vibration and harness tests while watching the sensor’s power, ground and signal.
Can a damaged reluctor wheel cause P0389?
Yes. A loose reluctor, bent flexplate or changing sensor air gap can produce temporary signal loss.
Final Thoughts
P0389 means the Crankshaft Position Sensor B signal is disappearing or becoming unstable intermittently. The key to diagnosing it is capturing the circuit during the failure.
Monitor Sensor B power, ground and signal at the same time. Reproduce the operating temperature, vibration, engine speed or road condition that originally stored the code. Comparing Sensor A and Sensor B waveforms can then separate a Sensor B circuit failure from a broader PCM, voltage or mechanical problem.
Replacing the sensor may solve the fault, but evidence should lead to that repair. Intermittent codes already waste enough time without adding guesswork voluntarily.
Visit the OBD-II Doctor for more diagnostic guides or browse the complete P-series OBD-II code reference to identify related powertrain faults.
