P0361 Code: Ignition Coil “K” Primary/Secondary Circuit Malfunction

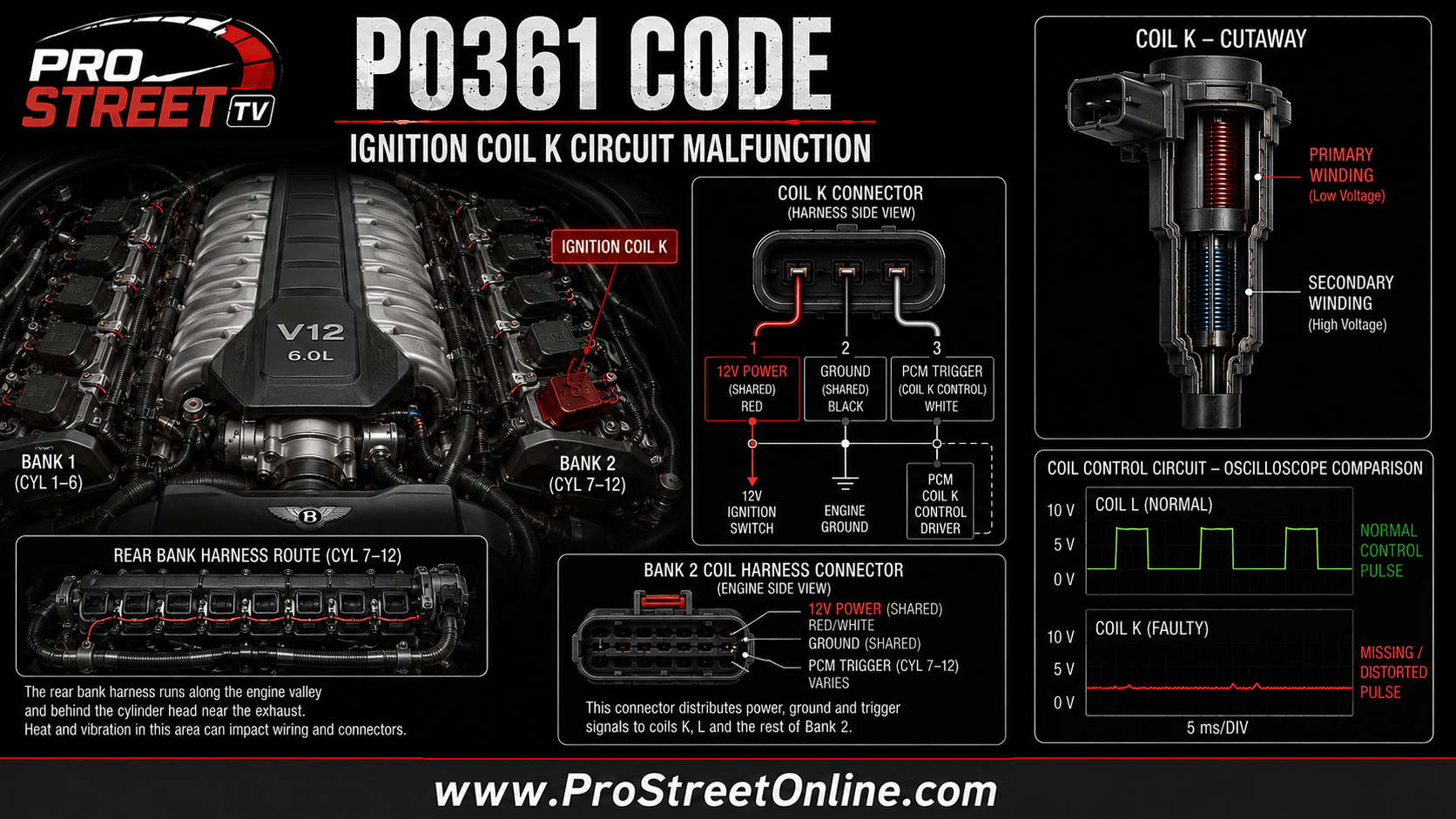

P0361 Ignition Coil K primary and secondary circuit diagnostic illustration

The P0361 code means the engine control module has detected an electrical malfunction in the primary or secondary circuit for Ignition Coil “K.”

On many engines with individual coil-on-plug ignition, Coil K corresponds to cylinder 11. That assignment isn’t universal, so verify the manufacturer’s coil identification before removing components.

Common causes include a failed Ignition Coil K, damaged connector terminals, missing power, poor ground, an open or shorted control wire and a failed PCM ignition driver.

P0361 is an electrical circuit code. It doesn’t automatically prove the ignition coil has failed, and it isn’t simply another description for a cylinder 11 misfire.

P0361 Quick Reference

ItemInformation
OBD-II codeP0361
Official descriptionIgnition Coil “K” Primary/Secondary Circuit Malfunction
SystemIgnition-coil control
Code typeGeneric powertrain code
Commonly associated cylinderCylinder 11, but manufacturer confirmation is required
Primary faultElectrical malfunction affecting Ignition Coil K
SeverityHigh
Safe to drive?Only briefly if the engine runs smoothly
Common causesFailed coil, connector damage, wiring fault or PCM driver failure
Typical repair rangeApproximately $75–$3,000+, depending on the cause

What Does the P0361 Code Mean?

P0361 stands for:

Ignition Coil “K” Primary/Secondary Circuit Malfunction

The powertrain control module commands Ignition Coil K to produce a spark at the correct point in the combustion cycle.

Depending on the vehicle, the Coil K circuit may include:

The PCM monitors electrical activity in this circuit while the engine is cranking or running.

P0361 may be stored when the module detects:

The exact monitoring strategy depends on the manufacturer and ignition-system design.

Which Cylinder Is Ignition Coil K?

Ignition Coil K commonly corresponds to cylinder 11 on engines using one ignition coil per cylinder.

A typical assignment is:

Coil designationCommon cylinder assignment
Coil ACylinder 1
Coil BCylinder 2
Coil CCylinder 3
Coil DCylinder 4
Coil ECylinder 5
Coil FCylinder 6
Coil GCylinder 7
Coil HCylinder 8
Coil ICylinder 9
Coil JCylinder 10
Coil KCylinder 11
Coil LCylinder 12

This assignment isn’t guaranteed.

Some manufacturers label coils according to ignition-control channels rather than cylinder order. Certain engines may use paired coils, separate bank-level ignition modules or another manufacturer-specific arrangement.

Confirm Coil K using:

Don’t assume Coil K is the eleventh component counted from the front. On a V12, that approach mostly confirms that twelve is too many cylinders to diagnose by guessing.

What Vehicles Can Store P0361?

P0361 is most likely to appear on vehicles with at least eleven individually monitored ignition-coil circuits.

Possible applications include:

Not every V12 uses the same ignition architecture.

Possible systems include:

Confirm that the vehicle supports the generic P0361 definition before beginning diagnosis.

Why Coil K Can Be Difficult to Access

On many V12 engines, Coil K may be near the rear of one cylinder bank.

Access may be restricted by:

Rear-cylinder wiring is often exposed to:

Inspect the connector and harness before replacing the coil.

On a tightly packaged V12, the coil may be perfectly healthy while its wiring has been stretched, pinched or cooked into something resembling automotive jerky.

What Is the Primary Ignition Circuit?

The primary circuit is the low-voltage side of the ignition coil.

It generally includes:

The PCM or ignition module allows current to build through the primary winding. This creates a magnetic field inside the coil.

When the control circuit switches off, the magnetic field collapses and induces high voltage in the secondary winding.

Primary-circuit faults may include:

What Is the Secondary Ignition Circuit?

The secondary circuit carries high voltage to the spark plug.

Depending on the system, it may include:

Possible secondary faults include:

Many modern PCMs don’t directly monitor secondary voltage. They may infer secondary operation by observing primary current, ignition-driver feedback, ion current or crankshaft-speed changes.

How Serious Is the P0361 Code?

P0361 should be considered a high-severity code when Coil K isn’t producing spark.

A V12 may continue running with one dead cylinder, but unburned fuel may enter the exhaust and overheat the catalytic converter.

Continued driving may cause:

Stop driving if:

A V12 may hide one failed cylinder remarkably well. It can also hide a remarkably expensive catalytic converter underneath the same car.

Common P0361 Symptoms

Possible symptoms include:

A V12 may produce only a slight vibration or small loss of power with one inactive cylinder. Scan-tool misfire counters and cylinder-contribution data may reveal the fault before the driver notices it.

Common Causes of P0361

Possible causes include:

  1. Failed Ignition Coil K
  2. Open primary coil winding
  3. Shorted primary winding
  4. Internal smart-coil electronics failure
  5. Loose Coil K connector
  6. Broken connector lock
  7. Bent or recessed terminal
  8. Spread female connector terminal
  9. Corrosion inside the connector
  10. Oil contamination
  11. Water inside the spark-plug well
  12. Missing Coil K power supply
  13. Blown ignition-coil fuse
  14. Failed ignition relay
  15. Open Coil K control wire
  16. Control wire shorted to ground
  17. Control wire shorted to voltage
  18. Excessive circuit resistance
  19. Poor Coil K ground
  20. Poor engine or PCM ground
  21. Damaged cylinder-bank harness connector
  22. Failed shared bank-level power splice
  23. Harness damage near the firewall
  24. Wiring melted near the exhaust
  25. Wiring pinched beneath intake components
  26. Incorrect replacement ignition coil
  27. Damaged coil boot
  28. Excessive spark-plug gap
  29. Carbon tracking
  30. Failed ignition-control module
  31. Damaged PCM connector
  32. Failed PCM Coil K driver
  33. PCM software or calibration fault

A worn or incorrectly gapped spark plug may increase the voltage required to produce spark. That increased demand can damage the coil boot or internal insulation.

However, spark-plug problems more commonly cause a cylinder misfire code than a direct P0361 circuit fault.

P0361 vs P0311

P0361 and P0311 may appear together, but they identify different failures.

CodeMeaningDiagnostic focus
P0361Ignition Coil K primary/secondary circuit malfunctionCoil power, ground, control wiring, electronics and PCM driver
P0311Cylinder 11 misfire detectedSpark, fuel delivery, compression, airflow and mechanical condition

The P0311 Cylinder 11 misfire guide covers the possible reasons cylinder 11 may fail to produce normal combustion.

P0311 may be caused by:

P0361 narrows the investigation toward Ignition Coil K’s electrical circuit.

If both codes appear, diagnose P0361 first. Repairing the Coil K circuit may also eliminate P0311.

If P0311 remains after P0361 is repaired, continue testing the injector, compression and mechanical condition.

P0361 vs P0360

P0360 and P0361 apply to adjacent ignition-coil circuits:

On many high-cylinder-count engines:

If both codes appear together, inspect circuits shared by the coils:

Adjacent coil codes may indicate a harness or module problem rather than two unrelated coil failures.

P0361 vs P0359

The P0359 Ignition Coil I diagnostic guide covers a separate coil circuit, commonly associated with cylinder 9.

The diagnostic methods are similar, but each page should remain centered on its assigned circuit:

This separation gives each trouble code a distinct search target while allowing the pages to support one another through related-code links.

P0361 vs P0350

P0350 identifies a general ignition-coil primary or secondary circuit malfunction without naming one individual coil.

P0361 identifies the circuit associated with Ignition Coil K.

If P0350 appears with several individual coil codes, inspect:

If only P0361 is stored, begin with Coil K and its individual connector and control circuit.

P0361 vs P0363

P0363 means the PCM detected a misfire and disabled fuel delivery to protect the catalytic converter.

P0361 identifies an electrical Coil K circuit fault that may have caused the misfire.

If P0361, P0311 and P0363 appear together:

  1. The PCM detected an electrical fault affecting Coil K.
  2. Cylinder 11 stopped producing normal combustion.
  3. The PCM disabled its fuel injector to protect the catalytic converter.

Repair P0361 first, clear the codes and verify whether the PCM restores fuel delivery.

How the Ignition Coil K Circuit Works

A typical coil-on-plug ignition event works as follows:

  1. The ignition relay supplies battery voltage to Coil K.
  2. The PCM receives crankshaft and camshaft position signals.
  3. The PCM calculates ignition timing and coil dwell.
  4. The PCM sends a trigger signal or directly controls primary current.
  5. Current builds through the primary winding.
  6. The control circuit switches off.
  7. The magnetic field collapses.
  8. High voltage is induced in the secondary winding.
  9. Voltage crosses the spark-plug gap.
  10. Combustion occurs.

The PCM expects predictable voltage and current behavior.

P0361 may be stored if Coil K:

How to Diagnose the P0361 Code

1. Verify the Code and Save the Data

Use a capable scan tool to retrieve:

Don’t clear the codes before recording the information.

Freeze-frame data may show whether P0361 occurred:

2. Check for Related Codes

Look for:

Possible patterns include:

Code combinationLikely diagnostic direction
P0361 onlyIndividual Coil K circuit fault
P0361 plus P0311Coil K fault causing cylinder 11 misfire
P0361 plus P0363Severe misfire with fuel disabled
P0360 plus P0361Shared bank connector, power, ground or harness fault
Multiple P035X/P036X codesShared ignition supply, module, harness or PCM problem

3. Identify Ignition Coil K

Confirm:

Use factory service information.

Do not guess based on which coil is near the rear of the engine. Verify both the bank and cylinder numbering.

4. Determine Whether a Bank-Level Module Is Used

Some high-cylinder-count engines use separate ignition modules or power stages for each cylinder bank.

Determine whether Coil K is controlled through:

If several coils on one bank have circuit codes, test the bank-level power supply, ground and control module before replacing individual coils.

5. Plan Access Carefully

Determine whether reaching Coil K requires removing:

Photograph connector locations and harness routing before disassembly.

High-cylinder-count engines offer plenty of places to reconnect the correct-looking plug to the incorrect-looking component.

6. Inspect Ignition Coil K

Remove Coil K and inspect it for:

Compare it with Coil L or another matching coil.

7. Inspect the Spark-Plug Well

Check the plug well for:

Oil commonly enters through a failed valve-cover gasket or spark-plug tube seal.

Repair the leak before installing another ignition coil. Otherwise, the new component begins its career in the same conditions that killed the old one.

8. Inspect the Coil K Connector

Disconnect and inspect the connector.

Look for:

Perform a terminal-drag test when appropriate.

A connector can appear fully seated while one terminal makes weak or intermittent contact.

9. Inspect the Bank Harness

Follow the Coil K wiring toward the main harness and PCM.

Pay special attention to:

Look for:

Move the harness while monitoring Coil K voltage or control activity.

10. Check Battery and Charging Voltage

Measure battery voltage:

Low cranking voltage may interfere with ignition operation. Excessive charging voltage may damage smart coils and control modules.

Inspect:

Correct system-voltage problems before continuing.

11. Test Coil K Power

Turn the ignition on and measure voltage at Coil K’s power terminal.

Compare it with:

If Coil K lacks power while Coil L has normal voltage, inspect the individual power wire and splice between the circuits.

If several coils on the same bank lack power, inspect the bank-level fuse, relay, connector and shared power feed.

Test the circuit under load. Open-circuit voltage may appear normal even when resistance prevents adequate current flow.

12. Perform Voltage-Drop Testing

Measure voltage drop across:

A long harness and multiple connectors create additional opportunities for resistance.

A circuit may pass a continuity test while failing to deliver current under load.

13. Test Coil K Ground

If Coil K uses a dedicated ground, measure voltage drop between its ground terminal and battery negative while cranking or running.

Compare the reading with Coil L or another working coil.

Inspect:

A poor ground may prevent the coil’s internal electronics from switching properly.

14. Test the PCM Control Wire

Use the wiring diagram to identify the Coil K control circuit.

With the PCM and coil disconnected as directed, test for:

Pay close attention to bank-level connectors and long harness sections.

Do not use an incandescent test light on a PCM driver unless the manufacturer specifically approves it. Use an LED test light, logic probe or oscilloscope.

15. Observe the Coil K Trigger Signal

Back-probe the Coil K control circuit without damaging the connector.

Observe the signal during cranking or engine operation.

Compare it with Coil L or another known-good coil.

Look for:

If Coil K receives a correct trigger but doesn’t produce spark, suspect the coil, power, ground or secondary ignition path.

If the trigger is missing, test the control wire, ignition module and PCM driver.

16. Compare Coil K With Coil L

Coil L may provide the most useful comparison because it often sits on the same engine and may share similar wiring length, temperature and bank-level connections.

Compare:

Differences between Coil K and Coil L can isolate the fault quickly.

If both coils show the same abnormal pattern, investigate shared power, ground or ignition-module operation.

17. Perform a Coil Swap Test

If the coils are identical and accessible, move Coil K to another cylinder and install a known-good coil in its original location.

Clear the codes and reproduce the failure conditions.

Possible results include:

A coil swap helps distinguish component failure from a location-specific electrical problem.

18. Inspect the Spark Plug

Remove the spark plug associated with Coil K.

Check for:

Excessive spark-plug gap increases secondary voltage demand and may damage the coil boot or insulation.

19. Use an Approved Spark Tester

Use an adjustable or manufacturer-approved spark tester to verify Coil K output.

Disable fuel delivery when required and follow manufacturer safety procedures.

Never hold the coil, plug wire or spark plug while cranking. Secondary ignition voltage may exceed 20,000 volts.

Compare Coil K output with a known-good coil under identical conditions.

20. Inspect the Primary Current Ramp

Use an oscilloscope and low-current probe to observe Coil K’s primary current ramp.

Compare it with Coil L or another coil.

Look for:

Primary-current analysis can separate a failed coil from weak power, excessive resistance and driver problems.

21. Test Under Heat and Load

If P0361 appears only after warmup or acceleration:

  1. Monitor Coil K from a cold start.
  2. Allow the engine to reach operating temperature.
  3. Continue monitoring during heat soak.
  4. Perform a hot restart.
  5. Road-test under the original load condition.
  6. Compare Coil K with Coil L.

Rear-bank coils and wiring may fail only after thermal expansion or high secondary voltage demand.

22. Use Resistance Testing Carefully

Some conventional ignition coils have published primary and secondary resistance specifications.

Many modern smart coils don’t.

Integrated ignition electronics may prevent useful resistance measurements through the external terminals. Follow the manufacturer’s procedure instead of applying generic specifications.

23. Test the Ignition Module

If the vehicle uses a separate ignition-control module or bank-level power stage, verify:

Compare the Coil K channel with Coil L.

If the module receives the correct command but fails to control Coil K, the module may be defective.

24. Test the PCM Driver Last

A shorted Coil K or control wire can damage the PCM ignition driver.

Suspect the PCM only after confirming:

Repair any external short before installing another PCM. Otherwise, the replacement module may immediately repeat the failure.

PCM replacement may require programming, security configuration and engine-position relearn procedures.

Common P0361 Diagnostic Mistakes

Avoid these mistakes:

How Do You Fix the P0361 Code?

Possible repairs include:

After repairs:

  1. Clear all stored trouble codes.
  2. Start the engine from cold.
  3. Monitor cylinder 11 misfire counters.
  4. Verify stable Coil K power and ground.
  5. Confirm the Coil K trigger signal.
  6. Compare Coil K and Coil L waveforms.
  7. Allow the engine to reach operating temperature.
  8. Perform a hot restart.
  9. Road-test under the freeze-frame conditions.
  10. Rescan for pending codes.
  11. Confirm P0361, P0311 and P0363 don’t return.

P0361 Repair Costs

RepairEstimated cost
Diagnostic inspection$125–$400
Clean or secure connector$75–$200
Replace Coil K connector$150–$500
Repair control wiring$150–$1,000
Replace ignition fuse or relay$75–$300
Replace Ignition Coil K$150–$700
Replace spark plug$50–$300
Replace complete V12 spark-plug set$500–$2,500+
Repair valve-cover or tube-seal leak$500–$3,000+
Replace ignition-control module$400–$1,500
Repair engine wiring harness$800–$4,000+
PCM software update$150–$400
Replace and program PCM$1,000–$3,000+

V12 access, parts pricing and labor time can raise repair costs significantly. Apparently twelve cylinders also require twelve opportunities for an intake component to block access.

Can You Drive With a P0361 Code?

Driving isn’t recommended when P0361 causes an active misfire.

A short trip may be possible if:

Stop driving if:

A V12 may continue operating with eleven cylinders, but continued misfiring can still destroy an expensive catalytic converter.

P0361 Frequently Asked Questions

What does code P0361 mean?

P0361 means the PCM has detected an electrical malfunction in the primary or secondary circuit for Ignition Coil K.

Is Ignition Coil K always cylinder 11?

No. Coil K commonly corresponds to cylinder 11, but manufacturers may assign ignition channels differently. Verify the location using service information.

Does P0361 mean Coil K is bad?

Not necessarily. Missing power, damaged wiring, loose terminals, poor ground, ignition-module failure or a bad PCM driver can produce the same code.

Is P0361 the same as P0311?

No. P0361 identifies an Ignition Coil K electrical fault. P0311 means cylinder 11 failed to produce normal combustion.

Can a spark plug cause P0361?

An excessively worn or incorrectly gapped plug may stress the ignition coil, but spark-plug problems more commonly produce a P0311 misfire.

Can oil in the spark-plug well cause P0361?

Yes. Oil may damage the coil boot, contaminate the connector and allow secondary voltage to leak to ground.

Can damaged wiring cause P0361?

Yes. An open control wire, short to ground, short to voltage or loose terminal can trigger P0361 while the coil remains functional.

Can a bank-level ignition module cause P0361?

Yes. Some V12 engines use separate ignition modules or power stages for each bank. Test module power, ground, input and Coil K output.

Can a bad PCM cause P0361?

Yes, but PCM driver failure is less common than coil, connector, wiring and ignition-module faults. Test the external circuit first.

Can I swap Coil K with Coil L?

Yes, if the coils are identical and the manufacturer permits it. If the fault follows the coil, the coil is likely defective. If P0361 remains, test the original circuit.

What does P0361 with P0363 mean?

P0361 identifies the Coil K electrical fault. P0363 means the PCM disabled fuel to a misfiring cylinder to protect the catalytic converter.

Will clearing P0361 fix it?

No. Clearing the code only resets the warning temporarily. P0361 will return if the circuit fault remains.

Final Thoughts

P0361 means the PCM has detected an electrical malfunction affecting Ignition Coil K.

Begin by confirming the manufacturer’s Coil K assignment, cylinder numbering and ignition architecture. Record every code and freeze-frame value before inspecting the coil, connector, plug well and wiring.

Pay particular attention to bank-level harness connectors, shared power and ground splices, rear-cylinder heat and wiring hidden beneath intake components.

Verify Coil K power and ground, then compare its trigger pulse and primary current ramp with Coil L or another known-good coil. A coil swap can confirm internal failure, but P0361 remaining at the original circuit points toward the connector, control wire, ignition module or PCM driver.

Test the PCM last and repair any external short before installing a replacement module.

For additional diagnostic coverage, visit the complete P-series OBD-II code guide, browse the OBDII Doctor archive, review the P0311 Cylinder 11 misfire guide or compare the related P0359 Ignition Coil I circuit guide.

P0361 identifies Coil K. The vehicle may still require removing six covers, three ducts and a tasteful portion of the intake manifold before allowing you to see it.

Exit mobile version
