P0360 Code: Ignition Coil “J” Primary/Secondary Circuit Malfunction

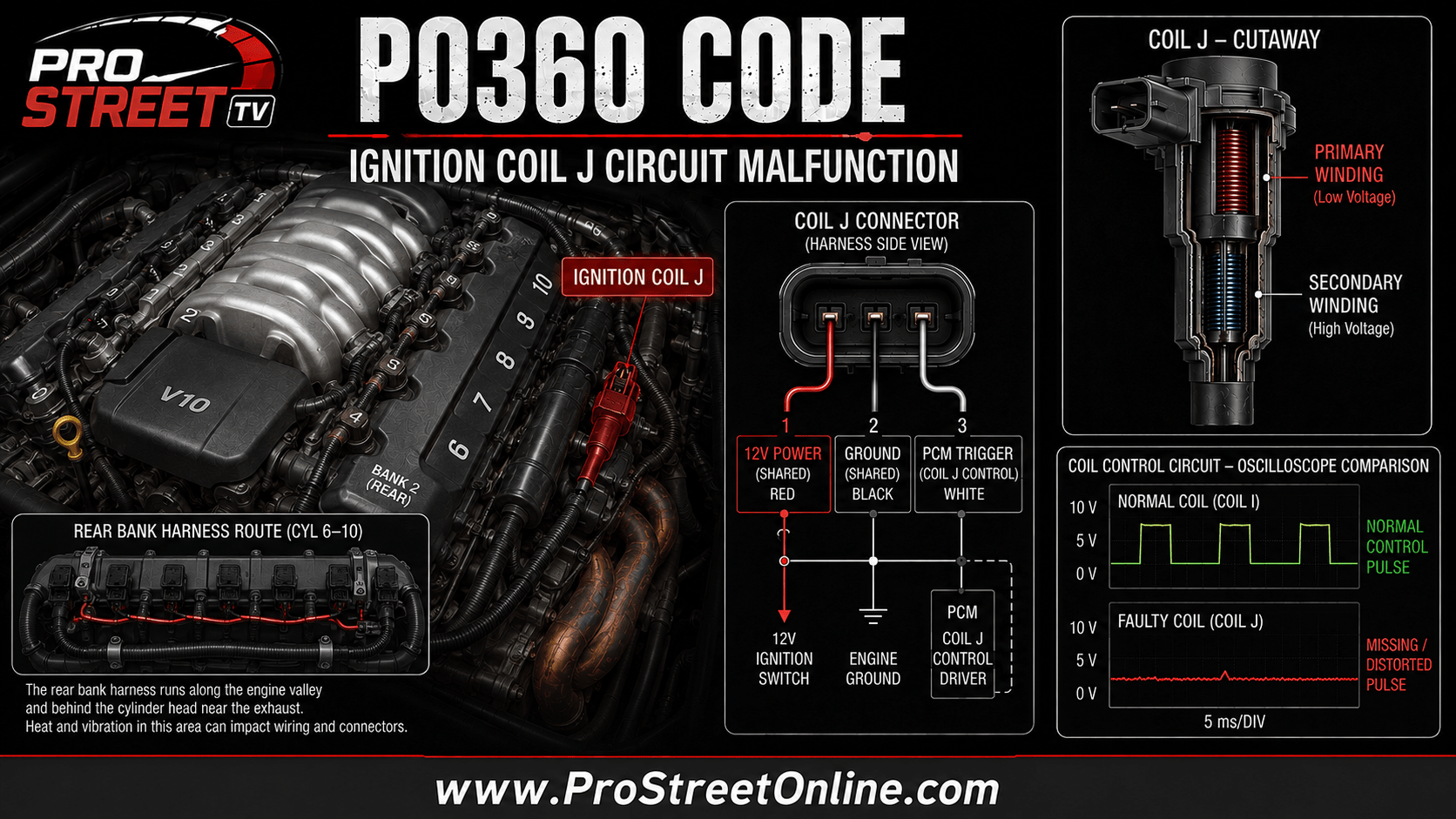

P0360 Ignition Coil J primary and secondary circuit diagnostic illustration

The P0360 code means the engine control module has detected an electrical malfunction in the primary or secondary circuit for Ignition Coil “J.”

On many engines with individual coil-on-plug ignition, Coil J corresponds to cylinder 10. That assignment isn’t universal, so verify the manufacturer’s coil identification before removing components.

Common causes include a failed Ignition Coil J, damaged connector terminals, missing power, poor ground, an open or shorted control wire and a failed PCM ignition driver.

P0360 is an electrical circuit code. It isn’t simply another name for a cylinder 10 misfire, and it doesn’t automatically prove the ignition coil has failed.

P0360 Quick Reference

ItemInformation
OBD-II codeP0360
Official descriptionIgnition Coil “J” Primary/Secondary Circuit Malfunction
SystemIgnition-coil control
Code typeGeneric powertrain code
Commonly associated cylinderCylinder 10, but manufacturer confirmation is required
Primary faultElectrical malfunction affecting Ignition Coil J
SeverityHigh
Safe to drive?Only briefly if the engine runs smoothly
Common causesFailed coil, connector fault, damaged control wire or PCM driver failure
Typical repair rangeApproximately $75–$2,500+, depending on the cause

What Does the P0360 Code Mean?

P0360 stands for:

Ignition Coil “J” Primary/Secondary Circuit Malfunction

The powertrain control module commands Ignition Coil J to produce a spark at the correct moment in the combustion cycle.

Depending on the vehicle, the Coil J circuit may include:

The PCM monitors the circuit while the engine is cranking and running.

P0360 may be stored when the PCM detects:

The exact monitoring strategy varies by manufacturer and ignition-system design.

Which Cylinder Is Ignition Coil J?

Ignition Coil J commonly corresponds to cylinder 10 on engines using an individual coil for each cylinder.

A typical assignment is:

Coil designationCommon cylinder assignment
Coil ACylinder 1
Coil BCylinder 2
Coil CCylinder 3
Coil DCylinder 4
Coil ECylinder 5
Coil FCylinder 6
Coil GCylinder 7
Coil HCylinder 8
Coil ICylinder 9
Coil JCylinder 10

This pattern isn’t guaranteed.

Some manufacturers assign coil letters according to ignition-control channels. Certain engines may use paired coils or separate ignition modules that don’t follow simple cylinder order.

Confirm Coil J using:

Never assume Coil J is the tenth physical coil you count from the front. On a V10, that method can place you on the wrong bank, facing the wrong direction and questioning several life choices.

What Vehicles Can Store P0360?

P0360 is most relevant to engines with at least ten individually monitored ignition-coil circuits.

Possible applications include:

Not every V10 uses the same cylinder numbering or ignition architecture.

Some engines may use:

Always verify the application-specific system before testing.

Why Coil J May Be Difficult to Reach

On many V10 engines, Coil J is located near the rear of a cylinder bank.

Access may be restricted by:

Rear-cylinder wiring is also exposed to:

Inspect the connector and harness before replacing the coil. Limited access makes it easy to pull on the wires, break the locking tab or push a terminal backward inside the connector.

What Is the Primary Ignition Circuit?

The primary circuit is the low-voltage side of the ignition coil.

It generally includes:

The PCM or ignition module allows current to build through the primary winding. This creates a magnetic field inside the coil.

When the control circuit switches off, the magnetic field collapses and induces high voltage in the secondary winding.

Primary-circuit failures may include:

What Is the Secondary Ignition Circuit?

The secondary circuit carries high voltage to the spark plug.

Depending on the system, it may include:

Possible secondary faults include:

Many modern PCMs don’t measure secondary voltage directly. They may infer secondary performance by monitoring primary current, driver feedback, ion current or crankshaft-speed changes during combustion.

How Serious Is the P0360 Code?

P0360 should be considered a high-severity code when Coil J isn’t producing spark.

A V10 may continue running with one dead cylinder, but unburned fuel can enter the exhaust and overheat the catalytic converter.

Continued driving may cause:

Stop driving if:

Ten cylinders may hide one misfire better than four cylinders. The catalytic converter remains entirely unimpressed by the cylinder count.

Common P0360 Symptoms

Possible symptoms include:

A large-displacement V10 may produce only a subtle idle disturbance until engine load increases. Misfire counters and cylinder-contribution data can identify the fault before it becomes obvious.

Common Causes of P0360

Possible causes include:

  1. Failed Ignition Coil J
  2. Open primary coil winding
  3. Shorted primary winding
  4. Internal smart-coil electronics failure
  5. Loose Coil J connector
  6. Broken connector lock
  7. Bent or recessed terminal
  8. Spread female connector terminal
  9. Corrosion inside the connector
  10. Oil contamination
  11. Water inside the spark-plug well
  12. Missing Coil J power supply
  13. Blown ignition-coil fuse
  14. Failed ignition relay
  15. Open Coil J control wire
  16. Control wire shorted to ground
  17. Control wire shorted to voltage
  18. Excessive circuit resistance
  19. Poor Coil J ground
  20. Poor engine or PCM ground
  21. Harness damage near the firewall
  22. Wiring melted near the exhaust manifold
  23. Long harness run with a damaged splice
  24. Wiring pinched beneath an engine component
  25. Incorrect replacement ignition coil
  26. Damaged coil boot
  27. Excessive spark-plug gap
  28. Carbon tracking
  29. Failed ignition-control module
  30. Damaged PCM connector
  31. Failed PCM Coil J driver
  32. PCM software or calibration fault

A worn or incorrectly gapped spark plug may place additional voltage demand on the coil and contribute to coil failure. However, plug problems more commonly produce a cylinder misfire code than a direct P0360 electrical fault.

P0360 vs P0310

P0360 and P0310 may appear together, but they identify different failures.

CodeMeaningDiagnostic focus
P0360Ignition Coil J primary/secondary circuit malfunctionCoil power, ground, control wiring, electronics and PCM driver
P0310Cylinder 10 misfire detectedSpark, fuel delivery, compression, airflow and mechanical condition

The P0310 Cylinder 10 misfire guide covers the possible reasons cylinder 10 may fail to produce normal combustion.

P0310 may be caused by:

P0360 narrows the diagnosis toward the electrical circuit for Ignition Coil J.

If both codes appear, diagnose P0360 first. Repairing the Coil J circuit may also eliminate P0310.

If P0310 remains after P0360 is repaired, continue testing fuel delivery, compression and the cylinder’s mechanical condition.

P0360 vs P0359

P0359 and P0360 apply to adjacent ignition-coil circuits.

On many V10 applications:

My Pro Street already provides a complete P0359 Ignition Coil I diagnostic guide.

If P0359 and P0360 appear together, inspect circuits shared by both coils:

Two adjacent coils failing electrically at the same time may indicate a shared wiring or connector problem rather than two independent component failures.

P0360 vs P0350

P0350 identifies a general ignition-coil primary or secondary circuit malfunction without naming one particular coil.

P0360 identifies the individual circuit associated with Ignition Coil J.

If P0350 appears with several individual coil codes, inspect:

If only P0360 is stored, begin with Coil J and its individual connector and PCM control circuit.

P0360 vs P0363

P0363 means the PCM detected a misfire and disabled fuel delivery to protect the catalytic converter.

P0360 identifies the electrical Coil J circuit fault that may have caused the misfire.

If P0360, P0310 and P0363 appear together:

  1. The PCM detected an electrical fault affecting Coil J.
  2. Cylinder 10 stopped producing normal combustion.
  3. The PCM disabled fuel to that cylinder to prevent raw gasoline from entering the catalytic converter.

Repair P0360 first, clear the codes and verify whether fuel delivery returns after the required drive cycle or relearn procedure.

How the Ignition Coil J Circuit Works

A typical coil-on-plug ignition event works as follows:

  1. The ignition relay supplies battery voltage to Coil J.
  2. The PCM receives crankshaft and camshaft position signals.
  3. The PCM calculates ignition timing and coil dwell.
  4. The PCM sends a trigger signal or directly controls primary current.
  5. Current builds through the primary winding.
  6. The control circuit switches off.
  7. The magnetic field collapses.
  8. High voltage is induced in the secondary winding.
  9. Voltage crosses the spark-plug gap.
  10. Combustion occurs.

The PCM expects predictable voltage and current behavior throughout the event.

P0360 may be stored if Coil J:

How to Diagnose the P0360 Code

1. Scan and Record Every Code

Use a capable scan tool to retrieve:

Don’t clear the codes before saving this information.

Freeze-frame data may show whether P0360 occurred:

2. Check for Related Codes

Look for:

Possible patterns include:

Code combinationLikely diagnostic direction
P0360 onlyIndividual Coil J circuit fault
P0360 plus P0310Coil J fault causing cylinder 10 misfire
P0360 plus P0363Severe misfire with fuel disabled
P0359 plus P0360Shared rear-bank power, ground, connector or harness fault
Multiple P035X codesShared ignition supply, ground, module or PCM problem

3. Identify Ignition Coil J

Confirm:

Use manufacturer service information.

Do not assume cylinder 10 is always at the rear of the passenger-side bank. Cylinder numbering is determined by the engine manufacturer, not by whatever diagram appears first in an image search.

4. Plan Access Before Disconnecting Anything

Inspect the Coil J location before beginning disassembly.

Determine whether access requires removing:

Label connectors and photograph harness routing before moving components.

Disconnect the battery when required, especially if working near PCM connectors or repairing wiring.

5. Inspect Ignition Coil J

Remove Coil J and inspect it for:

Compare it with another coil from the same engine.

Heat discoloration, cracks or carbon tracking support coil or secondary-insulation failure.

6. Inspect the Spark-Plug Well

Check the Coil J plug well for:

Oil commonly enters through a leaking valve-cover gasket or spark-plug tube seal.

Repair the leak before installing another coil. A fresh coil placed into the same contaminated plug well is less of a repair and more of a repeat-customer program.

7. Inspect the Coil J Connector

Disconnect and inspect the connector.

Look for:

Perform a terminal-drag test when appropriate.

Rear-cylinder connectors are frequently damaged because access encourages technicians to pull on the wires rather than the connector body.

8. Inspect the Harness

Follow the Coil J wiring toward the main harness and PCM.

Pay close attention to:

Look for:

Move the harness while monitoring Coil J voltage or engine operation.

9. Check Battery and Charging Voltage

Measure battery voltage:

Low cranking voltage may interfere with ignition operation. Excessive charging voltage may damage smart-coil electronics.

Inspect:

Correct system-voltage problems before continuing.

10. Test Coil J Power

Turn the ignition on and measure voltage at Coil J’s power terminal.

Compare it with:

If Coil J lacks power but Coil I has normal voltage, inspect the individual power wire, connector and splice between the two circuits.

If an entire cylinder bank lacks power, inspect its shared fuse, relay, connector and power feed.

Test the circuit under load. A corroded splice may display normal voltage with the coil unplugged and collapse when current flows.

11. Perform Voltage-Drop Testing

Measure voltage drop across:

A long V10 wiring harness creates more locations for hidden resistance.

A circuit may pass a continuity test while failing under load because only a few conductor strands remain intact.

12. Test Coil J Ground

If Coil J uses a dedicated ground, measure voltage drop between its ground terminal and battery negative while cranking or running.

Compare the result with Coil I or another operating coil.

Inspect:

A poor ground can prevent the coil’s internal electronics from switching properly.

13. Test the PCM Control Wire

Use the wiring diagram to identify the Coil J control circuit.

With the PCM and coil disconnected as directed, test for:

Pay attention to long harness runs and connectors between the engine and PCM.

Do not use a conventional incandescent test light on the PCM control circuit unless the manufacturer approves it. Use an LED test light, logic probe or oscilloscope designed for electronic circuits.

14. Observe the Coil J Trigger Signal

Back-probe the Coil J control wire without damaging the connector or weather seal.

Observe the signal during cranking or engine operation.

Compare it with Coil I or another known-good ignition coil.

Look for:

If Coil J receives the correct trigger but doesn’t fire, suspect the coil, its power, ground or secondary ignition path.

If the trigger is missing, test the control wire and PCM driver.

15. Perform a Coil Swap Test

If the coils are identical and accessible, move Coil J to another cylinder and install a known-good coil in its original location.

Clear the codes and reproduce the failure conditions.

Possible results include:

The coil swap helps separate component failure from a location-specific electrical problem.

16. Inspect the Spark Plug

Remove the spark plug associated with Coil J.

Check for:

Excessive spark-plug gap increases secondary voltage demand and can damage the coil boot or insulation.

17. Use an Approved Spark Tester

Use an adjustable or manufacturer-approved spark tester to verify Coil J output.

Disable fuel delivery when required and follow manufacturer safety procedures.

Never hold the coil, spark-plug wire or plug while cranking. Secondary ignition voltage may exceed 20,000 volts.

Compare Coil J output with a known-good coil under identical conditions.

18. Inspect the Primary Current Ramp

Use an oscilloscope and low-current probe to observe Coil J’s primary current ramp.

Compare it with Coil I or another coil.

Look for:

Primary-current analysis can distinguish coil failure from weak power, excessive resistance and driver problems.

19. Test Under Heat and Load

If P0360 appears only after warmup or during acceleration:

  1. Monitor Coil J from cold.
  2. Allow the engine to reach operating temperature.
  3. Continue monitoring during heat soak.
  4. Perform a hot restart.
  5. Road-test under load when safe.
  6. Compare Coil J with Coil I.

Rear-bank coils and wiring may fail only after underhood temperature rises.

A coil that behaves perfectly in the driveway may begin negotiating an early retirement as soon as the engine is loaded.

20. Use Resistance Tests Carefully

Some conventional coils have published primary and secondary resistance specifications.

Many modern smart coils do not.

Integrated ignition electronics may prevent meaningful resistance measurements through the external terminals. Follow manufacturer procedures instead of applying generic values.

21. Test the Ignition-Control Module

If the vehicle uses an external ignition-control module, verify:

Compare the Coil J channel with Coil I or another known-good channel.

If the module receives the correct command but fails to control Coil J, module failure becomes likely.

22. Test the PCM Driver Last

A shorted coil or control wire may damage the PCM’s Coil J ignition driver.

Suspect the PCM only after confirming:

Repair any external short before installing another PCM. Otherwise, the replacement module may immediately suffer the same failure.

PCM replacement may require:

Common P0360 Diagnostic Mistakes

Avoid these mistakes:

How Do You Fix the P0360 Code?

Possible repairs include:

After repairs:

  1. Clear all stored trouble codes.
  2. Start the engine from cold.
  3. Monitor cylinder 10 misfire counters.
  4. Verify stable Coil J power and ground.
  5. Confirm the Coil J trigger signal.
  6. Allow the engine to reach operating temperature.
  7. Perform a hot restart.
  8. Road-test under the freeze-frame conditions.
  9. Rescan for pending codes.
  10. Confirm P0360, P0310 and P0363 don’t return.

P0360 Repair Costs

RepairEstimated cost
Diagnostic inspection$100–$350
Clean or secure connector$50–$150
Replace Coil J connector$100–$400
Repair control wiring$100–$900
Replace ignition fuse or relay$50–$250
Replace Ignition Coil J$100–$550
Replace spark plug$40–$250
Replace complete V10 spark-plug set$300–$1,500+
Repair plug-tube seal leak$300–$1,500+
Replace ignition-control module$250–$1,000
Repair engine wiring harness$500–$3,000+
PCM software update$100–$300
Replace and program PCM$800–$2,500+

Costs may increase when Coil J access requires cowl, intake or fuel-system disassembly.

Can You Drive With a P0360 Code?

Driving isn’t recommended when P0360 causes an active misfire.

A short trip may be possible if:

Stop driving if:

A V10 may continue moving with nine working cylinders. That doesn’t make the tenth cylinder’s raw fuel any less expensive when it reaches the catalytic converter.

P0360 Frequently Asked Questions

What does code P0360 mean?

P0360 means the PCM has detected an electrical malfunction in the primary or secondary circuit for Ignition Coil J.

Is Ignition Coil J always cylinder 10?

No. Coil J commonly corresponds to cylinder 10, but manufacturer assignments vary. Verify the location using factory service information.

Does P0360 mean Coil J is bad?

Not necessarily. Missing power, damaged wiring, loose terminals, poor ground and PCM driver failure can produce the same code.

Is P0360 the same as P0310?

No. P0360 identifies an Ignition Coil J electrical fault. P0310 means cylinder 10 failed to produce normal combustion.

Can a spark plug cause P0360?

An excessively worn or incorrectly gapped spark plug may stress the ignition coil, but plug problems more commonly produce a P0310 misfire.

Can oil in the spark-plug well cause P0360?

Yes. Oil may damage the coil boot, contaminate the connector and allow secondary voltage to leak to ground.

Can exhaust heat cause P0360?

Yes. Rear-bank heat may damage Coil J, its connector or nearby wiring.

Can damaged wiring cause P0360?

Yes. An open control wire, short to ground, short to voltage or loose terminal can trigger P0360 while the ignition coil remains functional.

Can a bad PCM cause P0360?

Yes, but PCM driver failure is less common than coil, connector and wiring faults. Test the external circuit first.

Can I swap Coil J with another coil?

Yes, if the coils are identical and the manufacturer permits it. If the fault follows the coil, the coil is likely defective. If P0360 remains, test the original circuit.

What does P0360 with P0363 mean?

P0360 identifies the Coil J circuit fault. P0363 means the PCM disabled fuel to a misfiring cylinder to protect the catalytic converter.

Will clearing P0360 fix it?

No. Clearing the code only resets the warning temporarily. P0360 will return if the circuit fault remains.

Final Thoughts

P0360 means the PCM has detected an electrical malfunction affecting Ignition Coil J.

Begin by confirming the manufacturer’s Coil J assignment and cylinder numbering. Record every code and freeze-frame value before inspecting the coil, connector, plug well and wiring.

Pay particular attention to rear-bank heat, restricted access, shared bank connectors and long harness runs.

Verify Coil J power and ground, then compare its trigger pulse and primary current ramp with Coil I or another known-good coil. A coil swap can confirm an internal failure, but P0360 remaining at the original circuit points toward the connector, control wire or PCM driver.

Test the PCM last and repair any shorted coil or wiring before installing a replacement module.

For additional diagnostic coverage, visit the complete P-series OBD-II code guide, browse the OBDII Doctor archive, review the P0310 Cylinder 10 misfire guide or compare the adjacent P0359 Ignition Coil I circuit.

P0360 identifies Coil J. Reaching it may still require removing everything the manufacturer installed after the engine—and possibly one item installed before it.

Exit mobile version
