P0358 Code Explained: Ignition Coil “H” Primary/Secondary Circuit Malfunction Causes, Symptoms & Fixes

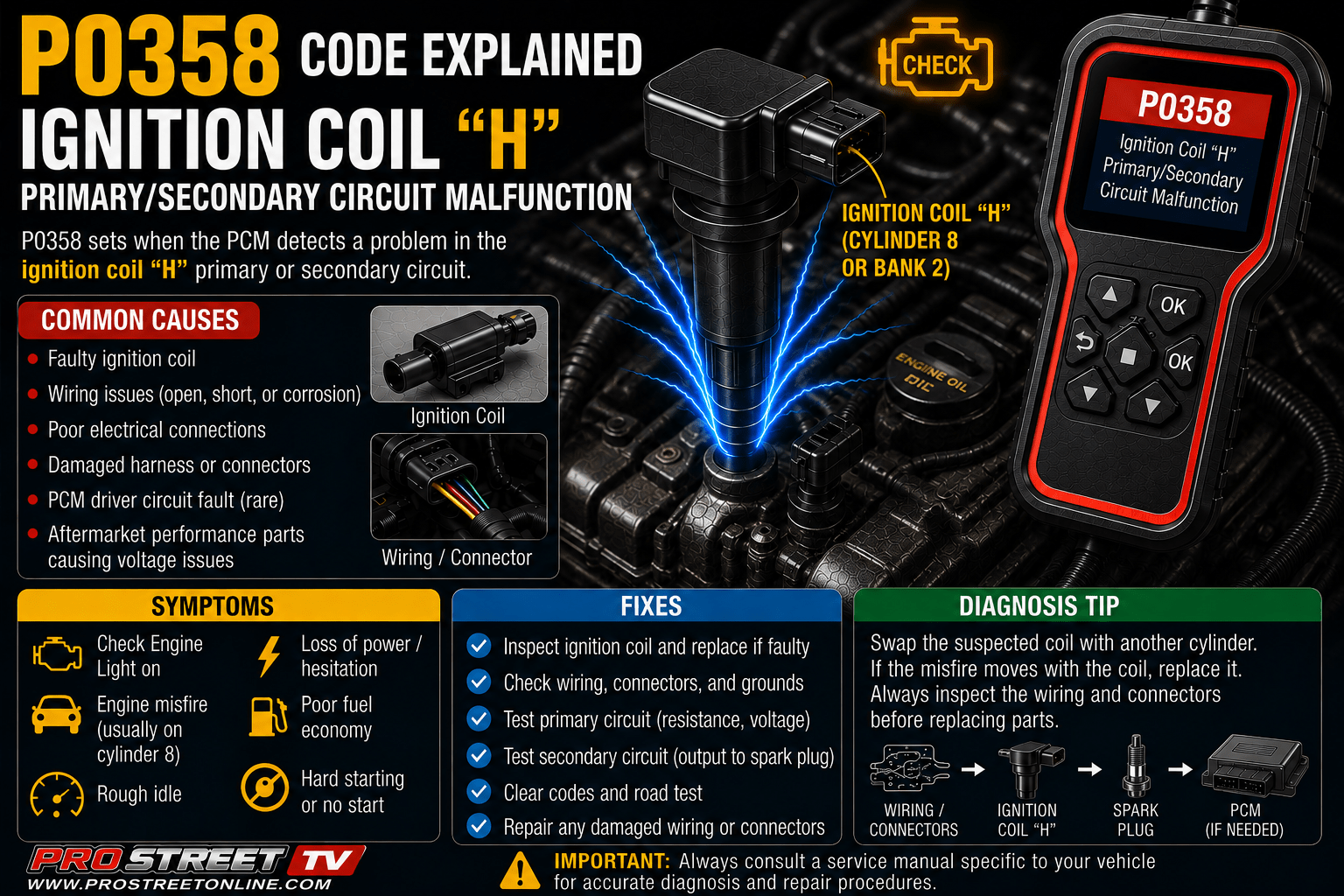

P0358 code illustration showing Ignition Coil "H", Cylinder 8 spark plug, ignition wiring, Check Engine Light, Pro Street TV logo, and www.ProStreetOnline.com.

If your OBD-II scanner displays P0358, your vehicle’s Engine Control Module (ECM) or Powertrain Control Module (PCM) has detected a malfunction in the Ignition Coil “H” Primary/Secondary Circuit.

The generic OBD-II definition for P0358 is:

Ignition Coil “H” Primary/Secondary Circuit Malfunction

On many V8 engines, Ignition Coil “H” typically serves Cylinder 8, although the actual cylinder assignment varies by manufacturer. The PCM continuously monitors the ignition coil circuit to verify proper voltage, current flow, and switching operation during every ignition event.

When the PCM detects an open circuit, short circuit, excessive resistance, abnormal current draw, or improper ignition coil response, it stores P0358 and illuminates the Check Engine Light.

The ignition system is responsible for:

Common causes include:

Because ignition faults can quickly damage the catalytic converter and reduce engine performance, P0358 should be diagnosed and repaired as soon as possible.

What Does the P0358 Code Mean?

The ignition coil converts battery voltage into the high voltage required to ignite the compressed air/fuel mixture inside the combustion chamber.

The PCM controls the ignition coil by rapidly switching the primary circuit on and off. As the magnetic field inside the coil collapses, the secondary winding generates enough voltage to fire the spark plug.

If the PCM detects that the Ignition Coil “H” circuit is:

it stores P0358.

Unlike P0308, which identifies a combustion misfire on Cylinder 8, P0358 identifies an electrical malfunction affecting the ignition coil circuit itself.

What Is an Ignition Coil?

Most modern gasoline engines use Coil-on-Plug (COP) ignition systems.

Instead of one ignition coil supplying multiple cylinders, each spark plug has its own dedicated ignition coil mounted directly above it.

Each ignition coil contains:

The ignition coil converts approximately 12 volts into 20,000–60,000 volts, depending on engine load and design.

That voltage must consistently jump the spark plug gap under high cylinder pressure.

Why Ignition Coil “H” Is Important

Ignition Coil “H” supplies spark to its assigned cylinder, commonly Cylinder 8.

Proper ignition coil operation supports:

If the ignition coil fails, combustion becomes weak or stops completely in the affected cylinder.

How the PCM Detects P0358

The PCM continuously monitors:

If the PCM commands Ignition Coil “H” but does not detect the expected electrical response, it stores P0358.

Many manufacturers also disable fuel delivery to the affected cylinder if severe misfires occur to prevent catalytic converter damage.

What Does “Primary/Secondary Circuit Malfunction” Mean?

P0358 does not automatically indicate a failed ignition coil.

Instead, it means the PCM has detected an electrical fault somewhere within the ignition circuit.

The primary circuit includes:

The secondary circuit includes:

Possible causes include:

Proper diagnosis should always determine the exact cause before replacing components.

Can a Bad Ignition Coil Cause P0358?

Yes.

A failed ignition coil is the most common cause of P0358.

Typical ignition coil failures include:

Many ignition coils fail only under heavy engine load, making intermittent failures difficult to reproduce during a simple idle inspection.

Can a Bad Spark Plug Cause P0358?

Absolutely.

A worn spark plug increases the voltage required to create spark.

Common spark plug problems include:

Higher ignition voltage demand places additional stress on the ignition coil and can eventually trigger P0358.

Ignoring an old spark plug while replacing the ignition coil is like replacing a burned-out light bulb without fixing the wiring that caused it.

Can Wiring Problems Cause P0358?

Yes.

Inspect the ignition circuit for:

Ignition wiring is constantly exposed to engine heat and vibration, making harness failures relatively common.

Can Oil in the Spark Plug Well Cause P0358?

Yes.

Oil commonly leaks into the spark plug well through failed:

Oil contamination may damage:

Repair the oil leak before installing replacement ignition components.

Can Moisture Cause P0358?

Yes.

Moisture inside the spark plug well may cause:

Moisture commonly results from:

Can a PCM Problem Cause P0358?

Yes, although PCM failures are uncommon.

The PCM controls Ignition Coil “H” using an internal driver circuit.

A failed driver may cause:

PCM failure should only be suspected after confirming:

Replacing the PCM first because it sounds impressive usually impresses only your wallet—in the wrong direction.

P0358 Quick Facts

ItemInformation
DTCP0358
Generic DefinitionIgnition Coil “H” Primary/Secondary Circuit Malfunction
SystemIgnition / Engine Management
Typical Coil AssignmentCylinder 8 on many vehicles
SeverityHigh
Safe to Drive?Limited driving only
Common SymptomsCheck Engine Light, rough idle, hesitation, reduced power
Common CausesFailed coil, spark plug wear, wiring damage, connector faults
Typical Repair Cost$100–700+
Related CodesP0308, P0351, P0352, P0353, P0354, P0355, P0356, P0357

Common Symptoms of P0358

Drivers commonly experience:

Symptoms typically become more severe as the ignition fault worsens.

Common Vehicles That Experience P0358

P0358 may appear on virtually any OBD-II vehicle equipped with coil-on-plug ignition systems, including:

The code is particularly common on:

What Does P0358 Really Mean?

Many people assume P0358 simply means:

“Replace Ignition Coil 8.”

That repair may solve the problem, but the code actually means:

“The PCM detected an electrical malfunction affecting the Ignition Coil ‘H’ primary or secondary circuit. Inspect the ignition coil, spark plug, connector, wiring, battery voltage, engine grounds, and PCM driver before replacing components.”

The root cause may involve:

A complete diagnosis identifies the true fault instead of replacing parts based solely on the stored code.

Common P0358 Scan Tool Patterns

Using a professional scan tool is one of the fastest ways to diagnose P0358.

Because the PCM continuously monitors Ignition Coil “H,” live scan data can help determine whether the fault originates from the ignition coil, spark plug, wiring, electrical connector, or PCM driver circuit.

Modern scan tools commonly display:

On many vehicles, Ignition Coil “H” corresponds to Cylinder 8, although the actual cylinder assignment should always be verified using factory service information.

Pattern 1: P0358 With Cylinder 8 Misfire

One of the most common scan-tool patterns is:

Possible causes include:

This is the most common real-world failure pattern associated with P0358.

Pattern 2: P0358 Without a Misfire Code

Some vehicles display:

Possible causes include:

Early diagnosis often prevents future drivability problems.

Pattern 3: Misfire Only Under Load

Live data may show:

Possible causes include:

Some ignition coils only reveal their retirement plans once the accelerator pedal gets involved.

Pattern 4: Heat-Related Failure

Some ignition coils fail only after reaching operating temperature.

Symptoms include:

Possible causes include:

Heat cycling remains one of the leading causes of ignition coil failure.

Pattern 5: Fuel Injector Disabled

Some manufacturers disable fuel delivery to protect the catalytic converter.

Scan data may show:

Disabling fuel prevents raw gasoline from overheating the catalytic converter.

Pattern 6: Freeze-Frame During Heavy Acceleration

Freeze-frame data often shows:

These conditions place maximum electrical demand on the ignition system.

Pattern 7: Multiple Ignition Coil Codes

P0358 may appear with:

Multiple ignition circuit codes often indicate:

When several ignition coils report faults simultaneously, inspect the shared circuits before replacing multiple coils.

Common Symptoms of P0358

Symptoms vary depending on whether the ignition failure is intermittent or complete.

Common symptoms include:

Some vehicles continue running reasonably well until engine load increases.

Check Engine Light

The Check Engine Light is usually the first symptom.

Common companion codes include:

A flashing Check Engine Light indicates an active catalyst-damaging misfire.

Rough Idle

A failed Ignition Coil “H” often causes:

Idle quality may improve slightly as RPM increases.

Engine Misfire

Without sufficient spark energy, Cylinder 8 cannot consistently ignite the compressed air/fuel mixture.

Drivers commonly notice:

Persistent misfires should never be ignored.

Loss of Power

When Cylinder 8 stops contributing:

Performance V8 engines often show a noticeable drop in power when Cylinder 8 stops firing.

Poor Fuel Economy

Incomplete combustion increases fuel consumption.

Drivers may notice:

Fuel mileage often drops significantly until repairs are completed.

Strong Fuel Odor

A failed ignition event allows unburned fuel to enter the exhaust.

Possible symptoms include:

Prompt repairs help prevent expensive catalytic converter damage.

Is P0358 Serious?

Yes. P0358 is considered a high-severity diagnostic trouble code.

Ignoring the problem may result in:

Repairs should be completed as soon as possible.

Can You Drive With P0358?

Limited driving may be possible, but it is not recommended.

Avoid driving if you experience:

Driving with an active ignition fault can quickly transform a simple ignition repair into an expensive exhaust repair.

P0358 vs Related Trouble Codes

Understanding related ignition system codes helps narrow the diagnosis.

P0358

Ignition Coil “H” Primary/Secondary Circuit Malfunction

Electrical fault affecting Ignition Coil “H.”

P0308

Cylinder 8 Misfire Detected

The PCM detects combustion failure on Cylinder 8.

P0351

Ignition Coil “A” Primary/Secondary Circuit Malfunction

Electrical fault affecting Ignition Coil “A.”

P0352

Ignition Coil “B” Primary/Secondary Circuit Malfunction

Electrical fault affecting Ignition Coil “B.”

P0353

Ignition Coil “C” Primary/Secondary Circuit Malfunction

Electrical fault affecting Ignition Coil “C.”

P0354

Ignition Coil “D” Primary/Secondary Circuit Malfunction

Electrical fault affecting Ignition Coil “D.”

P0355

Ignition Coil “E” Primary/Secondary Circuit Malfunction

Electrical fault affecting Ignition Coil “E.”

P0356

Ignition Coil “F” Primary/Secondary Circuit Malfunction

Electrical fault affecting Ignition Coil “F.”

P0357

Ignition Coil “G” Primary/Secondary Circuit Malfunction

Electrical fault affecting Ignition Coil “G.”

30 Common Causes of P0358

The most common causes include:

  1. Failed Ignition Coil “H”
  2. Internal coil winding failure
  3. Excessive spark plug gap
  4. Worn spark plug
  5. Fouled spark plug
  6. Oil-contaminated spark plug
  7. Cracked ignition coil housing
  8. Damaged coil boot
  9. Carbon tracking
  10. Moisture intrusion
  11. Open ignition coil circuit
  12. Shorted ignition coil circuit
  13. Broken wiring
  14. Chafed wiring harness
  15. Loose electrical connector
  16. Corroded terminals
  17. Oil in the spark plug well
  18. Coolant contamination
  19. Poor engine ground
  20. Weak battery voltage
  21. Charging system problems
  22. PCM driver circuit failure
  23. Incorrect spark plug
  24. Low-quality aftermarket ignition coil
  25. Engine overheating
  26. Rodent-damaged wiring
  27. Water intrusion after engine washing
  28. Poor previous wiring repairs
  29. PCM connector damage
  30. Failed PCM (rare)

Final Thoughts

The P0358 Ignition Coil “H” Primary/Secondary Circuit Malfunction code indicates the PCM has detected an electrical problem affecting Ignition Coil “H,” commonly associated with Cylinder 8.

Although the ignition coil itself is often responsible, the fault may also involve:

Proper diagnosis should identify the exact failure before replacing components.

The next section covers:

Following a structured diagnostic process restores reliable ignition performance while preventing unnecessary parts replacement and costly catalytic converter damage.

Related Pro Street Diagnostic Guides

How to Diagnose the P0358 Code

Diagnosing P0358 requires determining why the Powertrain Control Module (PCM) has detected a malfunction in the Ignition Coil “H” Primary/Secondary Circuit.

Unlike P0308, which identifies a combustion misfire on Cylinder 8, P0358 is an electrical circuit code. The fault may involve the ignition coil, spark plug, wiring, electrical connector, voltage supply, ground circuit, or PCM driver.

The most common causes include:

Because prolonged ignition faults can quickly damage the catalytic converter, diagnosis should begin as soon as possible.

Safety Precautions

Before beginning diagnosis:

Modern ignition coils may produce 20,000–60,000 volts. Never disconnect ignition components while the engine is running.

Tools Required

Professional diagnosis may require:

A proper spark tester is considerably safer than using yourself as the test equipment.

Step 1 – Verify the Code

Connect a professional scan tool.

Record:

Monitor:

Always save freeze-frame data before clearing diagnostic trouble codes.

Step 2 – Check for Related Trouble Codes

P0358 commonly appears with:

Related codes help determine whether the fault affects one ignition coil or multiple cylinders.

Code CombinationLikely Diagnosis
P0358 onlyIgnition Coil “H” circuit fault
P0358 + P0308Coil, spark plug, or wiring fault on Cylinder 8
P0358 + multiple P035X codesShared power supply, wiring harness, or PCM issue
P0358 + P0363Severe misfire with fuel disabled

Step 3 – Confirm Coil Assignment

Before replacing any components, verify which cylinder corresponds to Ignition Coil “H.”

On many V8 engines, Coil “H” serves Cylinder 8, but manufacturer assignments vary.

Verify using:

Never assume coil lettering automatically matches cylinder numbering.

Step 4 – Review Freeze-Frame Data

Review:

Determine whether the fault occurred:

Freeze-frame data often reveals intermittent ignition failures.

Step 5 – Perform a Visual Inspection

Inspect Ignition Coil “H.”

Look for:

Many ignition coil failures can be identified during a careful visual inspection.

Step 6 – Inspect the Wiring Harness

Trace the ignition coil wiring harness.

Inspect for:

Repair damaged wiring before replacing ignition components.

Step 7 – Inspect the Electrical Connector

Disconnect the ignition coil connector.

Inspect for:

Connector failures are among the most common causes of P0358.

Step 8 – Verify Battery and Charging System Voltage

Low charging voltage may interfere with ignition coil performance.

Normal readings:

Correct charging system problems before continuing diagnosis.

Step 9 – Monitor Cylinder 8 Misfire Data

Using a professional scan tool, monitor:

A rapidly increasing Cylinder 8 misfire count typically indicates an ignition system problem.

Step 10 – Perform an Ignition Coil Swap Test

Move Ignition Coil “H” to another cylinder.

Example:

If the fault moves:

the ignition coil is defective.

If P0358 remains assigned to the original circuit, suspect wiring, connector, voltage supply, or PCM driver issues.

Step 11 – Inspect the Spark Plug

Remove the Cylinder 8 spark plug.

Inspect for:

A worn spark plug places additional stress on the ignition coil and may contribute to repeated failures.

Step 12 – Test Spark Output

Use an adjustable spark tester.

Verify:

Weak spark supports an ignition coil, wiring, voltage supply, or PCM control problem.

Step 13 – Verify Coil Power Supply

Using a multimeter:

Verify:

If voltage is missing, inspect:

Multiple ignition coil codes frequently indicate a shared electrical supply problem.

Step 14 – Verify Ground Integrity

Inspect:

Verify:

Poor grounding frequently creates intermittent ignition circuit failures.

Step 15 – Test the PCM Control Signal

Using an oscilloscope or logic probe:

Verify:

A missing control signal may indicate:

PCM failure should only be considered after every other ignition component has been verified.

Step 16 – Test Ignition Coil Resistance

Where applicable, compare:

with manufacturer specifications.

Many modern smart ignition coils cannot be accurately diagnosed using resistance alone, making waveform analysis and swap testing the preferred methods.

Step 17 – Inspect for Oil or Coolant Contamination

Inspect the spark plug well for:

Common sources include:

Repair all leaks before installing replacement ignition components.

Step 18 – Check Cylinder Compression (If Necessary)

If all ignition system tests pass but Cylinder 8 continues to misfire:

Perform:

Possible mechanical faults include:

Mechanical failures generally trigger P0308, although multiple faults may exist simultaneously.

Step 19 – Review Technical Service Bulletins

Review manufacturer Technical Service Bulletins (TSBs) covering:

Factory bulletins often identify recurring vehicle-specific failures.

Step 20 – Confirm the Diagnosis

Before replacing expensive components, verify:

Completing these diagnostic steps accurately identifies the root cause of P0358 while preventing unnecessary parts replacement.

Step 21 – Replace the Ignition Coil

If testing confirms Ignition Coil “H” has failed, replacement is the correct repair.

Common signs of ignition coil failure include:

General replacement procedure:

  1. Disconnect the negative battery cable.
  2. Remove any engine covers.
  3. Disconnect the ignition coil electrical connector.
  4. Remove the ignition coil retaining bolt.
  5. Carefully pull the ignition coil straight upward.
  6. Inspect the spark plug well for oil, coolant, or moisture.
  7. Install a new OEM-quality ignition coil.
  8. Apply dielectric grease to the inside of the coil boot if recommended.
  9. Reconnect the electrical connector.
  10. Clear all diagnostic trouble codes.

Using OEM or premium aftermarket ignition coils provides the most reliable repair and helps prevent future ignition failures.

Step 22 – Replace the Spark Plug

A worn spark plug frequently contributes to ignition coil failure.

Inspect the spark plug for:

Replace spark plugs according to the manufacturer’s specifications.

Replacing both the ignition coil and spark plug together often prevents repeat repairs and restores proper ignition performance.

Step 23 – Repair Wiring Problems

Inspect the entire ignition coil wiring harness.

Look for:

Repair damaged wiring using:

Many intermittent P0358 faults ultimately originate from damaged wiring instead of the ignition coil.

Step 24 – Repair or Replace Electrical Connectors

Inspect the ignition coil connector for:

Replace damaged connectors using OEM repair kits whenever possible.

Poor terminal contact frequently creates intermittent ignition faults that closely resemble a failed ignition coil.

Step 25 – Repair Oil or Coolant Leaks

Oil or coolant contamination dramatically shortens ignition coil life.

Inspect for:

Repair all leaks before installing replacement ignition components.

Installing a brand-new ignition coil into an oil-soaked spark plug well is like buying expensive tires while ignoring the bent suspension—they won’t last long.

Step 26 – Repair Engine Ground Problems

Inspect every ignition-related ground.

Verify:

Poor grounding may cause:

Clean and tighten all ground connections before replacing expensive components.

Step 27 – Repair the PCM Driver Circuit (If Necessary)

If testing confirms the ignition coil, spark plug, wiring, connectors, voltage supply, and grounds are operating correctly:

Inspect:

PCM driver failures are rare and should only be considered after every other ignition component has been eliminated.

Step 28 – Update PCM Software

Before replacing the PCM:

Review manufacturer Technical Service Bulletins (TSBs).

Manufacturers occasionally release software updates correcting:

Always install the latest PCM calibration whenever applicable.

Step 29 – Complete an OBD-II Drive Cycle

After repairs:

Confirm that P0358 does not return.

Step 30 – Verify the Repair

After completing repairs:

  1. Clear all stored diagnostic trouble codes.
  2. Start the engine.
  3. Verify a smooth idle.
  4. Road test the vehicle.
  5. Monitor Cylinder 8 misfire counters.
  6. Confirm stable ignition timing.
  7. Verify no pending or permanent DTCs return.
  8. Ensure the Check Engine Light remains off.

A successful repair restores smooth engine operation, full power, proper fuel economy, and dependable ignition system performance.

How to Fix P0358

The correct repair depends entirely on the diagnostic results.

Common repairs include:

Never replace the PCM until every ignition component and electrical circuit has been thoroughly tested.

Typical Repair Costs

RepairTypical Cost
Professional diagnosis$100–250
Ignition coil replacement$125–350
Spark plug replacement$150–450
Ignition coil connector replacement$100–250
Wiring repair$100–350
Valve cover gasket replacement$200–600
Spark plug tube seal replacement$250–700
Engine ground repair$75–200
PCM software update$100–250
PCM replacement (rare)$800–2,000+

Repair costs vary depending on labor rates, engine design, and component accessibility.

Common Diagnostic Mistakes

Avoid these common mistakes:

Many P0358 repairs involve spark plugs, wiring, connectors, or oil leaks—not PCM failure.

Manufacturer-Specific Notes

General Motors (Chevrolet, GMC, Cadillac, Buick)

Inspect:

Heat exposure commonly shortens ignition coil life on higher-mileage GM V8 engines.

Ford/Lincoln

Inspect:

Many Ford engines develop intermittent ignition failures that worsen under heavy engine load.

Chrysler, Dodge, Jeep, Ram

Inspect:

Heat-damaged wiring is a common source of intermittent ignition faults.

Toyota/Lexus

Inspect:

Oil contamination remains one of the leading causes of repeat ignition coil failures.

Nissan/Infiniti

Inspect:

Several Nissan V6 and V8 engines experience ignition coil failures after years of thermal cycling.

Honda/Acura

Inspect:

OEM ignition components generally provide the most dependable long-term repairs.

Frequently Asked Questions

What usually fixes P0358?

The most common repairs include replacing a failed ignition coil, replacing worn spark plugs, repairing damaged wiring, replacing faulty electrical connectors, repairing oil leaks into the spark plug wells, or correcting poor engine ground connections.

Can I drive with P0358?

Limited driving may be possible, but repairs should be completed immediately. Driving with an active ignition fault can damage the catalytic converter, reduce engine performance, increase fuel consumption, and create additional ignition system failures.

Does P0358 always mean the ignition coil is bad?

No. While a failed ignition coil is the most common cause, P0358 may also result from damaged wiring, faulty connectors, worn spark plugs, oil contamination, poor ground connections, or a failed PCM driver circuit.

Can a bad spark plug cause P0358?

Yes. A worn or improperly gapped spark plug increases ignition voltage demand, placing additional stress on the ignition coil and potentially triggering P0358.

Is P0358 a serious code?

Yes. P0358 is considered a high-severity diagnostic trouble code. Ignoring it can lead to severe engine misfires, catalytic converter damage, poor fuel economy, increased emissions, reduced engine performance, and additional ignition system damage.

Final Thoughts

The P0358 Ignition Coil “H” Primary/Secondary Circuit Malfunction code indicates the PCM has detected an electrical fault affecting the ignition system. While a failed ignition coil is the most common cause, the root problem may also involve worn spark plugs, damaged wiring, poor electrical connections, oil contamination, valve cover leaks, or PCM driver issues.

Fortunately, ignition coil failures, worn spark plugs, damaged connectors, wiring faults, and oil contamination account for the overwhelming majority of P0358 repairs.

A complete diagnosis should always verify:

Following a systematic diagnostic process prevents unnecessary parts replacement while restoring reliable ignition performance, smooth engine operation, maximum fuel economy, and long-term engine reliability.

Continue Your Pro Street Ignition System Series

Related guides include:

Exit mobile version
