P0353 Code: Ignition Coil “C” Primary/Secondary Circuit Malfunction

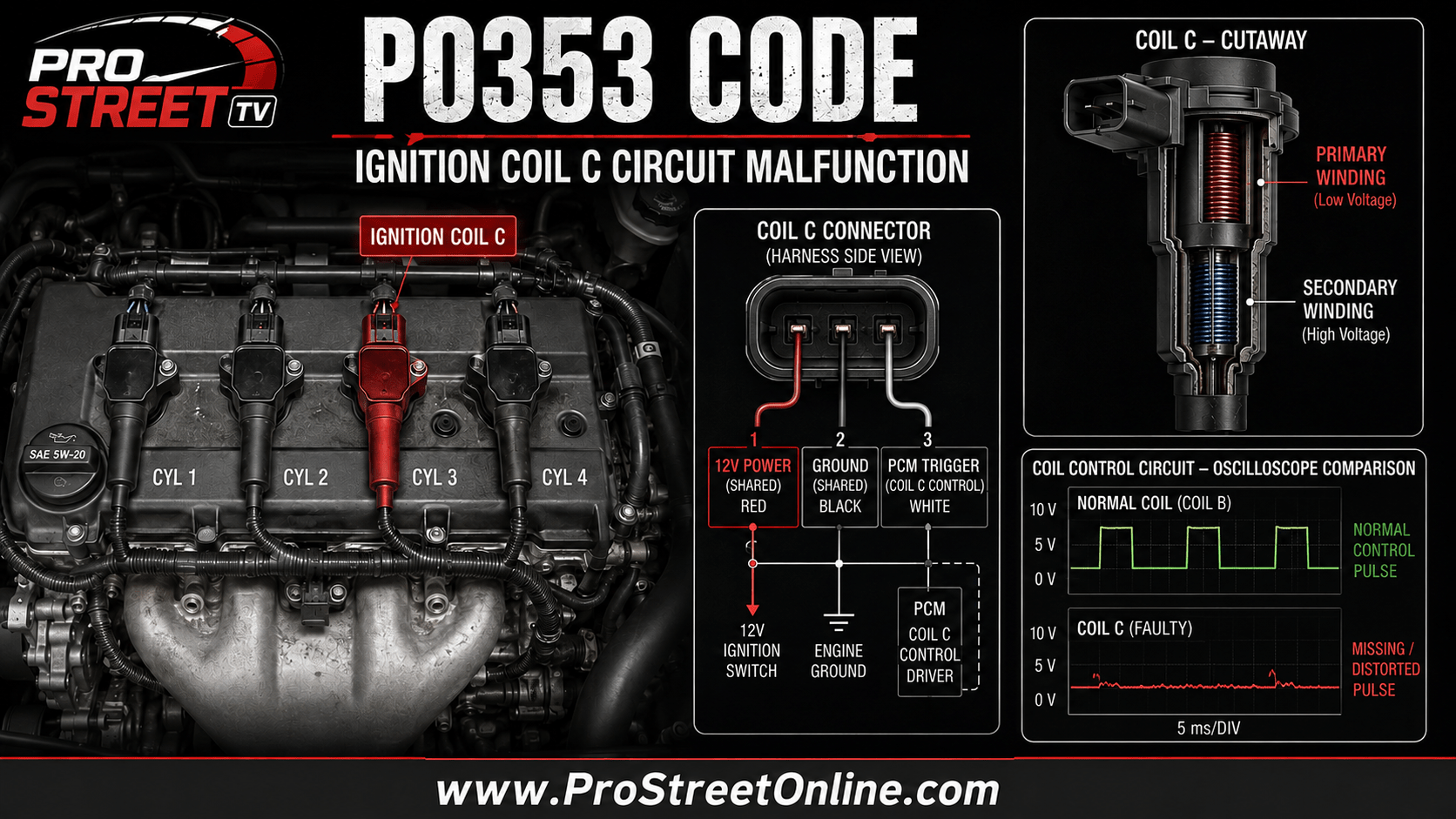

P0353 Ignition Coil C primary and secondary circuit diagnostic illustration

The P0353 code means the engine control module has detected an electrical malfunction in the primary or secondary circuit for Ignition Coil “C.”

On many coil-on-plug engines, Coil C corresponds to cylinder 3. That assignment isn’t universal, so confirm the manufacturer’s coil designation before testing or replacing components.

Common causes include a failed Ignition Coil C, damaged connector terminals, missing power, poor ground, an open or shorted PCM control wire or a failed ignition driver.

P0353 is an electrical circuit code. It isn’t simply another name for a cylinder 3 misfire, and it doesn’t automatically mean Coil C should be replaced.

P0353 Quick Reference

ItemInformation
OBD-II codeP0353
Official descriptionIgnition Coil “C” Primary/Secondary Circuit Malfunction
SystemIgnition-coil control
Code typeGeneric powertrain code
Commonly associated cylinderCylinder 3, but manufacturer confirmation is required
Primary faultElectrical malfunction affecting Ignition Coil C
SeverityHigh
Safe to drive?Only briefly if the engine runs smoothly
Common causesFailed coil, connector fault, damaged control wire or PCM driver failure
Typical repair rangeApproximately $75–$2,500+, depending on the cause

What Does the P0353 Code Mean?

P0353 stands for:

Ignition Coil “C” Primary/Secondary Circuit Malfunction

The PCM commands Ignition Coil C to produce a spark at a precise point in the combustion cycle.

Depending on the ignition-system design, the circuit may include:

The PCM stores P0353 when it detects that electrical activity in the Coil C circuit doesn’t match its expected pattern.

Possible detected conditions include:

The exact monitoring strategy varies by manufacturer and ignition-system design.

Which Cylinder Is Ignition Coil C?

On many engines with one ignition coil per cylinder, Coil C corresponds to cylinder 3.

A common assignment is:

Coil designationCommon cylinder assignment
Coil ACylinder 1
Coil BCylinder 2
Coil CCylinder 3
Coil DCylinder 4
Coil ECylinder 5
Coil FCylinder 6

However, manufacturers may assign coil letters differently.

Waste-spark ignition systems may use one coil winding for two cylinders. Some manufacturers label coils according to ignition-module channels rather than cylinder order.

Confirm Coil C using:

Do not assume Coil C is the third physical coil from the front of the engine. That shortcut works until it doesn’t, which is also the unofficial motto of automotive diagnosis.

What Is the Primary Ignition Circuit?

The primary circuit is the low-voltage side of the ignition coil.

It generally includes:

The PCM or ignition module allows current to flow through the primary winding. This creates a magnetic field inside the coil.

When primary current is switched off, the magnetic field collapses rapidly and induces high voltage in the secondary winding.

Primary-circuit faults may include:

What Is the Secondary Ignition Circuit?

The secondary circuit delivers high voltage to the spark plug.

Depending on the system, it may include:

Possible secondary faults include:

Although the official description includes the secondary circuit, many modern PCMs don’t measure secondary voltage directly. Instead, the module evaluates primary current, ignition-driver feedback or combustion behavior.

How Serious Is the P0353 Code?

P0353 should be considered a high-severity code when the engine is actively misfiring.

If Coil C stops producing spark, unburned fuel may enter the exhaust and overheat the catalytic converter.

Continued driving may cause:

Stop driving if:

A flashing Check Engine Light is the vehicle’s polite way of saying the catalytic converter is currently being used as a furnace.

Common P0353 Symptoms

Possible symptoms include:

Symptoms depend on the ignition-system design and whether Coil C has stopped firing completely.

Common Causes of P0353

Possible causes include:

  1. Failed Ignition Coil C
  2. Open primary winding
  3. Shorted primary winding
  4. Internal smart-coil electronics failure
  5. Loose Coil C connector
  6. Broken connector lock
  7. Bent or recessed terminal
  8. Spread female terminal
  9. Corrosion inside the connector
  10. Oil contamination
  11. Water inside the spark-plug well
  12. Missing Coil C power supply
  13. Blown ignition fuse
  14. Failed ignition relay
  15. Open Coil C control wire
  16. Control wire shorted to ground
  17. Control wire shorted to voltage
  18. Excessive circuit resistance
  19. Poor coil ground
  20. Poor engine or PCM ground
  21. Heat-damaged ignition wiring
  22. Harness chafing near the valve cover
  23. Incorrect replacement ignition coil
  24. Damaged coil boot
  25. Excessive spark-plug gap
  26. Carbon tracking
  27. Failed ignition-control module
  28. Damaged PCM connector
  29. Failed PCM Coil C driver
  30. PCM software or calibration fault

An excessive spark-plug gap can force the coil to generate more voltage. That additional demand may eventually damage the coil’s insulation or internal electronics.

However, a worn plug usually causes a misfire before it produces a direct Coil C circuit code.

P0353 vs P0303

P0353 and P0303 can appear together, but they report different conditions.

CodeMeaningDiagnostic focus
P0353Ignition Coil C primary/secondary circuit malfunctionCoil power, ground, control wiring, electronics and PCM driver
P0303Cylinder 3 misfire detectedSpark, fuel delivery, compression, airflow and mechanical condition

A P0303 means cylinder 3 failed to produce normal combustion.

Possible P0303 causes include:

P0353 narrows the diagnosis toward Ignition Coil C’s electrical circuit.

My Pro Street already has vehicle-specific P0303 coverage for:

Those pages address vehicle-specific cylinder 3 misfire diagnosis. This article remains focused on the generic P0353 electrical circuit.

If P0353 and P0303 appear together, diagnose P0353 first. Restoring Coil C operation may also resolve the combustion misfire.

P0353 vs P0350

P0350 identifies a general ignition-coil primary or secondary circuit malfunction without naming one coil.

P0353 identifies the circuit associated with Ignition Coil C.

If P0350 appears with several individual coil codes, inspect shared circuits:

If only P0353 is stored, begin with Coil C and its individual control circuit.

P0353 vs Ignition-Coil Replacement

The general ignition-coil replacement guide explains how to confirm and physically replace a failed coil.

P0353 diagnosis comes first.

The code may be caused by:

Replacing Coil C won’t repair any of those faults.

How the Ignition Coil C Circuit Works

A typical coil-on-plug ignition event works like this:

  1. The ignition relay supplies voltage to Coil C.
  2. The PCM receives crankshaft and camshaft position signals.
  3. The PCM calculates ignition timing and coil dwell.
  4. The PCM sends a trigger signal or controls primary current.
  5. Current builds through the primary winding.
  6. The PCM switches the circuit off.
  7. The magnetic field collapses.
  8. High voltage is induced in the secondary winding.
  9. Voltage crosses the spark-plug gap.
  10. Combustion occurs.

The PCM expects the circuit to draw and release current in a predictable manner.

P0353 may be stored if Coil C:

How to Diagnose the P0353 Code

1. Verify the Code

Connect a capable scan tool and retrieve:

Don’t clear the codes before recording the information.

Freeze-frame data may show whether the fault occurred during:

2. Check for Related Codes

Look for:

If P0353 appears alone, suspect an individual Coil C problem.

If several ignition-coil circuit codes appeared at once, inspect shared power, relay, fuse and ground circuits before replacing multiple coils.

Several coils rarely schedule the same retirement date. Shared wiring does all the planning for them.

3. Identify Ignition Coil C

Confirm:

Use a factory wiring diagram or reliable service information.

Do not rely on cylinder-numbering assumptions, particularly on V6 and V8 engines.

4. Inspect Coil C

Remove Coil C and inspect it for:

Inspect the spark-plug well at the same time.

Oil inside the plug well usually points to a leaking valve-cover gasket or spark-plug tube seal. Repair the leak before installing another coil.

5. Inspect the Coil C Connector

Check the connector for:

Perform a terminal-drag test when appropriate.

A connector may click into place while one terminal barely touches the coil pin. Plastic confidence is not the same as electrical contact.

6. Inspect the Wiring Harness

Follow the Coil C wiring toward the main harness and PCM.

Look for:

Move the harness while monitoring Coil C voltage or engine operation.

If the signal changes during the wiggle test, inspect that section for an internal break or loose terminal.

7. Check Battery and Charging Voltage

Measure battery voltage:

Low cranking voltage can interfere with PCM and ignition-coil operation.

Excessive charging voltage can damage smart coils and control modules.

Inspect battery terminals, engine grounds, chassis grounds and PCM grounds before continuing.

8. Test Coil C Power

Turn the ignition on and measure voltage at Coil C’s power terminal.

Compare it with:

If Coil C lacks power but other coils have it, inspect its connector, individual power wire and shared splice.

If several coils lack power, inspect the ignition fuse, relay and shared power feed.

Test the circuit under load. A high-resistance wire may show normal voltage with the connector unplugged and collapse when current is required.

9. Perform Voltage-Drop Testing

Measure voltage drop across:

Voltage-drop testing can reveal resistance that a continuity test misses.

A damaged wire with only a few intact strands may pass a continuity test while failing to supply the current Coil C needs.

10. Test Coil C Ground

If Coil C uses a dedicated ground, measure voltage drop between the ground terminal and battery negative while cranking or running the engine.

Compare the reading with a known-good coil.

Inspect:

A poor ground can prevent the coil’s internal electronics from operating correctly.

11. Test the PCM Control Wire

Use the correct wiring diagram to identify the Coil C control circuit.

With the PCM and coil disconnected as directed, test for:

Do not use an incandescent test light on the PCM control circuit unless the manufacturer explicitly approves it.

Use an LED test light, logic probe or oscilloscope appropriate for sensitive electronic circuits.

12. Check the Coil C Trigger Signal

Back-probe the Coil C control circuit without damaging the connector or weather seal.

Observe the signal while cranking or running the engine.

Compare it with an operating coil.

Look for:

If the trigger signal is present but Coil C doesn’t fire, suspect the coil, power supply, ground or secondary ignition path.

If the trigger is missing, test the control wire and PCM driver.

13. Perform a Coil Swap Test

If the coils are identical, move Coil C to another cylinder and install a known-good coil in its original position.

Clear the codes and reproduce the original failure conditions.

Possible results include:

The swap test is useful, but it shouldn’t replace power, ground and control-circuit testing.

14. Inspect the Spark Plug

Remove and inspect the spark plug associated with Coil C.

Check for:

A worn or incorrectly gapped plug increases the voltage required to create a spark. That additional demand may damage the coil boot or internal insulation.

15. Use an Approved Spark Tester

Use an adjustable or manufacturer-approved spark tester to verify Coil C output.

Disable fuel delivery when required and keep hands away from the ignition output.

Never hold the coil, plug wire or spark plug while cranking. Secondary ignition voltage may exceed 20,000 volts.

Compare Coil C output with a known-good coil under the same conditions.

16. Inspect the Primary Current Ramp

Use an oscilloscope and low-current probe to observe Coil C’s primary current ramp.

Compare it with another coil on the same engine.

Look for:

Current-ramp testing can distinguish a failed coil from a weak power supply or faulty control circuit.

17. Use Resistance Tests Carefully

Some conventional coils and coil packs have published primary and secondary resistance specifications.

Many modern smart coils do not.

Integrated electronics may prevent meaningful resistance readings through the external terminals. Use the manufacturer’s testing procedure instead of applying specifications from an unrelated coil.

18. Test the Ignition-Control Module

If the vehicle uses an external ignition-control module, verify:

Compare the Coil C channel with other ignition channels.

If the module receives the correct command but doesn’t control Coil C, module failure becomes likely.

19. Test the PCM Driver Last

A shorted coil or control wire can damage the PCM’s Coil C driver.

Suspect the PCM only after confirming:

Repair any external short before installing a replacement PCM.

A brand-new computer connected to the same short circuit generally becomes a very expensive diagnostic fuse.

Common P0353 Diagnostic Mistakes

Avoid these common mistakes:

How Do You Fix the P0353 Code?

Possible repairs include:

After repairs:

  1. Clear the stored codes.
  2. Start the engine from cold.
  3. Monitor misfire counters.
  4. Verify stable Coil C power.
  5. Confirm the Coil C trigger signal.
  6. Road-test under the freeze-frame conditions.
  7. Rescan for pending codes.
  8. Confirm P0353 and P0303 don’t return.

P0353 Repair Costs

RepairEstimated cost
Diagnostic inspection$100–$300
Clean or secure connector$50–$150
Replace Coil C connector$100–$350
Repair control wiring$100–$700
Replace ignition fuse or relay$50–$250
Replace Ignition Coil C$100–$450
Replace spark plug$30–$150
Replace complete spark-plug set$100–$500
Repair plug-tube seal leak$200–$900
Replace ignition-control module$250–$900
Repair engine wiring harness$500–$2,500+
PCM software update$100–$300
Replace and program PCM$800–$2,500+

Costs vary according to vehicle design, component accessibility and diagnostic time.

Can You Drive With a P0353 Code?

Driving isn’t recommended when P0353 causes an active misfire.

A short trip may be possible if:

Stop driving if:

An active ignition misfire can damage the catalytic converter quickly. Diagnose the circuit before a relatively small ignition repair becomes an exhaust-system renovation.

P0353 Frequently Asked Questions

What does code P0353 mean?

P0353 means the PCM has detected an electrical malfunction in the primary or secondary circuit for Ignition Coil C.

Is Ignition Coil C always cylinder 3?

No. Coil C commonly corresponds to cylinder 3, but manufacturers may assign coils differently. Confirm the location using service information.

Does P0353 mean Coil C is bad?

Not necessarily. A damaged connector, missing power, poor ground, control-wire fault or failed PCM driver can trigger P0353.

Is P0353 the same as P0303?

No. P0353 identifies an Ignition Coil C electrical fault. P0303 reports failed combustion in cylinder 3.

Can a spark plug cause P0353?

An excessively worn or incorrectly gapped plug can place additional stress on the coil. However, spark-plug faults more commonly cause a misfire code.

Can oil in the spark-plug well cause P0353?

Yes. Oil may damage the coil boot, contaminate the connector and allow secondary voltage to leak to ground.

Can wiring cause P0353?

Yes. An open control wire, short to ground, short to voltage or loose terminal can trigger P0353 even when the ignition coil is good.

Can a bad PCM cause P0353?

Yes, but PCM driver failure is less common than coil, connector and wiring faults. Test the external circuit first.

Can I swap Coil C with another coil?

Yes, when the coils are identical and the manufacturer permits it. If the fault follows the coil, the coil is likely defective. If P0353 remains, test the original circuit.

Can P0353 cause a no-start?

One failed coil usually won’t prevent a multi-cylinder engine from starting. A no-start becomes more likely if the fault affects a shared power circuit or multi-cylinder coil pack.

Will clearing P0353 fix it?

No. Clearing the code only resets the warning temporarily. P0353 will return if the electrical fault remains.

Final Thoughts

P0353 means the PCM has detected an electrical malfunction affecting Ignition Coil C.

Begin by confirming which coil the manufacturer designates as Coil C. Record every trouble code and freeze-frame value before inspecting the coil, connector, spark-plug well and wiring.

Verify power and ground, then compare Coil C’s PCM trigger and primary current ramp with a known-good ignition coil. A coil swap may confirm internal failure, but P0353 remaining at the original location points toward the connector, control wire or PCM driver.

Test the PCM last and repair any shorted component before connecting a replacement module.

For additional diagnostic coverage, visit the complete P-series OBD-II code guide, browse the OBDII Doctor archive or compare the fault with the existing VQ35 P0303 ignition-coil guide and Ford Fiesta P0303 guide.

P0353 gives you the circuit letter. Finding the broken wire is apparently still considered audience participation.

Exit mobile version
