P0340 Code Explained: Camshaft Position Sensor “A” Circuit Malfunction Causes, Symptoms & Fixes

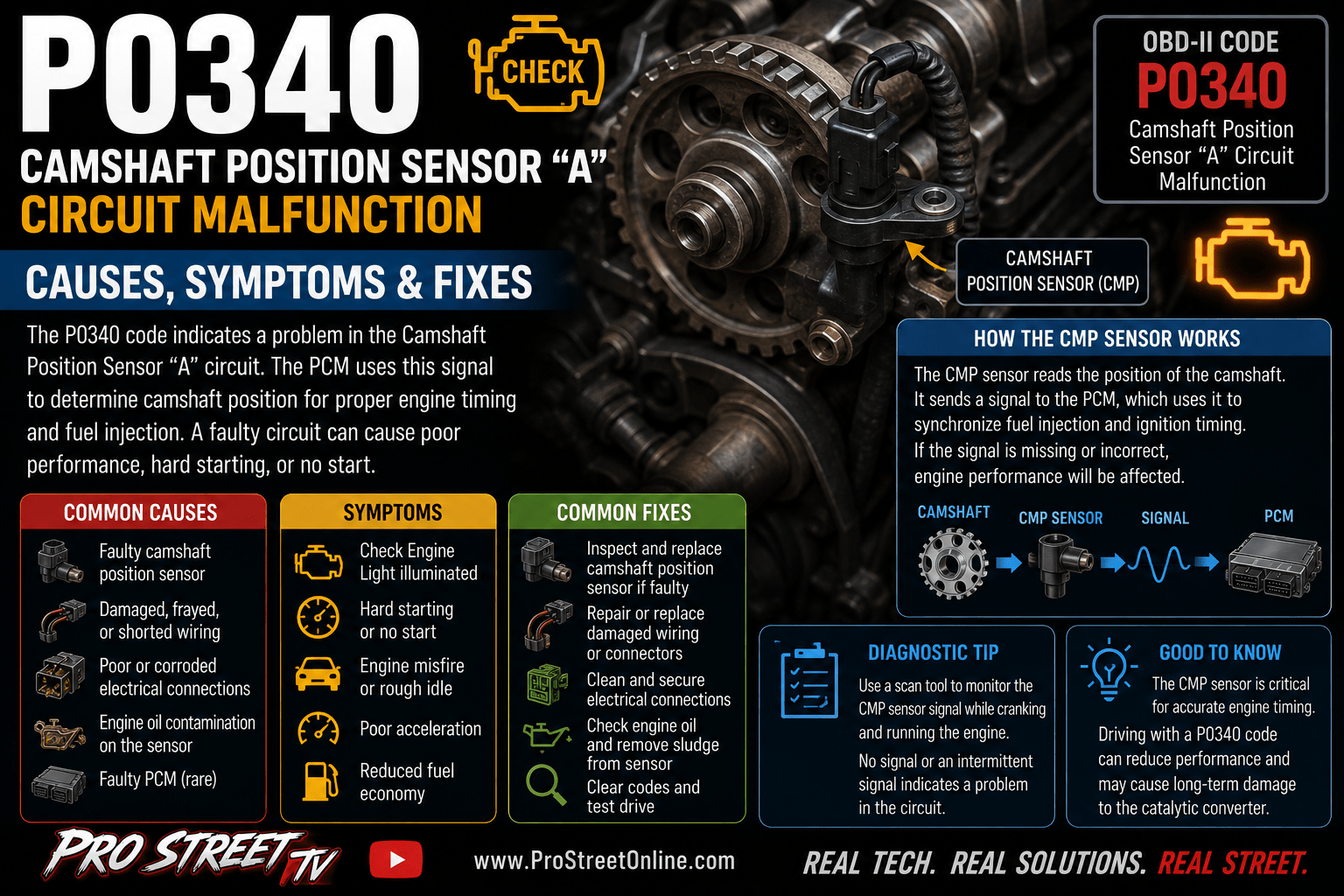

P0340 code illustration showing a camshaft position sensor, camshaft reluctor wheel, timing chain, VVT components, Check Engine Light, Pro Street TV logo, and www.ProStreetOnline.com.

If your OBD-II scanner displays P0340, your vehicle’s Engine Control Module (ECM) or Powertrain Control Module (PCM) has detected a malfunction in the Camshaft Position Sensor (CMP) “A” circuit.

The generic OBD-II definition for P0340 is:

Camshaft Position Sensor “A” Circuit Malfunction

The camshaft position sensor is one of the primary sensors used by the PCM to synchronize engine timing. It continuously monitors the position of the camshaft so the PCM can accurately control:

If the PCM detects that the camshaft position sensor signal is missing, erratic, or outside its expected operating range, it stores P0340 and usually illuminates the Check Engine Light.

Depending on the vehicle, P0340 may cause difficult starting, poor engine performance, or a complete no-start condition.

Common causes include:

Because the camshaft position sensor directly affects ignition and fuel injector synchronization, P0340 is considered a high-priority diagnostic trouble code.

What Does the P0340 Code Mean?

The camshaft position sensor continuously reports camshaft location to the PCM.

The PCM combines this information with the crankshaft position sensor to determine:

If the PCM loses this signal or detects incorrect information from the camshaft sensor, it stores P0340.

Without accurate camshaft position information, the PCM cannot properly synchronize engine operation.

What Is the Camshaft Position Sensor?

The Camshaft Position Sensor (CMP) is mounted near the:

Depending on engine design, vehicles may use:

The sensor monitors a reluctor wheel attached to the camshaft, generating a signal that identifies the camshaft’s exact rotational position.

Why the Camshaft Position Sensor Is Important

The CMP sensor allows the PCM to precisely control:

Without this information, many engines revert to backup operating strategies, while others may not start at all.

How the PCM Detects P0340

The PCM continuously compares camshaft position information with:

If the CMP signal:

the PCM stores P0340.

Many vehicles require the fault to occur multiple times before the Check Engine Light illuminates.

What Does “Camshaft Position Sensor Circuit Malfunction” Mean?

P0340 does not always indicate a failed camshaft position sensor.

Instead, it means the PCM has detected a problem somewhere within the camshaft position sensing circuit.

Possible causes include:

Proper diagnosis should always be completed before replacing components.

Can a Bad Camshaft Position Sensor Cause P0340?

Absolutely.

The CMP sensor itself is the most common cause of P0340.

Common failures include:

Many sensors fail intermittently before completely failing.

Can Wiring Problems Cause P0340?

Yes.

Inspect for:

Because the CMP signal is a low-voltage timing signal, even minor wiring problems may trigger P0340.

Can Timing Problems Cause P0340?

Definitely.

Timing-related issues include:

These problems commonly trigger P0340 along with crankshaft correlation codes.

Can Variable Valve Timing Cause P0340?

Yes.

Modern VVT systems continuously adjust camshaft position.

Problems such as:

may interfere with camshaft position readings and contribute to P0340.

P0340 Quick Facts

ItemInformation
DTCP0340
Generic DefinitionCamshaft Position Sensor “A” Circuit Malfunction
SystemEngine Management / Ignition
SeverityHigh
Safe to Drive?No (if stalling or no-start occurs)
Common SymptomsCheck Engine Light, hard starting, no-start, rough running, stalling
Common CausesFailed CMP sensor, wiring damage, timing issues, VVT faults
Typical Repair Cost$150–2,000+
Related CodesP0341, P0342, P0343, P0344, P0335, P0016, P0300

Common Vehicles That Experience P0340

P0340 commonly appears on:

It is especially common on:

What Does P0340 Really Mean?

Many drivers immediately assume P0340 means the camshaft position sensor has failed.

While the sensor is often responsible, the PCM is actually reporting a fault somewhere within the camshaft position sensing circuit.

The underlying problem may involve:

Think of P0340 as the PCM saying:

“I’m no longer receiving a reliable camshaft position signal. Inspect the sensor, wiring, timing components, and VVT system before replacing parts.”

Common P0340 Scan Tool Patterns

Using a professional scan tool is one of the fastest ways to diagnose P0340.

Because the Camshaft Position Sensor (CMP) works together with the Crankshaft Position Sensor (CKP), scan tool data often reveals synchronization problems that help pinpoint the root cause.

Modern scan tools may display:

Monitoring these values helps determine whether the fault involves the sensor, wiring, timing components, or the VVT system.

Pattern 1: No Camshaft Signal

One of the most common scan-tool patterns is:

Possible causes include:

Without a valid camshaft signal, many engines struggle to determine cylinder position.

Pattern 2: Intermittent Camshaft Signal

Live data may show:

Possible causes include:

Intermittent failures are extremely common as CMP sensors age.

Pattern 3: Cam/Crank Correlation Errors

The PCM constantly compares camshaft and crankshaft position signals.

If scan data shows:

Possible causes include:

Related codes often include:

Pattern 4: Engine Starts With Extended Cranking

Some vehicles display:

Possible causes include:

The PCM may require additional crankshaft revolutions before identifying cylinder position.

Pattern 5: Freeze-Frame During Highway Driving

Freeze-frame data commonly shows:

Heat-related CMP sensor failures frequently occur after extended driving.

Pattern 6: Variable Valve Timing Data Out of Range

On VVT-equipped engines, scan data may show:

Possible causes include:

Pattern 7: Misfire Codes Accompany P0340

P0340 commonly appears with:

Poor camshaft synchronization can create false or genuine misfire conditions.

Common Symptoms of P0340

Symptoms vary depending on whether the camshaft signal is intermittent or completely absent.

Common symptoms include:

Some vehicles enter a reduced-power or limp-home mode.

Check Engine Light

The Check Engine Light is nearly always the first symptom.

Additional timing or synchronization codes often accompany P0340.

Hard Starting or No-Start

Without a reliable CMP signal, the PCM may struggle to determine:

Some vehicles eventually start using a backup strategy, while others will not start at all.

Rough Running and Hesitation

A weak or unstable camshaft signal may cause:

Performance often worsens as engine temperature rises.

Engine Stalling

Many drivers report:

Intermittent CMP sensor failures commonly worsen as the sensor heats up.

Is P0340 Serious?

Yes. P0340 is considered a high-severity diagnostic trouble code.

Ignoring the problem may result in:

Immediate diagnosis is recommended.

Can You Drive With P0340?

Driving with P0340 is not recommended.

If the engine still runs:

Stop driving immediately if you experience:

Unexpected engine shutdown can create a serious safety hazard.

P0340 vs Related Trouble Codes

Understanding related timing codes simplifies diagnosis.

P0340

Camshaft Position Sensor “A” Circuit Malfunction

General malfunction affecting the camshaft position sensor circuit.

P0341

Camshaft Position Sensor “A” Circuit Range/Performance

The camshaft signal is present but outside normal operating specifications.

P0342

Camshaft Position Sensor “A” Circuit Low Input

The CMP signal voltage is below specification.

P0343

Camshaft Position Sensor “A” Circuit High Input

The CMP circuit voltage is higher than expected.

P0344

Camshaft Position Sensor “A” Circuit Intermittent

The PCM detects intermittent loss of the camshaft signal.

P0335

Crankshaft Position Sensor “A” Circuit Malfunction

The PCM has lost a reliable crankshaft position signal, which often affects camshaft synchronization.

30 Common Causes of P0340

The most common causes include:

  1. Failed camshaft position sensor
  2. Heat-damaged CMP sensor
  3. Open CMP circuit
  4. Shorted wiring
  5. Loose electrical connector
  6. Corroded terminals
  7. Oil contamination in the connector
  8. Damaged camshaft reluctor wheel
  9. Incorrect sensor air gap
  10. Stretched timing chain
  11. Jumped timing belt
  12. Failed timing chain tensioner
  13. Failed VVT actuator
  14. Dirty engine oil
  15. Low oil pressure
  16. Faulty oil control solenoid
  17. Cam phaser failure
  18. Water intrusion
  19. Rodent damage
  20. Poor engine grounds
  21. Weak battery voltage
  22. Charging system problems
  23. Damaged engine harness
  24. Failed crankshaft position sensor
  25. Camshaft timing errors
  26. Internal engine damage
  27. PCM connector corrosion
  28. PCM calibration issue
  29. Failed PCM driver
  30. Failed PCM (extremely rare)

Final Thoughts

The P0340 Camshaft Position Sensor “A” Circuit Malfunction code indicates the PCM has lost a reliable camshaft position signal required for proper ignition timing, fuel injection, and engine synchronization.

Fortunately, failed camshaft position sensors, damaged wiring, poor electrical connections, timing chain wear, and VVT system faults account for the majority of P0340 repairs.

Proper diagnosis should determine whether the problem originates in:

The next section of this guide covers:

Following a systematic diagnostic process prevents unnecessary parts replacement while restoring proper engine synchronization, ignition timing, fuel economy, and long-term engine reliability.

Related Pro Street Diagnostic Guides

How to Diagnose the P0340 Code

Diagnosing P0340 requires determining why the Powertrain Control Module (PCM) has detected a malfunction in the Camshaft Position Sensor (CMP) “A” circuit.

Unlike P0342, P0343, or P0344, which identify specific electrical faults, P0340 is a general camshaft position sensor circuit malfunction that requires systematic testing of the entire CMP system.

The underlying problem may involve:

Because the camshaft position sensor controls fuel injection timing, ignition synchronization, and VVT operation, diagnosis should begin immediately if the engine is difficult to start, stalls, or enters limp mode.

Safety Precautions

Before beginning diagnosis:

Avoid working near moving timing components while the engine is running.

Tools Required

Professional diagnosis may require:

An oscilloscope provides the most accurate method of evaluating camshaft sensor signal quality.

Step 1 – Verify the Code

Connect a professional scan tool.

Record:

Monitor:

Never erase codes before saving freeze-frame information.

Step 2 – Check for Related Trouble Codes

P0340 frequently appears with:

Related codes often identify whether the fault involves the sensor, timing components, or engine synchronization.

Code CombinationLikely Diagnosis
P0340 onlyCMP sensor or circuit fault
P0340 + P0335Cam/crank synchronization issue
P0340 + P0016Timing chain or reluctor wheel problem
P0340 + P0344Intermittent CMP sensor failure
P0340 + P0300Misfires caused by unstable camshaft signal

Step 3 – Review Freeze-Frame Data

Review:

Determine whether the fault occurred:

Heat-related CMP sensor failures are common.

Step 4 – Perform a Visual Inspection

Inspect the camshaft position sensor and surrounding components.

Check for:

Many P0340 faults are discovered during a careful visual inspection.

Step 5 – Inspect the Wiring Harness

Follow the CMP wiring harness.

Inspect for:

Repair wiring damage before replacing the sensor.

Step 6 – Inspect the Electrical Connector

Disconnect the CMP sensor connector.

Inspect for:

Clean or replace damaged connectors as needed.

Step 7 – Verify Battery and Charging System Voltage

Low system voltage may interfere with sensor operation.

Normal voltage:

Correct charging system problems before continuing diagnosis.

Step 8 – Monitor Camshaft Signal During Cranking

Observe live scan data while cranking.

Verify:

If the CMP signal is missing, inspect the sensor, wiring, and reluctor wheel.

Step 9 – Test the Camshaft Position Sensor

For magnetic sensors:

Disconnect the sensor.

Measure internal resistance.

Compare readings with manufacturer specifications.

For Hall-effect sensors:

Verify:

Replace the sensor if values fall outside specifications.

Step 10 – Verify Sensor Power and Ground

Using a multimeter:

Check:

Repair any voltage drop or poor ground conditions.

Step 11 – Inspect the Camshaft Reluctor Wheel

Inspect the reluctor wheel for:

A damaged reluctor wheel produces inaccurate camshaft position signals.

Step 12 – Verify Sensor Air Gap

Some CMP sensors require a precise air gap.

Measure the clearance between:

Compare measurements with manufacturer specifications.

Improper air gap may weaken the signal.

Step 13 – Test the CMP Signal Using an Oscilloscope

An oscilloscope provides the most accurate diagnosis.

Inspect the waveform for:

A clean waveform confirms proper sensor operation.

Step 14 – Inspect the Variable Valve Timing System

If equipped with VVT, inspect:

Improper VVT operation may cause inaccurate camshaft position readings.

Step 15 – Review Technical Service Bulletins

Before replacing expensive components:

Review manufacturer Technical Service Bulletins (TSBs).

Manufacturers occasionally release updates addressing:

Step 16 – Inspect Timing Components

Inspect:

Timing problems commonly trigger P0340 along with crankshaft correlation codes.

Step 17 – Perform a Road Test

If the engine runs:

Monitor:

Attempt to duplicate the conditions shown in freeze-frame data.

Step 18 – Verify Sensor Operation at Operating Temperature

Many CMP sensors fail only after becoming hot.

Allow the engine to reach operating temperature.

Continue monitoring:

Heat-related failures often appear during this step.

Step 19 – Complete an OBD-II Drive Cycle

After repairs:

Step 20 – Confirm the Diagnosis

Before replacing expensive components, verify:

Completing these diagnostic procedures prevents unnecessary parts replacement while accurately identifying the root cause of P0340.

Step 21 – Replace the Camshaft Position Sensor

If testing confirms the Camshaft Position Sensor (CMP) has failed, replacement is the proper repair.

Common signs of sensor failure include:

General replacement procedure:

  1. Disconnect the negative battery cable.
  2. Locate the camshaft position sensor.
  3. Disconnect the electrical connector.
  4. Remove the retaining bolt(s).
  5. Carefully remove the old sensor.
  6. Inspect the mounting surface.
  7. Lubricate the new O-ring if required.
  8. Install the replacement sensor.
  9. Torque the mounting bolt(s) to specification.
  10. Reconnect the electrical connector.
  11. Clear diagnostic trouble codes.

Always use an OEM-quality replacement sensor for proper signal accuracy.

Step 22 – Repair Wiring Problems

Inspect the complete CMP wiring harness.

Look for:

Repair wiring using:

Many intermittent P0340 faults are caused by damaged wiring rather than a failed sensor.

Step 23 – Repair or Replace the Camshaft Reluctor Wheel

Inspect the camshaft reluctor wheel for:

If damaged:

A damaged reluctor wheel produces inaccurate camshaft position signals regardless of sensor condition.

Step 24 – Repair Timing Components

If camshaft timing is incorrect:

Inspect:

Replace worn timing components according to manufacturer procedures.

Timing component wear frequently causes P0340 and cam/crank correlation codes.

Step 25 – Repair the Variable Valve Timing (VVT) System

If VVT operation is abnormal:

Inspect:

Replace failed VVT components and perform an oil service if contamination is present.

Improper camshaft phasing can interfere with accurate CMP sensor readings.

Step 26 – Repair Engine Grounds and Electrical Connectors

Inspect:

Repair:

Good electrical integrity is essential for accurate camshaft sensor signals.

Step 27 – Update PCM Software

Before replacing expensive components:

Review manufacturer Technical Service Bulletins (TSBs).

Manufacturers occasionally release PCM updates addressing:

Verify the PCM has the latest available calibration.

Step 28 – Verify Camshaft Signal Operation

After repairs:

Monitor live scan tool data.

Verify:

The camshaft signal should remain stable throughout the engine’s operating range.

Step 29 – Complete an OBD-II Drive Cycle

After repairs:

Confirm P0340 does not return.

Step 30 – Verify the Repair

After completing repairs:

  1. Clear all stored codes.
  2. Start the engine.
  3. Verify quick, consistent starting.
  4. Confirm smooth idle.
  5. Road test the vehicle.
  6. Monitor live CMP and CKP data.
  7. Verify no pending or permanent DTCs return.
  8. Confirm proper VVT operation and engine performance.

A successful repair restores proper engine synchronization, sequential fuel injection, ignition timing, and long-term reliability.

How to Fix P0340

The correct repair depends on the diagnostic results.

Common repairs include:

Never replace the PCM until all other diagnostic possibilities have been eliminated.

Typical Repair Costs

RepairTypical Cost
Professional diagnosis$100–250
Camshaft position sensor replacement$150–450
Wiring repair$100–350
Connector replacement$75–200
Camshaft reluctor wheel replacement$300–1,200
VVT solenoid replacement$150–450
Cam phaser replacement$500–1,500
Timing chain replacement$900–2,500
Timing belt replacement$500–1,500
PCM software update$100–250
PCM replacement (rare)$900–2,500+

Repair costs vary depending on engine design, labor rates, and sensor accessibility.

Common Diagnostic Mistakes

Avoid these common mistakes:

Most P0340 repairs involve the sensor, wiring, timing components, or VVT system rather than PCM failure.

Manufacturer-Specific Notes

General Motors (Chevrolet, GMC, Cadillac, Buick)

Inspect:

High-mileage GM engines commonly develop timing chain wear that contributes to P0340.

Ford/Lincoln

Inspect:

Oil contamination and VCT issues are common causes of P0340.

Chrysler, Dodge, Jeep, Ram

Inspect:

Sensor failures and synchronizer wear are common on older Chrysler engines.

Toyota/Lexus

Inspect:

Dirty engine oil frequently contributes to VVT-related camshaft timing faults.

Nissan/Infiniti

Inspect:

Many Nissan engines develop timing chain wear that affects camshaft synchronization.

Honda/Acura

Inspect:

Low oil pressure or contaminated oil may affect VTC operation and trigger P0340.

Frequently Asked Questions

What usually fixes P0340?

The most common repairs include replacing a failed camshaft position sensor, repairing damaged wiring, replacing corroded connectors, repairing timing chain problems, replacing VVT components, or correcting engine timing.

Can I drive with P0340?

Driving with P0340 is not recommended. The engine may stall unexpectedly, enter limp mode, suffer severe performance problems, or fail to restart.

Does P0340 always mean the camshaft position sensor is bad?

No. Although the CMP sensor is the most common cause, P0340 may also result from damaged wiring, poor electrical connections, timing chain wear, VVT system faults, or a damaged camshaft reluctor wheel.

Can a bad timing chain cause P0340?

Yes. A stretched timing chain or jumped timing belt can alter camshaft timing enough for the PCM to detect an incorrect camshaft position signal.

Is P0340 a serious code?

Yes. P0340 is considered a high-severity diagnostic trouble code. Ignoring it may lead to no-start conditions, engine stalling, reduced performance, poor fuel economy, increased emissions, and catalytic converter damage caused by repeated misfires.

Final Thoughts

The P0340 Camshaft Position Sensor “A” Circuit Malfunction code indicates the PCM has lost a reliable camshaft position signal required for precise ignition timing, fuel injection, and engine synchronization.

Fortunately, failed camshaft position sensors, damaged wiring, poor electrical connections, timing chain wear, and Variable Valve Timing faults account for the vast majority of P0340 repairs.

A complete diagnosis should always verify:

Following a systematic diagnostic process prevents unnecessary parts replacement while restoring reliable engine starting, proper ignition timing, accurate sequential fuel injection, and long-term engine reliability.

Continue Your Pro Street Camshaft Sensor Series

Related guides include:

Exit mobile version
