P0325 Code Explained: Knock Sensor 1 Circuit Malfunction (Bank 1 or Single Sensor) Causes, Symptoms & Fixes

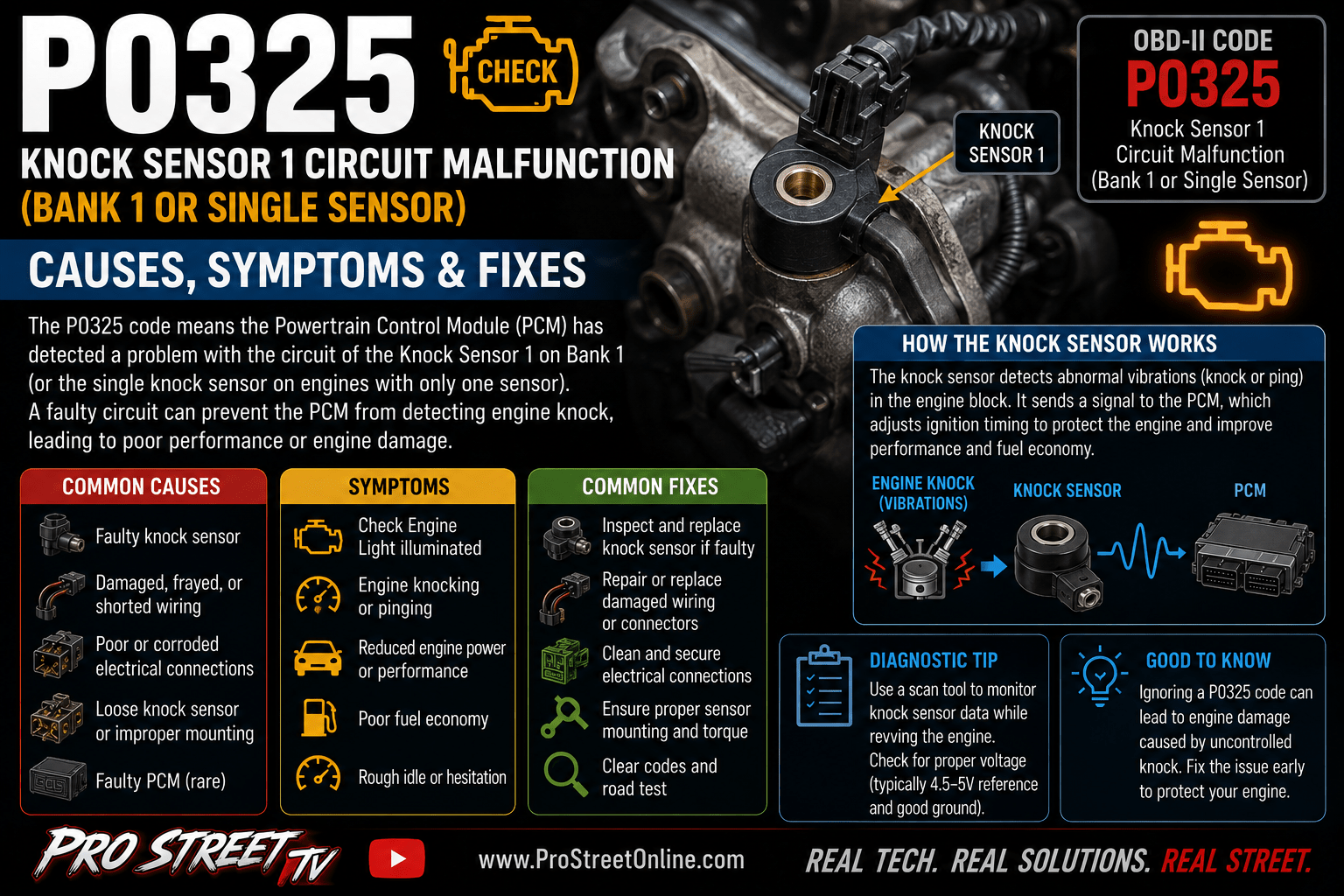

P0325 code illustration showing a knock sensor mounted to an engine block with ignition timing graphics, Check Engine Light, Pro Street TV logo, and www.ProStreetOnline.com.

If your OBD-II scanner displays P0325, your vehicle’s Engine Control Module (ECM) or Powertrain Control Module (PCM) has detected a malfunction in the Knock Sensor 1 circuit.

The generic OBD-II definition for P0325 is:

Knock Sensor 1 Circuit Malfunction (Bank 1 or Single Sensor)

The knock sensor is a piezoelectric sensor that detects abnormal engine vibrations caused by spark knock (detonation) or pre-ignition. It converts these vibrations into an electrical signal, allowing the PCM to adjust ignition timing and protect the engine from internal damage.

The PCM uses knock sensor data to control:

If the PCM detects an abnormal signal, an open circuit, a short circuit, or no response from Knock Sensor 1, it stores P0325 and illuminates the Check Engine Light.

Unlike many sensor faults, P0325 often causes the PCM to switch to a conservative ignition timing strategy to prevent engine damage.

Common causes include:

Although many vehicles remain drivable, P0325 should not be ignored because proper knock detection protects the engine from damaging detonation.

What Does the P0325 Code Mean?

The knock sensor continuously listens for abnormal combustion inside the engine.

When detonation occurs, the sensor generates a voltage signal that allows the PCM to:

If the PCM cannot trust the knock sensor signal, it stores P0325.

Without reliable knock sensor information, the PCM typically uses conservative ignition timing that sacrifices performance to protect the engine.

What Is a Knock Sensor?

A knock sensor is a piezoelectric vibration sensor mounted directly to the engine block or cylinder block.

Its job is to detect high-frequency engine vibrations caused by:

The sensor converts these vibrations into electrical signals that are continuously monitored by the PCM.

Many V6 and V8 engines use:

Inline engines often use a single knock sensor.

Why the Knock Sensor Is Important

The knock sensor allows the PCM to safely maximize engine performance.

It helps control:

Without knock detection, severe detonation can damage:

How the PCM Detects P0325

The PCM continuously monitors:

If the signal:

the PCM stores P0325.

Many manufacturers require multiple failures before illuminating the Check Engine Light.

What Does “Knock Sensor Circuit Malfunction” Mean?

P0325 does not always indicate a failed knock sensor.

Instead, it means the PCM has detected a problem somewhere within the knock sensor circuit.

Possible causes include:

Proper diagnosis is necessary before replacing components.

Can a Bad Knock Sensor Cause P0325?

Absolutely.

The knock sensor itself is the most common cause of P0325.

Common failures include:

Many sensors slowly lose sensitivity over time before failing completely.

Can Wiring Problems Cause P0325?

Yes.

Inspect for:

Because knock sensor signals are extremely low voltage, even minor wiring damage can trigger P0325.

Can Engine Noise Cause P0325?

Yes.

Abnormal mechanical noise may confuse knock sensor diagnostics.

Possible causes include:

Mechanical problems should always be ruled out before replacing the sensor.

Can Incorrect Sensor Torque Cause P0325?

Definitely.

Most knock sensors must be tightened to a precise torque specification.

If installed:

the sensor may produce inaccurate vibration readings and trigger P0325.

Always follow factory torque specifications.

P0325 Quick Facts

ItemInformation
DTCP0325
Generic DefinitionKnock Sensor 1 Circuit Malfunction (Bank 1 or Single Sensor)
SystemIgnition / Engine Management
SeverityModerate
Safe to Drive?Usually Yes (repair soon)
Common SymptomsCheck Engine Light, reduced power, poor fuel economy, hesitation
Common CausesFailed knock sensor, damaged wiring, poor connections, engine noise
Typical Repair Cost$150–900+
Related CodesP0326, P0327, P0328, P0324, P0330

Common Vehicles That Experience P0325

P0325 commonly appears on:

It is especially common on:

What Does P0325 Really Mean?

Many drivers immediately assume P0325 means the knock sensor itself has failed.

While that is often true, the PCM is actually reporting a malfunction somewhere within the Knock Sensor 1 circuit.

The underlying problem may involve:

Think of P0325 as the PCM saying:

“I can’t rely on the Knock Sensor 1 signal. Inspect the sensor, wiring, engine condition, and mounting before replacing components.”

Common P0325 Scan Tool Patterns

Using a professional scan tool is one of the best ways to diagnose P0325.

Unlike many engine sensors that measure airflow or temperature, the Knock Sensor (KS) detects engine vibration caused by detonation. Live scan data can help determine whether the problem is electrical, mechanical, or related to engine operating conditions.

Modern scan tools may display:

Monitoring these values often reveals whether the PCM is receiving valid knock sensor information.

Pattern 1: No Knock Sensor Activity

One of the most common scan-tool patterns is:

Possible causes include:

Without a valid signal, the PCM cannot detect engine knock.

Pattern 2: Constant Maximum Knock Retard

Some scan tools show:

Possible causes include:

The PCM protects the engine by significantly reducing ignition timing.

Pattern 3: No Timing Retard During Heavy Acceleration

Under heavy throttle, the PCM normally adjusts ignition timing if knock occurs.

If live data shows:

Possible causes include:

Pattern 4: Heat-Related Sensor Failure

Many knock sensors fail only after warming up.

Symptoms include:

Heat-related internal sensor failures become more common as vehicles age.

Pattern 5: Freeze-Frame During High Engine Load

Freeze-frame data commonly shows:

These conditions are when the PCM actively monitors for detonation.

Pattern 6: Multiple Knock Sensor Codes

P0325 may appear with:

Multiple knock sensor codes often indicate:

Pattern 7: Reduced Ignition Timing

Live data may show:

The PCM often defaults to safe ignition timing when knock sensor information is unavailable.

Common Symptoms of P0325

Symptoms vary depending on the severity of the fault and engine design.

Common symptoms include:

Many vehicles continue running normally while using conservative ignition timing.

Check Engine Light

The Check Engine Light is usually the first noticeable symptom.

Additional knock sensor or ignition-related codes may also be stored.

Reduced Engine Performance

Because the PCM cannot accurately monitor detonation, it often reduces ignition timing to protect the engine.

Drivers may notice:

Poor Fuel Economy

Retarded ignition timing reduces combustion efficiency.

Drivers may experience:

Engine Hesitation

Some vehicles develop:

These symptoms result from conservative ignition timing rather than actual engine damage.

Engine Knock or Pinging

In some cases, a failed knock sensor may prevent the PCM from detecting detonation.

Drivers may hear:

Persistent engine knock should never be ignored because it can cause serious internal engine damage.

Is P0325 Serious?

P0325 is generally considered a moderate-severity diagnostic trouble code.

The vehicle will often remain drivable, but prolonged operation may result in:

Prompt diagnosis is recommended.

Can You Drive With P0325?

Yes—but repairs should not be delayed.

Most vehicles enter a protective ignition strategy that allows continued operation.

However, you should avoid aggressive driving if you notice:

Heavy engine loads may increase the risk of detonation if the knock sensor is not functioning correctly.

P0325 vs Related Trouble Codes

Understanding related knock sensor codes simplifies diagnosis.

P0325

Knock Sensor 1 Circuit Malfunction

General malfunction affecting Knock Sensor 1 or its electrical circuit.

P0326

Knock Sensor 1 Circuit Range/Performance

The knock sensor signal is outside the expected operating range.

P0327

Knock Sensor 1 Circuit Low Input

The PCM detects lower-than-expected knock sensor voltage.

P0328

Knock Sensor 1 Circuit High Input

The knock sensor signal voltage exceeds the expected range.

P0330

Knock Sensor 2 Circuit Malfunction

A similar fault affecting Knock Sensor 2 on Bank 2.

30 Common Causes of P0325

The most common causes include:

  1. Failed knock sensor
  2. Heat-damaged sensor
  3. Open knock sensor circuit
  4. Shorted wiring
  5. Loose electrical connector
  6. Corroded terminals
  7. Oil contamination
  8. Water intrusion
  9. Incorrect sensor torque
  10. Damaged wiring harness
  11. Rodent damage
  12. Engine block corrosion beneath the sensor
  13. Poor engine grounds
  14. Internal engine vibration
  15. Worn rod bearings
  16. Piston slap
  17. Timing chain noise
  18. Loose flywheel or flexplate
  19. Accessory drive noise
  20. Low-quality fuel
  21. Excessive carbon buildup
  22. Engine overheating
  23. Faulty PCM connector
  24. Weak battery voltage
  25. Charging system problems
  26. Aftermarket electrical modifications
  27. Engine rebuild errors
  28. PCM calibration issue
  29. Failed PCM driver
  30. Failed PCM (extremely rare)

Final Thoughts

The P0325 Knock Sensor 1 Circuit Malfunction code indicates the PCM has lost confidence in the knock sensor signal used to protect the engine from damaging detonation.

Fortunately, failed knock sensors, damaged wiring, loose electrical connections, incorrect sensor installation, and engine vibration account for the vast majority of P0325 repairs.

Proper diagnosis should determine whether the fault originates in:

The next section of this guide covers:

Following a systematic diagnostic process prevents unnecessary parts replacement while restoring proper knock detection, engine protection, ignition timing, and overall engine performance.

Related Pro Street Diagnostic Guides

How to Diagnose the P0325 Code

Diagnosing P0325 requires determining why the Powertrain Control Module (PCM) has detected a malfunction in the Knock Sensor 1 (KS1) circuit.

Unlike P0326, P0327, or P0328, which identify specific knock sensor performance or voltage issues, P0325 is a general Knock Sensor 1 circuit malfunction that requires systematic testing of the entire knock detection system.

The underlying problem may involve:

Because the knock sensor protects the engine from damaging detonation, diagnosis should begin as soon as the code appears—even if the engine still runs normally.

Safety Precautions

Before beginning diagnosis:

Many knock sensors are located beneath the intake manifold or near hot engine components.

Tools Required

Professional diagnosis may require:

An oscilloscope is the preferred tool for evaluating knock sensor signal quality.

Step 1 – Verify the Code

Connect a professional scan tool.

Record:

Monitor:

Never erase codes before recording freeze-frame information.

Step 2 – Check for Related Trouble Codes

P0325 frequently appears with:

Related codes often help determine whether the fault is electrical, fuel-related, or caused by excessive engine knock.

Code CombinationLikely Diagnosis
P0325 onlyKnock sensor or wiring fault
P0325 + P0327Low sensor voltage
P0325 + P0328High sensor voltage
P0325 + P0300Engine misfire causing abnormal vibration
P0325 + P0171Lean fuel mixture contributing to knock

Step 3 – Review Freeze-Frame Data

Review:

Determine whether the fault occurred:

Knock sensor monitoring is most active during high-load conditions.

Step 4 – Perform a Visual Inspection

Locate the knock sensor.

Inspect for:

Many knock sensor failures can be identified visually.

Step 5 – Inspect the Wiring Harness

Follow the wiring harness from the sensor to the main engine harness.

Inspect for:

Repair wiring before replacing the sensor.

Step 6 – Inspect the Electrical Connector

Disconnect the knock sensor connector.

Inspect for:

Replace damaged connectors as necessary.

Step 7 – Verify Battery and Charging System Voltage

Low voltage can interfere with sensor operation.

Normal voltage:

Correct charging system problems before continuing diagnosis.

Step 8 – Test Knock Sensor Resistance

Disconnect the sensor.

Measure internal resistance using a digital multimeter.

Compare readings with manufacturer specifications.

An open or shorted sensor generally requires replacement.

Step 9 – Verify Sensor Signal

Using a multimeter or oscilloscope:

Verify:

The sensor should produce measurable voltage when engine vibration occurs.

Step 10 – Inspect Sensor Mounting Torque

Knock sensors are extremely sensitive to mounting torque.

Verify:

A sensor installed too loose or too tight may produce inaccurate readings.

Step 11 – Check for Mechanical Engine Noise

Use a mechanic’s stethoscope.

Listen for:

Mechanical problems may trigger false knock sensor readings.

Step 12 – Inspect Engine Grounds

Inspect:

Poor grounding can distort low-voltage knock sensor signals.

Step 13 – Test the Knock Sensor with an Oscilloscope

An oscilloscope provides the most accurate diagnosis.

Inspect the waveform for:

A healthy knock sensor produces consistent voltage spikes when engine vibrations occur.

Step 14 – Evaluate Fuel Quality

Poor fuel can increase detonation.

Verify:

Using fuel below the manufacturer’s recommended octane may contribute to engine knock.

Step 15 – Review Technical Service Bulletins

Before replacing expensive components:

Review manufacturer Technical Service Bulletins (TSBs).

Manufacturers occasionally release updates addressing:

Step 16 – Inspect the Intake Manifold (If Required)

On many engines, particularly Toyota, Lexus, Nissan, and Infiniti V6 models, the knock sensor is located beneath the intake manifold.

During removal inspect:

Replace intake manifold gaskets if required during reassembly.

Step 17 – Perform a Road Test

If the engine runs normally:

Monitor:

Perform moderate acceleration to verify proper knock sensor response.

Step 18 – Verify Sensor Operation at Operating Temperature

Some knock sensors fail only after heating up.

Allow the engine to reach operating temperature.

Continue monitoring:

Heat-related failures often become obvious during this step.

Step 19 – Complete an OBD-II Drive Cycle

After repairs:

Step 20 – Confirm the Diagnosis

Before replacing expensive components, verify:

Completing these diagnostic procedures prevents unnecessary parts replacement while accurately identifying the root cause of P0325.

Step 21 – Replace the Knock Sensor

If testing confirms the Knock Sensor 1 (KS1) has failed, replacement is the proper repair.

Common signs of knock sensor failure include:

General replacement procedure:

  1. Disconnect the negative battery cable.
  2. Locate Knock Sensor 1.
  3. Remove any components obstructing access (intake manifold on many engines).
  4. Disconnect the electrical connector.
  5. Remove the retaining bolt.
  6. Remove the old sensor.
  7. Clean the mounting surface.
  8. Install the new sensor.
  9. Torque the mounting bolt to factory specifications.
  10. Reassemble removed components.
  11. Clear diagnostic trouble codes.

Always torque the knock sensor correctly. Overtightening or undertightening can cause false knock readings.

Step 22 – Repair Wiring Problems

Inspect the complete knock sensor wiring harness.

Look for:

Repair wiring using:

Many intermittent P0325 faults are caused by damaged wiring rather than the sensor itself.

Step 23 – Repair Connector Damage

Inspect the knock sensor connector for:

Replace damaged connectors using OEM repair kits whenever possible.

Poor connector contact often creates intermittent knock sensor faults.

Step 24 – Repair Engine Mechanical Problems

If abnormal engine noise is discovered:

Inspect:

Mechanical noise may generate false knock sensor readings or mask true detonation events.

Repair mechanical faults before replacing electronic components.

Step 25 – Correct Sensor Mounting

Verify:

Never install sealant or thread locker unless specified by the manufacturer.

The knock sensor must make proper contact with the engine block to accurately detect vibration.

Step 26 – Repair Engine Grounds

Inspect:

Repair:

Good electrical grounding is critical because knock sensor signals operate at very low voltage.

Step 27 – Update PCM Software

Before replacing expensive components:

Review manufacturer Technical Service Bulletins (TSBs).

Manufacturers occasionally release PCM updates addressing:

Verify the PCM contains the latest software calibration.

Step 28 – Verify Knock Sensor Operation

After repairs:

Use a professional scan tool to monitor:

Verify the PCM responds appropriately to changing engine loads.

No new knock sensor faults should appear.

Step 29 – Complete an OBD-II Drive Cycle

After repairs:

Verify P0325 does not return.

Step 30 – Verify the Repair

After completing repairs:

  1. Clear all diagnostic trouble codes.
  2. Start the engine.
  3. Verify smooth idle.
  4. Confirm proper ignition timing.
  5. Road test the vehicle.
  6. Monitor live knock sensor data.
  7. Verify no pending or permanent DTCs return.
  8. Confirm normal engine performance.

A successful repair restores proper knock detection, optimized ignition timing, improved fuel economy, and maximum engine protection.

How to Fix P0325

The proper repair depends on the diagnostic results.

Common repairs include:

Never replace the PCM until all other diagnostic possibilities have been eliminated.

Typical Repair Costs

RepairTypical Cost
Professional diagnosis$100–250
Knock sensor replacement$175–600
Intake manifold gasket replacement (if required)$50–250
Wiring repair$100–350
Connector replacement$75–200
Engine ground repair$50–200
Internal engine repair$500–5,000+
PCM software update$100–250
PCM replacement (rare)$900–2,500+

Repair costs vary depending on engine configuration and knock sensor accessibility.

Common Diagnostic Mistakes

Avoid these common mistakes:

Many P0325 repairs involve wiring, connector problems, or incorrect sensor installation rather than complete sensor failure.

Manufacturer-Specific Notes

Toyota/Lexus

Inspect:

Toyota V6 and V8 engines commonly develop brittle knock sensor harnesses that trigger P0325.

Nissan/Infiniti

Inspect:

Knock sensor failures are common on older VQ-series engines due to heat exposure.

Honda/Acura

Inspect:

Oil leaks often contaminate the knock sensor connector.

General Motors (Chevrolet, GMC, Cadillac, Buick)

Inspect:

Some GM V8 engines are known for moisture collecting around the knock sensors beneath the intake manifold.

Ford/Lincoln

Inspect:

Verify proper sensor torque whenever replacement has been performed.

Hyundai/Kia

Inspect:

Some models have updated software to improve knock sensor diagnostics.

Frequently Asked Questions

What usually fixes P0325?

The most common repairs include replacing a failed knock sensor, repairing damaged wiring, replacing corroded connectors, correcting sensor torque, repairing engine grounds, or fixing internal engine noise that interferes with knock detection.

Can I drive with P0325?

Yes, in most cases. However, repairs should be completed promptly because the PCM often retards ignition timing to protect the engine, reducing performance and fuel economy. If engine knock is present, avoid driving until the issue is repaired.

Does P0325 always mean the knock sensor is bad?

No. Although the knock sensor is the most common cause, P0325 may also result from damaged wiring, poor electrical connections, incorrect sensor installation, engine mechanical noise, or PCM communication issues.

Can bad fuel cause P0325?

Indirectly, yes. Fuel with insufficient octane can cause excessive engine knock, which may complicate diagnosis. However, poor fuel alone usually will not create a true knock sensor circuit malfunction.

Is P0325 a serious code?

P0325 is considered a moderate-severity diagnostic trouble code. While many vehicles remain drivable, prolonged operation with an inoperative knock sensor can reduce performance, increase fuel consumption, and allow damaging engine detonation if knock occurs undetected.

Final Thoughts

The P0325 Knock Sensor 1 Circuit Malfunction code indicates the PCM can no longer rely on the knock sensor signal needed to detect detonation and optimize ignition timing.

Fortunately, failed knock sensors, damaged wiring, poor electrical connections, incorrect sensor torque, and deteriorated knock sensor sub-harnesses account for the majority of P0325 repairs.

A complete diagnosis should always verify:

Following a systematic diagnostic process prevents unnecessary parts replacement while restoring accurate knock detection, proper ignition timing, maximum engine performance, and long-term engine reliability.

Continue Your Pro Street Knock Sensor Series

Related guides include:

Exit mobile version
