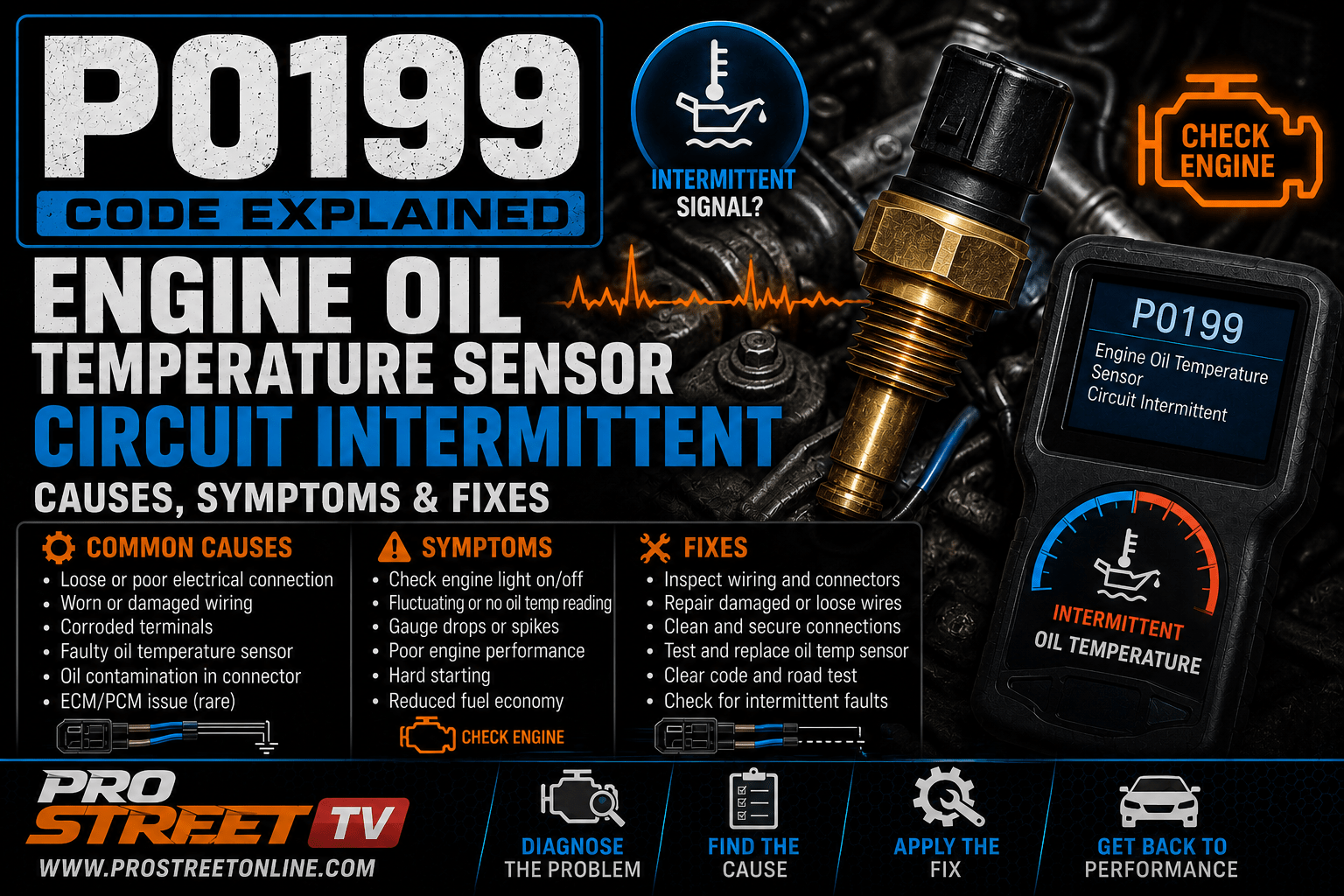

If your OBD-II scanner displays P0199, your vehicle’s Engine Control Module (ECM) or Powertrain Control Module (PCM) has detected that the Engine Oil Temperature (EOT) Sensor circuit signal is intermittent or unstable.
The generic OBD-II definition for P0199 is:
Engine Oil Temperature Sensor Circuit Intermittent
Unlike P0195, which indicates a general Engine Oil Temperature Sensor circuit malfunction, P0196, which indicates a range or performance problem, P0197, which indicates a low-input condition, or P0198, which indicates a high-input condition, P0199 specifically means the PCM is receiving an Engine Oil Temperature Sensor signal that repeatedly drops out, spikes unexpectedly, or becomes unstable during operation.
Modern engines rely on accurate engine oil temperature data to manage:
- Variable valve timing (VVT)
- Fuel injection
- Ignition timing
- Turbocharger protection
- Engine protection strategies
- Cooling system operation
- Emissions control
Common causes include:
- Failing Engine Oil Temperature Sensor
- Loose electrical connector
- Damaged wiring
- Broken signal wire
- Connector corrosion
- Intermittent open circuit
- Poor ground connection
- PCM software issues
- Failed PCM (rare)
Because the PCM can no longer trust the Engine Oil Temperature Sensor signal, it may substitute a default value, illuminate the Check Engine Light, and activate protective engine management strategies.
What Does the P0199 Code Mean?
The PCM continuously monitors the Engine Oil Temperature Sensor by supplying a reference voltage and analyzing the return signal.
The Engine Oil Temperature Sensor helps control:
- Fuel delivery
- Ignition timing
- Variable valve timing
- Turbocharger lubrication strategies
- Cooling fan operation
- Engine protection
- Emissions performance
If the PCM detects the signal repeatedly becomes unstable, disappears, or fluctuates outside normal operating behavior, it stores P0199.
Unlike P0197 or P0198, which indicate constant low- or high-voltage conditions, P0199 identifies an intermittent electrical fault.
What Is the Engine Oil Temperature Sensor?
The Engine Oil Temperature (EOT) Sensor is a thermistor that changes electrical resistance according to engine oil temperature.
Depending on vehicle design, it may be installed:
- In the oil pan
- In the engine block
- Near the oil filter housing
- Within the oil cooler assembly
As engine oil temperature changes, sensor resistance changes, allowing the PCM to calculate oil temperature accurately.
Reliable temperature data helps optimize engine performance while protecting critical engine components.
Why Engine Oil Temperature Matters
Engine oil performs several essential functions:
- Lubricates moving engine parts
- Removes heat
- Reduces friction
- Protects bearings
- Supports turbocharger lubrication
- Operates hydraulic valve timing systems
Oil that becomes too hot:
- Loses viscosity
- Breaks down more quickly
- Increases engine wear
- Reduces lubrication efficiency
Oil that remains too cold:
- Flows poorly
- Reduces fuel economy
- Increases internal friction
- Delays proper engine warm-up
Accurate Engine Oil Temperature information allows the PCM to balance performance, durability, and emissions.
How the PCM Detects P0199
The PCM continuously monitors:
- Engine Oil Temperature Sensor voltage
- Reference voltage
- Ground integrity
- Sensor resistance
- Engine Coolant Temperature
- Intake Air Temperature
If the Engine Oil Temperature Sensor signal:
- Drops out unexpectedly
- Spikes randomly
- Fluctuates excessively
- Disappears intermittently
the PCM stores P0199.
Most manufacturers require multiple intermittent failures before illuminating the Check Engine Light.
What Does “Intermittent” Mean?
An Intermittent code means the sensor works correctly some of the time, but the signal becomes unreliable during vehicle operation.
Possible causes include:
- Loose connector
- Broken wiring inside insulation
- Intermittent open circuit
- Connector corrosion
- Engine vibration
- Heat-related wiring failure
- Internal sensor failure
Because the signal comes and goes, intermittent faults are often more difficult to diagnose than constant electrical failures.
Can Wiring Problems Cause P0199?
Absolutely.
Electrical wiring faults are one of the leading causes of P0199.
Inspect for:
- Broken wiring
- Chafed insulation
- Loose connectors
- Connector corrosion
- Poor ground connections
- Melted wiring
- Harness movement
Many intermittent faults only appear when the engine vibrates or the wiring harness moves.
Can the Engine Oil Temperature Sensor Fail?
Yes.
Engine Oil Temperature Sensors operate under:
- High temperatures
- Constant oil exposure
- Continuous vibration
- Frequent thermal cycling
Over time they may fail because of:
- Internal electronic wear
- Heat damage
- Oil contamination
- Moisture intrusion
- Aging
- Manufacturing defects
A failing sensor may provide accurate readings most of the time but randomly produce incorrect values.
Can Low Engine Oil Cause P0199?
Not directly.
Low engine oil generally does not create an intermittent electrical signal.
However, low oil may contribute to:
- Higher oil temperatures
- Increased sensor stress
- Accelerated sensor failure
- Engine overheating
Always verify engine oil level and condition during diagnosis.
P0199 Quick Facts
| Item | Information |
|---|---|
| DTC | P0199 |
| Generic Definition | Engine Oil Temperature Sensor Circuit Intermittent |
| System | Engine Management |
| Severity | Moderate |
| Safe to Drive? | Yes, but repair soon |
| Common Symptoms | Check Engine Light, reduced performance, poor fuel economy |
| Common Causes | Failing EOT sensor, loose connector, damaged wiring, intermittent open circuit |
| Typical Repair Cost | $100–900+ |
| Related Codes | P0195, P0196, P0197, P0198 |
Common Vehicles That Experience P0199
P0199 commonly appears on:
- Ford
- Lincoln
- Chevrolet
- GMC
- Cadillac
- Dodge
- Ram
- Jeep
- Chrysler
- Toyota
- Lexus
- Nissan
- Infiniti
- Honda
- Acura
- Hyundai
- Kia
- Volkswagen
- Audi
- BMW
- Mercedes-Benz
The code is especially common on:
- Turbocharged engines
- Diesel engines
- Performance vehicles
- Heavy-duty trucks
- Vehicles equipped with engine oil coolers
What Does P0199 Really Mean?
The wording of P0199 often causes drivers to assume the Engine Oil Temperature Sensor has completely failed.
The code does not automatically mean:
- The sensor must be replaced.
- The engine oil is overheating.
- The engine has suffered internal damage.
- The oil pump has failed.
- The PCM has failed.
Instead, it means the PCM has detected an Engine Oil Temperature Sensor signal that becomes unstable or intermittent during operation.
The underlying problem may involve:
- Engine Oil Temperature Sensor
- Wiring harness
- Electrical connector
- Signal wire
- Ground circuit
- Connector corrosion
- PCM software
- PCM (rare)
Think of P0199 as the PCM saying:
“Your oil temperature sensor keeps changing its story. One second everything looks normal, the next it disappears completely. Before I start making bad decisions, I’d like someone to figure out who’s lying.”
