P0129 Code Explained: Barometric Pressure Too Low Causes, Symptoms & Fixes

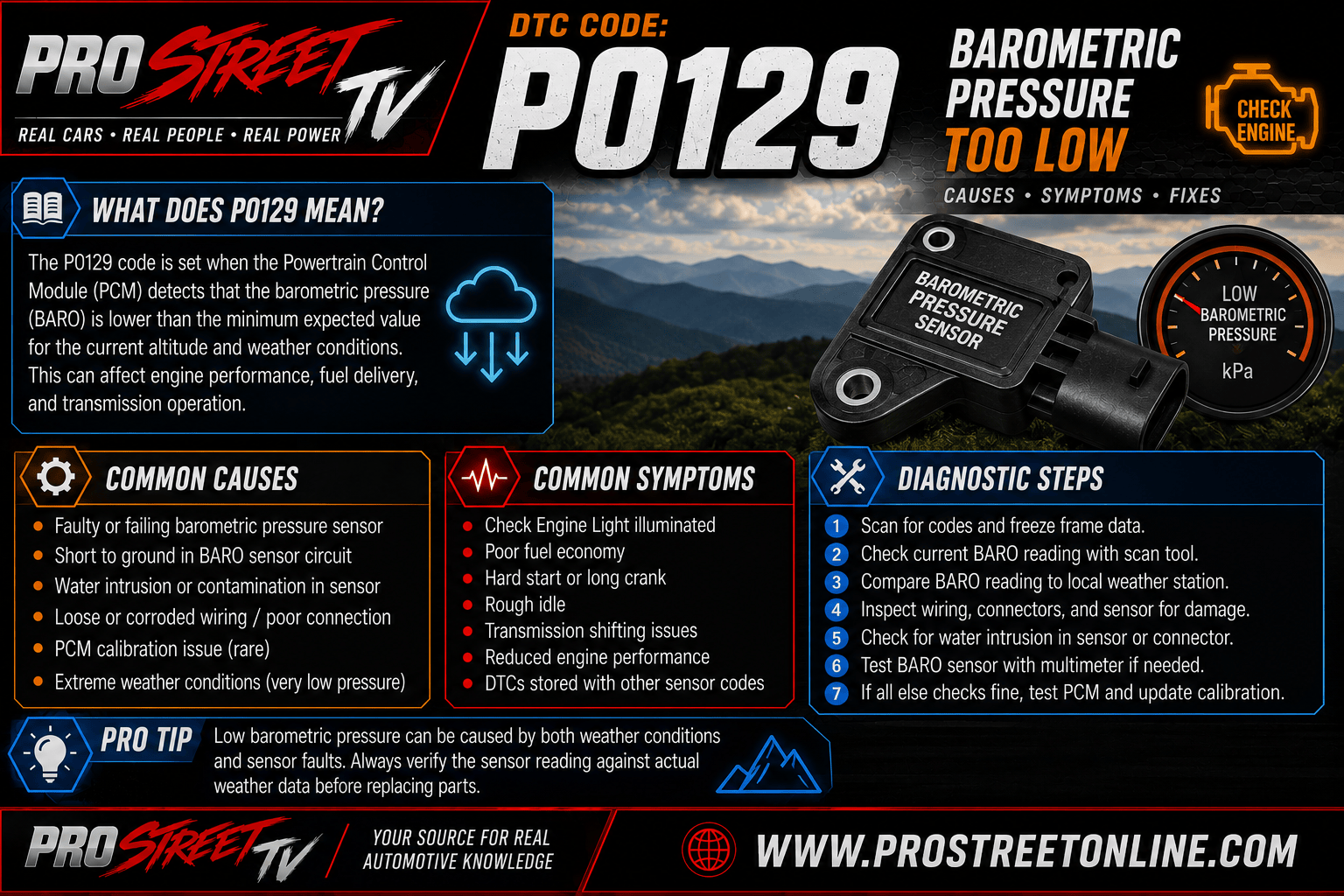

P0129 code illustration showing a MAP/BARO sensor, atmospheric pressure gauge, intake manifold, Check Engine Light, Pro Street TV logo, and www.ProStreetOnline.com.

If your OBD-II scanner displays P0129, your vehicle’s Engine Control Module (ECM) or Powertrain Control Module (PCM) has detected that the barometric pressure (BARO) reading is lower than the expected operating range.

The generic OBD-II definition for P0129 is:

Barometric Pressure Too Low

Unlike P0105, P0106, P0107, P0108, and P0109, which primarily diagnose electrical or performance problems within the Manifold Absolute Pressure (MAP) sensor circuit, P0129 is an atmospheric pressure performance code.

In many cases, the sensor itself is functioning correctly.

The ECM may simply be receiving a barometric pressure value that doesn’t match the vehicle’s operating conditions.

This commonly occurs because of:

Although P0129 usually will not leave you stranded, inaccurate barometric pressure information can negatively affect fuel delivery, ignition timing, emissions, engine performance, and turbocharger control.

Fortunately, proper diagnosis is usually straightforward when live scan-tool data is combined with basic electrical and intake-system testing.

What Does the P0129 Code Mean?

The PCM constantly monitors barometric pressure, which represents the atmospheric pressure surrounding the vehicle.

Barometric pressure is important because air density changes with:

The PCM uses this information to calculate:

As altitude increases, atmospheric pressure decreases.

Because less oxygen enters the engine, the PCM must reduce fuel delivery to maintain the proper air-fuel mixture.

When the PCM detects a barometric pressure value lower than expected for the current operating conditions, it stores P0129.

What Is Barometric Pressure?

Barometric pressure is the weight of the atmosphere pressing down on the Earth.

At sea level:

Atmospheric pressure averages approximately:

14.7 PSI (101.3 kPa)

As elevation increases:

Modern engine computers automatically compensate for these changes using barometric pressure calculations.

How the PCM Measures Barometric Pressure

Most modern vehicles calculate BARO using one of two methods.

Method 1 — Dedicated BARO Sensor

Some vehicles contain a dedicated:

Barometric Pressure Sensor

This sensor continuously reports atmospheric pressure directly to the PCM.

Method 2 — MAP Sensor Calculation

Many manufacturers eliminate the dedicated BARO sensor.

Instead, the PCM estimates barometric pressure using the:

During key-on engine-off (KOEO), manifold pressure should closely match atmospheric pressure.

The PCM uses this reading as the initial BARO value.

Why Barometric Pressure Matters

The engine can only burn the oxygen that enters the cylinders.

If the PCM believes atmospheric pressure is lower than it actually is, it may:

Conversely, if BARO readings are too high, the PCM may overfuel the engine.

Accurate pressure information is critical for maintaining performance and emissions compliance.

How the PCM Detects P0129

Each manufacturer uses different calibration strategies.

The PCM may compare:

If the measured barometric pressure falls below the expected value for current operating conditions, the PCM stores P0129.

Some vehicles require the condition to occur during multiple drive cycles before illuminating the Check Engine Light.

How Altitude Affects Engine Performance

One important characteristic of P0129 is that altitude itself is not always a fault.

At higher elevations:

The PCM is designed to compensate for these conditions automatically.

However, if the measured pressure differs significantly from what the PCM expects, P0129 may set.

For this reason, some vehicles develop P0129 immediately after traveling from sea level to mountainous regions or vice versa.

The Relationship Between MAP and BARO

Many drivers confuse the MAP sensor with the BARO sensor.

Although closely related, they perform different functions.

MAP Sensor

Measures:

BARO Sensor

Measures:

On many vehicles, a single MAP sensor performs both functions.

This is why MAP sensor failures frequently trigger barometric pressure-related trouble codes.

P0129 Quick Facts

ItemInformation
DTCP0129
Generic DefinitionBarometric Pressure Too Low
SystemAir Intake / Engine Management
SeverityLow to Moderate
Safe to Drive?Usually Yes
Common SymptomsCheck Engine Light, reduced power, poor fuel economy, hesitation
Common CausesFaulty MAP/BARO sensor, wiring issues, vacuum leaks, altitude changes
Typical Repair Cost$100–1,000+
Related CodesP0105, P0106, P0107, P0108, P0109

Common Vehicles That Experience P0129

Because P0129 is a generic OBD-II diagnostic trouble code, it may appear on many gasoline-powered vehicles equipped with MAP- or BARO-based engine management systems.

Common manufacturers include:

Turbocharged engines are particularly sensitive to incorrect barometric pressure readings because boost calculations depend heavily on accurate atmospheric pressure.

What Does “Barometric Pressure Too Low” Really Mean?

The wording of P0129 often causes unnecessary concern.

It does not necessarily mean:

Instead, it means the PCM believes the measured atmospheric pressure is lower than expected based on current operating conditions.

That low reading may be accurate because of elevation—or it may result from a faulty sensor, damaged wiring, vacuum leak, or incorrect MAP sensor calculation.

Think of P0129 as your PCM saying:

“Either we suddenly drove halfway up a mountain… or somebody’s lying about the air pressure.”

Common P0129 Scan Tool Patterns

Monitoring live scan-tool data is one of the fastest ways to diagnose P0129.

Unlike many electrical sensor faults, P0129 often occurs because the PCM believes the barometric pressure (BARO) reading does not match the vehicle’s actual operating conditions.

Comparing BARO, MAP, Intake Air Temperature (IAT), Engine Coolant Temperature (ECT), and engine load often identifies the root cause quickly.

Pattern 1: BARO Reading Is Extremely Low at Key-On

With the ignition on and the engine off (KOEO), the BARO reading should closely match local atmospheric pressure.

Typical sea-level readings are approximately:

If BARO is significantly lower before the engine starts, suspect:

Pattern 2: BARO Does Not Change After Large Elevation Changes

Vehicles traveling from sea level to mountainous regions should show noticeable BARO changes.

If scan data remains unchanged despite major elevation differences, inspect:

Some vehicles only update BARO values during specific operating conditions.

Pattern 3: MAP and BARO Values Do Not Agree

On many vehicles:

At Key-On Engine-Off:

MAP ≈ BARO

If MAP and BARO differ significantly:

Possible causes include:

Pattern 4: Engine Load Appears Incorrect

Because BARO affects engine load calculations, scan data may show:

This often results in poor drivability even when no other sensor appears faulty.

Pattern 5: Fuel Trims Become Excessive

Incorrect BARO calculations alter fuel delivery.

The scan tool may display:

The exact direction depends on how inaccurate the pressure calculation becomes.

Pattern 6: BARO Reading Changes Suddenly

Barometric pressure normally changes gradually.

Sudden scan-tool jumps may indicate:

Large pressure changes occurring within seconds almost never reflect actual atmospheric conditions.

Common Symptoms of P0129

Symptoms vary depending on:

Common symptoms include:

Some vehicles display only the Check Engine Light with no noticeable drivability concerns.

Check Engine Light

The illuminated Check Engine Light is often the first indication of P0129.

Some manufacturers require:

before illuminating the MIL.

Reduced Engine Power

Incorrect atmospheric pressure calculations affect engine load calculations.

The PCM may respond by:

Drivers may notice:

Poor Fuel Economy

Incorrect BARO values affect injector pulse width.

Possible symptoms include:

Fuel economy often returns to normal after correcting the pressure calculation.

Hesitation During Acceleration

Incorrect fueling may cause:

These symptoms are often more noticeable under moderate engine load.

Hard Starting

Some vehicles may experience:

Incorrect atmospheric pressure affects startup fuel calculations.

Turbocharger Performance Loss

Turbocharged engines rely heavily on accurate BARO readings.

Incorrect atmospheric pressure may cause:

Is P0129 Serious?

Generally, P0129 is considered a low-to-moderate severity diagnostic trouble code.

It rarely causes immediate engine damage.

However, prolonged operation may result in:

Vehicles used for towing or performance driving should be repaired promptly.

Can You Drive With P0129?

Usually yes—but repairs should not be delayed.

Driving is generally safe if:

Avoid prolonged driving if:

P0129 vs Related Trouble Codes

Understanding similar pressure-related codes simplifies diagnosis.

P0105

Manifold Absolute Pressure Circuit Malfunction.

General MAP circuit fault.

P0106

MAP Sensor Range/Performance.

Sensor performance issue.

P0107

MAP Sensor Circuit Low Input.

Low voltage from the MAP sensor.

P0108

MAP Sensor Circuit High Input.

High voltage from the MAP sensor.

P0109

MAP Sensor Circuit Intermittent.

Intermittent MAP signal.

P0129

Barometric Pressure Too Low.

The PCM has determined atmospheric pressure is lower than expected for current operating conditions.

30 Common Causes of P0129

The most common causes include:

  1. Faulty MAP sensor
  2. Faulty BARO sensor
  3. MAP sensor contamination
  4. Damaged MAP wiring
  5. Corroded sensor connector
  6. Vacuum leaks
  7. Restricted air filter
  8. Intake manifold leaks
  9. Cracked vacuum hoses
  10. Throttle body leaks
  11. Engine mechanical vacuum problems
  12. High-altitude operation
  13. Faulty Intake Air Temperature sensor
  14. Poor engine grounds
  15. Damaged PCM connector
  16. Previous engine repairs
  17. Incorrect aftermarket tuning
  18. PCM calibration issues
  19. Faulty throttle position sensor
  20. Dirty throttle body
  21. Intake restrictions
  22. Turbocharger boost leaks
  23. Intercooler leaks
  24. Supercharger leaks
  25. Exhaust restrictions affecting engine load
  26. Carbon buildup
  27. Wiring harness damage
  28. Water intrusion into connectors
  29. Poor battery voltage
  30. PCM failure (rare)

Final Thoughts

The P0129 Barometric Pressure Too Low code indicates the PCM believes atmospheric pressure is lower than expected for current operating conditions.

While the cause may simply be high-altitude driving, faulty MAP or BARO sensors, vacuum leaks, damaged wiring, intake restrictions, or incorrect engine load calculations are far more common.

Accurate diagnosis should always verify actual atmospheric pressure before replacing sensors or engine components.

The next section of this guide covers:

Following a systematic diagnostic process helps restore proper engine performance, fuel economy, turbocharger operation, and emissions compliance.

Related Pro Street Diagnostic Guides

How to Diagnose the P0129 Code

Diagnosing P0129 requires determining whether the barometric pressure (BARO) reading is actually too low because of environmental conditions or whether the PCM is receiving incorrect information from the MAP/BARO sensor system.

Unlike many electrical sensor faults, P0129 often results from incorrect pressure calculations rather than complete sensor failure.

A proper diagnosis should determine whether the problem is caused by:

Before replacing any components, verify that the pressure reading is actually inaccurate.

Safety Precautions

Before beginning diagnosis:

If road testing at higher elevations, always observe safe driving practices.

Tools Required

A complete diagnosis may require:

Live scan data is the single most valuable diagnostic tool when diagnosing P0129.

Step 1 – Verify the Code

Connect the scan tool.

Record:

Pay close attention to:

Do not erase the codes until all freeze-frame information has been recorded.

Step 2 – Check for Related Trouble Codes

P0129 commonly appears with:

Other intake or fuel-system codes may help narrow the diagnosis.

Code CombinationLikely Diagnosis
P0129 onlyBARO calculation issue
P0129 + P0106MAP sensor performance problem
P0129 + P0107/P0108MAP circuit fault
P0129 + IAT codesAir-density calculation issue
Multiple sensor codesWiring or PCM issue

Step 3 – Compare BARO to Local Atmospheric Pressure

One of the most important diagnostic steps is verifying that the BARO reading makes sense.

With the ignition ON and engine OFF:

Compare:

A properly operating BARO sensor should closely match actual atmospheric pressure.

If the vehicle is at sea level but BARO indicates very high altitude, further diagnosis is required.

Step 4 – Compare MAP and BARO at Key-On Engine-Off

On many vehicles:

MAP should closely match BARO during KOEO.

This is because no engine vacuum exists.

If:

MAP differs significantly from BARO

inspect:

Large differences often indicate a sensor or electrical problem.

Step 5 – Monitor BARO During Engine Operation

Start the engine.

Monitor:

BARO should remain relatively stable.

MAP should change continuously with throttle position and engine load.

If BARO fluctuates rapidly, suspect:

Step 6 – Compare BARO to Vehicle Elevation

Use your current elevation as a reference.

Approximate atmospheric pressure values:

If the scan tool reports values that are unrealistic for the vehicle’s elevation, investigate the sensor system.

Step 7 – Inspect the MAP/BARO Sensor

Locate the sensor.

Inspect for:

Contamination inside the pressure port may affect sensor accuracy.

Clean only if permitted by the manufacturer.

Step 8 – Inspect the Electrical Connector

Disconnect the connector.

Inspect for:

Poor electrical connections commonly create inaccurate pressure readings.

Step 9 – Verify the Five-Volt Reference

Using a digital multimeter:

Measure voltage at the sensor connector.

Expected reading:

Approximately 5 volts

Possible results include:

Normal

Continue diagnosis.

Missing

Inspect:

Low Voltage

Possible causes include:

Step 10 – Verify Sensor Ground

Perform voltage-drop testing.

Inspect:

High resistance in the ground circuit may produce inaccurate pressure readings.

Do not rely solely on continuity testing.

Step 11 – Test Sensor Signal Voltage

Reconnect the sensor.

Back-probe the signal wire.

Observe voltage changes while:

Signal voltage should change smoothly.

Erratic or fixed voltage usually indicates sensor failure.

Step 12 – Inspect Vacuum Supply (If Applicable)

Some BARO/MAP systems rely on vacuum passages.

Inspect for:

Vacuum leaks can significantly affect pressure calculations.

Step 13 – Inspect the Intake System

Inspect:

Look for:

Improper airflow may influence BARO calculations on some vehicles.

Step 14 – Perform a Smoke Test

Introduce smoke into the intake system.

Inspect for leaks around:

Even small vacuum leaks may alter MAP sensor readings enough to trigger P0129.

Step 15 – Evaluate Fuel Trim Data

Observe:

Abnormal fuel trims may indicate:

Fuel trims provide valuable supporting evidence during diagnosis.

Step 16 – Compare BARO With Intake Air Temperature

The PCM frequently compares:

If the relationship between these sensors appears unrealistic, investigate:

Sensor correlation is often more important than any single sensor value.

Step 17 – Inspect Wiring Harness

Inspect the harness between:

Look for:

Wiring faults often create intermittent BARO readings.

Step 18 – Verify Engine Vacuum

Connect a vacuum gauge.

Healthy gasoline engines generally produce:

17–22 inHg

at warm idle.

Low vacuum may indicate:

Poor engine vacuum can affect MAP calculations.

Step 19 – Check for PCM Software Updates

Before replacing expensive components:

Check manufacturer Technical Service Bulletins.

Some manufacturers have released PCM updates addressing:

Step 20 – Review Freeze-Frame Data

Compare your diagnostic findings with the stored freeze-frame information.

Ask:

Freeze-frame data often explains why the PCM determined barometric pressure was outside its expected operating range.

Step 21 – Replace the MAP/BARO Sensor (If Required)

Only replace the MAP or dedicated BARO sensor after confirming the sensor has failed through proper testing.

General replacement procedure:

  1. Disconnect the negative battery cable (if recommended).
  2. Disconnect the electrical connector.
  3. Remove the retaining fasteners.
  4. Remove the sensor.
  5. Inspect the mounting surface.
  6. Install the new OEM-quality sensor.
  7. Tighten fasteners to specification.
  8. Reconnect the electrical connector.
  9. Clear diagnostic trouble codes.
  10. Verify correct BARO readings with a scan tool.

Many vehicles calculate barometric pressure using the MAP sensor, meaning replacing the MAP sensor also restores BARO calculations.

Step 22 – Repair Vacuum Leaks

Vacuum leaks are one of the leading causes of incorrect MAP and BARO calculations.

Inspect and repair leaks involving:

After repairs:

Step 23 – Repair Intake Leaks

Unmetered air entering the intake system can affect pressure calculations.

Inspect:

Replace:

A properly sealed intake system is critical for accurate engine load calculations.

Step 24 – Repair Damaged Wiring

If wiring faults are discovered:

Avoid quick repairs using household connectors or electrical tape alone.

Step 25 – Clean MAP Sensor Passage (If Applicable)

Some MAP sensors become contaminated by:

If the manufacturer permits cleaning:

Never touch the sensing element with tools or cloth.

If contamination cannot be removed, replace the sensor.

Step 26 – Repair Engine Vacuum Problems

If engine vacuum is below specification, diagnose the mechanical cause.

Possible repairs include:

Low engine vacuum alters MAP readings and can lead to incorrect BARO calculations.

Step 27 – Correct Intake Restrictions

Inspect for airflow restrictions including:

Restricted airflow can influence engine load calculations and contribute to BARO-related diagnostic codes.

Step 28 – Update PCM Software

Before replacing expensive components, verify the PCM contains the latest factory calibration.

Some manufacturers have released software updates that improve:

Always consult Technical Service Bulletins (TSBs) before replacing the PCM.

Step 29 – Consider High-Altitude Operation

Vehicles driven between dramatically different elevations may temporarily set P0129.

Examples include:

If no faults are found:

Some manufacturers automatically update BARO values after several ignition cycles.

Step 30 – Consider PCM Failure

PCM failure is extremely rare.

Only suspect the PCM after confirming:

Replacing the PCM should always be the last diagnostic step.

How to Fix P0129

The proper repair depends entirely on the diagnostic results.

Common repairs include:

Verifying the Repair

After completing repairs:

  1. Clear all diagnostic trouble codes.
  2. Start the engine.
  3. Monitor BARO and MAP values.
  4. Verify BARO matches local atmospheric pressure.
  5. Confirm MAP changes normally with throttle movement.
  6. Perform a complete road test.
  7. Monitor fuel trims.
  8. Recheck pending and permanent DTCs.
  9. Confirm the Check Engine Light remains off.

Successful repairs should restore proper atmospheric pressure calculations and normal engine performance.

Typical Repair Costs

RepairTypical Cost
Professional diagnosis$100–250
MAP sensor replacement$150–450
BARO sensor replacement$150–400
Vacuum leak repair$150–600
Intake manifold gasket replacement$300–900
Wiring repair$150–500
Intake duct replacement$100–400
Air filter replacement$30–100
PCM software update$100–300
PCM replacement$1,000–3,000+

Actual repair costs vary depending on the vehicle, labor rates, and component accessibility.

Common Diagnostic Mistakes

Avoid these common mistakes:

Many P0129 repairs are solved with careful testing—not expensive parts.

Manufacturer-Specific Notes

General Motors

Inspect:

Many GM vehicles calculate BARO directly from the MAP sensor during startup.

Ford

Verify:

EcoBoost engines should also be checked for boost and charge-air leaks.

Toyota / Lexus

Inspect:

Some Toyota engines require several drive cycles before BARO values fully update.

Honda / Acura

Inspect:

Use OEM MAP sensors whenever replacement is necessary.

Nissan / Infiniti

Compare:

Altitude compensation is especially important on naturally aspirated VQ engines.

Hyundai / Kia

Inspect:

Sensor contamination is a relatively common issue.

Volkswagen / Audi

Verify:

Turbocharged direct-injection engines are particularly sensitive to incorrect atmospheric pressure calculations.

BMW / MINI

Use factory diagnostics to monitor:

Some BMW engines derive BARO from multiple sensor inputs.

Chrysler / Dodge / Jeep / Ram

Inspect:

HEMI engines commonly set MAP-related codes when intake leaks develop.

Frequently Asked Questions

What usually fixes P0129?

The most common repairs include replacing a faulty MAP or BARO sensor, repairing vacuum leaks, fixing damaged wiring, correcting intake leaks, or updating PCM software.

Can I drive with P0129?

Usually yes. Most vehicles remain drivable, although engine performance, fuel economy, and turbocharger operation may suffer until the underlying problem is repaired.

Does P0129 always mean the BARO sensor is bad?

No. Many vehicles calculate barometric pressure using the MAP sensor. Vacuum leaks, wiring faults, altitude changes, and PCM calculation errors can all trigger P0129 without a failed BARO sensor.

Can high altitude trigger P0129?

Yes. Significant elevation changes can occasionally trigger P0129, especially if the PCM has not yet updated its stored barometric pressure values.

Can a vacuum leak cause P0129?

Absolutely. Vacuum leaks change manifold pressure readings, which can lead to incorrect BARO calculations and trigger the code.

Can a bad MAP sensor cause P0129?

Yes. On many vehicles, the MAP sensor provides the information used by the PCM to calculate barometric pressure, making it one of the most common causes of P0129.

Final Thoughts

The P0129 Barometric Pressure Too Low code indicates that the PCM has determined atmospheric pressure is lower than expected for current operating conditions. While elevation changes can legitimately influence barometric pressure, most P0129 repairs involve correcting inaccurate sensor data caused by faulty MAP/BARO sensors, vacuum leaks, wiring problems, intake leaks, or incorrect pressure calculations.

A complete diagnosis should always verify:

Following a systematic diagnostic process prevents unnecessary parts replacement while restoring proper engine load calculations, fuel delivery, ignition timing, turbocharger performance, emissions control, and overall drivability.

Continue Your Pro Street MAP & Pressure Sensor Series

Related guides include:

These guides provide in-depth coverage of MAP sensor diagnostics, atmospheric pressure calculations, intake system troubleshooting, and related OBD-II diagnostic trouble codes.

Exit mobile version
