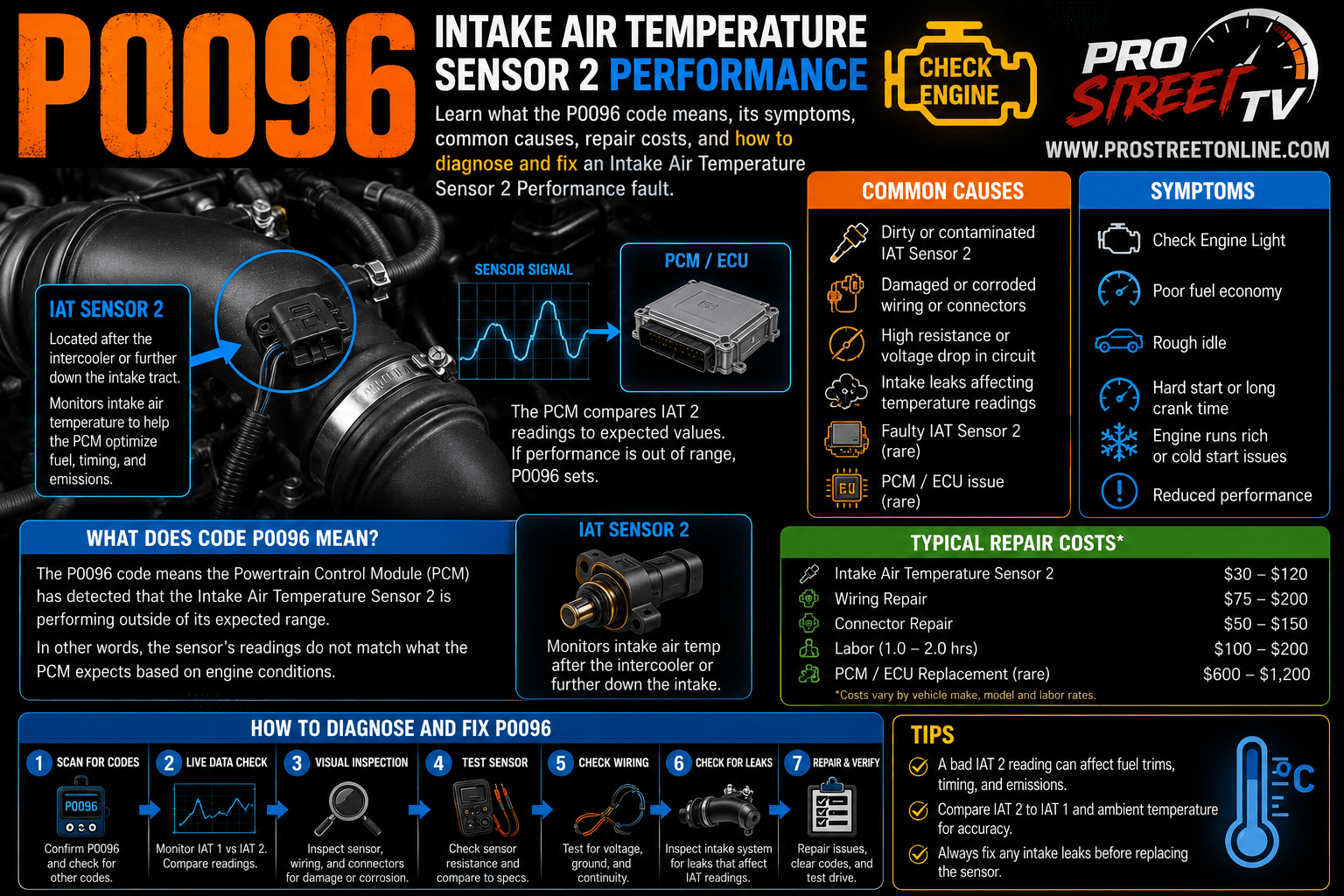

If your OBD-II scanner displays P0096, your vehicle’s Engine Control Module (ECM) or Powertrain Control Module (PCM) has detected that Intake Air Temperature (IAT) Sensor 2 is operating outside its expected performance range.
The generic OBD-II definition for P0096 is:
Intake Air Temperature Sensor 2 Performance
Unlike P0095, which indicates an electrical circuit fault, P0096 means the sensor is still communicating with the PCM—but the temperature data doesn’t make sense compared to actual operating conditions.
Modern vehicles constantly compare Intake Air Temperature Sensor 2 against several other sensors, including Intake Air Temperature Sensor 1, the Engine Coolant Temperature (ECT) sensor, the Ambient Air Temperature sensor, the Mass Air Flow (MAF) sensor, and the Manifold Absolute Pressure (MAP) sensor. If the reported intake air temperature falls outside the PCM’s expected range or fails to change appropriately as conditions change, the PCM stores P0096 and illuminates the Check Engine Light.
Although many vehicles remain drivable with this code, inaccurate intake air temperature data can negatively affect fuel delivery, ignition timing, turbocharger boost control, emissions, and overall engine performance.
Alternate Manufacturer Definitions
Depending on the manufacturer or scan tool, P0096 may also appear as:
- Intake Air Temperature Sensor 2 Performance
- IAT Sensor 2 Range/Performance
- Intake Air Temperature Sensor 2 Plausibility Fault
- Charge Air Temperature Sensor Performance
- Intake Temperature Sensor Rationality Fault
- Turbo Intake Temperature Sensor Performance
- Air Charge Temperature Sensor Performance
- Secondary Intake Air Temperature Sensor Performance
Although wording differs, every definition indicates the sensor is reporting values that are implausible or inconsistent with other engine operating conditions.
P0096 Quick Facts
| Item | Information |
|---|---|
| DTC | P0096 |
| Description | Intake Air Temperature Sensor 2 Performance |
| Category | Powertrain |
| System | Air Intake / Engine Management |
| Severity | Moderate |
| Safe to Drive? | Usually Yes |
| Common Causes | Faulty IAT sensor, contaminated sensor, intake leaks, wiring issues, MAF faults |
| Estimated Repair Cost | $75–$1,000+ |
What Does the P0096 Code Mean?
The PCM uses intake air temperature to determine the density of incoming air.
Because colder air is denser and contains more oxygen than warmer air, intake temperature directly affects:
- Fuel injector pulse width
- Ignition timing
- Turbocharger boost control
- Air/fuel ratio
- Emissions
- Catalyst protection
- Engine performance
Rather than simply looking for an electrical failure, the PCM constantly evaluates whether Intake Air Temperature Sensor 2 is providing believable data.
For example:
If the engine has been sitting overnight, Intake Air Temperature Sensor 2 should read very close to outside air temperature.
If Sensor 2 suddenly reports temperatures that are significantly warmer or colder than expected—or fails to change as the engine warms up or boost pressure increases—the PCM determines the sensor performance is outside acceptable limits and stores P0096.
How Intake Air Temperature Sensor 2 Works
Most Intake Air Temperature sensors use a Negative Temperature Coefficient (NTC) thermistor.
As intake air temperature changes:
- Resistance changes
- Sensor voltage changes
- The PCM calculates air temperature
Typical operation:
Cold Air
- Higher resistance
- Higher voltage
- Lower calculated temperature
Warm Air
- Lower resistance
- Lower voltage
- Higher calculated temperature
Unlike P0095, the circuit itself usually remains functional with P0096.
The problem is that the sensor data no longer accurately reflects actual intake air temperature.
Where Is Intake Air Temperature Sensor 2 Located?
Location varies by engine design.
Common locations include:
Intercooler Outlet
Many turbocharged engines position Sensor 2 after the intercooler to monitor charge air cooling efficiency.
Charge Pipe
Some manufacturers install Sensor 2 directly in the turbocharger charge pipe.
Intake Manifold
Other engines locate the sensor inside the intake manifold after the throttle body.
Integrated MAP/IAT Sensor
Many modern vehicles combine the MAP sensor and Intake Air Temperature Sensor into a single housing.
Always confirm the sensor location using factory service information.
How the PCM Detects P0096
Unlike electrical circuit faults, performance codes rely on sensor correlation.
The PCM compares Intake Air Temperature Sensor 2 with:
- Intake Air Temperature Sensor 1
- Ambient Air Temperature
- Engine Coolant Temperature
- Mass Air Flow Sensor
- Manifold Absolute Pressure Sensor
- Turbocharger boost pressure
- Engine load
- Engine RPM
If Sensor 2 reports temperatures that don’t logically match these operating conditions, the PCM stores P0096.
Examples include:
- Temperature stuck at one value
- Unrealistically cold readings
- Unrealistically hot readings
- Slow sensor response
- Temperature changes that don’t follow engine conditions
Difference Between P0095 Through P0099
These related codes identify different types of Intake Air Temperature Sensor 2 faults.
| Code | Description |
|---|---|
| P0095 | Intake Air Temperature Sensor 2 Circuit |
| P0096 | Intake Air Temperature Sensor 2 Performance |
| P0097 | Intake Air Temperature Sensor 2 Circuit Low |
| P0098 | Intake Air Temperature Sensor 2 Circuit High |
| P0099 | Intake Air Temperature Sensor 2 Circuit Intermittent |
Think of them this way:
P0095
The circuit has an electrical problem.
P0096
The sensor is working electrically but providing inaccurate or implausible data.
P0097
Voltage is lower than expected.
P0098
Voltage is higher than expected.
P0099
The signal is intermittent.
Symptoms of P0096
Symptoms vary depending on how inaccurate the sensor readings are.
Common symptoms include:
- Check Engine Light
- Reduced fuel economy
- Hard cold starts
- Rough idle
- Hesitation during acceleration
- Poor throttle response
- Reduced turbocharger performance
- Rich air/fuel mixture
- Lean air/fuel mixture
- Increased exhaust emissions
- Reduced engine power
- Transmission shift irregularities
- Failed emissions inspection
Some vehicles may exhibit only a Check Engine Light with no noticeable drivability concerns.
Can P0096 Cause Poor Fuel Economy?
Yes.
If the PCM believes intake air is colder than it actually is, it may command additional fuel.
This can result in:
- Rich operation
- Increased fuel consumption
- Carbon buildup
- Reduced fuel economy
Can P0096 Cause Turbocharger Performance Problems?
Yes.
Turbocharged engines use Intake Air Temperature Sensor 2 to evaluate intercooler efficiency.
Incorrect readings may cause the PCM to:
- Reduce boost pressure
- Limit engine torque
- Enter reduced-power mode
- Modify throttle response
Can P0096 Cause Hard Starting?
Yes.
Incorrect intake temperature information affects cold-start fuel calculations.
Symptoms may include:
- Extended cranking
- Rough startup
- Cold idle problems
- Occasional stalling
Can P0096 Cause Rough Idle?
Absolutely.
Incorrect air temperature calculations alter fuel delivery and ignition timing, leading to:
- Rough idle
- RPM fluctuations
- Engine vibration
- Occasional hesitation
Is P0096 Serious?
P0096 is generally considered a moderate-severity diagnostic trouble code.
While most vehicles remain drivable, delaying repairs can contribute to:
- Reduced engine performance
- Lower fuel economy
- Increased emissions
- Carbon buildup
- Additional diagnostic trouble codes
- Reduced turbocharger efficiency
Repairing the problem promptly helps restore proper engine operation.
Can You Drive with P0096?
Usually, yes.
If the vehicle:
- Starts normally
- Runs smoothly
- Does not enter reduced-power mode
- Has no severe hesitation
Short-term driving is generally safe while repairs are scheduled.
However, if performance deteriorates significantly, diagnosis should not be postponed.
25 Common Causes of P0096
The most common causes include:
- Faulty Intake Air Temperature Sensor 2
- Sensor contamination
- Slow sensor response
- Dirty sensor element
- Intake air leaks
- Charge pipe leaks
- Intercooler leaks
- Damaged wiring
- Connector corrosion
- Poor electrical connections
- High circuit resistance
- Faulty Mass Air Flow sensor
- Faulty MAP sensor
- Faulty Ambient Air Temperature sensor
- Faulty Engine Coolant Temperature sensor
- Aftermarket intake installation issues
- Turbocharger modifications affecting airflow
- Excessive engine heat soak
- Damaged intercooler
- Restricted air filter
- PCM software requiring an update
- Previous improper repairs
- Vacuum leaks
- Internal PCM failure (rare)
- Multiple sensor correlation faults
One of the most common causes of P0096 is sensor contamination or airflow changes caused by aftermarket intake systems, which can alter airflow characteristics enough to confuse the PCM without causing a complete electrical failure.
Unlike P0095, which indicates an electrical circuit fault, P0096 is a rationality or performance code. The sensor usually communicates with the PCM, but its readings don’t agree with actual operating conditions or the information from other engine sensors.
How to Diagnose the P0096 Code
Step 1: Verify the Code
Connect a professional OBD-II scan tool and record:
- Stored DTCs
- Pending DTCs
- Freeze-frame data
- Intake Air Temperature Sensor 1
- Intake Air Temperature Sensor 2
- Ambient Air Temperature
- Engine Coolant Temperature
- Mass Air Flow data
- Manifold Absolute Pressure data
Freeze-frame information often reveals exactly when the sensor began reporting implausible temperatures.
Step 2: Check for Additional Trouble Codes
P0096 frequently appears alongside:
- P0095 Intake Air Temperature Sensor 2 Circuit
- P0097 Intake Air Temperature Sensor 2 Circuit Low
- P0098 Intake Air Temperature Sensor 2 Circuit High
- P0099 Intake Air Temperature Sensor 2 Circuit Intermittent
- P0101 Mass Air Flow Performance
- P0106 MAP Sensor Performance
- P0111 Intake Air Temperature Sensor Performance
- P0112 Intake Air Temperature Circuit Low
- P0113 Intake Air Temperature Circuit High
- P0114 Intake Air Temperature Circuit Intermittent
Multiple sensor correlation codes often point toward airflow or sensor plausibility issues.
Step 3: Perform a Visual Inspection
Inspect the intake system carefully.
Look for:
- Damaged wiring
- Loose connectors
- Oil contamination
- Corrosion
- Broken sensor mounts
- Air leaks
- Loose charge pipes
- Damaged intercooler hoses
Many P0096 repairs begin with a simple visual inspection.
Step 4: Verify Sensor Location
Depending on the engine, Intake Air Temperature Sensor 2 may be located:
- After the intercooler
- Inside the intake manifold
- Integrated into the MAP sensor
- In the turbocharger charge pipe
Always verify the correct sensor before replacement.
Step 5: Compare Cold Engine Readings
Allow the engine to sit overnight.
Before starting:
Compare:
- Intake Air Temperature Sensor 1
- Intake Air Temperature Sensor 2
- Ambient Air Temperature
All three values should be within a few degrees of each other.
Large differences usually indicate a faulty sensor.
Step 6: Compare Live Data While Warming Up
Start the engine.
Monitor:
- Sensor 1
- Sensor 2
- Engine Coolant Temperature
Sensor 2 should respond gradually as intake temperatures change.
Erratic readings suggest a failing sensor.
Step 7: Inspect the Sensor
Remove Intake Air Temperature Sensor 2.
Inspect for:
- Dirt
- Carbon buildup
- Oil contamination
- Damaged sensing element
- Physical cracks
Contamination frequently causes inaccurate readings.
Step 8: Inspect the Wiring Harness
Carefully inspect the wiring.
Look for:
- Heat damage
- Chafing
- Broken insulation
- Pinched wires
- Rodent damage
Turbocharged engines commonly develop wiring damage near the charge piping.
Step 9: Inspect the Connector
Disconnect the connector.
Check for:
- Bent terminals
- Green corrosion
- Moisture
- Loose pins
- Broken locking tabs
Poor terminal contact can distort temperature readings.
Step 10: Verify the 5-Volt Reference
Using a digital multimeter:
Confirm the PCM is supplying the proper reference voltage.
Compare readings with factory specifications.
Step 11: Verify Ground Integrity
Poor grounding often creates inaccurate sensor values.
Inspect:
- Engine grounds
- Chassis grounds
- PCM grounds
Perform voltage-drop testing whenever possible.
Step 12: Test Sensor Resistance
Disconnect the sensor.
Measure resistance across the terminals.
Compare readings against the manufacturer’s temperature/resistance chart.
A sensor outside specification should be replaced.
Step 13: Heat-Test the Sensor
Carefully warm the sensor using warm air.
Resistance should decrease smoothly.
Sudden jumps or dead spots indicate internal sensor failure.
Step 14: Cool the Sensor
Use a safe cooling method.
Resistance should increase gradually.
A sluggish response often causes P0096.
Step 15: Inspect for Intake Air Leaks
Inspect:
- Intake tubing
- Charge pipes
- Vacuum hoses
- Intercooler couplers
- Clamps
Unmetered air can affect temperature correlation.
Step 16: Inspect the Intercooler
On turbocharged vehicles:
Look for:
- Cracks
- Loose clamps
- Internal restrictions
- Air leaks
Poor intercooler performance can create abnormal intake temperatures.
Step 17: Evaluate the Mass Air Flow Sensor
A contaminated MAF sensor may alter PCM calculations.
Inspect for:
- Dirt
- Oil contamination
- Improper cleaning
- Incorrect aftermarket sensors
Step 18: Compare MAP Sensor Data
Verify MAP readings match engine load.
Incorrect MAP information may cause the PCM to misinterpret intake temperature.
Step 19: Review Technical Service Bulletins (TSBs)
Some manufacturers have issued TSBs involving:
- Updated sensor calibrations
- PCM software revisions
- Wiring harness improvements
- Sensor relocation
Always check for manufacturer updates before replacing expensive components.
Step 20: Monitor Intake Temperature Under Load
Perform a road test while monitoring live data.
Observe Sensor 2 during:
- Idle
- Moderate acceleration
- Highway cruising
- Boost (turbocharged engines)
Temperature should change logically as airflow and engine load increase.
Step 21: Inspect Aftermarket Modifications
Check for:
- Cold air intake kits
- High-flow filters
- Turbocharger upgrades
- Larger intercoolers
- Custom tuning
Improper modifications can affect sensor plausibility.
Step 22: Compare Sensor 1 and Sensor 2
Sensor readings should remain reasonably consistent.
Minor differences are normal.
Large unexplained differences indicate a performance issue.
Step 23: Clear the Code
After completing repairs:
- Clear stored codes
- Restart the engine
- Monitor live temperature data
Confirm that the readings remain realistic.
Step 24: Complete a Road Test
Drive under multiple operating conditions:
- Idle
- City traffic
- Highway speeds
- Moderate boost
- Heavy acceleration
Verify normal intake temperature behavior.
Step 25: Confirm the Repair
Before returning the vehicle:
Verify:
- No stored codes
- No pending codes
- Stable Intake Air Temperature Sensor 2 readings
- Proper fuel trims
- Normal boost operation
- No Check Engine Light
Common Repairs for P0096
Depending on the diagnosis, repairs may include:
- Replacing Intake Air Temperature Sensor 2
- Cleaning a contaminated sensor
- Repairing damaged wiring
- Replacing corroded connectors
- Repairing intake air leaks
- Repairing charge pipe leaks
- Replacing damaged intercooler hoses
- Cleaning or replacing the Mass Air Flow sensor
- Updating PCM software
- Replacing the PCM (rare)
Estimated Repair Costs
| Repair | Typical Cost |
|---|---|
| Sensor cleaning | $0–$75 |
| Wiring repair | $100–$350 |
| Connector replacement | $75–$250 |
| Intake Air Temperature Sensor | $50–$250 |
| Sensor replacement with labor | $125–$400 |
| Intake hose replacement | $100–$300 |
| Intercooler hose replacement | $150–$500 |
| MAF sensor replacement | $150–$450 |
| PCM software update | $100–$250 |
| PCM replacement | $900–$2,500+ |
Repair costs vary by manufacturer, labor rates, and engine configuration.
Common Diagnostic Mistakes
Avoid these common mistakes:
- Replacing the sensor without comparing it to Sensor 1
- Ignoring contaminated sensor elements
- Overlooking intake or charge pipe leaks
- Failing to inspect aftermarket intake modifications
- Replacing the PCM before testing the sensor
- Ignoring MAF sensor contamination
- Skipping live-data comparisons
- Forgetting to compare readings on a cold engine
- Ignoring Technical Service Bulletins
- Assuming the sensor is faulty when the intercooler is inefficient
P0096 often requires evaluating the entire intake system, not just the sensor itself.
Manufacturer-Specific Notes
Ford
EcoBoost engines frequently experience intake temperature plausibility issues caused by charge pipe leaks or contaminated sensors. Inspect the complete boost system.
General Motors
Many GM turbocharged engines integrate the MAP and IAT sensors into one assembly. Verify which component has failed before replacing parts.
Toyota & Lexus
Check intake ducting and connector integrity before replacing the sensor. Wiring issues are more common than PCM failures.
Honda & Acura
Turbocharged engines should be inspected for intercooler leaks, heat-soaked sensors, and aftermarket intake modifications.
Nissan & Infiniti
Inspect the intake piping for leaks and ensure the sensor is securely mounted. Loose fittings can affect airflow and temperature readings.
BMW & MINI
Charge Air Temperature sensors are commonly affected by oil contamination from the intake system. Cleanliness and proper live-data analysis are essential.
Volkswagen & Audi
Inspect both the charge pipe and integrated MAP/IAT sensor assembly. Software updates may also address false plausibility faults.
Mercedes-Benz
Monitor sensor readings during boost events. Slow sensor response can trigger P0096 even if the sensor remains electrically functional.
Hyundai & Kia
Inspect the sensor connector for corrosion and verify intake duct seals before replacing the sensor.
Diesel Engines
On turbocharged diesel engines, compare Intake Air Temperature Sensor 2 against boost pressure and intercooler performance. Reduced cooling efficiency can produce implausible temperature readings.
Frequently Asked Questions
What does P0096 mean?
P0096 indicates that the PCM has determined Intake Air Temperature Sensor 2 is reporting values that fall outside the expected performance range, even though the electrical circuit may still be functioning.
Is P0096 serious?
It is generally considered a moderate-severity code. The vehicle is often still drivable, but delayed repairs can reduce performance, fuel economy, and emissions efficiency.
Can I drive with a P0096 code?
Yes, in most cases. However, if the vehicle enters reduced-power mode or develops significant drivability issues, repairs should be made as soon as possible.
Does P0096 always mean the sensor is bad?
No. Intake leaks, contaminated sensors, faulty MAF or MAP sensors, wiring issues, and PCM calibration problems can also trigger P0096.
Can a dirty air filter cause P0096?
A severely restricted air filter may alter airflow enough to contribute to intake temperature plausibility problems, although it is not the most common cause.
Can an intercooler leak trigger P0096?
Yes. A leaking or inefficient intercooler can alter intake air temperatures enough to trigger this performance code on turbocharged engines.
How much does it cost to repair P0096?
Repair costs typically range from $75 for minor cleaning or connector repairs to more than $2,500 for rare PCM replacements.
Will clearing the code fix P0096?
No. Clearing the code without correcting the underlying performance issue will usually result in the code returning.
Can a scan tool identify the exact cause?
A scan tool provides valuable live-data information, but confirming the cause requires visual inspection, sensor testing, and comparison with related engine sensor data.
What is the difference between P0095 and P0096?
P0095 indicates an electrical circuit fault, while P0096 indicates the sensor is electrically functional but reporting implausible or inaccurate temperature data.
Preventative Maintenance
To reduce the likelihood of P0096:
- Replace engine air filters at the recommended intervals.
- Keep intake air temperature sensors clean and free of oil contamination.
- Inspect intercooler hoses and charge pipes regularly.
- Secure wiring away from heat sources.
- Repair intake air leaks immediately.
- Avoid over-oiling reusable air filters.
- Verify proper installation of aftermarket intake components.
- Address Check Engine Light warnings promptly to prevent additional drivability issues.
Routine inspections of the intake and turbocharger system can help prevent temperature correlation faults and improve long-term engine performance.
Final Thoughts
The P0096 Intake Air Temperature Sensor 2 Performance code indicates that the ECM or PCM has detected intake temperature readings that don’t match expected engine operating conditions. While the sensor may still be functioning electrically, inaccurate temperature data can affect fuel delivery, ignition timing, turbocharger operation, emissions, and overall drivability.
A careful diagnosis that compares Sensor 2 to related engine sensors, inspects the intake system for leaks, verifies wiring integrity, and evaluates live scan data will usually identify the root cause without unnecessary parts replacement.
