P0094 Code Explained: Fuel System Small Leak Detected Causes, Symptoms & Fixes

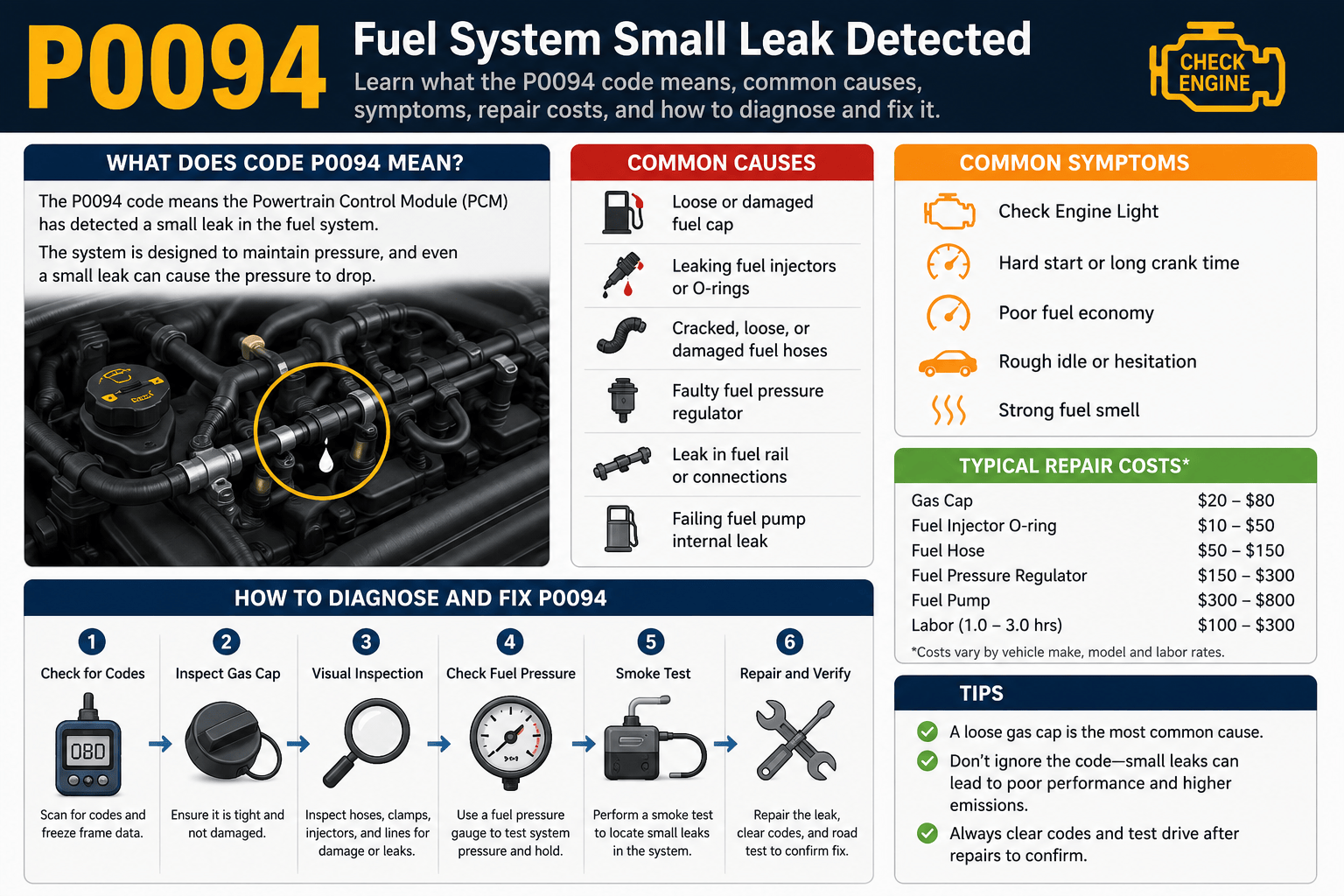

P0094 Fuel System Small Leak Detected illustration showing a high-pressure fuel rail, injector seepage, fuel line, and Check Engine warning light

If your OBD-II scanner displays P0094, your vehicle’s Engine Control Module (ECM) or Powertrain Control Module (PCM) has detected a small but measurable fuel leak or a gradual loss of fuel pressure somewhere within the fuel delivery system.

The generic OBD-II definition for P0094 is:

Fuel System Small Leak Detected

Although P0094 sounds similar to P0093 Fuel System Large Leak Detected, the two codes represent different severity levels. While P0093 indicates a rapid or major loss of fuel pressure that may force the engine into limp mode or even shut it down, P0094 identifies a slower pressure loss that develops over time.

The leak may be external, allowing fuel to escape from the system, or internal, where pressure is lost through worn injectors, a faulty pressure regulator, or a high-pressure fuel pump. In many cases, drivers won’t notice obvious drivability issues at first, making P0094 easy to ignore until the leak worsens.

Even though the leak is classified as “small,” it should never be overlooked. A minor leak today can become a dangerous fuel leak tomorrow, potentially creating fire hazards, damaging expensive fuel system components, and reducing engine performance.

Alternate Manufacturer Definitions

Depending on the vehicle manufacturer or scan tool, P0094 may also appear as:

Although the wording varies, each definition indicates the PCM has detected an unexpected but relatively slow loss of fuel pressure.

P0094 Quick Facts

ItemInformation
DTCP0094
DescriptionFuel System Small Leak Detected
CategoryPowertrain
SystemFuel Delivery
SeverityModerate to High
Safe to Drive?Limited — Repair Soon
Common CausesMinor fuel leaks, injector seepage, regulator leaks, fuel line damage
Estimated Repair Cost$100–$3,000+

What Does the P0094 Code Mean?

Modern electronically controlled fuel systems constantly monitor fuel pressure using sensors located on the fuel rail.

The PCM compares two important values:

During normal operation, fuel pressure fluctuates only slightly as engine load changes.

If the PCM detects that fuel pressure slowly decreases faster than expected—even though the fuel pump and regulator are operating correctly—it determines that fuel is escaping somewhere within the system.

Unlike P0093, which represents a rapid pressure loss, P0094 indicates a slower pressure decay that still exceeds the manufacturer’s allowable limits.

The PCM then stores the code and illuminates the Check Engine Light.

How Modern Fuel Systems Detect Small Leaks

Today’s engines rely on extremely accurate fuel pressure measurements.

The PCM continuously monitors:

If rail pressure gradually drops while the PCM commands normal system operation, it concludes a small leak exists somewhere within the fuel delivery system.

The computer does not actually detect liquid fuel.

Instead, it recognizes pressure behavior that indicates fuel is escaping internally or externally.

Why Precise Fuel Pressure Matters

Modern gasoline direct injection (GDI) and common-rail diesel systems operate at extremely high pressures.

Typical operating pressures include:

Port Fuel Injection

40–70 PSI

Gasoline Direct Injection (GDI)

500–3,000 PSI

Common Rail Diesel

10,000–35,000+ PSI

At these pressures, even a tiny leak can significantly affect:

This is why manufacturers monitor pressure so aggressively.

Components Involved in P0094

The entire fuel delivery system may contribute to this code.

Major components include:

Failure of any of these components may allow a gradual pressure loss.

Difference Between P0093 and P0094

Many vehicle owners confuse these two codes.

CodeDescription
P0093Fuel System Large Leak Detected
P0094Fuel System Small Leak Detected

Think of them this way:

P0093

A major pressure loss that usually causes immediate drivability problems and may force the PCM into Fail-Safe Mode.

P0094

A slower pressure loss that often develops gradually and may initially cause only minor symptoms.

Although P0094 is generally less severe, it can eventually develop into P0093 if repairs are delayed.

Difference Between P0087 and P0094

These codes are also commonly confused.

P0087

Fuel Rail/System Pressure Too Low

This code simply indicates fuel pressure is below specification.

P0094

Fuel System Small Leak Detected

This code indicates the PCM believes the pressure loss is caused by a leak rather than simply low fuel pressure.

Symptoms of P0094

Some vehicles experience very few symptoms initially.

As the leak worsens, common symptoms include:

Many drivers report only a Check Engine Light for weeks before additional symptoms appear.

Can P0094 Cause Hard Starting?

Yes.

If fuel pressure slowly bleeds off after the engine is shut down, the fuel pump must rebuild pressure during the next startup.

This commonly results in:

Can P0094 Cause Rough Idle?

Absolutely.

Slight fluctuations in fuel pressure can produce inconsistent injector performance.

Symptoms include:

Can P0094 Cause Misfires?

Yes.

As pressure decreases:

Misfire codes may accompany P0094, including:

Can P0094 Cause Poor Fuel Economy?

Yes.

Fuel leaks—whether internal or external—reduce fuel efficiency.

Additionally, the PCM may compensate by increasing injector pulse width, further increasing fuel consumption.

Is P0094 Serious?

Yes.

Although less severe than P0093, P0094 should still be repaired promptly.

Ignoring the code can eventually result in:

A small leak almost never repairs itself.

Can You Drive with P0094?

It depends on the severity of the leak.

If the vehicle:

It may be safe for short distances while awaiting repairs.

However, if you notice:

Stop driving immediately and have the vehicle inspected.

Fuel leaks are always potential fire hazards.

25 Common Causes of P0094

The most common causes include:

  1. Minor fuel line leak
  2. Small injector leak
  3. Injector O-ring seepage
  4. Worn injector seals
  5. Fuel rail fitting leak
  6. Fuel filter housing leak
  7. Loose fuel connection
  8. High-pressure pump seepage
  9. Fuel pressure regulator leak
  10. Pressure relief valve leaking
  11. Cracked fuel hose
  12. Aging rubber fuel lines
  13. Fuel tank module leak
  14. Fuel sender seal leak
  15. Fuel rail pressure sensor seal leak
  16. Excessive injector return flow (diesel)
  17. Fuel contamination
  18. Water in fuel
  19. Air entering the fuel system
  20. Damaged quick-connect fittings
  21. Internal high-pressure pump wear
  22. Fuel pump check valve failure
  23. Previous improper repairs
  24. PCM calibration issue (rare)
  25. Multiple minor leaks throughout the fuel system

Many P0094 diagnoses ultimately trace back to worn injector seals, aging fuel lines, or small leaks around high-pressure fittings—issues that may not leave obvious puddles but still allow enough pressure loss to trigger the code.

Related Pro Street Diagnostic Guides

While diagnosing P0094, you may also find these articles helpful:

Although P0094 is generally less severe than P0093 Fuel System Large Leak Detected, it should never be ignored. A minor leak can quickly worsen into a major leak, increasing the risk of poor engine performance, costly repairs, and even fire hazards.

How to Diagnose the P0094 Code

Step 1: Verify the Code

Connect a professional OBD-II scan tool and record:

Freeze-frame information often shows whether the leak occurred during startup, idle, acceleration, or highway driving.

Step 2: Check for Additional Trouble Codes

P0094 commonly appears with:

These related codes often provide valuable clues about the root cause.

Step 3: Perform a Thorough Visual Inspection

Begin with a complete inspection of the fuel system.

Check for:

Small leaks may leave only a slight discoloration or odor rather than obvious dripping fuel.

Step 4: Check for Fuel Odors

Walk around the vehicle with the engine running.

Inspect:

A faint gasoline or diesel odor often indicates the location of a minor leak.

Step 5: Inspect Fuel Injectors

Carefully inspect every injector.

Look for:

Even slight injector seepage can trigger P0094 over time.

Step 6: Inspect Fuel Lines

Check both low-pressure and high-pressure lines.

Inspect for:

Pay close attention to areas where lines pass near engine brackets or exhaust components.

Step 7: Inspect the Fuel Rail

Examine the fuel rail for:

High-pressure rails should remain completely dry.

Step 8: Monitor Live Fuel Pressure

Using a professional scan tool:

Compare:

Desired Fuel Pressure

vs.

Actual Fuel Pressure

A gradual pressure decay usually confirms the PCM’s diagnosis.

Step 9: Perform a Leak-Down Test

After shutting off the engine:

Monitor fuel pressure.

If pressure slowly drops beyond factory specifications:

A leak is likely present.

Leak-down testing is one of the most valuable procedures for diagnosing P0094.

Step 10: Inspect the High-Pressure Fuel Pump

Inspect:

Look for:

Step 11: Test Fuel Pressure Regulator Operation

Monitor regulator performance using a scan tool.

Verify:

A regulator leaking internally may slowly bleed pressure after engine shutdown.

Step 12: Inspect the Fuel Rail Pressure Sensor

Verify sensor readings.

Compare scan tool values against manufacturer specifications.

Replace the sensor only after confirming actual fuel pressure.

Step 13: Inspect Fuel Filter Housing

Look for:

Filter housing leaks often worsen with age.

Step 14: Inspect Fuel Tank Components

Check:

Small leaks around the tank frequently go unnoticed.

Step 15: Inspect Quick-Connect Fittings

Disconnect and inspect each connector.

Look for:

Replace damaged fittings immediately.

Step 16: Check for Air in the Fuel System

Diesel engines are especially sensitive to air intrusion.

Inspect:

Air entering the fuel system often mimics a small leak.

Step 17: Inspect Injector Return Flow (Diesel)

Excessive injector return flow can slowly reduce rail pressure.

Perform a manufacturer-approved injector return flow test.

Step 18: Check Fuel Quality

Inspect fuel for:

Poor fuel quality accelerates wear of injectors and pumps.

Step 19: Review Technical Service Bulletins (TSBs)

Manufacturers occasionally release TSBs covering:

Always review available bulletins before replacing expensive components.

Step 20: Inspect Electrical Connections

Although P0094 usually indicates a mechanical issue, inspect:

Poor electrical connections may produce inaccurate pressure readings.

Step 21: Test the Fuel Pump

Measure:

A weak pump may contribute to gradual pressure loss.

Step 22: Verify Pressure Relief Valve Operation

Inspect the relief valve for:

A leaking relief valve can slowly bleed fuel pressure.

Step 23: Clear the Codes

After repairs:

Observe for proper pressure recovery.

Step 24: Complete a Road Test

Drive under varying conditions:

Verify stable fuel pressure throughout the drive cycle.

Step 25: Confirm the Repair

Before returning the vehicle:

Verify:

Only consider the repair complete after all readiness monitors have successfully completed.

Common Repairs for P0094

Repairs depend on where the pressure loss originates.

Common repairs include:

Estimated Repair Costs

RepairTypical Cost
Fuel hose replacement$100–$300
Fuel line replacement$150–$600
Injector seal replacement$150–$450
Fuel injector replacement$250–$900 each
Fuel pressure regulator replacement$250–$700
Fuel rail pressure sensor$150–$500
Fuel filter housing$150–$450
High-pressure fuel pump$800–$3,500
Pressure relief valve$200–$600
PCM software update$100–$250

Actual repair costs vary depending on labor rates, vehicle design, and whether OEM or aftermarket components are used.

Common Diagnostic Mistakes

Avoid these common mistakes:

Most P0094 diagnoses require patience, as the leak is often small and intermittent.

Manufacturer-Specific Notes

Ford

EcoBoost engines commonly develop injector seal leaks and high-pressure pump wear. Inspect both components before replacing the fuel rail.

General Motors

Direct-injection GM engines may experience slow leaks from injector seals or high-pressure pump fittings. Check for updated service bulletins.

Toyota & Lexus

Inspect the fuel rail pressure sensor and injector O-rings before replacing the high-pressure pump.

Honda & Acura

Turbocharged direct-injection engines should be inspected for injector seal leaks and high-pressure pump seepage.

Nissan & Infiniti

Monitor fuel rail pressure while performing a leak-down test. Minor injector leakage is more common than pump failure.

BMW & MINI

Injector seepage and high-pressure pump wear are leading causes of P0094. Factory diagnostic software is recommended for accurate pressure analysis.

Volkswagen & Audi

Inspect the high-pressure fuel pump and injector seals carefully. Some models have manufacturer bulletins addressing fuel system leaks.

Mercedes-Benz

Common-rail diesel engines should undergo injector return flow testing before replacing high-pressure fuel system components.

Hyundai & Kia

Inspect the fuel pressure regulator, injector seals, and high-pressure pump for gradual fuel pressure loss.

Diesel Trucks

On Cummins, Duramax, and Power Stroke engines, excessive injector return flow, worn pressure relief valves, and aging high-pressure pumps are common causes of P0094. Always follow OEM safety procedures when servicing high-pressure diesel fuel systems.

Frequently Asked Questions

What does P0094 mean?

P0094 indicates the PCM has detected a gradual fuel pressure loss that suggests a small leak somewhere within the fuel system.

Is P0094 serious?

Yes. While generally less severe than P0093, it should be repaired promptly to prevent worsening leaks, poor performance, and potential safety hazards.

Can I drive with P0094?

If there are no visible fuel leaks, strong fuel odors, or major drivability issues, short trips may be possible. However, repairs should not be delayed.

Does P0094 always mean fuel is leaking externally?

No. Many P0094 faults result from internal leaks, such as injector seepage, regulator leakage, or pressure relief valve problems.

Can a bad injector cause P0094?

Yes. A leaking injector or worn injector seal is one of the most common causes of this code.

Can contaminated fuel trigger P0094?

Yes. Water, dirt, or poor-quality fuel can damage injectors, pumps, and regulators, leading to gradual fuel pressure loss.

How much does it cost to repair P0094?

Repair costs range from approximately $100 for a leaking hose to more than $3,500 for a high-pressure fuel pump replacement.

Will clearing the code fix P0094?

No. Clearing the code without repairing the leak will usually result in the code returning after the PCM detects another pressure loss.

Can a scan tool identify the exact leak?

No. A scan tool confirms the fault, but pressure testing, visual inspection, and leak-down testing are required to locate the source.

What is the difference between P0093 and P0094?

P0093 indicates a large or rapid fuel pressure loss, while P0094 identifies a smaller, gradual pressure loss that still exceeds the manufacturer’s allowable limits.

Preventative Maintenance

To reduce the likelihood of P0094:

Routine maintenance can significantly extend the life of your fuel system while reducing the likelihood of costly repairs.

Final Thoughts

The P0094 Fuel System Small Leak Detected code indicates that the ECM or PCM has detected a gradual loss of fuel pressure somewhere within the fuel delivery system. While the leak may initially seem insignificant, even a small pressure loss can affect engine performance, reduce fuel economy, increase emissions, and eventually develop into a more serious problem such as P0093 Fuel System Large Leak Detected.

A careful diagnostic approach—including visual inspections, fuel pressure testing, leak-down testing, injector evaluation, and verification of the high-pressure fuel system—will accurately identify the source of the leak while preventing unnecessary replacement of expensive fuel system components.

Related Pro Street Diagnostic Guides

Continue troubleshooting with these related articles on Pro Street:

Related P-Code Articles

Exit mobile version
