P0066 Code Explained: Air Assisted Injector Control Circuit Low Causes, Symptoms & Fixes

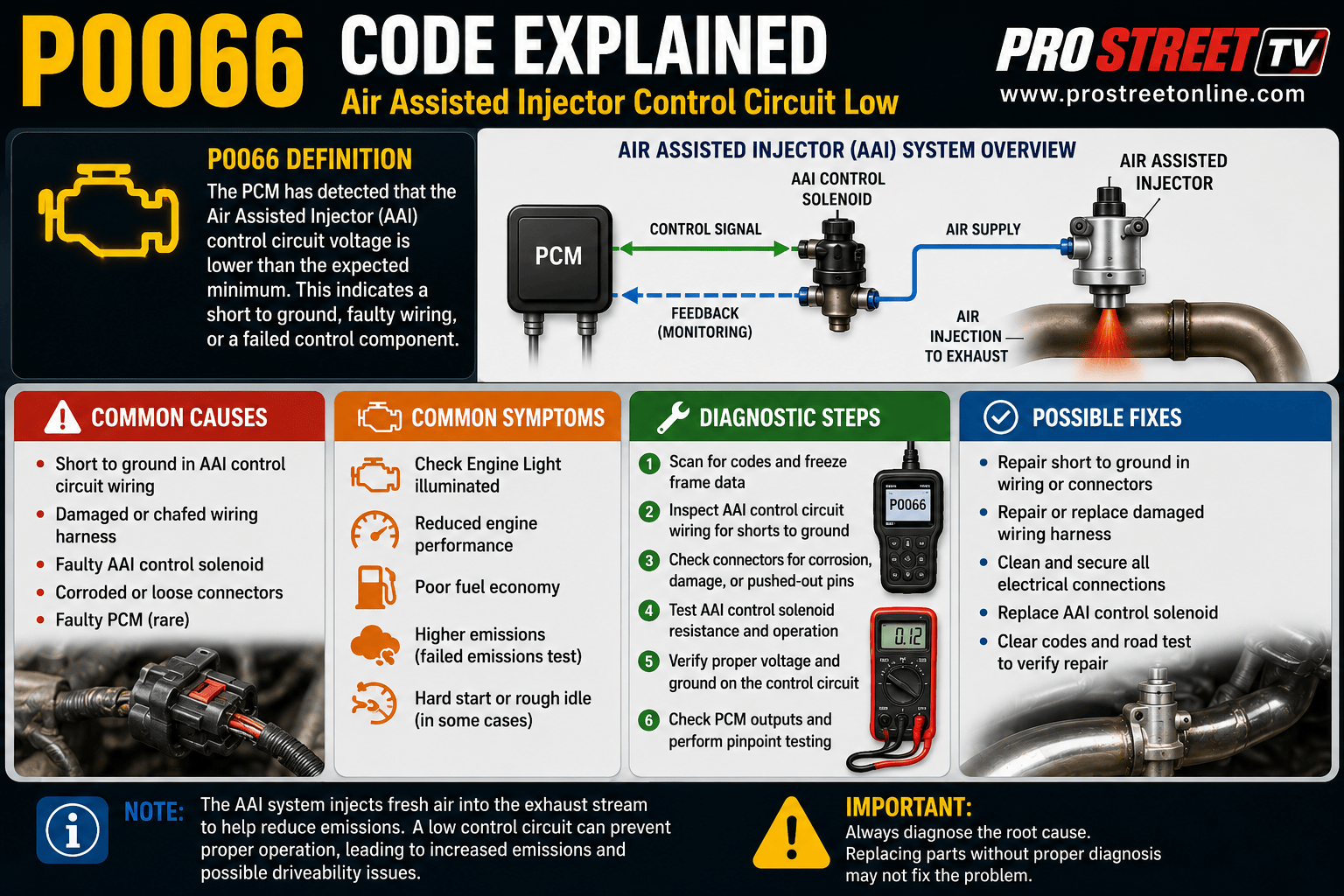

P0066 code displayed on an OBD-II scanner with an air-assisted injector control solenoid and low-voltage circuit short highlighted near the intake manifold.

If your OBD-II scanner displays P0066, your vehicle’s Engine Control Module (ECM) or Powertrain Control Module (PCM) has detected a low-voltage condition or another electrical fault in the air-assisted injector control circuit.

The generic SAE description for P0066 is:

Air Assisted Injector Control Circuit or Circuit Low

Depending on the vehicle manufacturer and scan tool, the description may appear as:

An air-assisted injector system introduces controlled airflow near the fuel injectors or intake ports to improve fuel atomization. This is especially useful during cold starts, idle, engine warm-up, and other operating conditions where liquid fuel may not mix efficiently with the incoming air.

P0066 means the ECM has detected voltage below the calibrated range in the control circuit. Depending on the system design, this may be caused by excessive current draw, a wire shorted to ground, a shorted solenoid coil, damaged wiring, or a failed air-assist control valve.

Common causes include:

P0066 may cause rough cold starts, hesitation, unstable idle, increased emissions, poor fuel economy, or stalling. Some vehicles may show no noticeable symptoms beyond the Check Engine Light.

For additional diagnostic information, visit:

P0066 Quick Facts

ItemInformation
OBD-II CodeP0066
DescriptionAir Assisted Injector Control Circuit or Circuit Low
CategoryPowertrain
SystemFuel and Air Metering
Main ComponentAir-Assisted Injector Control Valve or Solenoid
Fault TypeLow Voltage or Excessive Current
SeverityModerate
Safe to Drive?Usually, with caution
Typical Repair Cost$75–900

What Does P0066 Mean?

P0066 means the ECM has measured lower-than-expected voltage in the electrical circuit controlling the air-assisted injector system.

On many systems, the ECM controls an air-assist solenoid or valve by switching the circuit to ground. The ECM expects circuit voltage and current to remain within a calibrated range whenever the valve is commanded on or off.

A circuit-low condition may occur when:

P0066 is primarily an electrical circuit code. However, mechanical problems in the valve or solenoid can sometimes increase current draw enough to trigger it.

What Is an Air-Assisted Injector System?

An air-assisted injector system directs additional airflow around the fuel injector nozzle or into the intake port.

This extra airflow helps break liquid fuel into smaller droplets before it enters the combustion chamber.

Improved fuel atomization can provide:

Depending on the vehicle, the system may use:

This system should not be confused with secondary air injection, which usually pumps air into the exhaust system. Air-assisted injectors introduce air near the fuel injectors or intake ports instead.

Why Is Air Added Near the Fuel Injectors?

Fuel burns most effectively when it is finely atomized and evenly mixed with air.

During a cold start, fuel may:

The air-assisted injector system improves the spray pattern and helps the fuel remain suspended in the incoming air.

Once the engine warms up, fuel atomization improves naturally and the ECM may reduce or discontinue air-assist operation.

How the Air-Assisted Injector Circuit Works

A typical air-assisted injector control circuit may include:

On many vehicles, one side of the solenoid receives battery voltage when the ignition is on.

The ECM controls the other side by switching the ground circuit through an internal transistorized driver.

The ECM may monitor:

If circuit voltage drops below the expected level, the ECM may store P0066.

What Does “Circuit Low” Mean?

“Circuit low” normally means the ECM is seeing less voltage than expected in the monitored control circuit.

This does not necessarily mean the battery itself is low.

Possible circuit-low conditions include:

For example, if the control wire rubs through and contacts the engine or body, circuit voltage may remain near ground potential even when the ECM is not commanding the valve.

P0065 vs P0066 vs P0067

CodeDescription
P0065Air Assisted Injector Control Range/Performance
P0066Air Assisted Injector Control Circuit or Circuit Low
P0067Air Assisted Injector Control Circuit High

Generally:

Manufacturer-specific diagnostic strategies may vary.

How the ECM Detects P0066

The ECM can test the air-assist circuit during:

The ECM compares commanded valve operation with actual circuit behavior.

P0066 may be stored when:

Depending on the vehicle, the Check Engine Light may illuminate after one failure or after the problem occurs during multiple drive cycles.

Symptoms of P0066

Possible symptoms include:

Symptoms are often most noticeable:

Some vehicles may run normally despite storing P0066.

Common Causes of P0066

1. Control Wire Shorted to Ground

A damaged control wire may contact:

This can keep circuit voltage low even when the ECM is not commanding the system.

2. Internally Shorted Air-Assist Solenoid

The solenoid coil may develop an internal short.

This lowers coil resistance and increases current draw.

Possible signs include:

3. Failed Air-Assisted Injector Control Valve

The valve may bind mechanically and force the solenoid to draw more current than expected.

The valve may:

4. Chafed or Melted Wiring

Inspect wiring near:

Engine vibration can gradually wear through the insulation.

5. Corroded Connector

Corrosion may create unintended electrical paths or reduce terminal contact quality.

Inspect for:

6. Water Intrusion

Water inside the connector can temporarily short the control circuit.

This may produce an intermittent code that appears after:

7. Incorrect Replacement Solenoid

A replacement solenoid with incorrect resistance can draw more current than the ECM expects.

Universal components or incorrectly matched parts may cause P0066 even if they physically fit.

8. Incorrect Wiring Repair

Previous repairs may create:

A wire repair should restore both electrical integrity and environmental sealing.

9. Low System Voltage

Low battery or charging voltage may contribute to abnormal circuit readings.

Inspect:

Low system voltage usually causes additional trouble codes as well.

10. Failed Fuse or Relay Circuit

Although a blown fuse is more commonly associated with a loss of power or high-circuit code, a partially damaged relay or overheated connection can create abnormal voltage behavior.

If multiple systems share the same power feed, additional codes may be stored.

11. ECM Control Driver Stuck Grounded

The ECM switches the solenoid ground through an internal transistor.

If this driver fails in the grounded position, circuit voltage may remain low continuously.

ECM failure is uncommon and should only be considered after the wiring, connector, valve, solenoid, power supply, and grounds have been tested.

Is P0066 Serious?

P0066 is generally considered a moderate-severity code.

The vehicle may continue operating, but the fault can affect:

A shorted solenoid or control wire may also:

A visible short circuit, burned connector, or repeatedly blown fuse should be repaired promptly.

Can You Drive With P0066?

You can usually drive with P0066 for a limited period if the engine runs normally.

However, avoid continued driving if the vehicle:

An unresolved rich-running condition may damage the catalytic converter over time.

A low-voltage control circuit may also become a larger electrical problem if damaged wiring continues rubbing against the engine.

How to Diagnose P0066

Step 1: Scan for Additional Codes

Check for related codes involving:

Record freeze-frame data before clearing the codes.

Important freeze-frame values include:

Step 2: Confirm the Vehicle Uses Air-Assisted Injectors

P0066 is uncommon.

Before replacing anything, verify that the vehicle uses:

Consult manufacturer service information or a reliable wiring diagram.

Do not confuse this system with secondary air injection or a conventional fuel injector circuit.

Step 3: Locate the Air-Assist Valve or Solenoid

The component may be mounted near:

Trace the related hoses and wiring before disconnecting anything.

Photographing the hose routing first is preferable to discovering afterward that every hose suddenly looks equally plausible.

Step 4: Inspect the Wiring Harness

Look for:

Pay close attention to areas where the harness bends or touches the engine.

Step 5: Inspect the Connector

Disconnect the solenoid connector and inspect both halves.

Look for:

Repair connector damage before condemning the valve.

Step 6: Check Battery and Charging Voltage

Measure battery voltage:

Low voltage during startup may affect system operation.

Also inspect:

Step 7: Check the Fuse and Relay

Locate the fuse and relay supplying the air-assist circuit.

Verify:

If the fuse is blown, do not repeatedly replace it without testing for excessive current or a short to ground.

Step 8: Measure Solenoid Resistance

Disconnect the air-assist solenoid.

Measure resistance across the solenoid terminals.

Possible results include:

Always compare the reading with manufacturer specifications.

Step 9: Test the Control Wire for a Short to Ground

With the solenoid disconnected, test the ECM control wire for unintended continuity to ground.

If the wire remains grounded:

  1. Disconnect the ECM if the service procedure allows.
  2. Test the circuit again.
  3. Repair the harness if the short remains.
  4. Suspect the ECM driver only if the wiring tests correctly.

Do not probe module terminals carelessly. Incorrect testing can damage the ECM.

Step 10: Verify Power Supply

With the ignition on or the circuit commanded active, verify voltage at the solenoid power terminal.

If voltage is missing, inspect:

P0066 often points toward the control side, but the complete circuit should still be checked.

Step 11: Perform a Voltage-Drop Test

A voltage-drop test can identify:

A circuit may pass a basic continuity test and still fail while operating.

Step 12: Command the Solenoid With a Scan Tool

If bidirectional controls are available, command the air-assist solenoid on and off.

Monitor:

If circuit voltage remains low when commanded off, suspect:

Step 13: Check Mechanical Valve Operation

The solenoid may click but still fail to move the valve correctly.

Inspect for:

A clicking solenoid proves that it can make a noise. It does not prove that it can regulate airflow.

Step 14: Inspect the Air and Vacuum Passages

Check for:

Although P0066 is an electrical code, airflow restrictions may contribute to abnormal solenoid operation or related performance codes.

Step 15: Replace the Failed Component

Replace or repair the component confirmed by testing.

Possible repairs include:

Use OEM or high-quality direct-fit components.

Step 16: Verify the Repair

After completing repairs:

  1. Clear all diagnostic trouble codes.
  2. Allow the engine to cool completely.
  3. Perform a cold start.
  4. Monitor circuit voltage and solenoid current.
  5. Confirm stable idle operation.
  6. Check short- and long-term fuel trims.
  7. Complete the required drive cycle.
  8. Verify P0066 does not return.

Because the air-assist system often operates during cold starts, final verification may require the engine to remain off long enough to cool.

Common Repairs and Costs

RepairEstimated Cost
Wiring repair$100–450
Connector replacement$75–275
Fuse replacement$10–50
Relay replacement$50–225
Vacuum or air hose replacement$50–200
Air-assist solenoid replacement$150–500
Air-control valve replacement$200–700
Intake passage cleaning$150–600
ECM circuit diagnosis$150–500
ECM replacement$1,000–2,500+

Costs vary depending on vehicle design, component accessibility, labor rates, and the extent of wiring damage.

Common Diagnostic Mistakes

Avoid these common mistakes:

The code contains the word “injector,” but that does not mean the correct first step is purchasing a full set of fuel injectors.

Vehicles Commonly Affected

P0066 is relatively uncommon because air-assisted injector systems are not used on most modern vehicles.

It may appear on certain:

Exact applications vary by:

Always verify that the vehicle uses an air-assisted injector system before ordering parts.

How to Prevent P0066

Reduce the likelihood of P0066 by:

Frequently Asked Questions

What does P0066 mean?

P0066 means the ECM has detected a malfunction or low-voltage condition in the air-assisted injector control circuit.

What is an air-assisted injector?

An air-assisted injector system introduces controlled air near the fuel injector or intake port to improve fuel atomization and cold-start combustion.

Is P0066 serious?

P0066 is moderately serious.

The vehicle may remain drivable, but a shorted circuit can damage wiring, blow a fuse, or overload the ECM driver.

Can I drive with P0066?

Usually, yes, if the engine runs normally.

Avoid driving if the engine stalls, runs extremely rich, misfires severely, or has burned wiring.

What commonly causes P0066?

Common causes include:

Will replacing the fuel injectors fix P0066?

Usually not.

P0066 generally refers to the air-assist valve or solenoid circuit rather than the conventional fuel injectors.

Can a shorted solenoid cause P0066?

Yes.

An internally shorted solenoid can draw excessive current and pull circuit voltage below the ECM’s expected range.

Can P0066 blow a fuse?

Yes.

A grounded control wire or shorted solenoid may draw enough current to blow a shared fuse.

Can low battery voltage cause P0066?

It can contribute to abnormal circuit behavior, although a wiring or solenoid fault is usually more likely.

What is the difference between P0065 and P0066?

P0065 indicates an air-assisted injector system range or performance problem.

P0066 indicates an electrical circuit malfunction or low-voltage condition.

What is the difference between P0066 and P0067?

P0066 normally indicates low circuit voltage or excessive current.

P0067 indicates high circuit voltage or insufficient current, often caused by an open circuit.

Can P0066 cause rough idle?

Yes.

Improper injector air assistance can produce rough or unstable idle, especially during cold starts.

Can P0066 cause an emissions failure?

Yes.

The Check Engine Light and incomplete readiness monitors may prevent the vehicle from passing an emissions inspection.

Final Thoughts

The P0066 code means the ECM has detected an electrical malfunction or low-voltage condition in the air-assisted injector control circuit.

The most common causes include a control wire shorted to ground, an internally shorted solenoid, a damaged connector, chafed wiring, or a failed air-assist valve.

Begin diagnosis by confirming that the vehicle actually uses an air-assisted injector system. Then inspect the wiring and connector, measure solenoid resistance, test for a short to ground, verify power, and command the circuit with a capable scan tool.

Do not automatically replace the fuel injectors simply because the code includes the word “injector.” P0066 generally concerns the airflow control system surrounding the injectors—not the injectors themselves. The parts cannon may be entertaining, but a multimeter is usually cheaper.

Related Articles

Browse the complete Pro Street diagnostic libraries:

Exit mobile version
