P0040 Code Explained: O2 Sensor Signals Swapped Bank 1 Sensor 1 / Bank 2 Sensor 1 Causes, Symptoms & Fixes

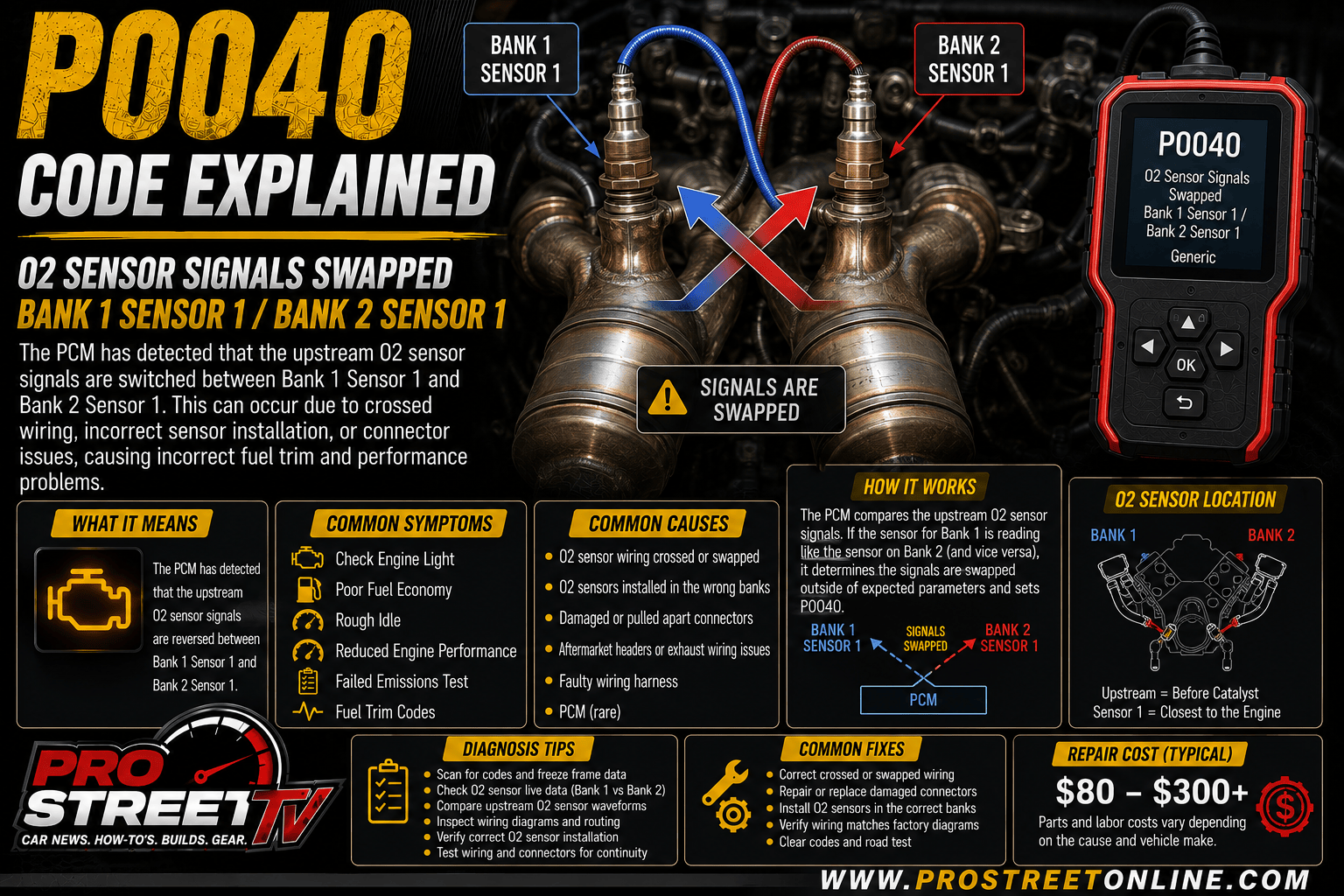

OBD-II scanner displaying P0040 beside a V6 engine showing crossed upstream oxygen sensor connectors on Bank 1 and Bank 2 exhaust manifolds.

If your OBD-II scanner displays P0040, your vehicle’s Engine Control Module (ECM) or Powertrain Control Module (PCM) has detected that the upstream oxygen sensor signals for Bank 1 and Bank 2 appear to be reversed or swapped.

The generic SAE definition for P0040 is:

O2 Sensor Signals Swapped Bank 1 Sensor 1 / Bank 2 Sensor 1

Unlike oxygen sensor heater circuit faults such as P0030-P0038, P0040 usually occurs after engine repairs, oxygen sensor replacement, exhaust work, or engine replacement where the two upstream oxygen sensor connectors have accidentally been connected to the wrong sensors.

The affected sensors are:

These sensors are located before the catalytic converters and are primarily responsible for fuel trim and air-fuel ratio control.

Common causes include:

Fortunately, P0040 is usually one of the easiest OBD-II codes to diagnose and repair.

For more diagnostic resources, visit:

P0040 Quick Facts

ItemInformation
OBD-II CodeP0040
DescriptionO2 Sensor Signals Swapped Bank 1 Sensor 1 / Bank 2 Sensor 1
CategoryPowertrain
SystemFuel & Emissions
SensorsBank 1 Sensor 1 and Bank 2 Sensor 1
SeverityModerate
Safe to Drive?Usually Yes
Typical Repair Cost$0–300

What Does P0040 Mean?

P0040 means the ECM has determined that the upstream oxygen sensor signals for Bank 1 and Bank 2 do not match the engine bank where they should be installed.

The ECM constantly compares:

If the Bank 1 sensor behaves like Bank 2—and vice versa—the ECM concludes the sensor connectors have likely been swapped.

Rather than indicating a failed oxygen sensor, P0040 usually points to an installation or wiring error.

What Is Bank 1 Sensor 1?

Understanding oxygen sensor locations is critical.

Bank 1

Bank 1 contains cylinder number one.

Bank 2

Bank 2 is the opposite cylinder bank on V-type engines.

Inline engines do not have Bank 2 and therefore cannot normally set P0040.

Sensor 1

Sensor 1 is always the upstream oxygen sensor.

It is located:

These sensors directly control:

How the ECM Detects P0040

The ECM compares information from both upstream oxygen sensors.

It evaluates:

If the signals consistently appear reversed between engine banks, the ECM stores P0040.

Why Do Oxygen Sensor Connectors Get Swapped?

Many V6 and V8 engines use nearly identical oxygen sensors with connectors located close together.

After repairs, technicians may accidentally reconnect:

The engine starts and runs, but the ECM quickly notices the signals don’t match expected engine operation.

Symptoms of P0040

Common symptoms include:

Some vehicles may also enter reduced power mode.

Common Causes of P0040

1. Swapped Oxygen Sensor Connectors

This is the most common cause.

The Bank 1 and Bank 2 Sensor 1 connectors were accidentally reversed during service.

2. Incorrect Oxygen Sensor Installation

Installing the correct sensors in the wrong locations can trigger P0040.

3. Engine Replacement

Engine swaps often require disconnecting both upstream oxygen sensors.

Reconnect them incorrectly and P0040 frequently appears.

4. Exhaust Manifold Replacement

Removing exhaust manifolds often requires unplugging both sensors.

Incorrect reconnection is common.

5. Wiring Harness Repairs

Previous repairs may have crossed:

6. Damaged Connectors

Inspect for:

7. Aftermarket Exhaust Installation

Long-tube headers and custom exhaust systems sometimes require harness extensions.

Incorrect routing may swap connectors.

8. Incorrect Replacement Harness

Replacement engine harnesses may be routed incorrectly.

9. ECM Calibration Issues

Rarely, outdated ECM software may incorrectly interpret sensor data.

Is P0040 Serious?

Generally Moderately Serious.

Although most vehicles remain driveable, incorrect oxygen sensor feedback can cause:

Can You Drive With P0040?

Usually yes.

However, repairs should be completed soon because incorrect fuel trim adjustments can eventually affect catalytic converter life.

How to Diagnose P0040

Step 1

Scan for additional codes.

Related codes include:

Step 2

Confirm engine configuration.

P0040 applies only to engines with:

Step 3

Locate Bank 1.

Identify the bank containing cylinder number one.

Step 4

Inspect oxygen sensor connectors.

Verify:

Connector color, wire routing, and factory diagrams help confirm proper installation.

Step 5

Inspect the wiring harness.

Check for:

Step 6

Monitor live scan data.

Observe:

If sensor activity appears reversed, the connectors are likely swapped.

Step 7

Inspect recent repairs.

Ask whether the vehicle recently had:

Step 8

Repair wiring if necessary.

Restore proper connector routing.

Step 9

Clear diagnostic codes.

Perform a drive cycle.

Verify P0040 does not return.

Common Repairs

RepairEstimated Cost
Swap connectors correctlyFree
Wiring repair$100–350
Connector replacement$75–250
Oxygen sensor replacement$180–450
Harness repair$150–500
ECM software update$100–250

Common Diagnostic Mistakes

Vehicles Commonly Affected

P0040 is commonly found on V-type engines from:

How to Prevent P0040

Reduce the likelihood of P0040 by:

Frequently Asked Questions

What does P0040 mean?

P0040 means the ECM believes the upstream oxygen sensor signals for Bank 1 and Bank 2 have been swapped.

What usually causes P0040?

Accidentally connecting the Bank 1 and Bank 2 oxygen sensor connectors to the wrong sensors after repairs.

Is P0040 caused by a bad oxygen sensor?

Usually not.

The oxygen sensors themselves are often working normally.

Can engine replacement cause P0040?

Yes.

This is one of the most common times connector mix-ups occur.

Can I drive with P0040?

Usually yes, but incorrect fuel trim adjustments should be corrected promptly.

Will replacing oxygen sensors fix P0040?

Not unless the sensors themselves have failed.

Connector routing should always be verified first.

Does P0040 affect fuel economy?

Yes.

Incorrect fuel trim calculations can reduce fuel economy and increase emissions.

Will clearing the code fix P0040?

No.

The code will return until the oxygen sensor wiring is corrected.

Final Thoughts

The P0040 code indicates the ECM has detected that the Bank 1 Sensor 1 and Bank 2 Sensor 1 oxygen sensor signals appear to be reversed. Unlike most oxygen sensor codes, P0040 is rarely caused by a failed sensor. Instead, it almost always results from swapped connectors, crossed wiring, or incorrect installation after engine or exhaust repairs.

Before replacing any components, inspect the upstream oxygen sensor connectors, verify Bank 1 and Bank 2 locations, review recent repair history, and monitor live scan data. In many cases, simply reconnecting the sensors correctly resolves the problem within minutes.
