P0033 Code Explained: Turbocharger Bypass Valve Control Circuit Causes, Symptoms & Fixes

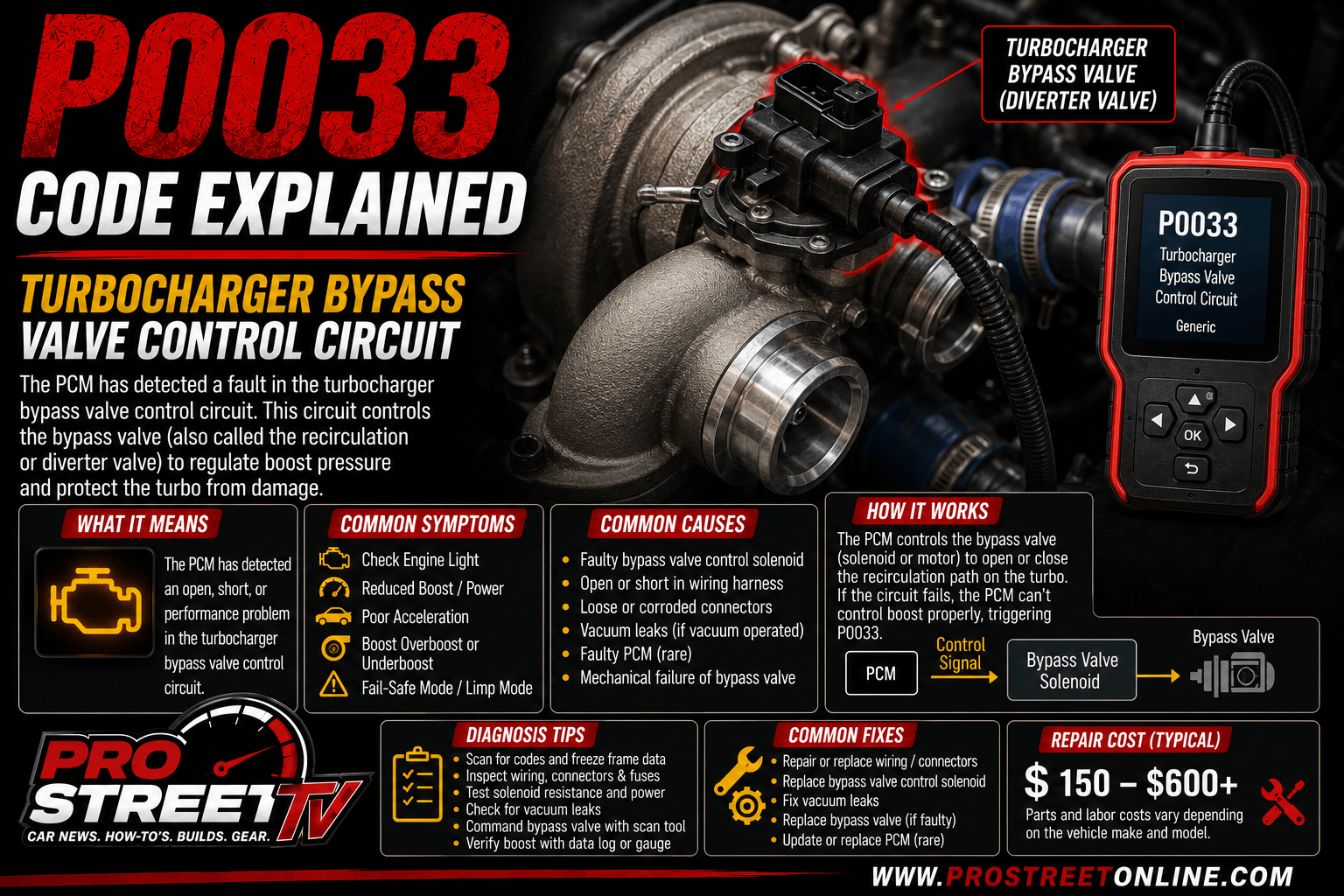

OBD-II scanner displaying P0033 beside a turbocharger with the electronic bypass valve and wiring harness highlighted.

If your OBD-II scanner displays P0033, your vehicle’s Engine Control Module (ECM) or Powertrain Control Module (PCM) has detected a malfunction in the turbocharger bypass valve control circuit.

The generic SAE definition for P0033 is:

Turbocharger Bypass Valve Control Circuit

Depending on the manufacturer, the affected component may also be be referred to as the:

Unlike boost pressure codes such as P0299 (underboost) or P0234 (overboost), P0033 is primarily an electrical circuit fault, meaning the ECM cannot properly control the bypass valve or its control circuit.

Common causes include:

Most vehicles remain drivable, but turbo performance, acceleration, fuel economy and boost response may suffer.

For more OBD-II diagnostic guides visit:

P0033 Quick Facts

ItemInformation
OBD-II CodeP0033
DescriptionTurbocharger Bypass Valve Control Circuit
CategoryPowertrain
SystemTurbocharger Boost Control
SeverityModerate
Safe to Drive?Usually yes
Common RepairsBypass valve, wiring, vacuum repairs
Estimated Cost$75–$1,200+

What Does P0033 Mean?

P0033 means the ECM has detected an electrical problem within the circuit that controls the turbocharger bypass valve.

Modern turbocharged engines use a bypass valve to:

When the throttle closes rapidly, compressed air has nowhere to go.

Without a bypass valve, pressure reverses through the compressor wheel, creating compressor surge, which can damage the turbocharger over time.

The ECM controls the bypass valve through:

If the ECM cannot properly control or monitor this circuit, it stores P0033.

What Does the Turbocharger Bypass Valve Do?

The bypass valve redirects compressed air whenever boost is no longer needed.

Instead of forcing air backwards through the turbocharger, the valve opens and routes pressure back into the intake.

This helps:

Many manufacturers use recirculating bypass valves rather than atmospheric blow-off valves.

How the Turbo Bypass System Works

During acceleration:

  1. Throttle opens.
  2. Turbocharger creates boost.
  3. Bypass valve remains closed.
  4. Intake pressure builds.

When the driver lifts off the accelerator:

  1. Throttle plate closes.
  2. Boost pressure spikes.
  3. ECM commands bypass valve.
  4. Valve opens.
  5. Boost pressure is redirected.
  6. Compressor surge is prevented.

On some vehicles, vacuum opens the valve.

Others use:

How the ECM Detects P0033

The ECM may monitor:

The code may set if:

Symptoms of P0033

Symptoms vary depending on the failure.

Common symptoms include:

Common Causes of P0033

1. Failed Turbo Bypass Valve

The valve itself may stick open or closed because of:

This is one of the most common repairs.

2. Failed Bypass Solenoid

Electronic control solenoids may fail because of:

3. Open Wiring

Broken wiring may occur because of:

4. Wiring Short

The control wire may short to:

This prevents proper ECM control.

5. Damaged Connector

Inspect for:

6. Vacuum Leak

Vacuum-operated bypass valves depend on proper vacuum.

Leaks may occur at:

7. Broken Vacuum Hose

Rubber hoses may become:

8. Stuck Valve

Oil vapor can cause the valve to stick.

The valve may remain:

9. Failed Turbo Actuator

Some manufacturers integrate the bypass valve into the turbo actuator.

Failure may require replacing:

10. ECM Driver Failure

Rarely, the ECM output transistor fails.

Always verify:

before condemning the ECM.

Is P0033 Serious?

Generally moderately serious.

The vehicle usually remains drivable.

Ignoring the problem can lead to:

Can You Drive With P0033?

Usually yes.

However, repair should not be delayed.

Avoid aggressive acceleration if:

How to Diagnose P0033

Step 1

Scan for additional codes.

Related codes include:

Step 2

Inspect the bypass valve.

Check for:

Step 3

Inspect wiring.

Look for:

Step 4

Inspect vacuum hoses.

Check for:

Step 5

Verify power supply.

Measure battery voltage at the bypass valve or solenoid.

Step 6

Check ground.

Perform voltage-drop testing.

Step 7

Measure solenoid resistance.

Compare to manufacturer specifications.

Step 8

Command the bypass valve using a bidirectional scan tool.

Verify:

Step 9

Monitor boost pressure.

Compare:

Large differences may indicate mechanical failure.

Step 10

Inspect turbocharger.

Look for:

Step 11

Check Technical Service Bulletins.

Manufacturers occasionally release updated valves or software.

Step 12

Verify repair.

After repairs:

Common Repairs

RepairTypical Cost
Wiring repair$100–400
Vacuum hose replacement$20–150
Bypass valve replacement$150–500
Bypass solenoid replacement$120–350
Turbo actuator replacement$300–900
Turbocharger replacement$1,000–2,500
ECM replacement/programming$1,000–2,500

Common Diagnostic Mistakes

Vehicles Commonly Affected

P0033 commonly appears on turbocharged vehicles including:

How to Prevent P0033

To reduce the likelihood of P0033:

Frequently Asked Questions

What does P0033 mean?

P0033 indicates the ECM has detected a fault in the turbocharger bypass valve control circuit.

What is the turbo bypass valve?

It releases or recirculates boost pressure during throttle lift to prevent compressor surge.

Is P0033 the same as a blow-off valve code?

In many vehicles, yes. Manufacturers may call the same component a bypass valve, diverter valve or electronic blow-off valve.

Can a bad bypass valve cause P0033?

Yes.

It is the most common cause.

Can wiring cause P0033?

Yes.

Open or shorted wiring frequently causes this code.

Can vacuum leaks cause P0033?

Yes.

Vacuum-operated bypass valves depend on proper vacuum supply.

Can P0033 reduce power?

Yes.

Improper bypass valve operation can reduce turbo performance.

Can P0033 damage the turbo?

If compressor surge continues for an extended period, turbocharger damage may eventually occur.

Can I drive with P0033?

Usually yes, but repair should be performed promptly.

Will clearing the code fix it?

No.

The code returns if the electrical or mechanical fault remains.

Can P0033 fail emissions?

Depending on vehicle and local regulations, an illuminated Check Engine Light will typically result in an emissions inspection failure.

Final Thoughts

The P0033 code indicates an electrical problem in the turbocharger bypass valve control circuit. Unlike boost-pressure codes that monitor turbocharger performance, P0033 focuses on the ECM’s ability to command the bypass valve correctly.

The most common causes include a failed bypass valve, defective control solenoid, damaged wiring, poor electrical connections, vacuum leaks, or a sticking valve. Begin diagnosis by inspecting the wiring, connectors, and vacuum hoses before replacing expensive turbocharger components.

Repairing P0033 early helps maintain proper boost control, prevents compressor surge, improves throttle response, and protects the turbocharger from unnecessary wear.
