P0012 Code Explained: “A” Camshaft Position Timing Over-Retarded Bank 1 Causes, Symptoms & Fixes

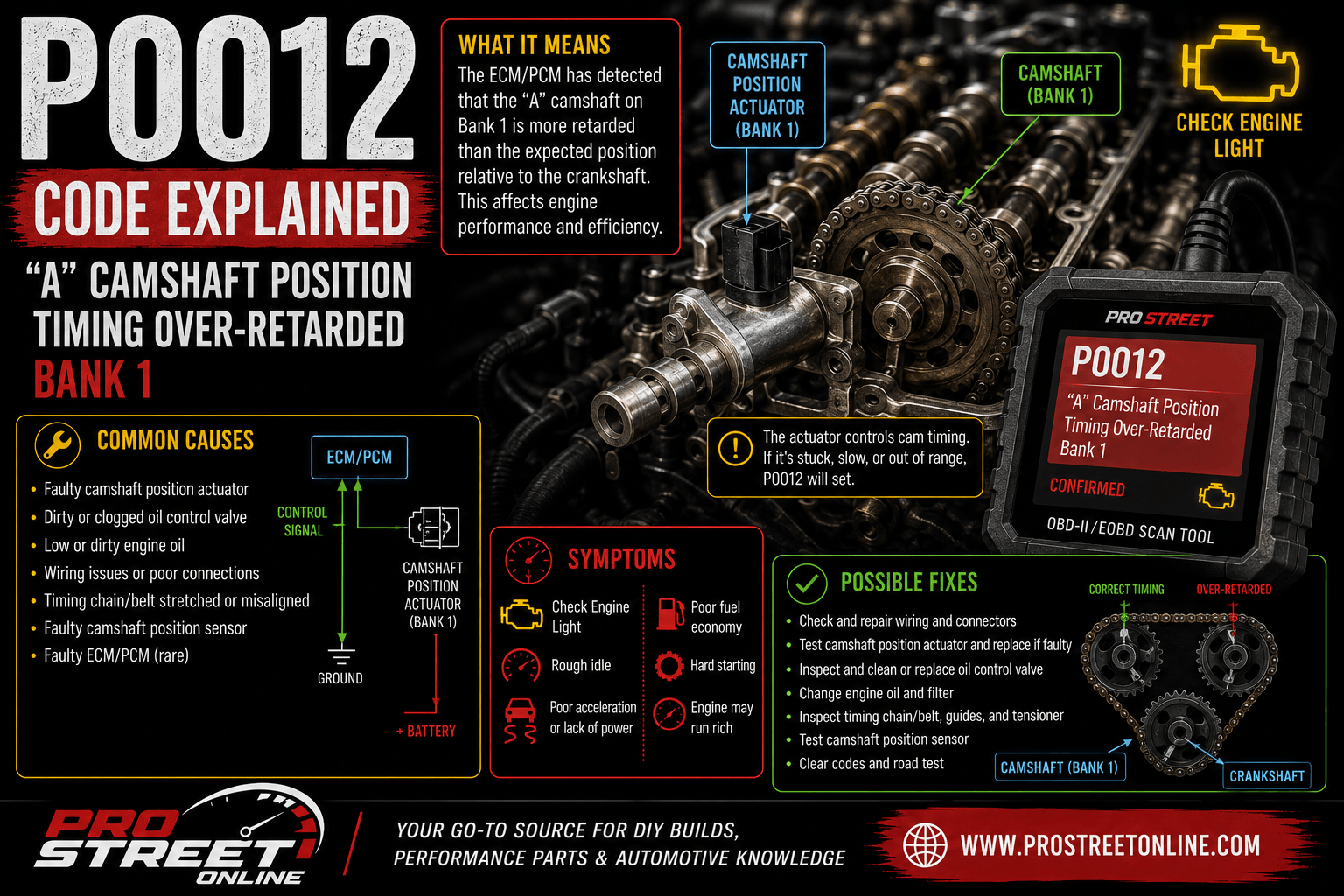

OBD-II scanner displaying P0012 beside a Bank 1 intake camshaft phaser, VVT solenoid, timing chain and engine-oil warning symbol

If your OBD-II scanner displays P0012, your vehicle’s Engine Control Module (ECM) or Powertrain Control Module (PCM) has detected that the “A” camshaft on Bank 1 is more retarded than commanded or remains in a retarded position for too long.

On most engines, the “A” camshaft is the intake camshaft, while Bank 1 is the side of the engine containing cylinder number one. The intake camshaft is part of the variable valve timing system, which adjusts valve timing to improve power, fuel economy, idle quality and emissions.

P0012 is commonly caused by:

Unlike P0010, which primarily identifies an electrical problem in the actuator circuit, P0012 usually indicates that the camshaft is not physically reaching the position commanded by the ECM.

The problem may be as simple as overdue engine oil or as serious as a stretched timing chain. Prompt diagnosis can help prevent poor performance and possible engine damage.

Looking for more diagnostic resources? Browse our complete OBD-II libraries:

P0012 Quick Facts

ItemInformation
OBD-II codeP0012
Official description“A” Camshaft Position Timing Over-Retarded Bank 1
CategoryPowertrain
SystemVariable valve timing and engine timing
Code typeGeneric SAE powertrain code
SeverityModerate to high
Safe to drive?Limited driving may be possible
Most common causesDirty oil, failed VVT solenoid, low oil pressure, worn timing chain
Typical repair cost$60–$4,000+

What Does the P0012 Code Mean?

P0012 means “‘A’ Camshaft Position Timing Over-Retarded Bank 1.”

The ECM monitors the relationship between the crankshaft and camshaft using the:

The ECM commands the camshaft to advance or retard based on engine speed, load, temperature and throttle position.

When the actual Bank 1 “A” camshaft position remains more retarded than expected, or fails to move toward the commanded position quickly enough, the ECM stores P0012.

The code may indicate that:

P0012 is closely related to:

P0012 is primarily a timing-performance code, not simply an electrical circuit code.

What Does “Over-Retarded” Mean?

Camshaft timing is described as advanced or retarded relative to the crankshaft.

When camshaft timing is retarded, the valves open and close later in the combustion cycle.

The ECM may intentionally retard camshaft timing under certain operating conditions. However, P0012 is stored when the camshaft remains farther retarded than commanded.

This can happen when:

An over-retarded intake camshaft can reduce low-speed torque, disrupt idle quality and increase emissions.

What Does Camshaft “A” Mean?

On most dual-overhead-cam engines:

However, manufacturer terminology can vary.

Always verify the camshaft designation using vehicle-specific repair information before replacing a sensor, solenoid or actuator.

What Is Bank 1?

Bank 1 is the side of the engine containing cylinder number one.

On an inline four-cylinder or inline six-cylinder engine, there is only one cylinder bank, so the entire engine is Bank 1.

On V6, V8, V10 and horizontally opposed engines, Bank 1 may be on either side.

Do not assume Bank 1 is always the driver side or passenger side. Confirm cylinder numbering using:

How Variable Valve Timing Works

Variable valve timing allows the ECM to adjust camshaft timing while the engine is running.

A typical VVT system includes:

The VVT solenoid directs engine oil into chambers inside the camshaft phaser.

Oil pressure moves the phaser, which rotates the camshaft slightly relative to the timing chain or belt.

The ECM uses variable timing to improve:

When the intake camshaft cannot move out of a retarded position, the engine may lose performance and run inefficiently.

Symptoms of the P0012 Code

Some vehicles may show only a Check Engine Light, while others may experience noticeable drivability problems.

Common P0012 symptoms include:

The symptoms often become more noticeable when the engine is:

A brief startup rattle may indicate a worn camshaft phaser, weak timing-chain tensioner or delayed oil pressure.

Common Causes of P0012

1. Low Engine Oil Level

Low oil is one of the first conditions to check when diagnosing P0012.

The variable valve timing system relies on engine-oil pressure to move the camshaft actuator.

Low oil can cause:

Check the dipstick before replacing any parts.

If the oil level is low, inspect for:

2. Dirty or Contaminated Engine Oil

Dirty oil can restrict the small passages that supply the VVT solenoid and camshaft phaser.

Possible contaminants include:

Contaminated oil may cause the solenoid or phaser to stick in a retarded position.

An oil and filter change may correct the problem when contamination is minor, but severe sludge may require additional cleaning or mechanical repair.

3. Incorrect Engine-Oil Viscosity

The VVT system is calibrated for a specific oil viscosity.

Oil that is too thick may flow slowly through the actuator passages, especially during cold starts.

Oil that is too thin may fail to maintain adequate pressure in worn components.

Always use the oil grade specified by the manufacturer.

Incorrect oil viscosity is especially likely when P0012 appears immediately after an oil change.

4. Faulty VVT Solenoid

The variable valve timing solenoid controls oil flow to the camshaft phaser.

A failed or sticking solenoid may prevent the intake camshaft from advancing properly.

Possible solenoid problems include:

A solenoid can pass an electrical resistance test and still stick mechanically.

5. Restricted Oil Passages

Small oil passages carry pressurized oil to the VVT solenoid and camshaft phaser.

These passages may become restricted by:

Restricted flow can slow actuator movement and cause the camshaft to remain retarded.

6. Low Engine Oil Pressure

The oil level may be correct while actual oil pressure remains too low.

Possible causes include:

Low pressure can affect both the camshaft phaser and timing-chain tensioner.

A mechanical oil-pressure test may be necessary.

7. Worn or Sticking Camshaft Phaser

The camshaft phaser physically changes camshaft timing.

A worn or sticking phaser may:

A damaged phaser may produce P0012 along with:

8. Stretched Timing Chain

A worn timing chain can cause the camshaft to operate later than expected relative to the crankshaft.

Timing-chain “stretch” occurs as the chain pins, links and sprockets wear.

Common signs include:

A stretched chain is more likely on engines with:

9. Failed Timing-Chain Tensioner

The tensioner keeps the timing chain tight.

Many tensioners depend on engine-oil pressure.

A failed tensioner can allow chain slack, causing the intake camshaft timing to remain retarded.

Possible tensioner failures include:

A tensioner that loses pressure often creates a brief rattle when the engine is started.

10. Worn or Broken Timing Guides

Timing guides keep the chain aligned.

The guides can:

Broken guide material can enter the oil pan and restrict the oil pickup, worsening the oil-pressure problem.

11. Incorrect Mechanical Timing

P0012 may appear after timing-chain, cylinder-head or engine repairs if the engine was assembled incorrectly.

Possible mistakes include:

If P0012 appears immediately after engine work, verify mechanical timing before replacing sensors or solenoids.

12. Damaged VVT Solenoid Wiring

Although P0012 is a performance code, wiring problems can prevent the ECM from controlling the solenoid properly.

Inspect for:

Electrical faults may also store P0010.

13. Faulty Camshaft Position Sensor

The camshaft position sensor tells the ECM where the camshaft is located.

A faulty signal may make the ECM believe the camshaft is more retarded than it actually is.

Possible causes include:

A failed camshaft sensor usually causes additional sensor-circuit or correlation codes.

14. Faulty Crankshaft Position Sensor

The crankshaft position sensor provides the reference signal used to calculate camshaft timing.

A distorted crankshaft signal may cause inaccurate camshaft correlation readings.

Possible causes include:

15. Faulty ECM or PCM

An ECM failure is possible but uncommon.

The ECM should only be suspected after verifying:

Replacement modules may require programming and security-system relearning.

How Serious Is the P0012 Code?

P0012 is generally considered moderately serious, but it can become severe when caused by timing-chain wear or low oil pressure.

Possible consequences include:

The code should be treated as urgent if it is accompanied by:

Can You Drive With P0012?

A short drive may be possible if:

Continued driving is not recommended until the cause is diagnosed.

Stop driving immediately if:

Towing the vehicle may prevent a minor VVT problem from becoming a major engine repair.

How to Diagnose P0012

Step 1: Scan for Additional Codes

Use an OBD-II scanner to check for related trouble codes.

Common companion codes include:

Record:

Do not clear the codes before recording this information.

Step 2: Check the Engine Oil Level

Park the vehicle on level ground and follow the manufacturer’s oil-checking procedure.

Check for:

Correct the oil level before performing advanced testing.

Step 3: Review Maintenance History

Determine:

P0012 appearing after an oil change may indicate incorrect oil viscosity, a poor-quality filter or an underfilled engine.

Step 4: Inspect the VVT Solenoid and Wiring

Locate the Bank 1 “A” camshaft actuator solenoid.

Inspect for:

Repair visible wiring faults before replacing the solenoid.

Step 5: Test the VVT Solenoid Electrically

With the ignition off and connector disconnected:

  1. Measure solenoid resistance.
  2. Compare the reading with manufacturer specifications.
  3. Check the circuit for an open.
  4. Test for a short to ground.
  5. Test for a short to voltage.
  6. Verify power and ECM control.

A solenoid with infinite or extremely low resistance is likely defective.

Step 6: Command the Solenoid With a Scan Tool

A bidirectional scan tool may allow the technician to command the actuator on and off.

Observe:

If the electrical command changes but the camshaft does not move, suspect:

Step 7: Remove and Inspect the VVT Solenoid

Remove the solenoid according to manufacturer instructions.

Inspect for:

A contaminated solenoid may be cleaned in some applications, but replacement is often more reliable.

Heavy metal contamination may indicate timing-chain, phaser or internal engine wear.

Step 8: Compare Commanded and Actual Camshaft Timing

Monitor scan-tool data while the engine is:

A healthy camshaft should closely follow the commanded position.

A camshaft that remains consistently retarded may indicate:

A camshaft that moves slowly may point toward oil viscosity or flow problems.

Step 9: Check Engine Oil Pressure

Install a mechanical pressure gauge when low pressure is suspected.

Test pressure at:

Compare results with factory specifications.

Do not assume oil pressure is adequate because the dashboard warning light is off. The warning switch may activate only when pressure becomes dangerously low.

Step 10: Listen for Timing-System Noise

Start the engine when cold and listen near the timing cover.

Warning sounds include:

Startup noise may indicate:

Step 11: Inspect Camshaft and Crankshaft Signals

An oscilloscope can display the camshaft and crankshaft waveforms simultaneously.

A trained technician can use waveform correlation to identify:

This may confirm a timing problem without removing the timing cover.

Step 12: Verify Mechanical Timing

If scan data or waveform analysis indicates a mechanical timing problem, the timing system must be inspected.

This may require removing:

Position the engine at top dead center and compare all timing marks with factory specifications.

Inspect:

Special locking tools may be required.

Step 13: Check Technical Service Bulletins

Some engines have known issues involving:

Review manufacturer service information before performing major repairs.

Step 14: Verify the Repair

After repairs:

  1. Clear the stored codes.
  2. Start the engine from cold.
  3. Listen for abnormal noise.
  4. Monitor commanded and actual camshaft position.
  5. Allow the engine to reach operating temperature.
  6. Complete the required drive cycle.
  7. Rescan for pending codes.
  8. Restart the engine several times.

A successful repair should eliminate the code and restore normal camshaft response.

Common P0012 Repairs and Costs

RepairEstimated cost
Diagnostic inspection$100–$250
Engine oil and filter change$60–$180
Repair VVT wiring$100–$500
Replace VVT connector$75–$300
Replace VVT solenoid$150–$500
Clean oil passage or solenoid$100–$400
Replace camshaft position sensor$150–$450
Replace camshaft phaser$600–$1,800
Replace timing-chain tensioner$500–$1,500
Replace timing chain, guides and tensioners$1,200–$4,000
Repair cylinder-head damage$2,500–$6,000+
Replace engine$4,000–$12,000+
ECM software update$100–$300
Replace and program ECM$1,000–$2,500+

The final cost depends heavily on engine design.

On some vehicles, the VVT solenoid is externally mounted and easy to replace. On others, camshaft phaser or timing-chain repairs require extensive engine disassembly.

Common Diagnostic Mistakes

Replacing the Camshaft Position Sensor First

P0012 does not automatically mean the camshaft position sensor has failed.

The sensor may be accurately reporting that the camshaft is in the wrong position.

Replacing the VVT Solenoid Without Checking the Oil

Low, dirty or incorrect engine oil is one of the most common contributors to camshaft timing codes.

Always inspect the oil first.

Assuming an Oil Change Will Fix Chain Stretch

Fresh oil may improve a sticking solenoid or hydraulic phaser.

It cannot repair:

Confusing P0012 With P0010

P0010 primarily indicates an actuator electrical-circuit fault.

P0012 indicates the camshaft timing is more retarded than commanded.

The two codes can appear together, but they do not mean the same thing.

Confusing Bank 1 and Bank 2

Bank 1 is the side containing cylinder number one.

Do not assume it is always on a particular side of the vehicle.

Confusing Intake and Exhaust Camshafts

Camshaft A is usually the intake camshaft, but manufacturer terminology should be confirmed.

Skipping Oil-Pressure Testing

Low oil pressure can prevent the phaser from moving even when the solenoid and wiring are functioning correctly.

Ignoring Startup Rattle

Startup rattling may indicate timing-chain, tensioner or phaser wear.

Ignoring it can lead to more serious engine damage.

Replacing the ECM Too Early

ECM failure is much less common than:

Test the entire system before replacing the module.

Vehicles Commonly Affected by P0012

P0012 can appear on nearly any OBD-II vehicle equipped with variable valve timing.

Potentially affected manufacturers include:

P0012 is commonly associated with engines that use:

Certain engines may have manufacturer-specific diagnostic procedures, updated parts or service bulletins.

The code alone does not prove that a specific model has a known defect.

How to Prevent P0012

Helpful preventive measures include:

Clean oil is especially important because the VVT system depends on precise oil flow through small internal passages.

Frequently Asked Questions About P0012

What does code P0012 mean?

P0012 means the Bank 1 “A” camshaft is more retarded than commanded by the ECM or is responding too slowly.

Is Camshaft A the intake camshaft?

On most vehicles, yes.

Camshaft A usually refers to the intake camshaft, but manufacturer terminology should be verified.

Which side is Bank 1?

Bank 1 is the side of the engine containing cylinder number one.

On an inline engine, the entire engine is Bank 1.

What does over-retarded timing mean?

It means the camshaft is opening and closing the valves later than the ECM expects.

Is P0012 an electrical code?

P0012 is primarily a camshaft timing-performance code.

Electrical faults in the VVT solenoid circuit can contribute, but a direct actuator-circuit fault usually stores P0010.

Can dirty oil cause P0012?

Yes. Dirty oil can clog the VVT solenoid or actuator passages and prevent the camshaft from moving properly.

Can low oil cause P0012?

Yes. Low oil can reduce pressure to the camshaft phaser and timing-chain tensioner.

Can the wrong oil viscosity cause P0012?

Yes. Oil that is too thick or too thin may affect VVT response and oil pressure.

Can a bad VVT solenoid cause P0012?

Yes. A sticking or clogged VVT solenoid is one of the most common causes.

Can a stretched timing chain cause P0012?

Yes. A stretched chain can cause the intake camshaft to remain retarded relative to the crankshaft.

Can a bad camshaft sensor cause P0012?

It is possible, but the sensor should be tested before replacement.

The sensor may simply be reporting an actual timing problem.

Can I drive with P0012?

Limited driving may be possible if the engine runs normally and makes no unusual noise.

However, the code should be diagnosed promptly because it may indicate low oil pressure or timing-chain wear.

Can P0012 cause rough idle?

Yes. Incorrect intake camshaft timing can cause unstable idle, hesitation and poor acceleration.

Can P0012 cause a no-start?

Yes. Severe timing problems or a jumped timing chain may prevent the engine from starting.

Will an oil change fix P0012?

It may help if the problem is caused by dirty, low or incorrect oil.

It will not repair a failed solenoid, worn phaser, stretched timing chain or damaged wiring.

How much does it cost to fix P0012?

A basic oil service may cost less than $200.

A VVT solenoid replacement commonly costs $150 to $500, while timing-chain or camshaft phaser repairs may cost $1,000 to $4,000 or more.

Will clearing P0012 fix the vehicle?

No. Clearing the code only turns off the warning temporarily.

The code will return if the camshaft timing remains outside specification.

Will P0012 fail an emissions test?

Yes. An active Check Engine Light or stored emissions-related code will generally cause an OBD-based emissions inspection failure.

Final Thoughts

The P0012 code means the Bank 1 “A” camshaft is more retarded than the ECM expects.

The most common causes include:

Begin diagnosis by checking the engine-oil level, condition and viscosity. Inspect the VVT solenoid and wiring, then compare commanded and actual camshaft position using a capable scan tool.

If the electrical system is working but the camshaft remains retarded, test oil pressure and inspect the camshaft phaser and timing-chain system.

Addressing P0012 early may prevent a relatively inexpensive oil-control problem from becoming a major timing-system or engine repair.

For more diagnostic guides, browse our growing OBD-II libraries:

Related Articles

Exit mobile version
