C0911 Code Explained: Causes, Symptoms & Device Voltage Performance Fixes

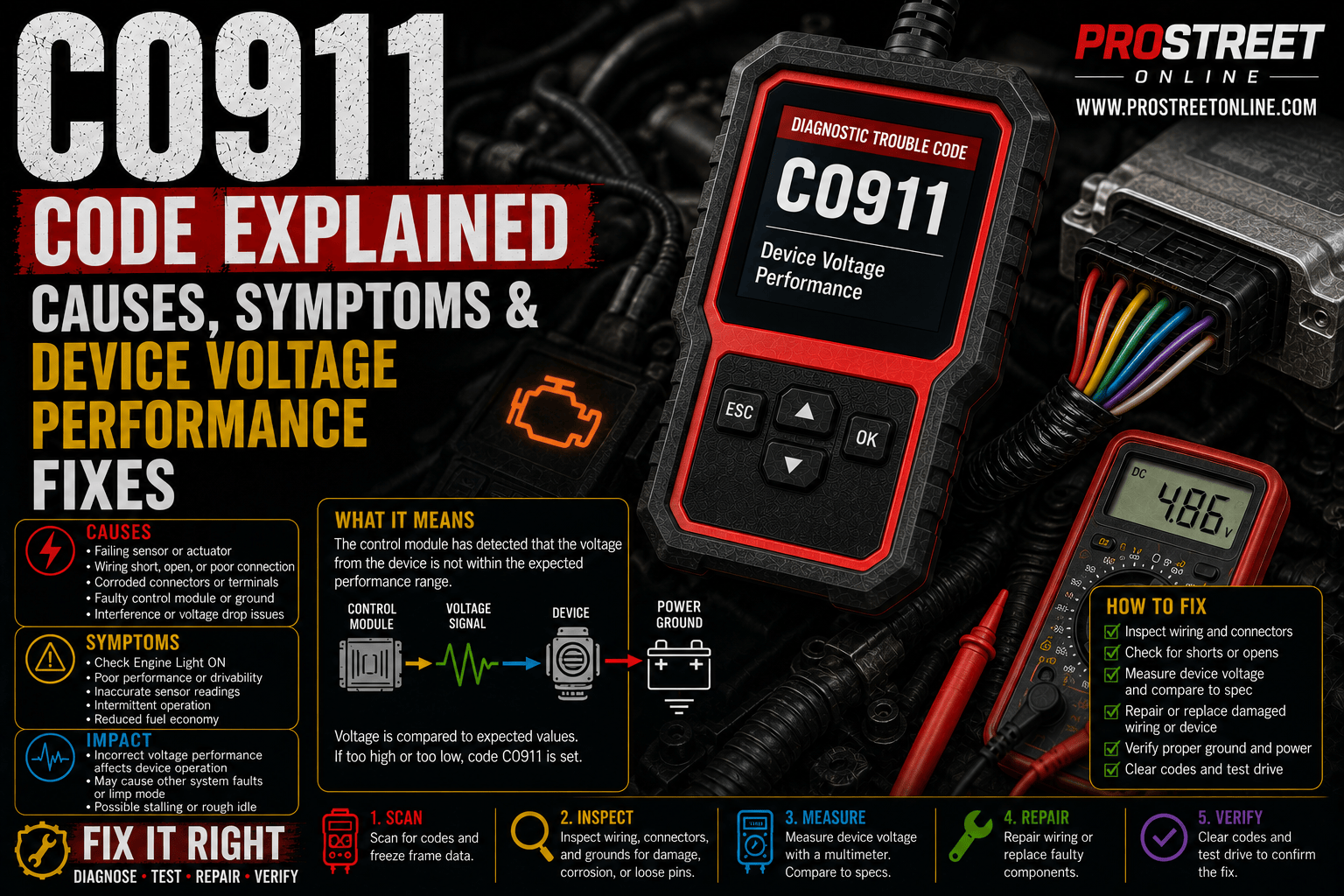

An OBD-II scanner displaying C0911 beside an electronic chassis actuator with a digital multimeter checking voltage, battery, alternator, wiring harness, and illuminated ABS and 4WD warning lights.

If your scan tool displays C0911, one of your vehicle’s electronic chassis control modules has detected that the voltage supplied to or returned from an electronically controlled actuator is outside its expected operating characteristics. Unlike C0912 (Device Voltage Circuit Low) or C0913 (Device Voltage Circuit High), which identify a specific voltage condition, C0911 is a performance code, meaning the voltage is unstable, intermittent, or behaving differently than the module expects during normal operation.

On many GM vehicles, C0911 is commonly stored by the Electronic Brake Control Module (EBCM), Transfer Case Control Module (TCCM), Electronic Suspension Control Module (ESCM), or Electronic Power Steering Module (EPS) when voltage feedback from an actuator falls outside its calibrated operating profile.

In most cases, C0911 is caused by a weak battery, charging system problems, damaged wiring, poor electrical connections, excessive resistance, or an intermittently failing actuator—not a defective control module.

For additional chassis diagnostic guides, visit our Complete OBD-II Trouble Code Library:

https://my.prostreetonline.com/dtc-obdii

Quick Facts

ItemInformation
OBD-II CodeC0911
DescriptionDevice Voltage Performance
CategoryChassis (C) Codes
SystemChassis Electronics / Actuator Voltage Monitoring
Severity★★★★☆ High
Safe to Drive?Usually, but affected chassis systems may be disabled
Common CausesWeak battery, charging system issues, high-resistance wiring, poor grounds, failing actuator
Typical Repair Cost$100–1,300

What Does C0911 Mean?

The C0911 code indicates that a chassis control module has detected abnormal voltage performance within the electrical circuit of a monitored actuator.

Modern electronic control modules constantly compare:

If the measured voltage behaves erratically, intermittently, or outside the programmed operating profile, the control module stores C0911.

Unlike:

C0911 does not indicate voltage is simply too low or too high. Instead, it indicates the voltage isn’t behaving consistently enough for reliable actuator operation.

Depending on the vehicle, monitored devices may include:

When voltage becomes unstable, the control module may disable the affected chassis system to prevent unpredictable operation.

Symptoms of C0911

Common symptoms include:

Additional symptoms may include:

Symptoms often worsen when battery voltage fluctuates.

Common Causes

Weak Battery

One of the most common causes of C0911 is insufficient battery performance.

A weak battery may produce:

Always perform a battery load test before replacing expensive components.

Charging System Problems

A failing alternator may produce unstable system voltage.

Possible failures include:

Charging voltage should typically remain between 13.5 and 14.8 volts while the engine is running.

High-Resistance Wiring

Electrical resistance can create inconsistent voltage delivery.

Inspect for:

Poor Ground Connection

Ground resistance is a common source of voltage instability.

Inspect:

Perform voltage-drop testing while the actuator is operating.

Damaged Wiring Harness

Inspect the harness for:

Intermittent wiring failures frequently trigger performance codes.

Loose or Corroded Connectors

Connector problems may interrupt voltage momentarily.

Look for:

Intermittently Failing Actuator

An actuator with worn internal electronics or a failing motor may produce unstable voltage feedback.

Common failures include:

Water Intrusion

Moisture inside connectors or actuators may cause intermittent voltage fluctuations.

Vehicles driven through:

are more susceptible.

Faulty Control Module

Although possible, module failures remain relatively uncommon.

The module should only be replaced after verifying battery health, wiring integrity, grounds, and actuator operation.

How Serious Is C0911?

High.

Although the vehicle often remains drivable, electronic chassis systems may become unreliable or disabled.

Potential consequences include:

Ignoring intermittent voltage problems can eventually damage electronic components.

Can You Drive With C0911?

Usually, yes—but repairs should be made promptly.

Depending on the affected system, you may lose:

Vehicle safety may be reduced under slippery or emergency driving conditions.

How to Diagnose C0911

1. Scan All Modules

Check for additional:

Additional DTCs often help identify the affected actuator.

2. Check Battery and Charging System

Measure:

Correct charging system problems before replacing other components.

3. Command the Actuator

Using a professional scan tool:

4. Perform Voltage-Drop Testing

Test:

Excessive voltage drop often indicates wiring or connector problems.

5. Inspect Wiring and Connectors

Look for:

Repair damaged wiring as needed.

6. Test the Actuator

Verify that the actuator operates normally and receives proper voltage.

Replace the actuator only after confirming all external circuits are functioning correctly.

7. Verify Repairs

After repairs:

Common Repairs

RepairEstimated Cost
Replace battery$150–350
Replace alternator$400–900
Repair damaged wiring$100–450
Replace connector$75–250
Repair ground connection$75–200
Replace actuator$250–900
Replace relay$50–175
Replace chassis control module (if required)$700–1,600

Common Diagnostic Mistakes

Technicians frequently:

Vehicles Commonly Affected

C0911 is commonly reported on:

Similar voltage performance faults also appear on Ford, Ram, Jeep, Toyota, Honda, Nissan, Hyundai, Kia, Subaru, Volkswagen, BMW, Mercedes-Benz, Audi, and other vehicles equipped with electronically controlled chassis systems.

How to Prevent C0911

Reduce the likelihood of C0911 by:

Frequently Asked Questions

What causes C0911?

The most common causes include weak batteries, charging system problems, high-resistance wiring, poor grounds, damaged connectors, intermittent actuator failures, or wiring harness damage.

Is C0911 serious?

Yes.

Although the vehicle may still be drivable, important electronic chassis systems such as ABS, traction control, four-wheel drive, or adaptive suspension may become unreliable or stop functioning.

Can a weak battery cause C0911?

Absolutely.

A weak battery often causes unstable system voltage, making it one of the leading causes of this code.

Can alternator problems trigger C0911?

Yes.

A failing alternator or voltage regulator can produce unstable charging voltage that affects electronically controlled chassis systems.

Will replacing the control module fix C0911?

Usually not.

Most C0911 faults originate in the battery, charging system, wiring, connectors, or actuator. The control module should only be replaced after every external component has been thoroughly tested.

Final Thoughts

The C0911 code indicates that a chassis control module has detected abnormal voltage performance within an electronically controlled actuator circuit. Unlike dedicated high- or low-voltage codes, C0911 identifies unstable or inconsistent voltage behavior that prevents reliable operation of the affected chassis system. In most cases, the root cause is a weak battery, charging system problem, damaged wiring, poor electrical connections, or an intermittently failing actuator rather than a defective control module.

A complete diagnosis should begin by testing the battery and charging system, performing voltage-drop testing, inspecting the wiring harness and connectors, and verifying actuator operation before replacing expensive components. Correcting the underlying electrical issue will usually restore normal operation and prevent the C0911 code from returning.

For additional chassis and drivetrain repair guides, browse our complete OBD-II Chassis Code Library:
