C0376 Code Explained: Causes, Symptoms & Front/Rear Shaft Speed Mismatch Fixes

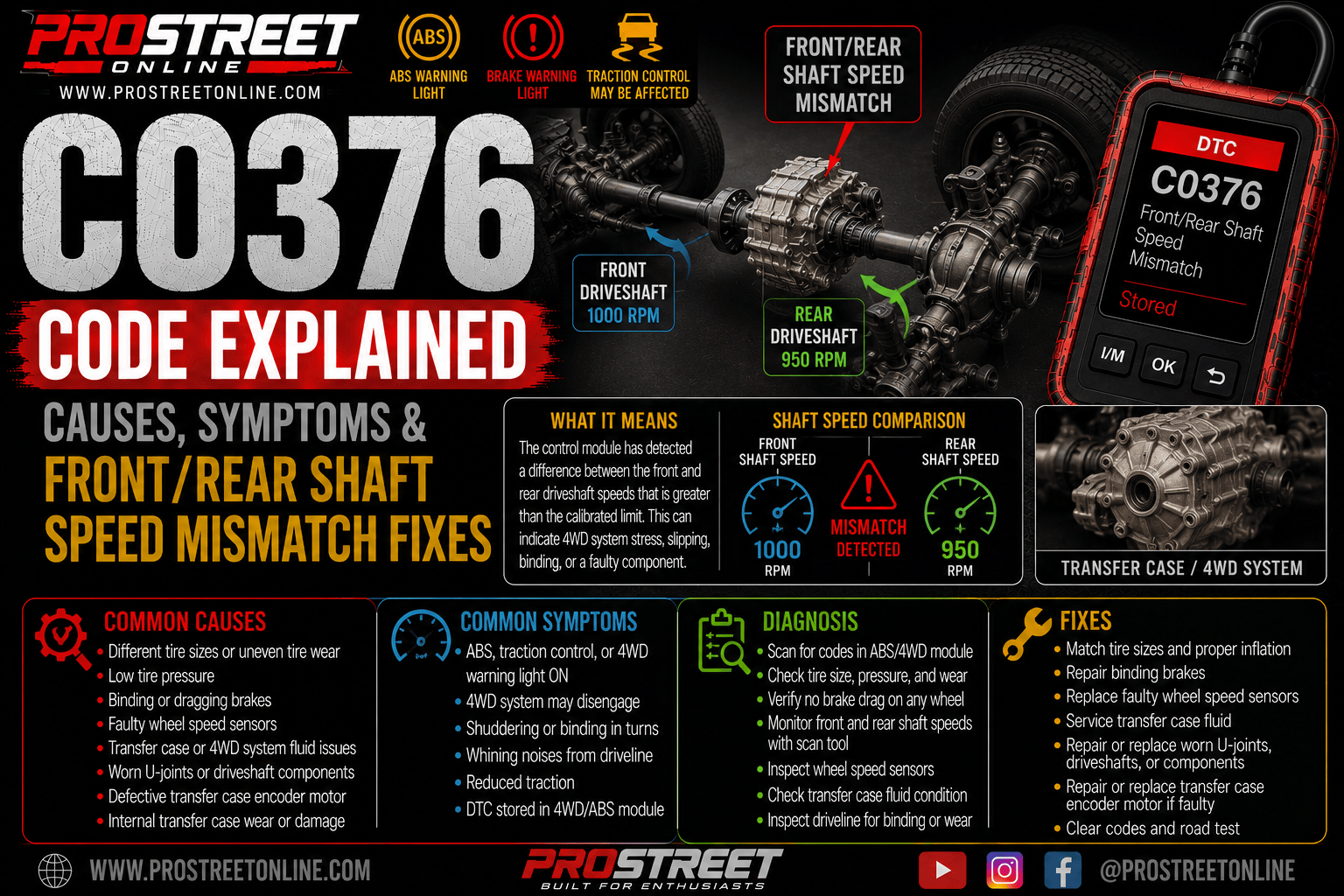

An OBD-II scanner displaying C0376 beside an electronic transfer case with the front and rear driveshafts highlighted to illustrate a shaft speed mismatch during four-wheel-drive operation.

If your scan tool displays C0376, your vehicle’s Transfer Case Control Module (TCCM) has detected a difference between the rotational speeds of the front and rear driveshafts that exceeds its programmed limits while four-wheel drive is engaged. The TCCM continuously compares shaft speeds to ensure the transfer case, front differential, and drivetrain are working together correctly. When those speeds no longer correlate as expected, it stores C0376, illuminates the Service 4WD warning, and may disable Auto 4WD, 4HI, or 4LO to prevent drivetrain damage.

Unlike circuit-related trouble codes, C0376 is a performance correlation code. It doesn’t necessarily indicate an electrical failure—instead, it tells you the drivetrain is behaving abnormally. Something is allowing the front and rear shafts to rotate at different speeds when they should be synchronized. The cause may be as simple as mismatched tire sizes or as serious as a stretched transfer case chain or failing differential.

C0376 is commonly found on Chevrolet Silverado, GMC Sierra, Tahoe, Yukon, Avalanche, Suburban, Colorado, Canyon, TrailBlazer, Envoy, Cadillac Escalade, Hummer H2, and Hummer H3 equipped with electronically controlled transfer cases. Similar shaft speed correlation faults can also occur on Ford, Ram, Jeep, Toyota, Nissan, and Mitsubishi four-wheel-drive vehicles.

Fortunately, many C0376 repairs can be completed without replacing the transfer case, provided the problem is diagnosed early.

For additional drivetrain troubleshooting guides, visit our Complete OBD-II Trouble Code Library:

https://my.prostreetonline.com/dtc-obdii

Quick Facts

ItemInformation
OBD-II CodeC0376
DescriptionFront/Rear Shaft Speed Mismatch
CategoryChassis (C) Codes
SystemElectronic Four-Wheel Drive
Severity★★★★☆ Moderate to High
Safe to Drive?Usually, but avoid using 4WD until repaired
Common CausesMismatched tires, transfer case wear, faulty speed sensors, front axle engagement problems
Typical Repair Cost$50–2,500

What Does C0376 Mean?

The C0376 code indicates the Transfer Case Control Module (TCCM) has detected an unexpected difference between the rotational speeds of the front and rear output shafts.

During normal operation:

The TCCM monitors data from:

If the speed difference exceeds calibrated limits for a specified period, the module assumes the drivetrain is slipping, binding, or failing to engage correctly and stores C0376.

To protect the drivetrain, the TCCM may disable four-wheel drive until repairs are completed.

Symptoms of C0376

Common symptoms include:

Additional symptoms may include:

Common Causes

Mismatched Tire Sizes

One of the most common causes of C0376 is mismatched tires.

Differences in:

can cause the front and rear driveshafts to rotate at different speeds.

Many electronically controlled transfer cases are extremely sensitive to tire circumference differences.

Stretched Transfer Case Chain

Inside many transfer cases, a chain transfers power to the front output shaft.

Over time the chain may:

This changes shaft speed relationships and may trigger C0376.

Faulty Shaft Speed Sensors

The TCCM depends on accurate speed sensor information.

A failing sensor may report:

False speed readings often generate shaft mismatch codes.

Front Axle Actuator Problems

If the front axle fails to engage completely, the transfer case may attempt to drive the front output shaft while the front differential remains partially disconnected.

This results in abnormal shaft speed differences.

Internal Transfer Case Damage

Mechanical failures may include:

These conditions can alter shaft speeds during operation.

Low or Contaminated Transfer Case Fluid

Improper lubrication increases wear and may cause:

Always verify fluid condition during diagnosis.

Damaged Wiring

Electrical problems affecting speed sensors may include:

These faults can produce inaccurate speed readings.

Faulty Transfer Case Control Module

Although rare, an internal TCCM failure may incorrectly interpret speed sensor data and falsely set C0376.

Replace the module only after eliminating all mechanical and electrical causes.

How Serious Is C0376?

Moderately to highly serious.

The vehicle may continue operating normally in 2WD, but continued four-wheel-drive operation with an underlying drivetrain problem can accelerate wear and lead to expensive repairs.

Ignoring C0376 can result in:

Can You Drive With C0376?

Yes, in most situations.

However:

Driving in 2HI is generally acceptable if no abnormal noises are present.

How to Diagnose C0376

1. Scan the Transfer Case Control Module

Use a professional scan tool capable of reading:

Check for related transfer case or ABS codes.

2. Verify Tire Size and Inflation

Inspect:

All four tires should closely match manufacturer specifications.

Even small differences in tire circumference can trigger C0376.

3. Inspect Transfer Case Fluid

Check:

Replace contaminated fluid before continuing diagnosis.

4. Inspect Speed Sensors

Examine:

Check for:

5. Monitor Live Data

Drive the vehicle while observing:

Large speed differences during straight-line driving indicate a genuine drivetrain problem.

6. Inspect Front Axle Engagement

Verify the front axle actuator fully engages.

Check:

Partial engagement commonly causes shaft speed mismatch.

7. Inspect the Transfer Case

If electrical testing passes, inspect for:

Mechanical wear often causes persistent C0376 codes.

Common Repairs

RepairEstimated Cost
Correct tire mismatch$50–1,000
Inflate tires properly$0–20
Replace speed sensor$100–350
Repair damaged wiring$100–350
Transfer case fluid service$100–250
Replace front axle actuator$250–700
Repair transfer case$800–2,500
Replace Transfer Case Control Module$500–1,200
Module programming$150–300

Common Diagnostic Mistakes

Technicians frequently:

Vehicles Commonly Affected

C0376 commonly appears on electronically controlled four-wheel-drive systems installed in:

Comparable shaft speed correlation faults may also occur on Ford F-150, Ford Super Duty, Ram 1500, Jeep Wrangler, Jeep Grand Cherokee, Toyota Tacoma, Toyota 4Runner, Nissan Frontier, Mitsubishi Montero, and other electronically controlled four-wheel-drive vehicles.

How to Prevent C0376

Reduce the likelihood of C0376 by:

Frequently Asked Questions

What causes C0376?

The most common causes include mismatched tire sizes, uneven tire wear, stretched transfer case chains, faulty speed sensors, front axle actuator problems, damaged wiring, low transfer case fluid, or internal transfer case wear.

Is C0376 serious?

Yes.

Although the vehicle usually remains drivable in 2WD, continued use of four-wheel drive can worsen drivetrain damage if the underlying issue is not repaired.

Can different tire sizes cause C0376?

Absolutely.

Even small differences in tire diameter or tread depth can create enough rotational speed variation for the TCCM to detect a mismatch.

Does C0376 mean my transfer case is bad?

Not necessarily.

Many C0376 cases are caused by tires, speed sensors, or front axle engagement issues rather than an internal transfer case failure.

Will C0376 disable four-wheel drive?

In many vehicles, yes.

The TCCM may disable Auto 4WD, 4HI, or 4LO to prevent further drivetrain damage until the problem is corrected.

Final Thoughts

The C0376 code indicates the Transfer Case Control Module has detected an abnormal speed difference between the front and rear output shafts during four-wheel-drive operation. While the problem can stem from serious transfer case wear, many cases are caused by relatively simple issues such as mismatched tires, low transfer case fluid, faulty speed sensors, or incomplete front axle engagement.

Because C0376 is a drivetrain performance correlation code, accurate diagnosis requires evaluating both the mechanical and electronic systems before replacing components. Correcting the underlying cause early can prevent costly transfer case or differential repairs and restore reliable four-wheel-drive operation.
