C0362 Code Explained: Causes, Symptoms & 4LO Discrete Output Circuit High Fixes

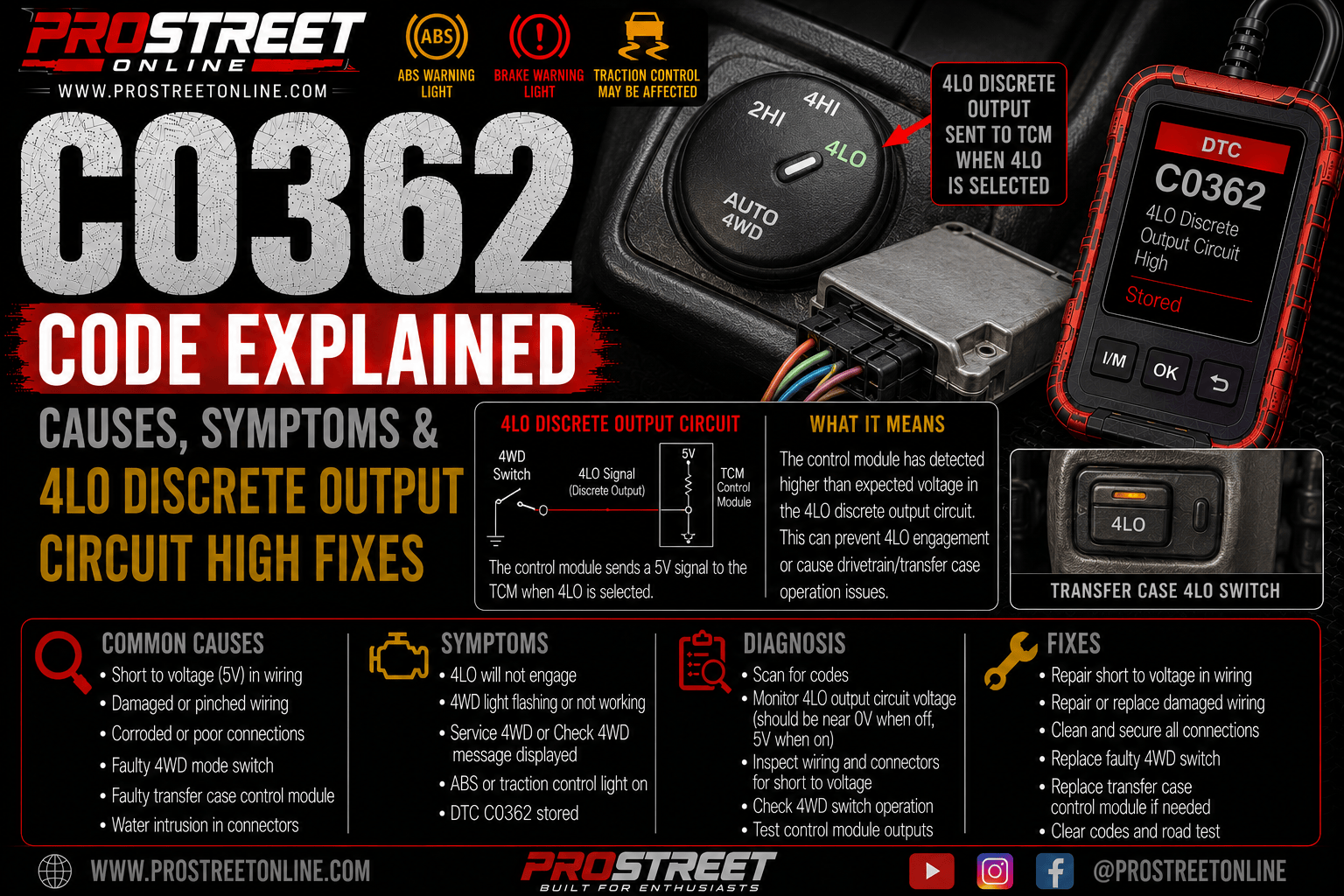

An OBD-II scanner displaying C0362 beside an electronic transfer case with the 4LO discrete output circuit highlighted and the Service 4WD warning illuminated on the dashboard.

If your scan tool displays C0362, your vehicle’s Transfer Case Control Module (TCCM) has detected higher-than-expected voltage in the 4LO Discrete Output Circuit. This circuit communicates to other vehicle systems that the transfer case has successfully shifted into Four-Wheel Drive Low Range (4LO). When excessive voltage is detected, the TCCM assumes the circuit is malfunctioning, stores C0362, disables low-range operation, and usually illuminates the Service 4WD warning.

Unlike earlier transfer case codes that diagnose the encoder motor, lock actuator, or park switch, C0362 focuses on the output signal generated after a successful shift. Even if the transfer case mechanically enters low range, the TCCM must communicate that status to other modules—including the Powertrain Control Module (PCM), ABS, StabiliTrak/ESC, and instrument cluster. If this signal becomes unreliable, the vehicle may disable 4LO to protect the drivetrain.

C0362 is commonly found on Chevrolet Silverado, GMC Sierra, Tahoe, Yukon, Avalanche, Suburban, TrailBlazer, Colorado, Canyon, Cadillac Escalade, Hummer H2, and Hummer H3 equipped with electronically shifted transfer cases. Similar output circuit faults may also occur on Ford, Ram, Jeep, Toyota, Nissan, and Mitsubishi electronic four-wheel-drive systems.

Fortunately, most repairs involve electrical diagnosis of the output circuit rather than rebuilding the transfer case itself.

For additional drivetrain troubleshooting guides, visit our Complete OBD-II Trouble Code Library:

https://my.prostreetonline.com/dtc-obdii

Quick Facts

ItemInformation
OBD-II CodeC0362
Description4LO Discrete Output Circuit High
CategoryChassis (C) Codes
SystemElectronic Four-Wheel Drive
Severity★★★☆☆ Moderate
Safe to Drive?Yes, but 4LO may be disabled
Common CausesShort to voltage, damaged wiring, faulty TCCM, connector corrosion
Typical Repair Cost$100–900

What Does C0362 Mean?

The C0362 code indicates the Transfer Case Control Module (TCCM) has detected excessive voltage in the 4LO discrete output circuit.

Once the transfer case successfully shifts into 4LO, the TCCM sends a dedicated output signal to multiple vehicle systems confirming that low range is active.

These systems may include:

These modules adjust their operating strategies when the vehicle is in low range.

If the TCCM detects battery voltage when the circuit should be low, grounded, or inactive, it determines the output circuit has a high-voltage fault and stores C0362.

Common causes include:

Because the TCCM cannot reliably communicate transfer case status, it often disables 4LO operation until repairs are completed.

Symptoms of C0362

Common symptoms include:

Additional symptoms may include:

Common Causes

Short to Battery Voltage

The most common cause of C0362 is a short to power in the 4LO output circuit.

This may occur because of:

Battery voltage appearing on the circuit continuously causes the TCCM to detect a high-voltage fault.

Damaged Wiring Harness

The transfer case harness is mounted underneath the vehicle where it is exposed to:

Harness damage is a common cause of intermittent electrical faults.

Corroded Electrical Connectors

Connector corrosion can bridge adjacent terminals and introduce unwanted voltage.

Inspect for:

Faulty Transfer Case Control Module

The TCCM directly controls the 4LO output signal.

An internal module failure may cause:

Module replacement should only occur after confirming wiring integrity.

Faulty Instrument Cluster Input

Some vehicles route the 4LO signal directly to the instrument cluster.

An internal cluster fault may place battery voltage back onto the output circuit.

Although uncommon, this possibility should be considered during diagnosis.

Internal Fault in Another Control Module

The 4LO output circuit may be shared with:

An internal short within one module can affect the shared circuit.

Charging System Overvoltage

A defective alternator voltage regulator may raise overall system voltage.

This excessive voltage can trigger multiple “Circuit High” diagnostic codes, including C0362.

Poor Ground Connection

Poor grounds can distort circuit reference voltages.

Inspect:

How Serious Is C0362?

Moderately serious.

C0362 generally does not affect:

However, it may disable:

Drivers who tow heavy loads or drive off-road should repair the fault promptly.

Can You Drive With C0362?

Yes, in most cases.

Most vehicles continue operating normally in 2HI or 4HI.

However:

Avoid challenging terrain until repairs are completed.

How to Diagnose C0362

1. Scan the Transfer Case Control Module

Use a professional scan tool capable of communicating with the TCCM.

Check for related codes involving:

2. Verify Battery and Charging Voltage

Measure:

Repair charging system problems before continuing.

3. Inspect the Wiring Harness

Inspect the 4LO output circuit for:

4. Inspect Electrical Connectors

Disconnect related connectors.

Inspect for:

Repair connector issues before replacing modules.

5. Measure Circuit Voltage

Using a digital multimeter:

Verify:

Battery voltage present when the circuit should be inactive usually confirms a short to power.

6. Monitor Live Data

Using a scan tool, monitor:

Compare commanded operation with actual circuit behavior.

7. Isolate Connected Modules

Disconnect related modules one at a time while monitoring circuit voltage.

This helps determine whether another module is back-feeding voltage into the 4LO output circuit.

Common Repairs

RepairEstimated Cost
Repair damaged wiring$100–350
Replace electrical connector$75–200
Repair short to voltage$100–300
Repair ground connection$75–150
Replace Transfer Case Control Module$500–1,200
Module programming$150–300
Instrument cluster repair$300–900
Charging system repair$300–800

Common Diagnostic Mistakes

Technicians frequently:

Vehicles Commonly Affected

C0362 commonly appears on electronically shifted transfer case systems installed in:

Comparable 4LO output circuit faults may also occur on Ford F-150, Ford Super Duty, Ram 1500, Jeep Wrangler, Jeep Grand Cherokee, Toyota Tacoma, Toyota 4Runner, Nissan Frontier, Mitsubishi Montero, and other electronically controlled four-wheel-drive vehicles.

How to Prevent C0362

Reduce the likelihood of C0362 by:

Frequently Asked Questions

What causes C0362?

The most common causes include a short to battery voltage, damaged wiring, corroded connectors, a faulty Transfer Case Control Module, charging system overvoltage, or a fault in another module connected to the 4LO output circuit.

Is C0362 serious?

Moderately.

The vehicle is usually safe to drive, but 4LO and some electronic four-wheel-drive functions may become unavailable until the fault is repaired.

Can a bad TCCM cause C0362?

Yes.

Because the TCCM controls and monitors the 4LO discrete output circuit, an internal failure can cause incorrect voltage output and trigger C0362.

Does C0362 mean the transfer case is bad?

No.

Most C0362 repairs involve electrical diagnosis of the output circuit rather than internal transfer case repairs.

Will C0362 disable 4LO?

Yes.

In most vehicles, the TCCM disables low-range operation when it cannot reliably communicate the transfer case’s operating status.

Final Thoughts

The C0362 code indicates the Transfer Case Control Module has detected excessive voltage in the 4LO discrete output circuit, preventing it from reliably communicating low-range status to the rest of the vehicle. Although the transfer case itself may be capable of shifting, the TCCM disables 4LO because it cannot verify that other control modules are receiving accurate operating information.

Fortunately, most C0362 repairs involve correcting wiring faults, repairing short-to-voltage conditions, cleaning corroded connectors, or replacing a faulty TCCM after proper diagnosis. Systematic electrical testing can usually identify the root cause without replacing expensive drivetrain components.
