C0324 Code Explained: Causes, Symptoms & Transfer Case Lock Circuit High Fixes

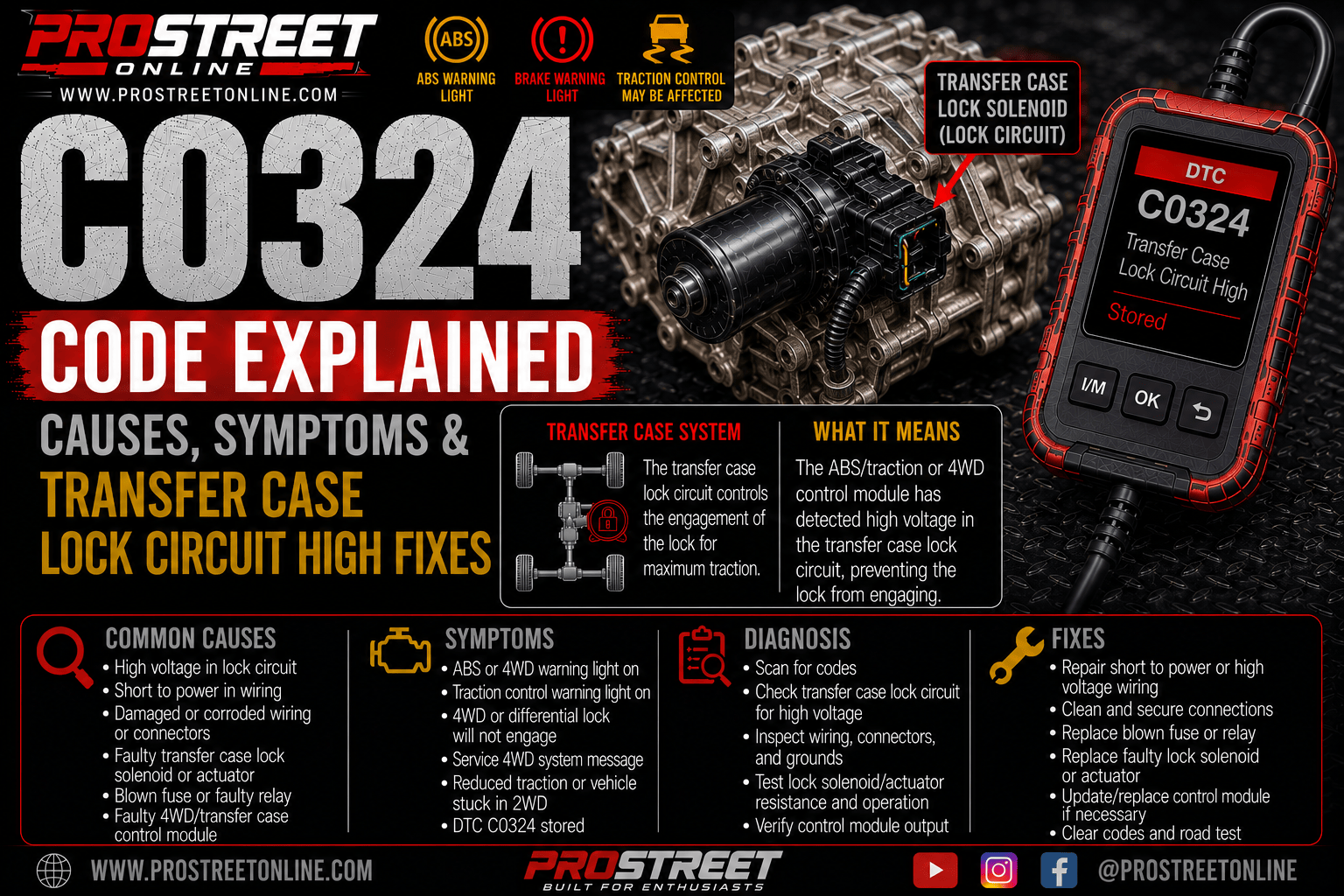

An OBD-II scanner displaying C0324 beside an electronic transfer case with the lock circuit wiring highlighted to indicate a high-voltage fault while the Service 4WD warning is illuminated.

If your scan tool displays C0324, your vehicle’s Transfer Case Control Module (TCCM) has detected higher-than-expected voltage in the Transfer Case Lock Circuit. This circuit controls the actuator or solenoid that locks the transfer case into its selected operating mode after the encoder motor completes a shift. When excessive voltage is detected, the TCCM can no longer verify proper lock operation and disables electronic transfer case shifting to protect the drivetrain.

Unlike C0323, which indicates a low-voltage condition, C0324 points to a high-voltage fault. This usually means the lock circuit is receiving battery voltage when it shouldn’t, has a short to power, or the lock actuator is internally malfunctioning. In most vehicles, the Service 4WD warning will illuminate and Auto 4WD, 4HI, or 4LO operation may become unavailable until the problem is repaired.

This code commonly appears on Chevrolet Silverado, GMC Sierra, Tahoe, Yukon, Avalanche, Suburban, TrailBlazer, Colorado, Canyon, Cadillac Escalade, Hummer H2, and Hummer H3 models equipped with electronically shifted transfer cases. Similar transfer case lock circuit faults may also occur on Ford, Ram, Jeep, Toyota, Nissan, and Mitsubishi four-wheel-drive systems.

Fortunately, many C0324 repairs involve electrical diagnosis and repair, connector replacement, or replacing the transfer case lock actuator or encoder assembly instead of rebuilding the transfer case itself.

For more transfer case and drivetrain diagnostics, visit our Complete OBD-II Trouble Code Library:

https://my.prostreetonline.com/dtc-obdii

Quick Facts

ItemInformation
OBD-II CodeC0324
DescriptionTransfer Case Lock Circuit High
CategoryChassis (C) Codes
SystemElectronic Transfer Case
Severity★★★☆☆ Moderate
Safe to Drive?Yes, but electronic four-wheel-drive operation may be disabled
Common CausesShort to voltage, failed lock actuator, damaged wiring, charging system overvoltage
Typical Repair Cost$100–900

What Does C0324 Mean?

The C0324 code indicates the Transfer Case Control Module (TCCM) has detected higher-than-expected voltage in the transfer case lock circuit.

Electronic transfer cases use two separate systems during every shift:

The lock actuator receives voltage from the TCCM when commanded to engage. The module continuously monitors circuit voltage to verify proper operation.

If voltage remains higher than expected, appears when the circuit should be inactive, or exceeds programmed limits, the TCCM assumes an electrical fault exists and stores C0324.

Possible causes include:

To prevent incomplete or unintended transfer case engagement, the TCCM disables additional shift requests until the fault is corrected.

Symptoms of C0324

Common symptoms include:

Additional symptoms may include:

Common Causes

Short to Battery Voltage

The most common cause of C0324 is a lock circuit wire contacting a power source.

This may occur because of:

A short to battery voltage keeps the circuit energized when it should not be.

Failed Lock Actuator or Solenoid

The transfer case lock actuator can fail internally.

Common failures include:

An internally shorted actuator may continuously feed excessive voltage back into the circuit.

Damaged Wiring Harness

The transfer case harness is exposed underneath the vehicle where it is susceptible to:

Damaged insulation may allow the lock circuit to contact battery voltage.

Corroded Electrical Connectors

Moisture inside electrical connectors can bridge adjacent terminals.

Inspect for:

Charging System Overvoltage

A faulty alternator voltage regulator can allow charging voltage to exceed normal operating levels.

High charging voltage may trigger transfer case lock circuit high faults.

Always verify charging voltage before replacing drivetrain components.

Poor Ground Connection

Although C0324 indicates a high-voltage condition, poor grounds can create abnormal circuit voltage readings.

Inspect:

Faulty Encoder Assembly

Some transfer case systems integrate the lock actuator within the encoder assembly.

Internal electrical failures may produce incorrect lock circuit voltage.

Faulty Transfer Case Control Module

Although uncommon, an internally failed TCCM may incorrectly energize or monitor the lock circuit.

Replace the module only after verifying all other components.

How Serious Is C0324?

Moderately serious.

C0324 generally does not affect:

However, it may disable:

Drivers who frequently encounter snow, mud, or off-road terrain should repair the problem as soon as possible.

Can You Drive With C0324?

Usually, yes.

Most vehicles remain safe to drive in 2WD.

However:

Avoid demanding off-road conditions until repairs are completed.

How to Diagnose C0324

1. Scan the Transfer Case Control Module

Use a professional scan tool capable of communicating with the TCCM.

Check for related codes involving:

2. Check Battery and Charging Voltage

Measure:

Repair charging system faults before continuing diagnosis.

3. Inspect the Wiring Harness

Inspect the lock circuit wiring between the transfer case and TCCM.

Look for:

4. Inspect Electrical Connectors

Disconnect all related connectors.

Inspect for:

Repair connector issues before replacing components.

5. Measure Circuit Voltage

Using a digital multimeter:

Verify:

Unexpected battery voltage when the actuator is inactive usually indicates a short to power.

6. Command the Lock Actuator

Using a bidirectional scan tool, command transfer case shifts.

Observe:

7. Inspect the Transfer Case

If all electrical testing passes, inspect the transfer case internally for:

Common Repairs

RepairEstimated Cost
Repair lock circuit wiring$100–350
Replace damaged connector$75–200
Replace lock actuator or solenoid$250–700
Replace encoder assembly$300–800
Charging system repair$300–800
Repair ground connection$75–150
Replace Transfer Case Control Module$500–1,200
Module programming$150–300

Common Diagnostic Mistakes

Technicians frequently:

Vehicles Commonly Affected

C0324 is commonly found on electronically shifted transfer case systems installed in:

Comparable transfer case lock circuit faults may also occur on Ford F-150, Ford Super Duty, Ram 1500, Jeep Wrangler, Jeep Grand Cherokee, Toyota Tacoma, Toyota 4Runner, Nissan Frontier, Mitsubishi Montero, and other electronically controlled four-wheel-drive vehicles.

How to Prevent C0324

Reduce the likelihood of C0324 by:

Frequently Asked Questions

What causes C0324?

The most common causes include a short to battery voltage, damaged wiring, failed lock actuator, charging system overvoltage, corroded connectors, faulty encoder assemblies, poor grounds, or a faulty Transfer Case Control Module.

Is C0324 serious?

Moderately.

The vehicle generally remains drivable, but electronic four-wheel-drive operation may be disabled until the problem is repaired.

Can an alternator cause C0324?

Yes.

A faulty alternator or voltage regulator can create excessive system voltage and trigger a Transfer Case Lock Circuit High fault.

Does C0324 mean the transfer case is bad?

No.

Most C0324 repairs involve electrical diagnosis, wiring repairs, or replacing the lock actuator or encoder assembly rather than replacing the transfer case.

Will C0324 disable four-wheel drive?

Yes.

Most TCCMs disable additional transfer case shifting when high voltage is detected in the lock circuit.

Final Thoughts

The C0324 code indicates the Transfer Case Control Module has detected excessive voltage in the transfer case lock circuit, preventing it from verifying that the transfer case has securely locked into the selected operating mode. While the encoder motor may complete the initial shift, abnormal voltage in the locking mechanism can prevent reliable four-wheel-drive engagement and cause the TCCM to disable additional shift commands.

Most C0324 repairs involve repairing a short-to-voltage condition, replacing a faulty lock actuator, correcting charging system problems, repairing damaged wiring, or replacing the encoder assembly. A systematic electrical diagnosis can usually identify the fault without replacing expensive transfer case components unnecessarily.
