C0308 Code Explained: Causes, Symptoms & Transfer Case Motor A/B Circuit Low Fixes

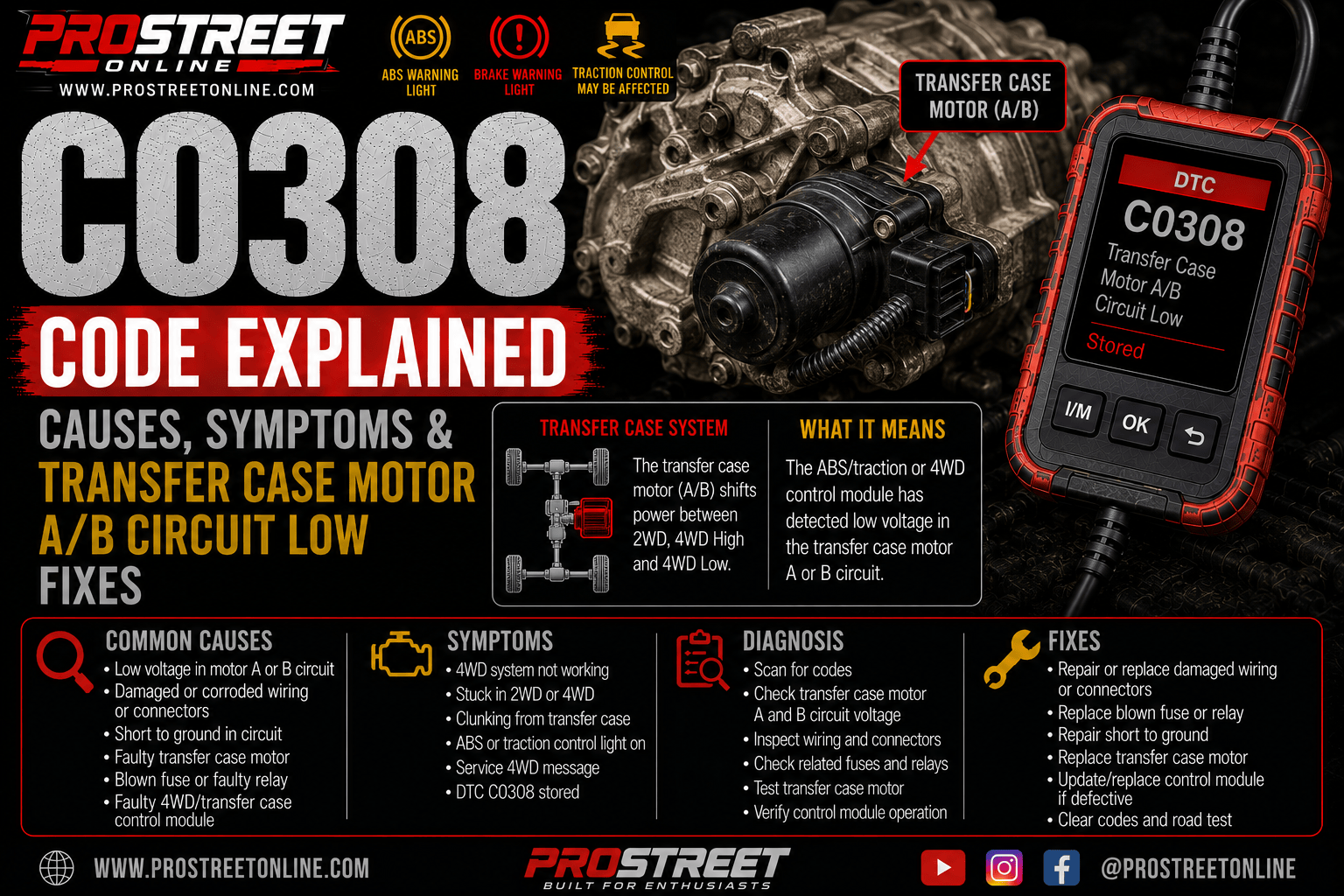

An OBD-II scanner displaying C0308 beside an electronic transfer case encoder motor with the Motor A/B wiring highlighted in red to indicate a low-voltage fault, while a Service 4WD warning is illuminated on the instrument cluster.

If your scan tool displays C0308, your vehicle’s Transfer Case Control Module (TCCM) has detected low voltage in the Transfer Case Motor A/B control circuit. This circuit powers the electronic encoder motor that physically shifts the transfer case between two-wheel drive (2HI), Auto 4WD, four-wheel drive high (4HI), Neutral, and four-wheel drive low (4LO).

Unlike speed sensor faults such as C0300 and C0305, or front axle actuator faults like C0306, C0308 specifically indicates an electrical problem with the transfer case shift motor circuit. If the TCCM detects voltage lower than expected while commanding the encoder motor, it stores C0308, disables further shift attempts, and typically illuminates a Service 4WD warning.

This code is especially common on GM trucks and SUVs equipped with New Venture Gear (NVG) and Magna electronically shifted transfer cases, including AutoTrac systems found in Chevrolet, GMC, Cadillac, and Hummer vehicles. Similar shift motor circuit faults can also occur on electronically controlled four-wheel-drive systems from Ford, Ram, Jeep, Toyota, Nissan, and other manufacturers.

Fortunately, many C0308 repairs involve wiring repairs, connector cleaning, or encoder motor replacement rather than rebuilding the transfer case.

For additional transfer case and drivetrain diagnostics, visit our Complete OBD-II Trouble Code Library:

https://my.prostreetonline.com/dtc-obdii

Quick Facts

ItemInformation
OBD-II CodeC0308
DescriptionTransfer Case Motor A/B Circuit Low
CategoryChassis (C) Codes
SystemElectronic Transfer Case
Severity★★★☆☆ Moderate
Safe to Drive?Yes, but four-wheel-drive operation may be unavailable
Common CausesFailed encoder motor, short to ground, damaged wiring, corroded connector, blown fuse, weak battery
Typical Repair Cost$100–1,200

What Does C0308 Mean?

The C0308 code indicates the Transfer Case Control Module (TCCM) has detected lower-than-expected voltage in one or both Motor A/B control circuits that operate the electronic transfer case shift motor.

Modern electronic transfer cases use a bi-directional encoder motor to physically move internal shift forks into the selected drive mode.

Typical transfer case modes include:

The TCCM controls the encoder motor using two separate circuits:

By reversing polarity between these circuits, the TCCM rotates the encoder motor clockwise or counterclockwise until the transfer case reaches the requested position.

If voltage drops below the expected threshold while the motor is operating, the module assumes there is excessive resistance, a short to ground, insufficient power supply, or an internally failed motor. To prevent transfer case damage, it stores C0308 and suspends electronic shifting.

Symptoms of C0308

Common symptoms include:

Additional symptoms may include:

Common Causes

Failed Transfer Case Encoder Motor

The encoder motor is the most common cause of C0308.

Internal failures may include:

As the motor deteriorates, current demand increases while circuit voltage drops below acceptable limits.

Short to Ground

A damaged Motor A or Motor B wire contacting the chassis or drivetrain can pull circuit voltage low.

Inspect wiring for:

High Resistance in the Circuit

High resistance reduces available voltage.

Common sources include:

Corroded Shift Motor Connector

The encoder motor connector sits underneath the vehicle where it is exposed to:

Connector corrosion is one of the most common causes of intermittent C0308 faults.

Low Battery Voltage

Weak batteries can reduce voltage supplied to the TCCM and encoder motor.

Always verify battery condition before replacing expensive drivetrain components.

Charging System Problems

A failing alternator can produce unstable system voltage that causes transfer case motor circuit faults.

Verify charging voltage during diagnosis.

Blown Fuse

Many electronic transfer cases use dedicated fuses for:

Inspect all related fuses before replacing components.

Internal Transfer Case Binding

Mechanical problems inside the transfer case can overload the encoder motor.

Possible causes include:

The overloaded motor draws excessive current, causing voltage to drop.

Faulty Transfer Case Control Module

Although uncommon, an internally failed TCCM may incorrectly monitor or command the Motor A/B circuits.

Replace the module only after verifying the encoder motor and wiring.

How Serious Is C0308?

Moderately serious.

The vehicle generally remains safe to drive in two-wheel drive.

However, the following functions may be unavailable:

Drivers who regularly tow, travel in snow, or use off-road terrain should repair the fault promptly.

Can You Drive With C0308?

Yes.

In most cases:

However:

Avoid severe off-road use until repairs are completed.

How to Diagnose C0308

1. Scan the Transfer Case Control Module

Use a professional scan tool capable of communicating with the TCCM.

Look for related codes involving:

2. Verify Battery and Charging Voltage

Measure:

Correct any voltage issues before continuing.

3. Command the Encoder Motor

Using a professional scan tool, command the transfer case through each operating mode.

Observe:

Failure to move usually indicates an electrical or mechanical problem.

4. Inspect the Encoder Motor Connector

Disconnect the connector and inspect for:

Repair connector damage before replacing the motor.

5. Inspect Motor A/B Wiring

Inspect the harness between the encoder motor and TCCM for:

Repair damaged wiring as needed.

6. Measure Circuit Voltage

Using a digital multimeter:

Verify:

Compare readings with manufacturer specifications.

7. Inspect the Transfer Case

If electrical testing passes, inspect for:

Binding components can overload the encoder motor and trigger C0308.

Common Repairs

RepairEstimated Cost
Replace transfer case encoder motor$250–700
Repair Motor A/B wiring$100–300
Replace damaged connector$75–200
Replace blown fuse$20–50
Battery replacement$150–350
Charging system repair$300–800
Transfer case rebuild$1,200–2,800
Replace Transfer Case Control Module$500–1,200
Module programming$150–300

Common Diagnostic Mistakes

Technicians frequently:

Vehicles Commonly Affected

C0308 is commonly found on electronically shifted transfer case systems, including:

Comparable transfer case shift motor circuit faults are also found on Ford Super Duty, Ford F-150, Ram 1500, Jeep Wrangler, Jeep Grand Cherokee, Toyota Tacoma, Toyota 4Runner, Nissan Frontier, Mitsubishi Montero, and other electronically controlled 4WD vehicles.

How to Prevent C0308

Reduce the likelihood of C0308 by:

Frequently Asked Questions

What causes C0308?

The most common causes include a failed transfer case encoder motor, shorted Motor A/B wiring, corroded connectors, low battery voltage, charging system problems, blown fuses, internal transfer case binding, or a faulty TCCM.

Is C0308 serious?

Moderately.

While the vehicle usually remains drivable, electronic four-wheel-drive functions may become unavailable until the fault is repaired.

Can a weak battery cause C0308?

Yes.

Low system voltage is a common cause of transfer case motor circuit faults and should always be checked early in the diagnostic process.

Does C0308 mean the transfer case is bad?

Not necessarily.

Most repairs involve replacing the encoder motor or repairing the electrical circuit rather than replacing the transfer case itself.

Will C0308 disable four-wheel drive?

Yes.

Most vehicles disable Auto 4WD and may prevent shifting into 4HI or 4LO until the low-voltage condition is corrected.

Final Thoughts

The C0308 code indicates that the Transfer Case Control Module has detected low voltage in the Motor A/B circuit controlling the transfer case encoder motor. Because the encoder motor physically shifts the transfer case between drive modes, insufficient voltage can prevent proper operation and force the TCCM to disable four-wheel-drive functions to protect the drivetrain.

Most C0308 repairs involve replacing a worn encoder motor, repairing damaged wiring, cleaning corroded connectors, restoring proper battery voltage, or correcting internal transfer case binding. A thorough diagnosis that includes voltage testing, scan tool commands, and mechanical inspection can usually pinpoint the problem without unnecessary replacement of expensive drivetrain components.
