C0291 Code Explained: Causes, Symptoms & Lost Communication With Brake Pressure Modulator Fixes

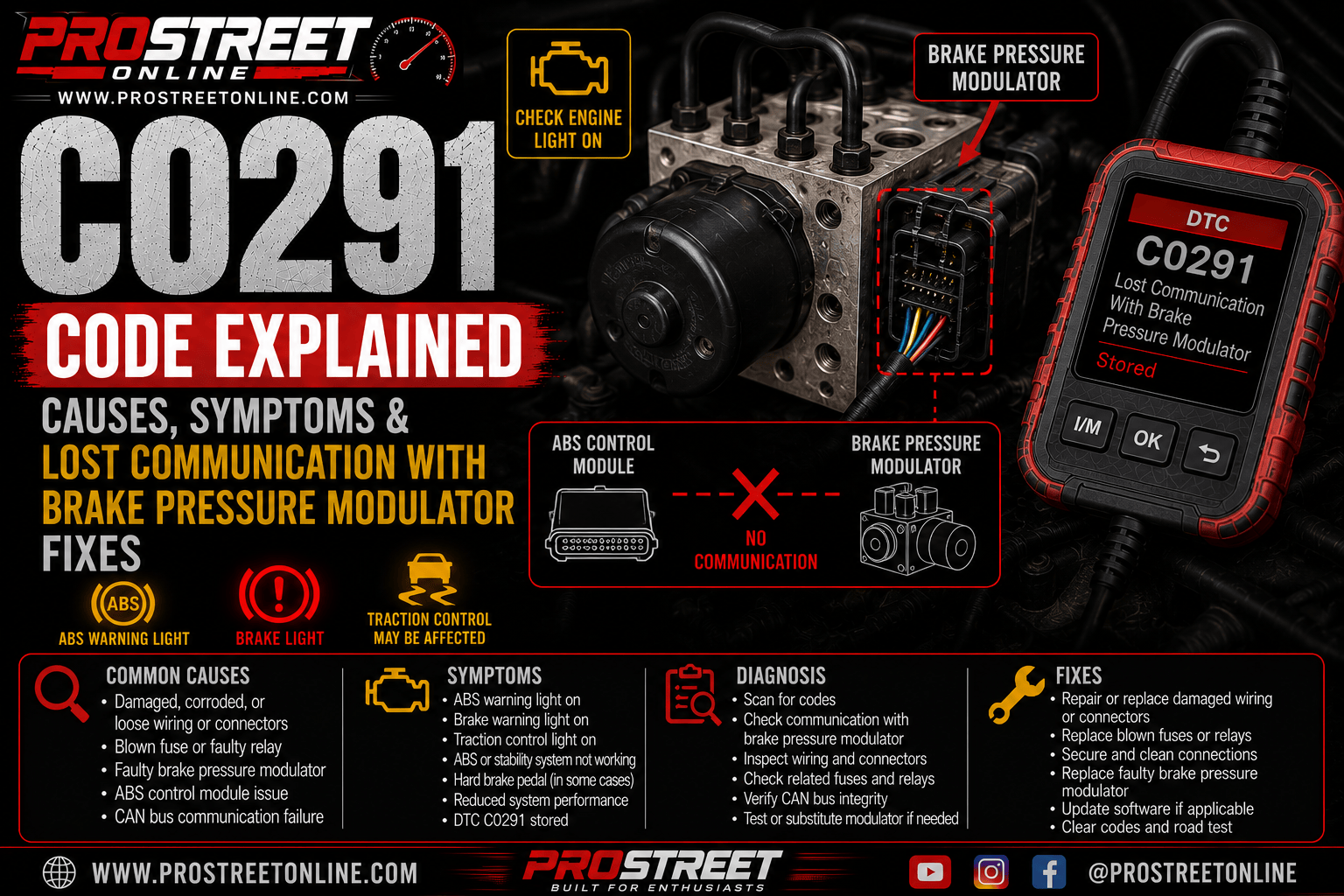

An OBD-II scanner displaying C0291 next to an ABS hydraulic control unit with the Electronic Brake Control Module mounted on top, highlighting a lost communication path while the ABS, brake, traction control, and StabiliTrak warning lights are illuminated.

If your scan tool displays C0291, your vehicle’s Electronic Brake Control Module (EBCM) has detected a loss of communication with the Brake Pressure Modulator (BPM), sometimes referred to as the Hydraulic Control Unit (HCU) or ABS hydraulic modulator. This communication is critical because the brake pressure modulator physically controls the hydraulic valves and pump motor that make modern Anti-lock Braking Systems (ABS) possible.

Unlike sensor-related faults, C0291 is a communication code indicating the EBCM can no longer properly monitor or control the hydraulic portion of the ABS system. When this occurs, the module disables ABS, Traction Control (TCS), Electronic Stability Control (ESC/StabiliTrak), and other advanced braking features to prevent unpredictable brake operation.

On many modern vehicles, the EBCM is bolted directly to the Hydraulic Control Unit and communicates through an internal connector or circuit board. On others, communication occurs through dedicated wiring. Regardless of design, any interruption in this communication can trigger C0291.

For additional chassis diagnostics and repair guides, visit our Complete OBD-II Trouble Code Guide:

https://my.prostreetonline.com/dtc-obdii

Quick Facts

ItemInformation
OBD-II CodeC0291
DescriptionLost Communication With Brake Pressure Modulator
CategoryChassis (C) Codes
SystemABS / Hydraulic Control Unit
Severity★★★★☆ High
Safe to Drive?Yes, but ABS and stability systems will likely be disabled
Common CausesHydraulic Control Unit failure, EBCM failure, damaged wiring, low voltage, connector corrosion
Typical Repair Cost$150–2,500

What Does C0291 Mean?

The C0291 code indicates the Electronic Brake Control Module has lost communication with the Brake Pressure Modulator, preventing it from controlling hydraulic brake pressure during ABS operation.

The Brake Pressure Modulator is responsible for rapidly increasing, holding, and releasing hydraulic brake pressure whenever the ABS system detects wheel lockup. It contains:

During hard braking, the EBCM sends commands to the Brake Pressure Modulator to rapidly cycle brake pressure dozens of times per second. This allows the wheels to continue rotating while maximizing braking force and steering control.

If communication between these components is interrupted, the EBCM cannot verify valve operation or pump activity. To protect the braking system, it stores C0291 and disables all advanced electronic braking functions.

Symptoms of C0291

Common symptoms include:

Some vehicles may also experience:

Common Causes

Internal Hydraulic Control Unit Failure

The Brake Pressure Modulator contains numerous electronic and hydraulic components.

Internal failures may include:

This is one of the most common causes of C0291.

Faulty Electronic Brake Control Module

Although physically attached on many vehicles, the EBCM is often serviceable separately.

An internal communication failure within the EBCM can prevent proper communication with the Hydraulic Control Unit.

Damaged Wiring Harness

Vehicles with externally connected hydraulic modulators may develop wiring damage from:

Loose or Corroded Connectors

Connector problems frequently interrupt communication.

Inspect for:

Low Battery Voltage

The ABS system requires stable system voltage.

A weak battery can interrupt communication between the EBCM and Hydraulic Control Unit during startup or heavy electrical loads.

Charging System Problems

A failing alternator or unstable voltage regulator can cause intermittent communication failures that trigger C0291.

Blown ABS Fuse

Always inspect:

Loss of power to either component immediately interrupts communication.

Poor Ground Connections

Loose or corroded grounds can prevent reliable communication.

Inspect:

Water Intrusion

Moisture entering the ABS hydraulic assembly is a common cause of intermittent communication faults, especially in vehicles operated in wet or snowy climates.

How Serious Is C0291?

High.

Although standard hydraulic braking usually remains functional, the following systems are typically disabled:

Without these systems, emergency braking performance and vehicle stability are significantly reduced.

Can You Drive With C0291?

Yes—but carefully.

The vehicle generally maintains conventional braking.

However:

Driving should be limited until repairs are completed.

How to Diagnose C0291

1. Scan the Entire Vehicle

Use a professional scan tool capable of communicating with:

Look for additional communication or hydraulic system codes.

2. Check Battery and Charging System

Measure:

Low voltage can interrupt communication between ABS components.

3. Verify Power and Ground

Using wiring diagrams, verify the Brake Pressure Modulator and EBCM receive:

Missing power or ground often mimics module failure.

4. Inspect Connectors

Disconnect the EBCM and Hydraulic Control Unit connectors.

Inspect for:

5. Inspect the Wiring Harness

Inspect for:

Repair damaged wiring before replacing modules.

6. Perform Active ABS Tests

Many professional scan tools allow technicians to command:

If the scan tool cannot communicate with the Brake Pressure Modulator during active testing, internal module failure becomes much more likely.

7. Inspect the Hydraulic Control Unit

If wiring, voltage, and communication circuits test normally, inspect the Hydraulic Control Unit for internal electronic failure.

Some manufacturers require replacement of the complete ABS hydraulic assembly, while others allow replacement of the EBCM separately.

Common Repairs

RepairEstimated Cost
Repair damaged wiring$100–400
Replace damaged connector$75–250
Replace blown ABS fuse$20–50
Replace battery$150–350
Repair charging system$300–800
Replace Hydraulic Control Unit$700–1,800
Replace Electronic Brake Control Module$800–2,000
Module programming$150–300

Common Diagnostic Mistakes

Technicians frequently:

Vehicles Commonly Affected

C0291 is commonly reported on:

Similar Brake Pressure Modulator communication faults are also found on many Ford, Toyota, Honda, Nissan, Hyundai, Kia, Volkswagen, BMW, Mercedes-Benz, and Subaru vehicles equipped with Bosch, Continental, or Aisin ABS systems.

How to Prevent C0291

Reduce the likelihood of C0291 by:

Frequently Asked Questions

What causes C0291?

The most common causes include a failed Hydraulic Control Unit, faulty Electronic Brake Control Module, damaged wiring, connector corrosion, low battery voltage, blown fuses, poor grounds, or charging system problems.

Is C0291 serious?

Yes.

Although standard braking usually remains available, losing ABS, traction control, and stability control significantly reduces vehicle safety during emergency braking and slippery road conditions.

Does C0291 mean the ABS module is bad?

Not necessarily.

Many C0291 faults are caused by wiring problems, low voltage, blown fuses, or poor connections rather than failed modules.

Can low battery voltage trigger C0291?

Yes.

Insufficient system voltage is a common cause of intermittent ABS communication failures.

Will C0291 affect normal braking?

Usually not.

Conventional hydraulic braking generally continues to operate, but advanced electronic braking features will be unavailable.

Final Thoughts

The C0291 code indicates the Electronic Brake Control Module has lost communication with the Brake Pressure Modulator, preventing the ABS system from controlling hydraulic brake pressure during emergency braking. While the vehicle usually retains conventional braking, the loss of ABS, traction control, electronic stability control, and brake assist can significantly reduce safety on wet, icy, or loose road surfaces.

Most C0291 repairs involve diagnosing communication circuits, verifying battery voltage, checking power and ground connections, inspecting connectors, and testing the Hydraulic Control Unit before replacing expensive ABS components. A systematic diagnostic approach helps identify the true cause of the communication failure and prevents unnecessary parts replacement.
