B0086 Code Explained: Driver Frontal Deployment Loop Stage 2 Resistance Out of Range (Subfault)

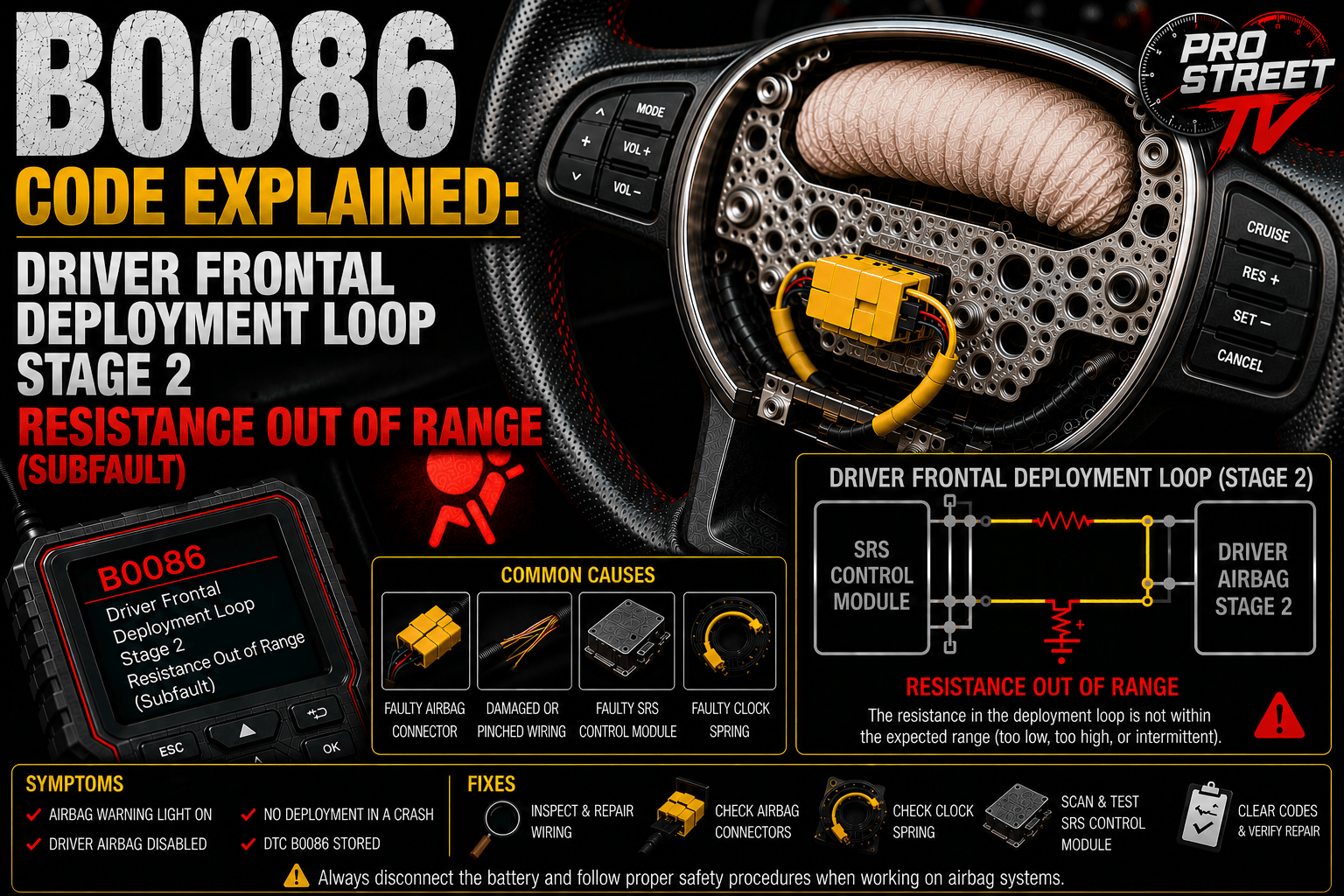

OBD-II scanner displaying B0086 beside a steering wheel airbag with a highlighted clock spring and SRS wiring illustrating an out-of-range resistance fault in the Driver Stage 2 deployment circuit.

If your scan tool displays B0086, your vehicle has detected that the Driver Frontal Airbag Stage 2 deployment circuit has electrical resistance outside the manufacturer’s acceptable operating range. This Body (B) diagnostic trouble code (DTC) indicates a fault within the Supplemental Restraint System (SRS) that could prevent the second stage of the driver’s front airbag from deploying correctly during a collision.

Unlike codes that specifically indicate high resistance, low resistance, an open circuit, or a short to ground, B0086 is a more general diagnostic code. It means the Airbag Control Module (ACM) has detected an abnormal resistance value that falls outside its expected operating window. As a safety precaution, the ACM disables the affected deployment loop, stores B0086, and illuminates the Airbag Warning Light.

Because this code affects a critical occupant protection system, it should be diagnosed and repaired as soon as possible.

If you’re researching additional airbag or Body diagnostic codes, visit our Complete OBD-II Trouble Code Guide:

https://my.prostreetonline.com/dtc-obdii

Quick Facts

ItemInformation
OBD-II CodeB0086
DescriptionDriver Frontal Deployment Loop Stage 2 Resistance Out of Range (Subfault)
CategoryBody (B) Codes
SystemSupplemental Restraint System (SRS)
Severity★★★★★ Critical
Safe to Drive?Mechanically yes, safety-wise no
Common CausesFailed clock spring, damaged wiring, loose connectors, faulty driver airbag
Typical Repair Cost$150–2,000

What Does B0086 Mean?

The B0086 code indicates the Airbag Control Module (ACM) has detected abnormal electrical resistance within the Driver Frontal Airbag Stage 2 deployment circuit.

The deployment loop typically consists of:

Every time the ignition is switched on, the ACM performs a self-test by measuring the resistance of each deployment circuit. If the measured resistance falls outside the acceptable operating range—but cannot be specifically categorized as high resistance, low resistance, an open circuit, or a short—the ACM stores B0086.

Because the driver’s deployment circuit passes through the clock spring, failures in this component are among the most common causes of B0086.

If you’re troubleshooting related SRS faults, you may also find these guides helpful:

Symptoms of B0086

Common symptoms include:

Although drivability is unaffected, the driver’s airbag may not provide full protection during a collision.

Common Causes

Failed Clock Spring

A worn or internally damaged clock spring is one of the leading causes of B0086.

As the steering wheel turns, the internal ribbon cable flexes continuously and may eventually develop intermittent electrical faults.

Damaged Steering Column Wiring

The wiring harness may become:

Loose or Corroded SRS Connectors

Poor electrical contact may result from:

Previous Steering Wheel or Collision Repairs

Improper repairs can introduce:

Faulty Driver Airbag Module

An internal inflator fault may produce abnormal resistance readings.

Airbag Control Module Failure

Although uncommon, an internal ACM fault may incorrectly report an out-of-range resistance condition.

How Serious Is B0086?

Extremely serious.

If the Driver Stage 2 deployment circuit is disabled:

Repairs should not be delayed.

Can You Drive With B0086?

Mechanically, yes.

From a safety standpoint, no.

The vehicle will generally continue operating normally, but the driver’s frontal airbag may not function correctly during an accident.

How to Diagnose B0086

1. Scan the SRS Module

Use a professional scan tool capable of reading manufacturer-specific Body (B) codes.

Most basic OBD-II scanners cannot communicate with the Airbag Control Module.

2. Inspect the Clock Spring

Look for additional symptoms such as:

These often point to a worn or damaged clock spring.

3. Inspect Steering Column Wiring

Inspect the harness for:

4. Inspect SRS Connectors

Check for:

5. Verify Circuit Resistance

Following the manufacturer’s approved service information, verify deployment loop resistance using approved SRS diagnostic procedures.

Never apply battery voltage, probe an airbag inflator with a powered test light, or bypass an SRS deployment circuit. Airbag components contain pyrotechnic devices that can deploy unexpectedly if improper testing methods are used.

Common Repairs

RepairEstimated Cost
Replace clock spring$250–600
Repair steering column wiring$150–450
Replace SRS connector$100–250
Replace driver airbag module$500–1,200
Replace Airbag Control Module$900–2,000

Common Diagnostic Mistakes

One of the most common mistakes is replacing the driver airbag module before inspecting the clock spring, steering column wiring, and SRS connectors.

Many B0086 repairs are ultimately traced to:

Always inspect the complete deployment circuit before replacing expensive SRS components.

Vehicles Commonly Affected

B0086 may appear on vehicles from many manufacturers, including:

Manufacturer-specific resistance specifications, wiring layouts, and repair procedures vary by vehicle.

How to Prevent B0086

Although not every failure can be prevented, these maintenance practices can reduce the likelihood of B0086:

Frequently Asked Questions

What causes B0086?

Common causes include a failed clock spring, damaged steering column wiring, loose or corroded SRS connectors, previous repair damage, a faulty driver airbag module, or a defective Airbag Control Module.

Is B0086 dangerous?

Yes.

The code can disable the Driver Stage 2 deployment circuit, reducing driver protection during a collision.

Can a bad clock spring cause B0086?

Yes.

A worn or internally damaged clock spring is one of the most common causes of this code.

Can I clear B0086 myself?

Yes.

However, unless the underlying electrical fault has been repaired, the code will usually return during the next SRS self-test.

Will B0086 affect vehicle performance?

No.

The code only affects the Supplemental Restraint System and does not impact engine, transmission, steering, or braking performance.

Final Thoughts

The B0086 code indicates that the Driver Frontal Airbag Stage 2 deployment circuit has resistance outside the manufacturer’s acceptable operating range, most commonly caused by a failing clock spring, damaged steering column wiring, loose connectors, previous repair damage, or an internal airbag module fault.

Although the vehicle will usually continue to drive normally, the driver’s airbag may not deploy properly during a collision. Prompt diagnosis using manufacturer-approved SRS procedures is essential to restore safe Supplemental Restraint System operation.

For additional airbag diagnostics and Body code repair guides, browse our complete Body (B) OBD-II Code Library:

https://my.prostreetonline.com/category/how-to/dtc-obdii
