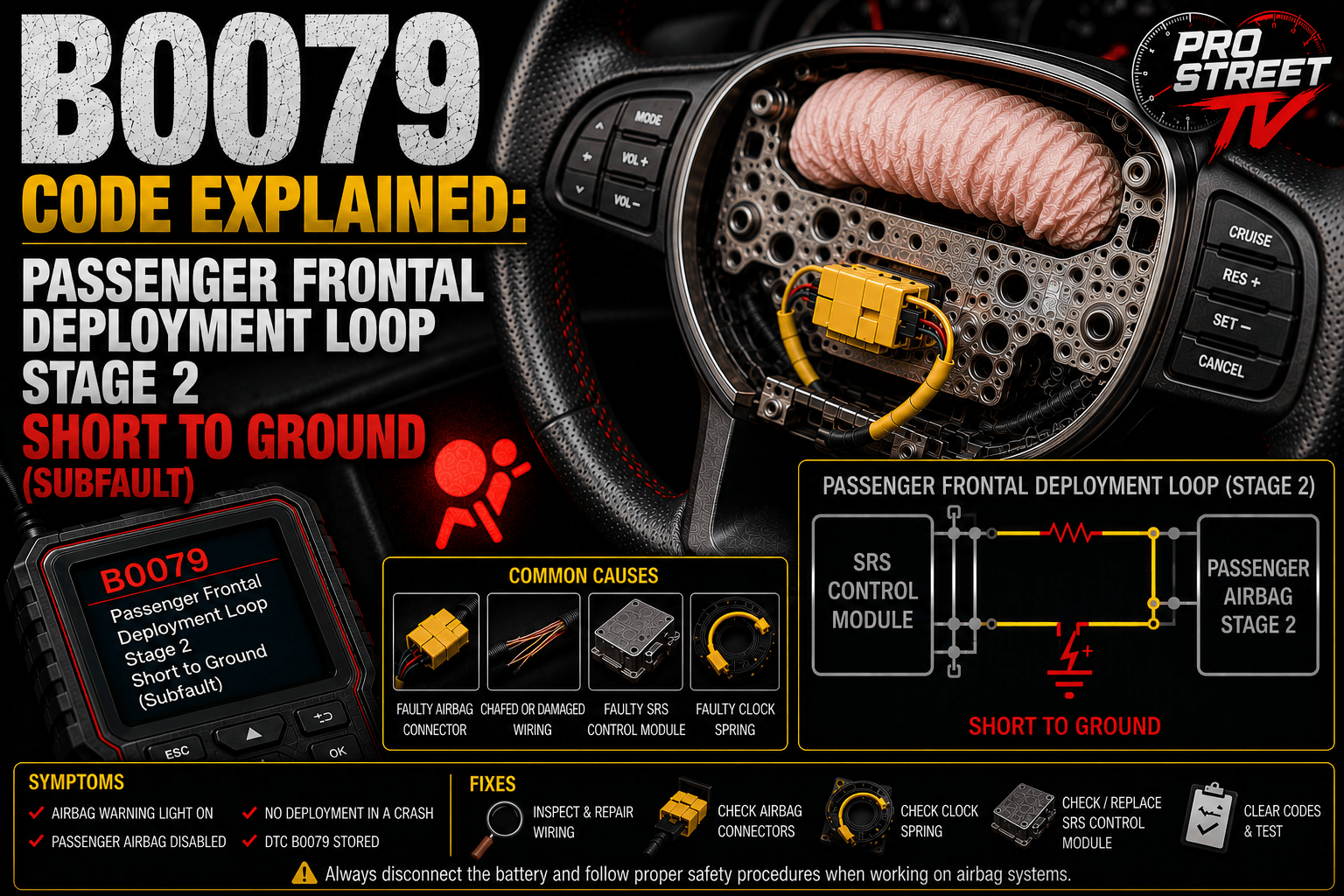

If your OBD-II scanner displays B0079, your vehicle has detected a short to ground in the Passenger Frontal Airbag Stage 2 deployment loop. This diagnostic trouble code (DTC) indicates a serious electrical fault within the Supplemental Restraint System (SRS) that could prevent the second stage of the passenger front airbag from deploying correctly during a severe collision.
Most modern vehicles use dual-stage front airbags that deploy in multiple stages depending on crash severity, occupant weight, seat position, and seat belt usage. The Airbag Control Module (ACM) continuously monitors both deployment circuits for proper resistance, checking for open circuits, shorts to voltage, shorts to ground, and abnormal resistance values. If it detects the Passenger Stage 2 deployment circuit has become shorted to ground, it stores B0079 and illuminates the Airbag Warning Light.
This guide explains what the B0079 code means, common symptoms, likely causes, repair costs, and how professional technicians safely diagnose and repair the issue.
Quick Facts
| Item | Information |
|---|---|
| OBD-II Code | B0079 |
| Description | Passenger Frontal Deployment Loop Stage 2 Short to Ground (Subfault) |
| Category | Body (B) |
| System | Supplemental Restraint System (SRS) |
| Severity | ★★★★★ (Critical) |
| Safe to Drive? | Mechanically yes, safety-wise no |
| Repair Difficulty | Advanced |
| Typical Repair Cost | $150–2,000 |
What Does B0079 Mean?
The B0079 diagnostic trouble code indicates the Airbag Control Module has detected a short-to-ground fault within the Passenger Frontal Airbag Stage 2 deployment loop.
The Stage 2 deployment circuit typically includes:
- Passenger Stage 2 airbag inflator
- Passenger dashboard airbag module
- Dashboard wiring harness
- Intermediate SRS connectors
- Airbag wiring
- Airbag Control Module (ACM)
Every time the ignition is switched on, the ACM performs an electrical integrity test of every deployment circuit.
A short to ground occurs when the deployment circuit unintentionally contacts chassis ground or another grounded conductor. This causes circuit resistance to fall outside the normal operating range, prompting the ACM to disable the Stage 2 deployment loop and store B0079.
Symptoms of B0079
Drivers commonly notice:
- Airbag warning light illuminated
- “Service Airbag” or “SRS Service Required” message
- Stored B0079 code
- Passenger Airbag OFF indicator behaving abnormally on some vehicles
- Additional SRS-related diagnostic trouble codes
- No engine, steering, braking, or transmission performance issues
Since the fault affects only the Supplemental Restraint System, normal driving characteristics are generally unchanged.
Common Causes
1. Chafed Passenger Airbag Wiring
The dashboard harness may become damaged, allowing the deployment wire to contact:
- Dashboard support brackets
- Vehicle chassis
- Grounded metal structures
2. Pinched Dashboard Harness
Improper dashboard installation or collision repairs may pinch the SRS harness against grounded components.
3. Faulty Passenger Airbag Module
An internal electrical failure within the Stage 2 inflator may create a short-to-ground condition.
4. Damaged SRS Connectors
Connector issues may include:
- Bent terminals
- Corrosion
- Moisture intrusion
- Broken locking tabs
- Internal electrical shorts
5. Previous Collision Repairs
Improper repairs may result in:
- Incorrect harness routing
- Chafed insulation
- Poor electrical repairs
- Pinched wiring
6. Airbag Control Module Failure
Although uncommon, an internal ACM failure may falsely report a short-to-ground condition.
How Serious Is B0079?
Extremely serious.
If the Passenger Stage 2 deployment loop is disabled:
- The passenger frontal airbag may not fully inflate during a severe collision.
- Occupant protection is significantly reduced.
- Overall Supplemental Restraint System performance is compromised.
Repairs should be completed immediately.
Can You Drive With B0079?
Mechanically, yes.
From a safety standpoint, no.
Although the vehicle will typically continue to drive normally, the passenger frontal airbag may not fully deploy during a serious collision.
How to Diagnose B0079
Step 1: Scan the SRS Module
Use a professional scan tool capable of accessing:
- Supplemental Restraint System
- Airbag Control Module
- Manufacturer-specific SRS diagnostics
Most inexpensive OBD-II readers cannot retrieve Body (B) codes.
Step 2: Inspect Passenger Airbag Connectors
Inspect connectors for:
- Bent terminals
- Loose connections
- Corrosion
- Moisture contamination
- Broken locking tabs
Step 3: Inspect Dashboard Wiring
Inspect the harness for:
- Chafed insulation
- Pinched wiring
- Contact with grounded metal
- Previous repair damage
Step 4: Verify Circuit Integrity
Following the manufacturer’s approved SRS diagnostic procedures, inspect the deployment circuit for short-to-ground faults using the recommended diagnostic equipment.
Never apply battery voltage, use a powered test light, or bypass an airbag deployment circuit. Airbag systems contain pyrotechnic devices and should only be tested according to manufacturer-approved procedures.
Step 5: Inspect the Passenger Airbag Module
Inspect for:
- Previous deployment
- Internal damage
- Water intrusion
- Incorrect replacement components
Replace the airbag module only after confirming an internal electrical fault.
Common Repair Solutions
| Repair | Estimated Cost |
|---|---|
| Repair dashboard wiring | $150–450 |
| Replace SRS connector | $100–250 |
| Replace passenger airbag module | $500–1,200 |
| Replace dashboard wiring harness | $300–700 |
| Replace Airbag Control Module | $900–2,000 |
Common Diagnostic Mistakes
A common mistake is replacing the passenger airbag module before thoroughly inspecting the dashboard wiring and connectors.
Many B0079 repairs ultimately involve:
- Chafed wiring
- Pinched harnesses
- Corroded connectors
- Previous collision repair damage
Always inspect the complete deployment circuit before replacing expensive SRS components.
Vehicles That Commonly Experience B0079
B0079 may appear on:
- Chevrolet Silverado
- GMC Sierra
- Chevrolet Tahoe
- GMC Yukon
- Cadillac Escalade
- Ford F-150
- Ford Explorer
- Toyota Camry
- Toyota Highlander
- Honda Accord
- Honda CR-V
- Acura MDX
- Nissan Altima
- Hyundai Santa Fe
- Kia Sorento
Manufacturer-specific definitions, wiring layouts, and repair procedures may vary by vehicle.
How to Prevent B0079
Although some failures cannot be prevented, these maintenance practices can reduce the likelihood of B0079:
- Protect dashboard wiring during repairs.
- Ensure SRS harnesses are routed correctly.
- Repair windshield leaks promptly.
- Use OEM-quality replacement SRS components.
- Inspect wiring after dashboard removal.
- Investigate SRS warning lights immediately.
Frequently Asked Questions
What causes B0079?
The most common causes include chafed passenger airbag wiring contacting ground, damaged connectors, faulty passenger airbag modules, previous collision repairs, or Airbag Control Module failure.
What does “Short to Ground” mean?
It means the deployment circuit is unintentionally contacting chassis ground or another grounded electrical path, causing circuit resistance to fall below its normal operating range.
Is B0079 dangerous?
Yes.
A short-to-ground fault can disable the Passenger Stage 2 deployment circuit and prevent the passenger airbag from fully deploying during a severe collision.
Can I clear B0079 myself?
Yes, but unless the underlying electrical fault has been repaired, the code will return during the next SRS self-test.
Does B0079 always require replacing the passenger airbag?
No.
Many repairs involve repairing damaged wiring or replacing faulty connectors rather than replacing the passenger airbag module.
Will B0079 affect vehicle performance?
No.
The code affects only the Supplemental Restraint System and has no impact on engine performance, steering, braking, or transmission operation.
Final Thoughts
The B0079 code indicates that the Passenger Frontal Airbag Stage 2 deployment loop has developed a short-to-ground fault, most commonly caused by damaged dashboard wiring, pinched harnesses, faulty connectors, previous collision repair damage, or an internal airbag module failure. While the vehicle will generally continue to operate normally, the passenger frontal airbag may not fully deploy during a severe collision, significantly reducing occupant protection.
Fortunately, many B0079 repairs involve repairing damaged wiring or replacing faulty connectors rather than replacing the passenger airbag module itself. A complete diagnosis using manufacturer-approved SRS procedures is essential to restore safe Supplemental Restraint System operation.
