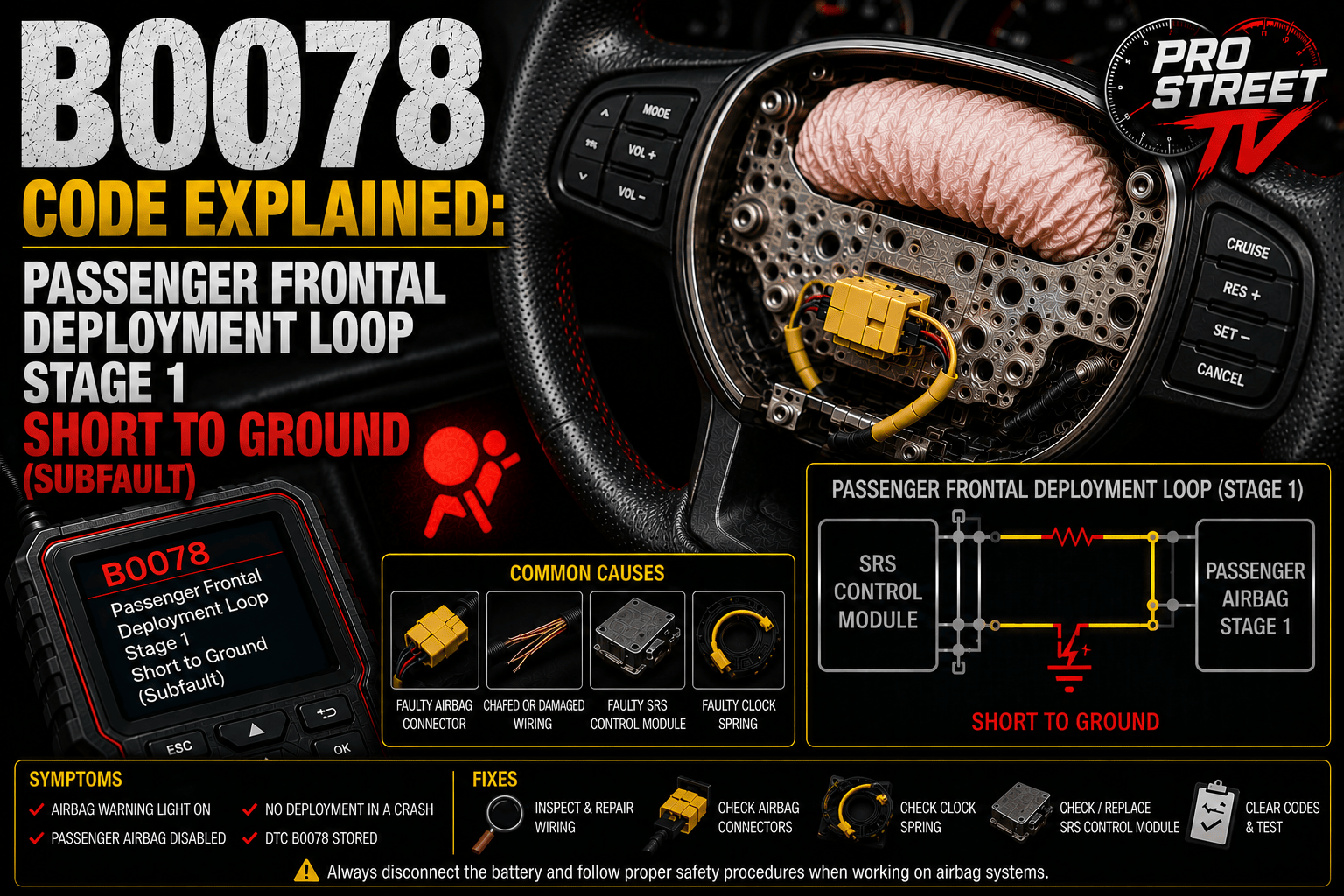

If your OBD-II scanner displays B0078, your vehicle has detected a short to ground in the Passenger Frontal Airbag Stage 1 deployment loop. This diagnostic trouble code (DTC) indicates a serious electrical fault within the Supplemental Restraint System (SRS) that could prevent the first stage of the passenger front airbag from deploying correctly during a collision.
Most modern vehicles are equipped with dual-stage front airbags, which use two separate deployment circuits to control inflation based on crash severity, occupant weight, seat position, and seat belt usage. The Airbag Control Module (ACM) continuously monitors both deployment loops for proper resistance, checking for open circuits, shorts to voltage, shorts to ground, and abnormal resistance values. If the ACM detects the Passenger Stage 1 deployment circuit has become shorted to ground, it stores B0078 and illuminates the Airbag Warning Light.
This guide explains what the B0078 code means, common symptoms, likely causes, repair costs, and how professional technicians diagnose and repair the issue safely.
Quick Facts
| Item | Information |
|---|---|
| OBD-II Code | B0078 |
| Description | Passenger Frontal Deployment Loop Stage 1 Short to Ground (Subfault) |
| Category | Body (B) |
| System | Supplemental Restraint System (SRS) |
| Severity | ★★★★★ (Critical) |
| Safe to Drive? | Mechanically yes, safety-wise no |
| Repair Difficulty | Advanced |
| Typical Repair Cost | $150–2,000 |
What Does B0078 Mean?
The B0078 diagnostic trouble code indicates the Airbag Control Module has detected a short-to-ground fault within the Passenger Frontal Airbag Stage 1 deployment loop.
The deployment circuit typically includes:
- Passenger Stage 1 airbag inflator
- Passenger dashboard airbag module
- Dashboard wiring harness
- Intermediate SRS connectors
- Airbag wiring
- Airbag Control Module (ACM)
During every ignition cycle, the ACM performs electrical integrity tests on each deployment circuit.
A short to ground occurs when the deployment circuit unintentionally contacts chassis ground or another grounded electrical conductor. This causes circuit resistance to fall outside the normal operating range, prompting the ACM to disable the deployment loop and store B0078.
Symptoms of B0078
Drivers commonly notice:
- Airbag warning light illuminated
- “Service Airbag” or “SRS Service Required” message
- Stored B0078 code
- Passenger Airbag OFF indicator behaving abnormally
- Additional SRS-related diagnostic trouble codes
- No engine, transmission, steering, or braking performance issues
Because the fault affects only the Supplemental Restraint System, normal driving characteristics are generally unchanged.
Common Causes
1. Chafed Passenger Airbag Wiring
The dashboard harness may become damaged, allowing the deployment wire to contact:
- Dashboard support brackets
- Vehicle chassis
- Grounded metal components
2. Pinched Dashboard Harness
Improper dashboard installation or previous repairs may pinch the SRS wiring against grounded metal.
3. Faulty Passenger Airbag Module
An internal electrical fault within the Stage 1 inflator may create a short-to-ground condition.
4. Damaged SRS Connectors
Connector issues may include:
- Bent terminals
- Corrosion
- Moisture contamination
- Broken locking tabs
- Internal shorts
5. Previous Collision Repairs
Improper repairs may result in:
- Incorrect harness routing
- Chafed insulation
- Poor electrical repairs
- Pinched wiring
6. Airbag Control Module Failure
Although uncommon, an internal ACM failure may falsely report a short-to-ground condition.
How Serious Is B0078?
Extremely serious.
If the Passenger Stage 1 deployment loop is disabled:
- The passenger frontal airbag may fail to deploy.
- Occupant protection is significantly reduced.
- The Supplemental Restraint System cannot function as designed.
Immediate diagnosis and repair are recommended.
Can You Drive With B0078?
Mechanically, yes.
From a safety standpoint, no.
Although the vehicle will typically drive normally, the passenger frontal airbag may not deploy during a collision.
How to Diagnose B0078
Step 1: Scan the SRS Module
Use a professional scan tool capable of accessing:
- Supplemental Restraint System
- Airbag Control Module
- Manufacturer-specific SRS diagnostics
Most generic OBD-II readers cannot access Body (B) codes.
Step 2: Inspect Passenger Airbag Connectors
Inspect connectors for:
- Bent terminals
- Loose connections
- Corrosion
- Moisture contamination
- Broken locking tabs
Step 3: Inspect Dashboard Wiring
Inspect the harness for:
- Chafed insulation
- Pinched wiring
- Contact with grounded metal
- Previous repair damage
Step 4: Verify Circuit Integrity
Following the manufacturer’s approved SRS diagnostic procedures, inspect the deployment circuit for short-to-ground faults using the specified testing equipment.
Never use a powered test light, apply battery voltage, or bypass an airbag deployment circuit. Airbag systems contain pyrotechnic components and should always be diagnosed using manufacturer-approved procedures.
Step 5: Inspect the Passenger Airbag Module
Inspect for:
- Previous deployment
- Internal damage
- Water intrusion
- Incorrect replacement components
Replace the airbag module only after confirming an internal electrical fault.
Common Repair Solutions
| Repair | Estimated Cost |
|---|---|
| Repair dashboard wiring | $150–450 |
| Replace SRS connector | $100–250 |
| Replace passenger airbag module | $500–1,200 |
| Replace dashboard wiring harness | $300–700 |
| Replace Airbag Control Module | $900–2,000 |
Common Diagnostic Mistakes
One of the most common mistakes is replacing the passenger airbag module before inspecting the wiring harness and connectors.
Many B0078 repairs ultimately involve:
- Chafed wiring
- Pinched harnesses
- Corroded connectors
- Previous collision repair damage
Always inspect the complete deployment circuit before replacing expensive SRS components.
Vehicles That Commonly Experience B0078
B0078 may appear on:
- Chevrolet Silverado
- GMC Sierra
- Chevrolet Tahoe
- GMC Yukon
- Cadillac Escalade
- Ford F-150
- Ford Explorer
- Toyota Camry
- Toyota Highlander
- Honda Accord
- Honda CR-V
- Acura MDX
- Nissan Altima
- Hyundai Santa Fe
- Kia Sorento
Manufacturer-specific definitions, wiring layouts, and repair procedures may vary by manufacturer.
How to Prevent B0078
Although some failures cannot be prevented, these maintenance practices can reduce the likelihood of B0078:
- Protect dashboard wiring during repairs.
- Ensure SRS wiring is properly routed.
- Repair windshield leaks promptly.
- Use OEM-quality replacement SRS components.
- Inspect harnesses after dashboard removal.
- Diagnose SRS warning lights immediately.
Frequently Asked Questions
What causes B0078?
The most common causes include chafed passenger airbag wiring contacting ground, damaged connectors, faulty passenger airbag modules, previous collision repairs, or Airbag Control Module failure.
What does “Short to Ground” mean?
It means the deployment circuit is unintentionally contacting chassis ground or another grounded electrical path, causing circuit resistance to fall below its expected operating range.
Is B0078 dangerous?
Yes.
A short-to-ground fault can disable the Passenger Stage 1 deployment circuit and prevent the passenger airbag from deploying during a collision.
Can I clear B0078 myself?
Yes, but unless the underlying electrical fault has been repaired, the code will return during the next SRS self-test.
Does B0078 always require replacing the passenger airbag?
No.
Many repairs involve repairing damaged wiring or replacing faulty connectors rather than replacing the passenger airbag module.
Will B0078 affect vehicle performance?
No.
The code affects only the Supplemental Restraint System and has no effect on engine performance, steering, braking, or transmission operation.
Final Thoughts
The B0078 code indicates that the Passenger Frontal Airbag Stage 1 deployment loop has developed a short-to-ground fault, most commonly caused by damaged dashboard wiring, pinched harnesses, faulty connectors, previous collision repair damage, or an internal airbag module failure. While the vehicle will generally continue to operate normally, the passenger frontal airbag may fail to deploy during a collision, significantly reducing occupant protection.
Many B0078 repairs involve repairing damaged wiring or replacing faulty connectors instead of replacing the passenger airbag module. A thorough diagnosis using manufacturer-approved SRS procedures is essential to restore proper Supplemental Restraint System operation.
