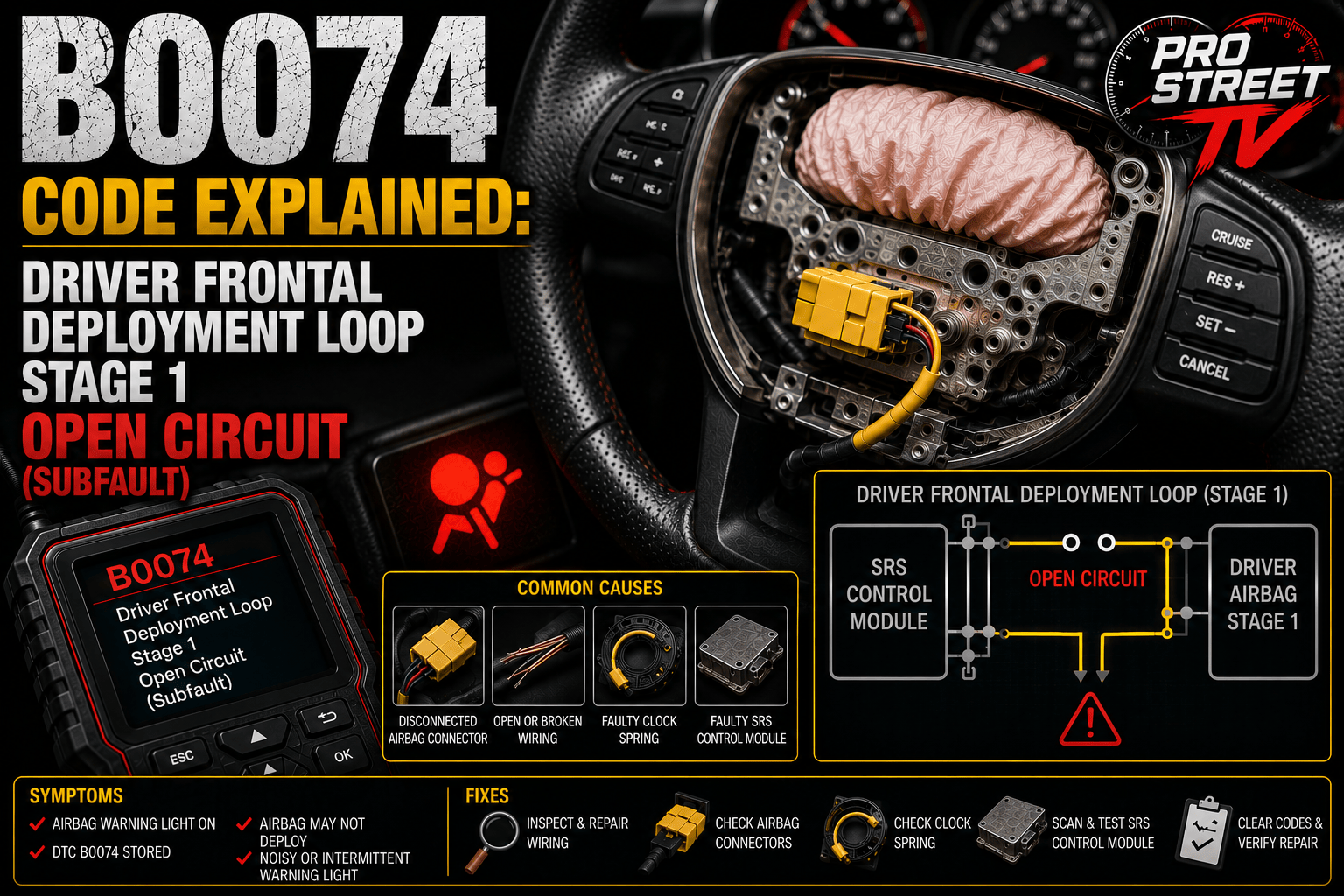

If your OBD-II scanner displays B0074, your vehicle has detected an open circuit in the Driver Frontal Airbag Stage 1 deployment loop. This diagnostic trouble code (DTC) indicates a critical electrical fault within the Supplemental Restraint System (SRS) that could prevent the first stage of the driver’s front airbag from deploying during a collision.
Modern vehicles equipped with dual-stage airbags use two separate deployment circuits to control inflation force based on crash severity, occupant position, seat belt usage, and other sensor inputs. The Airbag Control Module (ACM) continuously monitors each deployment loop for proper electrical continuity. If it detects an open circuit in the Driver Stage 1 deployment loop, it stores B0074 and illuminates the Airbag Warning Light.
This guide explains what the B0074 code means, its symptoms, common causes, repair costs, and how technicians properly diagnose and repair the issue.
Quick Facts
| Item | Information |
|---|---|
| OBD-II Code | B0074 |
| Description | Driver Frontal Deployment Loop Stage 1 Open Circuit (Subfault) |
| Category | Body (B) |
| System | Supplemental Restraint System (SRS) |
| Severity | ★★★★★ (Critical) |
| Safe to Drive? | Mechanically yes, safety-wise no |
| Repair Difficulty | Advanced |
| Typical Repair Cost | $150–$2,000 |
What Does B0074 Mean?
The B0074 diagnostic trouble code indicates the Airbag Control Module has detected an open circuit within the Driver Frontal Airbag Stage 1 deployment loop.
The Stage 1 deployment circuit typically includes:
- Driver Stage 1 airbag inflator
- Steering wheel airbag module
- Clock spring (spiral cable)
- Steering column wiring
- SRS connectors
- Airbag Control Module (ACM)
During every ignition cycle, the ACM performs an electrical self-test of each deployment circuit.
An open circuit means electrical continuity has been interrupted. Instead of the expected resistance, the ACM detects infinite or excessively high resistance, indicating that current cannot flow through the deployment loop. To prevent unreliable airbag operation, the ACM disables the affected circuit and stores B0074.
Symptoms of B0074
Common symptoms include:
- Airbag warning light illuminated
- “Service Airbag” or “SRS Service Required” message
- Stored B0074 code
- Additional SRS-related diagnostic trouble codes
- Horn may stop working (if the clock spring is damaged)
- Steering wheel controls may become inoperative
- Cruise control may stop functioning on some vehicles
- No engine or transmission drivability issues
Most drivers notice only the illuminated airbag warning light.
Common Causes
1. Failed Clock Spring
A broken clock spring is one of the most common causes of B0074.
Internal ribbon cable failure interrupts the deployment circuit.
2. Broken Steering Column Wiring
Repeated steering wheel movement can fatigue wiring until it breaks internally.
3. Loose or Disconnected SRS Connector
Loose connectors may interrupt electrical continuity.
Common problems include:
- Connector separation
- Broken locking tabs
- Bent terminals
- Corrosion
4. Damaged Driver Airbag Module
Although less common, an internal failure within the Stage 1 inflator may create an open circuit.
5. Previous Steering Wheel or Collision Repairs
Improper repairs may leave:
- Unplugged connectors
- Damaged wiring
- Incorrect routing
- Broken terminals
6. Airbag Control Module Failure
Rarely, an internal ACM fault can falsely detect an open deployment loop.
How Serious Is B0074?
Extremely serious.
If the Driver Stage 1 deployment loop is disabled:
- The driver’s frontal airbag may not deploy during a collision.
- Crash protection is significantly reduced.
- Overall SRS effectiveness is compromised.
Repairs should be completed as soon as possible.
Can You Drive With B0074?
Mechanically, yes.
From a safety standpoint, no.
Although the vehicle will usually operate normally, the driver’s frontal airbag may not function properly during a collision.
How to Diagnose B0074
Step 1: Scan the SRS Module
Use a professional scan tool capable of accessing:
- Supplemental Restraint System
- Airbag Control Module
- Manufacturer-specific airbag diagnostics
Generic OBD-II readers typically cannot retrieve B-codes.
Step 2: Inspect the Clock Spring
Look for additional symptoms including:
- Horn not working
- Steering wheel buttons inoperative
- Cruise control malfunction
- Intermittent SRS warning light
These commonly indicate a failed clock spring.
Step 3: Inspect Steering Column Wiring
Inspect the wiring harness for:
- Broken conductors
- Chafed insulation
- Pinched wiring
- Previous repair damage
Step 4: Inspect SRS Connectors
Inspect connectors for:
- Bent terminals
- Corrosion
- Loose locking tabs
- Connector separation
Step 5: Verify Circuit Continuity
Following the manufacturer’s approved SRS diagnostic procedures, verify continuity through the deployment loop using the specified equipment.
Never use a powered test light, apply battery voltage, or bypass an airbag deployment circuit. Airbag systems contain pyrotechnic components and should only be diagnosed using manufacturer-approved procedures.
Common Repair Solutions
| Repair | Estimated Cost |
|---|---|
| Replace clock spring | $250–600 |
| Repair steering column wiring | $150–450 |
| Replace SRS connector | $100–250 |
| Replace driver airbag module | $500–1,200 |
| Replace Airbag Control Module | $900–2,000 |
Common Diagnostic Mistakes
A common mistake is replacing the driver airbag module before inspecting the clock spring.
Many B0074 repairs are ultimately caused by:
- Broken clock springs
- Disconnected connectors
- Broken steering column wiring
- Previous steering wheel repairs
Always inspect the complete deployment circuit before replacing expensive SRS components.
Vehicles That Commonly Experience B0074
B0074 may appear on:
- Chevrolet Silverado
- GMC Sierra
- Chevrolet Tahoe
- GMC Yukon
- Cadillac Escalade
- Ford F-150
- Ford Explorer
- Toyota Camry
- Toyota Tacoma
- Honda Accord
- Honda Civic
- Acura TLX
- Nissan Altima
- Hyundai Sonata
- Kia K5
Manufacturer-specific definitions and repair procedures may vary by vehicle.
How to Prevent B0074
Although some failures cannot be prevented, these maintenance practices can reduce the likelihood of B0074:
- Replace worn clock springs promptly.
- Avoid damaging steering column wiring during repairs.
- Ensure SRS connectors are fully seated.
- Use OEM-quality replacement parts.
- Inspect wiring after steering wheel removal.
- Investigate SRS warning lights immediately.
Frequently Asked Questions
What causes B0074?
The most common causes include a failed clock spring, broken steering column wiring, disconnected SRS connectors, damaged driver airbag modules, previous repair damage, or Airbag Control Module failure.
What does “Open Circuit” mean?
It means electrical continuity has been interrupted. Current can no longer flow through the deployment loop because the circuit has been broken or disconnected.
Is B0074 dangerous?
Yes.
An open deployment circuit can prevent the Driver Stage 1 airbag from deploying during a collision.
Can a bad clock spring cause B0074?
Yes.
A failed clock spring is one of the leading causes of Driver Stage 1 deployment loop open-circuit faults.
Can I clear B0074 myself?
Yes, but unless the electrical fault has been repaired, the code will return after the next SRS self-test.
Will B0074 affect vehicle performance?
No.
The code affects only the Supplemental Restraint System and does not impact engine performance, braking, steering assist, or transmission operation.
Final Thoughts
The B0074 code indicates that the Driver Frontal Airbag Stage 1 deployment loop has developed an open circuit, most commonly caused by a failed clock spring, broken steering column wiring, disconnected connectors, or previous repair damage. While the vehicle will usually continue to operate normally, the driver’s frontal airbag may not deploy during a collision, significantly reducing occupant protection.
Fortunately, many B0074 repairs involve replacing a damaged clock spring or repairing wiring rather than replacing the airbag module. A complete diagnosis following manufacturer-approved SRS procedures is essential to restore safe airbag operation.
