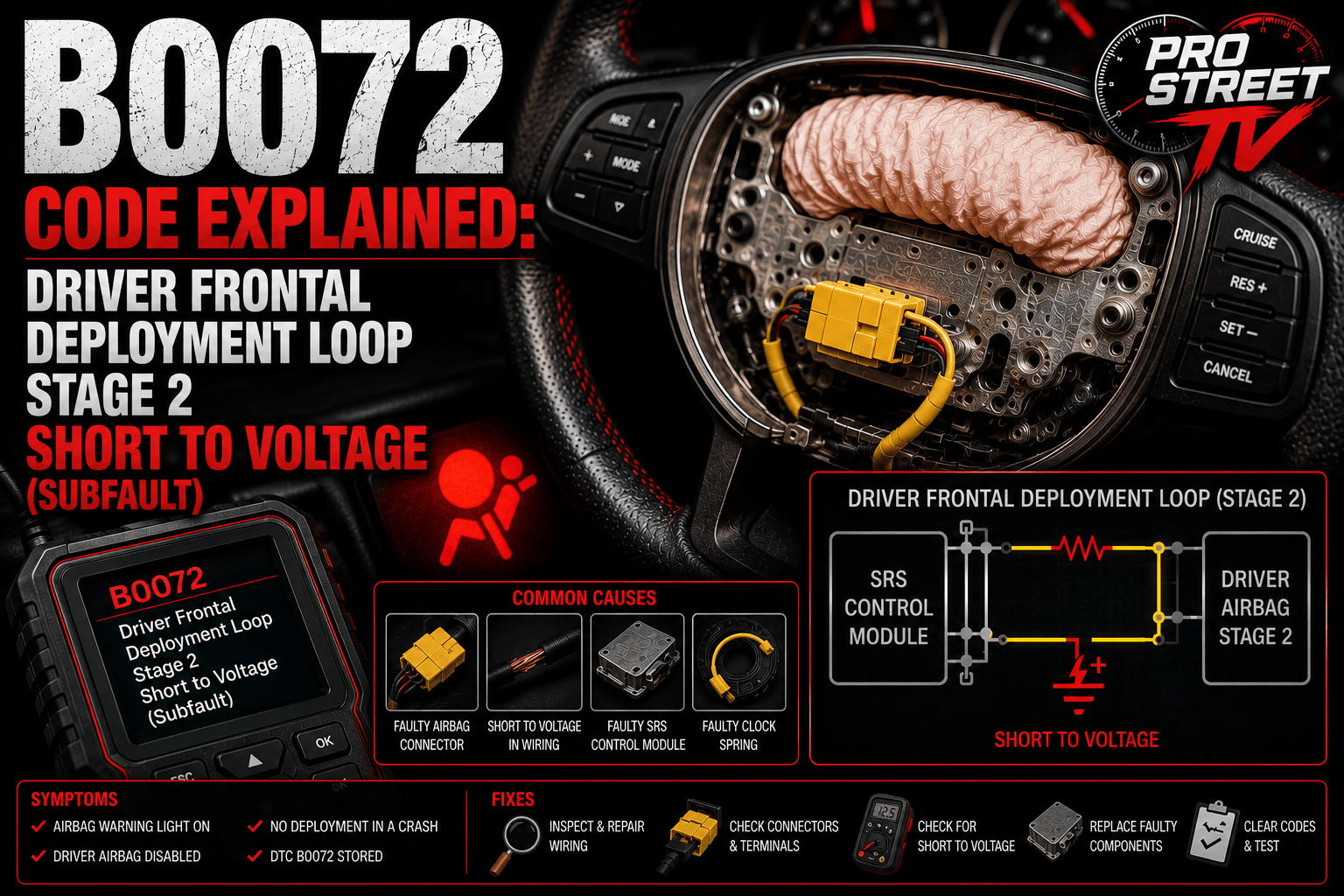

If your OBD-II scanner displays B0072, your vehicle has detected that the Driver Frontal Airbag Stage 2 deployment circuit has a short to voltage. This diagnostic trouble code (DTC) indicates a serious electrical fault within the Supplemental Restraint System (SRS) that could prevent the second stage of the driver’s front airbag from deploying correctly during a severe collision.
Modern vehicles equipped with dual-stage airbags use separate deployment circuits for Stage 1 and Stage 2 inflation. The Airbag Control Module (ACM) continuously monitors each deployment loop for opens, shorts to ground, shorts to voltage, and abnormal resistance. If it detects unexpected battery voltage on the Driver Stage 2 deployment circuit, it stores B0072 and illuminates the Airbag Warning Light.
This guide explains what the B0072 code means, common symptoms, likely causes, repair costs, and how technicians safely diagnose and repair the problem.
Quick Facts
| Item | Information |
|---|---|
| OBD-II Code | B0072 |
| Description | Driver Frontal Deployment Loop Stage 2 Short to Voltage (Subfault) |
| Category | Body (B) |
| System | Supplemental Restraint System (SRS) |
| Severity | ★★★★★ (Critical) |
| Safe to Drive? | Mechanically yes, safety-wise no |
| Repair Difficulty | Advanced |
| Typical Repair Cost | $150–$2,000 |
What Does B0072 Mean?
The B0072 diagnostic trouble code indicates the Airbag Control Module has detected a short-to-voltage condition within the Driver Frontal Airbag Stage 2 deployment circuit.
The Stage 2 deployment loop generally includes:
- Driver Stage 2 airbag inflator
- Steering wheel airbag module
- Clock spring (spiral cable)
- Steering column wiring
- SRS connectors
- Airbag Control Module (ACM)
During every ignition cycle, the ACM performs electrical self-tests on each deployment loop.
A short to voltage occurs when battery voltage is present on the deployment circuit where it should not be. This may result from damaged wiring contacting a powered circuit, connector faults, or an internal electrical failure. To prevent accidental deployment or unreliable operation, the ACM disables the affected deployment loop and stores B0072.
Symptoms of B0072
Common symptoms include:
- Airbag warning light illuminated
- “Service Airbag” or “SRS Service Required” message
- Stored B0072 code
- Additional SRS-related diagnostic trouble codes
- Steering wheel buttons may stop working (if the clock spring is damaged)
- Horn or cruise control issues on some vehicles
- No engine or transmission performance problems
Because the fault affects only the SRS, normal driving characteristics are usually unchanged.
Common Causes
1. Damaged Clock Spring
A worn or internally damaged clock spring may allow the deployment circuit to contact a powered conductor.
2. Chafed Steering Column Wiring
Damaged insulation can allow SRS wiring to contact:
- Battery power wires
- Ignition circuits
- Steering column electrical wiring
3. Pinched Wiring Harness
Improper steering wheel installation or collision repairs may damage the SRS harness.
4. Faulty Airbag Connector
Damaged or contaminated connectors may create unintended electrical contact with voltage sources.
5. Previous Collision Repairs
Improper repairs can result in:
- Incorrect wiring repairs
- Poor-quality splices
- Misrouted harnesses
- Damaged insulation
6. Airbag Control Module Failure
Although uncommon, an internal ACM fault may falsely detect a short-to-voltage condition.
How Serious Is B0072?
Extremely serious.
If the Driver Stage 2 deployment loop is disabled:
- The second stage of the driver’s airbag may not deploy.
- Airbag inflation force may be reduced during severe collisions.
- Occupant protection is compromised.
The issue should be repaired immediately.
Can You Drive With B0072?
Mechanically, yes.
From a safety standpoint, no.
The vehicle will generally operate normally, but the driver’s airbag may not provide the intended protection during a serious collision.
How to Diagnose B0072
Step 1: Scan the SRS Module
Use a professional scan tool capable of reading:
- Supplemental Restraint System
- Airbag Control Module
- Manufacturer-specific SRS diagnostics
Most inexpensive OBD-II readers cannot retrieve body (B) codes.
Step 2: Inspect the Clock Spring
Look for additional symptoms including:
- Inoperative horn
- Steering wheel button failures
- Cruise control problems
- Intermittent SRS warning light
These often indicate a damaged clock spring.
Step 3: Inspect Steering Column Wiring
Inspect the harness for:
- Chafed insulation
- Contact with powered circuits
- Pinched wiring
- Previous repair damage
Step 4: Inspect Airbag Connectors
Inspect connectors for:
- Bent terminals
- Corrosion
- Moisture
- Connector damage
- Loose locking clips
Step 5: Verify Circuit Integrity
Following the manufacturer’s SRS diagnostic procedures, inspect the deployment circuit for short-to-voltage faults using approved testing equipment.
Never apply battery voltage, use a powered test light, or bypass an airbag deployment circuit. Because airbag systems contain pyrotechnic devices, diagnosis should always follow manufacturer-approved procedures.
Common Repair Solutions
| Repair | Estimated Cost |
|---|---|
| Replace clock spring | $250–600 |
| Repair steering column wiring | $150–450 |
| Replace SRS connector | $100–250 |
| Replace driver airbag module | $500–1,200 |
| Replace Airbag Control Module | $900–2,000 |
Common Diagnostic Mistakes
A common mistake is replacing the driver airbag module before inspecting the clock spring and steering column wiring.
Many B0072 repairs ultimately involve:
- Chafed wiring
- Failed clock springs
- Connector damage
- Previous repair mistakes
Always inspect the complete deployment circuit before replacing expensive SRS components.
Vehicles That Commonly Experience B0072
B0072 may appear on:
- Chevrolet Silverado
- GMC Sierra
- Chevrolet Tahoe
- GMC Yukon
- Cadillac Escalade
- Ford F-150
- Ford Explorer
- Toyota Camry
- Toyota Tacoma
- Honda Accord
- Honda Civic
- Acura TLX
- Nissan Altima
- Hyundai Sonata
- Kia K5
Manufacturer-specific definitions, circuit layouts, and repair procedures may vary.
How to Prevent B0072
Although not every failure is preventable, these maintenance practices can reduce the likelihood of B0072:
- Protect steering column wiring during repairs.
- Replace damaged clock springs promptly.
- Avoid pinching SRS harnesses.
- Use OEM-quality replacement parts.
- Repair wiring damage immediately.
- Diagnose SRS warning lights as soon as they appear.
Frequently Asked Questions
What causes B0072?
The most common causes include a damaged clock spring, chafed steering column wiring contacting a powered circuit, faulty connectors, previous collision repairs, or Airbag Control Module failure.
What does “Short to Voltage” mean?
It means battery voltage is present on the deployment circuit where it should not be, indicating an electrical short with another powered circuit.
Is B0072 dangerous?
Yes.
A short-to-voltage fault can disable the Driver Stage 2 deployment circuit, reducing airbag effectiveness during a severe collision.
Can a bad clock spring cause B0072?
Yes.
A damaged clock spring is one of the leading causes of Driver Stage 2 deployment circuit electrical faults.
Can I clear B0072 myself?
Yes, but unless the underlying electrical fault has been repaired, the code will return during the next SRS self-test.
Will B0072 affect vehicle performance?
No.
The code affects only the Supplemental Restraint System and does not impact engine performance, steering assist, braking, or transmission operation.
Final Thoughts
The B0072 code indicates that the Driver Frontal Airbag Stage 2 deployment loop has developed a short-to-voltage fault, typically caused by damaged steering column wiring, a failed clock spring, connector problems, or previous repair damage. Although the vehicle will usually continue to drive normally, the Stage 2 deployment circuit may not operate correctly during a severe collision, reducing occupant protection.
Many B0072 repairs involve correcting damaged wiring or replacing a faulty clock spring rather than replacing the airbag module. A proper diagnosis using manufacturer-approved SRS procedures is essential to restore safe Supplemental Restraint System operation.
