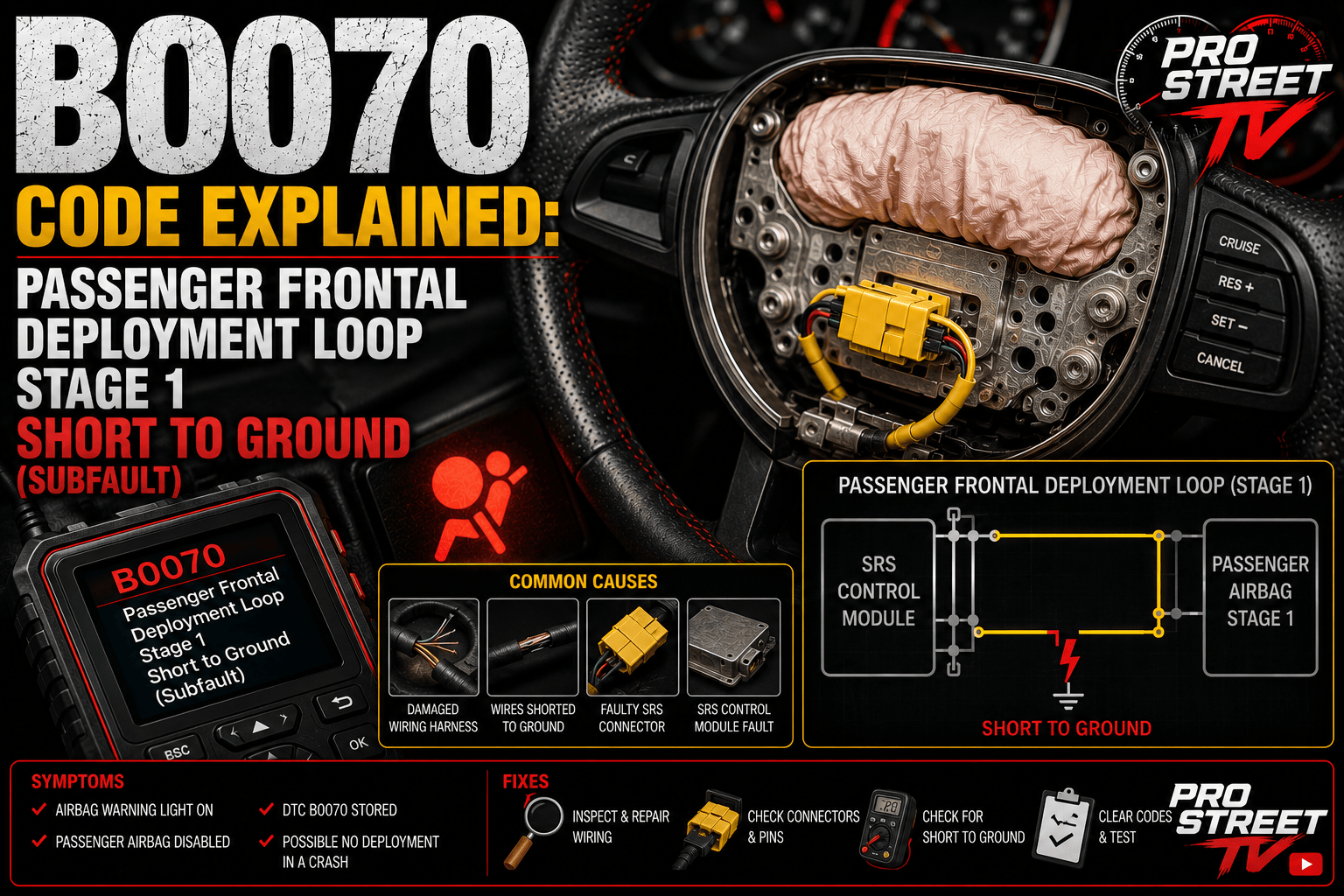

If your OBD-II scanner displays B0070, your vehicle has detected that the Passenger Frontal Airbag Stage 1 deployment circuit has a short to ground. This diagnostic trouble code (DTC) indicates a critical electrical fault within the Supplemental Restraint System (SRS) that could prevent the first stage of the passenger front airbag from deploying correctly during a collision.
Most modern vehicles use dual-stage frontal airbags that deploy with different levels of inflation depending on crash severity, occupant size, seat position, and seat belt usage. The Airbag Control Module (ACM) continuously monitors each deployment circuit for opens, shorts, and resistance values. When it detects a short-to-ground condition in the Passenger Stage 1 deployment loop, it stores B0070 and illuminates the Airbag Warning Light.
This guide explains what the B0070 code means, common symptoms, causes, repair costs, and how technicians safely diagnose and repair the fault.
Quick Facts
| Item | Information |
|---|---|
| OBD-II Code | B0070 |
| Description | Passenger Frontal Deployment Loop Stage 1 Short to Ground (Subfault) |
| Category | Body (B) |
| System | Supplemental Restraint System (SRS) |
| Severity | ★★★★★ (Critical) |
| Safe to Drive? | Mechanically yes, safety-wise no |
| Repair Difficulty | Advanced |
| Typical Repair Cost | $150–$2,000 |
What Does B0070 Mean?
The B0070 diagnostic trouble code indicates the Airbag Control Module has detected a short-to-ground fault within the Passenger Frontal Airbag Stage 1 deployment circuit.
The Stage 1 deployment loop typically consists of:
- Passenger Stage 1 airbag inflator
- Passenger dashboard airbag module
- Dashboard wiring harness
- Intermediate connectors
- SRS wiring
- Airbag Control Module (ACM)
Each time the ignition is switched on, the ACM performs a self-test of every airbag deployment circuit.
A short to ground occurs when the deployment circuit unintentionally contacts the vehicle chassis or another grounded conductor. Because this fault could interfere with proper airbag deployment, the ACM disables the affected circuit and stores B0070.
Symptoms of B0070
Common symptoms include:
- Airbag warning light illuminated
- “Service Airbag” or “SRS Service Required” message
- Stored B0070 code
- Passenger Airbag OFF light behaving abnormally on some vehicles
- Additional SRS-related diagnostic trouble codes
- No engine, transmission, or braking performance issues
Because the fault affects only the SRS, most drivers notice no changes in normal vehicle operation.
Common Causes
1. Chafed Dashboard Wiring
The passenger airbag wiring harness may rub against dashboard supports or metal brackets, exposing conductors that contact ground.
2. Pinched Wiring Harness
Improper dashboard installation or previous repairs may pinch the SRS wiring.
3. Faulty Passenger Airbag Module
An internal failure within the Stage 1 inflator can create a short-to-ground condition.
4. Damaged SRS Connectors
Loose or damaged connectors may allow terminals to contact grounded metal components.
Common issues include:
- Bent pins
- Broken connector locks
- Corrosion
- Terminal damage
5. Moisture Intrusion
Water entering the dashboard area may contaminate connectors and wiring.
Possible sources include:
- Windshield leaks
- HVAC condensation
- Flood damage
6. Airbag Control Module Failure
Although uncommon, an internal ACM fault may falsely report a short-to-ground condition.
How Serious Is B0070?
Extremely serious.
If the Passenger Stage 1 deployment loop is disabled:
- The passenger airbag may fail to deploy correctly.
- Crash protection is significantly reduced.
- Occupant safety is compromised.
The fault should be repaired immediately.
Can You Drive With B0070?
Mechanically, yes.
From a safety standpoint, no.
The vehicle will generally operate normally, but the passenger frontal airbag may not provide proper protection during a collision.
How to Diagnose B0070
Step 1: Scan the SRS Module
Use a professional scan tool capable of reading:
- Supplemental Restraint System
- Airbag Control Module
- Manufacturer-specific SRS codes
Most generic OBD-II readers cannot retrieve body (B) codes.
Step 2: Inspect Passenger Airbag Connectors
Inspect dashboard connectors for:
- Bent terminals
- Corrosion
- Loose locking tabs
- Moisture
- Connector damage
Step 3: Inspect Dashboard Wiring
Inspect the wiring harness for:
- Chafed insulation
- Pinched wiring
- Contact with metal supports
- Previous repair damage
Step 4: Verify Circuit Integrity
Following the manufacturer’s SRS diagnostic procedures, inspect the deployment loop for short-to-ground faults using approved diagnostic equipment.
Never use a powered test light, apply battery voltage, or bypass an airbag deployment circuit. Always follow the manufacturer’s specified diagnostic procedures.
Step 5: Inspect the Passenger Airbag Module
Inspect for:
- Previous deployment
- Water damage
- Physical damage
- Incorrect replacement parts
Replace the airbag module only after confirming an internal failure.
Common Repair Solutions
| Repair | Estimated Cost |
|---|---|
| Repair dashboard wiring | $150–450 |
| Replace SRS connector | $100–250 |
| Replace passenger airbag module | $500–1,200 |
| Replace dashboard wiring harness | $300–700 |
| Replace Airbag Control Module | $900–2,000 |
Common Diagnostic Mistakes
One of the most common mistakes is replacing the passenger airbag module before inspecting the wiring harness.
Many B0070 repairs ultimately involve:
- Chafed dashboard wiring
- Pinched harnesses
- Moisture-contaminated connectors
- Previous collision repair damage
Always inspect the complete deployment circuit before replacing expensive SRS components.
Vehicles That Commonly Experience B0070
B0070 may appear on:
- Chevrolet Silverado
- GMC Sierra
- Chevrolet Tahoe
- GMC Yukon
- Cadillac Escalade
- Ford F-150
- Ford Explorer
- Toyota Camry
- Toyota Highlander
- Honda Accord
- Honda CR-V
- Acura MDX
- Nissan Altima
- Hyundai Santa Fe
- Kia Sorento
Manufacturer-specific definitions, circuit layouts, and repair procedures may vary.
How to Prevent B0070
Although not every failure is preventable, these practices can reduce the likelihood of B0070:
- Protect SRS wiring during dashboard repairs.
- Repair windshield leaks promptly.
- Avoid pinching airbag harnesses.
- Keep electrical connectors clean and dry.
- Use OEM-quality SRS replacement parts.
- Investigate SRS warning lights immediately.
Frequently Asked Questions
What causes B0070?
The most common causes include damaged dashboard wiring, pinched harnesses, faulty passenger airbag modules, damaged connectors, moisture intrusion, or Airbag Control Module failure.
What does “Short to Ground” mean?
It means the deployment circuit is unintentionally contacting the vehicle chassis or another grounded conductor, preventing the airbag circuit from functioning properly.
Is B0070 dangerous?
Yes.
A short-to-ground fault can disable the Passenger Stage 1 airbag deployment circuit, significantly reducing occupant protection during a collision.
Can I clear B0070 myself?
Yes, but unless the underlying electrical fault has been repaired, the code will return after the next SRS self-test.
Does B0070 always require replacing the passenger airbag?
No.
Many repairs involve fixing damaged wiring or replacing connectors rather than replacing the airbag module itself.
Will B0070 affect vehicle performance?
No.
The code affects only the Supplemental Restraint System and has no effect on engine performance, steering, braking, or transmission operation.
Final Thoughts
The B0070 code indicates that the Passenger Frontal Airbag Stage 1 deployment loop has developed a short-to-ground fault, most commonly caused by damaged dashboard wiring, pinched harnesses, faulty connectors, moisture intrusion, or an internal airbag module fault. Although the vehicle may continue to drive normally, the passenger airbag may not deploy correctly during a collision, reducing the effectiveness of the Supplemental Restraint System.
Fortunately, many B0070 repairs involve repairing damaged wiring or replacing connectors instead of replacing the airbag module. A thorough diagnosis using manufacturer-approved SRS procedures is essential to restore proper airbag functionality and occupant safety.
